51单片机实现万年历程序文件

51单片机做的12864万年历这是我花了一个星期时间做的万年历；一开始是一些图片，后面是这个制作的C语言源程序；希望大家稀饭：Main.c#include "reg52.h"#include "macroconst.h"#include "keyscan.h"#include "screen.h"#include "18b20.h"#include "ds1302.h"#include "atao_12864.h"#include "24c02.h"idata unsigned char state1[1];unsigned char screennum=1;//屏幕号#define time_task_sec 200 //节拍200Hz#define clock 24000000 //晶振#define max_task 4 //最大任务数idata unsigned char task_delay[4];#define task_delay0 time_task_sec/1 //2赫兹18b20 #define task_delay1 time_task_sec/5 //10赫兹屏幕#define task_delay2 time_task_sec/3 //4赫兹1302 #define task_delay3 time_task_sec/20 //20赫兹键盘void init(){unsigned char i;init18b20();ds1302_init();initina1(); //---------------------------LCD字库初始化程序RdFromROM(state1,8,1);state[0]=state1[0]; //-------界面RdFromROM(state1,15,1);state[1]=state1[0];//------- 闹钟RdFromROM(state1,11,1);key_sound=state1[0];//-------按键音// state[2]=state1[2];// state[3]=state1[3];screennum=1;//------默认一号屏for(i=0;i<max_task;i++)//清除任务延时{task_delay[i]=0;}TMOD=0x11;EA=1;TH0=255-clock/time_task_sec/12/526;TL0=255-clock/time_task_sec/12%526;ET0=1;TR0=1;}void main(){init();while(1){ if(task_delay[0]==0){readtemp(); task_delay[0]=task_delay0;} if(task_delay[3]==0){MenuCheckKey();task_delay[3]=task_delay1;}if(task_delay[1]==0){screen_select(screennum);task_delay[1]=task_delay1;} if(task_delay[2]==0){ds1302_read_time(); task_delay[2]=task_delay0;} }}void timer0() interrupt 1{uchar i=0;TH0=255-clock/time_task_sec/12/526;TH1=255-clock/time_task_sec/12%526;for(i=0;i<max_task;i++)if(task_delay[i]) task_delay[i]--; // miao=21,fen=33,xiaomiao=94;if(ma_start==1){tt++;if(tt==8){tt=0;xiaomiao++;if(xiaomiao==99){xiaomiao=0;miao++;if(miao==60){miao=0;fen++;if(fen==99){fen=0;}}}}}}Screen.c:#include "reg52.h"#include "macroconst.h"#include "delay.h"#include "18b20.h"#include "atao_12864.h"#include "ds1302.h"#include "24c02.h"#include "festival.h"#include "keyscan.h"idata unsigned char miao=0,fen=78,xiaomiao=0,tt=0;idata unsigned char bai,shi,ge,shinian,genian,shiyue,geyue,shiri,geri,shishi,geshi,shifen,gefen,shimi ao,gemiao;idata unsigned char Number[4];unsigned char code mainmenu[]={" 主菜单""3.查询 4.温度""1.调时 2.秒表""5.设置 6.返回"};unsigned char code setmenu[]={" 设置""3.查温 4.按键""1.界面 2.闹铃""5.报时 6.返回"};void gettime(){shinian=(time_buf1[1]%100)/10;genian=(time_buf1[1]%100)%10;shiyue=(time_buf1[2])/10;geyue=(time_buf1[2])%10;shiri=(time_buf1[3])/10;geri=(time_buf1[3])%10;shishi=(time_buf1[4])/10;geshi=(time_buf1[4])%10;shifen=(time_buf1[5])/10;gefen=(time_buf1[5])%10;shimiao=(time_buf1[6])/10;gemiao=(time_buf1[6])%10;}void screen_select(uchar num){// initina1();gettime() ;if(num==1) //----------主界面{Lcd_Set_Post(1,0);TransferData(shinian+48,1);//----------------------年TransferData(genian+48,1);TransferData('/',1);TransferData(shiyue+48,1);//----------------------月TransferData(geyue+48,1);TransferData('/',1);TransferData(shiri+48,1);//----------------------日TransferData(geri+48,1);Lcd_Set_Post(1,4);if(state[1]==1)//----------------闹铃的状态图标{TransferData(' ',1);TransferData(14,1);}Lcd_Set_Post(1,5);if(key_sound==1){TransferData(13,1);}if(state[0]==0){Lcd_Set_Post(1,7); //----------------农历年nian(0);Lcd_Set_Post(2,0);//----------------------- 农历日月LCD_WRITE_CHAR("农历");Conversion(0,time_buf[1],time_buf[2],time_buf[3]);TransferData(month_moon/16+'0',1);TransferData(month_moon%16+'0',1);TransferData('/',1);TransferData(day_moon/16+'0',1);TransferData(day_moon%16+'0',1);}if(state[0]==1){Lcd_Set_Post(3,5);}else {Lcd_Set_Post(2,5);}LCD_WRITE_CHAR("星期");//----------------------星期if(time_buf1[7]==7) {LCD_WRITE_CHAR("日");}if(time_buf1[7]==6) {LCD_WRITE_CHAR("六");}if(time_buf1[7]==5) {LCD_WRITE_CHAR("五");}if(time_buf1[7]==4) {LCD_WRITE_CHAR("四");}if(time_buf1[7]==3) {LCD_WRITE_CHAR("三");}if(time_buf1[7]==2) {LCD_WRITE_CHAR("二");}if(time_buf1[7]==1) {LCD_WRITE_CHAR("一");}Lcd_Set_Post(3,0);TransferData(shishi+48,1);//----------------------时TransferData(geshi+48,1);TransferData(58,1);TransferData(shifen+48,1);//----------------------分TransferData(gefen+48,1);TransferData(58,1);TransferData(shimiao+48,1);//----------------------秒TransferData(gemiao+48,1);if(state[0]==0){bai=(temph/100); //---------------------------------温度shi=(temph%100)/10;ge=(temph%100)%10;Lcd_Set_Post(3,4);if(zerotemp==0){TransferData(' ',1);TransferData(' ',1);} Lcd_Set_Post(3,5);TransferData(shi+48,1);TransferData(ge+48,1);TransferData('.',1);TransferData(templ+48,1);TransferData(0xa1,1);TransferData(0xe6,1);Lcd_Set_Post(4,0);festival(time_buf[2],time_buf[3],time_buf[4]);//农历}}if(num==3)//----------主菜单{Lcd_Set_Post(1,0);//--------设置显示位置LCD_WRITE_CHAR(mainmenu);}if(num==4)//----------设置菜单{Lcd_Set_Post(1,0);//--------设置显示位置LCD_WRITE_CHAR(setmenu);}if(num==5)//----------时间设置{Lcd_Set_Post(1,2);//--------设置显示位置LCD_WRITE_CHAR("时间设置");Lcd_Set_Post(2,1);TransferData(shinian+48,1);//----------------------年TransferData(genian+48,1);LCD_WRITE_CHAR("年");TransferData(shiyue+48,1);//----------------------月TransferData(geyue+48,1);LCD_WRITE_CHAR("月");TransferData(shiri+48,1);//----------------------日TransferData(geri+48,1);LCD_WRITE_CHAR("日");TransferData(time_buf1[7]+48,1);//---------------星期Lcd_Set_Post(3,2);TransferData(shishi+48,1);//--------------------时TransferData(geshi+48,1);LCD_WRITE_CHAR("时");TransferData(shifen+48,1);//---------------------分TransferData(gefen+48,1);LCD_WRITE_CHAR("分");TransferData(shimiao+48,1);//--------------------秒TransferData(gemiao+48,1);}if(num==6)//----------秒表{uchar shi1,shi2,shi3,ge1,ge2,ge3;Lcd_Set_Post(1,3);//--------设置显示位置LCD_WRITE_CHAR("秒表");Lcd_Set_Post(3,2);shi1=fen/10;ge1=fen%10;TransferData(shi1+48,1);TransferData(ge1+48,1);TransferData(':',1);shi2=miao/10;ge2=miao%10;TransferData(shi2+48,1);TransferData(ge2+48,1);TransferData(':',1);shi3=xiaomiao/10;ge3=xiaomiao%10;TransferData(shi3+48,1);TransferData(ge3+48,1);}if(num==8){Lcd_Set_Post(1,2);//--------农历查询LCD_WRITE_CHAR("温度查询");Lcd_Set_Post(3,0);//--------农历查询LCD_WRITE_CHAR("最高温度"); TransferData(':',1);RdFromROM(Number,0,4);if(Number[3]==0){TransferData('-',1);}Lcd_Set_Post(3,5);TransferData(Number[0]+48,1); TransferData(Number[1]+48,1); TransferData('.',1);TransferData(Number[2]+48,1); TransferData(0xa1,1);TransferData(0xe6,1); Lcd_Set_Post(4,0);//--------农历查询LCD_WRITE_CHAR("最低温度"); TransferData(':',1);RdFromROM(Number,4,4);if(Number[3]==0){TransferData('-',1);}Lcd_Set_Post(4,5);TransferData(Number[0]+48,1); TransferData(Number[1]+48,1); TransferData('.',1);TransferData(Number[2]+48,1); TransferData(0xa1,1);TransferData(0xe6,1); }if(num==9)//----------界面菜单{Lcd_Set_Post(1,2);//--------设置显示位置LCD_WRITE_CHAR("界面选择");Lcd_Set_Post(2,0);TransferData(1+48,1);TransferData('.',1);LCD_WRITE_CHAR("多功能界面");Lcd_Set_Post(3,0);TransferData(2+48,1);TransferData('.',1);LCD_WRITE_CHAR("简洁界面");}。

#include <reg51.h> // 该程序具有显示日期、月份、日期和时间功能#include<stdio.h>#include<intrins.h>#define uchar unsigned char#define uint unsigned int#define sint signed int#define disp_off 0x3e //显示关#define disp_on 0x3f //显示开#define disp_x 0xb8 //页地址为0页#define disp_z 0xc0 //行地址为0行#define disp_y 0x40 //列地址为0列#define comm 0 //命令标志位#define dat1 1 //数据标志位#define data_ora P0 //液晶12864的数据端与单片机的P0相连sbit di =P2^0; //Data or Instrument Select,H:写数据,L:写指令sbit rw =P2^1; //Write or Read,H:read,L:writesbit e =P2^4; //读写使能sbit cs1=P2^2; //cs1=H,选择左半屏sbit cs2=P2^3; //cs2=H,选择右半屏sbit clk=P1^0; //8563 clksbit dat=P1^1; //8563 datauchar fen=0x42,miao=0x38,shi=0x17,riqi=0x02,//设置时间用yuefen=0x09,xingqi=0x00,nian=0x07,zhongduan;//设置时间用uchar code tabma[10][16]=//阴码点阵格式、取模方式为列行式、逆向取模（低位在前），//十六进制输出，中文16*16，英文8*16 宋体{//0(0) 1(1) 2(2) 3(3) 4(4) 5(5) 6(6) 7(7) 8(8) 9(9){0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00}, /*"0",0*/{0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00}, /*"1",1*/{0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00}, /*"2",2*/{0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00}, /*"3",3*/{0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00}, /*"4",4*/{0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00}, /*"5",5*/{0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00}, /*"6",6*/{0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00}, /*"7",7*/{0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00}, /*"8",8*/{0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00}, /*"9",9*/ };uchar code tab2ma[7][32]=// 日(0) 一(1) 二(2) 三(3) 四(4) 五(5) 六(6){{0x00,0x00,0x00,0xFE,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x3F,0x00,0x00,0x00,0x00}, /*"日",0*/{0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0xC0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00}, /*"一",1*/{0x00,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x06,0x04,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x18,0x10,0x00}, /*"二",2*/{0x00,0x04,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x04,0x00,0x00,0x00,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0x00}, /*"三",3*/{0x00,0xFE,0x02,0x02,0x02,0xFE,0x02,0x02,0xFE,0x02,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x7F,0x28,0x24,0x23,0x20,0x20,0x20,0x21,0x22,0x22,0x22,0x22,0x7F,0x00,0x00}, /*"四",4*/{0x00,0x02,0x82,0x82,0x82,0x82,0xFE,0x82,0x82,0x82,0xC2,0x82,0x02,0x00,0x00,0x00,0x20,0x20,0x20,0x20,0x20,0x3F,0x20,0x20,0x20,0x20,0x3F,0x20,0x20,0x30,0x20,0x00}, /*"五",5*/{0x10,0x10,0x10,0x10,0x10,0x91,0x12,0x1E,0x94,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x40,0x20,0x10,0x0C,0x03,0x01,0x00,0x00,0x01,0x02,0x0C,0x78,0x30,0x00,0x00}, /*"六",6*/ };uchar code nianma[]=//年(0) 月(1) 日(2) 星(3) 期(4){0x40,0x20,0x10,0x0C,0xE3,0x22,0x22,0x22,0xFE,0x22,0x22,0x22,0x22,0x02,0x00,0x00,0x04,0x04,0x04,0x04,0x07,0x04,0x04,0x04,0xFF,0x04,0x04,0x04,0x04,0x04,0x04,0x00}; /*"年",0*/ uchar code yuema[]={0x00,0x00,0x00,0x00,0x00,0xFF,0x11,0x11,0x11,0x11,0x11,0xFF,0x00,0x00,0x00,0x00,0x00,0x40,0x20,0x10,0x0C,0x03,0x01,0x01,0x01,0x21,0x41,0x3F,0x00,0x00,0x00,0x00}; /*"月",1*/ uchar code rima[]={0x00,0x00,0x00,0xFE,0x42,0x42,0x42,0x42,0x42,0x42,0x42,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x3F,0x00,0x00,0x00,0x00}; /*"日",2*/ uchar code xingqima[]={0x00,0x00,0x00,0xBE,0x2A,0x2A,0x2A,0xEA,0x2A,0x2A,0x2A,0x2A,0x3E,0x00,0x00,0x00,0x00,0x48,0x46,0x41,0x49,0x49,0x49,0x7F,0x49,0x49,0x49,0x49,0x49,0x41,0x40,0x00, /*"星",3*/0x00,0x04,0xFF,0x54,0x54,0x54,0xFF,0x04,0x00,0xFE,0x22,0x22,0x22,0xFE,0x00,0x00,0x42,0x22,0x1B,0x02,0x02,0x0A,0x33,0x62,0x18,0x07,0x02,0x22,0x42,0x3F,0x00,0x00}; /*"期",4*///时(0) 分(1) 秒(2)uchar code shima[]={0x00,0xFC,0x44,0x44,0x44,0xFC,0x10,0x90,0x10,0x10,0x10,0xFF,0x10,0x10,0x10,0x00,0x00,0x07,0x04,0x04,0x04,0x07,0x00,0x00,0x03,0x40,0x80,0x7F,0x00,0x00,0x00,0x00}; /*"时",0*/uchar code fenma[]={0x80,0x40,0x20,0x98,0x87,0x82,0x80,0x80,0x83,0x84,0x98,0x30,0x60,0xC0,0x40,0x00,0x00,0x80,0x40,0x20,0x10,0x0F,0x00,0x00,0x20,0x40,0x3F,0x00,0x00,0x00,0x00,0x00}; /*"分",1*/uchar code miaoma[]={0x12,0x12,0xD2,0xFE,0x91,0x11,0xC0,0x38,0x10,0x00,0xFF,0x00,0x08,0x10,0x60,0x00,0x04,0x03,0x00,0xFF,0x00,0x83,0x80,0x40,0x40,0x20,0x23,0x10,0x08,0x04,0x03,0x00}; /*"秒",2*/void delay(sint n); //延时程序void xie_start(); //开始条件void xie_stop(); //停止条件bit xie1(uchar shu); //向8563中写入1个字uchar du1(); //从8563中读出1个字uchar du(); //从8563中读出时间和日期uchar xie(); //向8563中设置时间和日期//uchar xie_dingshi(); //8563定时器设置//uchar xie_fangbo_dingshi(); //8563的方波设置void delay1 (uint ms); //延时void wr_lcd (uchar dat_comm,uchar content); //向12864中写命令//uchar rd_lcd (); //读12864数据void chk_busy (); //忙闲检测void lat_disp (uchar data1,uchar data2); //写点钟//void img_disp (uchar code *img) ; //显示图像void chn_disp (uchar x,uchar y,uchar xl,uchar yl,uchar row_xl,uchar row_yl,uchar code *chn);//显示汉字void init_lcd (); //12864初始化void disp(); //128显示程序//-------------主函数--------------------void main(){uchar ml=0;init_lcd (); //LCD初始化lat_disp(0x00,0x00);xie(); //预设时间用，设置好时间后可以屏蔽for(;;){du(); //读8563的时间lat_disp(0x00,0x00);disp(); //显示时间delay1(100);}}//-------------------延时---------------------------//void delay(sint n){for(n;n>0;n--);}/////////////////////以下是PCF8563读写/////////////////////以下是PCF8563读写/* I2C的起始条件，在时钟端SCK为高电平时，数据端SDA发生由高到低的变化，为起始条件，启动I2C总线。

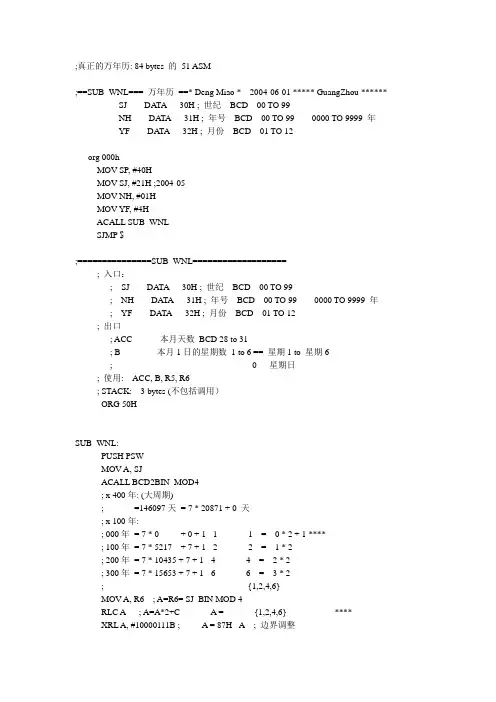

;真正的万年历: 84 bytes 的51 ASM;==SUB_WNL=== 万年历==* Deng Miao * 2004-06-01 ***** GuangZhou ****** SJ DA TA30H ; 世纪BCD 00 TO 99NH DA TA31H ; 年号BCD 00 TO 99 0000 TO 9999 年YF DA TA32H ; 月份BCD 01 TO 12org 000hMOV SP, #40HMOV SJ, #21H ;2004-05MOV NH, #01HMOV YF, #4HACALL SUB_WNLSJMP $;===============SUB_WNL===================; 入口：; SJ DA TA30H ; 世纪BCD 00 TO 99; NH DA TA31H ; 年号BCD 00 TO 99 0000 TO 9999 年; YF DA TA32H ; 月份BCD 01 TO 12; 出口; ACC -- 本月天数BCD 28 to 31; B -- 本月1日的星期数1 to 6 == 星期1 to 星期6; 0 -- 星期日; 使用: ACC, B, R5, R6; STACK: 3 bytes (不包括调用）ORG 50HSUB_WNL:PUSH PSWMOV A, SJACALL BCD2BIN_MOD4; x 400年: (大周期); =146097天= 7 * 20871 + 0 天; x 100年:; 000年= 7 * 0 + 0 + 1 - 1 1 = 0 * 2 + 1 ****; 100年= 7 * 5217 + 7 + 1 - 2 2 = 1 * 2; 200年= 7 * 10435 + 7 + 1 - 4 4 = 2 * 2; 300年= 7 * 15653 + 7 + 1 - 6 6 = 3 * 2; {1,2,4,6}MOV A, R6 ; A=R6= SJ_BIN MOD 4RLC A; A=A*2+C A = {1,2,4,6} ****XRL A, #10000111B ; A = 87H - A; 边界调整MOV R5, A; A = {86H, 85H, 83H, 81H} ; R5: 星期MOV A, NHJZ WNL_1ACALL BCD2BIN_MOD4XCH A, R5SUBB A, R5 ; 0 年; 0 = 0 + 0 + 1 + (-1) ***MOV R5, A单片机日记：WNL_1:MOV A, YFADD A, #(WNL_TAB-$-4)MOVC A, @A+PCMOV R6, ASW AP AACALL WNL_F0; 大年对>=3月调整准备ADDC A, R5 ; 月调整MOV B, #7DIV AB ; B = A MOD 7MOV A, R6ACALL WNL_F0; 大年调整准备ADDC A, #28POP PSWRETWNL_TAB:DB 3*2 + 5 * 32+0 ;1 BIT 0 : "2月" 标志DB 0*2+1+1 * 32+0 ;2 ** BIT 1..2: 月大小DB 3*2 + 1 * 32+16 ;3 00：28 天DB 2*2 + 4 * 32+16 ;4 01：----DB 3*2 + 6 * 32+16 ;5 10: 30 天DB 2*2 + 2 * 32+16 ;6 11: 31 天DB 3*2 + 4 * 32+16 ;7 BIT 3: 0 -----DB 3*2 + 7 * 32+16 ;8 BIT 4: 0: 1/2月DB 2*2 + 3 * 32+16 ;9 1: >=3月WNL_F0: ; 6 BYTES ; 大年调整准备RRC A;0AHANL A, #07H ;0BH;0CHANL C, F0 ;0DH;0EHRET ;0FHDB 3*2 + 5 * 32+16 ;10H BIT 5..7: 星期调整数DB 2*2 + 1 * 32+16 ;11H 0：---DB 3*2 + 3 * 32+16 ;12H 1-7: 调整数BCD2BIN_MOD4:; 功能：A. 1 BYTES BCD TO BIN; B. MOD 4; C. MUL 2; 入口：; A: SJ OR NH; F0 : 大世纪; 出口; ACC -- (BIN(A) \ 4) * 2 - (BIN(A) MOD 4) - F0; R6 -- BIN(A) MOD 4; C -- IIF( (BIN(A) MOD 4)=0, 1, 0 ); 使用: ACC, B, R6, PSW; STACK: 0 bytes (不包括调用）MOV R6, A; BCD ==> BINANL A, #0F0H ; 16X+Y ==> 10X+YSW AP AMOV B, #(256-6) ; (256-6)*X + (16X+Y)MUL AB ;ADD A, R6 ; = 256X + (10X+Y)MOV R6, A; MOD4ANL A, #3XCH A, R6 ; R6 = BIN MOD 4 = {0,1,2,3}; X 4年：3 * 365 + 366 = 7*209 + (-2) ** XRL A, R6 ; A = (BIN \ 4)RR A; A = (BIN \4 ) * 2 **MOV C, F0 ; 大世纪调整SUBB A, R6;X 1 年:;0 年0 = 0 + 0 + 1 + (-1) ***;1 年366 = 7*52 + 1 + 1;2 年366 + 365 = 7*104 + 2 + 1;3 年366 + 365 + 365 = 7*156+3 + 1; {-1,1,2,3}CJNE R6, #1, $ + 3 ; C = IIF(R6>=1, 0, 1)MOV F0, C ; C=1 为大年/大世纪RET;-----------------------------END ;======== END OF FILE。

51单片机电子万年历设计电路图及程序(总37页)本页仅作为文档封面，使用时可以删除This document is for reference only-rar21year.March摘要：电子万年历是一种非常广泛日常计时工具，对现代社会越来越流行。

它可以对年、月、日、周日、时、分、秒进行计时，还具有闰年补偿等多种功能，而且DS1302的使用寿命长，误差小。

对于数字电子万年历采用直观的数字显示，可以同时显示年、月、日、周日、时、分、秒和温度等信息，还具有时间校准等功能。

该电路采用AT89S52单片机作为核心，功耗小，能在3V的低压工作，电压可选用3~5V电压供电。

本设计是基于51系列的单片机进行的电子万年历设计，可以显示年月日时分秒及周信息，具有可调整日期和时间功能。

在设计的同时对单片机的理论基础和外围扩展知识进行了比较全面准备。

在硬件与软件设计时，没有良好的基础知识和实践经验会受到很大限制，每项功能实现时需要那种硬件，程序该如何编写，算法如何实现等，没有一定的基础就不可能很好的实现。

在编写程序过程中发现以现有的相关知识要独自完成编写任务困难重重，在老师和同学的帮助下才完成了程序部分的编写。

万年历的设计过程在硬件与软件方面进行同步设计。

硬件部分主要由AT89C52单片机，LED显示电路，以及调时按键电路等组成。

在单片机的选择上本人使用了AT89C52单片机，该单片机适合于许多较为复杂控制应用场合。

显示器使用2片7SEG-MPX8-CA和一片7SEG-MPX4-CA。

7SEG-MPX8-CA是一种八个共阳二极管显示器，7SEG-MPX4-CA是一种四个共阳二极管显示器。

为了能更轻松的控制这三片显示器，本人使用了3片74HC164来驱动。

74HC164 是 8 位边沿触发式移位寄存器，串行输入数据，然后并行输出。

软件方面主要包括日历程序、时间调整程序，公历转阴历程序，显示程序等。

程序采用汇编语言编写，以便更简单地实现调整时间及阴历显示功能。

//DS1302时钟芯片程序#include <reg52.h>#define uchar unsigned char#define uint unsigned intsbit CLK=P2^3; //定义口sbit IO=P2^4;sbit RST=P2^5;sbit ACC7=ACC^7;sbit ACC0=ACC^0;uchar a[10]={0xc0,0xf9,0xa4,0xb0,0x99,0x92,0x82,0xf8,0x80,0x90}, //定义数码管显示码b[8]={0x00,0x00,0x12,0x23,0x11,0x07,0x08,0xbe},//写入时钟数据,最后be突发访问c[7],s,s1,ml1,mh1,ml2,mh2,ml3,mh3; //c存放读.出时钟数据void delay(uint z) // 延时{uint i;uchar j;for(i=z;i>0;i--)for(j=200;j>0;j++);}// 显示子程序void display(uchar mh1,uchar ml1,uchar mh2,uchar ml2,uchar mh3,uchar ml3){uchar x,k,r;for(k=0;k<80;k++){for(r=0;r<8;r++){x=P2&0XF8;P2=x+r ;if(r==2||r==5){ P0=0XBF;delay(3);}//------秒-------if(r==0){P0=a[ml1] ;delay(3) ;}if(r==1){P0=a[mh1] ;delay(3) ;}//------fen---------if(r==3){P0=a[ml2] ;delay(3) ;}if(r==4){P0=a[mh2] ;delay(3) ;}//-----shi---------if(r==6){P0=a[ml3] ;delay(3) ;}if(r==7){P0=a[mh3] ;delay(3) ;}delay(3);}}}//********DS1302读写程序************void w(uchar u) //写入1位字节{uchar i;ACC = u;for(i=8; i>0; i--){IO = ACC0;CLK = 1;CLK = 0;ACC = ACC >> 1;}}uchar r(void) //读出1位字节{uchar i;for(i=8; i>0; i--){ACC = ACC >>1;ACC7 = IO;CLK = 1;CLK = 0;}return(ACC);}void W1302(uchar ucAddr, uchar ucDa){RST = 0;CLK = 0;RST = 1;w(ucAddr); // 地址，命令w(ucDa); //写1Byte数据CLK = 1;RST = 0;}void wclock(uchar *p) //写入时钟多字节数据{uchar i;// W1302(0x80,0x00); //停止时钟W1302(0x8e,0x00); // 允许写RST=0;CLK=0;RST=1;w(0xbe); //写多字节命令for(i=8;i>0;i--){w(*p); //按数组指针逐个写入,写入数据在主函数调用时指向b数组p++;}W1302(0x00,0x50); //启动定时器CLK=1;RST=0;}void rclock(uchar *p) //读出时钟多字节数据{uchar i;RST=0;CLK=0;RST=1;w(0xbf);for(i=7;i>0;i--){*p=r();p++;}CLK=1;RST=0;}void main(void){uchar mh,ml,fh,fl,sh,sl,z,v,q,e,y,t,k;wclock(b);while(1){rclock(c);mh=(c[0]&0xf0)>>4;ml=c[0]&0x0f;fh=(c[1]&0xf0)>>4;fl=c[1]&0x0f;sh=(c[2]&0xf0)>>4;sl=c[2]&0x0f;display(mh,ml,fh,fl,sh,sl);if(mh==3&&ml==0){ for(k=0;k<3;k++){z=(c[3]&0xf0)>>4;v=c[3]&0x0f;q=(c[4]&0xf0)>>4;e=c[4]&0x0f;y=(c[6]&0xf0)>>4;t=c[6]&0x0f;display(z,v,q,e,y,t);}}}}。

#include<reg52.h> typedef unsigned char u8; typedef unsigned int u16; sbit A=P2^0;sbit BA=P2^1;sbit C=P2^2;sbit led = P3^0;sbit s7=P3^7;/*k1设置时间，k2定时。

k1，k2使用不自动弹起按键。

k3时分秒选择，k4加数字，k5减数字。

*/sbit k1=P1^0;sbit k2=P1^1;sbit k3=P1^2;sbit k4=P1^3;sbit k5=P1^4;u8 count=0,sec,min=44,hour=8,mon=9,day=28,ss=0;s=60,m=60,h=24,month=12,d=31; u16 year=2015,y=9999;#define DATA P0u16 code table[]={ 0x3f,0x06,0x5b,0x4f,0x66,0x6d,0x7d,0x07,0x7f,0x6f,0x77,0x7c,0x39,0x5e,0x79,0x71};//共阴数码管0-F编码void delay(u16 z){u16 x,y;for(x=z;x>0;x--)for(y=110;y>0;y--);}/*通过count获得hour，min，sec变量值*/ void timecontrol(){sec++;if(sec==60){sec=0;min++;if(min==60){min=0;hour++;if(hour>=24)//1d{hour=0;day++;switch(mon) {case 1:case 3:case 5:case 7:case 8:case 10:case 12:if(day==32){//一个月day=0;mon++;}break;case 4:case 6:case 9:case 11:if(day==31){//一个月day=0;mon++;}break;default: //2月if((year%4==0 && year%100!=0 ) || (year%100==0 && year%400==0))//闰年{if(day==30){day=0;mon++;}}else{if(day==29){day=0;mon++;}}break;}}if(mon>=12) //1年{mon=0;year++;if(year>=9999)year=0;}}}}void display(u16 year1,u8 mon1,u8 day1,u8 zs,u8 zm, u8 zh) {led=1;DATA=0x00;A=0;BA=0;C=0;DATA=table[zh/10];delay(3);DATA=0x00;A=1;BA=0;C=0;led=1;DATA=table[zh%10]|0x80;delay(3);DATA=0x00;A=0;BA=1;C=0;led=1;DATA=table[zm/10];delay(3);DATA=0x00;A=1;BA=1;C=0;led=1;DATA=table[zm%10]|0x80;delay(3);DATA=0x00;A=0;BA=0;C=1;led=1;DATA=table[zs/10];delay(3);DATA=0x00;A=1;BA=0;C=1;led=1;DATA=table[zs%10]|0x80;delay(3);DATA=0x00;led=0;A=0;BA=0;C=0;DATA=table[year1/1000]; delay(3);DATA=0x00;A=1;BA=0;C=0;led=0;DATA=table[year1%1000/100]; delay(3);DATA=0x00;A=0;BA=1;C=0;led=0;DATA=table[year1%1000%100/10]; delay(3);DATA=0x00;A=1;BA=1;C=0;led=0;DATA=table[year1%10];delay(3);DATA=0x00;A=0;BA=0;C=1;led=0;DATA=table[mon1/10]; delay(3);DATA=0x00;A=1;BA=0;C=1;led=0;DATA=table[mon1%10]; delay(3);DATA=0x00;A=0;BA=1;C=1;led=0;DATA=table[day1/10]; delay(3);DATA=0x00;A=1;BA=1;C=1;led=0;DATA=table[day1%10]; delay(3);void keyscan_settime() //时间设置模块{u16 ye;u8 mo,da, st,mt,ht;if(k1==0){delay(10);if(k1==0){st=sec,mt=min,ht=hour,ye=year,mo=mon,da=day;TR0=0; //关闭定时器while(k1==0) //等待用户按键{display(ye,mo,da,st,mt,ht);if(k3==0){delay(10);if(k3==0){while(!k3);ss++;if(ss==6) ss=0;}}/*通过ss选择时分秒设置*/if(k4==0) //加数{delay(10);if(k4==0){while(!k4);switch(ss){case 0:st++;if(st==60)st=0;break;case 1:mt++;if(mt==60)mt=0;break;case 2:ht++;if(ht==24)ht=0;break;case 3:ye++;if(ye==9999) ye=0;break;case 4:mo++;if(mo==13) mo=0;break;case 5:da++;if(da==32) da=0;break;default :;}}}if(k5==0) //减数{delay(10);if(k5==0){while(!k5);switch(ss){case 0:if(st>0)st--;else st=0;break;case 1:if(mt>0)mt--;else mt=0;break;case 2:if(ht>0)ht--;else ht=0;break;case 3:if(ye>0) ye--;else ye=0;break;case 4:if(mo>0) mo--;elsemo=0;break;case 5:if(da>0) da--;elseda=0;break;default : ;}}}}TR0=1;sec=st,min=mt,hour=ht,day=da,mon=mo,year=ye;}}display(year,mon,day,sec,min,hour);}void keyscan_time() //用户定时模块{if(k2==0){delay(10);if(k2==0){s=sec;m=min;h=hour,y=year,month=mon,d=day;while(k2==0) //开始定时设置{display(y,month,d,s,m,h);if(k3==0){delay(10);if(k3==0){while(!k3);ss++;if(ss==6) ss=0;}}/*通过ss选择时分秒设置*/if(k4==0) //加数{delay(10);if(k4==0){while(!k4);switch(ss){case 0:s++;if(s==60)s=0;break;case 1:m++;if(m==60)m=0;break;case 2:h++;if(h==24)h=0;break;case 3:y++;if(y==9999) y=0;break;case 4:month++;if(month==13) month=0;break;case 5:d++;if(d==32) d=0;break;default :;}}}if(k5==0) //减数{delay(10);if(k5==0){while(!k5);switch(ss){case 0:if(s>0)s--;else s=0;break;case 1:if(m>0)m--;else m=0;break;case 2:if(h>0)h--;else h=0;break;case 3:if(y>0) y--;else y=0;break;case 4:if(month>0) month--;elsemonth=0;break;case 5:if(d>0) d--;else d=0;break;default : ;}}}}}}}void buz(){if((year==y)&&(mon==month)&&(day==d)&&(hour==h)&&(min==m)&&(sec==s)) {s7=0;delay(1000);s7=1;}}void time0_init(){TMOD=0x01;TH0=0x4b;TL0=0xfe;EA=1;ET0=1;TR0=1;}void main(void){time0_init();while(1){keyscan_settime();. . .. . .keyscan_time();buz();}}void Time0() interrupt 1{TH0=0x4b;TL0=0xfe;count++;if(count==20){count=0;timecontrol();}}. 专业.专注.。

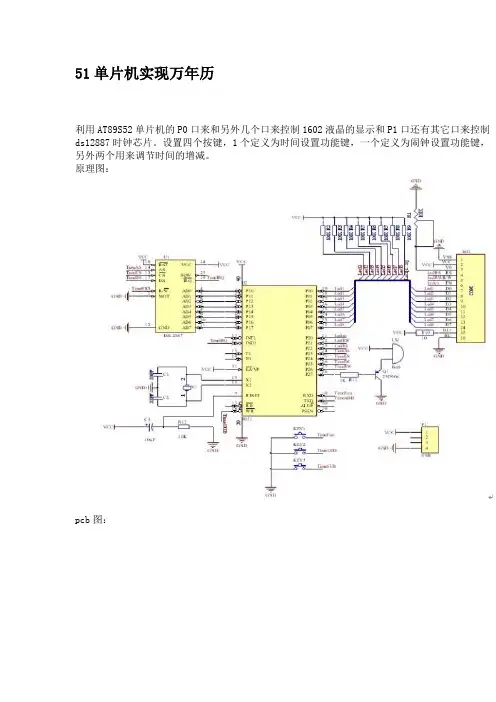

51单片机实现万年历利用AT89S52单片机的P0口来和另外几个口来控制1602液晶的显示和P1口还有其它口来控制ds12887时钟芯片。

设置四个按键，1个定义为时间设置功能键，一个定义为闹钟设置功能键，另外两个用来调节时间的增减。

原理图：pcb图：源程序：#include<reg52.h>#define uint unsigned int#define uchar unsigned charsbit beep=P2^0;//蜂鸣器控制口sbit timeadd=P2^1;//调节时间加sbit timesub=P2^2;//调节时间减sbit timeclk=P2^3;//闹钟设定键sbit timefun=P2^4;//时间设定键sbit lcdrs=P2^5;//液晶的命令和数据控制口sbit ledrw=P2^6;//液晶的写数据口sbit lcden=P2^7;//液晶显示模块的使能端sbit timeds=P3^3;//时钟芯片地址闸sbit timerw=P3^4;//时钟芯片读写sbit timeas=P3^5;//时钟芯片地址闸sbit timeen=P3^6;//时钟芯片片选uchar code table[]="20 - - week ";uchar code table1[]=" : : ";//要显示的字符串char num,shi,fen,miao,nian=2000,yue,ri,week,numfun,anumfun,flag,flag1; uchar leap;void delay(uint x){uchar i,j;for(i=x;i>0;i--)for(j=110;j>0;j--);}void didi(){beep=0;delay(1000);beep=1;delay(1000);}void write_com(uchar com){lcdrs=0;P0=com;delay(5);lcden=1;delay(20);lcden=0;}void write_date(uchar date){lcdrs=1;P0=date;delay(5);lcden=1;delay(20);lcden=0;}void write_sfm(uchar add,uchar date){ uchar shi,ge;shi=date/10;ge=date%10;write_com(0x80+0x40+add);write_date(0x30+shi);write_date(0x30+ge);}void write_nyr(uchar add,uchar date){ uchar shi,ge;shi=date/10;ge=date%10;write_com(0x80+add);write_date(0x30+shi);write_date(0x30+ge);}void write_zhou(uchar add,uchar date) {write_com(0x80+add);write_date(0x30+date);}void write_ds(uchar add,uchar date){ timeen=0;timeas=1;timeds=1;timerw=1;P1=add;timeas=0;timerw=0;P1=date;timerw=1;timeas=1;timeen=1;}uchar read_ds(uchar add){uchar ds_date;timeas=1;timeds=1;timerw=1;timeen=0;P1=add;timeas=0;timeds=0;P1=0xff;ds_date=P1;timeds=1;timeas=1;timeen=1;return ds_date;}void keyscan(){if(flag1==1)//用来关闭闹钟铃声{if(timeadd==0){delay(5);if(timeadd==0){while(!timeadd==0);flag1=0;}}if(timesub==0){delay(5);if(timesub==0){while(!timesub==0);flag1=0;}}}if(timefun==0){delay(5);if(timefun==0){while(!timefun);flag=1;numfun++;if(numfun==1){write_com(0x80+0x40+0x0a);write_com(0x0f);}if(numfun==2){write_com(0x80+0x40+0x07);write_com(0x0f);}if(numfun==3){write_com(0x80+0x40+0x04);write_com(0x0f);}if(numfun==4){write_com(0x80+0x0f);write_com(0x0f);}if(numfun==5){write_com(0x80+0x09);write_com(0x0f);}if(numfun==6){write_com(0x80+0x06);write_com(0x0f);}if(numfun==7){write_com(0x80+0x03);write_com(0x0f);}if(numfun==8){numfun=0;flag=0;}}}if(numfun!=0){if(timeadd==0){delay(5);while(!timeadd);if(numfun==1){miao++;if(miao==60)miao=0;write_sfm(9,miao);write_com(0x80+0x40+9);write_ds(0,miao);}if(numfun==2){fen++;if(fen==60)fen=0;write_sfm(6,fen);write_com(0x80+0x40+6);write_ds(2,fen);}if(numfun==3){shi++;if(shi==24)shi=0;write_sfm(3,shi);write_com(0x80+0x40+3);write_ds(4,shi);}if(numfun==4){week++;if(week==8)week=1;write_zhou(0x0f,week);write_com(0x80+0x0f);write_ds(6,week);}if(numfun==5){if(nian==0){switch(yue){case 1:ri++;if(ri==32) ri=1;break;case 2:ri++;if(ri==30) ri=1;break;case 3:ri++;if(ri==32) ri=1;break;case 4:ri++;if(ri==31) ri=1;break;case 5:ri++;if(ri==32) ri=1;break;case 6:ri++;if(ri==31) ri=1;break;case 7:ri++;if(ri==32) ri=1;break;case 8:ri++;if(ri==32) ri=1;break;case 9:ri++;if(ri==31)ri=1;break;case 10:ri++;if(ri==32)ri=1;break;case 11:ri++;if(ri==31)ri=1;break;case 12:ri++;if(ri==32)ri=1;break;}}else if(leap&&yue==2){ri++;if(ri==30)ri=1;}else if(yue==2&&leap==0){ri++;if(ri==29)ri=1;}elseswitch(yue){case 1:ri++;if(ri==32) ri=1;break;case 3:ri++;if(ri==32) ri=1;break;case 4:ri++;if(ri==31) ri=1;break;case 5:ri++;if(ri==32) ri=1;break;case 6:ri++;if(ri==31) ri=1;break;case 7:ri++;if(ri==32) ri=1;break;case 8:ri++;if(ri==32) ri=1;break;case 9:ri++;if(ri==31) ri=1;break;case 10:ri++;if(ri==32) ri=1;break;case 11:ri++;if(ri==31) ri=1;break;case 12:ri++;if(ri==32) ri=1;break;}write_nyr(8,ri);write_com(0x80+0x08);write_ds(7,ri);}if(numfun==6){yue++;if(yue==13)yue=0;write_nyr(5,yue);write_com(0x80+0x05);write_ds(8,yue);}if(numfun==7){nian++;if(nian==100)nian=0;leap=nian%4==0&&nian%100!=0;write_nyr(2,nian);write_com(0x80+2);write_ds(9,nian);}}if(timesub==0){delay(5);while(!timesub);if(numfun==1){miao--;if(miao==-1)miao=59;write_sfm(9,miao);write_com(0x80+0x40+9);write_ds(0,miao);}if(numfun==2){fen--;if(fen==-1)fen=59;write_sfm(6,fen);write_com(0x80+0x40+6);write_ds(2,fen);}if(numfun==3){shi--;if(shi==-1)shi=23;write_sfm(3,shi);write_com(0x80+0x40+3);write_ds(4,shi);}if(numfun==4){week--;if(week==0)week=7;write_zhou(0x0f,week);write_com(0x80+0x0f);write_ds(6,week);}if(numfun==5){if(nian==0){switch(yue){case 1:ri--;if(ri==0) ri=31;break;case 2:ri--;if(ri==0) ri=29;break;case 3:ri--;if(ri==0) ri=31;break;case 4:ri--;if(ri==0) ri=30;break;case 5:ri--;if(ri==0) ri=31;break;case 6:ri--;if(ri==0) ri=30;break;case 7:ri--;if(ri==0) ri=31;break;case 8:ri--;if(ri==0) ri=31;break;case 9:ri--;if(ri==0) ri=30;break;case 10:ri--;if(ri==0) ri=31;break;case 11:ri--;if(ri==0) ri=30;break;case 12:ri--;if(ri==0) ri=31;break;}}else if(leap&&yue==2){ri--;if(ri==0)ri=29;}else if(yue==2&&leap==0){ri--;if(ri==0)ri=28;}elseswitch(yue){case 1:ri--;if(ri==0) ri=31;break;case 3:ri--;if(ri==0) ri=31;break;case 4:ri--;if(ri==0) ri=30;break;case 5:ri--;if(ri==0) ri=31;break;case 6:ri--;if(ri==0) ri=30;break;case 7:ri--;if(ri==0) ri=31;break;case 8:ri--;if(ri==0) ri=31;break;case 9:ri--;if(ri==0) ri=30;break;case 10:ri--;if(ri==0) ri=31;break;case 11:ri--;if(ri==0) ri=30;break;case 12:ri--;if(ri==0) ri=31;break;}write_nyr(8,ri);write_com(0x80+0x08);write_ds(7,ri);}if(numfun==6){yue--;if(yue==-1)yue=12;write_nyr(5,yue);write_com(0x80+0x05);write_ds(8,yue);}if(numfun==7){nian--;if(nian==-1)nian=99;leap=nian%4==0&&nian%100!=0;write_nyr(2,nian);write_com(0x80+2);write_ds(9,nian);}}}}void set_alarm(){uchar ashi,afen,amiao;if(timeclk==0)//判断是否按下闹钟设定键{delay(5);//延时消抖if(timeclk==0){while(!timeclk);anumfun++;//按键次数加1if(anumfun==1){flag=1;write_com(0x80+0x40+0x0a);write_com(0x0f);}if(anumfun==2){flag=1;write_com(0x80+0x40+0x07);write_com(0x0f);}if(anumfun==3){flag=1;write_com(0x80+0x40+0x04);write_com(0x0f);}if(anumfun==4){flag=0;anumfun=0;}}}if(anumfun!=0){if(timeadd==0)//如果加功能键按下{delay(5);while(!timeadd);if(anumfun==1) //设定秒{amiao++;if(amiao==60)amiao=0;write_sfm(9,amiao);write_com(0x80+0x40+9);write_ds(1,amiao);}if(anumfun==2){afen++;if(afen==60)afen=0;write_sfm(6,afen);write_com(0x80+0x40+6);write_ds(3,afen);}if(anumfun==3){ashi++;if(ashi==24)ashi=0;write_sfm(3,ashi);write_com(0x80+0x40+3);write_ds(5,ashi);}}}if(anumfun!=0){if(timesub==0){delay(5);while(!timesub);if(anumfun==1){amiao--;if(amiao==-1)amiao=59;write_sfm(9,amiao);write_com(0x80+0x40+9);write_ds(1,amiao);}if(anumfun==2){afen--;if(afen==-1)afen=59;write_sfm(6,afen);write_com(0x80+0x40+6);write_ds(3,afen);}if(anumfun==3){ashi--;if(ashi==-1)ashi=23;write_sfm(3,ashi);write_com(0x80+0x40+3);write_ds(5,ashi);}}}}void init(){EA=1;//开总中断EX0=1;//开外部中断0IT0=1;//设定触发方式为负跳变沿有效lcden=0;//选通液晶显示屏ledrw=0;//设定液晶显示屏的读写方式为读write_com(0x38);//设置液晶显示模式为16*2显示，5*7点阵，8位数据接口 write_com(0x0c);//打开显示，并使光标不显示也不闪烁write_com(0x06);//光标指针每次自动加1write_com(1);//清屏write_com(0x80);//送地址指针for(num=0;num<16;num++){write_date(table[num]);delay(5);}write_com(0x80+0x40);//写到第二行for(num=0;num<11;num++){write_date(table1[num]);delay(5);}write_ds(0x0a,0x20);//开启时钟芯片振荡器write_ds(0x0b,0x26);//开启闹钟read_ds(0x0c);//读取时钟芯片c寄存器}void main(){init();while(1){keyscan();set_alarm();if(flag1==1)didi();if(flag==0){//读取时间miao=read_ds(0x00);fen=read_ds(0x02);shi=read_ds(0x04);yue=read_ds(0x08);ri=read_ds(0x07);nian=read_ds(0x09);week=read_ds(0x06);//写入液晶显示屏write_sfm(9,miao);write_sfm(6,fen);write_sfm(3,shi);write_nyr(2,nian);write_nyr(5,yue);write_nyr(8,ri);write_zhou(0x0f,week);}}}void exter() interrupt 0{flag1=1;read_ds(0x0c);//读时钟芯片c寄存器。
