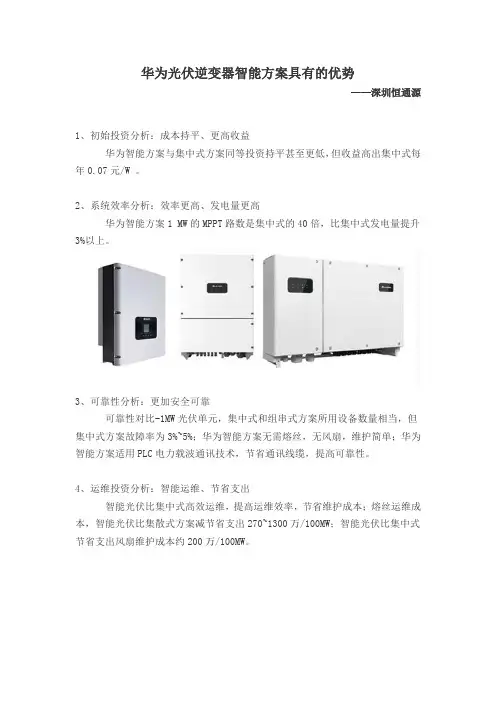

华为光伏逆变器智能方案具有的优势
——深圳恒通源
1、初始投资分析：成本持平、更高收益
华为智能方案与集中式方案同等投资持平甚至更低，但收益高出集中式每年0.07元/W 。
2、系统效率分析：效率更高、发电量更高
华为智能方案1 MW的MPPT路数是集中式的40倍，比集中式发电量提升3%以上。
3、可靠性分析：更加安全可靠
可靠性对比-1MW光伏单元，集中式和组串式方案所用设备数量相当，但集中式方案故障率为3%~5%；华为智能方案无需熔丝，无风扇，维护简单；华为智能方案适用PLC电力载波通讯技术，节省通讯线缆，提高可靠性。
4、运维投资分析：智能运维、节省支出
智能光伏比集中式高效运维，提高运维效率，节省维护成本；熔丝运维成本，智能光伏比集散式方案减节省支出270~1300万/100MW；智能光伏比集中式节省支出风扇维护成本约200万/100MW。

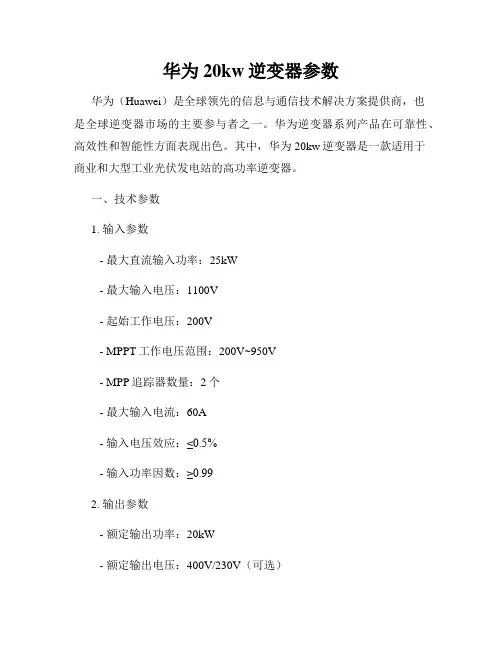

华为20kw逆变器参数华为（Huawei）是全球领先的信息与通信技术解决方案提供商，也是全球逆变器市场的主要参与者之一。
华为逆变器系列产品在可靠性、高效性和智能性方面表现出色。
其中，华为20kw逆变器是一款适用于商业和大型工业光伏发电站的高功率逆变器。
一、技术参数1. 输入参数- 最大直流输入功率：25kW- 最大输入电压：1100V- 起始工作电压：200V- MPPT工作电压范围：200V~950V- MPP追踪器数量：2个- 最大输入电流：60A- 输入电压效应：≤0.5%- 输入功率因数：≥0.992. 输出参数- 额定输出功率：20kW- 额定输出电压：400V/230V（可选）- 频率范围：50Hz/60Hz±0.05Hz（可调） - 输出电流范围：30A~44A- 总谐波失真率：≤3%- 功率因数调节范围：±0.9（超额载率时） - 额定输出功率调整范围：0~100%3. 效率参数- 最大转换效率：98.7%- 欧洲效率：98.5%- 效率曲线范围：20%~100%4. 保护功能- 输入过压保护- 输入低压保护- 无输入电流保护- 真正零功率导通- 过载保护- 短路保护- 接地故障保护- 温度保护二、特点与优势1. 高效性：华为20kw逆变器具备最高转换效率达到98.7%，相较于传统逆变器具有更高的能量转换效率，从而提高光伏发电系统的整体发电性能。
2. 智能性：华为逆变器采用智能MPPT（最大功率点跟踪）算法，通过实时监测光伏电池阵列的电流和电压变化，确保在不同光照条件下获取最佳的电能输出。
此外，逆变器还具备远程监控和数据采集功能，可实现对发电站的实时监测和优化管理。
3. 可靠性：华为逆变器的设计以高可靠性为目标，采用优质的电子元件和先进的散热技术，确保在严苛的工作环境下仍能保持卓越的表现。
此外，逆变器具备多重保护功能，可有效应对输入过压、短路、温度异常等故障情况，从而提高设备的使用寿命和稳定性。
华为光伏逆变器的主要技术指标——深圳恒通源1、输出电压的稳定度在光伏系统中，太阳电池发出的电能先由蓄电池储存起来，然后经过逆变器逆变成220V或380V的交流电。
但是蓄电池受自身充放电的影响，其输出电压的变化范围较大，如标称12V的蓄电池，其电压值可在10．8～14．4V之间变动(超出这个范围可能对蓄电池造成损坏)。
对于一个合格的逆变器，输入端电压在这个范围内变化时，其稳态输出电压的变化量应不超过额定值的±5％，同时当负载发生突变时，其输出电压偏差不应超过额定值的±10％。
2、输出电压的波形失真度对正弦波逆变器，应规定允许的最大波形失真度(或谐波含量)。
通常以输出电压的总波形失真度表示，其值应不超过5％(单相输出允许l0％)。
由于逆变器输出的高次谐波电流会在感性负载上产生涡流等附加损耗，如果逆变器波形失真度过大，会导致负载部件严重发热，不利于电气设备的安全，并且严重影响系统的运行效率。
3、额定输出频率对于包含电机之类的负载，如洗衣机、电冰箱等，由于其电机最佳频率工作点为50Hz，频率过高或者过低都会造成设备发热，降低系统运行效率和使用寿命，所以逆变器的输出频率应是一个相对稳定的值，通常为工频50Hz，正常工作条件下其偏差应在±l％以内。
4、负载功率因数表征逆变器带感性负载或容性负载的能力。
正弦波逆变器的负载功率因数为0．7～0．9，额定值为0．9。
在负载功率一定的情况下，如果逆变器的功率因数较低，则所需逆变器的容量就要增大，一方面造成成本增加，同时光伏系统交流回路的视在功率增大，回路电流增大，损耗必然增加，系统效率也会降低。
5、逆变器效率逆变器的效率是指在规定的工作条件下，其输出功率与输入功率之比，以百分数表示，一般情况下，光伏逆变器的标称效率是指纯阻负载，80％负载情况下的效率。
由于光伏系统总体成本较高，在光伏系统中，太阳电池发出的电能先由蓄电池储存起来，然后经过逆变器逆变成220V或380V的交流电。

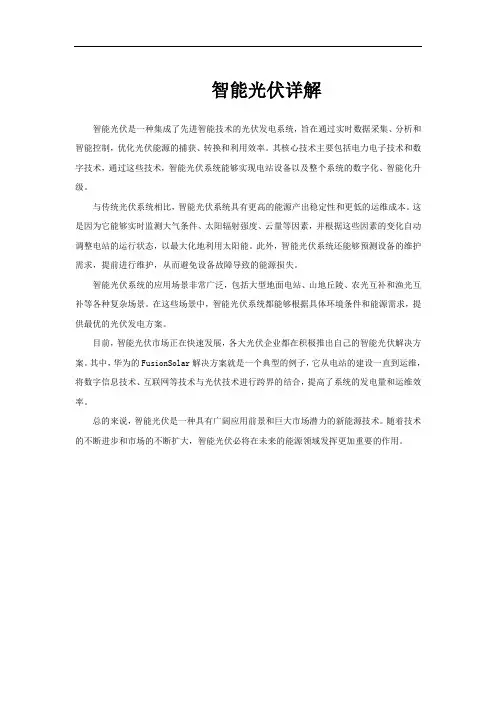

智能光伏详解
智能光伏是一种集成了先进智能技术的光伏发电系统，旨在通过实时数据采集、分析和智能控制，优化光伏能源的捕获、转换和利用效率。
其核心技术主要包括电力电子技术和数字技术，通过这些技术，智能光伏系统能够实现电站设备以及整个系统的数字化、智能化升级。
与传统光伏系统相比，智能光伏系统具有更高的能源产出稳定性和更低的运维成本。
这是因为它能够实时监测大气条件、太阳辐射强度、云量等因素，并根据这些因素的变化自动调整电站的运行状态，以最大化地利用太阳能。
此外，智能光伏系统还能够预测设备的维护需求，提前进行维护，从而避免设备故障导致的能源损失。
智能光伏系统的应用场景非常广泛，包括大型地面电站、山地丘陵、农光互补和渔光互补等各种复杂场景。
在这些场景中，智能光伏系统都能够根据具体环境条件和能源需求，提供最优的光伏发电方案。
目前，智能光伏市场正在快速发展，各大光伏企业都在积极推出自己的智能光伏解决方案。
其中，华为的FusionSolar解决方案就是一个典型的例子，它从电站的建设一直到运维，将数字信息技术、互联网等技术与光伏技术进行跨界的结合，提高了系统的发电量和运维效率。
总的来说，智能光伏是一种具有广阔应用前景和巨大市场潜力的新能源技术。
随着技术的不断进步和市场的不断扩大，智能光伏必将在未来的能源领域发挥更加重要的作用。
华为光伏逆变器说明书1. 引言光伏逆变器作为光伏发电系统的核心设备，将太阳能电池板产生的直流电转换为交流电，供给家庭、工业和商业用电。
华为光伏逆变器以其高效稳定的性能和先进的技术而闻名于世。
本说明书旨在提供对华为光伏逆变器产品的全面介绍和详细操作步骤，以帮助用户更好地理解和使用该产品。
2. 产品概述华为光伏逆变器是一种高效、可靠的设备，用于将直流电转换成交流电。
它采用了先进的功率转换技术，具有高效率、低能耗和长寿命等特点。
华为光伏逆变器广泛应用于家庭、工业和商业领域。
2.1 主要特点•高效率：采用先进的功率转换技术，最大程度地提高能量转换效率。
•可靠性：经过严格测试和验证，确保设备在各种环境条件下运行稳定可靠。
•高度集成化：紧凑型设计，占用空间小，便于安装和维护。
•智能监控：配备智能监控系统，实时监测设备运行状态，并提供远程控制和故障诊断功能。
2.2 产品型号华为光伏逆变器提供多个型号以满足不同需求，包括家用、商用和工业级别的产品。
具体型号如下： - 家用型号：HUAWEI SUN2000-3KTL、HUAWEI SUN2000-4KTL、HUAWEI SUN2000-5KTL - 商用型号：HUAWEI SUN2000-12KTL、HUAWEI SUN2000-17KTL、HUAWEI SUN2000-20KTL - 工业型号：HUAWEI SUN2000-33KTL、HUAWEISUN2000-36KTL3. 安装与操作本章节将详细介绍华为光伏逆变器的安装和操作步骤，确保用户能正确使用该产品。
3.1 安装要求在安装华为光伏逆变器之前，请确保满足以下要求： 1. 安全接地：确保设备正确接地以防止电击。
2. 环境条件：选择合适的安装环境，避免高温、高湿度和腐蚀性气体等影响设备性能的因素。
3. 电源要求：提供稳定的电源，满足逆变器的额定输入电压和频率要求。
3.2 安装步骤1.将逆变器安装在合适位置，确保通风良好且便于维护。

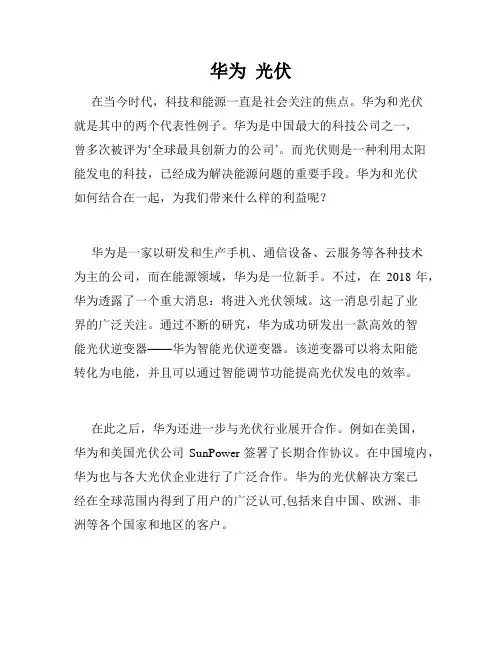

华为光伏在当今时代，科技和能源一直是社会关注的焦点。
华为和光伏就是其中的两个代表性例子。
华为是中国最大的科技公司之一，曾多次被评为‘全球最具创新力的公司’。
而光伏则是一种利用太阳能发电的科技，已经成为解决能源问题的重要手段。
华为和光伏如何结合在一起，为我们带来什么样的利益呢？华为是一家以研发和生产手机、通信设备、云服务等各种技术为主的公司，而在能源领域，华为是一位新手。
不过，在2018年，华为透露了一个重大消息：将进入光伏领域。
这一消息引起了业界的广泛关注。
通过不断的研究，华为成功研发出一款高效的智能光伏逆变器——华为智能光伏逆变器。
该逆变器可以将太阳能转化为电能，并且可以通过智能调节功能提高光伏发电的效率。
在此之后，华为还进一步与光伏行业展开合作。
例如在美国，华为和美国光伏公司SunPower签署了长期合作协议。
在中国境内，华为也与各大光伏企业进行了广泛合作。
华为的光伏解决方案已经在全球范围内得到了用户的广泛认可,包括来自中国、欧洲、非洲等各个国家和地区的客户。
华为抱着开放、协同的态度，致力于成为光伏行业的合作伙伴。
华为希望与光伏产业链上的各类合作伙伴携手合作，共同推动光伏行业的发展。
举个例子，华为和晶澳太阳能合作打造的“智慧光伏协同生态”解决方案，通过智能化的控制和优化，将光伏发电效率提升至新高度，同时还能对发电数据进行实时监测。
那么，华为光伏的发展对我们意味着什么呢？华为的进入，将为光伏产业带来更多的技术和资金支持，大大推动光伏产业从初级阶段向智能化、绿色化、高效化的方向发展，为全球缓解能源短缺和环境污染带来了巨大的利益。
与此同时，华为的进军，也将极大地促进电力和通信的技术融合，使得智能光伏系统更加智能化和安全性增强，为清洁能源的推广和应用创造更为优质的条件。
总的来说，华为与光伏这两个领域的相遇是一件值得关注的事情。
随着华为不断前进和光伏行业不断发展,我们相信，华为光伏将会为全球清洁能源的推广和应用创造更佳的条件，推动清洁能源产业的发展，为人类的美好未来做出更为贡献。
华为智能光伏电站智能光储解决方案华为是全球领先的ICT（信息与通信）基础设施和智能终端提供商，致力于把数字世界带入每个人、每个家庭、每个组织，构建万物互联的智能世界。
我们在通信网络、IT、智能终端和云服务等领域为客户提供有竞争力、安全可信赖的产品、解决方案与服务，与生态伙伴开放合作，持续为客户创造价值，释放个人潜能，丰富家庭生活，激发组织创新。
华为坚持围绕客户需求持续创新，加大基础研究投入，厚积薄发，推动世界进步。
2022年，华为实现销售收入6,423亿人民币。
关于华为员工总数207,000+全球最具价值品牌100强86研发人员占比55.4%全球研发投资4国家170+全球最具创新力企业8FusionSolar智能光储解决方案直流线缆交流线缆通信线缆智能子阵控制器箱变MBUS通信光伏组件&支架智能光伏控制器智能组串式储能智能储能控制器智能光伏管理系统智能电站控制器EMS/AGC/AVC箱变升压站电网接入智能子阵控制器更优投资主动构网安全可靠全面数字化SUN2000-300KTL-H0智能光伏控制器电路框图效率曲线负载率效率最大效率大于99%支持智能端子检测(SCLD)支持智能风扇除尘(SSCF)IP66防护等级支持MBUS 通信支持智能组串分断(SSLD)支持IV 检测内置交直流防雷MBUS 90%91%92%93%94%95%96%97%98%99%100%0%20%40%60%80%100%930 V 1189 V 1300 V交流浪涌保护器MPPT1MPPT2MPPT3MPPT4MPPT5DCAC输出滤波器输出EMI 滤波器MPPT6输出继电器Output Isolated RelaySUN2000-300KTL-H0技术参数效率最大效率≥ 99.03%中国效率≥ 98.53%输入最大输入电压1,500 VMPPT数量6每路MPPT最大输入电流65 A每路MPPT最大短路电流115 A每路MPPT输入组串数4/5/5/4/5/5MPPT电压范围500 V ~ 1,500 V额定输入电压1,080 V输出额定输出功率300,000 W最大视在功率330,000 VA最大有功功率(cosφ=1)330,000W额定输出电压800 V,3W + PE输出电压频率50 Hz额定输出电流216.6 A最大输出电流238.2 A功率因数0.8 超前... 0.8 滞后最大总谐波失真THD i＜1%（额定工况）保护智能组串分断支持智能端子检测支持防孤岛保护支持输出过流保护支持输入反接保护支持组串故障检测支持直流浪涌保护Type II交流浪涌保护Type II绝缘阻抗检测支持残余电流监测支持显示与通信显示LED指示灯，蓝牙/WLAN+APPRS485支持USB支持MBUS支持常规参数尺寸（宽x 高x 厚）1,048 x 732 x 395 mm重量≤ 112 kg工作温度-30 ℃~ 60 ℃冷却方式智能风冷最高工作海拔5,000 m （> 4,000 m降额）相对湿度0 ~ 100%（无凝露）输入端子CT75A输出端子OT/DT端子防护等级IP66防腐等级C5-Medium拓扑无变压器满足的标准NB/T 32004-2018, GB/T 37408-2019,ISO/IEC 15408等SUN2000-196KTL-H0智能光伏控制器电路框图支持IV 检测最大效率大于99%无熔丝设计IP66防护等级18路高精度组串检测9路MPPT 支持智能组串分断内置交直流防雷效率曲线负载率效率90%91%92%93%94%95%96%97%98%99%100%0%20%40%60%80%100%1300V 1174V 1090V 1006VDC/AC 逆变电路LCL 滤波器输出继电器输入电流检测直流浪涌保护器输入EMI 滤波器SUN2000-196KTL-H0技术参数效率最大效率≥ 99.0%中国效率≥ 98.4%输入最大输入电压1,500 V每路MPPT最大输入电流30 A每路MPPT最大短路电流50 AMPPT电压范围500 V ~ 1,500 V额定输入电压1,080 V输入路数18MPPT数量9输出额定输出功率196,000 W最大视在功率216,000 VA最大有功功率(cosφ=1)216,000W额定输出电压800 V,3W + PE输出电压频率50 Hz额定输出电流141.5 A最大输出电流155.9 A功率因数0.8 超前... 0.8 滞后最大总谐波失真THD i＜1%（额定工况）保护智能组串分断支持防孤岛保护支持输出过流保护支持输入反接保护支持组串故障检测支持直流浪涌保护Type II交流浪涌保护Type II绝缘阻抗检测支持残余电流监测支持显示与通信显示LED指示灯，蓝牙/WLAN+APPRS485支持USB支持MBUS支持常规参数尺寸（宽x 高x 厚）1,035 x 700 x 365 mm重量（含挂架）≤ 86 kg工作温度-25 ℃~ 60 ℃冷却方式智能风冷最高工作海拔5,000 m （> 4,000 m降额）相对湿度0 ~ 100%（无凝露）输入端子MC4 EVO2输出端子OT/DT端子防护等级IP66防腐等级C5-Medium拓扑无变压器满足的标准NB/T 32004-2018, GB/T 37408-2019,ISO/IEC 15408等LUNA2000-200KTL-H1智能储能控制器效率曲线负载率转换效率最大效率99%模块化设计IP66防护等级LUNA2000-200KTL-H1电路框图内置交直流防雷支持以太网通信Grid Forming90%91%92%93%94%95%96%97%98%99%100%0%10%20%30%40%50%60%70%80%90%100%1180V 1200V 1300V~=LUNA2000-200KTL-H1技术参数效率最大效率99.0%直流侧额定直流电压1,180 V最大直流电压1,500 V工作电压范围1,180 V ~ 1,500 V最大直流电流207.6 A最大接入路数1交流侧额定交流功率200,000 W @40°C额定交流电压800 V交流电压频率50 Hz / 60 Hz最大交流电流173.2 A功率因数-1 ... +1最大总谐波失真THD i＜1%（额定工况）Grid Forming支持保护交流过流保护支持直流反接保护支持绝缘阻抗检测支持残余电流检测支持直流浪涌保护1Type II交流浪涌保护1Type II通信显示LED 指示灯，WLAN + APPUSB支持以太网支持常规参数尺寸（宽x 高x 深）875 x 820 x 365 mm重量< 99 kg工作温度-25°C~ 60°C冷却方式智能风冷最高工作海拔4,000 m相对湿度0 ~ 100%（无凝露）直流端子OT/DT端子交流端子OT/DT端子防护等级IP66防腐等级C5-Medium拓扑无变压器满足的标准GB/T 34120-2017, GB/T 34133-2017, GB/T 36547-2018, GB/T 36548-2018等1：符合IEC / EN 61643-11的兼容II类保护等级更高放电更优投资极简运维安全可靠LUNA2000-2.0MWH 系列智能组串式储能系统储能系统参数型号LUNA2000-2.0MWH-4H1LUNA2000-2.0MWH-2H1LUNA2000-2.0MWH-1H1直流侧额定电压1,250 V直流侧最大电压1,500 V储能系统电池标称能量2,032 kWh充放电倍率≤ 0.25 C≤ 0.5 C≤ 1 C 储能系统额定功率508 kW1,016 kW2,032 kW储能系统尺寸（宽x 高x 深）6,058 x 2,896 x 2,438 mm储能系统重量≤ 30 t运行温度范围-30°C~ 55°C储存温度范围-40°C~ 60°C运行湿度范围0 ~ 100%（无凝露）最高工作海拔4,000 m电池温控方式工业级空调散热系统配置 2 台 4 台 6 台储能系统火灾抑制系统全氟己酮+ 水喷淋储能系统通讯接口Ethernet / SFP储能系统通讯协议Modbus TCP / IEC 104储能系统防护等级IP55储能系统防腐等级C5-Medium满足的标准GB/T 36276-2018, GB/T 34131, UL9540A, IEC 62443-4-1, IEC 62443-4-2等智能组串式储能系统电池包& 智能电池簇控制器电池包常规参数电芯材料磷酸铁锂(LFP)组合方式18S 1P额定电压57.6 V标称容量280 Ah / 16.13 kWh 支持充放电倍率≤ 1 C重量≤ 140 kg 尺寸（宽x 高x 深）442 x 307 x 660 mm智能电池簇控制器效率最大效率99.0%电池侧额定工作电压1,209.6 V工作电压范围40 V ~ 1,400 V额定功率电压范围1,075 V ~ 1,320 V最低启动电压350 V母线侧最大直流电压1,500 V额定工作电压1,250 V额定工作电流275.2 A额定功率344,000 W常规参数尺寸（宽x 高x 深）600 x 270 x 820 mm 重量≤ 90 kg冷却方式智能风冷防护等级IP66并网点高精度直采独立双CPU智能无功补偿POD 低频振荡抑制SPPC2000 VarSPPC2000智能电站控制器技术参数SPPC2000-A01SPPC2000-A02设备管理可接入子阵数量单机支持64个（约250MW ）重要特性智能无功补偿支持，基于逆变器/变流器的系统级30ms 动态无功响应POD 低频振荡抑制支持，振荡抑制范围（0.1~2.5Hz ）录波功能支持电流/电压瞬时值录波（0.5ms ），支持有效值长时间录波对时功能支持IRIG-B 对时（≤1ms 精度），支持NTP 等其他协议对时辅助AGC/AVC 调节控制支持断路器状态采集和控制支持仿真模型支持PSSE, DigSILENT, PSCAD 仿真模型PT/CT 采样精度1A5A通信交互以太网口 6 + 2光纤网口SFP x 2, 100 / 1,000 MbpsRS485COM x 4并网点电流/电压采集6U + 6ICAN 2通信协议Modbus-TCP ，IEC60870-5-104，GOOSE显示LED支持WEB 支持管理系统智能光伏管理系统SmartPVMS常规参数双电源冗余供电交流：90 V ～264 V, 47 Hz ~ 63 Hz, 直流：110 V ±10%, 220 V ±10%直流/交流浪涌保护Type II尺寸(高/长/宽)1000 x 650 x 650 mm （不含底座）重量≤ 80 kg （不含栈板和选配件）工作温度-25℃~60℃工作相对湿度0%～100%（无凝露）最高工作海拔4,000 m 防护等级IP55防腐等级C5-Medium安装方式落地立式安装、壁挂安装（选配壁挂件）1：智能无功补偿&POD 低频振荡抑制，上市时间：2024.01.30SmartController （置于SPPC2000内）智能简单可靠SmartACU2000D 智能子阵控制器1：适配PLC 电力载波通信含SmartPID2000模块不含SmartPID2000模块技术参数SmartACU2000D-D-06SmartACU2000D-D-00SmartACU2000D-D-01基本配置内置数据采集器SmartLogger3000B x 1SmartModule1000A 数量选配以太网口141 或3 (配一台SmartModule1000A)或6 (配一台SmartModule1000A 和五口交换机)RS485COM x 6, 1,200 / 2,400 / 4,800 / 9,600 / 19,200 / 115,200 bps可选以太网口SFP x 10, 100 / 1,000 MbpsSFP x 2, 100 / 1,000 MbpsMBUS 接口数量¹11SmartPID2000模块数量001智能绝缘监测功能-选配环境参数工作温度-40°C ~ 60°C 工作相对湿度4% ~ 100% （无凝露）最高工作海拔4,000 m电气参数SmartACU 交流输入电压100 V ～240 V, L / N (L)+ PEMBUS 接口交流输入电压380 V ~ 800 V, 3PhPID 模块交流输入电压380 V ~ 800 V, 3Ph + FE (功能地)交流输入频率50 Hz / 60 Hz供电电源标配12 V 直流电源；选配24 V 直流电源机械参数进出线方式下进下出操作维护方式前操作、前维护尺寸(宽/高/深)640 x 770 x 315 mm880 x 770 x 369 mm重量32 kg29 kg 49 kg防护等级IP65安装方式支架、抱杆、挂墙满足的标准ROHS, IEC / EN 61000-3-2, IEC / EN 61000-3-3, EN 55011, IEC 62443-4-1, IEC 62443-4-2等智能灵活简单易用稳定可靠最多接入150台逆变器支持一键快速开局支持开局向导调测包括参数设置及设备接入工业级应用更高可靠性技术参数SmartLogger3000B SmartLogger3000B +SmartModule1000A设备管理可接入设备数量200可接入智能光伏控制器数量1150可接入智能储能控制器/智能组串式储能数量144 / 24通信交互WAN WAN x 1, 10 / 100 / 1,000 MbpsLAN LAN x 1, 10 / 100 / 1,000 MbpsLAN x 3, 10 / 100 / 1,000 Mbps光纤网口SFP x 2, 100 / 1,000 Mbps MBUS 最大交流电压800 V (±10%), 1,000 mRS485COM x 3COM x 6数字/模拟输入/输出DI x 4, DO x 2, AI x 4DI x 8, DO x 2, AI x 7PT100 / PT10002电源端口12 V, 100 mA (用于连接继电器，传感器等)防雷模块有通信协议以太网Modbus-TCP, IEC 60870-5-104RS485Modbus-RTU, IEC 60870-5-103 (标准), DL / T645显示LED LED x 3LED x 5WEB 嵌入式Web USB USB 2.0 x 1APP WLAN 连接，用于近端调试环境工作温度-40℃~ 60℃储存温度-40℃~ 70℃相对湿度5% ~ 95%（无凝露）最高海拔高度4,000 m电气参数电源适配器交流：100 V ～240 V, 50 Hz / 60 Hz, 直流：12 V, 2 A直流供电电源24 V, 0.8 A功耗典型9W ，最大15 W典型10 W ，最大18 W 机械参数尺寸(高/宽/深)225 x 160 x 44 mm 不含挂耳及天线350 x 160 x 44 mm 不含挂耳及天线重量 2 kg3 kg防护等级IP20安装方式挂墙，导轨，桌面安装满足的标准ROHS, IEC/EN 61000-3-2, IEC / EN 61000-3-3, EN 55011, IEC 62443-4-1, IEC 62443-4-2等SmartLogger3000B + SmartModule1000ASmartLogger3000B SmartLogger3000B 数据采集器1：单数采可支持接入最大数量指仅可独立接入智能光伏控制器或智能组串式储能备注:1：SmartPID 模块可应用于中压并网的电站场景，且箱变低压侧为IT系统2：SmartPID模块必须和华为智能光伏控制器/智能储能控制器和SmartLoggers 适配使用.SmartPID2000 模块内置在智能子阵控制器SmartACU2000D 内，可安全有效抑制组件PID 效应，可选支持连续直流和交流绝缘监测.智能通过USB 接口和嵌入式Web 读取数据安全可靠交流侧注入对地电压，安全抑制PID 支持连续直流和交流绝缘监测SmartPID2000 解决方案组网SmartACU2000DMBUS / RS485变压器SmartPID2000箱变接地排功能地线SmartLoggerA /B / CSmartACU2000D FE变压器智能储能控制器SmartPID2000箱变接地排功能地线SmartLoggerA /B / C智能储能控制器FE智能组串式储能智能组串式储能智能光伏控制器智能光伏控制器SmartPID2000模块智能子阵控制器组网架构SPPC2000（单机支持64个子阵~250MW ）AGC/AVC远动RTU电网调度系统交换机（单环≤15个子阵）PT/CT 采集公共电网智能光伏管理系统SmartPVMS…智能光伏控制器智能组串式储能智能储能控制器……SmartACU2000光储子阵SmartACU2000光伏子阵…智能光伏控制器智能光伏控制器SmartACU2000储能子阵智能组串式储能…智能储能控制器…交换机…光纤环网*具体项目配置和销售区域详询华为工程师精细管理高效运维易用友好安全可信从电站到电芯&组串多层级、精细化管理告警分级与过滤，提供处理建议邮件推送告警信息支持快速建站电池包3D可视IEC 62443-4-1业内领先ML3等级IEC 62443-4-2业内首获SL2认证网络架构Email智能子阵控制器气象站Internet以太网专线MBUS或RS485互联网Smart PVMS智能储能控制器智能光伏控制器智能组串式储能智能光伏电站管理系统智能子阵控制器自主知识产权的操作系统、数据库支持10000等效设备接入管理专利DEMT智能功耗管理技术，优化能效出厂软件预装减少70%现场安装时间技术参数FusionServer2288X V5管理设备能力10,000等效设备形态2U机架服务器处理器2*Intel Xeon Silver 4208（2.1GHz/8-Core/11MB）内存2*32GB DDR4 RDIMM, ECC硬盘2*1.2 TB, SAS 2.5“ HDD, 10,000 RPM操作系统Euler OS数据库Gauss DBRAID方式RAID 1网络2个PCIe网络插卡，每个网络插卡支持4*GE电口电源2个热插拔900W交流电源模块，支持1+1冗余供电支持100-240 Vac/ 11 ~ 5.5 A; 240 Vdc/ 5 A;风扇支持4个热拔插对旋风扇，支持N+1冗余工作温度5°C~ 40°C尺寸（宽x高x深）86.1 x 447 x 748 mm重量29 kg认证CE、UL、FCC、CCC、RoHS等1：适配PLC电力载波通信自主知识产权的操作系统、数据库支持30000等效设备接入管理专利DEMT智能功耗管理技术，优化能效出厂软件预装减少70%现场安装时间技术参数FusionServer Pro 2288X V5管理设备能力30,000等效设备形态2U机架服务器处理器2*Intel Xeon Gold 5218（2.3GHz/16-Core/22MB）内存2*32GB DDR4 RDIMM, ECC硬盘2*1.2 TB + 8*1.8 TB, SAS 2.5” HDD, 10,000RPM操作系统Euler OS数据库Gauss DBRAID方式RAID 1, RAID 10网络2个PCIe网络插卡，每个网络插卡支持4*GE电口电源2个热插拔900W交流电源模块，支持1+1冗余供电支持100-240 Vac/ 11 ~ 5.5 A; 240 Vdc/ 5 A;风扇支持4个热拔插对旋风扇，支持N+1冗余工作温度5°C~ 40°C尺寸（宽x高x深）86.1 x 447 x 748 mm重量30 kg认证CE、UL、FCC、CCC、RoHS等1：适配PLC电力载波通信.智能IV 诊断利用AI技术对组串IV曲线进行分析，完成整个光伏电站组串的全量检测，帮助客户实现简单、高效的运维管理，降低运维投入。
华为是全球领先的ICT （信息与通信）基础设施和智能终端提供商，致力于把数字世界带入每个人、每个家庭、每个组织，构建万物互联的智能世界。
我们在通信网络、IT 、智能终端和云服务等领域为客户提供有竞争力、安全可信赖的产品、解决方案与服务，与生态伙伴开放合作，持续为客户创造价值，释放个人潜能，丰富家庭生活，激发组织创新。
华为坚持围绕客户需求持续创新，加大基础研究投入，厚积薄发，推动世界进步。
2021年，华为实现销售收入6,368亿人民币。
关于华为员工总数195,000+国家170+研发人员107,000+财富世界500强44全球第一华为智能光伏出货量2015-2020连续六年蝉联175GW+华为智能光伏全球累计出货量更高放电一包一优化，一簇一管理提升生命周期充放电量更优配置支持新旧电池混用分期部署减少初始容量极简运维免定期容量标定节省运维成本安全可靠模块化设计储能设备高可用度智能组串式储能系统智能储能控制器FusionSolar 智能组串式储能解决方案直流配电柜智能箱变升压站电网接入智能光伏管理系统智能子阵控制器直流线缆交流线缆通讯线缆LUNA2000-2.0MWH-2H0/2H1智能组串式储能系统更高放电更优配置极简运维安全可靠储能系统参数型号LUNA2000-2.0MWH-2H0LUNA2000-2.0MWH-2H1直流侧额定电压1,200 V1,250 V直流侧最大电压1,500 V1,500 V储能系统电池标称能量2,064 kWh2,032 kWh储能系统额定功率（0.5C）344 kW * 3338.7 kW * 3储能系统额定功率（1C）344 kW * 6338.7 kW * 6储能系统尺寸（宽x 高x 深）6,058 x 2,896 x 2,438 mm6,058 x 2,896 x 2,438 mm 储能系统重量≤ 30 t≤ 30 t运行温度范围-30°C~ 55°C-30°C~ 55°C储存温度范围-40°C~ 60°C-40°C~ 60°C运行湿度范围0 ~ 100%（无凝露）0 ~ 100%（无凝露）最高工作海拔4,000 m4,000 m电池温控方式工业级空调工业级空调空调配置 6 台 6 台储能系统火灾抑制系统FM-200FM-200储能系统通讯接口Ethernet / SFP Ethernet / SFP 储能系统通讯协议Modbus TCP / IEC 104Modbus TCP / IEC 104储能系统防护等级IP55IP55满足的标准认证GB/T 36276-2018, GB/T 34131, UN 3536等LUNA2000-4.0MWH-2H1智能组串式储能系统更高放电更优配置极简运维安全可靠储能系统参数直流侧额定电压1,250 V直流侧最大电压1,500 V储能系统电池标称能量4,064 kWh储能系统额定功率（0.5C）338.7 kW * 6储能系统尺寸（宽x 高x 深）12,192 x 2,896 x 2,438 mm储能系统重量≤ 60 t运行温度范围-30°C~ 55°C储存温度范围-40°C~ 60°C运行湿度范围0 ~ 100%（无凝露）最高工作海拔4,000 m电池温控方式工业级空调空调配置12 台储能系统火灾抑制系统FM-200储能系统通讯接口Ethernet / SFP储能系统通讯协议Modbus TCP / IEC 104储能系统防护等级IP55满足的标准认证GB/T 36276-2018, GB/T 34131, UN 3536等智能组串式储能系统电池包& 智能电池簇控制器电池包常规参数型号LUNA2000-2.0MWH-2H0LUNA2000-2.0MWH-2H1 LUNA2000-4.0MWH-2H1电芯材料磷酸铁锂(LFP)磷酸铁锂(LFP)组合方式16S 1P18S 1P额定电压51.2 V57.6 V标称容量320 Ah / 16.38 kWh280 Ah / 16.13 kWh 支持充放电倍率≤ 1 C≤ 1 C重量≤ 140 kg≤ 140 kg尺寸（宽x 高x 深）442 x 307 x 660 mm442 x 307 x 660 mm智能电池簇控制器效率型号LUNA2000-2.0MWH-2H0LUNA2000-2.0MWH-2H1 LUNA2000-4.0MWH-2H1最大效率99.0%99.0%电池侧额定工作电压1,075.2 V1,209.6 V工作电压范围40 V ~ 1,400 V40 V ~ 1,400 V额定功率电压范围1,075 V ~ 1,320 V1,075 V ~ 1,320 V 最低启动电压350 V350 V母线侧最大直流电压1,500 V1,500 V额定工作电压1,200 V1,250 V额定工作电流286.7 A275.2 A额定功率344,000 W344,000 W常规参数尺寸（宽x 高x 深）600 x 270 x 820 mm600 x 270 x 820 mm 重量≤ 90 kg≤ 90 kg冷却方式智能风冷智能风冷防护等级IP66IP66LUNA2000-200KTL-H0智能储能控制器效率曲线90%91%92%93%94%95%96%97%98%99%100%0%10%20%30%40%50%60%70%80%90%100%1180V 1200V 1300V负载率转换效率最大效率99%模块化设计IP66防护等级LUNA2000-200KTL-H0电路框图~=内置交直流防雷支持以太网通信智能并网算法1：满足GB/T 34120要求2：符合IEC / EN 61643-11的兼容II类保护等级LUNA2000-200KTL-H0技术参数效率最大效率99.0%直流侧额定直流电压1,180 V最大直流电压1,500 V工作电压范围1,180 V ~ 1,500 V最大直流电流207.6 A最大接入路数1交流侧额定交流功率200,000 W @40°C最大视在功率1240,000 VA最大有功功率1(cosφ=1)240,000W额定交流电压800 V交流电压频率50 Hz / 60 Hz最大交流电流173.2 A功率因数-1 ... +1最大总谐波失真＜3%保护防孤岛保护支持交流过流保护支持直流反接保护支持绝缘阻抗检测支持残余电流检测支持直流浪涌保护2Type II交流浪涌保护2Type II通信显示LED 指示灯，WLAN + APP USB支持以太网支持常规参数尺寸（宽x 高x 深）875 x 820 x 365 mm重量< 95 kg工作温度-25°C~ 60°C冷却方式智能风冷最高工作海拔4,000 m相对湿度0 ~ 100%直流端子OT/DT端子交流端子OT/DT端子防护等级IP66拓扑无变压器DCBOX-9/5-H0直流配电柜电气参数最大输入电压1,500 V额定输入电压1,200 V智能电池簇控制器侧最大支路电流321 A智能储能控制器侧最大支路电流193 A直流断路器数量14智能电池簇控制器最大可接入数量9智能储能控制器最大可接入数量5最大汇流能力 5 x 193 A保护直流过流保护支持环境参数工作温度-30°C~ 60°C (40°C 以上降额)工作相对湿度0 ~ 100%最高工作海拔4,000 m常规参数进出线方式储能控制器支路上进线，电池簇控制器支路下进线尺寸（宽x 高x 深）2,040 x 1,415 x 975 mm重量（不含智能储能控制器）≤ 750 kg输入输出端子OT端子防护等级IP55安装方式落地智能简单可靠SmartACU2000D 智能子阵控制器技术参数SmartACU2000D-D-00基本配置内置数据采集器内置SmartLogger3000Bx 1内置扩展模块支持选配SmartModule1000ARS485标配MBUS 接口数量11路环境参数工作温度-40°C ~ 60°C 工作相对湿度4% ~ 100%最高工作海拔4,000 m电气参数SmartACU 交流输入电压100 V ～240 V, L / N (L)+ PEMBUS 接口交流输入电压380 V ~ 800 V, 3Ph PID 模块交流输入电压380 V ~ 800 V, 3Ph+FE (功能地)交流输入频率50 / 60 Hz 供电电源标配12 V 直流电源选配24 V 直流电源机械参数进出线方式下进下出操作维护方式前操作、前维护尺寸(宽x 高x 深)640 x 770 x 315 mm重量29 kg 防护等级IP65安装方式支架、抱杆、挂墙1. 适配PLC 电力载波通信.智能光伏管理系统Smart PVMS网络架构Smart PVMSWebEmailSmartLogger SUN2000SUN2000气象站InternetInternetSmartLoggerSUN2000SUN2000气象站IE专线MBUS 或RS485互联网智能简单可靠收益与告警主动上报支持智能IV 曲线诊断PC 端一键安装支持邮件主动推送告警所有站点一屏管理数据最长保存25年自主知识产权的操作系统、数据库支持10000等效设备接入管理专利DEMT智能功耗管理技术，优化能效出厂软件预装减少70%现场安装时间技术参数FusionServer2288X V5管理设备能力10,000等效设备形态2U机架服务器处理器2*Intel Xeon Silver 4208（2.1GHz/8-Core/11MB）内存2*32GB DDR4 RDIMM, ECC硬盘2*1.2 TB, SAS 2.5“ HDD, 10,000 RPM操作系统Euler OS数据库Gauss DBRAID方式RAID 1网络2个PCIe网络插卡，每个网络插卡支持4*GE电口电源2个热插拔900W交流电源模块，支持1+1冗余供电支持100-240 Vac / 11 ~ 5.5 A; 240 Vdc / 5 A;风扇支持4个热拔插对旋风扇，支持N+1冗余工作温度5°C~ 40°C尺寸（宽x高x深）86.1 x447 x748 mm 重量29 kg认证CE、UL、FCC、CCC、RoHS等自主知识产权的操作系统、数据库支持30000等效设备接入管理专利DEMT智能功耗管理技术，优化能效出厂软件预装减少90%现场安装时间技术参数FusionServer Pro 2288X V5管理设备能力30,000等效设备形态2U机架服务器处理器2*Intel Xeon Gold 5218（2.3GHz/16-Core/22MB）内存2*32GB DDR4 RDIMM, ECC硬盘2*1.2 TB + 8*1.8 TB, SAS 2.5” HDD, 10,000RPM操作系统Euler OS数据库Gauss DBRAID方式RAID 1, RAID 10网络2个PCIe网络插卡，每个网络插卡支持4*GE电口电源2个热插拔900W交流电源模块，支持1+1冗余供电支持100-240 Vac / 11 ~ 5.5 A; 240 Vdc/ 5 A;风扇支持4个热拔插对旋风扇，支持N+1冗余工作温度5°C~ 40°C尺寸（宽x高x深）86.1 x447 x748 mm 重量30 kg认证CE、UL、FCC、CCC、RoHS等版权所有©华为技术有限公司2022。
