YD2512直流低阻说明书

JLxxx
长沙众泰汽车供应商自我认可试验大纲
注1：完成供应商认可试验大纲是签订试验计划的必要条件之一。

2：表格中供应商的测试仪器/设备一栏中所填写的内容须与《长沙众泰汽车供应商自我认可
试验能力报审表》对应,而且其功能/精度应满足标准的要求。

供应商自我试验室及仪器/设备经长沙众泰汽车产品认可部门确认后，其资源将列入长沙众泰
汽车可合作的试验室数据库中，供应商将承诺长沙众泰汽车有其资源共享的权利。

3：表格中测试方法一栏中所填写的内容应该是在满足标准条件下，结合供应商测试设备操
作程序的试验方法。

第 11 页，共 11 页。

使用说明书KD2531T2等电位连接电阻测量仪武汉市康达电气有限公司目录1 性能特点 (1)2 技术指标 (2)2.1 主要指标 (2)2.2 其它指标 (2)3 仪表外形 (3)4 使用方法 (4)4.1 电池 (4)4.1.1 电池配置 (4)4.1.2 电量检查 (4)4.2. 锂电池充电和拆装 (4)4.3 电阻测量 (5)5 注意事项 (6)6 附件 (6)7 常见现象及说明 (7)尊敬的用户：欢迎您使用KD2531T2等电位连接电阻测量仪。

为保障您的安全和仪表正常使用，请先仔细读完本说明书再进行操作。

本仪器安全性能符合国际标准IEC61010-1：2001。

本仪器执行标准Q/WKD07，符合GB/T 21431-2008 建筑物防雷装置检测技术规范1 性能特点●适于测量等电位连接电阻、各种电气设备间连接导体的电阻。

也可以测量开关、插座触点的接触电阻以及其它低值电阻。

●采用“四端子”测试技术，消除引线电阻引起的测量误差。

●采用数字微处理器，示值准确精度高，稳定可靠。

●3 1/2LCD大屏幕数字显示，并带有背光及读数锁定功能。

●有二种工作模式，短定时4秒钟和长定时5小时，当定时时间到后自动锁定读数、停止测试，并伴有声光提示。

●内置11.1V/1.8Ah锂电池供电，可连续工作约8小时。

●电池符号“”显示电量，并具备电池欠压报警功能。

●电流测试极开路时有开路指示符“OPEN”指示。

●操作简单，携带方便。

●具有防震、防尘、防潮结构，适应恶劣工作环境。

2 技术指标2.1 主要指标2.2 其它指标●绝缘电阻：500V ≥20MΩ●耐压：AC 1.5kV 50Hz 1min●工作温度和湿度：－10℃～+50℃≤85%RH●贮存温度和湿度：－15℃～+55℃≤90%RH●电源：8×1.5V(AA,LR6) 电池或11.1V/1.8Ah锂电池耗电：≤180mA●外形尺寸：255mm(L)×135mm(W)×80mm(D)●重量：≈0.8kg注:此说明书所述技术指标仅适于您现用的仪表，本公司保留对其变更的权力。

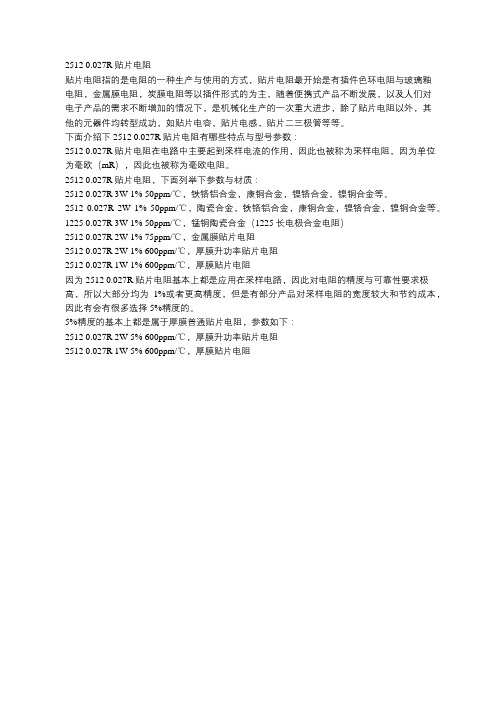

2512 0.027R 贴片电阻贴片电阻指的是电阻的一种生产与使用的方式，贴片电阻最开始是有插件色环电阻与玻璃釉电阻，金属膜电阻，炭膜电阻等以插件形式的为主，随着便携式产品不断发展，以及人们对电子产品的需求不断增加的情况下，是机械化生产的一次重大进步，除了贴片电阻以外，其他的元器件均转型成功，如贴片电容，贴片电感，贴片二三极管等等。

下面介绍下 2512 0.027R 贴片电阻有哪些特点与型号参数：2512 0.027R 贴片电阻在电路中主要起到采样电流的作用，因此也被称为采样电阻，因为单位为毫欧（mR），因此也被称为毫欧电阻。

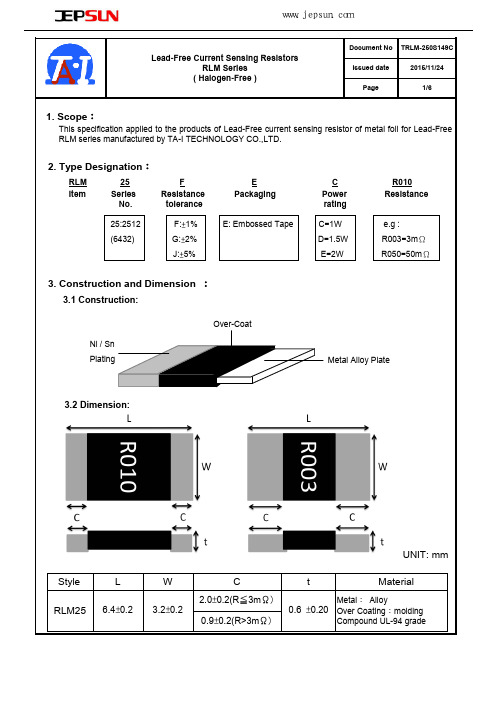

2512 0.027R 贴片电阻，下面列举下参数与材质：2512 0.027R 3W 1% 50ppm/℃，铁铬铝合金，康铜合金，镍铬合金，镍铜合金等。

2512 0.027R 2W 1% 50ppm/℃，陶瓷合金，铁铬铝合金，康铜合金，镍铬合金，镍铜合金等。

1225 0.027R 3W 1% 50ppm/℃，锰铜陶瓷合金（1225 长电极合金电阻）2512 0.027R 2W 1% 75ppm/℃，金属膜贴片电阻2512 0.027R 2W 1% 600ppm/℃，厚膜升功率贴片电阻2512 0.027R 1W 1% 600ppm/℃，厚膜贴片电阻因为2512 0.027R 贴片电阻基本上都是应用在采样电路，因此对电阻的精度与可靠性要求极高，所以大部分均为1%或者更高精度，但是有部分产品对采样电阻的宽度较大和节约成本，因此有会有很多选择5%精度的。

5%精度的基本上都是属于厚膜普通贴片电阻，参数如下：2512 0.027R 2W 5% 600ppm/℃，厚膜升功率贴片电阻2512 0.027R 1W 5% 600ppm/℃，厚膜贴片电阻。

MODEL2512B系列智能直流低电阻测度仪操作使用手册常州市金艾联电子科技有限公司TEL：*************89187775概述JK2512B智能直流低电阻测试仪的外观流畅简洁，操作简便直观。

以新颖的设计思路，让各类触及者拥有全新的感觉。

特点介绍1直观的显示使用液晶显示，使得各项参数的显示都有明确的提示，也不管白天黑夜，都有清晰的字符让您一目了然，更没有让人眼花缭乱的各种指示灯让您难以记忆。

2少量的按键本仪器仅有四个操作按键，让您无须记忆更多条条款款，设置更多的功能数据。

3多参数显示当您读出了电阻值将其换算成百分比误差而感到麻烦，当您读出了百分比误差而将仪器显示改为显示电阻时感到重复工作时，您不妨选择本仪器的分选功能吧。

本仪器在分选测量时既显示电阻值，又显示百分比误差；在直读测量时既显示电阻值，又显示测量量程和读数范围，方便了您的阅读。

并且在设置时显示文字告知您正在做什么。

4等级品讯示在生产线上您也许要将电阻分成三个精度级别，本仪器完全可以满足您的要求。

本仪器可以按百分比的形式设置为三个等级品。

有合格闪光提示和合格的级别显示，也有合格讯响，但您可以关掉讯响而仅有合格灯指示和级别显示。

5通信接口如果您需要自动化测量，您可以利用通信接口达到这一目的。

本仪器的接口设计充分考虑了用户的方便性，您只要根据说明书对您的“编程器”或“计算机”简单编程，也可以用简单的硬件电路就可轻松完成。

6方便的校准如果为了校准要打开仪器机箱是一件多么麻烦的事情，如果为了校准要调节电位器是一件多么古老的方法。

本仪器的一种新的校准方法——人机对话的标准方式，只要按按键盘即可完成校准。

手册目录章节目录次目录页次第一章测试中注意事项4第二章安全规定4第三章安装要点5第四章技术规范6第五章面板和背板7面板图7面板说明7背板说明8第六章中英文词语对照表9第七章测试参数设定程序10第八章操作程序及步骤13第九章校准程序和步骤15JK2512B型智能直流低电阻测试仪使用说明书第一章：测试中的注意事项1开机预热仪器开机测试前必须预热15分钟，以等待仪器内部线路电参数稳定后再测量。

目录一、概述 (2)二、性能特点 (2)三、面板功能说明 (4)四、后面板功能说明 (6)五、操作步骤说明 (7)六、成套与保修 (9)一、概述2511A型智能直流多电阻测试仪能对变压器、电机、开关、继电器、接插件等各类电阻进行测试，仪器测量范围1uΩ~2M Ω，仪器产生高精度恒流经被测件进行四端点测量，有效地扣除了引线误差，适合用户作高精度测量；由于使用直流测试及最多可以进行10组负载的快速扫描测试，对各类变压器及电感的铜阻测量尤为适合；本仪器扩展了同类仪器的功能，用户可直接设置两组标称值，即电阻直读显示上/下限值，百分比标称值和+/-百分比误差值，且所有设置判断针对于全量程，百分比误差最大可显示9999%，最小显示0.000%，极大地提高了仪器使用范围；此外，测试速度（快速、慢速）的改变，全状态、全设置数值的断电保护等功能也极大的方便了用户对产品的测试。

二、性能特点1、显示：7段LED显示窗，以五位数字显示阻值、百分比值和简单的操作提示。

2、测量范围；1uΩ～1.9999MΩ（分九个测试档）⑴超量程显示：└┘└┘└┘└┘└┘⑵ %显示上超：└┘└┘└┘└┘└┘下超：─┌┐┌┐┌┐┌┐┌┐3、测试速度：慢速（4次/秒）、快速（8次/秒）4、档位选择：自动或锁定5、电源：AC 50Hz 220V±5%6、操作环境温度：18～28℃， RH≤80%7、联机模式：HANDER界面8、外形：300mm×110mm×280mm9、分选：分选输出LOW（下超）、PASS（合格）、HIGH（上超），上、下超报警功能。

YD2511A型直流低电阻测试仪三、面板功能说明（一）图3-1是仪器面板示意图。

图3-1：2511A前面板布局图（二）面板功能说明1、电源开关：开关的状态见按键的标志。

2、测试线插座：用于连接四端测试线。

3、测试指示灯：该指示灯闪动一次，表示仪器作一次测量。

4、电阻单位：分为mΩ、Ω、KΩ、MΩ，和3配合作全量程显示。
