速驰刻字机2015最新说明书

雕刻机使用手册目录首页.............................................. - 3 - 安装前注意事项：..................................... - 4 - 第一章雕刻机的组成 ................................. - 5 -一、图片........................................ - 5 -二、雕刻机配件.................................. - 8 - 第二章雕刻机的安装及软件设置........................ - 9 -一、机器安装...................................... - 9 -二．软件的安装.................................... - 9 - 三．软件的参数设置............................... - 12 - 第三章雕刻机的操作流程 ............................ - 18 - 第四章刀具的选择 .................................. - 19 - 第五章机器的日常维护及保养......................... - 20 - 第六章故障与分析 .................................. - 21 - 附录1 控制卡具体参数设置 .......................... - 25 - 附录2 DSP手柄的使用说明........................... - 26 -首页首先感您选用本公司产品，在您机器安装前请仔细阅读本说明书，以免给您的安装和使用造成不必要的麻烦。

如您在使用本产品的过程中遇到问题，请致电本公司售后服务：05本说明书解释权归锐雕数控科技所有，本说明书中所涉及一些技术参数如发生改变，恕无法另行通知。

雕刻机使用说明书雕刻机用户手册一、雕刻机安装前注意事项1．切勿在闪电或打雷时安装此设备，切勿在潮湿的地方安装电源插座，请勿触摸未绝缘的电源线。

2．上机操作人员必须经过严格的培训操作过程中必须注意人身安全和机器的安全，并严格按操作规程来操作电脑雕刻机。

3．电源电压要求210V-230V，若电源电压不稳或周围有大功率的用电设备，请一定要在专业技术人员指导下选择稳压电源。

4．雕刻机，控制柜必须接地线，不可带电插数据电缆线。

5．操作人员切勿戴手套工作，最好戴上防护眼罩。

6．机械本体为钢结构龙门部分航空铝铸件，相对较软，在安装螺钉时（特别是安装雕刻电机时）不要太用力，以防滑丝。

7．刀具一定要装好并夹紧，保持刀具锋利，钝刀将使雕刻质量下降使电机过载。

8．请勿将手指伸进刀具工作范围，切勿将雕刻头拆下来另作它用。

不可加工含石白棉的材料。

9．不要超过机械加工范围，长时不工作时要切断电源，机器移动时，须有专业人员在场指导下进行。

10．如机器出现异常情况，请参阅操作手册故障排除一章或与经销商联系解决；以免造成人为损坏。

11．变频器12．凡与电脑连接的控制卡安装必须插紧并拧上螺丝。

二、雕刻机的组成及随机附件雕刻机装箱清单序号配件数量单位01 雕刻机主件 1 套02 控制柜 1 套03 USB手柄 1 套04 电源线 1 根05 数据线 1 根06 说明书 1 本07 扳手 2 把08 刀夹具7 个09 雕刻刀20 把10 水泵 1 台11 程序光盘 1 张三. 雕刻机技术参数及加工参数台面尺寸（MM）1300*2500 转速：（转/分）24000最大雕刻尺寸（MM）1300*2500 z轴行程（MM）200 外型尺寸（MM）1600×3100×1800mm分辩率(MM/脉冲0.001) 刀柄直径12.7\ 8\ 6 \3.175主轴电机功率5000W 手柄USB脱机控制加工参数(部分)材料加工方式切削深度刀具主轴转速有机玻璃切割/切透5mm 锥形刀<20000RPMPVC发泡板切割/切透2-3mm 锥形刀<20000RPM双色板切割/切透1-2mm 锥形刀<20000RPM1mmABS板切透锥形刀<20000RPM硬铝雕刻0.5mm/次锥形刀<10000RPM紫铜雕刻0.5mm/次锥形刀<10000RPM冷轧钢板雕刻0.4mm/次锥形刀<10000RPM大理石雕刻0.4mm/次锥形刀<10000RPM四机器安装警告：所有的操作须是断电下操作1，机械主体与控制箱的连接，2，将机器主体上的控制数据线端接到控制箱上。

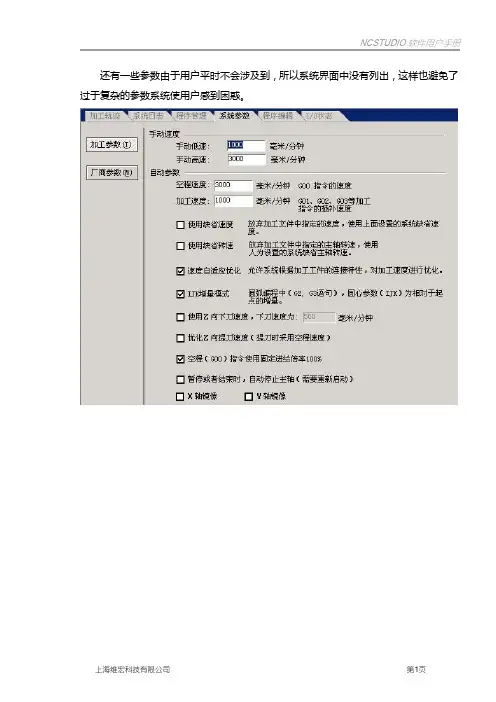

还有一些参数由于用户平时不会涉及到，所以系统界面中没有列出，这样也避免了过于复杂的参数系统使用户感到困惑。

手动速度：包括手动高速速度和手动低速速度，这两个值用来控制用户在“点动”模式下的运动速度。

●手动低速速度是指只按下手动方向键时的运动速度；●手动高速速度是指同时按下“高速”键时的运动速度。

这两个值也可以在数控状态窗口中直接设定。

参见4.6节。

自动参数：●空程速度：G00 指令的运动速度；●加工速度：G01、G02、G03等加工指令的插补速度。

这两个值控制以自动方式运动时的速度，如果自动模式下的加工程序、或者MDI指令中没有指定速度，就以这里设定的速度运动。

注意：增量方式的运动速度是空程速度。

这两个值也可以在数控状态窗口中直接设定。

参见4.6节。

●使用缺省速度：是否放弃加工程序中指定的速度，使用上面设置的系统缺省速度。

●使用缺省转速：指示系统是否放弃加工程序中指定的主轴转速，使用人为设置的系统缺省转速。

●速度自适应优化：是否允许系统根据加工工件的连接特性，对加工速度进行优化。

●IJK增量模式：圆心编程（IJK）是否为增量模式，某些后处理程序生成的圆弧编程使用的IJK值是增量值。

关于这一点，请参考对应的后处理程序说明。

●使用Ｚ向下刀速度：是否在Ｚ向垂直向下运动时，采用特定的速度落刀速度。

●优化Ｚ向提刀速度：是否在Ｚ向垂直向上运动时，采用G00速度提刀。

点)。

●空程（G00）指令使用固定进给倍率100%：这个参数是一个选项。

指示系统在执行空程指令时，是否忽略进给被率的影响。

这样当改变倍率时，不影响空程移动的速度。

●暂停或者结束时，自动停止主轴（需要重新启动）：设定当一个加工程序中途暂停或加工结束后，是否自动停止主轴转动。

●X轴镜像：设定X轴进行镜像。

●Y轴镜像：设定Y轴进行镜像。

换刀位参数：●使用换刀位：如果希望在加工完成后自动回到某个位置，请选择该选项。

其他换刀位参数只有在使用换刀位有效时，才起作用。

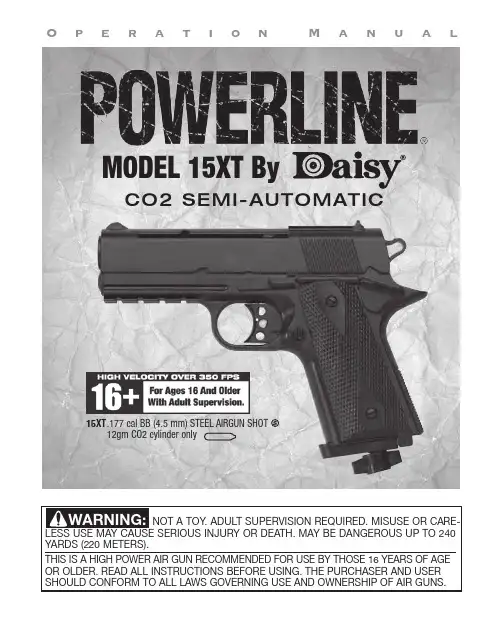

O p e r a t i o n M a n u a l15XT .177 cal BB (4.5 mm) STEEL AIRGUN SHOT 12gm CO2 cylinder onlyMODEL 15XT ByCO2 SEMI-AUTOMATICread the message that follows.The Model 15XT CO2 PowerLine ®gun shoots with much more muzzle energythan the traditional spring air BB gun. More power means greater chance of serious injury or death. Use extreme caution when operating this gun.Although your new PowerLine ®gun is not a firearm, it has lethal potential and should be treated with the caution and respect due any conventional firearm. Like a firearm, your PowerLine ®gun, when misused or carelessly used, can kill or seriously injure the shooter or other persons. All safeties are mechanical devices and the shooter is the only part of the system that can make a gun safe–or unsafe. DON’T DEPEND ON MECHANICAL SAFETIES –think ahead and avoid situations that might lead to accidents.Guns differ in their operations and you are never ready to fire any gun until you are thoroughly familiar with it. Read the following operating instructions and WITH-OUT LOADING A PROJECTILE ,proceed several times through the operating steps with your gun (dry fire the gun at a safe target) so that you will be able to operate the PowerLine ®15XT properly and safely.STEP 2. INSERT CO2CYLINDERWARNING:Use only CO2which are the 12 gram type. Any attempt to usethe gun, causing serious injury.Operation Step 1, page 3).bottom of the grip (see Fig. 3).4.Insert the CO2placing the larger end of the CO25. Replace the left grip cover.CO2RAPIDLY until finger tight.NOTE:Apuncture screw is tight.NOTE:NOTE:12gm CO2Model 15XT.Other sizes of CO2into place.STEP 3. FILL THE BUILT1. Always point gun in a safe direction.Insure that the gun is “ON” safe–NO RED SHOWING (see OperationStep 1, page 3).2. Move the Built-in Magazine BBfollower fully forward and hold in posi-tion as shown. (see Fig. 6)NOTE:Make sure the follower isHELD Fully FORWARD toward the muzzleOF THE GUN and THE SPRINGIS Clear of the loading port BeforeAttempting to load BBs.3. Once the Magazine BB follower is heldfully forward, a maximum of 15 .177caliber BBs can be individually insertedinto the Magazine Loading Port asshown. (see Fig. 7)CAUTION:Use only Max Speed™BBs by Daisy®,or similar quality BBs thatare labeled as such. Do not use lead pel-lets, buck shot, darts, ball bearings, orother foreign objects because they cancause injury to someone or may damageand/or jam the pistol.4. After the Built-in Magazine has beenloaded with a maximum of 15 BBs,slowly release the Built-in Magazine BBfollower and allow it to rest up againstthe BBs. This will allow the BBs to beunder spring tension (see Fig. 8).NOTE:SLOWLY RELEASE THE BUILT-INMAGAZINE BB FOLLOWER – DO NOTALLOW IT TO SNAP REARWARD.WARNING:to be loaded, so use extreme caution in handling the gun. Keep the gun pointed in a safe direction. Never point the gun at anyone. Always treat the gun as if it were loaded and ready to fire.STEP 4. AIM AT A SAFE TARGETTo be a consistent marksman, use the correct sight picture each time you fire the pistol (see Fig 9).CAUTION:Due to the power of the Model 15XT, use extra precaution in selecting a safe target. Improper targets may cause ricochet.STEP 5. TAKE “OFF” SAFETY – POSITION SAFETY SO RED IS SHOWING.When you are certain that the target, back-stop and surrounding area is safe, position thesafety “OFF” – RED SHOWING (see Fig. 10).Pulling the trigger now will fire the gun.WARNING:Use extreme caution inoperating because the gun is now ready tofire a BB when the trigger is pulled.STEP 6. FIREMake sure the gun is pointed at a safe target.is still possible for the trigger to be pulled,but only CO 2will be discharged.STEP 7. PUT “ON” SAFETY - POSITIONSAFETY SO NO RED IS SHOWING.After firing, return the safety to the “ON”position – NO RED SHOWING (see Fig 11).FIG. 9INCORRECT SIGHT ALIGNMENTBB DOES NOT FIRE WARNING:If a BB does not fire after completing the operation steps, do not assume that the gun is unloaded. Keep the gun pointed in a safe direction.MAKE THE FOLLOWING CHECKS IF A BB DOES NOT FIRE 1. Did the Built-in Magazine contain .177 cal. Daisy® Max Speed™ or similar quality BBs? If not, fill the Built-in Magazine with BBs and repeat the operation steps.2. Was the safety “OFF” – RED SHOWING, when the trigger was pulled? If not, repeat the operation steps.3. Was a CO 2cylinder installed? If not, put “ON” safe – NO RED SHOWING, and insert a new CO 2cylinder.Repeat the operation steps after the new cylinder is installed.4. Refer to the section on CO 2characteristics (see page 8).5. If the pistol still does not fire, refer to warning below.WARNING:If the pistol still fails to shoot a BB after checking the five items above, there is a malfunction in the pistol. This could represent a dangerous condi-tion. There could be BBs in the pistol even though a BB did not shoot out. Al Always treat the gun as if it were loaded. At no time should you look down the barrel of the gun. Put “ON” safe –NO RED SHOWING ,remove the CO 2cylinder,and send the pis-tol directly to DAISY MANUFACTURING SERVICE DEPARTMENT. Refer to section on REPAIRS OF DAISY GUNS.HOW TO UNLOADAfter a shooting is complete, the gun should be unloaded before storing it. To unload the gun always put “ON” safe –NO RED SHOWING ,remove the CO 2cylinder,and remove the BBs from the Built-in Magazine. See details belowCAUTION:Even though you have gone through an unloading procedure,continue to treat the gun as though it were loaded. Don’t point at anything you don’t intend to shoot. Always put “ON” safe –REMOVE CO 2CYLINDER1. Put “ON” safe –NO RED SHOWING.Step 1, page 3).hand grip cover still in place, slowly turn reached (see Fig. 12).the grip.4. Remove and properly dispose of CO 2cylinder.CAUTION:Never attempt to reuse a CO 2cylinder for any purpose.1. Put “ON” safe –NO RED SHOWING.(seeOperation Step 1, page 3).2. Push and hold the Built-in Magazine follower fullytoward the front.3.Invert the gun and let the BBs fall out of themagazine through the loading port.4. Look inside the Magazine slot on top of the gun. If aBB is visible, use a ballpoint pen, screwdriver, etc. toremove the BB from the gun as shown (see Fig.13).CAUTION:removed from the gun. Verify that all BBs are removed as illustrated in Fig. 13. Always treat the gun as if it were loaded and ready to fire.CO2CHARACTERISTICSThere are occasions when a CO2pistol may be subjected to abnormal conditions that can produce effects on the pistols performance. These conditions include operation and/or storage of the pistol at temperatures that are considerably higher or lower than normal outdoor temperatures (60 – 70 degrees F), as well as condi-tions of rapid fire.1. High temperatures can produce pressure in the CO2cylinder and gun that isconsiderably higher than normal operating pressure. Such increased pressure may prevent the pistol from firing and may result in permanent damage to the gun. The maximum operating or storage temperatures can easily be reached if the gun is left directly in the sun on a bright, sunny day. Therefore the shooter should not expose the pistol to high temperature conditions or direct sunlight for any extended period of time.2. Rapid firing of the gun will cause temperature reduction in the pistol and CO2gas.This will result in lower BB velocities and may even lower gas pressure enough so that the pistol will not fire. This condition can be avoided by allowing more timebetween shots. This permits the gas to increase in temperature and pressure, and produce normal velocities.3. During rapid fire, the muzzle velocity of each shot can be expected to decrease.This can be detrimental to shooting accuracy.4. Care should be exercised to ensure that the gun is not shot with a CO2cylinderthat is low in pressure because a BB may not be expelled from the barrel. STORAGEStore your pistol unloaded. Put “ON” safe – NO RED SHOWING, remove CO2 cylinder and remove all BBs from the pistol’s Built-in Magazine. Keep pistol away from children and untrained shooters. Store BBs, and CO2cylinders separately from the pistol to keep them from untrained shooters.WARNING:A CO2cylinder contains gas under pressure, whether or not it has been inserted into a gun. If exposed to high temperatures (such as inside of a closed car in direct sunlight), it could explode. Be sure to store all cylinders in a cool place.PROPER CAREWith care and periodic cleaning, your Model 15XT will provide many years of shooting enjoyment. As is the case with conventional firearms, abuse, neglect, and continued exposure to the elements will impair the performance of any airgun. Learn to take care of your Model 15XT and it will serve you well.CAUTION:Never attempt to clean the Model 15XT until the gun is “ON” safe –NO RED SHOWING,the CO2cylinder has been removed, and the BBs have been removed from the Built-in Magazine.EXTERIOR PARTSAll the plastic parts may be cleaned with a damp rag and mild soap or detergent. Avoid using strong detergent, abrasive cleaning compounds or solvents that may scratch or otherwise damage surfaces. The exposed metal parts should occasion-ally be wiped clean using a soft cloth that is lightly oiled with clean motor oil. LUBRICATIONYour Model 15XT was lubricated when built and should not require any additional lubrication.MODIFICATIONCAUTION:The components of this gun were engineered to deliver optimum performance. Any modification or tampering with a gun may cause a mal-function and may make it unsafe to use. Any change in performance (such as a lowered trigger pull force and shortened trigger travel), indicates possible modifica-tion, tampering and/or wear.Such a gun should be inspected, replaced or properly repaired by qualified personnel. Any gun that has been dropped should be checked by qualified personnel to ensure that its function has not been affected.REPAIR OF DAISY GUNSWARNING:A GUN THAT IS NOT OPERATING PROPERLY MAY BE DANGEROUS. IT SHOULD BE KEPT SAFELY FROM USE BY ANYONE UNTIL REPAIRED OR DESTROYED. DO NOT TRY TO TAKE THE GUN APART. IT IS DIFFICULT TO REASSEMBLE, AND IMPROPER REASSEMBLY CAN CAUSE A HAZARDOUS CONDITION.GUNS IN WARRANTY LIMITED ONE-YEAR WARRANTYFor one year from date of purchase, Daisy will repair or replace and return this gun, free of charge, if defective in material or workmanship. Service is available by returning the gun to Daisy Outdoor Products (refer to important note below). Attach to the gun, your name, address, and telephone number, description of problem and proof of date of retail purchase (sales slip). Package and send transportation prepaid to Daisy Outdoor Products. This Warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. IMPORTANT: You can return your inoperative pistol to Daisy for repair via United Parcel Service. Be sure to put “ON safety, remove CO2cylinder and unload BBs from the Quick Change Clip before returning the gun to Daisy. You must include your street address for Daisy to send your pistol directly back to you through UPS delivery.GUNS OUT OF WARRANTYIf your Daisy needs repair, please call 1-800-713-2479 for repair charges. Daisy will repair the gun or replace it with a reconditioned gun of the same model, if available; otherwise, with a model of equivalent quality.Daisy Outdoor ProductsService Department308 West Stribling DriveRogers, AR 72756 U.S.A.MODEL 15XT CO2PISTOL SPECIFICATIONS*With muzzle pointed upward at optimum angleCAUTION:CO2cylinders may explode at temperatures above 160ºF(71ºC).11。

激光雕刻机（刻章机）说明书安装说明1、硬件环境：64M内存586以上，硬盘至少有10M空间，雕刻机或打印机2、软件环境：WINDOWS 95/98/ME/2000/XP系统3、安装步骤：第一步：运行安装程序文件，按提示逐步进行；第二步：安装机密锁；将加密锁插入计算机可用的USB口上A：WINDOWS98会提示找到新硬件，并要求插入WIN98安装盘，按提示继续。

B：在WINDOWS2000/XP下无需安装驱动，当WS提示硬件安装完成后，继续下一步。

第三步：运行系统，显示许可窗口，输入许可号点击OK退出软件注意：点击OK前加密锁应插在计算机上第四步：再次启动可正常运行注：本软件只能使用安装程序安装，对于直接拷贝不能正常运行。

菜单说明文件工具图像文字雕刻输出扫描区域系统设置帮助一、方章排版步骤：（1）在菜单中选择，新建——方章（2）选择印章类型：两字名章、三字名章、四字名章（3）设置参数后，确定（4）输入文字内容（5）设置扫描区域，一般不用调整，直接确定即可（6）单字调整：在菜单中选择编辑——显示选择框、微调工具，用鼠标点击文字/矩形上方的矩形——选择此对象；在微调工具中调整。

（7）整章调整：双击印章，弹出下面窗口，进行参数调整；以前的单字调整将失效，确定二、条章排版步骤：（1）、在菜单中选择，新建——条章（2）、选择类型：单排、多行、多列（3）、设置参数：行/列数值在多行/多列条章中可用（4）、输入文字内容：对于多行/多列条章，每行的文字是分别输入的，并且字体及样式分别设定（5）、选择自动排列，按照条章的尺寸及行/列数均匀排列，字的大小自动设置；否则，请手动设置文字的宽和高，确定（6）、（7）、（8）同上（5）、（6）、（7）三、圆章排版步骤：（1）、在菜单中选择，新建——圆章（2）、选择圆章类型，共五种（3）、设置参数：外边线宽---章边宽；内边线宽：内章边宽；边线距：文字与章边的距离；夹角：文字分布的角度；添加、删除：把文字分成几段分别设置字体和样式；（4）、修改文字内容，点击所要修改的文字，然后在“文字内容”后修改。

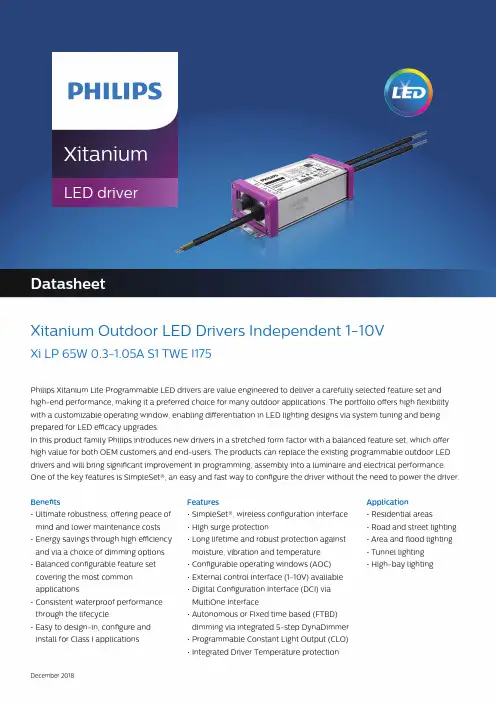

Philips Xitanium Lite Programmable LED drivers are value engineered to deliver a carefully selected feature set and high-end performance, making it a preferred choice for many outdoor applications. The portfolio o ers high exibility with a customizable operating window, enabling di erentiation in LED lighting designs via system tuning and being prepared for LED e cacy upgrades.In this product family Philips introduces new drivers in a stretched form factor with a balanced feature set, which o er high value for both OEM customers and end-users. The products can replace the existing programmable outdoor LED drivers and will bring signi cant improvement in programming, assembly into a luminaire and electrical performance. One of the key features is SimpleSet®, an easy and fast way to con gure the driver without the need to power the driver.Xitanium Outdoor LED Drivers Independent 1-10VXi LP 65W 0.3-1.05A S1 TWE I175Bene ts• Ultimate robustness, offering peace of mind and lower maintenance costs • Energy savings through high efficiency and via a choice of dimming options • Balanced configurable feature set covering the most common applications• Consistent waterproof performance through the lifecycle• Easy to design-in, configure andinstall for Class I applicationsApplication • Residential areas • Road and street lighting • Area and flood lighting • Tunnel lighting • High-bay lightingFeatures• SimpleSet®, wireless configuration interface • High surge protection• Long lifetime and robust protection against moisture, vibration and temperature • Configurable operating windows (AOC)• External control interface (1-10V) available • Digital Configuration Interface (DCI) via MultiOne Interface• Autonomous or Fixed time based (FTBD) dimming via integrated 5-step DynaDimmer • Programmable Constant Light Output (CLO)• Integrated Driver Temperature protectionElectrical input dataSpeci cation itemValueUnitConditionRated input voltage range Rated input voltage110...277230V ac V ac Rated input frequency range 47...63Hz Performance rangePower factor≥ 0.95Total harmonic distortion ≤ 10 90%E ciency%Input voltage AC range V ac Input frequency AC range HzIsolation Input to OutputBasic99...30545...66@ rated output power @ rated input voltage@ rated output power @ rated input voltage @ max output power @ rated input voltage Rated input current Max. input current Rated input power 0.270.6578A A W@ rated output power @ rated input voltage@ rated output power @ minimum performance input voltage @ rated output power @ rated input voltage Performance range Operational rangeElectrical output dataSpeci cation itemValueUnitConditionRegulation method Constant Current Output voltage 31...93V V dc Output voltage max 130Output current0.07...1.05A Peak voltage at open load Output current min programmable 300Output current min dimming 70mA mA Output current tolerance ± 5%Output current ripple LF %Output current ripple HF ≤ 15%Output power2.5 (65)W≤ 4Ripple = peak / a verage @ ≤1KHzFull output current settingFull outputElectrical data controls inputSpeci cation itemValueUnitConditionControl method1-10Dimming range 10...100Galvanic IsolationBasic%VDefault: 1-10V.Optional: reversed 1-10V, reversed 0-5VLogistical dataSpeci cation itemValueProduct name Xi LP 65W 0.3-1.05A S1 TWE I175Logistic code 12NC 9290 014 74080Pieces per box10≥Dimensions and weightSpeci cation itemValueUnitConditionLength (A1)Length (A2)Length (A3)Width (B1)Width (B2)Fixing hole distance (B3)Fixing hole distance (B4)Height (C)45 mm Input cable length (D1) 450 mm Output cable length (D2) 450 mm Control cable length (D3)300mmWeight800 gram175155162mm 68.2mm 50mm 34mm mm mm mm 4Wiring & ConnectionsSpeci cation itemValueUnitConditionInput wire cross-section 1.04 mm 2 Waterproof cable Output wire cross-section 1.04 mm 2 Waterproof cable Dimming wire cross-section 1.04 mm 2 Waterproof cableMaximum cable length450mmTotal length of wiring including LED module, one wayData Sheet Item Dimensions A1 175 +0/-2.5A2 162 +0.5/-2A3 155 +0.5/-2B1 68.2 +0.5/-0.5B2 50 +0.3/-0.3B3 34 +0.3/-0.3C 45 +0.5/-0.5D1 450 +30/-30D2 450 +30/-30B4 4 +0.1/-0.1D3 300 +30/-30Ambient Temperature -40 … +55 °C Higher ambient temperature allowed as longas T case -max is not exceededTcase-max85 °C Maximum temperature measured at T case -point Tcase-life 75 °CMeasured at T case -point Maximum housing temperature 90 °C In case of a failure Relative humidity10 (90)%Non-condensingOperational temperatures and humiditySpeci cation item Value Unit ConditionStorage temperature and humiditySpeci cation item Value Unit ConditionAmbient temperature -40...+80 °C Relative humidity5 (95)%Non-condensing LifetimeSpeci cation item Value Unit ConditionDriver lifetime 50,000 hours Measured temperature at T case -point isT case -max.Maximum failures = 10%Programmable featuresSpeci cation item Value RemarkConditionSet output current (AOC)SimpleSet See Design-in guideDefault output current: = 700 mAConstant Lumen Over Lifetime (CLO) Yes Diagnostics Yes Dynadimmer Yes AmpdimYesFeaturesSpeci cation item Value Remark ConditionOpen load protection Yes Automatic recovering Short circuit protection Yes Automatic recovering Over power protection YesAutomatic recoveringHot wiringNo Over temperature protection driver Yes Automatic recovering Overheating protection Yes Automatic recovering Input over-voltageYes320Vac @ 48hrs Suitable for xtures with protection classIper IEC60598Certi cates and StandardsSpeci cation item ValueApproval MarksCE / ENEC / CB / CCC Ingress Protection RatingIP66/67Inrush currentSpeci cation item Value Unit ConditionInrush Current I peak 35 A Input voltage 230VInrush Current T width 210µsInput voltage 230V, measured at 50% I peakDrivers / MCB 16A Type B18 pcsMCB Rating Relative number of LED drivers B 10A 63%B 13A 81%B16A 100% (stated in datasheet)B 20A 125%B 25A 156%C 10A 104%C 13A 135%C 16A 170%C 20A 208%C25A260%Driver touch current / protective conductor currentSpeci cation itemValue Unit ConditionTypical protective conductor current < 0.7 mA rms Acc. IEC61347-1. LED module contribution not (ins. Class I)includedIpeakT widthSurge immunitySpeci cation itemValue Unit ConditionMains surge immunity (di . mode) 6 kV L-N, acc. IEC61000-4-5. 2 Ohm, 1.2/50us, 8/20us Mains surge immunity (comm. mode)10kVL/N - GND acc. EN61547 12 Ohm, 1.2/50us, 8/20usGraphsOperating windowPower factor versus output power5040603020100708090400Output Current (mA)O u t p u t V o l t a g e (V d c )120010008002006001.000.980.960.940.920.900.880.860.840.820.80Output Power (W)Output Power (W)P o w e r F a c t o r6040507030208060405070302080E ciency versus output powerE c i e n c y91908988878685Operation Window110V ac 230V ac 277V ac110V ac 230V ac 277V acLifetime vs Tcase100908070605040302010020T case (o )L i f e t i m e (K h r s )4010309050706080THD versus output power121086420Output P ower (W)T H D ( % )50703060402080110V ac 230V ac 277V acDimming CurveVdim (V)120%100%80%60%40%20%0%89421110673151-10V© 2018 Signify Holding. All rights reserved.ReversedThe information provided herein is subject to change, without notice. Signify does not give any representation or warranty as to the accuracy or completeness of the information included herein and shall not be liable for any action in reliance thereon. The information presented in this document is not intended as any commercial o er and does not form part of any quotation or contract, unless otherwise agreed by Signify.Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V. All other trademarks are owned by Signify Holding or their respective owners.Date of release: December 18, 2018Reversed 1-10VNote:1. During reverse dimming mode, when the Dim+ /Dim- is open, the driver will be at maximum output current.2. During reverse dimming mode, there is a hysteresis of 2V between 10V and 12V to keep previous status unchanged when dim voltage is above the linear dimming range120%100%80%60%40%20%0%08942111067315Reversed 0-5V120%100%80%60%40%20%0%08942111067315。

操作说明书目录1.雕刻机控制软件（ncstudio）安装设置说明 (2)2.精雕软件与诺诚转换软件 (7)3.材料固定与加工 (8)4.雕刻各种材料对刀具的选择 (13)5.雕刻机控制系统注意事项 (14)6.精雕软件做各种路径对刀具的选择 (15)7.雕刻机各种刀具的雕刻速度 (16)8.雕刻机常见故障与维护 (18)一、NC控制PCI卡（维宏卡）的安装：1．在配件箱里可以看到PCI卡、数据连接线PCI卡的安装，安装位置如下图所示2.软件安装。

（1）插入随机光盘，在光盘中找到Ncstudio安装包，双击解压。

（2）在解压后的文件夹中找到，双击运行，安装软件。

（3）安装驱动。

安装完成后，不必重启计算机。

我的电脑右键→选择属性→系统属性里面选择硬件→选择设备管理器。

鼠标右击，选择扫描检测硬件改动（A）弹出新硬件向导搜索到PCI卡→默认点击下一步→自动安装PCI卡驱动→安装完成→NC可以正常使用!3.雕刻机机床参数设置（1）厂商参数参数设置。

打开软件，点击系统参数→厂商参数输入口令NCSTUDIO.，进入参数设置界面。

根据您的机器来设置，如下来填写对应项！！！对刀块厚度（）mm；固定对刀块坐标X（）Y（）电机参数：Z轴最大速度（1000）毫米/分钟（2）加工参数设置，点击系统参数→加工参数。

进入加工参数设置界面勾选以下三项适合您机器的速度为：其余参数为默认设置即可！注：参数修改完成以后一定要点击应用！设置完成后机器通电后便可以移动了（注意Z轴要在安全高度，四周无障碍物，避免碰撞！）！二、精雕软件与诺诚转换器1.精雕软件：解压光盘中的这个文件，然后打开文件夹，把发送到桌面就可以直接使用了。

无需安装。

2.诺诚转换器（维宏软件无法兼容精雕的ENG格式路径，所以要用这个转换软件转换成nc代码，然后导入维宏软件，进行加工。

）解压光盘中的这个文件，然后打开文件夹，把发送到桌面就可以直接使用了。

无需安装。

三、材料固定与加工。

前言★ 特别感谢购置本企业木匠雕琢机★ 本操作手册详尽说了然该机器的安装，使用，注意事项和维护养护，常有故障剖析，雕琢技巧等方面的知识，★ 雕琢机属于高精细数控机床，为保证您的木匠雕琢机的精度，稳固性以及使用寿命，请在使用前仔细阅读本手册，并熟习与掌握木匠雕琢机的操作方法和工艺要求★ 假如出现异样状况，请快速关掉电源，参阅本手册办理，如果没法办理，请致电本企业或与当地客户服务部门联系。

★ 为了保证人身与机器的安全，牢记《设备保护与安全注意事项》申明★ 厂商保存不早先通知而改正产品的权益★ 厂商只对售给用户的产品自己肩负应尽的法律义务，不肩负因为产品有故障后，致使用户产生的其余损失。

注意事项★为了安全，正确的使用本机，使用前务必仔细阅读注意事项，在熟记设备原理，安全信息及注意事项★使用本产品的用户一定仔细阅读本手册★在阅读完本手册此后请妥当保存，以便此后使用★对操作本设备的人员要求：操作员一定经过严格的培训，熟习设备的安装，调试，投入运行的步骤和要求，以及对设备的维修，使用和防备一定做到以下几点：1.每天检查安全装置能否正常2.保证开机前所有操作者保持戒备3.工作台面除工件外，无搁置任何杂物4.机床，配电箱邻近请勿堆放杂物，并保持各个部位零件的洁净5.未做养护前，不得开机6.在机器出现紧迫状况时，请实时按下急停开关★本设备带危险电压，机床上电此后在运行和操作时，不得翻开配电柜门和电器控制箱，免得发生触电危险★本设备一定有优秀的接地装置★本设备的各个部位在出厂时都已调理到优秀工作状态，任何非专业人员不得任意改变，如需改变调整，应由专业人员进行或由厂家技术人员指导进行★防备小孩和非本机的操作人员接触本设备★机器作业过程中，禁止操作员走开，免得出现不用要的损失。

★水冷电主轴用作盛水的容器在20 公斤左右，水温在25 度，水温过高应该改换循环水，循环水最好用纯净水，要保证水洁净无杂物以保障机器主轴电机的寿命★不得用手推拉机器龙门★机器应放在无强电，强磁等扰乱的地方★工件和刀具一定加紧后放可工作。

雕刻机使用手册目录首页- 3 -安装前注意事项：- 4 -第一章雕刻机的组成- 5 -一、图片- 5 -二、雕刻机配件- 8 -错误!未指定书签。

一、机器安装错误!未指定书签。

二．软件的安装- 8 -三．软件的参数设置- 13 -第三章雕刻机的操作流程- 18 -第四章刀具的选择- 19 -第五章机器的日常维护及保养- 20 -第六章故障与分析- 21 -附录1控制卡具体参数设置- 25 -附录2DSP手柄的使用说明- 26 -欧阳物创编 2021.02.07首页首先感谢您选用本公司产品，在您机器安装前请仔细阅读本说明书，以免给您的安装和使用造成不必要的麻烦。

如您在使用本产品的过程中遇到问题，请致电本公司售后服务电话：0757-******** 133********本说明书解释权归广州锐雕数控科技有限公司所有，本说明书中所涉及一些技术参数如发生改变，恕无法另行通知。

安装前注意事项：1.切勿在闪电和打雷时安装此设备，切勿在潮湿的地方安装电源插座，切勿触摸未绝缘的电源线。

2.上机操作人员必须经过严格的培训，操作过程中必须注意人身安全和机器安全。

3.电源电压要求为210V～230V，若电源电压不稳或周围有大功率的用电设备，请在专业人员指导下安装稳压电流。

4.不可带电插拔数据电缆，机器本身和控制柜必须接地。

5.操作人员切勿带手套，最好带上防护眼镜。

6.刀具一定要装好夹紧，保持刀具锋利，钝刀将使雕刻质量下降和使电机过载。

7.请勿将手伸入刀具工作范围内。

不可加工含石棉的材料。

8.加工材料大小不要超过机械加工范围，长时间不用请切断电源，机器移动时必须有专业人员指导。

9.水冷主轴使用前一定要注意通水。

10.如机器出现异常，请与经销商或本公司售后服务部联系。

第一章雕刻机的组成一、图片1.整机图（1）12系列（2）木工机2.控制柜前部指示图（1）12系列（2）木工机3.控制柜后部接线图（1）12系列（2）木工机4. 变频器面板指示图二、雕刻机配件名称备注电源线1根水泵（风冷主轴无此配件）1个工具箱1个雕刻刀1盒控制卡（可选DSP控制卡）1套说明书1本保修卡1本压板6套扳手2个TYPE3/MACH3/文泰V8（可选）1套刀夹1个保险管2个水箱1个第二章雕刻机的安装及软件设置一、机器安装警告：所有操作须在断电下进行！1.打开木箱，抬出机器放在平地，轻搬轻放，避免撞击。

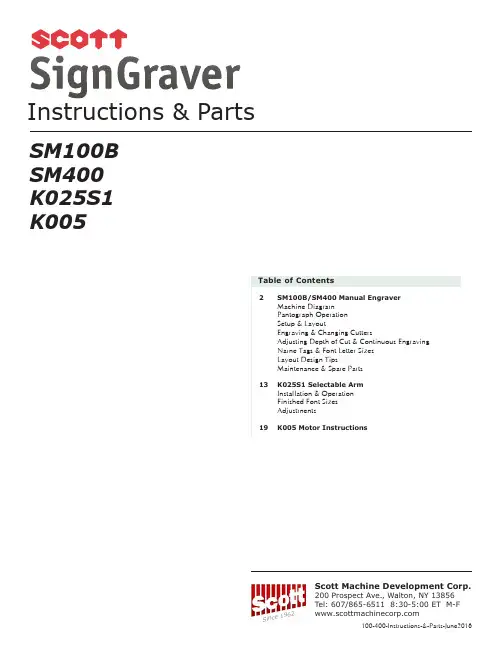

Scott Machine Development Corp.200 Prospect Ave., Walton, NY 13856 Tel: 607/865-6511 8:30-5:00 ET M-FS i n c e 1962100-400-Instructions-&-Parts-June2016Instructions & Parts SM100B SM400K025S1K005K025S1 - Selectable Arm for SM100B Installation & Operating InstructionsScott Machine Development Corp.Ship: 200 Prospect Ave. Mail: PO Box 88, Walton, NY 13856-088Tel: 607.865.6511 Fax: 607.865.7269Web: CATALOG NO. DESCRIPTIONPRICE KS001 Motor link lock screw assembly (washer)$ 6.60 KS002 T-slot nut10.40 KS003 Pivot link lock screw assembly (washer)7.80 KS004 Motor thumb screw assembly (nylon plug)3.10 KTSB1 Pantograph stylus holder18.40 K044 Pantograph grip cover - black5.80 K045 Pantograph grip assembly25.50 K046 Set screw only for stylus shaft 1.60Use with K005* (117 volt) motor (NOT INCLUDED). * K007 (Power Converter) for export. K025S1 - Selectable Arm for use with SM100B & SM400Spare Parts - List Price Minimum Order $25.00①②③④⑤⑥⑦⑧INSTALLATION of Selectable Arm (K025S1) and Pantograph Mounting Bracket (K026S1) onto SM100B• Remove 2:1 mounting kit (K100B05) and mounting kit (K100B16) by removing two screws①.• Use spacer bar② to mount selectable pantograph (K025S1) and mounting kit (K026S1).• Tighten screws③.OPERATION of Selectable Ratio Pantograph (K025S1)• Loosen motor link lock screw①.• Slide motor mounting block② to desired ratio,align marks and tighten screw.*• Loosen pivot link lock screw③.• Slide pivot link④ to desired ratio, align marksand tighten screw.*• Proceed with use of pantograph as outlinedin Signgraver (SM100B or SM400) operatinginstructions.* Please Note: These marks must be properlyaligned to ensure the best engraving.Special Note: With smaller fonts and greaterreductions (eg. ML212, 4:1) use stylusmounted depth control (K002B). See pg 8,item 14 in SM100B/400 operating instructions.FONT TEMPLATESSizing Chart Font TemplatesPlease read before engraving:As each different ratio is selected on the pantograph, the actual spanof the arm is increased or decreased in size. Therefore it is necessaryto compensate by adjusting the machine to fit the ratio selected.Each Tag Engraver base has 3 locations (holes labelled A, B, C) forthe upper Master Type Bar. Additionally, the Sign Blank Plate (or TagAdapter) can be inserted into the machine in a reverse position.The following chart is to be used as a guideline so that the machinecan be properly set up before engraving.Note: This chart illustrates set up allowing for maximum sign blank size that can be used in each ratio.* Tag Adapter in reverse position FontRatio Upper master type bar hole location Maximum sign blank size Sign blank plate or tag adapter position ML2101/4” master 2A 3½”forward 2.5A 3”* reverse 3A 2”* reverse 3.5A1½”* reverse 4not recommended ML2113/8” master 2A3½”forward 2.5A2½”* reverse 3A2”* reverse 3.5C1”* reverse 4C¾”* reverse ML2125/8” master 2A3½”forward 2.5A2½”* reverse 3A2”* reverse 3.5C1”* reverse 4C¾”* reverse ML131” master 2A3½”forward 2.5B2¼”* reverse 3B2”* reverse 3.5B1¼”* reverse 4B1”* reverse ML2141 5/16” master 2A3½”forward 2.5A3”* reverse 3A2”* reverse 3.5A1½”* reverse 4B1”* reverse ML151 3/4” master 2A3½”forward 2.5A3½”* reverse 3A2”* reverse 3.5B1½”* reverse 4B 1¼”* reversecontinued...Note: This chart illustrates set up allowing for maximum sign blank size that can be used in each ratio with large letters while allowing for a longer message with more characters.Font Ratio Upper master type barhole location Maximum sign blanksizeSign blank plate or tagadapter positionML2141 5/16” master2A3½”forward 2.5B2½”* reverse 3B2”* reverse 3.5B1¼”* reverse 4C1”* reverseML151 3/4” master2A3½”forward 2.5B2½”* reverse 3B2”* reverse 3.5C1”* reverse 4C1”* reverseMotor MountedDepth ControlL ow - Use for Engraving High - Use for Beveling Remove Motor Mounted Depth Control Always unplug Motor before changing cutter Remove the cutter and replace with the one of your choice Tighten Collet Nut just enough so cuttercan still move freely. Replace the Motor Mounted Depth Control on the motor until it locks against the Motor Link .The Cutter tip should be protruding fromthe Motor Mounted Depth Control. Press a flat piece of engraving material against the cutter tip so it is flush with the end of the Motor Mounted Depth Control.Loosen the Motor Clamping Screw andturn the motor clockwise 1/8 of a turn. Tighten the Motor Clamping Screw.Tighten the Motor Mounted Depth Control. The tip of the cutter should be exposed slightly. The amount it is exposed will be the depth of the cut. Always start with a shallow cut, then increase to the required depth.Press the Shaft Lock Button and loosenthe Collet Nut.Press the Shaft Lock Button and tightenthe Collet Nut.MOTOR SPEED SWITCHINSTALLING CUTTERSK005Engrav er & r1263457Scott Machine Development Corporation 200 Prospect Ave PO Box 88 Walton, NY 13856Phone: 607-865-6511 Fax: 。

第一章机器介绍机头控制箱Y轴轨道机架工作台面龙门i[i]（此图仅供参考，以实物为准）第一节三轴介绍X轴：机头在龙门上左右运动为X轴运动，左为负，右为正。

Y轴：整个龙门在Y轴轨道上做前后运动，前为正，后为负。

Z轴：机头上下运动就是Z轴运动，上为正，下为负。

第二节坐标系设备操作中，我们会遇到两个坐标系，一个是机械原点确定的机械坐标系，它是唯一确定的；一个是工件坐标系，是我们自己指定的，它是相对于工件上的某个点确定的，相对于机械坐标原点则是可以浮动的。

第二章维宏操作系统1．系统简介NCStudio 数控系统是上海维宏科技有限公司自主开发、自有版权的雕刻机运动控制系统，该系统可以直接支持UG 、MASTERCAM 、CASMATE 、Art CAM 、AUTOCAD 、CorelDraw 等多种CAD/CAM 软件生成的G 代码、PLT 代码格式和精雕加工（ENG ）格式。

该数控系统除具有手动、步进、自动和回机械原点功能外，还具有模拟仿真、动态显示跟踪、Z 轴自动对刀、断点记忆（程序跳段执行）和回转轴加工等特有的功能。

2.安装：维宏控制系统：将安装文件考入D盘后点击Setup.exe安装软件。

安装完毕后，关掉计算机，然后将维宏数控卡插入电脑主板的PCI插槽，重新启动计算机，寻找维宏卡的驱动程序，然后打开维宏软件，在其中系统参数里边加工参数做相应的调整，★最重要的还是要调整厂商参数（密码：ncstudio）里边的电机参数X=0.00625 Y=0.00625 Z=0.003125 即可正常使用。

3．工作界面：4．操作步骤开机在开机之前，首先确定机床与计算机所有连接正常，然后打开机床电源和计算机电源。

在系统启动完毕后，进入NCStudio 数控系统。

机械复位(可选)如果机床支持回机械原点操作，选择"回机械原点"菜单。

机床将自动回到机械原点，并且校正系统坐标系统。

在某些情形下，如上次正常停机后，重新开机并继续上次的操作，用户不必执行机械复位操作。

This Instruction Manual Contains Important Safety Information.Read THIS INSTRUCTION MANUAL Care-fully and understand ALL INFORMATION Before Operating This Tool.•Always operate, inspect and maintain this tool in accordance with AmericanNational Standards Institute Safety Code of Portable Air Tools (ANSI B186.1)and any other applicable safety codesand regulations.•For safety, top performance and maximum durability of parts, operate this tool at 90 psig 6.2 bar max air pressure with 3/8"diameter air supply hose.•Always wear impact-resistant eye and face protection when operating orperforming maintenance on this tool.Always wear hearing protection whenusing this tool.• High sound levels can cause permanent hearing loss. Use hearing protection asrecommended by your employer orOSHA regulation.•Keep the tool in efficient operating condition.•Operators and maintenance personnel must be physically able to handle thebulk, weight and power of this tool.• Air under pressure can causesevere injury. Never direct air at yourself or others. Always turn off the air supply, drain hose of air pressure and detachtool from air supply before installing,removing or adjusting any accessoryon this tool, or before performingmaintenance on this tool. Failure to doso could result in injury. Whip hoses can cause serious injury. Always check fordamaged, frayed or loose hoses andfittings, and replace immediately. Do not use quick detach couplings at tool. Seeinstructions for correct set-up.•Air powered tools can vibrate in use.Vibration, repetitive motions oruncomfortable positions over extendedperiods of time may be harmful to yourhands and arms. Discontinue use of toolif discomfort, tingling feeling or painoccurs.Seek medical advice beforeresuming use.•Place the tool on the work before starting the tool.• Slipping, tripping and/or falling while operating air tools can be a majorcause of serious injury or death. Beaware of excess hose left on the walking or work surface.•Keep body working stance balanced and firm. Do not overreach when operatingthe tool.•Anticipate and be alert for sudden changes in motion during start up andoperation of any power tool.• Do not carry tool by the hose. Protect the hose from sharp objects and heat.• Keep away from rotating end of tool.Do not wear jewelry or loose clothing.Secure long hair. Scalping can occur ifhair is not kept away from tool andaccessories. Choking can occur ifneckwear is not kept away from tooland accessories.•Do not lubricate tools with flammable or volatile liquids such as kerosene, diesel or jet fuel.•Don't force tool beyond its rated capacity.•Do not remove any labels. Replacedamaged labels. FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY.SX278C8MM Punch/Flange ToolAir Supply...Tools of this class operate on a wide range of air pressures. It is recommended that air pressure of these tools measure 90 PSI at the tool while running free. Higher pressure and unclean air will shorten the tool’s life because of faster wear and may create a hazardous condition.Water in the air line will cause damage to the tool. Drainthe air tank daily. Clean the air inlet filter screen on at leasta weekly schedule. The recommended hook-up procedure can be viewed above.The air inlet used for connecting air supply, has standard 1/4" NPT American Thread.Line pressure should be increased to compensate for unusually long air hoses (over 25 feet). Minimum hose diameter should be 1/4" I.D. and fittings should have the same inside dimensions.Limited Warranty...SUNEX INTERNATIONAL, INC. WARRANTS TO ITS CUSTOMERS THAT THE COMPANY’S SUNEX TOOLS®BRANDED PRODUCTS ARE FREE FROM DEFECTS IN WORKMANSHIP AND MATERIALS.Sunex International, Inc. will repair or replace its Sunex Tools®branded products which fail to give satisfactory service due to defective workmanship or materials, based upon the terms and conditions of the following described warranty plans attributed to that specific product. This product carries a ONE-YEAR warranty. During this warranty period, Sunex Tools will repair or replace at our option any part or unit which proves to be defective in material or workmanship.Other important warranty information...This warranty does not cover damage to equipment or tools arising from alteration, abuse, misuse, damage and does not cover any repairs or replacement made by anyone other than Sunex Tools or its authorized warranty service centers.The foregoing obligation is Sunex Tools’ sole liability under this or any implied warranty and under no circumstances shall we be liable for any incidental or consequential damages.Note:Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Return equipment or parts to Sunex Tools, or an authorized warranty service center, transportation prepaid. Be certain to include your name and address, evidence of the purchase date, and description of the suspected defect.If you have any questions about warranty service, please write to Sunex Tools. This warranty gives you specific legal rights and you may also have other rights which vary from state to state. Repair kits and replacement parts are available for many of Sunex Tools products regardless of whether or not the product is still covered by a warranty plan.Shipping Address:Sunex Tools • 315 Hawkins Rd. • Travelers Rest, SC 29690Mailing Address:Sunex Tools • P.O. Box 4215 • Greenville, SC 29608。

刻字机快速使用指南1、先装刀【从刻字机上把刀座取下来】一只手按住后面弹不放，另一只手把刀柄从刀孔里插入进去，插到底后松开后面的弹簧，刻刀就装进去了，用手指触碰刀孔那里如果能感觉到刀尖就行，如果感觉不到刀尖，或是刀尖出来过长，我们都要拧后面的螺丝来调节刀尖的深浅，要调节刀尖深浅的话，先是松开铜环螺丝1，逆时针拧是松，松开铜环之后，就可以拧后面的铝螺丝2来调节深浅了，逆时针拧铝螺丝2，刀尖就是在往后退，顺时针拧的话，刀尖就往前进，刀尖的位置差不多露出刀口0.2mm，所以看起来刀尖和刀口差不多是处于一个相平的位置就刚好，手指往刀口那触碰，能感觉到刀尖就行，差不多就合适了。

装好刀之后，把刀座卡到刻字机上去的时候，这里一定要注意，别把刀座卡错位置了，卡夹中间有卡槽，刀座的卡环一定是卡在卡槽里面，如果卡错位置了，是不能刻字的。

刻字之前一定要先自检，先试刀试刻自检试刻出来的效果要好撕下来好揭下来就是很好的，很多人会问速度调多少，压力调多少合适，这个没有一个标准的数值，速度一般在中等速度左右，新手刚开始速度也不要调最高，压力的话一般在20g--100g之间，根据出来的刀尖来调，刀尖出来多了，压力肯定要小，刀尖露出来的深浅不一样，压力的数值也不一样，所以得需要自己多自检试刻几遍，调成以下这种好揭下来的效果就行了。

文泰2009使用说明想更深入的了解熟悉敬请自行研究，首先给一点建议，文泰刻绘软件并不非常适合适用于作图软件，作图软件建议使用CDR,AI,CAD等专业软件，对于刻字机来说我们仅此作为输出软件，请不要把它想的过于复杂。

填写自己合适的版面大小，如果这里填写不合适也没关系，打开软件里面还可以调整版面大小，填写好之后单击创建新文件图标进入文泰刻绘软件界面。

斜T标志按钮为文字输入状态。

红色框内为自提选择和字体大小设定。

斜箭头为选择对象按钮，选中目标按空格键为90度旋转对象。

选中目标右击有更多功能自行查看。

读取文件：单击左上角F文件，单击读入，点击相应文件存储盘符位置，选择相对应的格式，建议常用PLT 、EPS 、DXF 三种最常用格式。

目录一，目录 (1)二，速驰简介 (2)三，刻绘机的安装与注意事项 (3)1，警示符号..........................................................................................................3-4 2，装箱清单. (5)3，脚架的安装 (6)4，刻绘机接线方式 (7)5，刻绘机刀座的安装 (8)四，速驰SC型绘图切部件说明 (9)1，部件及名称.................................................................................................................9-10 2，按键面板介绍 (11)五，刻绘机的操作方法 (12)2，菜单功能详细介绍...................................................................................................13-14 3，文泰软件的安装及设置 (15)a,文泰软件的安装 (15)b, 文泰软件的设置 (16)c, 如何把图案导入到文泰进入刻绘.......................................................................17-19六，速驰SC型绘图切割机技术参数............................................................................ 20-21七，产品保修条例...........................................................................................................22-24八，常见故障分析...........................................................................................................25-28 在使用前，请仔细阅读本手册!速驰简介深圳市速驰机电有限公司（以下简称“速驰”）是一家高科技数控产品制造商，公司首期主要以DSP系统、ARM系统为主的刻字机研发与生产。

第一章使用注意事项◆YY系列电脑刻字机供电电压为AC220±10%，否则，必须使用电源稳压器。

◆小车带有强磁场，不可在小车附近放置细小铁磁性物体◆防止大头针、小螺钉等异物落入机器内◆若电脑刻字机长期不使用，请拔下电源插头◆不允许在带电时，插拔与电脑相联接的电缆◆不工作时，压轮不要长期压在主辊上◆刻字机外壳应用导线与计算机外壳相连并接地◆刻绘时，刻字机周围应有足够的空间，以防纸张碰撞四周的物品，致使所刻的图文变形.第二章总览一、随机附件二、主机简介〖1〗YY_0系列1 左罩壳2 刻刀架3 刻刀座4 刻刀架小车5 导轨护罩6. 压轮7. 刀压调节旋钮8. 按键面板9. 右罩壳10. 橡胶机脚11. 并行口12. 串行口13. 电源插座14. 保险丝座15. 电源开关16. 压轮升降手柄17. 铭牌〖2〗YY_0E系列 YY_1E系列1．罩壳2．刻刀架3．刻刀座4．刻刀架小车5．导轨护罩6．压轮7．刀压调节旋钮（SC_1E系列无）8．按键面板9．右罩壳10．橡胶机脚11．并行口12．串行口13．电源插座14．保险丝座15．电源开关16．压轮升降手柄三、机架零件与安装1、机架零件2、机架安装请参考图：第一步：将支脚○1旋入支脚梁○2上的螺纹孔中，再用螺钉把支脚梁分别联接到左、右立柱○3○4上。

第二步：用螺钉把左右立柱与横梁○5联接。

第三步：用螺钉把托纸架○6联接到左右立柱的内侧。

第四步：用螺钉把联机板○7联接到左右立柱的顶端。

第五步：把主机上的原4个机脚卸下，将主机放置在联机板上，再把机脚穿过联机板和主机联接起来。

第六步：将卷纸轴○8安放到托纸架的滚轮上。

2、刻刀的安装及调整A、安装刻刀前，应仔细清洁刻刀座体、刻刀和您的手。

如把微小的粉尘带入精密轴承会危及其旋转的灵敏度。

小心地将刻刀插入刻刀座体中，然后用一块柔软的塑料或橡皮把刻刀推到底，小心不要碰伤刻刀的刀尖。

B、旋转刻刀座外壳，伸出刀尖。

通常情况下，刀尖伸出长度为0.25mm左右（刻绘进口反光膜时可适当伸长刀尖），刻刀使用一段时间后，因不够锋利，也可适当伸长（最好及时更换）。
