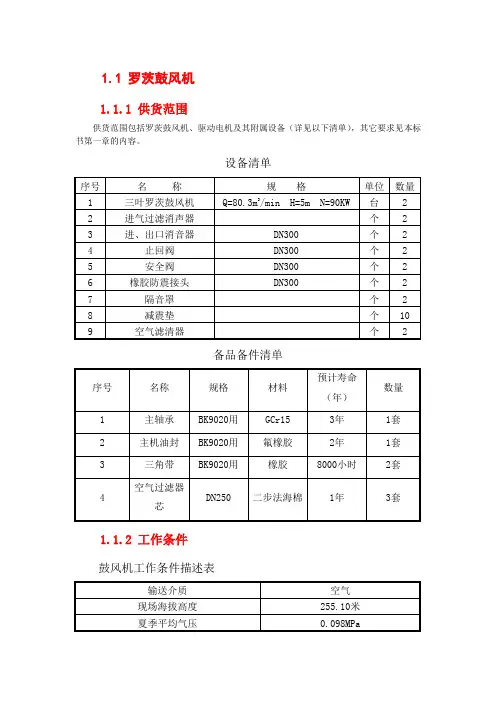

1.1罗茨鼓风机1.1.1供货范围供货范围包括罗茨鼓风机、驱动电机及其附属设备（详见以下清单），其它要求见本标书第一章的内容。
设备清单备品备件清单1.1.2工作条件鼓风机工作条件描述表1.1.3技术参数1.1.3.1鼓风机性能表*鼓风机技术参数描述表1.1.3.2技术要求（1）除整机设置铭牌外，鼓风机、配套电机等非单一工厂生产的配套件，均应设有铭牌，旋转件有旋向箭头，气流体有流向箭头，箭头色泽应涂以醒目的红色。
（2）鼓风机要求间歇频繁启动（每小时不少于6次），运行时保持稳定，无异常振动，在鼓风机额定转速时，轴承座上径向振幅（双向）不大于0.14mm。
（3）风机主机在正常使用情况下，可保证连续使用50000h以上不用维修。
（5）进、出气口法兰应符合国家标准规定法兰。
（6）成套机组均应良好接地，接地电阻不大于10Ω，电气设备不大于4Ω。
1.1.3.3*构造与材料（1）鼓风机鼓风机构造为同步齿轮传动的三叶罗茨式鼓风机。
进气口和出气口均与轴垂直，进气口方向朝上，出气口方向水平。
为保证鼓风机的整体使用性能。
壳：鼓风机机壳采用铸铁（HT200）。
叶轮和轴：鼓风机叶轮和轴结合为一体，且叶轮无磨损，风机性能持久不变，可长期连续运转，鼓风机叶轮和轴采用球墨铸铁（QT500）。
齿轮和轴承：鼓风机采用最高级驱动齿轮和轴承，不仅使寿命得到延长，而且实现了低噪音化，轴承部分的振动速度有效值大大低于国家标准（ZBJ7203-89）规定的13mm/s。
鼓风机齿轮和轴承材质分别为合金钢（20CrMnMo和GCr15）。
填料密封：鼓风机叶轮轴与轴承和齿轮箱间设有挡油圈（HT200），挡油环用O圈及油封（丁腈橡胶）确保壳体内没有混油，可获得清洁气体。
传动装置：鼓风机与电动机之间由皮带传动，皮带轮采用铸铁（HT200），并有皮带罩。
鼓风机基座：鼓风机、电动机、进风过滤消声器、出风消音器等设备辅件组装成一体，以成组型方式安装在一个基座上，鼓风机基座材料采用铸铁（HT200）或钢（A3）。

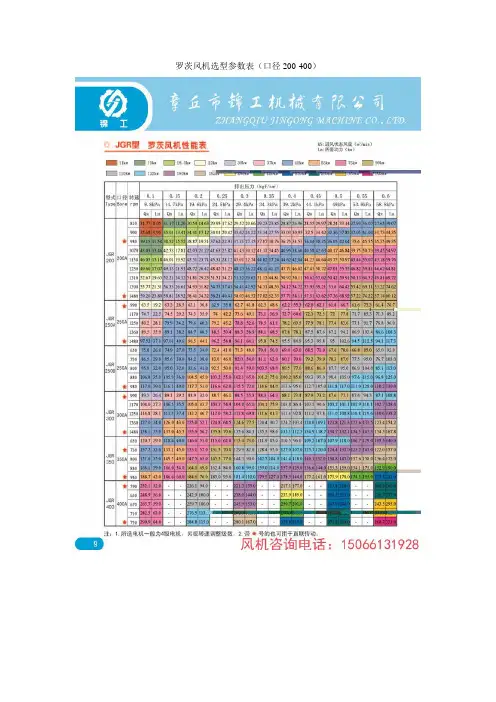

Qs La Po Qs La Po Qs La Po Qs La Po Qs La PoQs La Po 19700.870.340.750.750.530.750.660.72 1.10.570.91 1.10.50 1.11 1.522400 1.130.450.75 1.010.69 1.10.910.92 1.10.83 1.15 1.50.76 1.39 2.20.69 1.62 2.222830 1.390.580.75 1.260.86 1.1 1.17 1.13 1.5 1.09 1.41 2.2 1.01 1.68 2.20.95 1.96323260 1.640.73 1.1 1.52 1.04 1.5 1.42 1.36 1.5 1.34 1.68 2.2 1.27 1.993 1.21 2.31323770 1.940.92 1.5 1.82 1.28 2.2 1.72 1.65 2.2 1.64 2.013 1.57 2.3831.512.75424240 2.22 1.1 1.5 2.10 1.51 2.2 2.00 1.93 2.2 1.92 2.343 1.85 2.7541.79 3.164247502.53 1.32 2.2 2.40 1.78 2.2 2.31 2.243 2.23 2.704 2.163.1642.093.62425170 2.78 1.52 2.2 2.65 2.023 2.56 2.523 2.48 3.034 2.40 3.5342.34 4.03 5.522400 1.960.64 1.1 1.75 1.05 1.5 1.59 1.45 2.2 1.45 1.85 2.2 1.33 2.2631.222.66322800 2.370.8 1.1 2.16 1.27 2.2 2.00 1.74 2.2 1.86 2.213 1.74 2.6831.63 3.154232402.830.98 1.5 2.61 1.53 2.2 2.45 2.073 2.32 2.623 2.193.1642.083.70 5.523700 3.35 1.19 1.5 3.14 1.81 2.2 2.98 2.443 2.84 3.064 2.72 3.68 5.52.61 4.30 5.5241703.78 1.43 2.2 3.57 2.133 3.41 2.834 3.27 3.534 3.154.235.53.044.945.524640 4.27 1.68 2.2 4.05 2.463 3.89 3.244 3.76 4.02 5.5 3.63 4.80 5.53.52 5.587.5251704.81 1.993 4.60 2.864 4.44 3.735.5 4.30 4.60 5.5 4.18 5.477.54.07 6.337.521480 3.150.88 1.1 2.86 1.51 2.2 2.64 2.143 2.45 2.774 2.28 3.4042.13 4.03 5.5417603.89 1.1 1.5 3.59 1.85 2.2 3.37 2.603 3.18 3.354 3.014.105.52.86 4.85 5.542050 4.64 1.37 2.2 4.35 2.253 4.123.124 3.934.005.5 3.76 4.87 5.53.61 5.747.542320 5.35 1.59 2.2 5.05 2.5844.83 3.574 4.64 4.555.5 4.47 5.547.5 4.326.537.522670 6.26 1.943 5.97 3.074 5.74 4.21 5.5 5.55 5.357.5 5.38 6.497.55.237.6211230007.12 2.2936.83 3.57 5.5 6.60 4.84 5.5 6.41 6.127.5 6.247.40116.098.6811232507.77 2.5747.48 3.95 5.57.25 5.347.57.06 6.727.5 6.898.11116.749.4911236008.68 2.9848.39 4.52 5.58.17 6.057.57.987.59117.819.12117.6510.651521440 4.62 1.25 1.5 4.25 2.153 3.96 3.054 3.72 3.95 5.5 3.50 4.85 5.53.31 5.757.541760 5.84 1.59 2.2 5.47 2.694 5.18 3.79 5.54.94 4.895.5 4.73 5.997.54.547.091142040 6.95 1.953 6.58 3.234 6.29 4.505.56.05 5.787.5 5.847.05115.658.3311423508.10 2.3937.73 3.86 5.57.44 5.337.57.206.7911 6.998.2611 6.799.7311226309.17 2.8148.80 4.46 5.58.51 6.107.58.277.74118.069.39117.8611.0315*******.32 3.3149.95 5.147.59.66 6.97119.428.81119.2010.64159.0112.47152326011.58 3.9 5.511.21 5.937.510.927.971110.6810.011510.4712.051510.2714.0818.52360012.88 4.55 5.512.51 6.801112.229.051111.9811.301511.7713.5518.511.5715.8018.5229.4kPa Belt Drive ZW Series Three-Lobe Roots Type Blower Pressure Performance DataZW系列三叶罗茨鼓风机皮带传动性能参数表转速rpm 进口流量是指在标准吸入状态下(绝对压力101.325kPa,温度20℃)的进口空气流量Performance based on inlet air at standard temperature of 20℃, an ambient pressure of 101.325kPa 电机极数Motor Pole 19.6kPa 58.8kPa ZW-40680A ZW-306各排气压力下的进口流量Qs (m 3/min),轴功率La (kW)及所配电机功率Po (kW)Inlet Flow Qs (m3/min),Shaft Power La (kW) and Motor Power Po (kW)9.8kPa ZW-202ZW-204风机型号Model 口径Bore 32A 50A 39.2kPa 49kPa 65AQs La Po Qs La Po Qs La Po Qs La Po Qs La Po Qs La Po12007.71 1.78 2.27.29 3.254 6.96 4.73 5.5 6.68 6.207.5 6.447.6811 6.229.1511414509.53 2.2839.10 4.06 5.58.78 5.857.58.507.63118.269.41118.0411.19154176011.78 2.91411.36 5.087.511.037.241110.769.401110.5111.571510.2913.7318.54203013.75 3.65 5.513.32 6.147.513.008.641112.7211.141512.4813.6318.512.2616.1318.54233015.93 4.6 5.515.517.471115.1810.331514.9013.201514.6616.0618.514.4418.92222260017.89 5.617.517.478.801117.1412.001516.8715.2018.516.6218.402216.4021.59302285019.71 6.681119.2910.191518.9613.6918.518.6917.202218.4420.703018.2224.2130298012.46 2.8411.74 5.137.511.197.451110.729.781510.3112.10159.9414.4318.54110014.20 3.25413.48 5.867.512.938.471112.4611.081512.0513.6918.511.6816.30224130017.10 4.07 5.516.387.161115.8310.241515.3613.3318.514.9516.412214.5819.50224146019.42 4.817.518.708.271118.1511.741517.6815.2018.517.2718.672216.8922.133********.03 5.77.521.319.591520.7513.4818.520.2917.382219.8721.273019.5025.16304185025.07 6.861124.3511.251523.8015.6418.523.3320.033022.9224.423022.5428.81374207028.268.221127.5413.1418.526.9818.052226.5222.963026.1027.873725.7332.79454235032.3110.181531.5915.752231.0421.333030.5726.903730.1632.484529.7938.0545498021.18 4.647.520.208.491119.4512.331518.8216.182218.2620.023017.7523.86304117025.74 5.867.524.7610.451524.0115.0418.523.3819.633022.8224.223022.3128.81374134029.827.061128.8512.311528.0917.572227.4622.833026.9028.093726.3933.34454147032.948.061131.9713.8218.531.2219.593030.5825.363030.0231.123729.5236.89454163036.799.391535.8115.792235.0622.183034.4228.583733.8634.974533.3641.37554176039.9110.561538.9317.472238.1824.373037.5531.283736.9938.184536.4845.08554189043.0311.821542.0519.233041.3026.653740.6734.064540.1141.485539.6048.89754204046.6313.3718.545.6621.383044.9029.383744.2737.384543.7145.395543.2053.3975488028.517.241126.9512.61525.8917.832224.7923.223024.0328.723723.0834.21374106035.419.361133.8515.8218.532.7922.263031.6928.793730.9335.334529.9841.89554117039.6110.461538.0517.632236.9924.793035.8932.273735.1339.484534.1846.76554127043.4112.011541.8519.792240.7927.573039.6935.394538.9343.445537.9851.36554137547.5113.021545.9521.753044.8930.233743.7939.744543.0347.455542.0856.15754155054.2115.9318.552.6525.783051.5935.474550.4945.285549.7354.987548.7864.85754168059.2118.812257.6529.083756.5939.94555.4950.625554.7361.027553.7871.59904180063.8121.323062.2532.363761.1943.825560.0955.117559.3366.217558.3877.87904125A ZW-508100A 150A ZW-712口径Bore 58.8kPa 风机型号Model 39.2kPa 19.6kPa 29.4kPa Belt Drive ZW Series Three-Lobe Roots Type Blower Pressure Performance DataZW系列三叶罗茨鼓风机皮带传动性能参数表ZW-816200A 进口流量是指在标准吸入状态下(绝对压力101.325kPa,温度20℃)的进口空气流量Performance based on inlet air at standard temperature of 20℃, an ambient pressure of 101.325kPa 转速rpm 各排气压力下的进口流量Qs (m 3/min),轴功率La (kW)及所配电机功率Po (kW)Inlet Flow Qs (m3/min),Shaft Power La (kW) and Motor Power Po (kW)ZW-610电机极数Motor Pole 9.8kPa 49kPaQs La Po Qs La Po Qs La Po Qs La Po Qs La Po Qs La Po Qs La Po Qs La Po 19700.860.340.750.700.530.750.630.63 1.10.560.72 1.10.480.82 1.1224001.110.450.750.960.69 1.10.890.80 1.10.810.92 1.10.74 1.04 1.50.66 1.15 1.5228301.370.580.75 1.210.86 1.1 1.14 1.00 1.5 1.07 1.13 1.50.99 1.272.20.92 1.41 2.2232601.630.73 1.1 1.47 1.04 1.5 1.40 1.20 1.5 1.32 1.36 1.5 1.25 1.522.2 1.17 1.68 2.2 1.09 1.84 2.2237701.930.92 1.5 1.77 1.282.2 1.70 1.46 2.2 1.63 1.65 2.2 1.55 1.83 2.2 1.48 2.013 1.39 2.23242402.21 1.1 1.5 2.05 1.51 2.2 1.98 1.72 2.2 1.91 1.93 2.2 1.83 2.133 1.76 2.343 1.67 2.543 1.59 2.754247502.51 1.32 2.2 2.35 1.78 2.2 2.28 2.013 2.21 2.243 2.14 2.473 2.06 2.74 1.98 2.934 1.983.164251702.76 1.52 2.2 2.60 2.023 2.53 2.273 2.46 2.523 2.39 2.784 2.313.034 2.23 3.284 2.14 3.534224001.930.64 1.1 1.67 1.05 1.5 1.55 1.252.2 1.42 1.45 2.2 1.30 1.65 2.2 1.17 1.85 2.2228002.350.8 1.1 2.08 1.27 2.2 1.96 1.51 2.2 1.83 1.74 2.2 1.71 1.98 2.2 1.58 2.213232402.800.98 1.5 2.53 1.53 2.2 2.41 1.80 2.2 2.29 2.073 2.16 2.343 2.03 2.623 1.89 2.894237003.27 1.19 1.5 3.01 1.81 2.2 2.88 2.133 2.76 2.443 2.63 2.754 2.5 3.064 2.37 3.374241703.76 1.43 2.2 3.49 2.133 3.37 2.483 3.24 2.834 3.12 3.184 2.99 3.534 2.85 3.88 5.5 2.704.235.5246404.24 1.68 2.2 3.97 2.463 3.85 2.854 3.73 3.244 3.60 3.635.5 3.47 4.02 5.5 3.33 4.41 5.5 3.18 4.80 5.5251704.78 1.993 4.52 2.864 4.39 3.294 4.24 3.735.5 4.15 4.16 5.5 4.02 4.6 5.5 3.88 5.037.5 3.73 5.477.5214803.120.88 1.1 2.75 1.51 2.2 2.58 1.83 2.2 2.41 2.143 2.23 2.463 2.05 2.774417603.85 1.1 1.5 3.48 1.85 2.2 3.31 2.223 3.14 2.603 2.96 2.974 2.78 3.354 2.59 3.72 5.5420504.60 1.37 2.2 4.23 2.253 4.06 2.663 3.89 3.124 3.72 3.534 3.5445.5 3.35 4.4 5.5423205.31 1.59 2.2 4.94 2.584 4.77 3.074 4.60 3.574 4.42 4.06 5.5 4.24 4.55 5.5 4.05 5.057.5 3.84 5.547.5226706.22 1.943 5.85 3.074 5.68 3.64 5.5 5.51 4.21 5.5 5.34 4.78 5.5 5.15 5.357.5 4.96 5.927.5 4.76 6.497.5230007.08 2.293 6.71 3.57 5.5 6.54 4.20 5.5 6.37 4.84 5.5 6.20 5.487.5 6.02 6.127.5 5.82 6.7611 5.627.4011232507.73 2.5747.36 3.95 5.57.19 4.64 5.57.02 5.347.5 6.85 6.037.5 6.67 6.727.5 6.487.4111 6.278.1111236008.65 2.9848.28 4.52 5.58.11 5.297.57.94 6.057.57.76 6.82117.587.59117.398.35117.189.1211214404.57 1.25 1.5 4.10 2.153 3.88 2.603 3.67 3.054 3.45 3.504 3.22 3.955.5 2.97 4.4 5.5417605.79 1.59 2.2 5.33 2.694 5.11 3.244 4.89 3.79 5.5 4.67 4.34 5.5 4.44 4.897.5 4.2 5.447.5420406.87 1.953 6.40 3.234 6.18 3.87 5.5 5.96 4.50 5.5 5.74 5.147.5 5.51 5.787.5 5.27 6.417.5 5.007.0511423508.05 2.3937.58 3.86 5.57.37 4.59 5.57.15 5.337.5 6.93 6.067.5 6.7 6.7911 6.457.5311 6.198.2611226309.12 2.8148.65 4.46 5.58.44 5.287.58.22 6.107.58.00 6.92117.777.74117.528.57117.269.39112293010.27 3.3149.80 5.147.59.58 6.067.59.37 6.97119.157.89118.928.81118.679.72118.4110.64152326011.53 3.9 5.511.06 5.937.510.85 6.951110.637.971110.418.991110.1810.01159.9411.03159.6712.0515*******.83 4.55 5.512.36 6.801112.157.921111.939.051111.7110.171511.4811.31511.2412.421510.9713.5518.52各真空度下的进口流量Qs (m 3/min),轴功率La (kW)及所配电机功率Po (kW)Inlet Flow Qs (m3/min),Shaft Power La (kW) and Motor Power Po (kW)-9.8kPa ZW-202ZW-204真空泵型号Model口径Bore 32A 50A -44.1kPa -39.2kPa -29.4kPa -34.3kPa -49kPa -24.5kPa ZW-306ZW-406电机极数Motor Pole -19.6kPa Belt Drive ZW Series Three-Lobe Roots Type Blower Vacuum Performance DataZW系列三叶罗茨鼓风机皮带传动真空性能参数表65A 转速rpm 进口流量是指在各真空度下，进口温度为20℃，出口为绝压101.325kPa的进口空气流量。
