H3C无线路由器安装与设置教程步骤H3C无线路由器安装与设置教程步骤加城宽带路由器在一个紧凑的箱子中集成了路由器、防火墙、带宽控制和管理等功能，具备快速转发能力，灵敏的网络管理和丰富的网络状态等特点。
有朋友你问我H3C路由器怎么设置?以及H3C路由器怎样安装?对此，本文就为大家图文具体介绍H3C无线路由器安装与设置图文步骤，有兴趣的朋友们就来了解下吧一、H3C路由器安装方法目前，大多数路由器安装方法都是一样的，路由器的WAN口用于连接外部网线，而LAN口用来连接电脑(假如是无线连接，则无需连接电脑)，下面是H3C路由器安装图解。
假如是无线连接，只要使用笔记本/手机连接H3C无线网络即可，一般新款H3C路由器只要插上网线、接通电源旧会自动生成一个初始设置无线网络，可供笔记本、手机连接完成初始化连接，之后就能够进行设置了，详细操作如下。
二、H3C无线路由器设置教程完成路由器安装与电脑连接后，接下初次使用就需要设置路由器了，方法步骤如下。
1、打开阅读器，然后输入并打开192.168.1.1或，打开路由器管理器界面，如下列图所示。
2、然后点击欢迎进入魔术家，进入下面界面，初次使用需要先设置路由器管理员密码，完成后，点击保存，如下列图所示。
3、下一步则是重点操作，这里输入宽带账号、密码后，点击拨号上网，拨号成功后，点击下一步如下列图所示。
注：宽带账号密码就是运营商提供的宽带上网账号密码，一定要认真填写，填写错误将直接导致无法上网。
4、接下来是WiFi设置，主要填写无线网络名称和Wifi 密码，完成后，点击保存，如下列图所示。
注：WiFi密码建议尽量填复杂一些的，防止被邻居蹭网。
5、完成以上操作后，您的电脑就能够上网了。
假如你是连接无线网设置的，则需要重新连接。
方法是点击电脑右下角的网络图标，断开无线连接，然后再重新连接，之后输入刚刚设置的WiFi密码，连接即可正常上网了。
6、最后还需要再次打开阅读器，然后在地址栏同样输入，进入路由器管理界面后，输入管理员密码，并勾选记住密码，并点击保存，进入魔术家路由器管理界面，等待网络连接成功后，即设置完成，如今就能够上网了相关浏览：路由器安全特性关键点由于路由器是网络中比拟关键的设备，针对网络存在的各种安全隐患，路由器必须具有如下的安全特性：(1)可靠性与线路安全可靠性要求是针对故障恢复和负载能力而提出来的。
WLAN设备安装说明为了规范局域网交换机，AP，天线等WLAN设备的安装，根据相关设备厂家提供的设备安装手册所规定的要求制定本说明。
WLAN热点的设备安装应当不低于本说明的要求。
一、交换机（或ONU）安装说明1、交换机（或ONU）应安装在网络箱内，并做好接地。
安装位置确保无强电、强磁和强腐蚀性设备的干扰。
安装于室外的交换机见图：交换机&AP室外安装示意图。
网络箱应比地面抬高300mm以防水浸。
交换机和AP等设备应放置在稳固的支撑板上，并做好固定。
安装在弱电竖井内、楼梯间墙壁上、电梯机房等室内环境的交换机及网络向见图：交换机（ONU）室内安装示意图。
各设备应安装在网络箱内并做好固定，然后进行连线。
2、网络箱内电源插板至少有两芯及三芯插座各一个。
且必须有良好的接地系统，并应符合保护地线电阻值。
单独设置接地体时，电阻值不应大于10Ω；采用联合接地体时，电阻值不应大于5Ω。
3、当使用POE供电模块时，将POE供电模块安装于网络箱内。
需用牢固固定，不允许悬空放置或直接将POE供电模块直接堆叠在交换机上，保持通风良好，可散热。
4、交换机（或ONU）应无损伤、掉漆的现象。
二、AP安装说明1、设备安装必须符合工程设计要求。
如果设备的安装位置需要变更，必须征得设计和建设单位的同意，并办理设计变更手续。
2、放置在楼顶的AP通过超五类线沿墙布放连接至局域网交换机（或ONU）。
3、放置在一个单元内的AP在与楼宇间交换机连接时使用光缆连接（交换机和AP侧分别加光电转换模块）。
AP与楼宇间光缆采用地埋方式布放，进入楼宇后光缆采用沿墙布放并外套PVC管。
光缆的布放原则见第四节。
4、如果AP安装在弱电井内，则需做好防尘等安全措施，为防止AP被盗，建议在固定架加锁或是将AP安装在定做机箱之中，并保持通风良好、通气孔畅通，保持工作环境清洁无尘。
5、如果AP壁挂安装在大楼墙面上，必须做好防盗措施，建议将AP安装在定做机箱之中，并保持通风良好、通气孔畅通，保持工作环境清洁无灰尘。

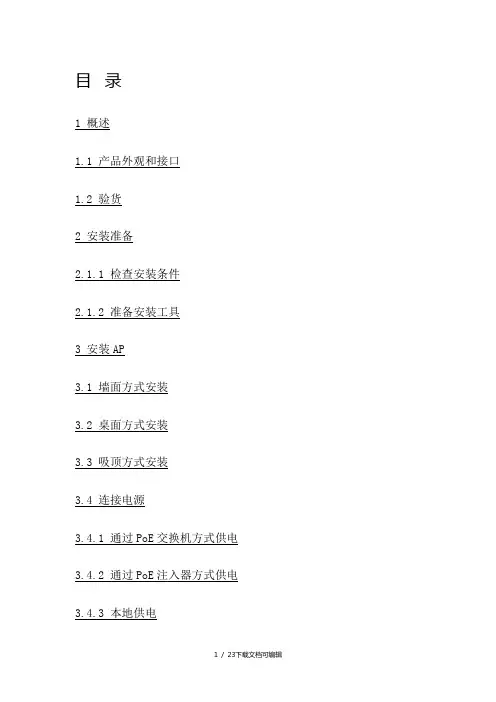

目录1 概述1.1 产品外观和接口1.2 验货2 安装准备2.1.1 检查安装条件2.1.2 准备安装工具3 安装AP3.1 墙面方式安装3.2 桌面方式安装3.3 吸顶方式安装3.4 连接电源3.4.1 通过PoE交换机方式供电3.4.2 通过PoE注入器方式供电3.4.3 本地供电3.5 指示灯4 AP相关配置4.1 AP出厂缺省配置4.2 登录到AP1 概述H3C WA2620-AGN无线局域网接入点设备是杭州华三通信技术有限公司最新研制的、遵循802.11n Draft2.0标准的高性能双频千兆无线局域网接入点设备。
与传统802.11a/b/g AP（Access Point，无线接入点）产品相比，WA2620-AGN设备可以大大提高无线接入速率，同时还能覆盖更大的空间范围。
WA2620-AGN设备既可以作为瘦AP （Fit AP），与H3C无线控制器/有线无线一体化交换机配合组网，也可以作为胖AP（FAT AP）独立进行组网，为WLAN用户提供无线接入服务。
WA2620-AGN热点应用的典型组网如图1-1所示。
图1-1 热点应用的典型组网示意图1.1 产品外观和接口图1-2 产品外观和接口表1-1 接口和配件表1-2 重量、尺寸及功耗1.2 验货在打开包装盒前，请确认包装盒外观完好，无严重损坏、浸水现象。
开箱过程中，不要过分用力或使包装盒中物品受到撞击，否则可能损坏盒中器件。
如打开包装盒过程中发现包装盒被锈蚀或浸水，应立即停止开箱，查明原因，向设备供应商反馈。
验货时如发现缺货、错货、多发、货物有损坏的现象，请在3日内反馈给当地设备供应商。
2 安装准备2.1.1 检查安装条件在准备安装之前，还应该对设备的安装条件进行检查，以保证设备长期处于良好的运行环境之中。
可从以下方面对安装条件进行检查。
1. 安装选址高温、多尘、有害气体、易燃、易爆、易受电磁干扰（大型雷达站、发射电台、变电站）及电压不稳、震动大或强噪声的环境不利于设备的工作，设备不要安装在这样的环境中。
路由器怎么安装和设置方法介绍
有不少小伙伴习惯使用无线上网的方法，相比有线来说更加方便，因此需要给电脑设置无线路由器，但是自己不知道无线路由器怎么安装和设置怎么办。
下面小编就教下大家路由器安装和设置方法。
路由器安装和设置方法如下：
1、首先我们开通宽带网络后，买一台无线路由器，把路由器接上电源，网线插到WAN接口（一般都是蓝色的）。
买路由器时会自带一条网线，把它的一头插到LAN接口（随便插一个口就行），另一头插到电脑网线接口上就安装好了。
2、接下来就是要设置路由器了。
在浏览器中输入地址：“192.168.1.1”网址进入路由器设置界面。
（一般路由器的标签页面也有列出进入设置的网址）
3、网址打开之后会跳出一个对话框，输入相应的用户名和密码。
一般新买来的用户名都“admin”，密码都是默认的，直接点确定就行。
4、进去主后在左边菜单栏有个“设置向导”，点开。
点下一步－－选择第一项（让路由器自动选择上网方式）－－下一步输入上网帐号和密码（就是你开通网线时运营商给的上网帐号和密码）。
5、帐号和密码输入正确后进入下一步，设置无线路由器的基本参数和安全密码，如图所示：无线状态“开启”、SSID就是你连线无线网显示的帐号，你可以用默认的也可以自己设置一个、信道“自动”、模式“11bng mixed”、频段宽带“自动”。
密码尽量设置复杂些，避免被破解蹭网。
6、设置好点确定，这样路由器就设置完成了。
以上便是无线路由器安装和设置方法，有需要的小伙伴可以参照教程操作。
