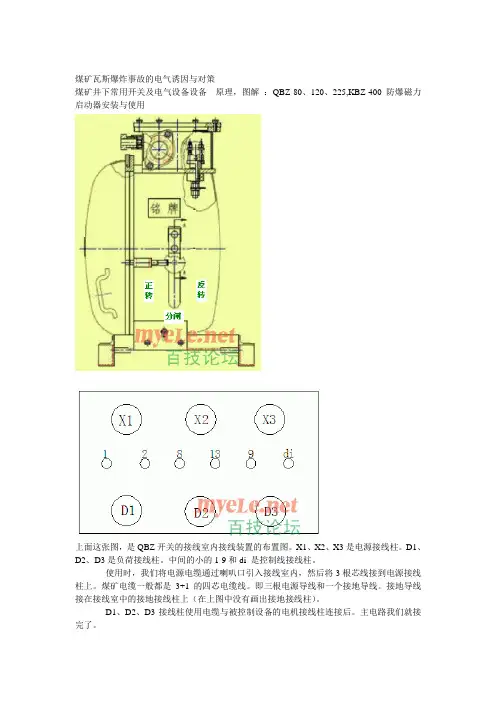

煤矿瓦斯爆炸事故的电气诱因与对策煤矿井下常用开关及电气设备设备---原理，图解：QBZ-80、120、225,KBZ-400防爆磁力启动器安装与使用上面这张图，是QBZ开关的接线室内接线装置的布置图。

X1、X2、X3是电源接线柱。

D1、D2、D3是负荷接线柱。

中间的小的1-9和di 是控制线接线柱。

使用时，我们将电源电缆通过喇叭口引入接线室内，然后将3根芯线接到电源接线柱上。

煤矿电缆一般都是3+1的四芯电缆线。

即三根电源导线和一个接地导线。

接地导线接在接线室中的接地接线柱上（在上图中没有画出接地接线柱）。

D1、D2、D3接线柱使用电缆与被控制设备的电机接线柱连接后。

主电路我们就接完了。

控制电路的连接就是图中1、2、8、13、9、di 接线柱的连接。

如果是本地控制（就是使用开关本身的启动和控制按钮控制），将2号和9号接线柱相连后，再与接线室内的接地接线柱连接就可以了。

连接好电源线和负载线之后，首先从上一级开关的馈电开关给QBZ开关送上电，然后将QBZ开关的隔离开关打到“正传”或“反转”的位置，（如下图）在按下启动按钮，被控制的设备就可工作了。

停止的时候，停止的时候，只需要按下停止按钮，本控制的设备就可以停止工作。

在设备长时间不使用，或进行设备检修时，要将隔离开关旋转到“分闸”位置。

注意：隔离开关在从合闸位置旋转到“分闸”的过程中，要按住停止按钮，否则你是扳不动隔离开关的。

这是开关“五防”功能里的其中一种，作用是防止带负荷分离隔离开关。

所以，当你扳隔离开关扳不动的时候，一定要看看是不是忘了按停止按钮，或者是没有按到位。

QBZ防爆开关的隔离开关除了具有断开电源的作用外，还具有换向的作用，就是拥有“正转”和“反转”两个位置。

如果设备的电机原来是正转的，你只需要将隔离开关打到“反转”的位置。

防爆开关完好标准上面这张图，是QBZ开关的接线室内接线装置的布置图。

X1、X2、X3是电源接线柱。

D1、D2、D3是负荷接线柱。
