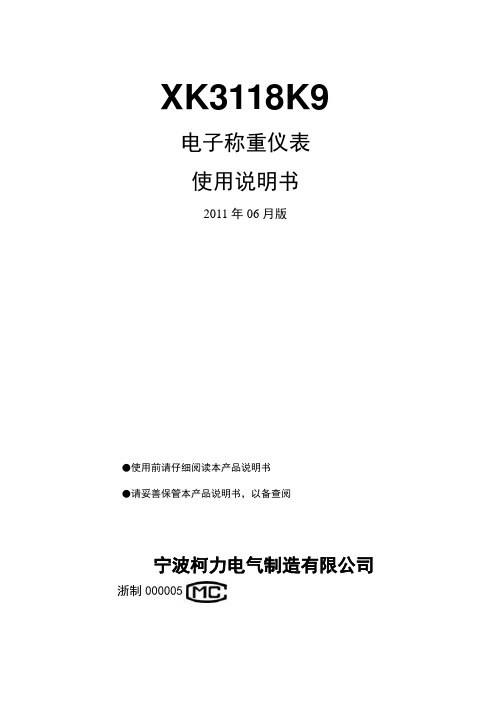

XK3118K9电子称重仪表使用说明书2011年06月版●使用前请仔细阅读本产品说明书●请妥善保管本产品说明书，以备查阅宁波柯力电气制造有限公司浙制00000577号仪表使用注意事项▲传感器与仪表的连接必须可靠，传感器的屏蔽线必须可靠接地。

▲在仪表通电状态下，所有连接线不允许进行插拔，防止静电损坏仪表或传感器。

▲传感器和仪表都是静电敏感设备，在使用中必须切实采取防静电措施。

▲在雷雨季节，系统必须落实可靠的避雷措施，防止因雷击造成传感器和仪表的损坏，确保操作人员的人身安全和称重设备及相关设备的安全运行。

▲不得在有可燃性气体或可燃性蒸汽的场合使用，不得在有压力的罐装系统中使用。

▲仪表和传感器须远离强电场强磁场，远离强腐蚀性物体，远离易燃易爆物品。

▲严禁使用强溶剂(如：苯、硝基类油)清洗机壳。

▲不得将液体或其他导电颗粒注入仪表内，以防仪表损坏和触电。

▲本产品非经技术监督部门授权，不得擅自开启铅封，不破坏铅封不能标定。

◆为保证仪表显示清晰和使用寿命，仪表不宜放在阳光直射下使用，放置地点应较平整。

◆仪表不宜放在粉尘及振动严重的地方使用，避免在潮湿的环境中使用。

◆在插拔仪表与外部设备连接线前，必须先切断仪表及相应设备电源。

◆仪表对外接口须严格按使用说明书中所标注的方法使用，不得擅自更改连接。

◆本仪表不允许随意打开，否则不予保修。

非衡器仪表专业人员请不要自行修理以免造成更大的损坏。

◆本仪表自销售之日起一年内，在正常使用环境下，出现非人为故障属保修范围，请用户将产品及保修卡(编号相符)，寄往特约维修点或经销商。

◆超过保修期以及人为故障或其他意外损坏，生产厂对仪表实行收费维修。

由于产品功能改进，印刷版可能与实际产品略有差别，请联系公司获取最新电子版亲爱的用户，感谢您选择柯力公司的产品在使用仪表前，敬请仔细阅读使用说明书本公司保留修改说明书的权利1）技术参数执行标准：GB/T 7724-2008 最大检定分度数： n=3000准确度等级： III 误差分配系数： p i =每检定分度值最小输入电压：≥eA/D转换方式：Δ－Σ方式，24bit传感器供桥电压：D C+ 5V；可接1～12个350Ω电阻应变式传感器传感器连接方式：采用6线式（长线自动补偿，补偿距离≤50米）显示：7位LED，7个状态指示灯，3个电量指示灯，1个交流指示灯时钟：可显示年/月/日、时/分/秒，自动闰年、闰月，不受断电影响大屏幕接口：电流环/RS232输出方式，波特率：600bps 传输距离：≤30米串行通讯接口：传输方式：RS232 传输距离：RS232≤30米波特率： 600/1200/2400/4800/9600可选打印接口：标准并行输出接口，可接TPup16微打（英文）、KX－P1121、KX－P1131、LQ300K＋Ⅱ、LQ1600K、TM800、LQ-680K、DS-300和LQ-730K/630K/635K等宽行打印机数据贮存数量：车号和皮重：≤200个货号：≤100个称重记录：≤500组使用电源：交流电源：AC110~220V，50~60Hz使用环境使用温度：0℃～40℃使用湿度：≤85％（RH）无冷凝存储环境：存贮温度：－20℃～60℃存贮湿度：≤95％（RH）无冷凝外形尺寸(mm)：330 ×220 ×185产品自重(Kg)：约452）安装仪表示意图XK3118K9仪表前面板示意图仪表接口示意图传感器与仪表的连接说明脚位名称代号1传感器负激励E-2传感器负反馈F-6传感器正激励E+7传感器正反馈F+8传感器信号输入负S-9传感器信号输入正S+5屏蔽SHIELD 如果使用四芯屏蔽电缆时，必须将正激励与正反馈、负激励与负反馈短接！！！▲传感器与仪表的连接必须可靠，传感器的屏蔽线必须可靠接地。

KDK9型矿用多功能控制驱动器使用说明书天地（常州）自动化股份有限公司2008年8月KDK9 型矿用多功能控制驱动器（以下简称驱动器）是矿用隔爆兼本质安全型设备，适用于存在瓦斯、煤尘爆炸危险的环境，可采集输入、输出口状态，并发送到总线上；也可接收总线上的信号，控制该驱动器的输出状态，还具有本安、非安转换功能。

本驱动器既可以与矿用本安型控制机、智能闭锁开关等设备配套使用，也可以单独用于各种机电设备的控制。

1.1 执行标准Q/320400 MZ153-2008 KDK9型矿用多功能控制驱动器。

1.2 防爆型式矿用隔爆兼本质安全型，标志为Exd[ib]I。

1.3 型号意义KD K 9登记序号电控箱矿用电源电控设备及组件1.4 使用环境条件a)环境温度：0～40℃；b)空气相对湿度：不大于95%（+25℃）；c)大气压力：80kPa～106kPa ；d)无显著振动和冲击的场合；e)煤矿井下有瓦斯煤尘爆炸危险但周围无腐蚀性气体的环境。

1.5 主要功能a)具有远程控制、就地手动和就地检修调试3种控制方式。

b)具有采集各I/O的状态并发送至总线，还能接收总线命令或本安输入口状态控制继电器接点动作。

c)具有急停闭锁输出控制功能，在皮带急停时，实现对输出口的闭锁。

d)具有未起动闭锁功能：在皮带未起动时，实现对输出口闭锁。

e)具有本安输入信号与非安接点信号转换功能。

f)通讯功能：采用现场总线（CAN）与其它设备进行通讯。

2 主要技术指标2.1 电源a)电压：交流127V、220V、380V、660V，各电压等级对应输入视在功率见表1。

b) 频率：50Hz；c) 电压波动范围：75%～110%。

2.2 信号输入与输出2.2.1 输入2.2.1.1本安输入a)4路本安开关量信号输入:高电平时，信号幅度应不小于2.5V；低电平时，信号幅度应不大于1V；b)1路联锁控制信号输入：在总线控制时，输入信号为频率型方波信号，正常范围：输入为15K~20KHz方波信号，高电平应不小于2.5V，低电平不大于1V；急停范围：小于14KHz方波信号，高电平应不小于2.5V，低电平不大于1V。

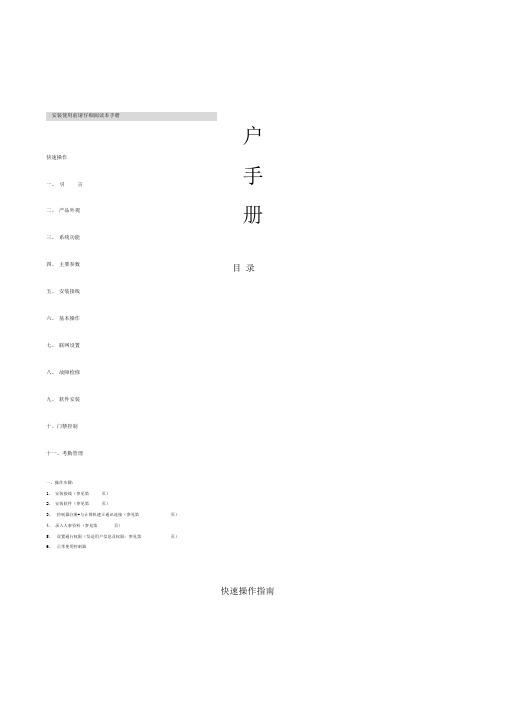

快速操作一、引言二、产品外观三、系统功能四、主要参数五、安装接线六、基本操作七、联网设置八、故障检修九、软件安装十、门禁控制十一、考勤管理一、操作步骤：1、安装接线（参见第页）2、安装软件（参见第页）3、控制器注册-与计算机建立通讯连接（参见第页）4、录入人事资料（参见第页）5、设置通行权限（发送用户信息及权限；参见第页）6、正常使用控制器户手册目录快速操作指南7、下载数据（参见第 页）9、排班（参见第 页）10、统计考勤（参见第 页）四、系统菜单图:引言:感谢您使用本非接触式感应卡门禁考勤管理系统，在使用本系统之 前，请您详细阅读本用户手册，并严格按照手册中的要求来操作。

此用户手册将介绍本系统主要功能及操作使用方法。

本门禁考勤系统采用目前世界上先进的技术 -非接触式感应卡技术（也称射频识别卡（RFID ）技术，RFID 卡具有全球卡号唯一、不易仿制的读写磁粉脱落、灰尘等影响所带来的麻烦，而且避免了接触式IC 卡因芯片与读卡器外露而 引起的沾污、接触不良和外物损伤而导致的读卡不良现象, 系统都自动记录下来，管理者可以通过计算机下载调阅门禁控制系统存储的信息资料, 轻松查阅、打印所有的通行事件。

管理软件将根据此原始资料自动统计员工考勤情况、编制考勤报表。

本系统提供了一种智能化的出入口控制及考勤管理方式，适用于需要控制人员出入的通道、商务机构、政府机关以及考勤管理人员较多的企事 业单位。

二、产品外观：二、系统功能：1、 中英文液晶显示屏，带冷色调蓝背光可，修改屏幕显示，读卡时显示持卡人姓名2、 系统自带中英文菜单，可脱机操作，人性化设计3、 存储容量达20000条通行记录，2000张用户卡及密码、100张访客卡4、 读卡,读卡加密码，读卡或密码三种开门模式；每天八个个性化禁行时段；个性化节假日管制功能5、 通行记录类型分为用户进门、用户出门，禁行时段不开门、节假日不开门、紧急状态不开门、非法卡不开门、防潜回不开门，防拆报警、门磁异常报警等不同记 录，可实时区分进入、外出人次数6、 实时监控：可实时监控以上的各种状态以及门的开关状态，实时显示读卡人员的姓名、相片、编号等资料7、 RS485总线联网，布线简易实用，最多可联网 64台8、 新增访客卡及进出防潜回功能9、 主要输入/输出功能：电锁、开门按钮、报警器、门磁、门铃10、 管理软件集门禁、考勤、人事于一体8设置班次及考勤时段（参见第页）11、请假登记及签卡登记（参见第页） 12、查询各类考勤报表（参见第页）二、名词解释： ESC |键、两次 8」键、再长按 ENT 键获取。

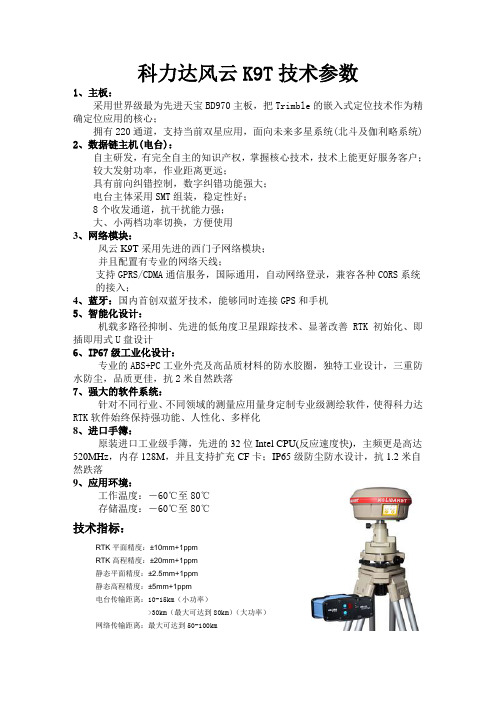

科力达风云K9T技术参数1、主板：采用世界级最为先进天宝BD970主板，把Trimble的嵌入式定位技术作为精确定位应用的核心；拥有220通道，支持当前双星应用，面向未来多星系统(北斗及伽利略系统) 2、数据链主机(电台)：自主研发，有完全自主的知识产权，掌握核心技术，技术上能更好服务客户；较大发射功率，作业距离更远；具有前向纠错控制，数字纠错功能强大；电台主体采用SMT组装，稳定性好；8个收发通道，抗干扰能力强；大、小两档功率切换，方便使用3、网络模块：风云K9T采用先进的西门子网络模块；并且配置有专业的网络天线；支持GPRS/CDMA通信服务，国际通用，自动网络登录，兼容各种CORS系统的接入；4、蓝牙：国内首创双蓝牙技术，能够同时连接GPS和手机5、智能化设计：机载多路径抑制、先进的低角度卫星跟踪技术、显著改善 RTK 初始化、即插即用式U盘设计6、IP67级工业化设计：专业的ABS+PC工业外壳及高品质材料的防水胶圈，独特工业设计，三重防水防尘，品质更佳，抗2米自然跌落7、强大的软件系统：针对不同行业、不同领域的测量应用量身定制专业级测绘软件，使得科力达RTK软件始终保持强功能、人性化、多样化8、进口手簿：原装进口工业级手簿，先进的32位Intel CPU(反应速度快)，主频更是高达520MHz，内存128M，并且支持扩充CF卡；IP65级防尘防水设计，抗1.2米自然跌落9、应用环境：工作温度：－60℃至80℃存储温度：－60℃至80℃技术指标：RTK平面精度：±10mm+1ppmRTK高程精度：±20mm+1ppm静态平面精度：±2.5mm+1ppm静态高程精度：±5mm+1ppm电台传输距离：10-15km（小功率）>30km（最大可达到80km）（大功率）网络传输距离：最大可达到50-100km。

科力达GPS 产品系列风云K9产品手册广东科力达仪器有限公司二○○八年六月目录第一章风云K9概述 (1)§1.1关于风云K9 (1)§1.2三大独创 (2)§1.3四大特色 (3)§1.4技术特色 (3)第二章风云K9主机 (5)§2.1主机外型 (5)§2.2接口 (6)§2.3电池的安装方法 (7)§2.4指示灯和蜂鸣器 (8)§2.5按键操作说明 (10)§2.6模式设置举例 (10)§2.6.1 正常工作模式 (10)§2.6.2 状态设置模式和显示模式 (11)第三章风云K9电台 (12)§3.1电台概述 (12)§3.1.1 产品简介 (12)§3.1.2 产品特点 (12)§3.1.3 技术指标 (13)§3.2GDL25电台外型说明 (14)§3.2.1 GDL25电台的面板 (14)§3.2.2 GDL25电台的外型 (15)§3.3GDL25电台使用注意事项 (16)§3.3.1 供电电源 (16)§3.3.2 天线口负载 (17)§3.3.3 电磁环境 (17)§3.3.4 天线选择 (18)§3.3.5 接口电缆 (18)第四章风云K9附件介绍 (19)§4.1风云K9的仪器箱（包） (19)§4.2电池及充电器 (21)§4.3数据链接收天线及发射天线 (21)§4.4各种传输线及电缆 (22)§4.5其他 (24)第五章操作说明 (25)§5.1基准站和移动站安装 (25)§5.2仪器设置 (26)§5.3仪器操作表现 (26)§5.4天线高的量测方法 (27)§5.5作业方法图解 (27)第六章固件升级与频点设置 (30)§6.1固件升级 (30)§6.2K9的电台频点设置 (34)附录A 技术参数 (35)附录B 联系方式 (36)附录C 全国销售及服务网络列表 (37)风云K9产品手册第一章风云K9概述§1.1 关于风云K9广东科力达仪器有限公司一直致力于把国际先进的GPS测绘勘测技术与产品普及到国内测量用户手中。

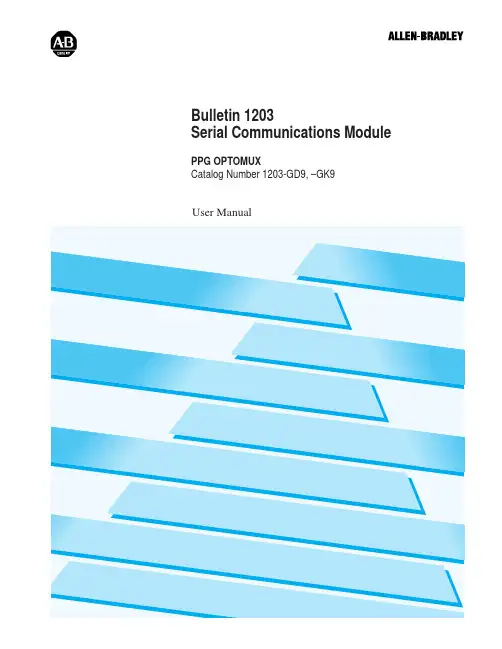

Bulletin 1203Serial Communications Module PPG OPTOMUXCatalog Number 1203-GD9, –GK9User ManualImportant User Information Because of the variety of uses for this equipment and because of thedifferences between this solid-state equipment and electromechanicalequipment, the user of and those responsible for applying this equipmentmust satisfy themselves as to the acceptability of each application and useof the equipment. In no event will Allen-Bradley Company be responsibleor liable for indirect or consequential damages resulting from the use orapplication of this equipment.The illustrations shown in this manual are intended solely to illustrate thetext of this manual. Because of the many variables and requirementsassociated with any particular installation, the Allen-Bradley Companycannot assume responsibility or liability for actual use based upon theillustrative uses and applications.No patent liability is assumed by Allen-Bradley Company with respect touse of information, circuits or equipment described in this text.Reproduction of the content of this manual, in whole or in part, withoutwritten permission of the Allen-Bradley Company is prohibited.This information in this manual is organized in numbered chapters. Readeach chapter in sequence and perform procedures when you are instructedto do so. Do not proceed to the next chapter until you have completed allprocedures.Attentions help you:•identify a hazard•avoid the hazard•recognize the consequencesIMPORTANT: Identifies information that is especially important forsuccessful application and understanding of the product.Summary Information Information for the –GK9 module was added to this manual.This Page Intentionally Left BlankIntroduction Chapter 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Manual Objectives1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Who Should Use This Manual1-1V ocabulary1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Firmware Support1-1Manual Organization1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Safety Precautions1-2 Product Description Chapter 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Chapter Objectives2-1Module Description2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . .SCANport Device Compatibility2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Configuration Switches2-3 Installation Chapter 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Chapter Objectives3-1. . . . . . . . . . . . . . . . . . . . . . .Setting Module Configuration Switches3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Factory Switch Settings3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Switch SW13-3Switch SW23-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Switch SW33-6. . . . . . . . . . . .Enclosed Style Communications Module Dimensions3-7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Cable Connections3-8. . . . . . . . . . . . . . .RS485/RS422/RS232 Connection Examples3-8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .SCANport Link Connection3-9Cable Requirements3-9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Power Supply Connections3-10Troubleshooting Chapter 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Chapter Objectives4-1Specifications Chapter 5Chapter Objectives5-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Product Specifications5-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Module Compatibility5-1Index I-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .iThis Page Intentionally Left Blank. ii1IntroductionManual Objectives The purpose of this manual is to provide you with the necessaryinformation to apply the Serial Communications Module which is availablefor products that include the SCANport t communications port. Describedin this manual are methods for installing, configuring, and troubleshootingthe Serial Communications Module.For information on specific features of Allen-Bradley products mentionedherein, refer to the product user manual.Important: Read this manual in its entirety before installing, operating,servicing, or initializing the Serial Communications Module.Who Should Use This Manual This manual is intended for qualified service personnel responsible forsetting up and servicing of these devices. You must have previousexperience with and a basic understanding of communications terminology,configuration procedures, required equipment, and safety precautions.To make efficient use of this communications module, you must be able toprogram and operate serial communications devices, as well as have abasic understanding of the parameter settings and functions of the device towhich you are communicating.Vocabulary In this manual we refer to the:S Serial Communications Module as communications moduleS Variable Frequency AC Drive (Bulletin 1336 PLUS) as the drive orSCANport deviceS Earth Ground as GNDFirmware Support This manual supports communications module firmware versions 1.xx (the“xx” designator may vary). Features that work with specific firmwareversions will be denoted as such.1-1Manual Organization This manual is divided into the following chapters.Safety Precautions1-22Product DescriptionChapter Objectives In this chapter, you will read about:S Communications module featuresS Location of configuration switchesModule Description This module is designed to be used with the 1336-EN20. It is notcompatible with any other SCANport devices. The serial deviceconfigurations are as follows:SCANport Device Compatibility The SCANport Serial Communications Module is compatible with thefollowing Allen-Bradley devices:2-12-2Figure 2.1Enclosed Style Serial-to-SCANport Communications Module PowerTXAB0490A BOTTOM VIEW AB0491A Switch SW3Switch SW1Switch SW2– Baud Rate Selection – Parity Setting – Speed LimitConfiguration Switches The Serial Communications Module has three DIP Switches: SW1, SW2,and SW3 (Figure 2.1). Switches are set ON or OFF as shown in Figure 2.2.For a detailed explanation of switch configuration, refer to Chapter 3,Installation.Figure 2.2Configuration SwitchesSide View of TypicalSwitchesSwitch Designation asshown in this manualOffOnAB0397AThis Page Intentionally Left Blank.3InstallationChapter Objectives In this chapter you will learn how to:S Mount the communications moduleS Configure the communications moduleS Connect powerS Connect SCANport and serial communications cablesRead this chapter completely before you attempt to install or configureyour communications module. Double check all connections and optionselections before you apply power.Important: Switch selections take effect only on power-up. If you changeselections after power is applied, cycle the power to use the new settings.Setting Module This publication describes switches as being either on or off. If the switch Configuration Switches assembly has the word OPEN printed on it, the word OPEN corresponds toOFF (0).In all cases, each serial device must have a unique address the targetprocessor can recognize.Factory Switch SettingsSwitch SW1Switch SW1 selects:S Communications mode selection (RS232/RS422/RS485) S Communications module addressSW1OFFON87654321Communications Module Address CommunicationsMode Selection AB0398BTable 3.ASwitch SW1 Communications Mode SelectionTable 3.BSwitch SW1 Communications Module Address SelectionSwitch SW2Switch SW2 selects the baud rate, parity, and speed limit.SW2OFFONAB0492B Table 3.CSwitch SW2 Speed Limit SettingsTable 3.DSwitch SW2 Protocol Selection SettingsTable 3.ESwitch SW2 Parity SettingsTable 3.FSwitch SW2 Baud Rate SelectionSwitch SW3Switch SW3 selects Stop Bits.SW3O F F O N87Set to OffAB0493ATable 3.GSwitch SW3-1 – SW3-6 SettingsTable 3.HSwitch SW3 Stop Bit SettingsEnclosed Style CommunicationsModule DimensionsFigure 3.1Enclosed Style Communications Module DimensionsDINRAILAB0406ACable ConnectionsRS485/RS422/RS232 Connection ExamplesFigure 3.2Communications Module9-Pin D-Shell1234 59 8 7 6COMN.C.TXN.C.RXN.C.N.C.N.C.COMRS232 Mode Port Connection DiagramAB0501ACommunications Module9-Pin D-Shell1234 59 8 7 6COMRXDRXDN.C.SHIELDN.C.TXDTXDCOMRS422 Mode Port Connection DiagramAB0502ACommunications Module9-Pin D-Shell1234 59 8 7 6COMN.C.N.C.N.C.SHIELDN.C.TXD/RXDTXD/RXDCOMRS485 Mode Port Connection DiagramAB0503ASCANport Link ConnectionCable RequirementsSCANport cables are available in either male–to–male or male–to–femaleconfiguration. Cables (C) of up to 10 meters (33 feet) can be connectedfrom the master to the SCANport device. If a Port Expander (B1) is used,subtract the cable length from the master to the Port Expander from thecable length used to connect the device to the expander(B1 + C = maximum of 10 meters).3-93-10Power Supply ConnectionsThe enclosed communications module is powered from a separate 24V dc or 115/230V ac power supply (Figure 3.3). With the open-stylecommunications module board mounted in the drive, no separate power supply connections are required.Figure 3.3Typical Power Supply Connection115/230V Typical Connection115V AC Hi 115V AC LowL N GGNDEnclosedCommunications Module24V DC Typical Connection+–GGNDEnclosedCommunications Module24V DC +Power Supply –44-1TroubleshootingChapter ObjectivesUse this chapter to help troubleshoot your serial communications systemusing the LED indicators on the front of the device (Figure 4.1). The communications module is a non-serviceable device that should bereturned to Allen-Bradley for replacement when a major fault exists that is attributable to the communications module itself.Figure 4.1LED LocationsAB0498ASCANport Sts Serial Sts TXRXTable 4.ALED Troubleshooting Table4-25SpecificationsChapter Objectives This chapter provides background information and specifications that youmay need when installing or applying your communications module. Product SpecificationsModule Compatibility This module is intended for use with devices that communicate via RS232,RS422, or RS485 hardware standards using OPTOMUX. It is intended toprovide a means for transmitting messages between these serial-communications devices and Allen-Bradley SCANport devices.5-1This Page Intentionally Left Blank. 5-2IndexCCable Connections, 3-8Cable RequirementsCable length, 3-9Port Expander, 3-9SCANport, 3-9Communications Module Compatibility, 5-1Configuration Switches, 2-3Device Compatibility, 2-1Enclosed Style, 2-2Enclosed Style Dimensions, 3-7 Product Description, 2-1Product Specifications, 5-1Setting Configuration Switches, 3-1 Connection ExamplesRS232, 3-8RS422, 3-8RS485, 3-8ConnectionsCable, 3-8Power Supply, 3-10SCANport Link, 3-9DDIP Switches, Description, 2-3EEnclosed-Style Module Dimensions, 5-1Specifications, 5-1FFactory Switch Settings, Overview, 3-2 FirmwareSupport, 1-1Versions, 1-1LLED Indicators, and Troubleshooting, 4-1 LED Locations, 4-1LED Troubleshooting Table, 4-2MManualAudience, 1-1Objectives, 1-1Organization, 1-2Module Communication Compatibility, 5-1Module Configurations, Factory Switch Settings, 3-2PPower Supply Connections, 3-10Enclosed module, 3-10Open-style module, 3-10SSafety Precautions, 1-2SCANport Link Connection, 3-9Serial Device, Configurations, 2-1Setting Configuration Switches, 3-1Special Terms, 1-1Specifications, 5-1Switch SW1 SettingsAddress Selection, 3-4Communications Mode, 3-3Functions, 3-3Switch SW2 SettingsBaud Rate Selection, 3-5Functions, 3-5Parity Selection, 3-5Speed Limit Settings, 3-5Switch SW3 SettingsFunctions, 3-6Stop Bits, 3-6TTarget processor, and unique addresses, 3-1 TroubleshootingLED Locations, 4-1LED Table, 4-2Reception LED, 4-2SCANport Sts LED, 4-2Serial Sts LED, 4-2Transmission LED, 4-2I-1This Page Intentionally Left Blank. I-2N-1N-2N-3N-4C U T A L O N GD O T TE D L I N E¡We Want Our Manuals to be the Best!You can help! Our manuals must meet the needs of you, the user. This is your opportunity to make sure they do just that.By filling out this form you can help us provide the most useful, thorough, and accurate manuals available. Please take a few minutes to tell us what you think. Then mail this form, FAX it, or send comments via E-Mail.FAX:to your local Allen-Bradley Sales Office or 414/242-8579E-Mail:viaInternetto“**********************”PUBLICATION NAMEPUBLICATION NUMBER, DATE AND PART NUMBER (IF PRESENT)CHECK THE FUNCTION THAT MOST CLEARLY DESCRIBES YOUR JOB.-SUGGEST / RESPONSIBLE FOR THE PURCHASE OF EQUIPMENT -MAINTAIN / OPERATE PROGRAMMABLE MACHINERY -DESIGN / IMPLEMENT ELECTRICAL SYSTEMS -TRAIN/EDUCATE MACHINE USERS-SUPERVISE FLOOR OPERATIONSWHAT LEVEL OF EXPERIENCE DO YOU HAVE WITH EACH OF THE FOLLOWING PRODUCTS?NONELITTLE MODERATEEXTENSIVEPROGRAMMABLE CONTROL ----AC / DC DRIVES ----PERSONAL COMPUTERS ----NC / CNC CONTROLS ----DATA COMMUNICATIONS / LAN---- RATE THE OVERALL QUALITY OF THIS MANUAL BY CIRCLING YOUR RESPONSE BELOW. (1) = POOR (5) = EXCELLENTHELPFULNESS OF INDEX / TABLE OF CONTENTS 12345CLARITY 12345EASE OF USE12345ACCURACY AND COMPLETENESS12345QUALITY COMPARED TO OTHER COMPANIES’ MANUALS 12345QUALITY COMPARED TO OTHER ALLEN-BRADLEY MANUALS 12345WHAT DID YOU LIKE MOST ABOUT THIS MANUAL? WHAT DID YOU LIKE LEAST ABOUT THIS MANUAL?PLEASE LIST ANY ERRORS YOU FOUND IN THIS MANUAL (REFERENCE PAGE, TABLE, OR FIGURE NUMBERS). DO YOU HAVE ANY ADDITIONAL COMMENTS?COMPLETE THE FOLLOWING.NAME COMPANY TITLE DEPARTMENTSTREET CITYSTATEZIPTELEPHONEDATEFOLD HEREFOLD HERENO POSTAGENECESSARYIF MAILEDIN THEUNITED STATES BUSINESS REPLY MAILFIRST CLASSPERMIT NO. 413MEQUON, WIPOSTAGE WILL BE PAID BY ADDRESSEEALLEN-BRADLEYAttn: Marketing CommunicationsP.O. Box 760Mequon, WI 53092-9907SCANport is a trademark of Allen-Bradley Company, Inc.Supersedes July, 1995Copyright 1994, Allen-Bradley Company, Inc. Printed in USA。

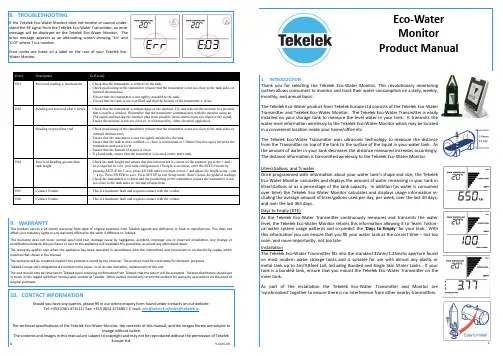

9. WARRANTYThis product carries a 24 month warranty from date of original purchase from Tekelek against any deficiency or fault in manufacture. This does not affect your statutory rights or any warranty offered by the seller if different to Tekelek.This warranty does not cover normal wear and tear, damage cause by negligence, accident, improper use or incorrect installation. Any change or modification made by the purchaser or user to the appliance will invalidate the guarantee, as would any attempted repair.The warranty applies only when the appliance has been operated in accordance with the instructions and connected to an electricity supply which matches that shown in the manual.The warranty will be rendered invalid if the product is resold by the end user. The product must be used solely for domestic purposes. Tekelek Europe Ltd’s obligations are limited to the repair, or at its sole discretion, replacement of the unit.The unit should only be returned to Tekelek upon receiving confirmation from Tekelek that the return will be accepted. Tekelek distributors should get in touch in this regard with their normal sales contact at Tekelek. Other parties should only return the product for warranty assessment via the point of original purchase.8. TROUBLESHOOTINGIf the Tekelek Eco -Water Monitor does not receive or cannot under-stand the RF signal from the Tekelek Eco -Water Transmitter, an error message will be displayed on the Tekelek Eco -Water Monitor . The error message appears as an alternating screen showing ‘Err’ and ‘E:0?’ where ? is a number.Error codes are listed on a label on the rear of your Tekelek Eco -Water Monitor.10. CONTACT INFORMATIONShould you have any queries, please fill in our online enquiry form found under contacts on our website:Tel: +353 (0)61 471511| Fax: +353 (0)61 471685 | E -mail: ***************/****************The technical specifications of the Tekelek Eco -Water Monitor, the contents of this manual, and the images herein are subject tochange without notice.The contents and images in this manual are subject to copyright and may not be reproduced without the permission of TekelekEurope Ltd.89-####-00Error DescriptionTo RectifyE01Received reading is inconsistent- Check that the transmitter is vertical on the tank.- Check positioning of the transmitter (ensure that the transmitter is not too close to the tank sides or internal obstructions.- Ensure that the transmitter is not tightly attached to the tank.- Ensure that the tank is not overfilled and that the bottom of the transmitter is clean.E02Reading not received after 6 hours - Check that the transmitter is within range of the monitor. Try and relocate the monitor to a positionthat is nearer a window. Remember that the transmitter communicates with the monitor using an FM signal and moving the monitor plug from possible metal obstructions can improve the signal. - Ensure the monitor is not too close to, or obstructed by, other electrical appliances.Reading received but void- Check positioning of the transmitter (ensure that the transmitter is not too close to the tank sides or internal obstructions). - Ensure that the transmitter is not too tightly attached to the tank.- Ensure that the tank is not overfilled i.e. there is a minimum of 120mm/5ins free space between the transmitter and water level.- Ensure that the bottom of sensor is clean.- If a bund tank, ensure that the transmitter is located on the inner tank. E04Received Reading greater thantank height- Check the tank height and ensure that this information is correct on the monitor, press the ˄ and ˅ keys together to view your tank configuration. If height is incorrect, enter the SETUP mode by pressing SETUP for 3 secs, press ENTER until you reach screen 5 and adjust the height using ˄ and ˅ keys. Press ENTER to save. Press SETUP to exit Setup mode. Wait 3 hours for updated readings. - Check the transmitter is vertical and the positioning of the transmitter (ensure the transmitter is not too close to the tank sides or internal obstructions. E05 Contact Vendor - This is a hardware fault and requires contact with the vendor. E06Contact Vendor- This is a hardware fault and requires contact with the vendor.1. INTRODUCTIONThank you for selecting the Tekelek Eco -Water Monitor. This revolutionary monitoring system allows consumers to monitor and track their water consumption on a daily, weekly, monthly, and annual basis.The Tekelek Eco -Water product from Tekelek Europe Ltd consists of the Tekelek Eco -Water Transmitter and Tekelek Eco -Water Monitor. The Tekelek Eco -Water Transmitter is easily installed on your storage tank to measure the level water in your tank. It transmits the water level information wirelessly to the Tekelek Eco -Water Monitor which may be located in a convenient location inside your home/office etc.The Tekelek Eco -Water Transmitter uses ultrasonic technology to measure the distance from the Transmitter on top of the tank to the surface of the liquid in your water tank. As the amount of water in your tank decreases the distance measured increases accordingly. The distance information is transmitted wirelessly to the Tekelek Eco -Water Monitor.Litres\Gallons and % waterOnce programmed with information about your water tank’s shape and size, the Tekelek Eco -Water Monitor calculates and displays the amount of water remaining in your tank in litres\Gallons or as a percentage of the tank capacity. In addition (as water is consumed over time) the Tekelek Eco -Water Monitor calculates and displays usage information in-cluding the average amount of litres\gallons used per day, per week, over the last 30 days, and over the last 365 days. Days to Empty (DTE)As the Tekelek Eco -Water Transmitter continuously measures and transmits the water level, the Tekelek Eco -Water Monitor retains this information allowing it to ‘learn’ histori-cal water system usage patterns and so predict the ‘Days to Empty ’ for your tank. With this information you can ensure that you fill your water tank at the correct time – not too soon, and more importantly, not too late. InstallationThe Tekelek Eco -Water Transmitter fits into the standard 32mm/1.25inchs aperture found on most modern water storage tanks and is suitable for use with almost any plastic or metal tank up to 3m/9.8feet tall, including Bunded and Single Skin Water tanks. If your tank is a bunded tank, ensure that you mount the Tekelek Eco -Water Transmitter on the inner tank.As part of the installation the Tekelek Eco -Water Transmitter and Monitor are ‘synchronised’ together to ensure there is no interference from other nearby transmitters.1Eco -Water Monitor Product Manual2. TEKELEK Eco -Water – FEATURES AND FUNCTIONSLEDThe red light above the ENTER key flashes when there is an Alarm condition (see section 6) and on receiving an RF signal from the Tekelek Eco -Water TransmitterDISPLAY - SYMBOLS & INDICATORSThe Tekelek Eco -Water contains a display that conveys a variety of infor-mation during normal use and during its initial setup and configuration for use with your water tank. The display contains three sections (1, 2, & 3) as indicated in the diagram.2 1 LCD Display 11 Error code information 2 MODE key 12 Power/data cable3 DOWN key 13 Manufacturing information4 ENTER key 14 Location feature (see STEP 3 of this installation guide)5 UP key 15 USB connector6 SETUP key 16 Mains power plug7 Alarm Red LED 17 Tekelek Eco -Water Transmitter 8 Wall mount feature 18 Self -tapping screws x 2 9 Beeper aperture 19 Weather seal (Gasket)10RESET button access20Tekelek Eco -Water Transmitter water Level displayTekelek Eco -Water features7. TEKELEK Eco -Water TRANSMITTER BATTERY CHANGEIf the battery in the Tekelek Eco -Water Transmitter needs to be changed the display will provide advance warning by showing the ‘TANK LOW BATTERY’ text below the bar -graph.- Remove the Tekelek Eco -Water Transmitter from the tank and move to a safe location- The battery can be accessed by removing the 4 self -tapping screws from the base of the unit.- Remove the old battery noting the orientation (‘+’ mark facing outwards) and replace it with a new battery, 3V CR2450- Re -assemble, ensuring the O -ring is undamaged and secured in position.- Re -locate the transmitter on the tank.There is no need to re -synchronise the transmitter with the monitor when the transmitter battery is changed.DisposalThe crossed out dustbin on the packaging indicates that this product and its battery shall not be treated as household waste. Proper disposal will help prevent potentially negative consequences for the environment and human health. Formore detailed information about recycling of this product or battery, please contact your local recycling centre or the shop where you purchased the product.6. TEKELEK Eco -Water ALARMS/ INDICATIONSLow Level IndicationsWhen the tank level falls to within 14cm of the bottom of the tank the ‘re -fill’ symbol will flash. When the tank level is such that there is below 10% of the usable volume of water left in the tank, the CURRENT information screen alternates between showing the ‘Ltr.’ (or % or DTE) and ‘Lo’. If the level then drops such that there is below 5% of usable water left:∙ ‘Lo’ is displayed constantly on the CURRENT information screens. ∙ The monitor beeps 5 times, repeating every hour, i.e. 10:00, 11:00, 12:00, 13:00, 14:00... ∙ The RED light flashes.Full IndicationWhen the level in your tank reaches 12 cm from the top of the tank, i.e. from the bottom of the Tekelek Eco -Water Transmitter, the main display will show ‘FULL’.To calculate the volume in your tank the Tekelek Eco -Water Monitor needs to know the shape of your tank. There are three basic shapes as illustrat-ed. Identify the shape that is closest to the shape of your tank. Each Tekelek Eco -Water Monitor is supplied with the default settings as shown. The Tekelek Eco -Water Monitor must then be config-ured to your own tank’s dimensions (see installa-tion guide). Minimum and maximum allowable values for tank dimensions are shown in this table.5. TEKELEK Eco -Water - TANK SETUP74. DISPLAY SCREENS There are two types of information displayed on the Tekelek Eco -Water Monitor:CURRENT information screens – used in normal mode to show the current status of the water level in yourtank. Change between the ‘Ltr.’, ‘%’, ‘Days to empty’, and Clock screens using the ❒ and ♦ keys.For approximately 1 week after the Tekelek Eco -Water is installed, it collects data so that the ‘Average per day’ value may be calculated. During this period the screen will flash ‘---‘ when showing ‘Days to empty’. (In the picture, ‘flashing’ is indicated in red).After this period, the display may continue to show ‘---‘ (but not flashing). This indicates that a meaningful value could not be calculated. This may occur in periods when there is no (or extremely low) usage. The ‘---‘ may be displayed in any of the HISTORICAL infor-mation screens under these conditions.This may also happen if the Tekelek Eco -Water Monitor is been unplugged for some time. When sufficient data has been gathered, the screen will revert to normal after a period from a few hours up to a maximum of 1 week.HISTORICAL information screens showing ‘Water usage – Litres\Gals’. Pressing MODE and ❒/♦ accesses these screens.The Tekelek Eco -Water Monitor will automatically return to the CURRENT information screen after 30s with no keypresses within the HISTORICAL information screens. The maximum value displayed is 19999.61 - Used for SETUP and displays SETUP number, and in normal use displays room temperature.2 - Tank information including a visual bar -graph of the water level in the tank.3 - Information about the remaining usable water in litres\Gals or as a %, the ‘Days to Empty’, and the averageand cumulative use of water in litres\Gals. Time is also displayed here.3TANK TYPEIndicates the tank type being selected.A,B,CA, B, C are types of tank shapes (see diagrams in section 5).ROOM TEMPERATURE The value displayed is the room temperature.20 Numeric display - shows the room temperature in normal mode e.g 20. 3 Shows the SETUP mode number when in SETUP mode, e.g. SETUP mode 3 ˚C & ˚F The value displayed is temperature in degrees Celsius/Fahrenheit. cm\inch The value displayed is in centimetres/inches. SETUPSETUP mode is active.H The value displayed is the tank height. WThe value displayed is the tank width.Monitor Display:Bar graph indicator of liquid level - each bar represents 10% of tank height. .Tekelek Eco -Water Transmitter Display:Tanks 1m/3.3ft. in height or greater - each bar represents 1/10th of the top 1m/3.3ft of the tank. Tanks less than 1m/3.3ft. in height - each bar represents 1/10th of 1m/3.3ftFull Indicates the ‘Full’ level of the bar graph indicator. Liquid Level Indicates the bar graph is showing the liquid level. EMPTYIndicates the ‘Empty’ level of the bar graph indicator.BUND ALARMWhen flashing, there has been a leak into the ‘Bund’ (double skinned tanks). The 10 bars and the RED LED will also be flashing at the same time.TANK LOW BATTERY The transmitter battery needs to be changed.Flashing - The remaining water level in the tank is at 10% or below of tank height Flashing - There is a problem with the RF signal from the transmitter.The temperature is close to or below the limit of operation of the transmitter - the information accuracy may be affected.% The value displayed is the % of usable water remaining in the tank. cm\inchs The value displayed is in centimetres/inches Ltr\GalThe value displayed is in litres/gallons.USB data activity.AVERAGE PER DAY The value displayed is the average per day based on the last 7 days' usage. AVERAGE PER WEEK The value displayed is the average per week based on the last 14 days' usage. DAYS TO EMPTY The value displayed is the estimated number of days of water remaining in the tank. It is computed by dividing the volume of usable water left in the tank LAST 30 DAYS The value displayed is the estimated usage over the last 30 days. LAST 365 DAYSThe value displayed is the estimated usage over the last 365 days.3.PRODUCT INFORMATIONa)DEFINITIONS/GLOSSARY4Tank SizeMin. Depth : 0.5m/1.64feet Max. Depth:3m/9.8feetMax. Tank Volume: 19999L/GalDisplaysMulti-function LCD display including:∙ 10 bar-graph level indication on both Tekelek Eco-Water Monitor and Transmitter*∙ Display of various current and historical values(Tekelek Eco-Water Monitor only)∙ Display control with five control buttons∙ Red LED for low level indication at 5% or less ofusable water remainingAudible Alarm∙ Audible alarm sounds every hour on the hourwhen the tank level is lowMax communication distanceTypically 150m\492feet in normal ‘line of sight’conditionsWireless Communications433MHz FM transmission (EN300-220)Power Supply- Tekelek Eco-Water Transmitter—3V LiMn cell, CR2450- Tekelek Eco-Water Monitor:- Receiver: 5V DC (40mA)- Backup battery: 3V LiMn cell, CR2450Mains Power Supply (incl.) for Tekelek Eco-Water Moni-tor150V-240V, 50-60 Hz, meets EN60950-1 (Eco-WaterMonitor use only—not for use with any other device)Battery LifeTekelek Eco-Water Transmitter: 5 years (estimated life)Tekelek Eco-Water Monitor – Receiver memory back-upbattery: 3yr if device is not plugged in**DimensionsTekelek Eco-Water Transmitter: 140m x 70mm x 40mm55.1inch x 27.5inch x 15.7 inchTekelek Eco-Water Monitor: 120mm x 90mm x 50mm47.2 inch x 35.4inch x 19.6incMax and Min Operation (Transmitter)Operating temperature range: -10°C/50˚F to +60°C/140˚F. C/Operating Humidity : 0 - 95% non-condensingHole size for fitting transmitter: 32mm/1.25inch diameterb)TECHNICAL SPECIFICATIONS:∙Please retain this product manual and the installationguide. It contains practical instructions, technicalspecifications and safety precaution warnings youshould know about.∙The maximum displayed value for all measurements andcomputed values is 19999. If a measurement exceedsthis value, the display will flash. This does not affect datacalculations or alarm functions.∙When used according to recommendations, the TekelekEco-Water monitors the water level in your tank andcalculates and presents figures relating to the remainingwater and the historical usage. The Tekelek Eco-Watermust not be used as verification of a ‘Weights andMeasures’ certified dispensing meter.∙Patents pending or covered by one of the followingpatents: S2003/0882, EP2131164(A1),US2006261966(A1), US7277020(B2), IE20030882(A2) ,S2008/0466, US2009/0303059 A1∙For correct usage calculation, a minimum of 7 daysbetween tank fills is required.∙The Tekelek Eco-Water Monitor is intended to beconnected to a power source continuously. It contains asmall battery to keep time during power cuts. If theTekelek Eco-Water Monitor is left unpowered for anextended period then the battery will deplete andinformation may be lost. When you are not using watersystem, you may unplug the Tekelek Eco-Water andstore it until you wish to use your water system again. Itsback-up battery and internal clock keep track of the daysas they pass. (Cont’d across…)When you next use it, on starting to use your systemagain, the Tekelek Eco-Water will continue monitoringyour water usage.∙When the Tekelek Eco-Water has been unpluggedand is plugged in again, it will start up in ‘Lrn’ mode.Simply press any key to exit.∙When you are receiving a water fill, the Tekelek Eco-Water Transmitter cannot receive a reliable echodue to turbulence within the tank and may cause theTekelek Eco-Water Monitor to temporarily displaysome error messages. Should the tank be filledabove the recommended 95% this will obstruct thetransmitter signal until the water level drops below120mm\4.7inchs from the transmitter. Thetransmitter will be unable to send accurate readingsduring this period.∙The Tekelek Eco-Water owner should note that thefirst fill amount of water into a tank will differ fromthe amount shown on the display. This is due to thefact that the Tekelek Eco-Water Monitor displays thevolume of Usable water available. The Tekelek Eco-Water Monitor in its calculations makes an allow-ance of 8cm\3.1inchs of unusable water in thebottom of the tank due to the location of the bottomoutlet.∙Not suitable for pressurised containers. Only use ontanks vented to the atmosphere.∙Only access the Reset Switch if instructed byTekelek.∙Changes in temperature can result in contractionand expansion of the tank and hence can affect thetank capacity. Such changes may affect your read-ings.c)NOTES:d)GENERAL PRODUCT SAFETY, CARE AND USE GUIDE LINES∙To ensure that you use your product correctly andsafely, please read the warnings, safety precautionsand notes below regarding use of and caring for yourTekelek Eco-Water Monitor and Transmitter.∙Do not use this product where the use of radiofrequency products can cause malfunction in the con-trol devices of other equipment i.e. hospitals, aircraft,etc.∙Do not subject the product to excessive force, shock,dust, temperature or humidity.∙The LCD panel behind the display lens is made of glass,and may break if the unit is dropped, impacted orsubjected to shock.∙Take special care when handling a damaged display, asthe liquid crystals can be harmful to your health.∙ Keep the product away from heat sources i.e.radiators, stoves, heaters, etc.∙ Do not use the Tekelek Eco-Water Monitor in or nearwater or in high moisture areas i.e. Bathroom∙ Do not tamper with the Tekelek Eco-Water Monitor’sinternal components. This will invalidate the warranty.∙ Do not attempt to repair the product yourself. Contactthe retailer or our Customer Service Department.∙ Do not dispose of old batteries as unsorted municipalwaste, do so in accordance with your local wastedisposal regulations.∙ When disposing of this product do so in accordancewith your local waste disposal regulations∙ Do not scratch hard objects against the Tekelek Eco-Water display as this may cause damage5。
