冲压工序英文简称

冲压模具设计常用英语冲压模具设计常用英语:各工程:序号工序名称英文全称略写1剪断Shear SH 2落料Blank BL 3切割Cut CUT 4冲缺Notch NOT 5冲孔Piercing PI 或PRC 6剪边Trimming TR 7分割Separating SEP 8修边Shaving SHV 9引伸Draw DR 10再引伸Redraw RDR 11成形Form FO 12辗制成形Roll-form RO-FO 13伸展抽制成形Stretch-draw forming S.D.F14 整形Restricting RST15 压印Emboss EMB16 叠接Joggle JOG17 弯边Flange FL18 密闭弯曲Hemming HEM19 翻孔Burring BUR20 卷边Curling CRL21 凸胀Bulge BLG22 缩颈Necking NEK23 弯曲Bend BE24 侧冲孔CAMPI或CAMPRC25 包边Hemming HEM26 弯曲整形Flange AND Restricting FL RST27 落料、冲孔Blank AND Piercing BL+PRC28 剪边、冲孔Trimming AND Piercing TR+PRCvei] n.运送装数模基准点:START POINT conveyer[ken’置ejector plate 顶出板guide pillar 导柱guide bush 导套mould split line 模具分型线pin[pin] n. 销, 栓, 钉piston ['pist n] n.活塞platen['pl t n] n. 压板plotter[pl t] n. 绘图机press[pres] n.压,压床,冲床,压力机Springback 反弹side sectional view 侧视图stroke[strouk] n. 冲程, 行程Assembly line组装线Layout布置图operator作业员MT制造生技QC品管supervisor 课长ME制造工师punching machine 冲床robot机械手hydraulic machine油压机scratch刮伤dents压痕compound die合模air pipe 气管rust生锈deformation变形production line流水线feeder送料机taker取料机standard parts标准件panel board镶块lifting pin顶料销 die plate, front board模板upper die base上模座lower die base下模座spring 弹簧b olt螺栓sample样品stop pin定位销round pierce punch=die button圆冲子shape punch=die insert异形子stock locater block定位块under cut=scrap chopper清角active plate活动板baffle plate挡块cover plate盖板coordinate坐标模具工程类plain die简易模pierce die冲孔模forming die成型模progressive die连续模gang dies复合模shearing die剪边模pierce冲孔forming成型(抽凸,冲凸) bending折弯trim切边emboss凸点dome凸圆semi-shearing半剪冲压名称类extension dwg展开图procedure dwg工程图die structure dwg模具结构图material材质material thickness料片厚度factor系数upward向上downward向下press specification冲床规格die height range适用模高die height闭模高度burr毛边gap间隙weight重量total wt.总重量punch wt.上模重量五金零件类inner guiding post内导柱inner hexagon screw内六角螺钉dowel pin固定销coil spring弹簧lifter pin顶料销eq-height sleeves=spool等高套筒pin销lifter guide pin浮升导料销guide pin导正销wire spring圆线弹簧outer guiding post外导柱stop screw止付螺丝located pin定位销outer bush外导套模板类top plate上托板（顶板）top block上垫脚punch set上模座punch pad上垫板punch holder上夹板stripper pad脱料背板up stripper上脱料板male die公模(凸模)feature die公母模female die母模(凹模)upper plate上模板lower plate下模板die pad下垫板die holder下夹板die set下模座bottom block下垫脚bottom plate下托板(底板) stripping plate内外打(脱料板) outer stripper外脱料板inner stripper内脱料板lower stripper下脱料板零件类punch冲头insert入块(嵌入件)deburring punch压毛边冲子groove punch压线冲子stamped punch字模冲子round punch圆冲子special shape punch异形冲子bending block折刀roller滚轴baffle plate挡块located block定位块supporting block for location定位支承块air cushion plate气垫板air-cushion eject-rod气垫顶杆trimming punch切边冲子stiffening rib punch = stinger 加强筋冲子ribbon punch压筋冲子reel-stretch punch卷圆压平冲子guide plate定位板sliding block滑块sliding dowel block滑块固定块active plate活动板lower sliding plate下滑块板upper holder block上压块upper mid plate上中间板spring box弹簧箱spring-box eject-rod弹簧箱顶杆spring-box eject-plate弹簧箱顶板bushing bolck衬套cover plate盖板guide pad导料块。

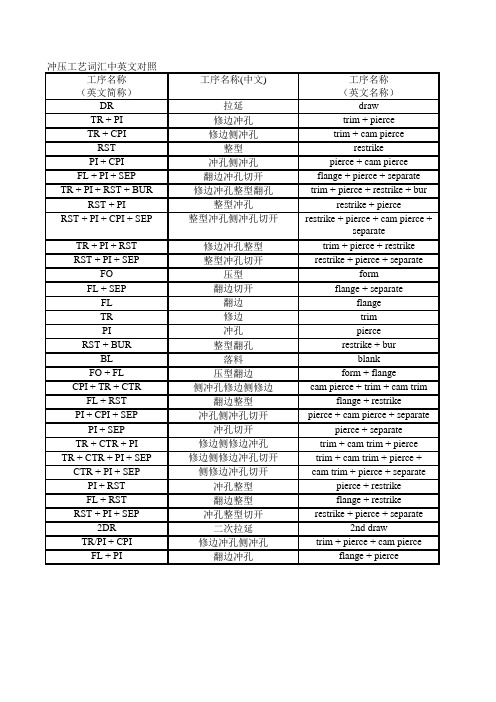

工序名称（英文简称）工序名称(中文)工序名称（英文名称）DR拉延drawTR + PI修边冲孔trim + pierceTR + CPI修边侧冲孔trim + cam pierceRST整型restrikePI + CPI冲孔侧冲孔pierce + cam pierce FL + PI + SEP翻边冲孔切开flange + pierce + separate TR + PI + RST + BUR修边冲孔整型翻孔trim + pierce + restrike + bur RST + PI整型冲孔restrike + pierce RST + PI + CPI + SEP整型冲孔侧冲孔切开restrike + pierce + cam pierce +separate TR + PI + RST修边冲孔整型trim + pierce + restrikeRST + PI + SEP整型冲孔切开restrike + pierce + separate FO压型form FL + SEP翻边切开flange + separate FL翻边flangeTR修边trimPI冲孔pierce RST + BUR整型翻孔restrike + bur BL落料blank FO + FL压型翻边form + flange CPI + TR + CTR侧冲孔修边侧修边cam pierce + trim + cam trim FL + RST翻边整型flange + restrike PI + CPI + SEP冲孔侧冲孔切开pierce + cam pierce + separate PI + SEP冲孔切开pierce + separate TR + CTR + PI修边侧修边冲孔trim + cam trim + pierce TR + CTR + PI + SEP修边侧修边冲孔切开trim + cam trim + pierce +separate CTR + PI + SEP侧修边冲孔切开cam trim + pierce + separate PI + RST冲孔整型pierce + restrikeFL + RST翻边整型flange + restrike RST + PI + SEP冲孔整型切开restrike + pierce + separate 2DR二次拉延2nd draw TR/PI + CPI修边冲孔侧冲孔trim + pierce + cam pierceFL + PI翻边冲孔flange + pierce冲压工艺词汇中英文对照。
