φ5直插发射管IR333C-H0-L10

NPNPlastic-EncapsulateTransistorsInternal Structure1.COLLECTOR2.BASE3.EMITTERContinuous Collector Current I C 800mA 45ParameterSymbolRating Unit V CBO Emitter-Base Voltage •Operating Junction Temperature Range: -55℃ to +150℃•Storage Temperature Range: -55℃ to +150℃•Thermal Resistance: 200℃/W Junction to AmbientMaximum Ratings @ 25°C Unless Otherwise SpecifiedFeatures•Halogen Free Available Upon Request By Adding Suffix "-HF"•Epoxy Meets UL 94 V-0 Flammability Rating•Lead Free Finish/RoHS Compliant ("P" Suffix Designates RoHS Compliant. See Ordering Information)V CEO 3025V V 50BC337BC338BC337BC338Collector-Base Voltage Collector-Emitter Voltage5V Power Dissipation P D625mWV EBOBC338I CEO Collector Cutoff Current 0.1V CB =25V, I E =00.2V CE =20V, I B =0µA µA V CB =10V, I E =0, f=1MHzh FE(2)60V BE(sat)V CE =5V, I C =10mA, f=100MHz 1.2V I C =500mA, I B =50mAMHz Emitter Cutoff Current I EBO 0.1h FE(1)100630Transition Frequency f T 210Output CapacitanceC obElectrical Characteristics @ T A =25°C Unless Otherwise SpecifiedParameterSymbol Min TypMaxUnits Conditions50BC337Collector-Base Breakdown VoltageI C =100µA, I E =0V (BR)CBO V I E =10µA, I C =0V EB =4V, I C =0V µAClassification of h FE(1)162540100-250160-400250-600RangeRank V CE =1V, I C =300mA DC Current Gain15pFV CE =1V, I C =100mA I C =500mA, I B =50mA Base-Emitter Saturation Voltage Collector-Emitter Saturation Voltage V CE(sat)0.7V V (BR)CEO 30I CBO Emitter-Base Breakdown Voltage BC33825BC338Collector Cutoff Current V (BR)EBO 545I C =10mA, I B =0BC338BC337V 0.2V CE =40V, I B =0BC3370.1V CB =45V, I E =0BC337Collector-Emitter Breakdown VoltageCurve Characteristics015650100150200250C o l l e c t o r C u r r e n t (m A )234Collector-Emitter Voltage (V)Fig. 1 - Static Characteristics100101000D C C u r r e n t G a i nCollector Current (mA)Fig. 2 - DC Current Gain Characteristics10018001010011000C o l l e c t o r -E m i t t e r S a t u r a t i o n V o l t a g e (m V )10Collector Current (mA)Fig. 4 - Collector-Emitter Saturation Voltage Characteristics10001002000B a s e -E m i t t e r S a t u r a t i o n V o l t a g e (m V )Collector Current (mA)Fig. 3 - Base-Emitter Saturation Voltage Characteristics301001030017010Collcetor Current (mA)T r a n s i t i o n f r e q u e n c y (M H z )Fig. 5 - Transition frequency Characteristics0251251500.00.20.40.60.8C o l l e c t o r P o w e rD i s s i p a t i o n (W )5075100Ambient Temperature (°C)Fig. 6 - Collector Power Derating CurveOrdering InformationDevice PackingPart Number-AP Ammo Packing: 20Kpcs/CartonPart Number-BP Bulk:1k/Bag,100K/Ctn; Note : Adding "-HF" Suffix for Halogen Free, eg. Part Number-TP-HF。

元器件交易网Technical Data Sheet 5mm Infrared LED , T-1 3/4IR333C/H0/L10Features․High reliability ․High radiant intensity ․Peak wavelength λp=940nm ․2.54mm Lead spacing ․Low forward voltage ․Pb free ․The product itself will remain within RoHS compliant version.Descriptions․EVERLIGHT’S Infrared Emitting Diode(IR333C/H0/L10) is a high intensity diode , molded in a water clear plastic package. ․The device is spectrally matched with phototransistor , photodiode and infrared receiver module.Applications․Free air transmission system ․Infrared remote control units with high power requirement ․Smoke detector ․Infrared applied systemDevice Selection Guide LED Part No.IRChip MaterialGaAlAsLens ColorWater clearEverlight Electronics Co., Ltd. Device No：DIR-033-087http:\\ Prepared date：07-20-2005Rev 3Page: 1 of 7Prepared by：Jaine Tsai元器件交易网IR333C/H0/L10Package DimensionsNotes: 1.All dimensions are in millimeters 2.Tolerances unless dimensions ±0.25mmAbsolute Maximum Ratings (Ta=25℃)Parameter Continuous Forward Current Peak Forward Current Reverse Voltage Operating Temperature Storage Temperature Soldering Temperature Power Dissipation at(or below) 25℃Free Air Temperature Symbol IF IFP VR Topr Tstg Tsol Pd Rating 100 1.0 5 -40 ~ +85 -40 ~ +85 260 150 Units mA A V ℃ ℃ ℃ mWNotes: *1:IFP Conditions--Pulse Width≦100μs and Duty≦1%. *2:Soldering time≦5 seconds.Everlight Electronics Co., Ltd. Device No：DIR-033-087http:\\ Prepared date：07-20-2005Rev 3Page: 2 of 7Prepared by：Jaine Tsai元器件交易网IR333C/H0/L10Electro-Optical Characteristics (Ta=25℃)Parameter Symbol Condition IF=20mA IF=100mA Radiant Intensity EePulse Width≦100μs ,Duty≦1%Min. 7.8 -----Typ. 10 45 450 940 45 1.2Max. -----1.5 1.8 4.0 10 --UnitsmW/srIF=1APulse Width≦100μs ,Duty≦1%.Peak Wavelength Spectral Bandwidthλp ΔλIF=20mA IF=20mA IF=20mA IF=100mAnm nmForward VoltageVFPulse Width≦100μs ,Duty≦1%-----1.4 2.6 -40VIF=1APulse Width≦100μs ,Duty≦1%.Reverse Current View AngleIR 2θ1/2VR=5V IF=20mAμA degRankCondition：IF=20mA Unit：mW/sr Bin Number Min Max M 7.80 12.5 N 11.0 17.6Everlight Electronics Co., Ltd. Device No：DIR-033-087http:\\ Prepared date：07-20-2005Rev 3Page: 3 of 7Prepared by：Jaine Tsai元器件交易网IR333C/H0/L10Typical Electro-Optical Characteristics CurvesFig.1 Forward Current vs. Ambient Temperature140 120Fig.2 Spectral Distribution100 80IF=20mA Ta=25° C100 80 60 40 20060 40 20 0-40 -20 020406080100Fig.3 Peak Emission Wavelength Ambient Temperature980Fig.4 Forward Current vs. Forward Voltage4 109603 109402 10920900 -251 100 25 50 75 10001234Everlight Electronics Co., Ltd. Device No：DIR-033-087http:\\ Prepared date：07-20-2005Rev 3Page: 4 of 7Prepared by：Jaine Tsai元器件交易网IR333C/H0/L10Typical Electro-Optical Characteristics CurvesFig.5 Relative Intensity vs. Forward Current Fig.6 Relative Radiant Intensity vs. Angular Displacement1000Ie-Radiant Intensity(mW/sr)-20-1001020 301001.0 0.940 50 60 70 80 0.6 0.4 0.2 0 0.2 0.4 0.6100.8 0.70 1 2 3 401010101010IF-Forward Current (mA)Fig.7 Relative Intensity vs. Ambient Temperature(°C)Fig.8 Forward Voltage vs. Ambient Temperature(°C)151.310IF=20mA1.2IF=20mA51.10 25 50 75 100 120125 50 75 100 120Everlight Electronics Co., Ltd. Device No：DIR-033-087http:\\ Prepared date：07-20-2005Rev 3Page: 5 of 7Prepared by：Jaine Tsai元器件交易网IR333C/H0/L10Reliability Test Item And ConditionThe reliability of products shall be satisfied with items listed below. Confidence level：90% LTPD：10% NO. Item Test Conditions Test Hours/ Sample Cycles Sizes 10secs 22pcs IR≧U×2 Ee≦L×0.8 VF≧U×1.2 U：Upper 1000hrs 1000hrs 1000hrs 1000hrs 22pcs 22pcs 22pcs 22pcs Specification Limit L：Lower Specification Limit 0/1 0/1 0/1 0/1 Failure Judgement Criteria Ac/Re1 Solder HeatTEMP.：260℃±5℃ 15mins 5mins 15mins 5mins 10secs 5mins0/1 0/12 Temperature Cycle H : +100℃ L : -40℃ 3 Thermal Shock H :+100℃ L :-10℃ 4 High Temperature Storage 5 Low Temperature Storage300Cycles 22pcs300Cycles 22pcs0/1TEMP.：+100℃ TEMP.：-40℃6 DC Operating Life IF=20mA 7 High Temperature/ 85℃ / 85% R.H High HumidityEverlight Electronics Co., Ltd. Device No：DIR-033-087http:\\ Prepared date：07-20-2005Rev 3Page: 6 of 7Prepared by：Jaine Tsai元器件交易网IR333C/H0/L10Packing Quantity Specification1.500PCS/1Bag，5Bags/1Box 2.10Boxes/1CartonLabel Form SpecificationCPN: Customer’s Production Number P/N : Production Number QTY: Packing Quantity AT: Ranks HUE: Peak Wavelength REF: Reference LOT No: Lot Number MADE IN TAIWAN: Production PlaceRoHSIR333C/H0/L10Notes1. Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for above specification. 2. When using this product, please observe the absolute maximum ratings and the instructions for using outlined in these specification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not comply with the absolute maximum ratings and the instructions included in these specification sheets. 3. These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’t reproduce or cause anyone to reproduce them without EVERLIGHT’s consent.EVERLIGHT ELECTRONICS CO., LTD. Office: No 25, Lane 76, Sec 3, Chung Yang Rd, Tucheng, Taipei 236, Taiwan, R.O.CTel: 886-2-2267-2000, 2267-9936 Fax: 886-2267-6244, 2267-6189, 2267-6306 http:\\Everlight Electronics Co., Ltd. Device No：DIR-033-087http:\\ Prepared date：07-20-2005Rev 3Page: 7 of 7Prepared by：Jaine Tsai。

红外线发射管也称红外线发射二极管，属于二极管类。

它是可以将电能直接转换成近红外插件红外线发射管光（不可见光）并能辐射出去的发光器件，主要应用于各种光电开关及遥控发射电路中。

红外线发射管的结构、原理与普通发光二极管相近，只是使用的半导体材料不同。

红外发光二极管通常使用砷化镓（GaAs）、砷铝化镓（GaAlAs）等材料，采用全透明或浅蓝色、黑色的树脂封装。

广州市超毅电子有限公司红外线发射管的介绍•红外线发射管是由红外发光二级管矩组成发光体，用红外辐射效率高的材料（常用砷化镓）制成PN结，正向偏压向PN结注入电流激发红外光，其光谱功率分布为中心波长830～950nm。

LED是英文Light Emitting Diode 的简称，表现是正温度系数，电流越大温度越高，温度越高电流越大，LED 红外灯的功率和电流大小有关，但正向电流超过最大额定值时，红外灯发射功率反而下降。

•红外发射管中晶圆的厂家主要有：台湾有亿光（everlight），鼎元，国外的有韩国、日本多瓦晶圆，国内有深圳奥伦德等•红外发射管（红外线灯管）可广泛用于红外摄像机、音频输出等红外引用产品中，其里面晶片功率大小通常决定发射距离，但红外监控摄像机效果又与红外灯的角度，灯组多少，机板，镜头等有关。

红外摄像机设计距离较近就用角度较大的IR发射管，并且还要跟镜头视角相配合;20米以上的必须用台湾正型12mil以上晶片，日本的也行。

由于市场无序竞争，厂家标榜的照射距离和实际可视距离概念不清，大部分小的红外摄像机生产商为了降低生产成本大量采用国产及台湾10mil、8mil晶片，甚至散型晶圆封装的（包括封装厂IR 发射管不良品）做正型红外灯来装配摄像机。

建议打长距离的用户还是用正型晶片封装的IR发射管，如台湾亿光相对衰减慢、夜视清晰）。

•发射距离、发射角度（15度、30度、45度、60度、90度、120度、180度）、发射的光强度、波长。

以上为物理参数，需了解其电性能参数：市场上常用的直径3mm,5mm为小功率红外线发射管，8mm,10mm为中功率及大功率发射管。

广州市东裕光电科技有限公司GUANGZHOU TONYU TECHNOLOGY CO.,LTD产品规格书SPECIFICATION客户名称CUSTOMER 产品名称PRODUCTION红外线发射管InfraRed Emitting Diode产品型号MODEL DY-IR333C-A 版本号VERSION NOA1.0地址(Add)：广东省广州市番禺区石基镇海涌路3号10号厂房2楼电话(Tel)：************传真(Fax)：************邮箱(E-mail)：************网址(Net)：客户确认CUSTOMER CONFIRMATION 审核CHECKED BY编制PREPARED BY汪建新陈少龙DY-IR333-A产品描述Descriptions●红外发光二极管（IR333C-A）是一种高辐射强度的二极管，模制在一个透明的塑料封装中。

(This Infrared Emitting Diode is a high intensity diode,molded in a Blue plastic package.)●可适配光敏三极管、光敏二极管、红外接收头、红外接收模块等。

(The device is spectrally matched with phototransistor,photodiode and infrared receiver module.)产品特性Features●可靠性高(High reliability)●辐射强度高(High radiant intensity)●峰值波长λp=940nm(Peak wavelengthλp=940nm)●引脚间距2.54mm(2.54mm Lead spacing)●低电压(Low forward voltage)●无铅(Pb free)●符合RoHS要求(This product itself will remain within RoHS compliant version)产品应用Applications●遥控器(Remote control)●红外光电开关(Optoelectronic switch)●烟感(Smoke detector)●智能家电(Smart Appliances)●储物柜感应模块(Locker sensor)●红外应用系统(Infrared applied system)●触摸开关(Touch switch)包装方式Packing Quantity Specification●500PCS/袋，5袋/小盒，10小盒/箱(500PCS/1Bag，5Bags/1Box，10Boxes/1Carton)一、外形图Outline dimensions ：Notes:1.All dimensions are in mm,tolerance is ±0.25unless otherwise noted.2.An epoxy meniscus way extend about 1.5mm down the leads.3.Burr around bottom of epoxy may be 0.5mm Max.※备注：承认书之编号和型号可用于查询，客户如有需要，请提供相应的编号和型号。

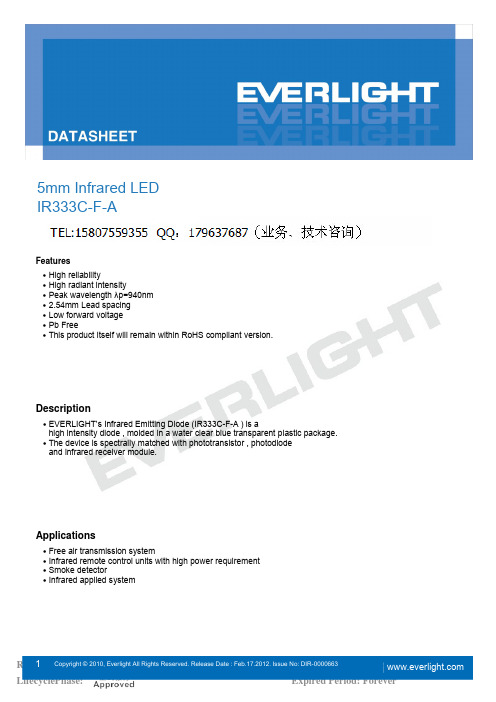

IR333C-F-AFeatures․High reliability․High radiant intensity․Peak wavelength λp=940nm․2.54mm Lead spacing․Low forward voltage․Pb Free․This product itself will remain within RoHS compliant version.Description․EVERLIGHT’s Infrared Emitting Diode (IR333C-F-A) is ahigh intensity diode , molded in a water clear blue transparent plastic package.․The device is spectrally matched with phototransistor , photodiodeand infrared receiver module.Applications․Free air transmission system․Infrared remote control units with high power requirement․Smoke detector․Infrared applied systemDevice Selection GuideChipLens ColorMaterialsGaAlAs water clearAbsolute Maximum Ratings(Ta=25)Parameter Symbol Rating Unit Continuous Forward Current I F100mA Peak Forward Current(*1)I FP 1.0A Reverse Voltage V R5V Operating Temperature T opr-25 ~ +85 Storage Temperature T stg-40 ~ +100 Soldering Temperature(*2)T sol260 Power Dissipation at(or below)P d150mW 25 Free Air TemperatureNotes: *1:I FP Conditions--Pulse Width 100μs an d Duty 1%.*2:Soldering time 5 seconds.Electro-Optical Characteristics (Ta=25)ParameterSymbolMin.Typ.Max.Unit Condition 7.820-----I F =20mA -----100-----I F =100mA Radiant IntensityI e-----1000----- mW/srI F =1A Pulse Width 100μs and Duty 1%Peak Wavelength λp -----940-----nm I F =20mA Spectral BandwidthΔλ-----45-----nm I F =20mA ----- 1.2 1.5I F =20mA ----- 1.4 1.7I F =100mAForward VoltageVF----- 2.6 4.0V I F =1A Pulse Width 100μs and Dut y 1%Reverse Current I R --------10uA V R =5V View Angle2θ1/2----20----deg I F =20mARankCondition:I F =20mA Unit mW/sr Bin Number M N P Q R Min 7.811.015.021.030.0Max12.517.624.034.048.0104700725750775800825850875900925950975100010251050 0.0Wavelength (nm)-20402006010080Peak Emission Wavelength vs. Ambient Temperature Forward Current vs. Forward Voltage103Package DimensionNote: Tolerances unless dimensions ±0.25mmPacking Specification■ Anti-electrostatic bag ■ Inner Carton ■ Outside Carton ■ Packing QuantityNotes1.Lead Forming ⏹During lead formation, the leads should be bent at a point at least 3mm from the base of the epoxy bulb.⏹Lead forming should be done before soldering.⏹Avoid stressing the LED package during leads forming. The stress to the base may damage the LED’s characteristics or it may break the LEDs.⏹Cut the LED lead frames at room temperature. Cutting the lead frames at high temperatures may cause failure of the LEDs.⏹When mounting the LEDs onto a PCB, the PCB holes must be aligned exactly with the lead position of the LED. If the LEDs are mounted with stress at the leads, it causes deterioration of the epoxy resin and this will degrade the LEDs.2.Storage ⏹The LEDs should be stored at 30°C or less and 70%RH or less after being shipped from Everlight and the storage life limitsare 3 months. If the LEDs are stored for 3 months or more, they can be stored for a year in a sealed container with a nitrogen atmosphere and moisture absorbent material.⏹Please avoid rapid transitions in ambient temperature, especially, in high humidity environments where condensation can occur.3.Soldering ⏹Careful attention should be paid during soldering. When soldering, leave more then 3mm from solder joint to epoxy bulb,and soldering beyond the base of the tie bar is recommended.⏹Recommended soldering conditions:Hand SolderingDIP SolderingTemp. at tip of iron300 Max. (30W Max.)Preheat temp.100 Max. (60 sec Max.)Soldering time 3 sec Max.Bath temp. & time 260 Max., 5 sec Max Distance 3mm Min.(From solderjoint to epoxy bulb)Distance 3mm Min. (From solderjoint to epoxy bulb)⏹Recommended soldering profile⏹Avoiding applying any stress to the lead frame while the LEDs are at high temperature particularly when soldering.⏹Dip and hand soldering should not be done more than one time⏹After soldering the LEDs, the epoxy bulb should be protected from mechanical shock or vibration until the LEDs return toroom temperature.⏹ A rapid-rate process is not recommended for cooling the LEDs down from the peak temperature.Although the recommended soldering conditions are specified in the above table, dip or hand soldering at the lowestpossible temperature is desirable for the LEDs.⏹Wave soldering parameter must be set and maintain according to recommended temperature and dwell time in the solderwave.4.Cleaning⏹When necessary, cleaning should occur only with isopropyl alcohol at room temperature for a duration of no more thanone minute. Dry at room temperature before use.⏹Do not clean the LEDs by the ultrasonic. When it is absolutely necessary, the influence of ultrasonic cleaning on the LEDsdepends on factors such as ultrasonic power and the assembled condition. Ultrasonic cleaning shall be pre-qualified to ensure this will not cause damage to the LED5.Heat Management⏹Heat management of LEDs must be taken into consideration during the design stage of LED application. The currentshould be de-rated appropriately by referring to the de-rating curve found in each product specification.⏹The temperature surrounding the LED in the application should be controlled. Please refer to the data sheet de-ratingcurve.6.ESD (Electrostatic Discharge)⏹Electrostatic discharge (ESD) or surge current (EOS) can damage LEDs.⏹An ESD wrist strap, ESD shoe strap or antistatic gloves must be worn whenever handling LEDs.⏹All devices, equipment and machinery must be properly grounded.⏹Use ion blower to neutralize the static charge which might have built up on surface of the LEDs plastic lens as a result offriction between LEDs during storage and handing.7.Other⏹Above specification may be changed without notice. EVERLIGHT will reserve authority on material change for abovespecification.⏹When using this product, please observe the absolute maximum ratings and the instructions for using outlined in thesespecification sheets. EVERLIGHT assumes no responsibility for any damage resulting from use of the product which does not complywith the absolute maximum ratings and the instructions included in these specification sheets.⏹These specification sheets include materials protected under copyright of EVERLIGHT corporation. Please don’treproduce or cause anyone to reproduce them without EVERLIGHT’s consent.。
