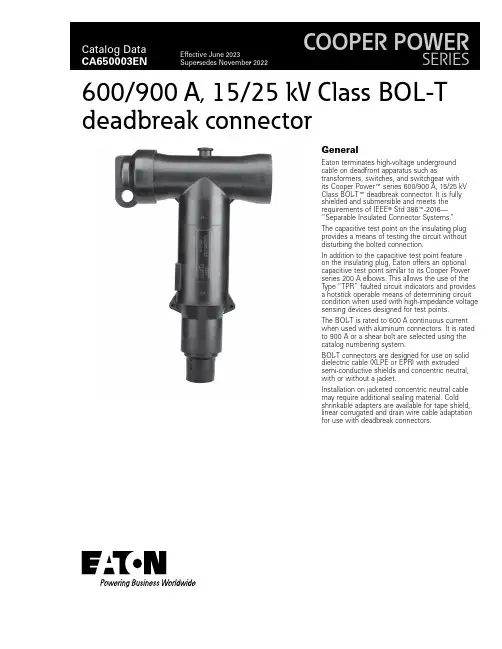

GeneralEaton terminates high-voltage underground cable on deadfront apparatus such astransformers, switches, and switchgear with its Cooper Power E series 600/900 A, 15/25 kV Class BOL -T E deadbreak connector. It is fully shielded and submersible and meets the requirements of IEEE T Std 386E -2016—“Separable Insulated Connector Systems.”The capacitive test point on the insulating plug provides a means of testing the circuit without disturbing the bolted connection.In addition to the capacitive test point feature on the insulating plug, Eaton offers an optional capacitive test point similar to its Cooper Power series 200 A elbows. This allows the use of the Type “TPR” faulted circuit indicators and provides a hotstick operable means of determining circuit condition when used with high-impedance voltage sensing devices designed for test points.The BOL -T is rated to 600 A continuous current when used with aluminum connectors. It is rated to 900 A or a shear bolt are selected using the catalog numbering system.BOL -T connectors are designed for use on solid dielectric cable (XLPE or EPR) with extruded semi-conductive shields and concentric neutral, with or without a jacket.Installation on jacketed concentric neutral cable may require additional sealing material. Cold shrinkable adapters are available for tape shield, linear corrugated and drain wire cable adaptation for use with deadbreak connectors.600/900 A, 15/25 kV Class BOL-Tdeadbreak connector2Catalog Data CA650003ENEffective June 2023600/900 A, 15/25 kV Class BOL -Tdeadbreak connectorEATON 900 A ratingThe BOL -T connector is rated for 900 A continuous when used with a coppertop compression connector or shear bolt, copper insulating plug, copper stud, and copper bushing or junction. If a 900 A rating is desired, specify a “C ” as the 10th digit when determining the part number. See Step 3 on page 5.InterchangeabilityEaton’s Cooper Power series 600 A deadbreak connectors conform to the electrical, mechanical, and dimensional requirements ofIEEE Std 386-2016. The connectors can be used on any comparably rated bushing interface that also meets the requirements of this standard. In addition, all cable adapters, insulating plugs,compression connectors, and other component parts are designed to be interchangeable with those currently available from other major manufacturers that also comply with IEEE Std 386-2016.InstallationA torque wrench and 1-inch socket are used to tighten theinsulating plug through the compression or shear bolt connector within the T -body onto a de-energized 600 A bushing interface. Refer to Service Information MN650005EN 600 A 15/25 kV Class BOL -T and Separable Splice Connector Assembly Installation Instructions for details.Production testsTests conducted in accordance with IEEE Std 386-2016:•ac 60 Hz 1-minute withstand • 40 kV•Minimum partial discharge extinction voltage • 19 kVTests conducted in accordance with Eaton re q uire m ents:• Physical in s pec t ion • Periodic dissection •Periodic X-ray analysisT able 1. Voltage ratings and characteristicsDescriptionkVStandard voltage class25Maximum rating phase-to-ground 15.2ac 60 Hz 1-minute withstand 40dc 15-minute withstand 78BIL and full wave crest125Minimum partial discharge extinction voltage 19ote: N Voltage ratings and characteristics are in accordance with IEEE Std 386-2016.T able 2. Current ratings and characteristicsDescriptionAmperesContinuous 600 A rms (aluminum)900 A rms (copper or shear bolt)4-hour overload900 A rms (aluminum)1200 A rms (copper or shear bolt)Short time (aluminum)40,000 A rms symmetrical for 0.17 s 27,000 A rms symmetrical for 4 s Short time(copper or shear bolt)40,000 A rms symmetrical for 0.17 s 27,000 A rms symmetrical for 4 sote: N Current ratings and characteristics are in ac c or d ance with IEEE Std 386-2016.3Catalog Data CA650003ENEffective June 2023600/900 A, 15/25 kV Class BOL -T deadbreak connector EATON Features and benefitsFigure 1. BOL -T cutaway design featuresote: N Dimensions are in inches (mm) and are for reference only.4Catalog Data CA650003ENEffective June 2023600/900 A, 15/25 kV Class BOL -Tdeadbreak connectorEATON Optional featuresCoppertop compression connectorsCoppertop compression connectors (aluminum sleeve welded toa copper spade) provide a high-conductivity material in a boltedconnection and are compatible with aluminum or copper conductors.Shear bolt connectorsBolted cable lug is fitted with stepless bolts, which shear offwhen optimum contact force has been reached. Provide electrical continuity for copper and aluminum conductors while eliminating need for dies and compression tools.Shear bolt connectorAll copper current pathA full copper current-carrying path can be obtained by specifying a coppertop compression connector, copper stud, and copperinsulating plug.Figure 2. BOL -T stacking dimensions in inches (mm)Ordering informationEach BOL -T connector kit contains:• Molded rubber T -body • Insulating plug • Insulating plug cap• Compression or shear bolt connector • Cable adapter • Silicone lubricant•Installation instruction sheetTo order a 15/25 kV Class BOL -T connector kit, see following Steps 1–5 to build the catalog number.BOL -T connector kit—catalog numbering systemBuild the 12-digit catalog number for a BOL -T kit by following the steps given below. The first 5 digits are “BT625”, so only digits 6 through 12 need to be selected.123456789101112BT625Catalog number digits:1 and2 — “BT ” = BOL -T connector system3 — “6” = 600 A system4 and5 — “25” = 25 kV class bushing interfaceStep 1. Select digits 6 and 7 cable adapter range code Determine the cable’s diameter over the electrical insulation as shown in Figure 3 (including tolerances).Then identify a cable range from T able 3 that covers the minimum and maximum insulation diameters.Select the correct cable adapter range code from T able 3.T able 3. Cable diameter rangeInchesmmCable adapter range code0.61–0.9715.5–24.6AB 0.75–1.0819.1–27.4CC 0.97–1.3124.6–33.3DD 1.09–1.4727.7–37.3EE 1.26–1.6432.0–41.7FF 1.36–1.7134.5–43.4GG 1.51–1.8538.4–47.0HH 1.70–1.9743.2–50.0JJ5Catalog Data CA650003ENEffective June 2023600/900 A, 15/25 kV Class BOL -T deadbreak connector EATON Step 2. Select digits 8 and 9 conductor codeIdentify the conductor size and type in T able 4 (compression) or T able 5 (shear bolt) and select the conductor code from the appropriate column.T able 4. Compression connectorConcentric or compressed Compact or solid Conductor codeAWG or kcmilmm 2AWG or kcmilmm 2No connector 00#2351—11#1—1/050121/0502/070132/0703/0—143/0—4/095154/09525012016250120300—17300—350—18350—40018519400185450—20450—5002402150024060030022600300700—23650—750—24750—900—25900—1000500261000500——2712506301250—28T able 5. Shear bolt connectorCable conductor size Conductor code Catalognumber AWG or kcmilmm 2standard sizesCompact Compressed Concentric1/01/01/050S1CDT630SB1502/02/02/0703/03/03/0—4/04/04/095250250250120350——150—350350185S3CDT630SB300500500500240600600600300700————700700—S4CDT630SB400750750750—800800—400900—————800—S5CDT900SB500—900900—100010001000500Step 3. Select digit 10Determine whether aluminum or copper is required for the compression connector, stud, and deadbreak insulating plug. “A ” = Aluminum (shear bolt or compression connector)“C ” = Copper mating components (shear bolt or coppertopcompression connector) (required to achieve 900 A rating)Step 4. Select digit 11Determine if a stud should be included in the kit. “1” = Stud included “2” = Stud not included Step 5. Select digit 12 (optional)Determine if the T -body should have a test point.“T ” = Test point on T -bodyIf no test point is required, do not include a 12th digit.ExampleSelect a BOL -T kit for 250 kcmil compressed cable with a nominal insulation diameter of 1.160 ± 0.030 inches. The kit should have aluminum current-carrying parts and should have a stud included. The T -body should have a test point.Step 1. Select digits 6 and 7Nominal diameter over insulation is 1.160 ± 0.030 inches.Minimum diameter = 1.160 – 0.030 = 1.130 inches.Maximum diameter = 1.160 + 0.030 = 1.190 inches.From T able 3, identify the cable range that covers1.130–1.190 inches and select the “EE ” cable range code.Step2. Select digits 8 and 9The conductor size is 250 kcmil compressed. From T able 4, under the column “Concentric or compressed,” identify 250 kcmil and select the “17” conductor code.Step 3. Select digit 10The kit should have aluminum current-carrying parts. Select an “A ” for digit 10.Step 4. Select digit 11The kit should include a stud. Select “1” for digit 11.Step 5. Select digit 12A test point is needed. Use “T ” for digit 12.The complete catalog number is: BT625EE17A1T .6Catalog Data CA650003ENEffective June 2023600/900 A, 15/25 kV Class BOL -Tdeadbreak connectorEATON Figure 3. T ypical construction of medium-voltage underground cableAccessoriesCable adapters, compression connectors, and other accessories that can be used with BOL -T connectors are described in Catalog Data CA650007EN, “Deadbreak accessories, tools, and replacement parts.”T able 6. Replacement partsDescriptionCatalog numberT-body without test point DT625T-body with test pointDT625T T-body without test point with aluminum stud DT625SA T-body without test point with copper stud DT625SC T-body with test point with aluminum stud DT625TSA T-body with test point with copper stud DT625TSC Insulating plug capDIPCAP Aluminum insulating plug with cap (no stud)DIP625A Copper insulating plug with cap (no stud)DIP625C Aluminum insulating plug with cap and aluminum stud DIP625AS Copper insulating plug with cap and copper stud DIP625CS 5/8-inch—11 UNC 2 A aluminum threaded stud STUD-A 5/8-inch—11 UNC 2 A copper threaded stud STUD-C7Catalog Data CA650003ENEffective June 2023600/900 A, 15/25 kV Class BOL -T deadbreak connector EATON Eaton1000 Eaton Boulevard Cleveland, OH 44122United StatesEaton’s Power Systems Division 2300 Badger Drive Waukesha, WI 53188United States/cooperpowerseries© 2023 EatonAll Rights ReservedPrinted in USAPublication No. CA650003EN / Z27614 June 2023Eaton is a registered trademark.All other trademarks are propertyof their respective owners.600/900 A, 15/25 kV Class BOL-Tdeadbreak connectorCatalog Data CA650003EN Effective June 2023。

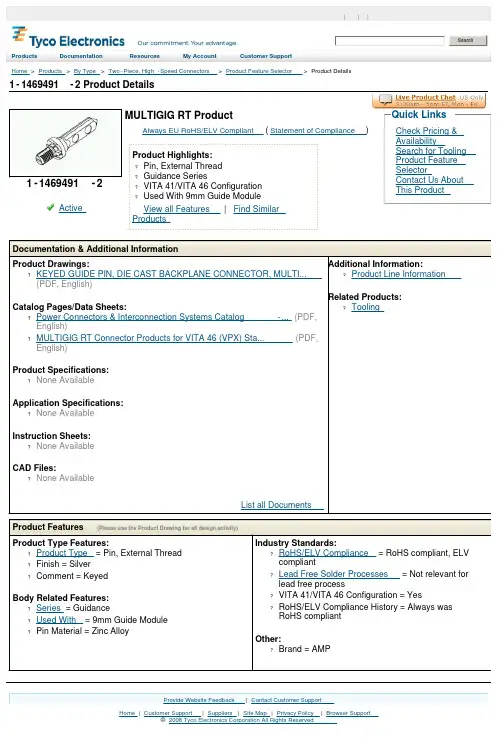

1-1469491-2 Product DetailsHome | Customer Support | Suppliers | Site Map | Privacy Policy | Browser Support© 2008 Tyco Electronics Corporation All Rights Reserved SearchProducts Documentation Resources My Account Customer SupportHome > Products > By Type > Two-Piece, High-Speed Connectors > Product Feature Selector > Product Details1-1469491-2Active MULTIGIG RT ProductAlways EU RoHS/ELV Compliant (Statement of Compliance)Product Highlights:?Pin, External Thread?Guidance Series?VITA 41/VITA 46 Configuration?Used With 9mm Guide ModuleView all Features | Find SimilarProductsCheck Pricing &AvailabilitySearch for ToolingProduct FeatureSelectorContact Us AboutThis ProductQuick LinksDocumentation & Additional InformationProduct Drawings:?KEYED GUIDE PIN, DIE CAST BACKPLANE CONNECTOR, MULTI...(PDF, English)Catalog Pages/Data Sheets:?Power Connectors & Interconnection Systems Catalog -...(PDF, English)?MULTIGIG RT Connector Products for VITA 46 (VPX) Sta...(PDF, English)Product Specifications:?None AvailableApplication Specifications:?None AvailableInstruction Sheets:?None AvailableCAD Files:?None AvailableList all Documents Additional Information:?Product Line InformationRelated Products:?ToolingProduct Features (Please use the Product Drawing for all design activity)Product Type Features:?Product Type = Pin, External Thread ?Finish = Silver?Comment = KeyedBody Related Features:?Series = Guidance?Used With = 9mm Guide Module?Pin Material = Zinc Alloy Industry Standards:?RoHS/ELV Compliance = RoHS compliant, ELVcompliant?Lead Free Solder Processes = Not relevant forlead free process?VITA 41/VITA 46 Configuration = Yes?RoHS/ELV Compliance History = Always wasRoHS compliantOther:?Brand = AMPProvide Website Feedback | Contact Customer Support。

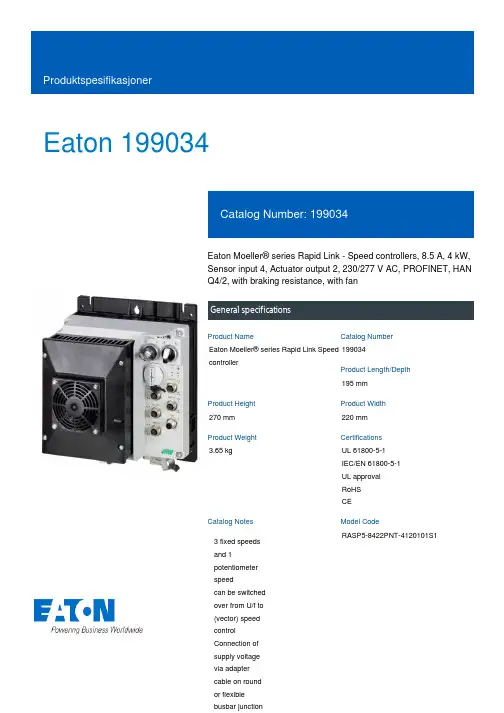

Eaton 199034Eaton Moeller® series Rapid Link - Speed controllers, 8.5 A, 4 kW, Sensor input 4, Actuator output 2, 230/277 V AC, PROFINET, HAN Q4/2, with braking resistance, with fanGeneral specificationsEaton Moeller® series Rapid Link Speed controller199034195 mm270 mm 220 mm 3.65 kgUL 61800-5-1 IEC/EN 61800-5-1 UL approval RoHS CERASP5-8422PNT-4120101S1Product NameCatalog NumberProduct Length/Depth Product Height Product Width Product Weight Certifications Catalog Notes Model Code3 fixed speeds and 1 potentiometer speedcan be switched over from U/f to (vector) speed control Connection of supply voltage via adapter cable on round or flexible busbar junction480 VIs the panel builder's responsibility. The specifications for the switchgear must be observed.400 V AC, 3-phase480 V AC, 3-phaseMeets the product standard's requirements.4 kW500 VMeets the product standard's requirements.-40 °C380 VThermo-click with safe isolationBraking resistance2 Actuator outputsIGBT inverterKey switch position AUTOPC connectionKey switch position HANDSelector switch (Positions: REV - OFF - FWD)FanKey switch position OFF/RESETPTC thermistor monitoringControl unitInternal DC linkBreaking resistanceTwo sensor inputs through M12 sockets (max. 150 mA) for quick stop and interlocked manual operation0 Hz Generation change from RA-SP to RASP 4.0Generation change RAMO4 to RAMO5Generation change from RA-MO to RAMO 4.0Configuration to Rockwell PLC for Rapid LinkGeneration Change RA-SP to RASP5Generation Change RASP4 to RASP5Rapid Link 5 - brochureDA-SW-USB Driver DX-COM-STICK3-KITDA-SW-USB Driver PC Cable DX-CBL-PC-1M5DA-SW-Driver DX-CBL-PC-3M0DA-SW-drivesConnect - installation helpDA-SW-drivesConnect - InstallationshilfeDA-SW-drivesConnectMaterial handling applications - airports, warehouses and intra-logistics ETN.RASP5-8422PNT-4120101S1.edzIL034093ZUramo5_v36.dwgrasp5_v36.stpDA-DC-00003964.pdfDA-DC-00004184.pdfDA-DC-00004514.pdfDA-DC-00004508.pdfeaton-bus-adapter-rapidlink-speed-controller-dimensions-002.eps eaton-bus-adapter-rapidlink-speed-controller-dimensions-003.eps eaton-bus-adapter-rapidlink-speed-controller-dimensions.epseaton-bus-adapter-rapidlink-speed-controller-dimensions-004.epsMains voltage - max10.11 Short-circuit ratingRated operational voltage10.4 Clearances and creepage distancesOutput at quadratic load at rated output voltage - max Output voltage - max10.2.3.1 Verification of thermal stability of enclosures Ambient storage temperature - minMains voltage - minFitted with:Output frequency - min Applikasjonsmerknader BrosjyrereCAD model Installeringsinstruksjoner mCAD model SertifiseringsrapporterTegningerStarting current - max200 %, IH, max. starting current (High Overload), For 2 seconds every 20 seconds, Power sectionRated conditional short-circuit current (Iq)10 kAAmbient operating temperature - max40 °CCommunication interfacePROFINET, optionalAssigned motor power at 115/120 V, 60 Hz, 1-phase5 HPOutput frequency - max500 HzSwitching frequency8 kHz, 4 - 32 kHz adjustable, fPWM, Power section, Main circuitFeaturesParameterization: drivesConnect mobile (App) Parameterization: FieldbusInternal and on heat sink, temperature-controlled Fan Parameterization: drivesConnectParameterization: KeypadAmbient operating temperature - min-10 °CBraking current≤ 0.6 A (max. 6 A for 120 ms), Actuator for external motor brakeNumber of HW-interfaces (serial TTY)10.6 Incorporation of switching devices and componentsDoes not apply, since the entire switchgear needs to be evaluated.Nominal output current I2N8.5 A10.2.6 Mechanical impactDoes not apply, since the entire switchgear needs to be evaluated.10.3 Degree of protection of assembliesDoes not apply, since the entire switchgear needs to be evaluated.Product categorySpeed controllerRadio interference classC2, C3: depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary.C1: for conducted emissions onlyHeat dissipation capacity Pdiss0 WRated control voltage (Uc)230/277 V AC (external brake 50/60 Hz)24 V DC (-15 %/+20 %, external via AS-Interface® plug)Assigned motor power at 460/480 V, 60 Hz, 3-phase5 HPNumber of HW-interfaces (RS-422)Mains current distortion120 %ProtocolPROFINET IO10.9.2 Power-frequency electric strengthIs the panel builder's responsibility.Overvoltage categoryIIIDegree of protectionIP65NEMA 12Ambient storage temperature - max70 °CRated impulse withstand voltage (Uimp)2000 VConnectionPlug type: HAN Q4/2Overload currentFor 60 s every 600 sAt 40 °CFunctionsFor actuation of motors with mechanical brake3 fixed speeds1 potentiometer speedBrake chopper with braking resistance for dynamic braking4-quadrant operation possibleOutput at linear load at rated output voltage - max4 kWMains voltage tolerance380 - 480 V (-10 %/+10 %, at 50/60 Hz)Leakage current at ground IPE - max3.5 mAConverter typeU converter10.2.2 Corrosion resistanceMeets the product standard's requirements.Supply frequency50/60 Hz10.2.4 Resistance to ultra-violet (UV) radiationMeets the product standard's requirements.10.2.7 InscriptionsMeets the product standard's requirements.Shock resistance15 g, Mechanical, According to IEC/EN 60068-2-27, 11 ms, Half-sinusoidal shock 11 ms, 1000 shocks per shaftApplication in domestic and commercial area permittedYesNumber of inputs (analog)Number of phases (output)310.12 Electromagnetic compatibilityIs the panel builder's responsibility. The specifications for the switchgear must be observed.10.2.5 LiftingDoes not apply, since the entire switchgear needs to be evaluated.Number of HW-interfaces (RS-485)1Number of HW-interfaces (industrial ethernet)Efficiency98 % (η)System configuration typePhase-earthed AC supply systems are not permitted.AC voltageCenter-point earthed star network (TN-S network)10.8 Connections for external conductorsIs the panel builder's responsibility.Switch-on threshold for the braking transistor765 VDCProtectionFinger and back-of-hand proof, Protection against direct contact (BGV A3, VBG4)Braking voltage230/277 V AC -15 % / +10 %, Actuator for external motor brakeApplication in industrial area permittedYesClimatic proofingIn accordance with IEC/EN 50178< 95 %, no condensation10.9.3 Impulse withstand voltageIs the panel builder's responsibility.Overload current IL at 150% overload12.7 AInput current ILN at 150% overload7.8 ANumber of HW-interfaces (RS-232)Number of inputs (digital)4Current limitationAdjustable, motor, main circuit0.8 - 8.5 A, motor, main circuitCable lengthC3 ≤ 25 m, maximum motor cable lengthC1 ≤ 1 m, maximum motor cable lengthC2 ≤ 5 m, maximum motor cable length10.5 Protection against electric shockDoes not apply, since the entire switchgear needs to beevaluated.Mounting positionVerticalMains switch-on frequencyMaximum of one time every 60 seconds10.13 Mechanical functionThe device meets the requirements, provided the information in the instruction leaflet (IL) is observed.10.9.4 Testing of enclosures made of insulating materialIs the panel builder's responsibility.Heat dissipation per pole, current-dependent Pvid0 WElectromagnetic compatibility1st and 2nd environments (according to EN 61800-3)Resolution0.1 Hz (Frequency resolution, setpoint value)Assigned motor power at 460/480 V, 60 Hz5 HPRelative symmetric net voltage tolerance10 %Rated operational current (Ie)8.5 A at 150% overload (at an operating frequency of 8 kHz and an ambient air temperature of +40 °C)Number of outputs (analog)Rated operational power at 380/400 V, 50 Hz, 3-phase4 kWNumber of HW-interfaces (USB)Operating modeSensorless vector control (SLV)PM and LSPM motorsSynchronous reluctance motorsBLDC motorsU/f controlRated frequency - min45 HzDelay time< 10 ms, On-delay< 10 ms, Off-delayNumber of outputs (digital)2Power consumption95 W10.2.3.2 Verification of resistance of insulating materials to normal heatMeets the product standard's requirements.10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effectsMeets the product standard's requirements.Number of HW-interfaces (other)Rated frequency - max66 HzVibrationResistance: According to IEC/EN 60068-2-6Resistance: 6 Hz, Amplitude 0.15 mmResistance: 10 - 150 Hz, Oscillation frequency Resistance: 57 Hz, Amplitude transition frequency on accelerationShort-circuit protection (external output circuits)Type 1 coordination via the power bus' feeder unit, Main circuit10.7 Internal electrical circuits and connectionsIs the panel builder's responsibility.Braking torque≤ 30 % (I/Ie)Adjustable to 100 % (I/Ie), DC - Main circuitRelative symmetric net frequency tolerance10 %10.10 Temperature riseThe panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.Number of HW-interfaces (parallel)Assigned motor power at 230/240 V, 60 Hz, 1-phase5 HPInterfacesNumber of slave addresses: 31 (AS-Interface®)Eaton Corporation plc Eaton House30 Pembroke Road Dublin 4, Ireland © 2023 Eaton. Med enerett.Eaton is a registered trademark.All other trademarks are property of their respectiveowners./socialmediaMax. total power consumption from AS-Interface® power supply unit (30 V): 250 mASpecification: S-7.4 (AS-Interface®)351.6 W at 25% current and 0% speed 53.8 W at 25% current and 50% speed 60.9 W at 50% current and 0% speed 64 W at 50% current and 90% speed 65.4 W at 50% current and 50% speed 85.1 W at 100% current and 0% speed 94 W at 100% current and 50% speed 95.3 W at 100% current and 90% speed 2Max. 2000 mAbove 1000 m with 1 % performance reduction per 100 mNumber of phases (input)Heat dissipation at current/speed Number of interfaces (PROFINET)Altitude。

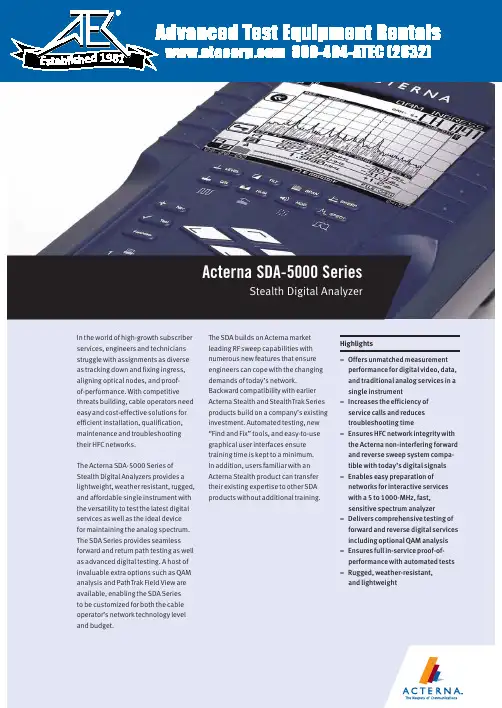

800-404-ATEC (2832) E s t a b l i s h e d1981Acterna SDA-5000 SeriesStealth Digital AnalyzerForward and reverse non-interfering Sweep enableseasy preparation of networks for interactive services 23Reverse ingress spectrum displayConstellation display with MER and pre/post FEC BERReverse Alignment mode prepares network for cable modem deploymentOne button, in-service C/N measurements on TDMA return path cable modem signals(DOCSIS, EuroDOCSIS, EuroModem) Zero span/time domain expert mode, showing the TDMA bursty return path cable modem power ramp of 3.5 msIn-service ingress spectrum showing CTB/CSO-intermodulation problems due to analog-TV channels4Time domain view of ingress in the Zero Span mode captures elusive ingress PathTrak Field View option compares headendnode spectrum with field testpoint spectrumGraphical reverse testpoint compensation5The single-channel level display shows both video and audio levels(either single or dual sound/ NICAM) and the difference between the two Digital channel average power measurements can be made using the digiCheck™featureThe Navigator user interface, common on all Acterna SDA meters6Automated tests can be scheduled to perform either 24-hour FCC compliance tests, or initiated immediately to log performance at individual nodes, amplifiers, or other testpoints. A wide range of tests can be performed auto-matically, including signal levels,C/N, hum, and depth of modulation. The operator designates which tests to perform on which channels. Because these tests are non-intrusive, it is easy to test all parameters on all channels at any time.After a test is performed, the results can be displayed on the SDA screen.A PASS/FAIL indication on a varietyof limits can be set for FCC/CENELECor other government standards,or system preferences. Data taken during any automated test, or sequence of automated tests, can be viewed immediately with a PASS/FAIL indication for each of the limits. Specific stored measurement results may be viewed on demand. Data analysis with StealthWareTest results can be printed directly to aserial printer or uploaded to a PC usingActerna StealthWare, a Microsoft®Windows®-based data managementpackage, to store and include in cus-tom reports. Stored sweep, scan, orspectrum screens can be viewed onthe PC and analyzed with marker move-ment and readout information in justthe same way as on the actual instru-ment. A sweep graph overlay functionallows comparison of multiple RFresponse variations over time. Oldsweep graphs may be downloadedback into the SDA instrument for real-time comparison.Powerful and intuitive standardizedgraphical displaysAll measurement results are presentedto the user in clear, highly informative,summary displays. The graphicspresent the information the way thetechnician wants to see the results,with no further interpretation required.For example, testpoint compensationvalues are entered at the start oftesting. Displays then calculate actuallevels automatically, minimizingfield errors.Reduced training timeWith SDA Series products, all levels ofinstruments are familiar to the tech-nician, regardless of which is learnedfirst, because the same user interfaceconventions are used across all prod-uct families. The time needed for atrainee technician to learn to use theinstrument is considerably shorterthan with alternative test equipment.This means urgent upgrade projectsmake the most efficient use of limitedresources when SDA Series productsare used.7 Limit checks can be instantly viewed afteridentifying channel of interest with a markerin Scan mode displayIn-service carrier-to-noiseTilt mode performs automatic tilt calculations between any two of nine designated carriersDepth of modulation In-service “HUM” (PAL and NTSC compatible)Detailed forward/ reverse sweep graph offers adjustable markers, scale, reference level and tilt. Users can clearly distinguish between previous and current sweep measurements for easy891011Worldwide Headquarters12410 Milestone Center Dr. Germantown, Maryland 20876-7100USAActerna is present in more than 80 countries.To find your local sales office go to: Regional SalesHeadquartersNorth America12410 Milestone Center Dr.Germantown, Maryland20876-7100USAToll Free:1866ACTERNAToll Free:186********Tel:+13013531560x2850Fax: +1301353 9216Latin AmericaAv.Eng.Luis Carlos Berrini936/8°e 9°andares04571-000 São PauloSP-BrazilTel:+551155033800Fax:+55 11 5505 1598Asia Pacific42 Clarendon StreetPO Box 141South MelbourneVictoria 3205AustraliaTel:+61 3 9690 6700Fax:+61 3 9690 6750Western EuropeArbachtalstrasse 672800 Eningen u.A.GermanyTel:+49 7121 86 2222Fax:+49 7121 86 1222Eastern Europe,Middle East & AfricaElisabethstrasse 362500 BadenAustriaTel:+43 2252 85 521 0Fax:+43 2252 80 7271st Neopalimovskiy Per.15/7 (4th floor)RF 119121 MoscowRussiaTel:+7 095 248 2508Fax:+7 095 248 4189© Copyright 2002Acterna, LLC.All rights reserved.Acterna, The Keepers ofCommunications, andits logo are trademarksof Acterna, LLC. Allother trademarks andregistered trademarksare the property of theirrespective owners. MajorActerna operations sitesare IS0 9001 registered.Note: Specifications,terms and conditionsare subject to changewithout notice.SDA-5000/DS/CAB/07-02/AE/ACT00392Acterna Advantage SM–adding value with global services and solutionsFrom basic instrument support for your field technicians to management of complex, company-wide initiatives, Acterna’s service professionals are committed to helping you maximize your return on investment. Whatever your needs– product support, system management, education services, or business planning and consulting – we offer programs that will give you the competitive edge. This is the foundation of Acterna Advantage.Acterna is the world’s largest provider of test and management solutions for optical transport, access and cable networks, and the second largest communications test company overall. Focused entirely on providing equipment, software, systems and services, Acterna helps customers develop, install, manufacture and maintain optical transport, access, cable, data/IP and wireless networks.。

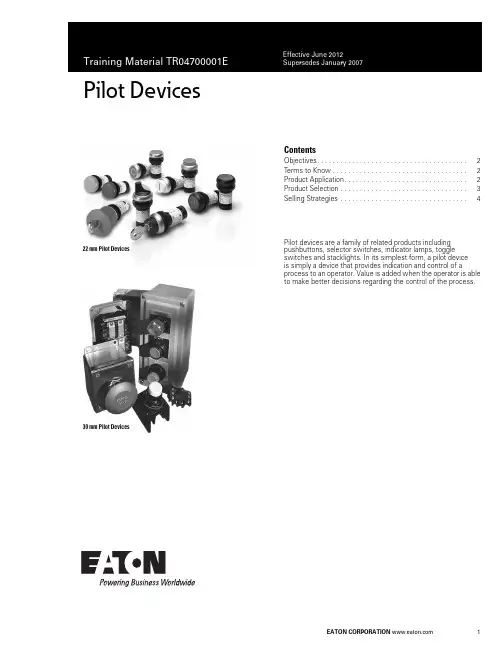

Pilot Devices1ContentsObjectives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Terms to Know . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Product Application. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2Product Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3Selling Strategies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Pilot devices are a family of related products including pushbuttons, selector switches, indicator lamps, toggle switches and stacklights. In its simplest form, a pilot device is simply a device that provides indication and control of aprocess to an operator. Value is added when the operator is able to make better decisions regarding the control of the process.22 mm Pilot Devices30 mm Pilot DevicesTraining Material TR04700001E Effective June 20122Pilot DevicesObjectives●Recognize opportunities●Develop solution with related components●Compete in the marketTerms to KnowThe following terms are used to describe application requirements common to industrial control systems. You should familiarize yourself with the meaning of these terms and the applications they describe.Pilot Device GlossaryProduct ApplicationPilot devices are available in many shapes and sizes based on their functionality and application. In general, devices are designed for application into two general markets: the IEC (global) market, and the NEMA (North American) market.The NEMA standard does not dictate function and appearance of pilot devices, but the standard does allow the use of industrial market segments to define such requirements.Note: The automotive market segment has adopted a RED “run” indicator standard in which red indicator lights illuminate when machinery is operating and represents a potentially unsafe condition.The IEC standard has adopted strict requirements concerning application of pilot devices. For example IEC 60204-1 requires pushbutton actuators be color-coded for universal application according to the format in the following table.IEC Color Coding Product developed for the IEC market is application-rated, requiring lighter duty-ratings than what the NEMA market requires. For this reason, product is typically 1/3 to 1/2 as expensive and is often positioned as a disposable commodity in the market. OEM customers appreciate the lower price, which reduces their burden cost that they typically pass on to the end-users.IEC standards 417-IEC-5007 and 417-IEC-5008 require START/STOP and ON/OFF controls be marked with universal symbols. Can you determine which symbol represents ON/START and which represents OFF/STOP?Term Definitioncontact The conducting part of a switch that operates with another conducting part to make or break a circuit contact block The part of a pushbutton that is activated when the operator is presseddebouncing The act of removing intermediate noise spikes from a mechanical switchdouble-break Contacts that break the electrical circuit in two placesdrum switch A manual switch consisting of moving contacts mounted on an insulated rotating shaftlatch An instruction or component that retains its state after a temporary condition occursOFF-delay A timing function that gains value when an input condition transitions from ON to OFFON-delay A timing function that gains value when an input condition transitions from OFF to ONone-shot (interval timer)A timing function that gains value when an input condition transitions from ON to OFF. Output state is maintained while timer is active.pole Number of isolated circuits in a switch devicerelay Device that controls one electrical circuit by manipulating contacts in another circuit throw Number of closed contact positions per poletransducer Device that converts physical parameters to electrical signalsColor Meaning Explanation ExamplesRed Emergency Actuate in the event of ahazardous condition oremergencyE-Stop, STOP/OFFYellow Abnormal Actuate in the event of anabnormal condition Intervention to suppress abnormal condition. Intervention to restart an interrupted automatic cycle.Green Normal Actuate to initiate normalconditionSTART/ONBlue Mandatory Actuate for a condition requiringmandatory actionReset FunctionWhite No specificmeaning assigned For general initiation of functionsexcept for emergency stopSTART/ON, STOP/OFFBlack No specificmeaning assigned For general initiation of functionsexcept for emergency stopSTART/ON, STOP/OFFPurpose:Purpose:Training Material TR04700001EEffective June 2012Pilot Devices 3Product SelectionVolume 7—Logic Control Operator Interface and Connectivity Solutions , CA08100008E, Tab 1 provides product selection tables for pushbuttons, selector switches, indicator lights, potentiometers, enclosures and related accessories. Stacklights and relatedaccessories are supported in Tab 2. The following sections provide an overview of the product groups.M22/C22 SeriesEaton M22/C22 industrial heavy-duty pushbutton lines offer a wide array of functional, attractive and ergonomically designed illuminated and non-illuminated pushbuttons, selector switches, push-pulls, alternate action and twist-to-release operators. M22 operators are available with either a silver or a black colored bezel.●22.5 mm mounting hole●M22 modular design allows customers to mix/match contact blocks and operators●C22 compact, all-in-one design gives customers a simple installation●NEMA 3R, 4X, 13 and IP67/69k on most operators ●100% LED technology throughout lines ●Fully custom laser etching available●Toolless secure assembly of mounting adapter and contact blocks ●Notched hole mounting with anti-rotation nib standard10250T SeriesThis family of pushbutton, selector switch, indicator light and potentiometer devices represents the flagship product for NEMA applications. It is easily recognized by its brilliant chrome finish.Features include:●30.5 mm mounting hole●Contact blocks feature “reliability nibs” that ensure long life and dependable switching despite oxidation and corrosion on the contact surfaces●Operators feature “grounding nibs” that ensure electrical grounding of the operator with the panel●UL 600 Vac rating, 10 million operations (mechanical), 1million (electrical)●NEMA 1/2/3/3R/4/4X/12/13 and IEC IP65 ratingsBenefits include:●New contact block design provides greater visibility with laser-engraved terminal markings and light gray material. Ultrasonic welding of contact blocks have been eliminated, making the components acceptable for low emissivity ratings required by IEC and other global market standardsE34 SeriesThe E34 family of pilot device products represents the ultimate in corrosion-resistant packaging of pilot devices. It uses the same design elements of the 10250T, but replaces the brilliant chrome finish with a triple-layer epoxy finish that is extremely durable.Features include:●Uses the same contact block, operator mounting, and accessories as the 10250T●Meets NSF requirements for corrosion resistance fromcontinuous salt spray for 200 hours. Tested to 600 hours before visible corrosion appearsBenefits include:●OEMs and panelshops may appreciate the distinctive appearance of their panels provided by the black epoxy coatings of the E34 devicesHT800 SeriesThis family of pushbuttons, selector switches, indicator lights and related accessories was developed in response to the need for a family of products that provide basic functionality at a low price without sacrificing the appearance of a panel that may contain competitive products.Features include:●30.5 mm mounting hole●Transparent contact blocks that mount two-across and interlock to prevent separation due to wiring harness stress●Contact blocks may be mounted in Left/Right or Top/Bottom positions to accommodate a variety of wiring layouts●Reduced product variation expedites delivery/setup/inventoryBenefits include:●Lower cost product with basic functionality for customers who don’t need advanced featuresE30 SeriesDo you have customers that have outgrown their control panels? This situation is obvious to anyone that walks through a facility and observes pilot devices mounted to the tops, sides and back ofexisting control panels. If so, the E30family of products provides an elegant solution by integrating the function of pushbutton and indicating light into a single operator.Features include:●30.5 mm mounting hole●Up to six operations in one package●Selector switch and potentiometer designs also available●Unique contact block locking mechanism provides easy removal of contacts without disturbing the panel-mounted operators ●Customized legends/lensesBenefits include:●This product is well-positioned for applications requiring minimal panel spaceC22M22Training Material TR04700001EEffective June 2012Pilot DevicesEaton is a registered trademark of Eaton Corporation.All other trademarks are property of their respective owners.Eaton Corporation Electrical Sector 1111 Superior Ave.Cleveland, OH 44114United States © 2012 Eaton Corporation All Rights Reserved Printed in USAPublication No. June 2012 / Z12416TR04700001EE10 Toggle SwitchesOEMs that supply equipment to commercial, retail and light industrial operations may find the E10 family of selector switches and plunger toggle switches to be an ideal solution for light-duty switching of resistive and inductive loads.Features include:●0.468 in mounting hole●Packaged in quantities of 10●1–4 poles, single and double throwBenefits include:●These operators make idealcompanions to much larger industrial switches when secondary control is required for remote operationE26 StacklightsConcerned with visibility of indicator lights, or perhaps you’d like to add audible alarms to a control panel? If so, the E26 series of stacklight products provides the solution in the most demanding environments.Features include:●Modular design allows customized appearance of colors and blink rates (clear, red, yellow, green, blue, amber)●Supports monotone, bitone, and intermittent audible alarming●Incandescent, LED or xenon strobe lampsBenefits include:●The lamps are designed to interact with a wide range of control signals, from 12 to 240V . Mounting isaccommodated through a variety of bases, including 3/4 in NPT , 3- or 4-hole designsSelection SummaryThe following table provides general guidelines for application of the various pushbutton, selector switch and indicator light products.Product ApplicationsSelling StrategiesEaton has a comprehensive selection of IEC and NEMA pilot devices as open components or assembled in packages for enclosed and MCC. Selection —Eaton provides complementary product lines in addition to the basic pilot devices. These products include metallic and nonmetallic enclosures, signal conditioning and isolation transformers, sensors and programmable controls.Customization —Warehouses in Spartanburg, SC, and Memphis, TN, support customized labeling of legend plates and lenses for all pilot devices. Order forms are included in the catalog.Ease of Installation —No tools are required for the IEC rated devices and modular assemblies support the installation of operators separate from the contact blocks for the NEMA rated devices. Products may be ordered fully assembled or as separate components.How do Eaton’s products compete ? Reinforce the capability of the 48 hour mod center, our warehouse stocking, ProShop training, regional service centers and faster delivery.ServiceNote1The E34 family of devices is sensitive to UV light when applied in outdoor applications. The devices will appear slightly discolored after long periods of exposure to direct sunlight. The functionality ofthe device is not affected.IndoorOutdoor Washdown Corrosive Explosive 10250T Yes Yes Yes No Yes HT800Yes No Yes No No E34Yes Yes 1Yes Yes Yes E30Yes No No No No M22Yes Yes Yes Yes No C22YesYesYesYesNoResourcesValue AddManufacturing Facilities(Chicago, Denver, Los Angeles, Hartford, Houston)Regional support for entire product line. Open to customer visits. Able to ship quickly. Warehouses Provide balance for distributor stocking ProShops Distributor support provides ownership of solutionMod CenterFlexibility of solutions。

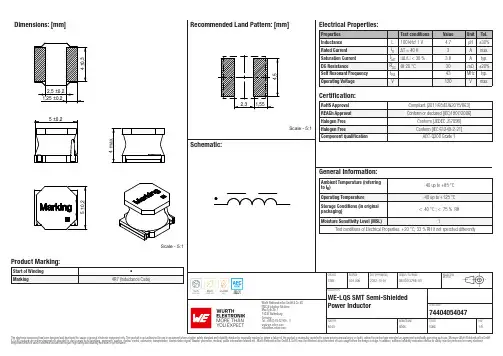

Dimensions: [mm]Scale - 5:174404054047BC74404054047T e m p e r a t u r eT pT L74404054047Cautions and Warnings:The following conditions apply to all goods within the product series of WE-LQS of Würth Elektronik eiSos GmbH & Co. KG:General:•This electronic component is designed and manufactured for use in general electronic equipment.•Würth Elektronik must be asked for written approval (following the PPAP procedure) before incorporating the components into any equipment in fields such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc. where higher safety and reliability are especially required and/or if there is the possibility of direct damage or human injury.•Electronic components that will be used in safety-critical or high-reliability applications, should be pre-evaluated by the customer. •The component is designed and manufactured to be used within the datasheet specified values. If the usage and operation conditions specified in the datasheet are not met, the wire insulation may be damaged or dissolved.•Do not drop or impact the components, the component may be damaged.•Würth Elektronik products are qualified according to international standards, which are listed in each product reliability report. Würth Elektronik does not warrant any customer qualified product characteristics beyond Würth Elektroniks’ specifications, for its validity and sustainability over time.•The responsibility for the applicability of the customer specific products and use in a particular customer design is always within the authority of the customer. All technical specifications for standard products also apply to customer specific products.Product specific:Soldering:•The solder profile must comply with the technical product specifications. All other profiles will void the warranty.•All other soldering methods are at the customers’ own risk.•Strong forces which may affect the coplanarity of the components’ electrical connection with the PCB (i.e. pins), can damage the part, resulting in avoid of the warranty.Cleaning and Washing:•Washing agents used during the production to clean the customer application might damage or change the characteristics of the wire insulation, marking or plating. Washing agents may have a negative effect on the long-term functionality of the product.•Using a brush during the cleaning process may break the wire due to its small diameter. Therefore, we do not recommend using a brush during the PCB cleaning process.Potting:•If the product is potted in the customer application, the potting material may shrink or expand during and after hardening. Shrinking could lead to an incomplete seal, allowing contaminants into the core. Expansion could damage the components. We recommend a manual inspection after potting to avoid these effects.Storage Conditions:• A storage of Würth Elektronik products for longer than 12 months is not recommended. Within other effects, the terminals may suffer degradation, resulting in bad solderability. Therefore, all products shall be used within the period of 12 months based on the day of shipment.•Do not expose the components to direct sunlight.•The storage conditions in the original packaging are defined according to DIN EN 61760-2.•The storage conditions stated in the original packaging apply to the storage time and not to the transportation time of the components. Packaging:•The packaging specifications apply only to purchase orders comprising whole packaging units. If the ordered quantity exceeds or is lower than the specified packaging unit, packaging in accordance with the packaging specifications cannot be ensured. Handling:•Violation of the technical product specifications such as exceeding the nominal rated current will void the warranty.•Applying currents with audio-frequency signals may result in audible noise due to the magnetostrictive material properties.•The temperature rise of the component must be taken into consideration. The operating temperature is comprised of ambient temperature and temperature rise of the component.The operating temperature of the component shall not exceed the maximum temperature specified.These cautions and warnings comply with the state of the scientific and technical knowledge and are believed to be accurate and reliable.However, no responsibility is assumed for inaccuracies or incompleteness.Würth Elektronik eiSos GmbH & Co. KGEMC & Inductive SolutionsMax-Eyth-Str. 174638 WaldenburgGermanyCHECKED REVISION DATE (YYYY-MM-DD)GENERAL TOLERANCE PROJECTIONMETHODChrB.001.0062022-10-01DIN ISO 2768-1mDESCRIPTIONWE-LQS SMT Semi-ShieldedPower Inductor ORDER CODE74404054047SIZE/TYPE BUSINESS UNIT STATUS PAGEImportant NotesThe following conditions apply to all goods within the product range of Würth Elektronik eiSos GmbH & Co. KG:1. General Customer ResponsibilitySome goods within the product range of Würth Elektronik eiSos GmbH & Co. KG contain statements regarding general suitability for certain application areas. These statements about suitability are based on our knowledge and experience of typical requirements concerning the areas, serve as general guidance and cannot be estimated as binding statements about the suitability for a customer application. The responsibility for the applicability and use in a particular customer design is always solely within the authority of the customer. Due to this fact it is up to the customer to evaluate, where appropriate to investigate and decide whether the device with the specific product characteristics described in the product specification is valid and suitable for the respective customer application or not.2. Customer Responsibility related to Specific, in particular Safety-Relevant ApplicationsIt has to be clearly pointed out that the possibility of a malfunction of electronic components or failure before the end of the usual lifetime cannot be completely eliminated in the current state of the art, even if the products are operated within the range of the specifications.In certain customer applications requiring a very high level of safety and especially in customer applications in which the malfunction or failure of an electronic component could endanger human life or health it must be ensured by most advanced technological aid of suitable design of the customer application that no injury or damage is caused to third parties in the event of malfunction or failure of an electronic component. Therefore, customer is cautioned to verify that data sheets are current before placing orders. The current data sheets can be downloaded at .3. Best Care and AttentionAny product-specific notes, cautions and warnings must be strictly observed. Any disregard will result in the loss of warranty.4. Customer Support for Product SpecificationsSome products within the product range may contain substances which are subject to restrictions in certain jurisdictions in order to serve specific technical requirements. Necessary information is available on request. In this case the field sales engineer or the internal sales person in charge should be contacted who will be happy to support in this matter.5. Product R&DDue to constant product improvement product specifications may change from time to time. As a standard reporting procedure of the Product Change Notification (PCN) according to the JEDEC-Standard inform about minor and major changes. In case of further queries regarding the PCN, the field sales engineer or the internal sales person in charge should be contacted. The basic responsibility of the customer as per Section 1 and 2 remains unaffected.6. Product Life CycleDue to technical progress and economical evaluation we also reserve the right to discontinue production and delivery of products. As a standard reporting procedure of the Product Termination Notification (PTN) according to the JEDEC-Standard we will inform at an early stage about inevitable product discontinuance. According to this we cannot guarantee that all products within our product range will always be available. Therefore it needs to be verified with the field sales engineer or the internal sales person in charge about the current product availability expectancy before or when the product for application design-in disposal is considered. The approach named above does not apply in the case of individual agreements deviating from the foregoing for customer-specific products.7. Property RightsAll the rights for contractual products produced by Würth Elektronik eiSos GmbH & Co. KG on the basis of ideas, development contracts as well as models or templates that are subject to copyright, patent or commercial protection supplied to the customer will remain with Würth Elektronik eiSos GmbH & Co. KG. Würth Elektronik eiSos GmbH & Co. KG does not warrant or represent that any license, either expressed or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right relating to any combination, application, or process in which Würth Elektronik eiSos GmbH & Co. KG components or services are used.8. General Terms and ConditionsUnless otherwise agreed in individual contracts, all orders are subject to the current version of the “General Terms and Conditions of Würth Elektronik eiSos Group”, last version available at .Würth Elektronik eiSos GmbH & Co. KGEMC & Inductive SolutionsMax-Eyth-Str. 174638 WaldenburgGermanyCHECKED REVISION DATE (YYYY-MM-DD)GENERAL TOLERANCE PROJECTIONMETHODChrB.001.0062022-10-01DIN ISO 2768-1mDESCRIPTIONWE-LQS SMT Semi-ShieldedPower Inductor ORDER CODE74404054047SIZE/TYPE BUSINESS UNIT STATUS PAGE。

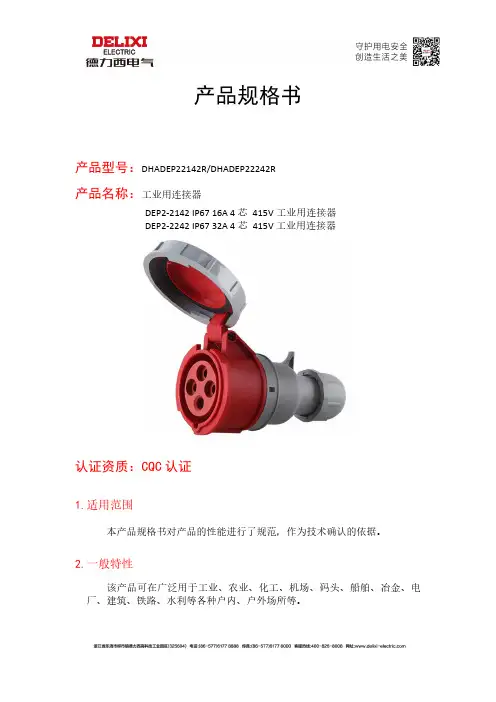

产品规格书
产品型号：DHADEP22142R/DHADEP22242R
产品名称：工业用连接器
DEP2-2142 IP67 16A 4芯415V工业用连接器
DEP2-2242 IP67 32A 4芯415V工业用连接器
认证资质：CQC认证
1.适用范围
本产品规格书对产品的性能进行了规范，作为技术确认的依据。

2.一般特性
该产品可在广泛用于工业、农业、化工、机场、码头、船舶、冶金、电厂、建筑、铁路、水利等各种户内、户外场所等。

3.产品结构
本产品为产品按照国家标准GB/T11918.1-2014、GB11918.2-2014设计生产, 产品规格为DEP2-2142 16A /DEP2-2242 32A 4芯415V工业用连接器，插座为3P+E 极,使用范围 380-415V,产品防护等级 IP67。

4.材质参数
5.技术特性
6.产品尺寸图
7.接线安装
Step1：分离护套
找到弹片位置，用改锥（螺丝刀）向下用力，红色加强筋中心线会从原来与白色中心线对其位置向一侧偏离，则可分离护套。

Step2：穿过线缆
按如下图示依次从护套穿过准备接入的线缆。

Step3：相序接线
按照L1、L2、L3和接线指示松开接线螺丝，用螺丝刀接对应线缆。

Step4：完成安装
对好位置，按护套上标识箭头锁紧产品，听到“嗒”声即可，并拧紧尾部螺旋塞。
