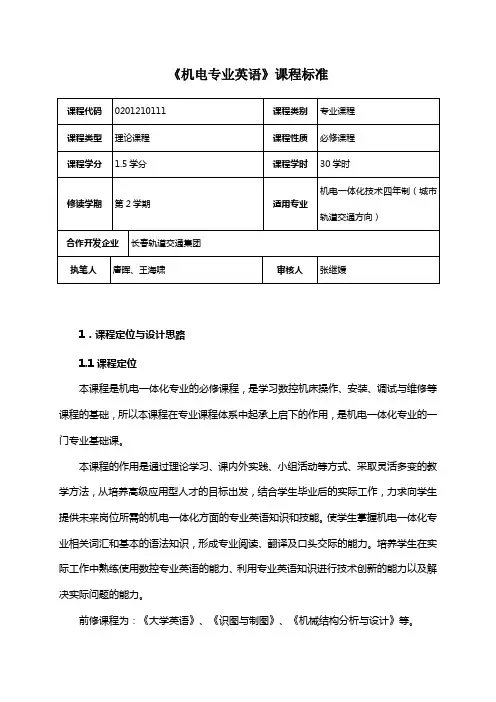

《机电专业英语》课程标准课程代码020******* 课程类别专业课程课程类型理论课程课程性质必修课程课程学分 1.5学分课程学时30学时修读学期第2学期适用专业机电一体化技术四年制（城市轨道交通方向）合作开发企业长春轨道交通集团执笔人唐晖、王海啸审核人张继媛1．课程定位与设计思路1.1课程定位本课程是机电一体化专业的必修课程，是学习数控机床操作、安装、调试与维修等课程的基础，所以本课程在专业课程体系中起承上启下的作用，是机电一体化专业的一门专业基础课。
本课程的作用是通过理论学习、课内外实践、小组活动等方式、采取灵活多变的教学方法，从培养高级应用型人才的目标出发，结合学生毕业后的实际工作，力求向学生提供未来岗位所需的机电一体化方面的专业英语知识和技能。
使学生掌握机电一体化专业相关词汇和基本的语法知识，形成专业阅读、翻译及口头交际的能力。
培养学生在实际工作中熟练使用数控专业英语的能力、利用专业英语知识进行技术创新的能力以及解决实际问题的能力。
前修课程为：《大学英语》、《识图与制图》、《机械结构分析与设计》等。
后续课程为：《机械制造基础》、《现场总线控制系统》、《可编程序控制器技术应用》。
1.2设计思路教学过程以学生为主、教师为辅，工学结合提高学生综合职业素养。
从实用、够用的角度出发，依据由简到难的原则，以机电一体化专业未来工作岗位所需的英语知识为主线，设立教学内容，通过教师指导与学生自主学习，实现对数控专业英语知识的了解、认识，从而完成学生职业能力要求。
2．课程目标本课程的总体目标是培养生产、管理、服务一线需要的德、智、体、美等全面发展的，具有一定专业理论知识，能够从事各类机电设备操作、安装、维护、检修、调试等工作的高等技术应用性专门人才。
2.1知识目标了解生产中常用的机械零部件的英文写法，了解常用机电设备及刀具系统的类型、各部位名称，掌握机电方面的首字母缩写词的含义，掌握数控编程有关语言、术语及编码，能够进行简单的英文产品说明书的识读与翻译，能够用英文书写个人简历及求职信。

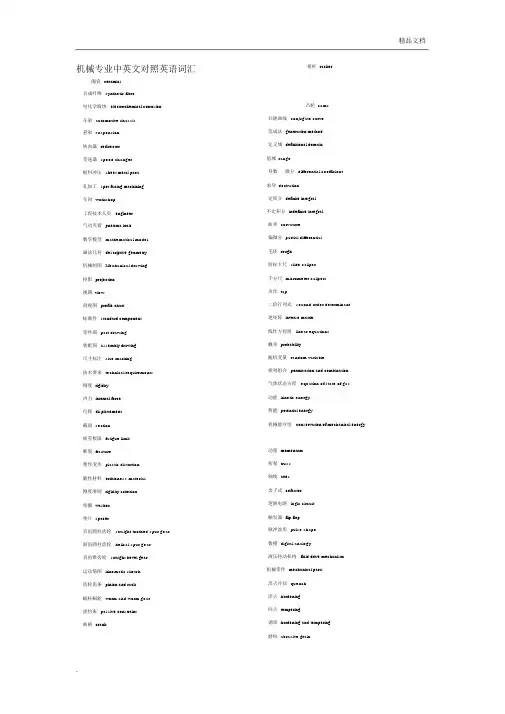

机械专业中英文对照英语词汇陶瓷ceramics合成纤维synthetic fibre电化学腐蚀electrochemical corrosion车架automotive chassis悬架suspension转向器redirector变速器speed changer板料冲压sheet metal parts孔加工spot facing machining车间workshop工程技术人员engineer气动夹紧pneuma lock数学模型mathematical model画法几何descriptive geometry机械制图Mechanical drawing投影projection视图 view剖视图profile chart标准件standard component零件图part drawing装配图assembly drawing尺寸标注size marking技术要求technical requirements刚度rigidity内力internal force位移displacement截面section疲劳极限fatigue limit断裂fracture塑性变形plastic distortion脆性材料brittleness material刚度准则rigidity criterion垫圈washer垫片spacer直齿圆柱齿轮straight toothed spur gear斜齿圆柱齿轮helical-spur gear直齿锥齿轮straight bevel gear运动简图kinematic sketch齿轮齿条pinion and rack蜗杆蜗轮worm and worm gear虚约束passive constraint曲柄crank精品文档摇杆racker凸轮 cams共轭曲线conjugate curve范成法generation method定义域definitional domain值域 range导数微分differential coefficient求导 derivation定积分definite integral不定积分indefinite integral曲率curvature偏微分partial differential毛坯rough游标卡尺slide caliper千分尺micrometer calipers攻丝tap二阶行列式second order determinant逆矩阵inverse matrix线性方程组linear equations概率probability随机变量random variable排列组合permutation and combination气体状态方程equation of state of gas动能kinetic energy势能potential energy机械能守恒conservation of mechanical energy动量momentum桁架truss轴线axes余子式cofactor逻辑电路logic circuit触发器flip-flop脉冲波形pulse shape数模digital analogy液压传动机构fluid drive mechanism机械零件mechanical parts淬火冷却quench淬火hardening回火tempering调质hardening and tempering磨粒abrasive grain结合剂bonding agent砂轮grinding wheel后角 clearance angle龙门刨削planing主轴spindle主轴箱headstock卡盘chuck加工中心machining center车刀lathe tool车床lathe钻削镗削bore车削turning磨床grinder基准benchmark钳工locksmith锻 forge压模stamping焊 weld拉床broaching machine拉孔broaching装配assembling铸造found流体动力学fluid dynamics流体力学fluid mechanics加工machining液压hydraulic pressure切线tangent机电一体化mechanotronics mechanical-electrical integration 气压air pressure pneumatic pressure稳定性stability介质medium液压驱动泵fluid clutch液压泵hydraulic pump阀门valve失效invalidation强度intensity载荷load应力stress安全系数safty factor可靠性reliability螺纹thread螺旋helix键 spline精品文档滚动轴承rolling bearing滑动轴承sliding bearing弹簧 spring制动器 arrester brake十字结联轴节crosshead联轴器 coupling链 chain皮带 strap精加工 finish machining粗加工 rough machining变速箱体gearbox casing腐蚀 rust氧化 oxidation磨损 wear耐用度 durability随机信号random signal离散信号discrete signal超声传感器ultrasonic sensor集成电路integrate circuit挡板 orifice plate残余应力residual stress套筒 sleeve扭力 torsion冷加工 cold machining电动机 electromotor汽缸 cylinder过盈配合interference fit热加工 hotwork摄像头 CCD camera倒角 rounding chamfer优化设计optimal design工业造型设计industrial moulding design有限元 finite element滚齿 hobbing插齿 gear shaping伺服电机actuating motor铣床 milling machine钻床 drill machine镗床 boring machine步进电机stepper motor丝杠 screw rod导轨 lead rail组件 subassembly可编程序逻辑控制器Programmable Logic Controller PLC电火花加工electric spark machining电火花线切割加工electrical discharge wire - cutting 相图phase diagram热处理heat treatment固态相变solid state phase changes有色金属nonferrous metal陶瓷 ceramics合成纤维synthetic fibre电化学腐蚀electrochemical corrosion车架automotive chassis悬架suspension转向器redirector变速器speed changer板料冲压sheet metal parts孔加工spot facing machining车间workshop工程技术人员engineer气动夹紧pneuma lock数学模型mathematical model画法几何descriptive geometry机械制图Mechanical drawing投影projection视图view剖视图profile chart标准件standard component零件图part drawing装配图assembly drawing尺寸标注size marking技术要求technical requirements刚度rigidity内力internal force位移displacement截面section疲劳极限fatigue limit断裂fracture塑性变形plastic distortion脆性材料brittleness material刚度准则rigidity criterion垫圈washer垫片spacer直齿圆柱齿轮straight toothed spur gear斜齿圆柱齿轮helical-spur gear直齿锥齿轮straight bevel gear精品文档齿轮齿条pinion and rack蜗杆蜗轮worm and worm gear虚约束 passive constraint曲柄 crank摇杆 racker凸轮 cams共轭曲线conjugate curve范成法 generation method定义域 definitional domain值域 range导数微分differential coefficient求导 derivation定积分 definite integral不定积分indefinite integral曲率 curvature偏微分 partial differential毛坯 rough游标卡尺slide caliper千分尺 micrometer calipers攻丝 tap二阶行列式second order determinant逆矩阵 inverse matrix线性方程组linear equations概率 probability随机变量random variable排列组合permutation and combination气体状态方程equation of state of gas动能 kinetic energy势能 potential energy机械能守恒conservation of mechanical energy动量 momentum桁架 truss轴线 axes余子式 cofactor逻辑电路logic circuit触发器 flip-flop脉冲波形pulse shape数模 digital analogy液压传动机构fluid drive mechanism机械零件mechanical parts淬火冷却quench淬火 hardening回火 tempering调质 hardening and tempering磨粒abrasive grain结合剂bonding agent砂轮grinding wheelAssembly line组装线Layout 布置图Conveyer流水线物料板Rivet table拉钉机Rivet gun拉钉枪Screw driver起子Pneumatic screw driver气动起子worktable工作桌OOBA 开箱检查fit together组装在一起fasten 锁紧 ( 螺丝 )fixture 夹具 ( 治具 )pallet 栈板barcode 条码barcode scanner条码扫描器fuse together熔合fuse machine热熔机repair 修理operator 作业员QC 品管supervisor课长ME 制造工程师MT 制造生技cosmetic inspect外观检查inner parts inspect内部检查thumb screw大头螺丝lbs. inch 镑、英寸EMI gasket导电条front plate前板rear plate后板chassis 基座bezel panel面板power button电源按键reset button重置键Hi-pot test of SPS高源高压测试Voltage switch of SPS电源电压接拉键sheet metal parts冲件plastic parts塑胶件SOP 制造作业程序material check list物料检查表精品文档trolley台车carton纸箱sub-line支线left fork叉车personnel resource department人力资源部production department生产部门planning department企划部QC Section品管科stamping factory冲压厂painting factory烤漆厂molding factory成型厂common equipment常用设备uncoiler and straightener整平机punching machine冲床robot 机械手hydraulic machine油压机lathe 车床planer |plein|刨床miller 铣床grinder磨床linear cutting线切割electrical sparkle电火花welder 电焊机staker=reviting machine铆合机position职务president董事长general manager总经理special assistant manager特助factory director厂长department director部长deputy manager | =vice manager副理section supervisor课长deputy section supervisor =vice section superisor副课长group leader/supervisor组长line supervisor线长assistant manager助理to move, to carry, to handle搬运be put in storage入库pack packing包装to apply oil擦油to file burr锉毛刺final inspection终检to connect material接料to reverse material翻料wet station 沾湿台approved by / checked by / prepared by核准/ 审核 / 承办Tiana天那水PCE assembly production schedule sheet PCE组装厂生产排配表cleaning cloth抹布model机锺to load material上料work order工令to unload material卸料revision版次to return material/stock to退料remark备注scraped |\\'skr?pid|报废production control confirmation生产确认scrape ..v. 刮; 削checked by初审deficient purchase来料不良approved by核准manufacture procedure制程department部门deficient manufacturing procedure制程不良stock age analysis sheet库存货龄分析表oxidation |\\' ksi\\'dei?n|氧化on-hand inventory现有库存scratch刮伤available material良品可使用dents压痕obsolete material良品已呆滞defective upsiding down抽芽不良to be inspected or reworked待验或重工defective to staking铆合不良total 合计embedded lump镶块cause description原因说明feeding is not in place送料不到位part number/ P/N料号stamping-missing漏冲type 形态production capacity生产力item/group/class类别education and training教育与训练quality品质proposal improvement提案改善prepared by制表 notes说明spare parts=buffer备件year-end physical inventory difference analysis sheet年终盘点差异forklift叉车分析表trailer=long vehicle拖板车physical inventory盘点数量compound die合模physical count quantity帐面数量die locker 锁模器difference quantity差异量pressure plate=plate pinch压板cause analysis 原因分析bolt 螺栓raw materials原料administration/general affairs dept总务部materials 物料automatic screwdriver电动启子finished product成品thickness gauge厚薄规semi-finished product半成品gauge(or jig)治具packing materials包材power wire 电源线good product/accepted goods/ accepted parts/good parts良品buzzle蜂鸣器defective product/non-good parts不良品defective product label不良标签disposed goods处理品identifying sheet list标示单warehouse/hub仓库location 地点on way location在途仓present members出席人员oversea location海外仓subject主题spare parts physical inventory list备品盘点清单conclusion 结论spare molds location模具备品仓decision items决议事项skid/pallet栈板responsible department负责单位tox machine自铆机pre-fixed finishing date预定完成日wire EDM 线割EDM 放电机dejecting顶固模coil stock卷料demagnetization去磁; 消磁sheet stock片料high-speed transmission高速传递tolerance工差heat dissipation热传 rack上料score=groove压线degrease脱脂cam block滑块rinse 水洗pilot导正筒alkaline etch龄咬trim剪外边desmut 剥黑膜pierce 剪内边 D.I. rinse纯水次drag form压锻差Chromate铬酸处理pocket for the punch head挂钩槽Anodize阳性处理slug hole废料孔seal 封孔feature die公母模revision版次expansion dwg展开图part number/P/N料号radius 半径good products良品shim(wedge)楔子scraped products报放心品torch-flame cut火焰切割defective products不良品set screw止付螺丝finished products成品form block折刀disposed products处理品stop pin 定位销barcode条码round pierce punch=die button圆冲子flow chart流程表单shape punch=die insert异形子assembly组装stock locater block定位块stamping冲压under cut=scrap chopper清角molding成型active plate活动板spare parts=buffer备品baffle plate挡块coordinate 座标cover plate盖板dismantle the die折模male die 公模auxiliary fuction辅助功能female die母模poly-line多义线groove punch压线冲子heater band加热片air-cushion eject-rod气垫顶杆thermocouple热电偶spring-box eject-plate弹簧箱顶板sand blasting喷沙bushing block衬套grit 砂砾insert入块derusting machine除锈机club car 高尔夫球车degate打浇口capability能力dryer烘干机parameter参数induction感应factor系数induction light感应光phosphate皮膜化成response=reaction=interaction感应viscosity 涂料粘度ram 连杆alkalidipping脱脂edge finder巡边器main manifold主集流脉concave凸bezel斜视规convex 凹blanking 穿落模short射料不足nick 缺口speck 瑕 ??shine 亮班splay银纹gas mark焦痕delamination起鳞cold slug冷块blush导色gouge沟槽;凿槽satin texture段面咬花witness line证示线patent专利grit 沙砾granule=peuet=grain细粒grit maker抽粒机cushion缓冲magnalium镁铝合金magnesium镁金metal plate钣金lathe车 mill锉plane刨grind磨drill 铝boring镗blinster 气泡fillet 镶 ; 嵌边through-hole form通孔形式voller pin formality滚针形式cam driver 铡楔shank摸柄crank shaft曲柄轴augular offset角度偏差velocity 速度production tempo生产进度现状torque扭矩spline=the multiple keys花键quenching淬火tempering回火精品文档liaison联络单volatile挥发性resistance电阻ion 离子titrator滴定仪beacon警示灯coolant冷却液crusher破碎机阿基米德蜗杆Archimedes worm安全系数safety factor; factor ofsafety安全载荷safe load凹面、凹度concavity扳手wrench板簧flat leaf spring半圆键woodruff key变形deformation摆杆oscillating bar摆动从动件oscillating follower摆动从动件凸轮机构cam with oscillating follower摆动导杆机构oscillating guide-barmechanism摆线齿轮cycloidal gear摆线齿形cycloidal tooth profile摆线运动规律cycloidal motion摆线针轮cycloidal-pin wheel包角angle of contact保持架cage背对背安装back-to-backarrangement背锥back cone；normal cone背锥角back angle背锥距back cone distance比例尺scale比热容specific heat capacity闭式链closed kinematic chain闭链机构closed chain mechanism臂部arm变频器frequency converters变频调速frequency control ofmotor speed变速speed changeannealing 退火变速齿轮 change gear change wheel carbonization碳化变位齿轮 modified geartungsten high speed steel钨高速的变位系数 modification coefficient moly high speed steel钼高速的标准齿轮 standard gear.精品文档表面传热系数 surface coefficient of heat transfer齿轮变速箱 speed-changing gear boxes表面粗糙度 surface roughness齿轮齿条机构 pinion and rack并联式组合 combination in parallel齿轮插刀 pinion cutter; pinion-shaped shaper cutter并联机构 parallel mechanism齿轮滚刀 hob ,hobbing cutter并联组合机构 parallel combined mechanism齿轮机构 gear并行工程 concurrent engineering齿轮轮坯 blank并行设计 concurred design, CD齿轮传动系 pinion unit不平衡相位 phase angle of unbalance齿轮联轴器 gear coupling不平衡 imbalance (or unbalance)齿条传动 rack gear不平衡量 amount of unbalance齿数 tooth number不完全齿轮机构 intermittent gearing齿数比 gear ratio波发生器 wave generator齿条 rack波数 number of waves齿条插刀 rack cutter; rack-shaped shaper cutter补偿 compensation齿形链、无声链 silent chain参数化设计 parameterization design, PD齿形系数 form factor残余应力 residual stress齿式棘轮机构 tooth ratchet mechanism操纵及控制装置 operation control device插齿机 gear shaper槽轮 Geneva wheel重合点 coincident points槽轮机构 Geneva mechanism； Maltese cross重合度 contact ratio槽数 Geneva numerate冲床 punch槽凸轮 groove cam传动比 transmission ratio, speed ratio侧隙 backlash传动装置 gearing; transmission gear差动轮系 differential gear train传动系统 driven system差动螺旋机构 differential screw mechanism传动角 transmission angle差速器 differential传动轴 transmission shaft常用机构 conventional mechanism; mechanism in common use串联式组合 combination in series车床 lathe串联式组合机构 series combined mechanism承载量系数 bearing capacity factor串级调速 cascade speed control承载能力 bearing capacity创新 innovation creation成对安装 paired mounting创新设计 creation design尺寸系列 dimension series垂直载荷、法向载荷 normal load齿槽 tooth space唇形橡胶密封 lip rubber seal齿槽宽 spacewidth磁流体轴承 magnetic fluid bearing齿侧间隙 backlash从动带轮 driven pulley齿顶高 addendum从动件 driven link, follower齿顶圆 addendum circle从动件平底宽度 width of flat-face齿根高 dedendum从动件停歇 follower dwell齿根圆 dedendum circle从动件运动规律 follower motion齿厚 tooth thickness从动轮 driven gear齿距 circular pitch粗线 bold line齿宽 face width粗牙螺纹 coarse thread齿廓 tooth profile大齿轮 gear wheel齿廓曲线 tooth curve打包机 packer齿轮 gear打滑 slipping精品文档带传动belt driving动平衡机dynamic balancing machine带轮 belt pulley动态特性dynamic characteristics带式制动器band brake动态分析设计dynamic analysis design单列轴承single row bearing动压力dynamic reaction单向推力轴承single-direction thrust bearing动载荷dynamic load单万向联轴节single universal joint端面transverse plane单位矢量unit vector端面参数transverse parameters当量齿轮equivalent spur gear; virtual gear端面齿距transverse circular pitch当量齿数equivalent teeth number; virtual number of teeth端面齿廓transverse tooth profile当量摩擦系数equivalent coefficient of friction端面重合度transverse contact ratio当量载荷equivalent load端面模数transverse module刀具 cutter端面压力角transverse pressure angle导数 derivative锻造forge倒角 chamfer对称循环应力symmetry circulating stress导热性conduction of heat对心滚子从动件radial (or in-line ) roller follower导程 lead对心直动从动件radial (or in-line ) translating follower导程角lead angle对心移动从动件radial reciprocating follower等加等减速运动规律parabolic motion;constant acceleration and对心曲柄滑块机构in-line slider-crank (or crank-slider) mechanism deceleration motion多列轴承multi-row bearing等速运动规律uniform motion; constant velocity motion多楔带poly V-belt等径凸轮conjugate yoke radial cam多项式运动规律polynomial motion等宽凸轮constant-breadth cam多质量转子rotor with several masses等效构件equivalent link惰轮idle gear等效力equivalent force额定寿命rating life等效力矩equivalent moment of force额定载荷load rating等效量equivalent II级杆组dyad等效质量equivalent mass发生线generating line等效转动惯量equivalent moment of inertia发生面generating plane等效动力学模型dynamically equivalent model法面normal plane底座 chassis法面参数normal parameters低副 lower pair法面齿距normal circular pitch点划线chain dotted line法面模数normal module（疲劳）点蚀pitting法面压力角normal pressure angle垫圈 gasket法向齿距normal pitch垫片密封gasket seal法向齿廓normal tooth profile碟形弹簧belleville spring法向直廓蜗杆straight sided normal worm顶隙 bottom clearance法向力normal force定轴轮系ordinary gear train; gear train with fixed axes反馈式组合feedback combining动力学dynamics反向运动学inverse ( or backward) kinematics动密封kinematical seal反转法kinematic inversion动能 dynamic energy反正切Arctan动力粘度dynamic viscosity范成法generating cutting动力润滑dynamic lubrication仿形法form cutting动平衡dynamic balance方案设计、概念设计concept design, CD精品文档防振装置shockproof device工作循环图working cycle diagram飞轮 flywheel工作机构operation mechanism飞轮矩moment of flywheel工作载荷external loads非标准齿轮nonstandard gear工作空间working space非接触式密封non-contact seal工作应力working stress非周期性速度波动aperiodic speed fluctuation工作阻力effective resistance非圆齿轮non-circular gear工作阻力矩effective resistance moment粉末合金powder metallurgy公法线common normal line分度线reference line; standard pitch line公共约束general constraint分度圆reference circle; standard (cutting) pitch circle公制齿轮metric gears分度圆柱导程角lead angle at reference cylinder功率power分度圆柱螺旋角helix angle at reference cylinder功能分析设计function analyses design分母 denominator共轭齿廓conjugate profiles分子 numerator共轭凸轮conjugate cam分度圆锥reference cone; standard pitch cone构件link分析法analytical method鼓风机blower封闭差动轮系planetary differential固定构件fixed link; frame复合铰链compound hinge固体润滑剂solid lubricant复合式组合compound combining关节型操作器jointed manipulator复合轮系compound (or combined) gear train惯性力inertia force复合平带compound flat belt惯性力矩moment of inertia ,shaking moment复合应力combined stress惯性力平衡balance of shaking force复式螺旋机构Compound screw mechanism惯性力完全平衡full balance of shaking force复杂机构complex mechanism惯性力部分平衡partial balance of shaking force杆组 Assur group惯性主矩resultant moment of inertia干涉 interference惯性主失resultant vector of inertia刚度系数stiffness coefficient冠轮crown gear刚轮 rigid circular spline广义机构generation mechanism钢丝软轴wire soft shaft广义坐标generalized coordinate刚体导引机构body guidance mechanism轨迹生成path generation刚性冲击rigid impulse (shock)轨迹发生器path generator刚性转子rigid rotor滚刀hob刚性轴承rigid bearing滚道raceway刚性联轴器rigid coupling滚动体rolling element高度系列height series滚动轴承rolling bearing高速带high speed belt滚动轴承代号rolling bearing identification code高副 higher pair滚针needle roller格拉晓夫定理Grashoff`s law滚针轴承needle roller bearing根切 undercutting滚子roller公称直径nominal diameter滚子轴承roller bearing高度系列height series滚子半径radius of roller功 work滚子从动件roller follower工况系数application factor滚子链roller chain工艺设计technological design滚子链联轴器double roller chain coupling精品文档滚珠丝杆ball screw技术过程technique process滚柱式单向超越离合器roller clutch技术经济评价technical and economic evaluation过度切割undercutting技术系统technique system函数发生器function generator机械machinery函数生成function generation机械创新设计mechanical creation design, MCD含油轴承oil bearing机械系统设计mechanical system design, MSD耗油量oil consumption机械动力分析dynamic analysis of machinery耗油量系数oil consumption factor机械动力设计dynamic design of machinery赫兹公式H. Hertz equation机械动力学dynamics of machinery合成弯矩resultant bending moment机械的现代设计modern machine design合力 resultant force机械系统mechanical system合力矩resultant moment of force机械利益mechanical advantage黑箱 black box机械平衡balance of machinery横坐标abscissa机械手manipulator互换性齿轮interchangeable gears机械设计machine design; mechanical design花键 spline机械特性mechanical behavior滑键、导键feather key机械调速mechanical speed governors滑动轴承sliding bearing机械效率mechanical efficiency滑动率sliding ratio机械原理theory of machines and mechanisms滑块 slider机械运转不均匀系数coefficient of speed fluctuation环面蜗杆toroid helicoids worm机械无级变速mechanical stepless speed changes环形弹簧annular spring基础机构fundamental mechanism缓冲装置shocks; shock-absorber基本额定寿命basic rating life灰铸铁grey cast iron基于实例设计case-based design,CBD回程 return基圆base circle回转体平衡balance of rotors基圆半径radius of base circle混合轮系compound gear train基圆齿距base pitch积分 integrate基圆压力角pressure angle of base circle机电一体化系统设计mechanical-electrical integration system基圆柱base cylinderdesign基圆锥base cone机构 mechanism急回机构quick-return mechanism机构分析analysis of mechanism急回特性quick-return characteristics机构平衡balance of mechanism急回系数advance-to return-time ratio机构学mechanism急回运动quick-return motion机构运动设计kinematic design of mechanism棘轮ratchet机构运动简图kinematic sketch of mechanism棘轮机构ratchet mechanism机构综合synthesis of mechanism棘爪pawl机构组成constitution of mechanism极限位置extreme (or limiting) position机架 frame, fixed link极位夹角crank angle between extreme (or limiting) positions机架变换kinematic inversion计算机辅助设计computer aided design, CAD机器 machine计算机辅助制造computer aided manufacturing, CAM机器人robot计算机集成制造系统computer integrated manufacturing system,机器人操作器manipulator CIMS机器人学robotics计算力矩factored moment; calculation moment精品文档计算弯矩calculated bending moment结构设计structural design加权系数weighting efficient截面section加速度acceleration节点pitch point加速度分析acceleration analysis节距circular pitch; pitch of teeth加速度曲线acceleration diagram节线pitch line尖点 pointing; cusp节圆pitch circle尖底从动件knife-edge follower节圆齿厚thickness on pitch circle间隙 backlash节圆直径pitch diameter间歇运动机构intermittent motion mechanism节圆锥pitch cone减速比reduction ratio节圆锥角pitch cone angle减速齿轮、减速装置reduction gear解析设计analytical design减速器speed reducer紧边tight-side减摩性anti-friction quality紧固件fastener渐开螺旋面involute helicoid径节diametral pitch渐开线involute径向radial direction渐开线齿廓involute profile径向当量动载荷dynamic equivalent radial load渐开线齿轮involute gear径向当量静载荷static equivalent radial load渐开线发生线generating line of involute径向基本额定动载荷basic dynamic radial load rating渐开线方程involute equation径向基本额定静载荷basic static radial load tating渐开线函数involute function径向接触轴承radial contact bearing渐开线蜗杆involute worm径向平面radial plane渐开线压力角pressure angle of involute径向游隙radial internal clearance渐开线花键involute spline径向载荷radial load简谐运动simple harmonic motion径向载荷系数radial load factor键 key径向间隙clearance键槽 keyway静力static force交变应力repeated stress静平衡static balance交变载荷repeated fluctuating load静载荷static load交叉带传动cross-belt drive静密封static seal交错轴斜齿轮crossed helical gears局部自由度passive degree of freedom胶合 scoring矩阵matrix角加速度angular acceleration矩形螺纹square threaded form角速度angular velocity锯齿形螺纹buttress thread form角速比angular velocity ratio矩形牙嵌式离合器square-jaw positive-contact clutch角接触球轴承angular contact ball bearing绝对尺寸系数absolute dimensional factor角接触推力轴承angular contact thrust bearing绝对运动absolute motion角接触向心轴承angular contact radial bearing绝对速度absolute velocity角接触轴承angular contact bearing均衡装置load balancing mechanism铰链、枢纽hinge抗压强度compression strength校正平面correcting plane开口传动open-belt drive接触应力contact stress开式链open kinematic chain接触式密封contact seal开链机构open chain mechanism阶梯轴multi-diameter shaft可靠度degree of reliability结构 structure可靠性reliability精品文档可靠性设计reliability design, RD螺钉screws空气弹簧air spring螺栓bolts空间机构spatial mechanism螺纹导程lead空间连杆机构spatial linkage螺纹效率screw efficiency空间凸轮机构spatial cam螺旋传动power screw空间运动副spatial kinematic pair螺旋密封spiral seal空间运动链spatial kinematic chain螺纹thread (of a screw)空转 idle螺旋副helical pair宽度系列width series螺旋机构screw mechanism框图 block diagram螺旋角helix angle雷诺方程Reynolds‘s equ ation螺旋线helix ,helical line离心力centrifugal force绿色设计green design design for environment离心应力centrifugal stress马耳他机构Geneva wheel Geneva gear离合器clutch马耳他十字Maltese cross离心密封centrifugal seal脉动无级变速pulsating stepless speed changes理论廓线pitch curve脉动循环应力fluctuating circulating stress理论啮合线theoretical line of action脉动载荷fluctuating load隶属度membership铆钉rivet力 force迷宫密封labyrinth seal力多边形force polygon密封seal力封闭型凸轮机构force-drive (or force-closed) cam mechanism密封带seal belt力矩 moment密封胶seal gum力平衡equilibrium密封元件potted component力偶 couple密封装置sealing arrangement力偶矩moment of couple面对面安装face-to-face arrangement连杆 connecting rod, coupler面向产品生命周期设计design for product`s life cycle, DPLC连杆机构linkage名义应力、公称应力nominal stress连杆曲线coupler-curve模块化设计modular design, MD连心线line of centers模块式传动系统modular system链 chain模幅箱morphology box链传动装置chain gearing模糊集fuzzy set链轮 sprocket sprocket-wheel sprocket gear chain wheel模糊评价fuzzy evaluation联组 V 带 tight-up V belt模数module联轴器coupling shaft coupling摩擦friction两维凸轮two-dimensional cam摩擦角friction angle临界转速critical speed摩擦力friction force六杆机构six-bar linkage摩擦学设计tribology design, TD龙门刨床double Haas planer摩擦阻力frictional resistance轮坯 blank摩擦力矩friction moment轮系 gear train摩擦系数coefficient of friction螺杆 screw摩擦圆friction circle螺距 thread pitch磨损abrasion wear; scratching螺母 screw nut末端执行器end-effector螺旋锥齿轮helical bevel gear目标函数objective function精品文档耐腐蚀性corrosion resistance平底从动件flat-face follower耐磨性wear resistance平底宽度face width挠性机构mechanism with flexible elements平分线bisector挠性转子flexible rotor平均应力average stress内齿轮internal gear平均中径mean screw diameter内齿圈ring gear平均速度average velocity内力 internal force平衡balance内圈 inner ring平衡机balancing machine能量 energy平衡品质balancing quality能量指示图viscosity平衡平面correcting plane逆时针counterclockwise (or anticlockwise)平衡质量balancing mass啮出 engaging-out平衡重counterweight啮合 engagement, mesh, gearing平衡转速balancing speed啮合点contact points平面副planar pair , flat pair啮合角working pressure angle平面机构planar mechanism啮合线line of action平面运动副planar kinematic pair啮合线长度length of line of action平面连杆机构planar linkage啮入 engaging-in平面凸轮planar cam牛头刨床shaper平面凸轮机构planar cam mechanism凝固点freezing point; solidifying point平面轴斜齿轮parallel helical gears扭转应力torsion stress普通平键parallel key扭矩 moment of torque其他常用机构other mechanism in common use扭簧 helical torsion spring起动阶段starting period诺模图Nomogram启动力矩starting torqueO 形密封圈密封O ring seal气动机构pneumatic mechanism盘形凸轮disk cam奇异位置singular position盘形转子disk-like rotor起始啮合点initial contact , beginning of contact抛物线运动parabolic motion气体轴承gas bearing疲劳极限fatigue limit千斤顶jack疲劳强度fatigue strength嵌入键sunk key偏置式offset强迫振动forced vibration偏 (心)距offset distance切齿深度depth of cut偏心率eccentricity ratio曲柄crank偏心质量eccentric mass曲柄存在条件Grashoff`s law偏距圆offset circle曲柄导杆机构crank shaper (guide-bar) mechanism偏心盘eccentric曲柄滑块机构slider-crank (or crank-slider) mechanism偏置滚子从动件offset roller follower曲柄摇杆机构crank-rocker mechanism偏置尖底从动件offset knife-edge follower曲齿锥齿轮spiral bevel gear偏置曲柄滑块机构offset slider-crank mechanism曲率curvature拼接 matching曲率半径radius of curvature评价与决策evaluation and decision曲面从动件curved-shoe follower频率 frequency曲线拼接curve matching平带 flat belt曲线运动curvilinear motion平带传动flat belt driving曲轴crank shaft精品文档驱动力driving force输出力矩output torque驱动力矩driving moment (torque)输出轴output shaft全齿高whole depth输入构件input link权重集weight sets数学模型mathematic model球 ball实际啮合线actual line of action球面滚子convex roller双滑块机构double-slider mechanism, ellipsograph球轴承ball bearing双曲柄机构double crank mechanism球面副spheric pair双曲面齿轮hyperboloid gear球面渐开线spherical involute双头螺柱studs球面运动spherical motion双万向联轴节constant-velocity (or double) universal joint球销副sphere-pin pair双摇杆机构double rocker mechanism球坐标操作器polar coordinate manipulator双转块机构Oldham coupling燃点 spontaneous ignition双列轴承double row bearing热平衡heat balance; thermal equilibrium双向推力轴承double-direction thrust bearing人字齿轮herringbone gear松边slack-side冗余自由度redundant degree of freedom顺时针clockwise柔轮 flexspline瞬心instantaneous center柔性冲击flexible impulse; soft shock死点dead point柔性制造系统flexible manufacturing system; FMS四杆机构four-bar linkage柔性自动化flexible automation速度velocity润滑油膜lubricant film速度不均匀( 波动) 系数 coefficient of speed fluctuation润滑装置lubrication device速度波动speed fluctuation润滑 lubrication速度曲线velocity diagram润滑剂lubricant速度瞬心instantaneous center of velocity三角形花键serration spline塔轮step pulley三角形螺纹V thread screw踏板pedal三维凸轮three-dimensional cam台钳、虎钳vice三心定理Kennedy`s theorem太阳轮sun gear砂轮越程槽grinding wheel groove弹性滑动elasticity sliding motion砂漏 hour-glass弹性联轴器elastic coupling flexible coupling少齿差行星传动planetary drive with small teeth difference弹性套柱销联轴器rubber-cushioned sleeve bearing coupling设计方法学design methodology套筒sleeve设计变量design variable梯形螺纹acme thread form设计约束design constraints特殊运动链special kinematic chain深沟球轴承deep groove ball bearing特性characteristics生产阻力productive resistance替代机构equivalent mechanism升程 rise调节modulation, regulation升距 lift调心滚子轴承self-aligning roller bearing实际廓线cam profile调心球轴承self-aligning ball bearing十字滑块联轴器double slider coupling; Oldham‘s coupling调心轴承self-aligning bearing矢量 vector调速speed governing输出功output work调速电动机adjustable speed motors输出构件output link调速系统speed control system输出机构output mechanism调压调速variable voltage control。

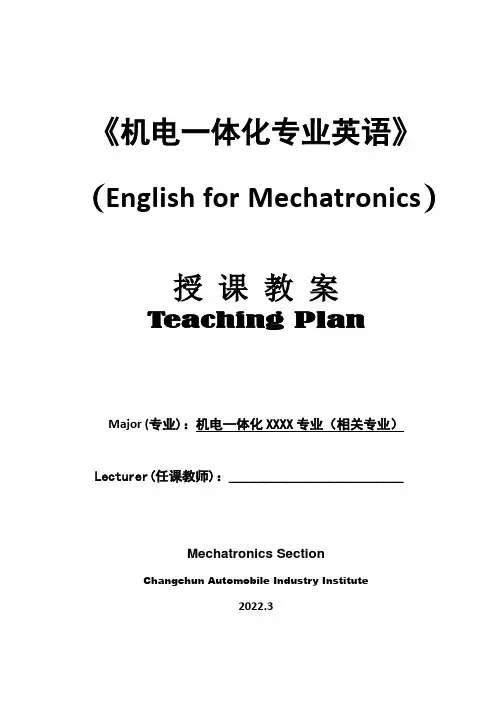

《机电一体化专业英语》（English for Mechatronics）授课教案T eaching PlanMajor (专业)：机电一体化XXXX专业（相关专业）Lecturer(任课教师)：__________________________Mechatronics SectionChangchun Automobile Industry Institute2022.3《机电一体化专业英语》授课计划_ _______ 学院___ 专业班20 －20 学年第学期授课时间：第周The following is the machine tool structures.Explanations of the Machine Tool TermsNo. Name Explanation1 Spindle speed selector 主轴速度转换开关2 Headstock assembly 主轴箱3 Spindle with chuck 附有夹具主轴4 Tool post 刀架5 Compound rest 复式刀架6 Cross slide 横向拖板7 Carriage 滑鞍，滑座8 Ways 导轨9 Dead center 死顶尖10 Tailstock quill 尾架顶尖套筒11 Tailstock assembly 尾架12 Hand-wheel 手轮13 Bed 底座，床身14 Lead screw 丝杠15 Feed rod 进刀杠，光杠16 Clutch 离合器17 Longitudinal & transverse feed control 纵向和横向进给控制18 Split-nut control 开合螺母控制19 Apron 溜板箱，进给箱20 Chip pan 承屑盘21 Feed selector 进给选择开关The following is the conventional machine tool. You are required to choose the suitablewords or phrases given below.Common Lathe (普通车床)1. ________ (双刀塔车床)2. ________(自动车床)3. ________ ( 立式车床)4. ________（专用车床）5. ________（卧式车床）6. ________ (管子螺纹车床)Special Purpose Lathe Pipe Screw-cutting Lathe Vertical LatheExplanations of TermsNo. Name Explanation1 Anvil 固定爪2 Spindle 伸缩爪(轴)3 Lock ring 防松环4 Vernier 游标尺5 Spindle nut 轴螺母6 Adjusting nut 调节螺母7 Scale 刻度8 Thimble 外套管9 Ratchet knob 棘轮旋钮1. Step measuring face A. 紧固螺丝2. Inside measuring face B. 校准贴纸3. LCD Display Screen C. 内径测量面4. inch/mm key D. 尺身5. Locking screw E. 阶梯测量面6. Battery cover F. 开/关键7. Body G. 公英制转换键8. Calibration sticker H. 液晶显示屏9. Depth bar I. 外径测量面10. Zero-setting key J. 滑尺（实践部分）The micrometer screw gaugeThe micrometer screw gauge is used to measure even smaller dimensions than the vernier caliper. The micrometer screw gauge also uses an auxiliary scale (measuring hundredths of a millimeter) which is marked on a rotary thimble. Basically it is a screw with an accurately constant pitch. The micrometers in our laboratory have a pitch of 0.50 mm. The rotating thimble is subdivided into 50 equal divisions. The thimble passes through a frame that carries a millimetre scale graduated to 0.5 mm. The jaws can be adjusted by rotating the thimble using the small ratchet knob. The thimble must be rotated through two revolutions to open the jaws by 1 mm. Here is a useful applet to learn how to use the micrometer screw gauge (Figure 1-19).Figure 1-19 The micrometer screw gaugeIn order to measure an object, the object is placed between the jaws and the thimble is rotated using the ratchet until the object is secured. Note that the ratchet knob must be used to secure the object firmly between the jaws, otherwise the instrument could be damaged or give an inconsistent reading.Note that an additional half scale division (0.5 mm) must be included if the mark below the main scale is visible between the thimble and the main scale division on the sleeve. The remaining two significant figures (hundredths of a millimeter) are taken directly from the thimble opposite the main scale.In Figure 1-20 the last graduation visible to the left of the thimble is 7 mm and the thimble lines up with the main scale at 38 hundredths of a millimeter (0.38 mm); therefore the reading is 7.38 mm.In Figure 1-21 the last graduation visible to the left of the thimble is 7.5 mm; therefore the reading is 7.5 mm plus the thimble reading of 0.22 mm, giving 7.72 mm.Figure 1-20 The reading is 7.38mm Figure 1-21 The reading is 7.27mmIn Figure 1-22 the main scale reading is 3 mm while the reading on the drum is 0.46 mm; therefore, the reading is 3.46 mm.In Figure 1-23 the 0.5 mm division is visible below the main scale; therefore the reading is 3.5 mm + 0.06 mm = 3.56 mm.Figure 1-22 The reading is 3.46mm Figure 1-23 The reading is 3.56mm Try the following bg yourselfFigure 1-24 Figure 1-25 Figure 1-26 A: Do exercise 1, 2, 3, 4 and 7.《机电一体化专业英语》授课计划_ _______ 学院___ 专业班20 －20 学年第学期授课时间：第周The following is the vice jaw structures.Explanations of the Vice Jaw TermsNo. Name Explanation1 Fixed jaw 固定钳口2 Hardened and ground 已硬化和磨光3 Special angle-lock system 特制的角锁紧系统4 Vice body 虎钳体5 Adjusting stop ring 调整止动环6 Clamping force 夹紧力Milling Machine (铣床)1. ________ (升降台铣床)2. ________(龙门铣床)3. ________ (单臂铣床 )4. ________（仪表铣床）5. ________（工具铣床）6. ________ (单柱铣床)Single-column Milling Machine Plano-milling Machine Tool Milling MachineSample 1（实践部分）Explanations of TermsName ExplanationOuter frame 外框Scale mark plate 刻度盘Spring 弹簧Arm 测量臂A B1. Dial window A. 限制器2. Long hand B. 短指针3. Top point C. 刻度盘4. Limiter D. 刻度盘5. Clump E. 长指针6. Outer frame F. 底座7. Short hand G. 顶针8. Base H. 螺丝紧固座9. Scale mark plate I. 紧固件10. Screw fastening base J. 测头11.Gauge head K. 外框Beginning the Facing CutUse the compound handwheel to advance the tip of the tool until it just touches the end of the work-piece. Use the cross feed crank to back off the tool until it is beyond the diameter of the work-piece. Turn the lathe on and adjust the speed to a few hundred RPM — setting of the speed control knob. Now slowly advance the crossfeed hand-wheel to move the tool towards thework-piece. When the tool touches the work-piece itshould start to remove metal from the end (Figure 2-18). Continue advancing the tool until it reaches the center of the work-piece and then crank the tool back in the opposite direction (towards you) until it is back past the edge of the work-piece (Figure 2-19).Figure 2-18 Figure 2-19Since we started with the tool just touching the end of the work-piece, you probably removed very little metal on this pass. This is a good idea until you get used to how aggressively you can remove metal without stalling the lathe. The Roughing CutUse the compound crank to advance the tool towards the chuck about 0.010". If the compound is set at a 90 degrees to the cross slide (which is how I usually set mine) then each division you turn the crank will advance the tool 0.001 (one-thousandth of an inch) toward the chuck.If the compound is set at some other angle, say 30 degrees, to the cross slide, then it will advance the tool less than 0.001 for each division. The exact amount is determined by the trigonometric sine of the angle. Here’s a picture of the firs t pass of a facing operation (Figure 2-20).Cutting on the Return PassIf you crank the tool back towards you after itreaches the center of the work-piece you will notice that it removes a small amount of metal on the return pass. This is because the surface is not perfectly smooth and it is removing metal from the high spots. If you need to remove a lot of metal, to reduce the work-piece to a specific length, for example, you can take advantage of this return cut to remove more metal on each pass by advancing the tool a small ways into the work-piece on the return pass. Since the tool must plunge into the face of the work-piece, this works best with a fairlyFigure 2-17Figure 2-20sharp pointed tool.The Finishing CutDepending on how rough the end of the work-piece was to begin with and how large the diameter is, you may need to make three or more passes to get a nice smooth finish across the face. These initial passes are called roughing passes and remove a relatively large amount of metal.When you get the face pretty smooth you can make a final finishing cut to remove just 0.001 to 0.003" of metal and get a nice smooth surface. Figure 2-21 shows removing about 0.002" of metal at around 1 000 RPM. Figure 2-22 shows the finished face of the work-piece.Figure 2-21 Figure 2-22Figure 2-23 shows what happens if the tip of your cutting tool is below the center line of the lathe —a little nub is left at the center of the work-piece. The same thing happens if the tool is too high but the nub will have more of a cone shape in that case. If the tool is too low, place a suitable thickness of shim stock underneath the tool in the tool holder. If it’s too high, grind the top down a few thous.Filing the EdgeFacing operations leave a rather sharp edge on the end of the work-piece. It’s a good idea to smooth this edge down with a file to give it a nice chamfer and to avoid cutting yourself on it. With the lathe running at fairly low speed, bring a smooth cut file up to the end of the work-piece at a 45 degree angle and apply a little pressure to the file. Figure 2-24: Right —left hand holding tang end of file. Figure 2-25: Wrong —left hand reaching over spinning chuck!Figure 2-23 Figure 2-24Figure 2-26 shows the finished surface and beveled edge. This is what a good facing cut should look like: smooth even surface with no raised bump in the y an accurate straight edge across the surface of the face and you should not be able to see anylight under the edge. If you detect a slight convex shape, the carriage may be moving back away from the headstock during the cut.Figure 2-25 Figure 2-26A: Do exercise 1, 2, 3, 4 and 7.《机电一体化专业英语》授课计划_ _______ 学院___ 专业班20 －20 学年第学期授课时间：第周The following is the machine tool structure.No. Name Explanation1 Forward/Reverse 正转/反转2 Start/Stop 启动/停止3 Longitudinal Hand-wheel 纵向手轮4 Vertical Feed Hand-crank 垂直进给手柄5 Cross-Feed Hand-wheel 横向进给手轮6 Power Feed 电动进给7 Table 工作台Boring Machine (镗床)1. ________ (卧式铣镗床)2. ________(立式金刚镗床)3. ________ (双坐标镗床)4. ________（深孔镗床）5. ________（数控龙门镗铣床）Double Boring Machine Vertical Diamond Fine Boring Machine Boring MachineTypical parts programNo. Name Explanation1 twist bits 麻花钻2 tang 扁尾3 taper shank 锥柄4 point angle 顶尖角5 tang drive 扁尾驱动6 flutes 韧带7 helic angle 螺旋角8 lip-relief angle 刃倾角9 edge angle 横刀倾角10 drill diameter 钻头直径11 body diameter clearance 刀体直径间隙12 clearance diameter 间隙直径13 straight shank 直柄14 neck 颈部15 shank diameter 刀柄直径16 shank length 刀柄长度17 flute length 韧带长度18 body 刀体19 overall length 总长20 margin 刃边21 lip 刀刃22 web 钻心23 chisel edge 横刃A B1. Wrench size A. 中间插件2. Screw B. 外部插件3. Carbide guide pad C. 扳手大小（实践部分）Turning OperationsTurning is the removal of metal from the outer diameter of a rotating cylindrical work-piece. Turning is used to reduce the diameter of the work-piece, usually to a specified dimension, and to produce a smooth finish on the metal.Chucking the Work-pieceWe will be working with a piece of 3/4" diameter 6061 aluminum about 2 inches long. We can safely turn it in the three jaw chuck without supporting the free end of the work.Insert the work-piece in the three-jaw chuck and tighten down the jaws until they just start to grip the work-piece. Rotate the work-piece to ensure that it is seated evenly and to dislodge any chips. You want the work-piece to be as parallel as possible with the center line of the lathe. Imagine an exaggerated example where the work-piece is skewed at an angle in the chuck and you can easily visualize why this is important. Tighten the chuck using each of the three chuck key positions to ensure a tight and even grip (Figure 3-13).Adjusting the Tool BitChoose a tool bit with a slightly rounded tip. This type of tool should produce a nice smooth finish. Adjust the angle of the tool-holder so the tool is approximately perpendicular to the side of the work-piece. Because the front edge of the tool is ground at an angle, the left side of the tip should engage the work, but not the entire front edge of the tool. The angle of the compound is not critical. I usually keep mine at 90 degrees so that the compound dial advances the work (Figure 3-14).Figure 3-13Figure 3-14Cutting SpeedsYou must consider the rotational speed of the work-piece and the movement of the tool relative to the work-piece. Working with the 7×10 for hobby purposes, you will quickly develop a feel for how fast you should go.Until you get a feel for the proper speeds, start with relatively low speeds and work up to faster speed. Most cutting operations on the 7×10 will be done at speeds of a few hundred RPM —with the speed control set below the 12 o'clock position and with the HI/LO gear in the LO range.Turning with Hand FeedAs always, wear safety glasses and keep your face well away from the work since this operation will throw off hot chips and/or sharp spirals of metal.Now advance the cross slide crank about 10 divisions or 0.010". Turn the carriage hand-wheel counterclockwise to slowly move the carriage towards the headstock. As the tool starts to cut into the metal, maintain a steady cranking motion to get a nice even cut. It’s difficult to get a smooth and even cut turning by hand (Figure 3-15).Continue advancing the tool towards the headstock until it is about 1/4" away from the chuck jaws. Obviously you want to be careful not to let the tool touch the chuck jaws (Figure 3-16)!Figure 3-15 Figure 3-16Turning with Power FeedOne of the great features of the 7×10 is that it has a power lead-screw driven by an adjustable gear train. The lead-screw can be engaged to move the carriage under power for turning and threading operations.To change the lever setting, you must pull back on the knurled sleeve with considerable force. With the sleeve pulled back you can move the lever up and down to engage its locking pin in one of three positions. In the upper position the lead-screw rotates to move the carriage towards the headstock and in the lower position the lead-screw moves the carriage away from the headstock (Figure 3-17).In the down position, the half-nut lever engages two halves of a split nut around the lead-screw. Make sure the half-nut lever is in the disengaged (up) position. Turn the motor on. The lead-screw should now be rotating counterclockwise (Figure 3-18). When the lead-screw is engaged the gear train makes kind of an annoying noise, but you’ll get used to it. Lubricating the gear train with white lithium grease will cut down some on the noise.Figure 3-17 Figure 3-18Just as in facing, you normally will make one or more relatively deep (0.010～0.030) roughing cuts followed by one or more shallow (0.001～0.002) finishing cuts. Of course you have to plan these cuts so that the final finishing cut brings the work-piece to exactly the desired diameter (Figure 3-19).When cutting under power, you must be very careful not to run the tool into the chuck.Measuring the DiameterIt is important to recognize that, in a turning operation, each cutting pass removes twice the amount of metal indicated by the cross slide feed divisions. Therefore, when advancing the cross slide by 0.010", the diameter is reduced by 0.020".The diameter of the work-piece is determined by a caliper or micrometer. Micrometers are more accurate, but less versatile. You will need a machinist's caliper capable of measuring down to 0.001". Vernier calipers do not have a dial and require you to interpolate on an engraved scale (Figure 3-20).Figure 3-19 Figure 3-20Turning a ShoulderA shoulder is a point at which the diameter of the work-piece changes with no taper from one diameter to the other.We will make a shoulder on our work-piece by reducing the diameter of the end of the work-piece for a distance of about 1/2" (Figure 3-21). Advance the cross slide about 0.020 and use power feed to turn down about a 1/2" length on the end of the work-piece. Repeat this a few more times until you have reduced the diameter of the end section to about 1/2" (Figure 3-22).Since the tip of the tool is rounded, the inner edge of the shoulder takes on a rounded profile.Now we will use this pointed tool to make a square finishing cut into the corner of the shoulder. Since this is such a short distance, we will use hand feed, not power feed. You can use hand feed with the lead-screw turning —just don’t engage the half-nut (Figure 3-23).To get a nice square face on the shoulder you will need to make a facing cut. This works best if you have made a carriage lock on your lathe. Lock the carriage and clean up the face of the shoulder until it is square. If you use the sharp pointed tool you will need to use fairly high RPM, say 1500, and advance the tool slowly or you will get little grooves from the pointed tip instead of a nice smooth finish.Finally, you may want to use a file as described in the facing section to make a nice beveled edge on outside edge of the shoulder and on the end of the work-piece (Figure 3-24).Figure 3-21 Figure 3-22Figure 3-23 Figure 3-24A: Do exercise 1, 2, 3, 4 and 7.《机电一体化专业英语》授课计划_ _______ 学院___ 专业班20 －20 学年第学期授课时间：第周The following is the structure of a regenerative hydraulic control.Explanations of the Mechatronics Terms No. Name Explanation1 Regenerative Hydraulic Control 回馈式液压控制2 Kidney Loop Filtration System 肾形环过滤系统3 Oversized Guide & Bushings 大型导杆和导套4 Ram Speeds to Spec. 专业滑块5 Stroke, Shut Height to Spec 上滑块的最大行程6 Daylight to Spec 规格孔距7 Ram Guide Bellows 波纹式防护罩8 Bolsters Machined to Spec 标准定位板1. 2. 3. 4.5. 6. 7. 8.9. 10.Flywheel Clutch and Brake Eccentric Shaft Connection Press Bed Slide (Ram) Shut Height Adjustment Bolster Counterbalance Cylinder Saddle Bushing Opposed Helical Gears at Each Side of Press（实践部分）The following is a lathe accessory, and you can understand the name of Bench Grinder.Explanations of TermsNo. Name Explanation1 Adjustable Tongue Guard 可调整的舌形护罩Match the words or phrases on the left with their meanings on the right.Bench Grinder1. Inner Wheel Guard A. 阻火器2. Flexible Work Light B. 砂轮3. Spark Arrestor C. 内砂轮罩4. Eye Shield D. 通/断开关5. Grinding Wheel E. 灵活工作灯6. Tool Rest F. 变速旋钮7. On/Off Switch G. 护眼罩8. Quench Tray H. 可调节的刀架支撑器9. Variable Speed Knob I. 刀架10. Adjustable Tool Rest Support J. 淬火盘VariantsImpression Die Forging—also called closed-die forging, presses metal between two dies that contain a precut profile of the desired part.Cold Forging—includes bending, cold drawing, cold heading, coining, extrusions and more, to yield a diverse range of part shapes. The temperature of metals being cold forged may range from room temperature to several hundred degrees.Open-die Forging is performed between flat dies with no precut profiles in the dies. Movement of the work-piece is the key to this method. Larger parts over 20 tones and 10 meters in length can be hammered or pressed into shape in this way.Seamless Rolled Ring Forging is typically performed by punching a hole in a thick, round piece of metal (creating a donut shape), and then rolling and squeezing (or in some cases, pounding) the donut into a thin ring. Ring diameters can be anywhere from a few inches to 30 feet.Process detailsClosed-die forgingA heated blank is placed between two halves of a die (Figure 4-15).A single compressive stroke squeezes the blank into the die to form the part. In hammer or drop forging this happens by dropping the top of the mould from a height. An alternative is to squeeze the moulds together using hydraulic pressure (Figure 4-16).Figure 4-15 Figure 4-16Once the die halves have separated, the part can be ejected immediately using an ejector pin (Figure 4-17).The waste material, flash, is removed later (Figure 4-18).《机电一体化专业英语》授课计划_ _______ 学院___ 专业班20 －20 学年第学期授课时间：第周The following is the common internal grinding machine.Explanations of the TermsNo. Name Explanation1 work head 头架2 cooling pipe 冷却管3 work table 工作台4 bed 床身5 oil pointer 油标6 feed handle 进给手柄7 longitudinal hand wheel 纵向手轮8 manipulating panel 操纵盘9 cross hand wheel 横向手轮10 slide saddle 滑鞍11 grinding carriage 砂轮架12 grinding wheel 砂轮13 bedside lamp 床头灯14 fixture device 夹具The following are some Functions on Mechatronics Terms.Grinding Machine（磨床）1. ________（内圆磨床）2. ________（平面磨床）3. ________（导轨磨床）4. ________（无心磨床）5. ________（工具磨床）6. ________（坐标磨床）Surface- Grinding Machine Centerless Grinding Machine Internal rinding Machine Jig Grinding Machine Slideway Grinding Machine Too Grinding Machine试试身手（实践部分）Period 2 Have a TryThe following is panel of a CNC machine, and you can understand the functions of its buttons.Explanations of the CNC PanelNo Name Explanation1 Alphabetic keyboard for enteringtexts and file names, as well as forprogramming in ISO format字母键盘用于输入文本及文件名称，也可按ISO格式进行编程2 ●File management●Pocket calculator (not TNC410)●MOD functions●HELP functions●文件管理●便携式计算器（并不是TNC 410型）●模式功能●辅助功能3 Programming modes 编程模式4 Machine operating modes 机床操作模式5 Initiation of programming dialog 可进行对话编程6 Arrow keys and GOTO jumpcommand箭头键和跳转指令7 Numerical input and axisselection数字输入和轴选择Match the words or phrases on the left with their meanings on the right.Automatic Tool Magazine（实践部分）Kow to Produce New Firebox Door PatternsThese are two of the old foundry patterns for our firebox doors. They are epoxy castings mounted in a plywood plate (Figure 5-20). The foundry switched to a new high pressure sand molding process, and the patterns broke (Figure 5-21). We needed higher strength aluminum patterns.Figure 5-20 Old foundry patterns Figure 5-21 New door to be designedBecause the old patterns were cast from a hand-made master, there were also problems such as dimensional inconsistencies, etc. The first step in building new patterns was to have a new vertical CNC milling machine (Figure 5-22).Figure 5-22 CNC Milling MachineNext, the doors were modeled in a Rhino, a new 3-D modeller. Here’s a screenshot of the Rhino model (Figure 5-23).Figure 5-23 3D modelHere’s a close-up of the parting line around the bottom hinge lug (Figure 5-24).Here’s a new feature in Rhino 1.1 Beta (Aug 20): Draft Angle Analysis (Figure 5-25).Figure 5-24 Figure 5-25Next, the 3-D Rhino model was imported into Visual Mill, a new CAM package that generates the cutter paths for the milling machine directly from Rhino NURBS models. Here is a screen shot of Visual Mill simulating the cutting of an aluminum block (Figure 5-26).Here’s another screen shot showing the tool-paths for a 1/8" ball shaped cutter as it goes into the corners around the hinges to clean up the leftovers from the previous larger cutter (Figure 5-27).Tool-paths were loaded onto a floppy disk and transferred to the mill’s controller. First, they were tested on a block of wax (Figure 5-28).Next, they were cut from a 2 1/4" thick block of aluminum. It takes about 12 hours of machine time to cut each side of a two-sided pattern.Here’s a photo of the finished patterns and their mounting plates (Figure 5-29).Figure 5-26 Figure 5-27Figure 5-28 Figure 5-29Figure 5-30A: Do exercise 1, 2, 3, 4 and 7.《机电一体化专业英语》授课计划_ _______ 学院___ 专业班20 －20 学年第学期授课时间：第周机床构造Section II Glance at MachineTool StructuresPeriod 1 The following is the structure of the CNC machining center.Explanations of the TermsNo. Name Explanation1 DC servo motor 直流伺服电机2 manipulators for tool changing 换刀机械手3 control cabinet 控制柜4 plate-type tool changer 盘式刀库5 spindle carrier 主轴箱6 control panel 控制面板7 electrical cabinet 驱动电源柜8 table 工作台9 slide saddle 滑座10 bed 床身The following are some Functions on Mechatronics Terms.1. ________（数控车床）。
科目：机电一体化专业英语使用班级：使用班级：单选题单选题1 、10xx means that it is a plain carbon steel 1，10XX意味着它是一个普通的碳素钢 C the second digit indicates that there is no modification in the alloys. 第二个数字表明，有没有修改的合金。
A 、which A，这B 、when B，当C 、where C，其中D 、that ，，2 、These steels 2，这些钢材 B high strength and also high strength to weight ratio, good c orrosion resistance. 高强度和高强度重量比，好的C orrosion电阻。
A 、exhibits 一，展品B 、exhibit ，表现出C 、exhibited C，展出D 、are exhibiting D ，展示3 、This property, also called 3，此属性，也被称为C , is related to the resistance of the steel to the softening effect of heat. ，是有关钢材的耐热软化效应。
A 、cold-hardness 一，冷硬度B 、cold-shortness B，冷，气短C 、hot-hardness 热硬度，D 、brittle condition D ，脆条件4 、These metals 4，这些金属 A in a soft condition, heat-treated to gain hardness, and then finish machined with a grinding or lapping process that can handle the hardness. 在软条件下，热后获得的硬度，然后完成加工与磨削或研磨的过程中，可以处理的硬度。

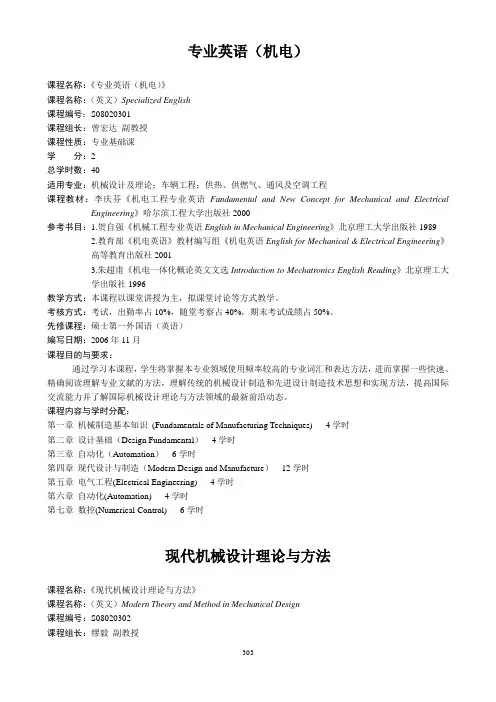

专业英语（机电）课程名称：《专业英语（机电）》课程名称：（英文）Specialized English课程编号：S0*******课程组长：曾宏达副教授课程性质：专业基础课学分：2总学时数：40适用专业：机械设计及理论；车辆工程；供热、供燃气、通风及空调工程课程教材：李庆芬《机电工程专业英语Fundamental and New Concept for Mechanical and Electrical Engineering》哈尔滨工程大学出版社2000参考书目：1.贺自强《机械工程专业英语English in Mechanical Engineering》北京理工大学出版社19892.教育部《机电英语》教材编写组《机电英语English for Mechanical & Electrical Engineering》高等教育出版社20013.朱超甫《机电一体化概论英文文选Introduction to Mechatronics English Reading》北京理工大学出版社1996教学方式：本课程以课堂讲授为主，拟课堂讨论等方式教学。
考核方式：考试，出勤率占10%，随堂考察占40%，期末考试成绩占50%。
先修课程：硕士第一外国语（英语）编写日期：2006年11月课程目的与要求：通过学习本课程，学生将掌握本专业领域使用频率较高的专业词汇和表达方法，进而掌握一些快速、精确阅读理解专业文献的方法，理解传统的机械设计制造和先进设计制造技术思想和实现方法，提高国际交流能力并了解国际机械设计理论与方法领域的最新前沿动态。
课程内容与学时分配：第一章机械制造基本知识(Fundamentals of Manufacturing Techniques) 4学时第二章设计基础（Design Fundamental）4学时第三章自动化（Automation）6学时第四章现代设计与制造（Modern Design and Manufacture）12学时第五章电气工程(Electrical Engineering) 4学时第六章自动化(Automation) 4学时第七章数控(Numerical Control) 6学时现代机械设计理论与方法课程名称：《现代机械设计理论与方法》课程名称：（英文）Modern Theory and Method in Mechanical Design课程编号：S0*******课程组长：缪毅副教授303总学时数：40适用专业：机械设计及理论课程教材：钟志华《现代设计方法》武汉理工大学出版社2001参考书目：1．孙靖民主编《现代机械设计方法》哈尔滨工业大学出版社20022．任中全著《现代机械设计理论与方法》煤炭工业出版社2006教学方式：本课程以课堂讲授为主，拟使用课堂讨论、网上讨论等方式教学。

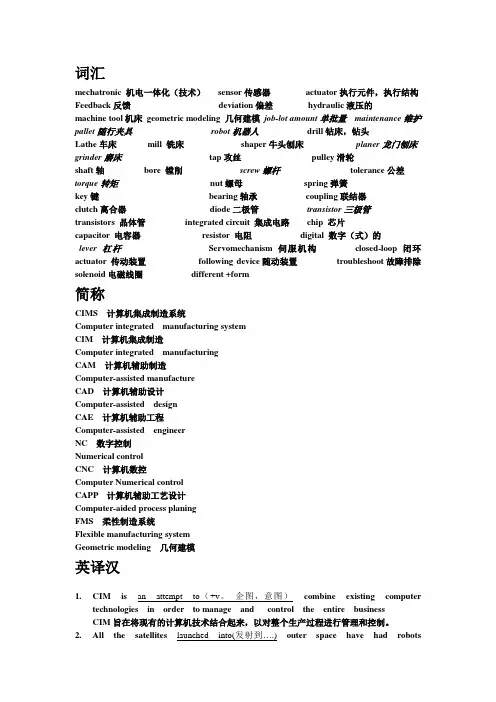

词汇mechatronic 机电一体化（技术）sensor传感器actuator执行元件，执行结构Feedback反馈deviation偏差hydraulic液压的machine tool机床geometric modeling 几何建模job-lot amount单批量maintenance维护pallet随行夹具robot机器人drill钻床，钻头Lathe车床mill 铣床shaper牛头刨床planer龙门刨床grinder磨床tap攻丝pulley滑轮shaft轴bore 镗削screw螺杆tolerance公差torque转矩nut螺母spring弹簧key键bearing轴承coupling联结器clutch离合器diode二极管transistor三极管transistors 晶体管integrated circuit 集成电路chip 芯片capacitor 电容器resistor 电阻digital 数字（式）的lever杠杆Servomechanism伺服机构closed-loop闭环actuator 传动装置following device随动装置troubleshoot故障排除solenoid电磁线圈different +form简称CIMS 计算机集成制造系统Computer integrated manufacturing systemCIM 计算机集成制造Computer integrated manufacturingCAM 计算机辅助制造Computer-assisted manufactureCAD 计算机辅助设计Computer-assisted designCAE 计算机辅助工程Computer-assisted engineerNC 数字控制Numerical controlCNC 计算机数控Computer Numerical controlCAPP 计算机辅助工艺设计Computer-aided process planingFMS 柔性制造系统Flexible manufacturing systemGeometric modeling 几何建模英译汉1.CIM is an attempt to（+v。
