3D快门眼镜
左镜框
右镜框
左镜框ห้องสมุดไป่ตู้
资料图像
眼镜开启
资料图像
眼镜开启
资料图像
眼镜开启
This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner.
3D介绍
● 要使人类大脑中的2维图像转变为3维图 像，每只眼睛必须看到不同的略微有差 别的图像。
● 大脑中的视觉皮层把这两张略微不同的 图像组合成3D影像。
双目视差
This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner.
3D立体眼镜
● 使用不同的彩色滤光片以 便于在一张图片范围内产 生2个略微不同的图像。
● 优点: 眼镜廉价, 很容易 入手, 已经存在了几十年 的技术。
● 缺点: 相对于其他技术， 它的效果教差。
This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner.
Before 2009:
60”~80” RPTV (shutter) - Samsung/Samsung ,
42”,50” PDP TV (shutter) - Samsung
22”
LCD (polarizer) - iZ3D
3D Technology Overview
This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner.
3D 行业概况
内容
媒体标准
3D 电影
剧院
-迪斯尼和皮 克斯
家庭
-梦工厂
-福克斯
--立体 DVD
HQFS (NTSC format) DVD
游戏
电脑游
-EA & Crytek 戏
Sensio DVD
SW (基于DirectX 的应用程序)
平台解决方案
主流解-N决-V-iD方dDia案D
3D 显示技术
Microretarder
L
L
Microretarder (面板上的额
外电影)
R L R
R L
R
L
λ/2 0λ λ/2 0λ
R
视差障壁&双凸透镜
双凸透镜
视差障壁
This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner.

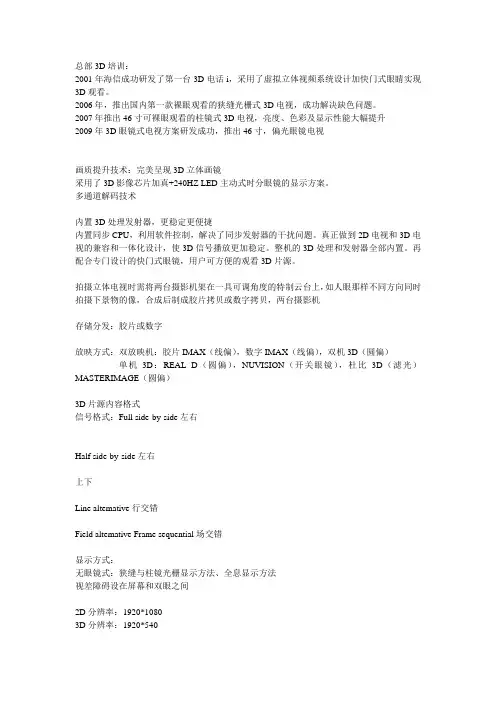

3D投影培训资料
waken
This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner.
Polarized 3D
● 图像分割出去分化的神经纤维实现。眼镜过滤光线，使每只 眼睛感知不同的图像。
● 优点：价格便宜无源眼镜 ● 缺点：安装成本高，投影机必须是完全的排列组合。
This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner.
瞳孔之间的距离决定了所看到的2张不 同的图像。
•60mm为成年人的瞳孔距离 •55mm为儿童的瞳孔距离
3D 显示技术概述
有各式各样的方法创作，拍摄和观看这两张略微不同的图像。
商业解决方案
V
快门眼镜
眼镜
偏振眼镜 立体眼镜
3D显示
Pulfrich effect 头盔式显示器 HMD
肉眼
全息影像 容积
多元的2D影像
3D偏振眼镜 (iZ3D & Microretarder)
iZ3D
偏振镜 BLU
栅格 [正常]
散光
偏振镜
栅格 [w/o CF]
45。 135。
Panel#1 Panel #2
This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner.
Stereoscopic 3D
图像生成连续的帧格式（左，右交替帧）。 快门眼镜同步的形象和/关闭与每个数据帧 优点：图像质量好，额外的硬件成本低于两极分化的选择。 缺点：眼镜成本更高，而不是这一格式的内容很多，低成本红
外线发射器有限领域的看法。
This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner.
使用眼镜
立体眼镜
快门眼镜 偏振眼镜
IMAX, RealD
9
9
---
9
DVD 播放器:
9
NTSC 隔行扫描类型
PC SW 播放器:
9
9
9
1)3dtv 立体播放器 (NVidia bundled)
2)DDD TriDef 多媒体播放器
Sensio 3D 处理器 NVidia 3D 驱动
9
9
9
DDD TriDef Ignition
3D快门眼镜 (NVidia 3D Vision )
NVidia 3D 配套元件所带来的3D投影
护目镜+红外发射器 用于连接电脑
Projector
/
Monitor
This document is the intellectual property of Acer Inc, and was created for demonstration purposes only. It may not be modified, organized or re-utilized in any way without the express written permission of the rightful owner.
显示器
Samsung 2233RZ [3D ready -120Hz]
优派 Vx2265wm [3D ready – 120Hz]
数码相机/数码相框
富士 DC [dual camera] DPF 8.4” [Lenticular] Photo Print [Lenticular]
手机
东芝 Ketai H001 [Lenticular]
2009 3D 产品 新闻发布
电视
JVC 46” GD-463D1 (commercial ) [Polarizer Glasses]
2009/1~2009/07
