74ACT04MTR中文资料

  • 格式：pdf
  • 大小：173.86 KB
  • 文档页数：8

1/8July 2001s HIGH SPEED: t PD = 5.0ns (TYP.) at V CC = 5V sLOW POWER DISSIPATION:I CC = 2µA(MAX.) at T A =25°CsCOMPATIBLE WITH TTL OUTPUTS V IH = 2V (MIN.), V IL = 0.8V (MAX.)s50Ω TRANSMISSION LINE DRIVING CAPABILITYsSYMMETRICAL OUTPUT IMPEDANCE:|I OH | = I OL = 24mA (MIN)sBALANCED PROPAGATION DELAYS:t PLH ≅ t PHLsOPERATING VOLTAGE RANGE:V CC (OPR) = 4.5V to 5.5VsPIN AND FUNCTION COMPATIBLE WITH 74 SERIES 04sIMPROVED LATCH-UP IMMUNITYDESCRIPTIONThe 74ACT04 is an advanced high-speed CMOS HEX INVERTER fabricated with sub-micron silicon gate and double-layer metal wiring C 2MOS technology.The internal circuit is composed of 3 stages including buffer output, which enables high noise immunity and stable output.The device is designed to interface directly High Speed CMOS systems with TTL, NMOS and CMOS output voltage levels.All inputs and outputs are equipped with protection circuits against static discharge, giving them 2KV ESD immunity and transient excess voltage.74ACT04HEX INVERTERPIN CONNECTION AND IEC LOGIC SYMBOLSORDER CODESPACKAGE TUBE T & R DIP 74ACT04B SOP 74ACT04M74ACT04MTR TSSOP74ACT04TTR74ACT042/8INPUT AND OUTPUT EQUIVALENT CIRCUITPIN DESCRIPTIONTRUTH TABLEABSOLUTE MAXIMUM RATINGSAbsolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is not implied.RECOMMENDED OPERATING CONDITIONS1) V IN from 0.8V to 2.0VPIN No SYMBOL NAME AND FUNCTION 1, 3, 5, 9, 11,131A to 6A Data Inputs 2, 4, 6, 8, 10,121Y to 6Y Data Outputs 7GND Ground (0V)14V CCPositive Supply VoltageA Y L H HLSymbol ParameterValue Unit V CC Supply Voltage -0.5 to +7V V I DC Input Voltage -0.5 to V CC + 0.5V V O DC Output Voltage -0.5 to V CC + 0.5V I IK DC Input Diode Current ± 20mA I OK DC Output Diode Current ± 20mA I ODC Output Current± 50mA I CC or I GND DC V CC or Ground Current± 200mA T stg Storage Temperature-65 to +150°C T LLead Temperature (10 sec)300°CSymbol ParameterValue Unit V CC Supply Voltage 4.5 to 5.5V V I Input Voltage 0 to V CC V V O Output Voltage 0 to V CC V T op Operating Temperature-55 to 125°C dt/dvInput Rise and Fall Time V CC = 4.5 to 5.5V (note 1)8ns/V74ACT043/8DC SPECIFICATIONS1) Maximum test duration 2ms, one output loaded at time2) Incident wave switching is guaranteed on transmission lines with impedances as low as 50ΩAC ELECTRICAL CHARACTERISTICS (C L = 50 pF, R L = 500 Ω, Input t r = t f = 3ns)(*) Voltage range is 5.0V ± 0.5VCAPACITIVE CHARACTERISTICS1) C PD is defined as the value of the IC’s internal equivalent capacitance which is calculated from the operating current consumption without load. (Refer to Test Circuit). Average operating current can be obtained by the following equation. I CC(opr) = C PD x V CC x f IN + I CC /6 (per gate)SymbolParameterTest ConditionValue UnitV CC (V)T A = 25°C -40 to 85°C -55 to 125°C Min.Typ.Max.Min.Max.Min.Max.V IH High Level Input Voltage4.5V O = 0.1 V or V CC -0.1V 2.0 1.5 2.0 2.0V5.5 2.01.52.02.0V IL Low Level Input Voltage4.5V O = 0.1 V or V CC -0.1V 1.50.80.80.85.5 1.50.80.80.8V V OHHigh Level Output Voltage4.5I O =-50 µA 4.4 4.49 4.4 4.45.5I O =-50 µA 5.4 5.495.4 5.44.5I O =-24 mA 3.86 3.76 3.7V5.5I O =-24 mA 4.864.764.7V OLLow Level Output Voltage4.5I O =50 µA 0.0010.10.10.15.5I O =50 µA 0.0010.10.10.14.5I O =24 mA 0.360.440.55.5I O =24 mA 0.360.440.5I I Input Leakage Current5.5V I = V CC or GND ± 0.1± 1± 1µA I CCT Max I CC /Input 5.5V I = V CC - 2.1V 0.61.5 1.6mA I CC Quiescent Supply Current5.5V I = V CC or GND 22040µA I OLD Dynamic Output Current (note 1, 2)5.5V OLD = 1.65 V max 7550mA I OHDV OHD = 3.85 V min-75-50mA SymbolParameterTest ConditionValue UnitV CC (V)T A = 25°C -40 to 85°C -55 to 125°C Min.Typ.Max.Min.Max.Min.Max.t PLH t PHL Propagation DelayTime5.0(*)1.55.09.01.09.51.09.5ns SymbolParameterTest ConditionValue UnitV CC (V)T A = 25°C -40 to 85°C -55 to 125°C Min.Typ.Max.Min.Max.Min.Max.C IN Input Capacitance 5.04pF C PDPower Dissipation Capacitance (note 1)5.0f IN = 10MHz37pF74ACT044/8TEST CIRCUITL R L = R 1 = 500Ω or equivalentR T = Z OUT of pulse generator (typically 50Ω)WAVEFORM: PROPAGATION DELAYS(f=1MHz; 50% duty cycle)74ACT04Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products are not authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.© The ST logo is a registered trademark of STMicroelectronics© 2001 STMicroelectronics - Printed in Italy - All Rights ReservedSTMicroelectronics GROUP OF COMPANIESAustralia - Brazil - China - Finland - France - Germany - Hong Kong - India - Italy - Japan - Malaysia - Malta - MoroccoSingapore - Spain - Sweden - Switzerland - United Kingdom© 8/8。

合集下载

74系列常见数字逻辑器件中文注解

74系列常见数字逻辑器件中文注解

130. 74LS374 TTL 三态反相八D锁存器
131. 74LS375 TTL 4位双稳态锁存器
132. 74LS377 TTL 单边输出公共使能八D锁存器
133. 74LS378 TTL 单边输出公共使能六D锁存器
134. 74LS379 TTL 双边输出公共使能四D锁存器
135. 74LS38 TTL 开路输出2输入端四与非缓冲器
165. 74LS534 TTL 三态反相八D锁存器
166. 74LS54 TTL 四路输入与或非门
167. 74LS540 TTL 八位三态反相输出总线缓冲器
168. 74LS55 TTL 4输入端二路输入与或非门
169. 74LS563 TTL 八位三态反相输出触发器
170. 74LS564 TTL 八位三态反相输出D触发器
36. 74LS156 TTL 开路输出译码器/分配器
37. 74LS157 TTL 同相输出四2选1数据选择器
38. 74LS158 TTL 反相输出四2选1数据选择器
39. 74LS16 TTL 开路输出六反相缓冲/驱动器
40. 74LS160 TTL 可预置BCD异步清除计数器
41. 74LS161 TTL 可予制四位二进制异步清除计数器
108. 74LS37 TTL 开路输出2输入端四与非缓冲器
109. 74LS373 TTL 三态同相八D锁存器
110. 74LS374 TTL 三态反相八D锁存器
111. 74LS375 TTL 4位双稳态锁存器
112. 74LS377 TTL 单边输出公共使能八D锁存器
113. 74LS378 TTL 单边输出公共使能六D锁存器
74AC04MTC中文资料

74AC04MTC中文资料


Recommended Operating Conditions
Supply Voltage (VCC) AC ACT Input Voltage (VI) Output Voltage (VO) Operating Temperature (TA) Minimum Input Edge Rate (∆V/∆t) AC Devices VIN from 30% to 70% of VCC VCC @ 3.3V, 4.5V, 5.5V Minimum Input Edge Rate (∆V/∆t) ACT Devices VIN from 0.8V to 2.0V VCC @ 4.5V, 5.5V 125 mV/ns
2.0V to 6.0V 4.5V to 5.5V 0V to VCC 0V to VCC −40°C to +85°C
125 mV/ns
DC Electrical Characteristics for AC
Symbol VIH Parameter Minimum HIGH Level Input Voltage VIL Maximum LOW Level Input Voltage VOH Minimum HIGH Level Output Voltage VCC (V) 3.0 4.5 5.5 3.0 4.5 5.5 3.0 4.5 5.5 3.0 4.5 5.5 VOL Maximum LOW Level Output Voltage 3.0 4.5 5.5 3.0 4.5 5.5 IIN (Note 4) IOLD IOHD ICC (Note 4) Maximum Input Leakage Current Minimum Dynamic Output Current (Note 3) Maximum Quiescent Supply Current 5.5 5.5 5.5 5.5 2.0 0.002 0.001 0.001 TA = +25°C Typ 1.5 2.25 2.75 1.5 2.25 2.75 2.99 4.49 5.49 2.1 3.15 3.85 0.9 1.35 1.65 2.9 4.4 5.4 2.56 3.86 4.86 0.1 0.1 0.1 0.36 0.36 0.36 ±0.1 TA = −40°C to +85°C Guaranteed Limits 2.1 3.15 3.85 0.9 1.35 1.65 2.9 4.4 5.4 VIN = VIL or VIH 2.46 3.76 4.76 0.1 0.1 0.1 VIN = VIL or VIH 0.44 0.44 0.44 ±1.0 75 −75 20.0 µA mA mA µA V IOL= 12 mA IOL = 24 mA IOL = 24 mA (Note 2) VI = VCC, GND VOLD = 1.65V Max VOHD = 3.85V Min VIN = VCC or GND V IOUT = 50 µA V IOH = −12 mA IOH = −24 mA IOH = −24 mA (Note 2) V IOUT = −50 µA V VOUT = 0.1V or VCC − 0.1V V Units Conditions VOUT = 0.1V or VCC − 0.1V

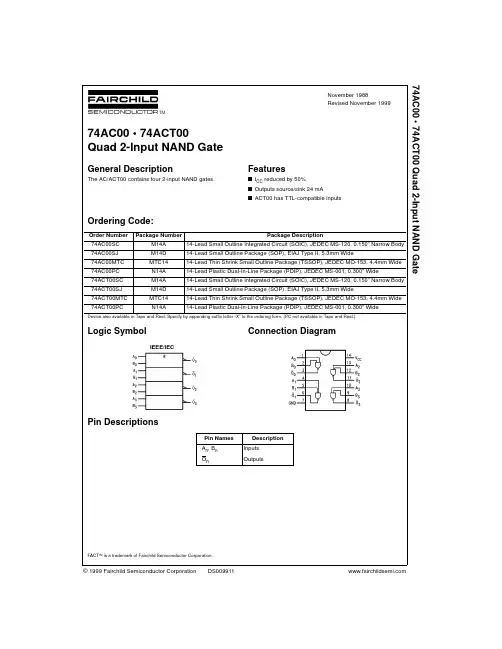

74ACT00MTC中文资料
