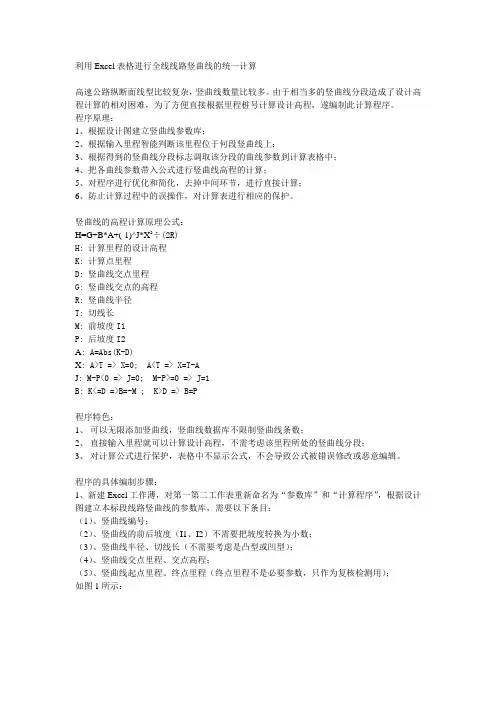

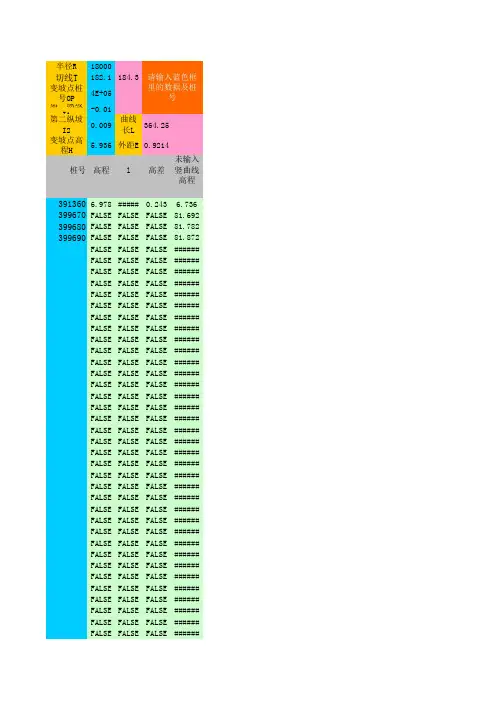

利用Excel表格进行全线线路竖曲线的统一计算高速公路纵断面线型比较复杂，竖曲线数量比较多。

由于相当多的竖曲线分段造成了设计高程计算的相对困难，为了方便直接根据里程桩号计算设计高程，遂编制此计算程序。

程序原理：1、根据设计图建立竖曲线参数库；2、根据输入里程智能判断该里程位于何段竖曲线上；3、根据得到的竖曲线分段标志调取该分段的曲线参数到计算表格中；4、把各曲线参数带入公式进行竖曲线高程的计算；5、对程序进行优化和简化，去掉中间环节，进行直接计算；6、防止计算过程中的误操作，对计算表进行相应的保护。

竖曲线的高程计算原理公式：H=G+B*A+(-1)^J*X2÷(2R)H: 计算里程的设计高程K: 计算点里程D: 竖曲线交点里程G: 竖曲线交点的高程R: 竖曲线半径T: 切线长M: 前坡度I1P: 后坡度I2A: A=Abs(K-D)X: A>T => X=0; A<T => X=T-AJ: M-P<0 => J=0; M-P>=0 => J=1B: K<=D =>B=-M ; K>D => B=P程序特色：1、可以无限添加竖曲线，竖曲线数据库不限制竖曲线条数；2、直接输入里程就可以计算设计高程，不需考虑该里程所处的竖曲线分段；3、对计算公式进行保护，表格中不显示公式，不会导致公式被错误修改或恶意编辑。

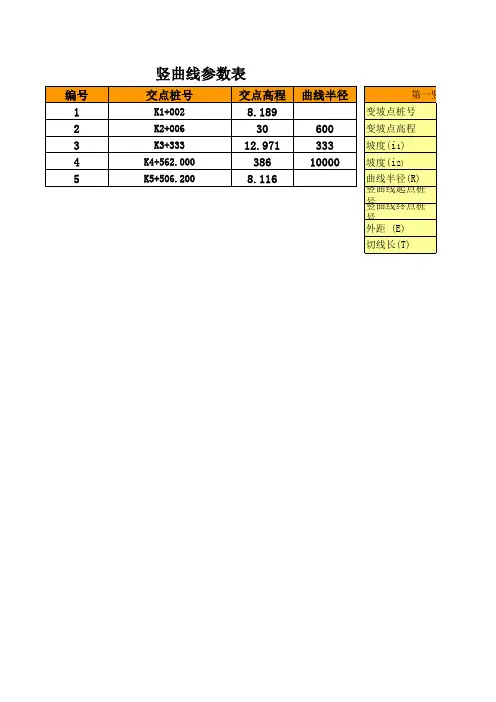

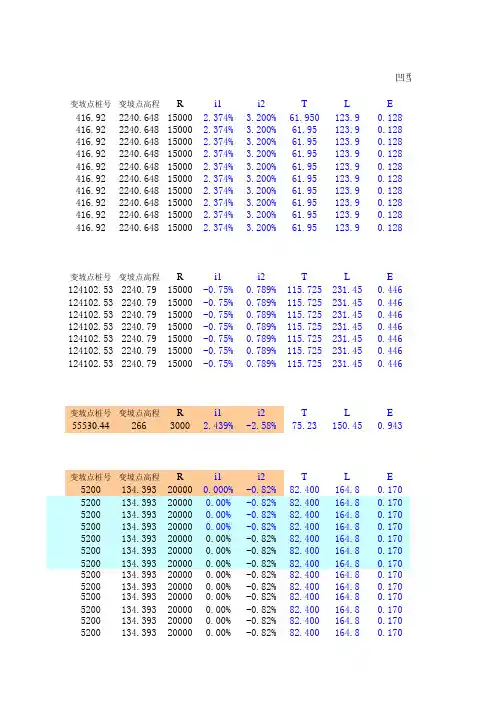

程序的具体编制步骤：1、新建Excel工作薄，对第一第二工作表重新命名为“参数库”和“计算程序”，根据设计图建立本标段线路竖曲线的参数库，需要以下条目：（1）、竖曲线编号；（2）、竖曲线的前后坡度（I1、I2）不需要把坡度转换为小数；（3）、竖曲线半径、切线长（不需要考虑是凸型或凹型）；（4）、竖曲线交点里程、交点高程；（5）、竖曲线起点里程、终点里程（终点里程不是必要参数，只作为复核检测用）；如图1所示：图12、进行计算准备：（1）、根据输入里程判断该里程所处的曲线编号：需要使用lookup函数，函数公式为“LOOKUP(A2,参数库!H3:H25,参数库!A3:A25)”。
