带灯带弹片RJ45插座规格书

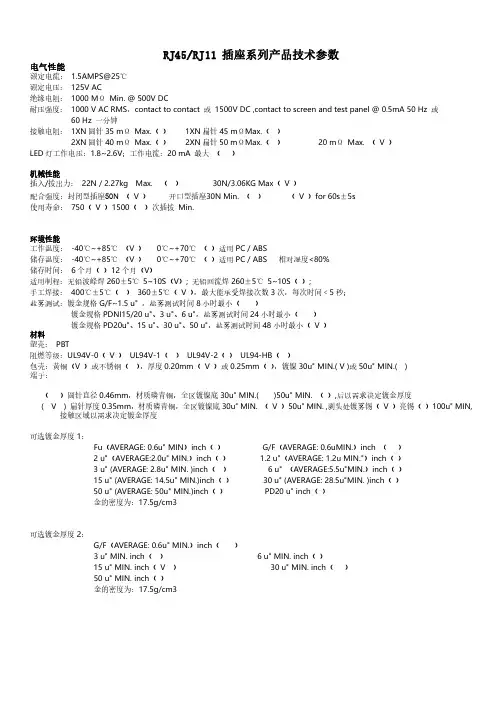

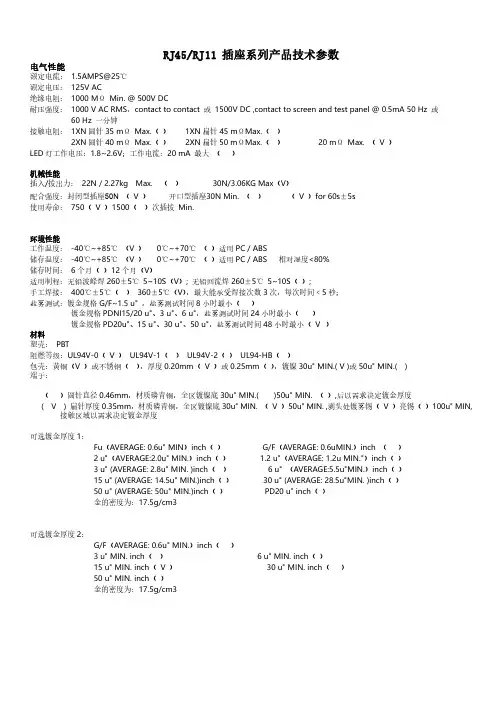

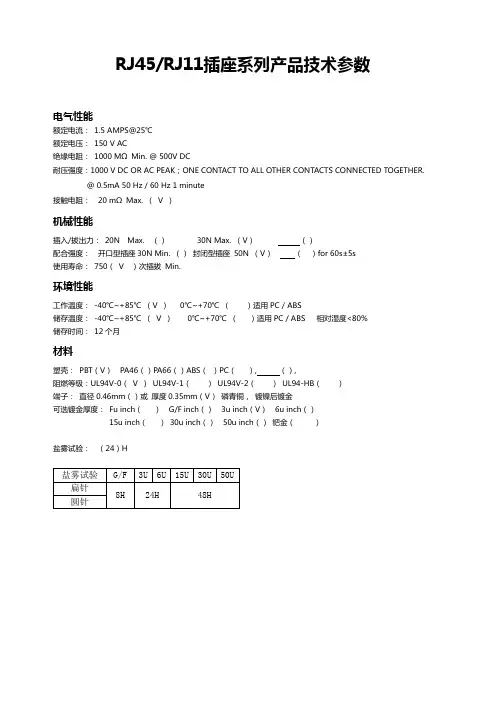

插片端子规格书一、基本状况参照外观◆产品名称part name◆产品型号part number 环保信息◆Environmentalinformation◆互配型号Matching part二、主要性能指标： Main performance parameters■电气特征 Electrical characteristics序号 No 项目 Item 性能参数 Performance parameters1 额定电压 Rated Voltge 500V AC2 额定电流 Rated Currect 20A3接触电阻≤ 10mΩContact resistance4 耐电压 Dielectic Withstand≥ 2500V AC Voltage5绝缘电阻≥5000MΩInsulation resistance■机械特征 Mechanical Characteristic序号 No 项目 Item 性能参数 Performance parameters1 整体插入力 Total Mating,≤50 N Unmating Force2 连结器分别力 Total Unmating≥20N Force3 机械寿命 Durability times ≥200times4 适配线径 Wire AWG 24AWG ～22AWG，■环境特征 Environmental test1 工作温度 Temperature Range -40 ℃～ 85℃2 温升 Temperature Rise 50K3 IP 防备等级 IP protectionIP65 requirement4 盐雾试验 Salt Spray 48 hours湿热循环 Humidity- 25℃~65℃ ; 90%~95% RH; 10 次，部件无损害5 25℃~65℃ ; 90%~95% RH; 10 Cycles; No damageTemperature Cyclingto parts.6 温度寿命 Temperature life 温度 105℃下连续 250 小时 ; 部件无损害250hours at 105 ℃; No damage to parts.-55 ℃ (30 分钟 ), +85℃ (30 分钟 ); 重复 5次;7 温度冲击 Thermal Shock 部件无损害-55 ℃(30min.), +85 ℃ (30min.); 5 Cycles; No damage to parts高温 70 ℃，低温 -40 ℃，每个循环 16h，共进行9 个循环， 144h（6 天）8 温度循环 Temperature ; 部件无损害cycling High temperature 70℃，Low temperature -40 ℃，16h per cycle ， totally 9 cycles ，144h; Nodamage to parts.频次 :10-55-10Hz; 振幅 1.52mm; 每个垂直面持续 2 小时；电流瞬断时间小于 1us 10-55-109 机械振动 Vibration Hz Traversed in 1 minutes at 1.52mmamplitude 2 hours each of 3 mutually perpendicularplanes; Electrical discontinuity less than1us.加快度 490m/s2; 半正弦波；连续 11 毫秒；± X, ±Y, ±Z, 方向各 3 次; 电流瞬断时间小于 1us. Accelerate Velocity:490m/s 2;10 机械冲击 Mechanical Shock Waveform:Half-sine shock plus;Duration:11msec; 3drops each to normal andreversed directions of X,Y and Z axes;Electrical discontinuity less than 1us.三、主要部件的资料、工艺、表面办理信息：Main material information■塑料Plastic资料material 尼龙黑色PA66 black工艺Process 注射成型Injection molding阻燃等级Flammability rating UL94V-0■接触件 Contact Pin资料 material工艺 Process表面办理Surface treatment■壳体 Shell资料 material工艺 Process表面办理Surface treatment■密封件 Seals资料 material工艺 Process四、产品的简介、包装储藏运输方式：■产品简介： Introduction该产品为带绝缘公端子。

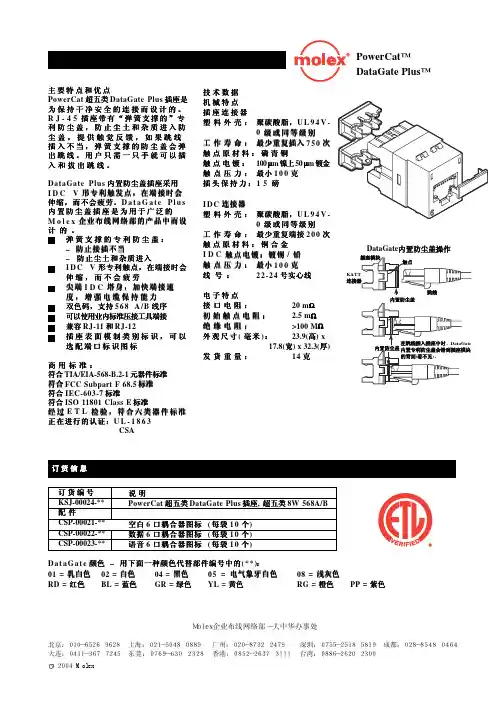

主要特点和优点PowerCat 超五类DataGate Plus 插座是为保持干净安全的连接而设计的。

R J -45插座带有“弹簧支撑的”专利防尘盖，防止尘土和杂质进入防尘盖，提供触觉反馈，如果跳线插入不当，弹簧支撑的防尘盖会弹出跳线。

用户只需一只手就可以插入和拔出跳线。

DataGate Plus 内置防尘盖插座采用I D C V 形专利触发点，在端接时会伸缩，伸缩，而不会疲劳。

而不会疲劳。

D a t a G a t e P l u s 内置防尘盖插座是为用于广泛的M o l e x 企业布线网络部的产品中而设计的。

弹簧支撑的专利防尘盖：– 防止接插不当– 防止尘土和杂质进入I D C V 形专利触点，形专利触点，在端接时会在端接时会伸缩，而不会疲劳尖端I D C 塔身，加快端接速度，增强电缆保持能力双色码，双色码，支持支持568 A /B 线序可以使用业内标准压接工具端接兼容RJ-11和RJ-12插座表面模制类别标识，可以选配端口标识图标商用标准：符合TIA/EIA-568-B.2-1元器件标准符合FCC Subpart F 68.5标准符合IEC-603-7标准符合ISO 11801 Class E 标准经过E T L 检验，符合六类器件标准正在进行的认证正在进行的认证：：U L -1863 CSA技术数据机械特点插座连接器塑料外壳：聚碳酸脂，U L 94V -0级或同等级别工作寿命：最少重复插入750次触点原材料：磷青铜触点电镀：100 µm 镍上50 µm 镀金触点压力：最小100克插头保持力：15磅I D C 连接器塑料外壳：聚碳酸脂，U L 94V -0级或同等级别工作寿命：最少重复端接200次触点原材料：铜合金I D C 触点电镀：镀锡/铅触点压力：最小100克线号：22-24号实心线电子特点接口电阻：20 m Ω初始触点电阻： 2.5 m Ω绝缘电阻：>100 M Ω外观尺寸(毫米)：23.9(高) x17.8(宽) x 32.3(厚)发货重量：14克订货编号KSJ-00024-**配件CSP-00021-**CSP-00022-**CSP-00023-**说明PowerCat 超五类DataGate Plus 插座, 超五类8W 568A/B 空白6口耦合器图标 (每袋10个)数据6口耦合器图标 (每袋10个)语音6口耦合器图标 (每袋10个)D a t a G a t e 颜色 – 用下面一种颜色代替部件编号中的(**)：01 = 乳白色02 = 白色04 = 黑色05 = 电气象牙白色08 = 浅灰色RD = 红色BL = 蓝色GR = 绿色YL = 黄色RG = 橙色PP = 紫色２００４　Molex台湾：０８８６－２６２０　２３００ｃ成都：０２８－８５４８　０４６４深圳：０７５５－２５１８　５８１９广州：０２０－８７３２　２４７９上海：０２１－５０４８　０８８９北京：０１０－６５２６　９６２８香港：０８５２－２６３７　３１１１东莞：０７６９－６３０　２３２８大连：０４１１－３６７　７２４５Ｍｏｌｅｘ企业布线网络部－大中华办事处在跳线插入插座中时DataGateDataGate 内置防尘盖操作PowerCat™超五类DataGate Plus™插座PowerCat™超五类DataGate Plus™未带防尘盖插座主要特点和优点PowerCat 超五类DataGate Plus 未带防尘盖插座是为保持干净安全的连接而设计的。

2.2.1 RJ45模块(modular)RJ45模块是布线系统中连接器的一种，连接器由插头和插座组成。

这两种元件组成的连接器连接于导线之间，以实现导线的电气连续性。

RJ45模块就是连接器中的最重要的一种插座。

RJ是Registered Jack的缩写，意思是“注册的插座”。

在FCC（美国联邦通信委员会标准和规章）中的定义是，RJ是描述公用电信网络的接口，常用的有RJ-11和RJ-45，计算机网络的RJ-45是标准8位模块化接口的俗称。

在以往的四类、五类、超五类，包括刚刚出台的六类布线中，采用的都是RJ 型接口。

在七类布线系统中，将允许“非-RJ型”的接口，如2002年7月30日，西蒙公司开发的TERA七类连接件被正式选为“非-RJ”型七类标准工业接口的标准模式。

TERA连接件的传输带宽高达1.2GHz，超过目前正在制定中的600MHz七类标准传输带宽。

网络通信领域常见的有四种基本RJ模块插座，每一种基本的插座可以连接不同构造的RJ。

例如，一个6芯插座可以连接RJ11（1对）、RJ14（2对）或RJ25C（3对）；一个8芯插座可以连接RJ61C（4对）和RJ48C。

8芯（Keyed）可连接RJ45S、RJ46S和RJ47S。

RJ45插座与RJ45连接头（水晶头）是综合布线系统中的基本连接器，我们在后面还会详细介绍RJ45连接头（水晶头）。

RJ45模块的核心是模块化插孔。

镀金的导线或插座孔可维持与模块化插头弹片间稳定而可靠的电连接。

由于弹片与插孔间的磨擦作用，电接触随插头的插入而得到进一步加强。

插孔主体设计采用了整体锁定机制，这样当模块化插头（如RJ45插头）插入时，插头和插孔的界面处可产生最大的拉拔强度。

RJ45模块上的接线块通过线槽来连接双绞线，锁定弹片可以在面板等信息出口装置上固定RJ45模块。

图2-20分别是RJ45模块的正视图、侧视图、立体图。

图2-20 模块正视图、侧视图、立体图图2-21 45度斜角模块图2-22 不同设计的免打线工具模块常见的非屏蔽模块高2cm、宽2cm，厚3cm，塑体抗高压、阻燃、UL额定热熔94V-0，可卡接到任何M系列模式化面板、支架或表面安装盒中，并可在标准面板上以90度（垂直）或45度斜角安装，特殊的工艺设计提供至少750重复插拔，模块使用了T568A和T568B布线通用标签，它还带有一白色的扁平线插入盖。

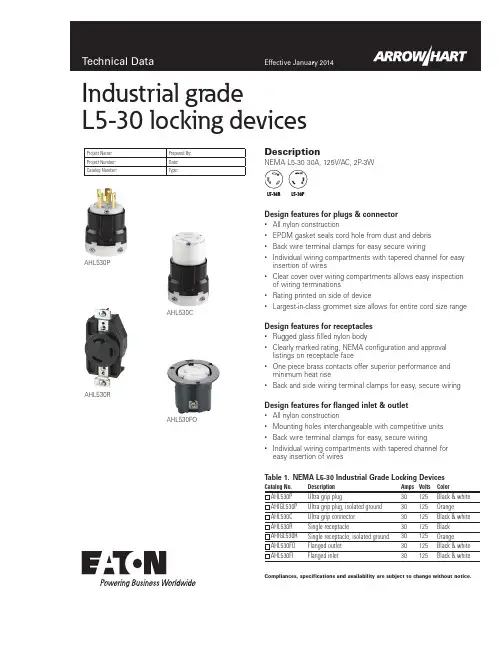

DescriptionNEMA L5-30 30A, 125V/AC, 2P-3WDesign features for plugs & connector• All nylon construction• EPDM gasket seals cord hole from dust and debris •Back wire terminal clamps for easy secure wiring•Individual wiring compartments with tapered channel for easy insertion of wires•Clear cover over wiring compartments allows easy inspection of wiring terminations• Rating printed on side of device•Largest-in-class grommet size allows for entire cord size rangeDesign features for receptacles• Rugged glass filled nylon body•Clearly marked rating, NEMA configuration and approval listings on receptacle face•One piece brass contacts offer superior performance and minimum heat rise•Back and side wiring terminal clamps for easy, secure wiringDesign features for flanged inlet & outlet• All nylon construction• Mounting holes interchangeable with competitive units • Back wire terminal clamps for easy, secure wiring •Individual wiring compartments with tapered channel for easy insertion of wiresIndustrial gradeL5-30 locking devicesCatalog No.DescriptionAmps VoltsColorAHL530P Ultra grip plug30125Black & white AHIGL530P Ultra grip plug, isolated ground 30125Orange AHL530C Ultra grip connector 30125Black & white AHL530R Single receptacle30125Black AHIGL530R Single receptacle, isolated ground 30125Orange AHL530FO Flanged outlet 30125Black & white AHL530FIFlanged inlet30125Black & whiteAHL530PAHL530RAHL530FOAHL530CCompliances, specifications and availability are subject to change without notice.Project Name:Prepared By:Project Number:Date:Catalog Number:Type:Table 1.NEMA L5-30 Industrial Grade Locking Devices2EATON Technical DataEffective January 2014Industrial gradeL 5-30 locking devicesCatalog No.NEMA L5-30 Plugs & ConnectorNEMA Config NEMA L5-30Wiring Type Back wireEnvironmental Specifications Flammability: Meets UL94 requirements; V2 ratedTemperature Rating: -40°C to 60°C (-40°F to 140°F)except flat cable: -40°C to 75°C (-40°F to 167°F)Electrical Specifications Dielectric Voltage: Twice the device rating + 1000V per UL498Current Interrupting: Yes, at full-rated currentTemperature Rise: Max. 30ºC (86°F) after 50 cycles of overload at 150% of rated current (DC)Mechanical Specifications Terminal Accommodation: #16 - #8 AWGVoltage Ratings: Permanently marked on deviceNEMA L5-30 30A, 125V/AC, 2P-3W Catalog No.NEMA L5-30 Plugs & ConnectorNEMA Config NEMA L5-30Outer Shell Nylon Interior Body NylonTerminal Retainer Polycarbonate BladesBrassLine Contacts Bronze, tin plated Terminal Clamps Steel, tin platedTerminal Screws #10-32 brass, zinc plated (neutral screw)Ground Screw #10-32 brassAssembly Screws Steel, nickel plated Gasket/Dust Shield EPDMCord Clamp Screws Steel, nickel plated Cord Clamp NylonCompliances, specifications and availability are subject to change without notice.Plugs & ConnectorProject Name:Prepared By:Project Number:Date:Catalog Number:Type:T able 2. SpecificationsT able 3. MaterialsProduct DimensionsFigure 1. AHL530P Figure 2. AHL530C Figure 3. Base Angle3EATON Technical DataEffective January 2014Industrial gradeL 5-30 locking devicesCatalog No.NEMA L5-30 Single ReceptacleNEMA L5-30 Isolated Ground Single ReceptacleNEMA Config NEMA L5-30NEMA L5-30Wiring Type Back & side wireBack & side wireEnvironmental Specifications Flammability: Meets UL94 requirements; V0 ratedTemperature Rating: -40°C to 70°C (-40°F to 158°F)Flammability: Meets UL94 requirements; V0 rated Temperature Rating: -40°C to 70°C (-40°F to 158°F)Electrical Specifications Dielectric Voltage: ≤300V: 2000V, 301-600V: 3000V per UL498Current Interrupting: Yes, at full-rated currentTemperature Rise: Max. 30ºC (86°F) after 250 cycles of overload @ 200% of rated current (DC)Dielectric Voltage: ≤300V: 2000V, 301-600V: 3000V per UL498Current Interrupting: Yes, at full-rated currentTemperature Rise: Max. 30ºC (86°F) after 50 cycles of overload @ 150% of rated current (DC)Mechanical Specifications Terminal Accommodation: #14 - #8 AWGVoltage Ratings: Permanently marked on device Terminal Accommodation: #14 - #8 AWG Voltage Ratings: Permanently marked on deviceNEMA L5-30 30A, 125V/AC, 2P-3W Catalog No.NEMA L5-30 Single ReceptacleNEMA L5-30 Isolated Ground Single ReceptacleNEMA ConfigNEMA L5-30NEMA L5-30Face Glass-filled nylon Glass-filled nylon BaseGlass-filled nylonGlass-filled nylonMounting Strap 0.050" thick steel, zinc plated 0.050" thick steel, zinc plated Line Contacts 0.041" thick brass0.041" thick brassTerminal Screws #10-32 brass, nickel plated (neutral screw)#10-32 brass, nickel plated (neutral screw)Ground Screw#10-32 brass (green)#10-32 brass (green)Terminal Clamps/Plates 0.041" thick brass 0.041" thick brass Ground Contacts 0.041" thick brass0.041" thick brassBack Plate0.041" thick brass, nickel plated 0.041" thick brass, nickel plated Mounting ScrewsSteel, zinc platedSteel, zinc platedSingle ReceptaclesT able 4. SpecificationsT able 5. MaterialsProject Name:Prepared By:Project Number:Date:Catalog Number:Type:Product DimensionsFigure 4. AHL530RCompliances, specifications and availability are subject to change without notice.4EATON Technical DataEffective January 2014Industrial gradeL 5-30 locking devicesCatalog No.NEMA L5-30 Flanged OutletNEMA L5-30 Flanged InletNEMA Config NEMA L5-30NEMA L5-30Wiring Type Back wireBack wireEnvironmental Specifications Flammability: Meets UL94 requirements; V2 ratedTemperature Rating: -40°C to 60°C (-40°F to 140°F)Flammability: Meets UL94 requirements; V2 rated Temperature Rating: -40°C to 60°C (-40°F to 140°F)Electrical Specifications Dielectric Voltage: ≤300V: 2000V, 301-600V: 3000V per UL498Current Interrupting: Yes, at full-rated currentTemperature Rise: Max. 30ºC (86°F) after 50 cycles of overload @ 150% of rated current (DC)Dielectric Voltage: ≤300V: 2000V, 301-600V: 3000V per UL498Current Interrupting: Yes, at full-rated currentTemperature Rise: Max. 30ºC (86°F) @ maximum rated current (DC)Mechanical Specifications Terminal Accommodation: #14 - #8 AWGVoltage Ratings: Permanently marked on deviceTerminal Accommodation: #14 - #8 AWG Voltage Ratings: Permanently marked on deviceNEMA L5-30 30A, 125V/AC, 2P-3W Catalog No.NEMA L5-30 Flanged OutletNEMA L5-30 Flanged InletNEMA Config NEMA L5-30NEMA L5-30Outer Shell Nylon Nylon Interior Body NylonNylonTerminal Retainer Polycarbonate Polycarbonate BladesN/A0.062" thick brass Line Contacts 0.031" thick bronze N/A Terminal Clamps SteelSteelTerminal Screws #10-32 brass, nickel plated (neutral screw)#10-32 brass, nickel plated (neutral screw)Ground Screw #10-32 brass (green)#10-32 brass (green)Assembly Screws Steel, nickel plated Steel, nickel plated Mounting Screws Steel, zinc plated Steel, zinc platedCompliances, specifications and availability are subject to change without notice.Flanged Outlet & InletProject Name:Prepared By:Project Number:Date:Catalog Number:Type:T able 6. SpecificationsT able 7. MaterialsProduct DimensionsFigure 5. AHL530FO Figure 6. AHL530FI Figure 7. T op ViewTechnical DataEffective January 2014Industrial gradeL 5-30 locking devicesElectrical Sector 203 Cooper CirclePeachtree City, GA 30269United States Electrical Sector Canada Operations 5925 McLaughlin RoadMississauga, Ontario, L5R 1B8CanadaEatonCanada.ca Electrical Sector Mexico Operations Carr. Tlalnepantla -Cuautitlan Km 17.8 s/n Col. Villa Jardin esq.Cerrada 8 de MayoCuautitlan, Mexico CP 54800Mexico Eaton.mxEaton is a registered trademark. All other trademarks are property of their respective owners.Eaton1000 Eaton Boulevard Cleveland, OH 44122United States © 2014 EatonAll Rights Reserved Printed in USAPublication No. 125-0095-13January 2014Certifications & CompliancesProject Name:Prepared By:Project Number:Date:Catalog Number:Type:KEY:cULusUL CSAFed SpecNOMROHSAHIGL530P ••AHL530C ••••AHL530R •••••AHIGL530R ••••AHL530FO ••••AHL530FI•••Parts are manufactured and designed in accordance with article 4 of the European Union’s RoHS2 directive 2011/65/EUCompliances, specifications and availability are subject to change without notice.。

6368011-3RJ45 Connectors, RJ45, Multiple Ports, Port Matrix Configuration 2 x 1, RJ Type Jacks & Plugs, Standard Connector Contact Density, Jack, Stacked08/27/2020 05:30PM | Page 1For support call+1 800 522 6752Connectors > Modular Jacks & Plugs >RJ45 ConnectorsConnector Contact Density:StandardModular Jacks & Plugs Products:RJ Type Jacks & PlugsPort Matrix Configuration: 2 x 1Port Configuration:Multiple PortsModular Jack & Plug Interface Type:RJ45FeaturesProduct Type FeaturesConnectors & Connector Components Type ConnectorConnector Product TypeConnector Assembly Modular Jack & Plug Interface Type RJ45Modular Jacks & Plugs Products RJ Type Jacks & Plugs Modular Connector Style JackGrounding OptionsPCB and Panel Ground Connector & Contact Terminates To Printed Circuit BoardConfiguration Features Number of PCB Ground Tabs 6Port Configuration Multiple Ports Port Matrix Configuration 2 x 1Connector Contact Density Standard Multiple Port Configuration Stacked Status Indicator Type LED Number of Positions8Number of Loaded Positions 86368011-3 ACTIVETE Internal #:6368011-3RJ45 Connectors, RJ45, Multiple Ports, Port Matrix Configuration 2 x 1, RJ Type Jacks & Plugs, Standard Connector Contact Density, Jack, StackedView on >Number of Positions8Number of Loaded Positions8PCB Mount Orientation Right AngleBody FeaturesGrounding Tab Plating Material Tin over NickelShield Plating Material Tin over NickelShield Material Copper AlloyModular Jack Latch Orientation Standard - Latch DownConnector Profile LowLED Color (Bottom Left)GreenLED Color (Bottom Right)YellowLED Color (Top Left)GreenLED Color (Top Right)YellowContact FeaturesContact Underplating Material NickelPCB Contact Termination Area Plating Material TinContact Current Rating (Max).2 A, 1.5 AContact Mating Area Plating Material GoldContact Base Material Phosphor BronzeContact Mating Area Plating Material Thickness 1.27 µm[50 µin]Termination FeaturesTermination Method to Printed Circuit Board Through Hole - SolderTermination Post & Tail Length 2.85 mm[.112 in]Mechanical AttachmentPanel Mount Feature WithoutConnector Mounting Type Board Mount, Panel MountHousing FeaturesMating Entry Location SideCenterline (Pitch) 1.02 mm[.04 in]Housing Color BlackHousing Material PBT PolyesterDimensionsPCB Thickness (Recommended) 1.57 mm[.062 in]Connector Height31.45 mm[1.23 in]08/27/2020 05:30PM | Page 2 For support call+1 800 522 6752Connector Height31.45 mm[1.23 in]Usage ConditionsOperating Temperature Range-40 – 85 °C, -40 – 85 °C[-40 – 185 °F][-40 –185 °F]Operation/ApplicationShielded YesCircuit Application SignalIndustry StandardsUL Flammability Rating UL 94V-0Performance Category Cat 5Packaging FeaturesPackaging Quantity45Packaging Method TrayProduct ComplianceFor compliance documentation, visit the product page on >EU RoHS Directive 2011/65/EU CompliantEU ELV Directive 2000/53/EC CompliantChina RoHS 2 Directive MIIT Order No 32, 2016No Restricted Materials Above ThresholdEU REACH Regulation (EC) No. 1907/2006Current ECHA Candidate List: JUN 2020(209)Candidate List Declared Against: JAN 2020(205)Does not contain REACH SVHCHalogen Content Not Low Halogen - contains Br or Cl > 900ppm.Solder Process Capability Wave solder capable to 265°CProduct Compliance DisclaimerThis information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledgebased on the information they provided. This information is subject to change. The part numbers that TE has identified asEU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalentchromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to theselimits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment productswill be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the partnumbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenousmaterials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limitsas defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provideson SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance onrequirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-reach08/27/2020 05:30PM | Page 3 For support call+1 800 522 675208/27/2020 05:30PM | Page 4For support call+1 800 522 6752TE Model / Part #5223955-2TE UPM Ver Receptacle 3P STD PowerTE Model / Part #1489948-2XFP HEAT SINK CLIP, PLATEDTE Model / Part #5100161-1Z-PACK/C RAF 55PTE Model / Part #2057630-1CFP Receptacle Conn AssyTE Model / Part #2057592-2CFP Guide RailTE Model / Part #2057631-1CFP Receptacle Cover AssyTE Model / Part #5352115-1Z-PACK/C RAF 55PTE Model / Part #2007263-1SFP+ 1x2 Cage AssemblyTE Model / Part #1820802-1ETHERNET CaT 5 Cable AssyTE Model / Part #188729-18P.COVER/SOLD.STOPCompatible PartsCustomers Also BoughtDocumentsProduct DrawingsSTK MJ,2X1,SHLD,I135,G/Y/G/Y LEnglish CAD Files3D PDF3DCustomer View ModelENG_CVM_CVM_6368011-3_D.2d_dxf.zipEnglishCustomer View ModelENG_CVM_CVM_6368011-3_D.3d_igs.zipEnglishCustomer View ModelENG_CVM_CVM_6368011-3_D.3d_stp.zipENG_CVM_CVM_6368011-3_D.3d_stp.zipEnglishTerms and ConditionsBy downloading the CAD file I accept and agree to the of use.Product SpecificationsApplication SpecificationEnglishApplication SpecificationEnglishProduct Environmental ComplianceTE Material DeclarationEnglishAgency ApprovalsUL ReportEnglish08/27/2020 05:30PM | Page 5 For support call+1 800 522 6752。

rj45母座封装标准
RJ45母座封装标准如下：
1.RJ45接口作为最基本的网络接口之一有两种形式，对于千兆网口

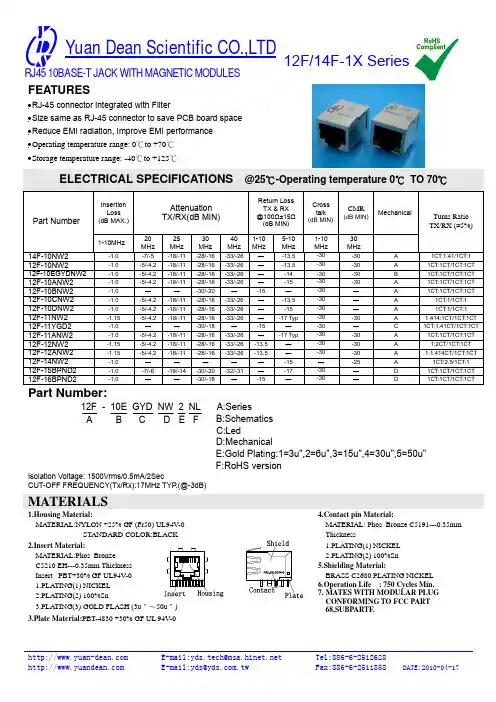

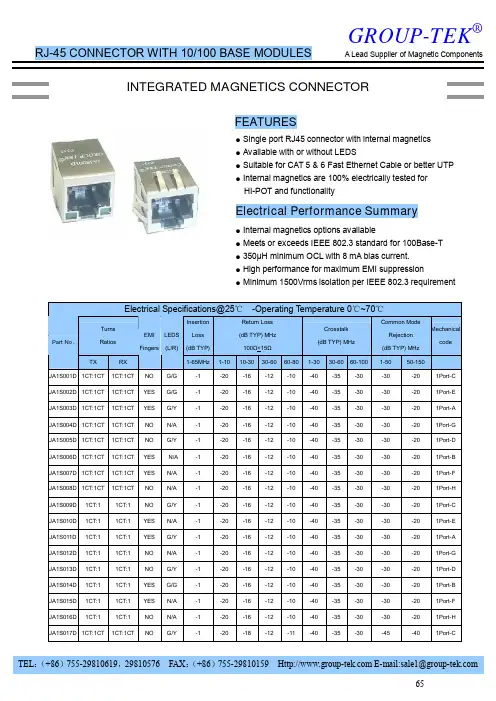

有4条线，两对差分线；对于千兆网口有4对差分线，RJ45水晶头是有8个凹槽和8个触点（8p8c）的接头，RJ45接口分为集成网络变压器和非集成网络变压器两种。

2.RJ11水晶头一般都是4芯的，常用来连接电话和调制解调器。

需
要注意的是，RJ11通常指的是6个位置（6针）模块化的插孔或插头，但是只有4针被用到，RJ11通常只有6个凹槽和4个触点（6p4c）的接头。

3.RJ45水晶头接线时有两种线序标准：T-568A和T-568B。

通过采用
不同的标准，最后制作成的网线有直通型和交叉型两种。

有的变压器中心抽头接到地，而且接电源时，电源值又可以不一样，3.3V、
2.5V、1.8V都有。

有些接地。
