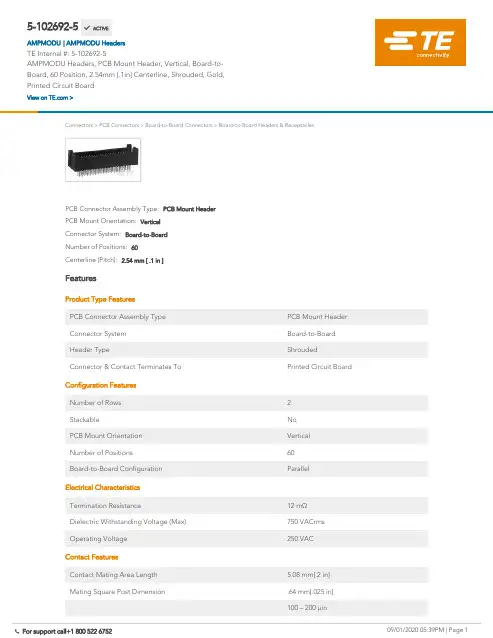

5-102692-5AMPMODU Headers, PCB Mount Header, Vertical, Board-to-Board, 60 Position, 2.54mm [.1in] Centerline, Shrouded, Gold, Printed Circuit BoardConnectors>PCB Connectors>Board-to-Board Connectors>Board-to-Board Headers & ReceptaclesCenterline (Pitch): 2.54 mm [ .1 in ]Number of Positions:60Connector System:Board-to-BoardPCB Mount Orientation:VerticalPCB Connector Assembly Type:PCB Mount HeaderFeaturesProduct Type FeaturesPCB Connector Assembly Type PCB Mount HeaderConnector System Board-to-BoardHeader Type ShroudedConnector & Contact Terminates To Printed Circuit BoardConfiguration FeaturesNumber of Rows2Stackable NoPCB Mount Orientation VerticalNumber of Positions60Board-to-Board Configuration ParallelElectrical CharacteristicsTermination Resistance12 mΩDielectric Withstanding Voltage (Max)750 VACrmsOperating Voltage250 VACContact FeaturesContact Mating Area Length 5.08 mm[.2 in]Mating Square Post Dimension.64 mm[.025 in]100 – 200 µin5-102692-5 ACTIVEAMPMODUTE Internal #:5-102692-5AMPMODU Headers, PCB Mount Header, Vertical, Board-to-Board, 60 Position, 2.54mm [.1in] Centerline, Shrouded, Gold,Printed Circuit BoardView on >AMPMODU Headers|Contact Shape & Form SquarePCB Contact Termination Area Plating Material Tin-LeadContact Base Material Phosphor Bronze Contact Mating Area Plating Material GoldContact Mating Area Plating Material Thickness.762 µm[30 µin] Contact Type PinContact Current Rating (Max) 2 ATermination FeaturesSquare Termination Post & Tail Dimension.64 mm[.025 in] Termination Post & Tail Length 4.57 mm[.18 in] Termination Method to Printed Circuit Board Through Hole - Solder Mechanical AttachmentMating Retention WithoutPCB Mount Retention Type Board Retention Tail Mating Alignment WithMating Alignment Type Guide PinsPCB Mount Retention WithPCB Mount Alignment WithoutConnector Mounting Type Board MountHousing FeaturesCenterline (Pitch) 2.54 mm[.1 in] Housing Color BlackHousing Material Thermoplastic DimensionsConnector Height13.97 mm[.55 in]Row-to-Row Spacing 2.54 mm[.1 in]Stack Height11.43 mm[.45 in]PCB Thickness (Recommended) 1.4 mm[.055 in]Usage ConditionsOperating Temperature Range-65 – 105 °C[-85 – 221 °F] Operation/ApplicationSolder Process Feature Board StandoffCircuit Application SignalIndustry StandardsApproved Standards CSA LE7189, UL E28476UL Flammability Rating UL 94V-0Packaging FeaturesPackaging Quantity24Packaging Method TubeOtherComment Headers with make first/break last postscan be made available.Product ComplianceFor compliance documentation, visit the product page on >EU RoHS Directive 2011/65/EU Not CompliantEU ELV Directive 2000/53/EC Not CompliantChina RoHS 2 Directive MIIT Order No 32, 2016Restricted Materials Above ThresholdEU REACH Regulation (EC) No. 1907/2006Current ECHA Candidate List: JUN 2020(209)Candidate List Declared Against: JAN 2020(205)Pb (13% in COMPONENT PART)Article Safe Usage Statements:Do not eat, drink or smoke when using this product. Wash thoroughly afterhandling. Recycle if possible and dispose of the article by following all applicablegovernmental regulations relevant to your geographic location. Halogen Content Not Yet Reviewed for halogen content Solder Process Capability Pin-in-Paste capable to 260°CProduct Compliance DisclaimerThis information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledgebased on the information they provided. This information is subject to change. The part numbers that TE has identified asEU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalentchromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to theselimits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment productswill be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the partnumbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenousmaterials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limitsas defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provideson SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) ‘Guidance onrequirements for substances in articles’ posted at this URL: https://echa.europa.eu/guidance-documents/guidance-on-reachCompatible PartsTE Model / Part #216905-1POSITIVE LOCK POWER RECEPTACLE TPPHBRZTE Model / Part #7-1879026-6YR1 0.1% 41R2TE Model / Part #1879026-1YR1 0.1% 10R2TE Model / Part #5161390-202P.DIP SWITCH ASSYTE Model / Part #5177986-40.8FH,P05H.5,100,08/Sn,TR,SCTE Model / Part #8-1624112-93650 0603 0.18uH 5% 2K RLTE Model / Part #1393481-5V23529B1225C209=SUB D STIFTLEITE Model / Part #966066-2ADERENDHUELSE L BLWire-to-Board Headers & Receptacles (79)Wire-to-Board Connector Contacts(46)Wire-to-Board Connector Assemblies & Housings(3)PCB Latches, Locks & Retainers(2)PCB Connector Shrouds(1)PCB Connector Mounting(1)Board-to-Board Headers & Receptacles(5340)Automotive Headers(10)TE Model / Part #5-532956-960 MODII 2PC CE RCPT ASSY, RoHSTE Model / Part #5-534204-560 MODU 2-PC CE RECP ASSY, RoHSAlso in the Series AMPMODU HeadersCustomers Also BoughtTE Model / Part #6-969982-8AMPMODU II Action Pin Header, dualrowDocumentsProduct Drawings60 MODII 2PC HDR DR SHRD, ROHSEnglishCAD FilesCustomer View ModelENG_CVM_5-102692-5_L2.3d_igs.zipEnglishCustomer View ModelENG_CVM_5-102692-5_L2.3d_stp.zipEnglishCustomer View ModelENG_CVM_5-102692-5_L2.2d_dxf.zipEnglish3D PDFEnglishTerms and ConditionsBy downloading the CAD file I accept and agree to the of use.Datasheets & Catalog PagesAMPMODU_INTERCONNECTION_SYSTEM_SECTION5_CONT English。
