H3C S12500 高级电源管理技术白皮书

H3C大数据产品技术白皮书杭州华三通信技术有限公司8:07 AM目录1H3C大数据产品介绍 (1)1.1产品简介 (1)1.2产品架构 (1)1。

2.1 数据处理 (2)1。

2。

2 数据分层 (3)1。

3产品技术特点 (4)先进的混合计算架构 (4)高性价比的分布式集群 (4)云化ETL (4)数据分层和分级存储 (5)数据分析挖掘 (5)数据服务接口 (5)可视化运维管理 (5)1。

4产品功能简介 (6)管理平面功能: (7)业务平面功能： (8)2DataEngine HDP核心技术 (9)3DataEngine MPP Cluster核心技术 (9)3.1MPP + Shared Nothing架构 (9)3。

2核心组件 (10)3.3高可用 (11)3。

4高性能扩展能力 (11)3.5高性能数据加载 (12)3。

6OLAP函数 (13)3.7行列混合存储 (13)1H3C大数据产品介绍1.1产品简介H3C大数据平台采用开源社区Apache Hadoop2.0和MPP分布式数据库混合计算框架为用户提供一套完整的大数据平台解决方案，具备高性能、高可用、高扩展特性,可以为超大规模数据管理提供高性价比的通用计算存储能力。

H3C大数据平台提供数据采集转换、计算存储、分析挖掘、共享交换以及可视化等全系列功能，并广泛地用于支撑各类数据仓库系统、BI系统和决策支持系统帮助用户构建海量数据处理系统，发现数据的内在价值。

1.2产品架构H3C大数据平台包含4个部分:第一部分是运维管理，包括:安装部署、配置管理、主机管理、用户管理、服务管理、监控告警和安全管理等。

第二部分是数据ETL，即获取、转换、加载,包括:关系数据库连接Sqoop、日志采集Flume、ETL工具 Kettle。

第三部分是数据计算.MPP采用分析型分布式数据库，存储高价值密度的结构化数据;Hadoop存储非结构化/半结构化数据和低价值密度结构化数据.计算结果都存到数据仓库，数据仓库中的数据可直接用于分析和展示。

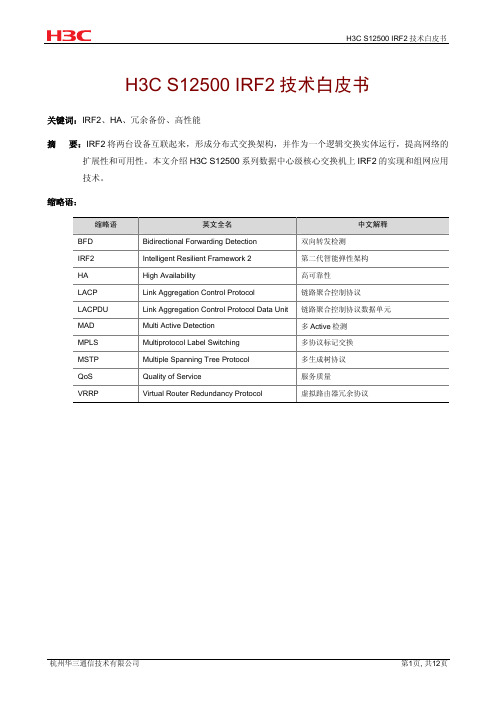

H3C S12500 IRF2技术白皮书关键词：IRF2、HA、冗余备份、高性能摘要：IRF2将两台设备互联起来，形成分布式交换架构，并作为一个逻辑交换实体运行，提高网络的扩展性和可用性。

本文介绍H3C S12500系列数据中心级核心交换机上IRF2的实现和组网应用技术。

缩略语：缩略语英文全名中文解释BFD Bidirectional Forwarding Detection 双向转发检测IRF2 Intelligent Resilient Framework 2 第二代智能弹性架构Availability 高可靠性HA HighLACP Link Aggregation Control Protocol 链路聚合控制协议LACPDU Link Aggregation Control Protocol Data Unit 链路聚合控制协议数据单元MAD Multi Active Detection 多Active检测MPLS Multiprotocol Label Switching 多协议标记交换MSTP Multiple Spanning Tree Protocol 多生成树协议Service 服务质量ofQoS QualityVRRP Virtual Router Redundancy Protocol 虚拟路由器冗余协议目录1 概述 (3)2 S12500 IRF2的技术实现 (3)2.1 S12500 IRF2基本概念 (3)2.2 S12500 IRF2的形成 (4)2.3 S12500 IRF2数据转发 (5)3 S12500 IRF2的组网优点 (7)3.1 简化管理 (7)3.2 高性能 (7)3.3 高可靠性 (8)3.4 简化组网 (8)4 S12500 IRF2分裂和多Active检测 (9)4.1 设备故障 (9)4.2 多Active检测 (9)4.2.1 基于LACP的多Active检测 (9)4.2.2 基于BFD的多Active检测 (10)4.3 故障恢复 (10)5 典型组网应用 (11)5.1 扩展网络处理能力 (11)5.2 提供高可靠性 (12)1 概述IRF2（Intelligent Resilient Framework 2，第二代智能弹性架构）是H3C自主研发的软件虚拟化技术，它的核心思想是将多台设备通过IRF物理端口连接在一起，进行必要的配置后，虚拟化成一台“虚拟设备”，通过该“虚拟设备”来实现多台设备的协同工作、统一管理和不间断维护。

华三S12500交换机大POP点配置指导华三通信技术2015年08月华三S12500交换机大POP点配置指导1 准备工作说明1、上联端口规划准备完毕。

2、设备地址规划完毕。

2 IRF2堆叠组（二虚一）建立配置(1) 配置S12510机框一# 设置S12510机框一的成员编号为1。

<Sysname> system-view[Sysname] irf member 1Info: Member ID change will take effect after the member reboots and operates in IRF mode.# 将设备的运行模式切换到IRF模式。

<Sysname> system-view[Sysname] chassis convert mode irfThe device will switch to IRF mode and reboot. You are recommended to save the current running configuration and specify the configuration file for the next startup. Continue? [Y/N]:yDo you want to convert the content of the next startup configuration file flash:/startup.cfg to make it available in IRF mode? [Y/N]:yPlease wait...Saving the converted configuration file to the main board succeeded.Slot 1:Saving the converted configuration file succeeded.Now rebooting, please wait...设备重启后S12510机框一形成了只有一台成员设备的IRF。

he H3C S12500 DataCenter Cloud Core Switch Series is designed for cloud services data centers. It provides the following features:H3C S12500 DataCenter Cloud Core Switch SeriesCLOS+ multi-grade multi-plane architectureIndustry’s highest performance core switch with 768 line-speed 40G/100G interface per chassisIntegration of IRF2 (Intelligent Resilient Framework version 2), IRF3 (Intelligent Resilient Framework version 3) and MDC (Multi-tenant Device Context) to implement virtual resource poolsDistributed ingress buffers (200 ms) to accommodate burst traffic in data centersIndependent control, detection, and maintenance engines to implement 50ms failover and powerful control capabilities The S12500 switch series includes S12508, S12518, S12510-X, S12516-X, 12504X-AF, 12508X-AF, 12512X-AF andS12516X-AF, which meet various port density and performance requirements. The S12500 switch series can work with H3C routers, switches, security devices, IMC, and H3Cloud to provide a wide variety solutionsHigh Availability (HA) - Patented hot standby technologyprovides data backup and non-stop forwarding on the control plane and data plane. It improves availability and performance eliminating single-point of failures, and ensure service continuity Distribution - Multi-chassis link aggregation to enable loadsharing and backup over multiple uplinks, improving redundancy and link utilizationEasy Management - A single IP address to manage the whole IRF fabric, which simplifies device and topology management, improving operating efficiency, and lowering network maintenance costTVirtualization technologies - IRF2Virtualization technologies - IRF3Features Advanced CLOS+ multi-grade multi-plane switching architecture•••••••••••••CLOS+ multi-grade multi-plane architecture, midplane free design, providing continuous bandwidth upgrade capability Supports industry first 48-port 40GE/ 100GE interfaces and can meet the existing and future application requirements of data centers•Adopts independent switching fabric modules and MPU engines to improve device availability and ensure bandwidth expansion••Increased I/O ports and centralized maintenance and managementReduced network management nodes Simplified cable deployment Data plane virtualizationIRF2 can virtualize up to four S12500 switches into one logical IRF fabric. IRF2 delivers the following benefits:IRF3 virtualizes core and access switches into one logical device. IRF3 delivers the following benefits:OverviewIndependent control engine - Uses a powerful CPU system that can efficiently process protocol and control packets, providing refined control for protocol packets and comprehensive protection against protocol packet attacks Independent detection engine - Provides highly reliable Fast Fault Detection and Restoration (FFDR) such as BFD and OAM, which can interact with protocols on the control plane toimplement millisecond-level failover and convergence, ensuring service continuityIndependent maintenance engine - Uses an intelligent Embedded Maintenance Subsystem (EMS), a CPU system that provides smart power management, including sequential power-on and power-off and device status check. Sequential power-on and power-off reduces power impulse, electromagnetic radiation, power consumption, and extends the device lifespan•••••••••••TRILL/SPB - Designed for building large flat Layer 2 networks for data centers to accommodate more servers. TRILL or SPB integrates the simplicity and flexibility of Layer 2 with the stability, scalability, and high performance of Layer 3EVI - EVI is a MAC-in-IP technology that provides Layer 2connectivity between distant Layer 2 network sites across an IP routed network. It is used for connecting geographically dispersed sites of a virtualized large-scale data center that requires Layer 2 adjacencyFCOE - Integrates heterogeneous LANs and storage networks in data centers. FCOE and CEE integrate data, computing, and storage networks in data centers, reducing the costs for building and expanding data centersVXLAN (Virtual Extensible LAN) —VXLAN uses a MAC-in-UDP encapsulation method where the original Layer 2 package is added with a VXLAN header, and is then placed in a UDP-IP packet. With the help of MAC-in-UDP encapsulation, VXLAN tunnels Layer 2 network over Layer 3 network which provides two major benefits: higher scalability of Layer 2 segmentation and better utilization of available network pathsMP-BGP EVPN (Multiprotocol Border Gateway Protocol Ethernet Virtual Private Network) uses standard-based BGP protocol as the control plane for VXLAN overlay networks, providing BGP based VTEP auto peer discovery and end-host reachabilityinformation distribution. MP-BGP EVPN delivers many benefits, such as eliminating traffic flooding, reducing full meshrequirements between VTEPs via the introduction of BGP RR, achieving optimal flow based end to end load sharing and more Large capacities for storing ARP/ND, MAC, and ACL entriesDC-oriented features••••••DC-class HAInnovative multi-engine designFFDR provides BFD and OAM functions to implement fast failover and convergence. The following lists the DC-class HA features:Independent control, detection, and maintenance engines provide powerful control capability and millisecond-level HA:BFD for VRRP/BGP/IS-IS/RIP/OSPF/RSVP/static routing NSR/GR for OSFP/BGP/IS-IS/RSVPSeparation of control and data planes through independent control engine and switching fabric module 1+1 redundancy for control engines N+1 redundancy for switch fabric modules 1+1 redundancy for fan trays N+M redundancy for power modulesSupports a large numbers of ACLs while ensuring line-speed forwarding. ACLs can identify and control L2/IPv4/IPv6/MPLS traffic by using combinations of packet fieldsMulti-level security protectionThe S12500 switch series use QoS policies to filter and limit traffic from data plane to control plane. During a DoS attack, the switch can identify and protect important packets and discard attack packets, ensuring normal operation••Virtualization technologies - MDCMDC virtualizes one S12500 switch into multiple logicalswitches, enabling multiple services to share one core switch. The 1:N virtualization maximizes switch utilization, reduces network TCO, and ensures secure isolation of services••••Distributed buffering and precise QoSDistributed ingress buffers accommodate burst traffic. Each port performs a precise bandwidth assignment and traffic shaping for incoming traffic, and distributes the traffic to ingress buffers. Distributed buffering can fully utilize the buffers of line cards to ensure best buffering performanceA network model change from C/S to B/S leads to increased volumes of burst traffic. Network devices must have larger buffering capabilities to support this. The S12500 series supports 200ms buffering of burst traffic per 10G interface, which can meet the burst traffic requirements of large data centersEach chip can support 4GB buffer, maximum of 24GB buffer per line cardEach line card supports a maximum of 96K hardware queues, refined QoS, and traffic management. QoS can assign different priorities and queues to different users to provide differentiated services•••Comprehensive maintenance and monitoringOnline state monitoring - Uses a dedicated engine to monitor the state of switch fabric modules, backplane channels, service communication channels, key chips, and storage. Once a failure occurs, it reports the failure to the system through EMS Card isolation - Isolates specified cards from the forwarding plane. The isolated cards still work on the control plane,allowing the user to perform management operations such as real-time diagnosis and CPLD upgrade on the isolated cards without affecting system operationEthernet OAM provides multiple device-level and network-level fault detection methods••OAAOAA provides an open service platform that supports multiple service cards, including next generation firewall and netstream cards. The integration of these cards to the switch allows for unified network security solutionsGreenIntelligent EMS engine system - Provides smart power management that supports sequential power-on andpower-off and device status check. Sequential power-on and power-off reduces power impulse and electromagneticradiation, and increases the lifetime of the device. Additionally, device status checks can isolate faulty and idle cards to reduce power consumption••••Smart fan management - Collects fan temperature, calculates fan speed, and assigns the calculated speed to the fan tray. In addition, it detects fan speeds, fault alarms, and performs speed adjustment based on configurations and area, reducing power consumption and noise, increasing the fan's lifetimeInternal interface monitoring - Automatically shuts down unused internal interfaces to reduce power consumptionRoHS compliance - The S12500 switch series meets the EU RoHS safety standardsThe S12500 switch series is designed with front to back air flow, satisfying highly efficient heat dissipation requirements in data centreSpecificationsEnterprise DC applicationProvides large-capacity forwarding through its multi-level switching fabric to completely meet the traffic forwarding requirements of large data centers.Provides HA mechanisms such as BFD and FRR to ensure the availability of data center networks.Work with other H3C switches, routers and security devices to offer a complete data center solution.•••As core devices in data center networks, the S12500 series features the following:resources10GE Base-Tserver10GE server S10500S5820V2-52QF 10G server GE serverFC storageIDC ApplicationH3C Technologies Co. Limited Add: Room 2301, 23/F,Lee Garden Two, 28 Yun Ping Rd, Causeway Bay, Hong Kong Tel: 2501 1111 Fax: 2537 1149Service Hotline: 2907 0456Copyright © 2016 by H3C Technologies Co., LimitedAll product photography in this literature is intended for reference only. All rights reserved. No part of this document may be reproduced or transmitted in any form, by any company or person and product names may be trademarks of their respective companies. While every effort is made to ensure the information given is accurate, H3C Technologies Co., Limited does not hold liability for any errors or mistakes whichProvides up to 768 line-speed 40G/100G interfaces to meet the performance requirements of new generation IDCs.Supports virtualization technologies such as IRF and TRILL to implement large-scale network deployment.Supports large scale of MAC and ARP entries to meet flat network requirements.As the core devices in IDC networks, the S12500 switch series features the following:•••。
