海康威视前端产品手册V3.0 (10.07)致用户书首先，感谢关注和关心海康威视的业界同仁，特别感谢支持和鼓励海康威视的众多合作伙伴及最终用户。
经过几年的快速发展海康威视在研发团队建设、生产管理和资金积累方面，有了长足的进步，可以在研发方面进行更大的投入。
在保证压缩板卡、嵌入式硬盘录像机、视频服务器持续升级换代的情况下，能够同时进行多个系列前端视频监控产品的开发，生产和销售。
海康威视非常关注客户需求和行业发展趋势，持续增加研发投入，在生产管理和品质保障方面持续改进，秉承板卡/DVR的高端品质，坚持“可靠性优先”的原则，并提供产品定制服务，全力打造一流前端视频监控产品。
为了方便用户了解和使用海康威视的前端视频监控产品，我们编写此本《前端产品手册》，随着产品的更新，我们将对其进行相应的更新。
注：“高速智能球”和“中速智能球”以下简称“快球”，“网络高速智能球”和“网络中速智能球” 以下简称“网络快球”公司简介海康威视是中国领先的数码监控产品供应商，致力于不断提升视频编解码技术和视频处理技术，提供满足市场需求的、可靠的高性能视音频数码产品。
公司在中国大陆23个城市设立了分公司，在香港和美国达拉斯设立了全资子公司，营销服务网络遍布全球，为客户提供快捷、优质的服务。
海康威视拥有业内领先的技术和可持续发展的能力，创造了众多的行业第一，始终引领行业发展方向。
公司坚持“客户满意度”为向导，提供定制化的产品和服务，支持增值开发，为合作伙伴创造长期价值。
海康威视一直奉行“可靠性优先”的原则，推出了视音频压缩板卡、网络硬盘录像机、视频服务器、摄像机、球形摄像机、网络存储等系列产品。
产品拥有自主知识产权，应用于全球100多个国家和地区，板卡和网络硬盘录像机国内市场占有率连年稳居第一位。
作为安防应用的首选品牌，服务于众多高端应用场合，如德国世界杯、国家体育场“鸟巢”及50%以上的北京奥运场馆和奥运村、青藏铁路全线、电信全球眼、网通宽视界等。
海康威视数码监控产品介绍●定位：专业的视音频压缩板卡和嵌入式网络硬盘录像机的供应商●宗旨：致力于视频和音频数字编解码技术的研究，提供满足市场需求的视音频编解码产品，为用户提供完整的解决方案●理念：专业、厚实、诚信●连续三年荣获中国安防十大民族品牌之一●荣获2004年中国安防产品知名品牌●荣获2005中国安防十大品牌●浙江省信息产业厅“浙江省数字视音频技术研究发展中心”落户海康威视●TI(德州仪器)与海康威视共同成立了数字信号处理方案实验室●荣获中国安防百家最具成长性企业●海康威视产品应用在德国世界杯赛场、上海六国峰会、青藏铁路、北京亚运会主会场鸟巢等重要场合●入选中国安防产业五十强●被评为“中国安防十大khuiuhiuhhh]品牌”l海康威视数字录像设备作为首选品牌，入选“3111”试点工程推荐优秀安防企业产品●海康威视入选2006德勤中国高科技、高成长50强，德勤亚太高科技高成长500强（第二次入选）DS-8000 系列系列产品主要性能与功能压缩处理:压缩代码具有自主知识产权，压缩比高，清晰度好，编码性能稳定可靠；独立硬件压缩，DSP 功耗低，更适合长时间稳定运行；每路视频参数独立可调；动态调整编码参数；支持定码率、变码率、变帧率；可设定视频图像质量，也可设定视频图像的压缩码流，以获得满意的回放的图像质量和码流大小:视频和音频信号压缩后生成复合码流，也可生成单一H.264 视频流；复合码流回放时视频和音频保持同步；支持双码流技术；支持水印（WaterMark）技术，防止图像被修改，保证录像资料真实有效。
本地录像一台设备最多可支持八个硬盘的连接，每个硬盘的容量可达2000GB；录像模式：定时录像、手动录像、移动侦测录像、报警录像、命令触发录像、移动侦测录像&报警录像、移动侦测录像| 报警录像；文件切换时不丢帧；硬盘文件系统为FAT32，与Windows 文件系统一致；硬盘上文件可以选择循环记录和非循环记录；文件记录无碎片，系统可长时间保持稳定运行；硬盘内录像资料不可被删除；本地硬盘SMART 支持；非工作硬盘休眠机制；通过USB 设备、IDE CDRW、SATA 设备进行文件备份或本地码流剪辑；可外接盘库等第三方存储设备。

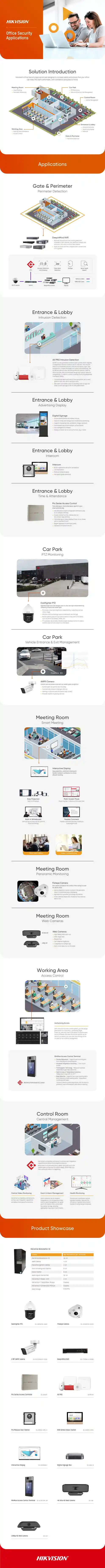

OPTICAL MODULENETWORK CABLESRECOMMENDED OPTIONSWIRELESS BRIDGEAGGREGATION & CORE ETHERNET SWITCHINDUSTRIAL POE ETHERNET SWITCH≤ 100-ch IPCTypeModel Aggregation switchDS-3E0524TFAccess switch DS-3E01(3)xxP-E(B)Access switchDS-3E01(3)xxP-E/M(B)Access switch DS-3E05xxP-E Access switch DS-3E05xx-EOptical moduleHK-SFP-1.25G-1310-DF-MM100-ch < IPC ≤ 300-chTypeModel Aggregation switch DS-3E2528Access switch DS-3E13xxP-E Access switch DS-3E01(3)xxP-E(B)Access switch DS-3E05xxP-E Access switch DS-3E05xx-E Optical moduleHK-SFP-1.25G-20-1310HK-SFP-1.25G-20-1550300-ch < IPC ≤ 500-chType Model Core switch DS-3E3756TF Core switch DS-3E3740Aggregation switchDS-3E2528Access switch DS-3E23xxP-E Access switch DS-3E05xxP-E Access switch DS-3E01(3)xxP-E(B)Optical moduleHK-SFP-1.25G-20-1310HK-SFP-1.25G-20-1550ModelImageDescriptionHK-SFP-1.25G-20-1310TX 1310 nm/1.25G, RX 1550 nm/1.25G, LC, single mode and single fiber, 20 km, 0~70°C, SFPHK-SFP-1.25G-20-1550TX 1550 nm/1.25G, RX 1310 nm/1.25G, LC, single mode and single fiber, 20 km, 0~70°C, SFPHK-SFP-1.25G-1310-DF-MMTX 1310 nm/1.25G, RX 1310 nm/1.25G, LC, Multi mode and duplex fiber, 1 km, 0~70°C, SFPHK-SFP-1.25G-20-1310-DF TX 1310 nm/1.25G, RX 1310 nm/1.25G, LC, Single mode and duplex fiber, 20 km, 0~70°C, SFPHK-SFP+-10G-20-1270TX 1270 nm/10G, RX 1330 nm/10G, LC, single mode and single fiber, 20 km, 0~70°C, SFP+HK-SFP+-10G-20-1330TX 1330 nm/10G, RX 1270 nm/10G, LC, single mode and single fiber, 20 km, 0~70°C, SFP+Outdoor wireless bridgeElevator wireless bridgeModelDS-3WF01C-2N/ODS-3WF02C-5N/ODS-3WF03CDS-3WF0AC-2NTDS-3WF01C-2NDescriptionSupports point-to-point &point-to-multipoint;Range up to 3 km; 802.11 b/g/n, Built-in 12 dBiantenna up to 150 Mbps; Output power 27 dBm; Angle Horizontal: 60° Vertical: 30°; IP65;Supports point-to-point & point-to-multipoint; Range up to 5 km; 802.11 a/n, Built-in 10 dBi 2×2 MIMO antenna up to 300 Mbps; Output power 24 dBm; Angle Horizontal: 60° Vertical: 16°; IP65;Supports point-to-point & point-to-multipoint; Range up to 15 km; 802.11a/n, Built-in 15dBi 2×2 MIMO antenna with 300 Mbps; Output power 27 dBm; Angle Horizontal: 40° Vertical: 15°; IP65;Supports point-to-point, distance 100 m; IEEE 802.11b/g/n, Built-in 8dBi antenna; Output power 20 dBm; Angle Horizontal: 60° Vertical: 30°; Working temperature: -30 ~65°C; Plug and play, no initial setting;Supports point-to-point, distance 500 m; IEEE 802.11b/g/n, Built-in 6dBi antenna; Output power 27 dBm; Angle Horizontal: 65° Vertical: 60°; Working temperature: -30 ~65°C;Plug and play, no initial setting;ModelDS-1LN5E-SDS-1LN6-UUDS-1LN5E-E/EDS-1LN6-UE-WDescriptionUTP CAT 5E, 305 meters Core diameter: 0.5 mm Solid copper,CM,grayUTP CAT 6, 305 meters Core diameter: 0.565 mm Solid copper, CM, orangeUTP CAT 5E, 305 meters Core diameter: 0.45 mm Solid copper, CMX,grayUTP CAT 6, 305 meters, Core diameter: 0.53 mm Solid copper, CM,whiteModelDS-3E0524TFDS-3E2528DS-3E3740DS-3E3756TFManagement Unmanaged Full-managed Full-managed Full-managed Ports12 × Gigabit RJ45 ports 12 × Gigabit SFP ports24 × Gigabit RJ45 ports 4 × Gigabit SFP ports32 × Gigabit RJ45 ports 8 × 10G SFP+ ports24 × Gigabit RJ45 ports 24 × Gigabit SFP ports 8 × 10G SFP+ portsPacket Forwarding Rate 35.7 Mpps 42 Mpps 136 Mpps 136 Mpps Switching Capacity 48 Gbps 56 Gbps 224 Gbps 256 GbpsMAC Address Table 16 K 8 K64 K64 KManagement Mode -Console, Telnet, SSH2.0, Web, SNMP v1/v2/v3, TFTP, RMONOther Software Features-STP, VLAN, Mirroring, IGMP Snoopingand IGMP v1/v2, L2/L3/L4 ACL, LACP,EAPS, ERPSSTP, VLAN, Mirroring, IGMP Snooping and IGMP v1/v2, L2/L3/L4 ACL, LACP, EAPS,Operating Temperature -5°C~50°C0°C~45°C0°C~45°C0°C~45°C Dimension (440 × 186.5 × 44.5) mm (440 × 230 × 45) mm (442.5 × 315 × 44) mm (442.5 × 350 × 44) mmPower SupplyModelELG-150-48AImageOutput Voltage 48 VRated Current 3.13 ARated Power 150 WOperating Temperature-40~90°CIP Rating IP65AccessoryOptional accessory for industrial PoEswitchIndustrial switchModelDS-3T0306PDS-3T0310PManagement UnmanagedUnmanagedPorts 4 × 10/100 Mbps PoE RJ45 ports2 × Gigabit uplink SFP ports 8 × 10/100 Mbps PoE RJ45 ports 2 × Gigabit uplink SFP ports PoE Standards IEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atPoE Budget≤ 120 W ≤ 240 W Packet Forwarding Rate 3.6 Mpps 4.2 Mpps Switching Capacity 8.8 Gbps 8.8 Gbps MAC Address Table 4 K 4 K Surge Protection 2 KV 2 KV Operating Temperature -40°C~75°C -40°C~75°C Dimension(155 × 130 × 42) mm(170 × 156 × 42) mmUNMANAGED NON-POE ETHERNET SWITCHUNMANAGED POE ETHERNET SWITCHMANAGED POE ETHERNET SWITCHUNMANAGED SWITCHIEEE 802.3bt Standard Hi-PoE, Max. 90 W for One PortIEEE 802.3bt standard Hi-PoE port provides max. 90 W power supply for high power devices such as domes.Up to 300 m Long Range PoE TransmissionBased on all series of camera tests with Hikvisionnetwork cables, up to 300 m long range PoE transmission is provided.Intelligent PoE ManagementWhen the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime.4/8-Core Adaptive Power Supply with Less Power Loss8-core power supply reduces the power loss on cables.6KV Surge Protection to Improve Reliability in Harsh EnvironmentThe built-in surge protection device protects the switch from the sudden lightning surge in harsh environment.Design for Video TransmissionVIP port ensures important data transmission when network congestion occurs.Hi-PoE SwitchesModelDS-3E0106HP-EDS-3E0310HP-EPorts1 × 10/100 Mbps Hi-PoE port 3 × 10/100 Mbps PoE ports2 × 10/100 Mbps RJ45 ports 1 × 10/100 Mbps Hi-PoE port 7 × 10/100 Mbps PoE ports 2 × Gigabit RJ45 ports PoE Standards Port 1: IEEE 802.3af, IEEE 802.3at, IEEE802.3btPorts 2 to 4: IEEE 802.3af, IEEE 802.3atPort 1: IEEE 802.3af, IEEE 802.3at, IEEE802.3btPorts 2 to 8: IEEE 802.3af, IEEE 802.3atPoE Budget 60 W 110 W Max. port PoE power Port 1: 60 W Ports 2 to 4: 30 W Port 1: 90 W Ports 2 to 8: 30 W PoE Extend Mode Max. 300 m, Port 1-4Max. 300 m, Port 1-8Packet Forwarding Rate 0.893 Mpps 4.166 Mpps Switching Capacity 1.2 Gbps 5.6 Gbps MAC Address Table 2 K 16 K Surge Protection 6 KV 6 KV Operating Temperature-10°C~55°C -10°C~55°CDimension(145 × 25.6 × 68.45) mm(217.6 × 27.8 × 103.35) mm10/100 Mbps SwitchesModelDS-3E0105P-E/M(B)DS-3E0109P-E/M(B)DS-3E0318P-E/M(B)DS-3E0326P-E/M(B)DS-3E0105P-E(B)DS-3E0109P-E(C)DS-3E0318P-E(B)DS-3E0326P-E(B)Ports4 × 10/100 Mbps PoE RJ45 ports 1 × 10/100 Mbps uplink RJ45 port8 × 10/100 Mbps PoE RJ45 ports 1 × 10/100 Mbps uplink RJ45 port16 × 10/100 Mbps PoE RJ45 ports 1 × Gigabit uplink RJ45 port 1 × Gigabit uplink SFP port 24 × 10/100 Mbps PoE RJ45 ports1 × Gigabit uplink RJ45 port1 × Gigabit uplink SFP port4 × 10/100 Mbps PoE RJ45 ports1 × 10/100 Mbps uplink RJ45 port8 × 10/100 Mbps PoE RJ45 ports1 × 10/100 Mbps uplink RJ45 port16 × 10/100 Mbps PoE RJ45 ports 2 × Gigabit comb ports (2 RJ45 Ports and 2 SFP Ports)24 × 10/100 Mbps PoE RJ45 ports 2 × Gigabit comb ports (2 RJ45Ports and 2 SFP Ports)PoE Standards IEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atPoE Budget35 W60 W130 W230 W60 W115 W 230 W370 WPoE Extend Mode Max.300 m, Port 1-4Max. 300 m, Port 1-8Max. 300 m, Port 9-16Max. 300 m, Port 17-24Max 300 m, Port 1-4Max 300 m, Port 1-8Max. 300 m, Port 9-16Max. 300 m, Port 17-24Packet Forwarding Rate0.744 Mpps 1.34 Mpps 5.36 Mpps 6.55 Mpps 0.74 Mpps 1.34 Mpps 5.36 Mpps 6.55 Mpps Switching Capacity1 Gbps 1.8 Gbps 7.2 Gbps 8.8 Gbps 1 Gbps 1.8 Gbps 7.2 Gbps 8.8 Gbps MAC Address Table 1 K 2 K 4 K 4 K 1 K 2 K 4 K 4 K Surge Protection 6 KV 6 KV 6 KV 6 KV 6 KV 6 KV 6 KV 6 KV Operating Temperature-10°C~55°C -10°C~55°C -10°C~55°C -10°C~55°C -10°C~55°C -10°C~55°C -10°C~55°C -10°C~55°C Dimension(105 × 27.6 × 83.1)mm(170 × 27.6 × 93.1) mm(266 × 44.5 × 220.8) mm(335 × 44.5 × 226) mm(105 × 27.6 × 83.1) mm(170 × 27.6 × 93.1) mm(440 × 44 × 220.8) mm(440 × 44 × 220.8) mmGigabit SwitchesModel DS-3E0505P-EDS-3E0510P-EDS-3E0518P-EDS-3E0526P-EPorts4 × Gigabit PoE RJ45 ports1 × Gigabit RJ45 port 8 × Gigabit PoE RJ45 ports 1 × Gigabit RJ45 port 1 × Gigabit SFP port 16 × Gigabit PoE RJ45 ports 1 × Gigabit RJ45 port 1 × Gigabit SFP port 24 × Gigabit PoE RJ45 ports 1 × Gigabit RJ45 port 1 × Gigabit SFP port PoE Standards IEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atPoE Budget60 W 110 W 230 W 370 W Packet Forwarding Rate 7.44 Mpps 14.88 Mpps 26.784 Mpps 38.688 Mpps Switching Capacity 10 Gbps 20 Gbps 36 Gbps 52 Gbps MAC Address Table 2 K 4 K 8 K 8 K Surge Protection6 KV 6 KV 6 KV 6 KV Operating Temperature-10°C~55°C -10°C~55°C-10°C~55°C -10°C~55°C Dimension(105 × 27.6 × 83.1) mm(217.6 × 27.8 × 108.55) mm(440 × 44 × 220.8) mm(440 × 44 × 220.8) mmModel DS-3E0105D-EDS-3E0108D-EDS-3E0505D-EDS-3E0508D-EDS-3E0508-EDS-3E0516-EDS-3E0524-EPorts 5 × 10/100 Mbps RJ45 ports 8 × 10/100 Mbps RJ45 ports 5 × Gigabit RJ45 ports 8 × Gigabit RJ45 ports 8 × Gigabit RJ45 ports 16 × Gigabit RJ45 ports 24 × Gigabit RJ45 portsSwitching Capacity 1 Gbps 1.6 Gbps 10 Gbps 16 Gbps 16 Gbps 32 Gbps 48 GbpsPacket Forwarding Rate 0.744 Mpps 1.1904 Mpps 7.44 Mpps 11.904 Mpps 11.9 Mpps 23.8 Mpps 35.7 MppsMAC Address Table 1 K 1 K 2 K 4 K 4 K 8 K 8 KSurge Protection ---- 4 KV 4 KV 4 KVOperating Temperature 0°C~40°C 0°C~40°C 0°C~40°C 0°C~40°C 0°C~40°C 0°C~40°C 0°C~40°CDimension (82 × 52 × 22.4) mm (124 × 59 × 23.2) mm (92.8 × 65.8 × 22.8) mm (142 × 90 × 23) mm (186.7 × 106.7 × 33.3) mm (440 × 178.8 × 44) mm (440 × 178.8 × 44) mmModel DS-3E1310P-EDS-3E1318P-EDS-3E1326P-EDS-3E2310PDS-3E2318PDS-3E2326PDS-3E2510PDS-3E2528PManagement Web-managed Web-managed Web-managed Full-managed Full-managed Full-managed Full-managed Full-managed Ports 8 × 10/100 Mbps PoE RJ45 ports 2 × Gigabit comb ports (2 RJ45 Ports and 2 SFP Ports)16 × 10/100 Mbps PoE RJ45 ports 2 × Gigabit comb ports (2 RJ45 Ports and 2 SFP Ports)24 × 10/100 Mbps PoE RJ45 ports 2 × Gigabit comb ports (2 RJ45 Ports and 2 SFP Ports)8 × 10/100 Mbps PoE RJ45 ports 2 × Gigabit comb ports (2 RJ45 Ports and 2 SFP Ports)16 × 10/100 Mbps PoE RJ45 ports 2 × Gigabit comb ports (2 RJ45 Ports and 2 SFP Ports)24 × 10/100 Mbps PoE RJ45 ports 2 × Gigabit comb ports (2 RJ45Ports and 2 SFP Ports)8 × Gigabit PoE RJ45 ports 2 × Gigabit SFP ports 24 × Gigabit PoE RJ45 ports 4 × Gigabit SFP ports PoE Standards IEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atIEEE 802.3af, IEEE802.3atPoE Budget 123 W 230 W370 W125 W 300 W 380 W 125 W 380 W PoE Extend Mode Max. 250 m, Port 1-8Max. 250 m, Port 1-16Max. 250 m, Port 1-24-----Packet Forwarding Rate 1.34 Mpps 5.36 Mpps 6.55 Mpps 5.6 Mpps 8.4 Mpps 9.6 Mpps 15 Mpps 42 Mpps Switching Capacity5.4 Gbps 7.2 Gbps 8.8 Gbps 10 Gbps 21.2 Gbps 22.8 Gbps 20 Gbps 56 Gbps MAC Address Table 4 K4 K4 K8 K8 K8 K8 K8 KManagement Mode SNMP v1/v2, WEB managementConsole, Telnet, SSH2.0, Web, SNMP v1/v2/v3, TFTP, RMONOther Software Features STP, VLAN, Mirroring, IGMP Snooping and IGMP v1/v2STP, VLAN, Mirroring, IGMP Snooping and IGMP v1/v2, L2/L3/L4 ACL, LACP, EAPS, ERPSSurge Protection 4 KV 4 KV 4 KV 4 KV 4 KV 4 KV 4 KV 4 KV Operating Temperature 0°C~40°C 0°C~40°C 0°C~40°C 0°C~40°C 0°C~40°C 0°C~40°C 0°C~45°C 0°C~45°C Dimension(294 × 165.8 × 44) mm(440 × 285 × 43) mm(440 × 285 × 43) mm(280 × 179 × 45) mm(440 × 232 × 44) mm(440 × 232 × 44) mm(280 × 179 × 45) mm(440 × 232 × 45) mm。
CENTRAL. COLLABORATIVE.INTELLIGENT.CENTRALHikCentral Professional is completely centralized to achieve vast integrationcapabilities and deliver more powerful solutions.It integrates and expands devices on a VMS system, and enhances control toachieve maximum security for years to come.COLLABORATIVEHikCentral Professional empowers partnerships, enhances value for the user, anddelivers extensive benefits across a wide range of vertical markets.INTELLIGENTHikCentral Professional takes the latest AI technologies to the next step, leading thesecurity industry as well as technological innovations in variousapplications.2HIKCENTRAL PROFESSIONALOVERVIEWSYSTEMSystem ArchitectureKey AdvantagesVIDEOLive ViewPlaybackVideo Network OptimizationSmart WallVideo AnalysisThermal ImagingEntrance & Exit ManagementExtensible StorageACCESS CONTROLAttendanceVisitor ManagementElevator ControlVideo IntercomALARM MANAGEMENTMAINTENANCEOPEN PLATFORM4SYSTEMServer Layer Device Layer• Central management on HikCentral Professional as master / slave backup• Flexible storage achieved by pStor, Hybrid SAN, and Cluster Storage Server• Expandable applications on RSM • Access analog cameras via DVR, access IP cameras directly or via NVR• Decoder display on Smart Wall• Security control panel and alarm station• Access control via door controller and Face Recognition TerminalSystem ArchitectureRSM (Remote Site Management) enables single-site to multi-site expansion, making it convenient for users to remotely manage servers located at different sites. This is an ideal solution for companies or organizations with branches.Quick and accurate error diagnoses for efficient maintainance. The system will diagnose and generate detailed event logs, device logs, and health monitoring. It also supports batch firmware upgrades.Drag-and-drop application icons on the Control Client to easily create your own user-defined dashboard. The monitoring view also supports self-adaptive window division and more.Key AdvantagesHikCentral Professional covers not only basic functions, but also site implementation, daily maintenance, and user accessibility. The following are some key advantages.ScalableMaintainableFriendly6Auto-adapting window division brings a more intuitive experience and more visual control.• Supports connection with common cameras.• Detailed and easy tracking of the complete moving process.• Supports export of a complete action video of a certain target in the visual tracking mode.• Configure maps for specific areas• Label cameras as resources, then drag and drop them to a destination on the map• Control video live view and play back, as well as find other operations on the map• Receive and respond to alarms in real-timeAdaptive Window DivisionVisual TrackingMap ManagementLive ViewVIDEOVideo playback function offers various useful features, including:• Smooth playback/Sub-stream playback• Transcoded playback/Frame-extracting playback • Multiple time-zone playback• Quick incident location with thumbnails • Adding tags to suspicious events for later review • Locking video footage to prevent overwriting“After-the-fact” VCA search provides convenient analyses, including:• Motion Analysis • Line Crossing Detection • Intrusion DetectionPlaybackPlayback FeaturesVCA Search8Low Bandwidth Network AdaptabilityGlobal Stream SettingDirect Stream PolicyLANSmooth Streaming automatically adjusts bitrate and resolution between clients and NVRs / IPCs according to real-time network conditions, which makes the live view more fluid.For the live stream in the global view, select the default stream. If the network is operating smoothly, select the main- or sub-stream. If the network is lagging, select smooth stream.When the system detects that the Control Client and the device are in the same local-area network, the video stream can be obtained directly.Bitrate 522.78 kbpsBitrate 138.66 kbpsVideo Network OptimizationSmart WallDecoding Devices• Video streaming on the Smart Wall is supported• Powerful decoding devices render stunning imagery on Smart Wall setups• The number of screens that can be displayed depends on the model of decoding device • Users can choose single, joint, division, and roaming mode for each systemJoint ModeDivision ModeSingle Mode Roaming Mode10Video AnalysisBI DashboardOur BI dashboard provides a flexible and customized tabular view window to inform decision makers with business analysis reports. As a newly added report, Person Feature Analysis shows the proportion of persons with different features, including gender and age group.Thermal Imaging• Great adaptability to poor environmental conditions, such as darkness, high-contrast backlighting, fog, and haze • Effective detection of hidden targets in darkness or masked by other objects• Extended detection distance• Higher alarm accuracy is achieved by using intrusion detection, line crossing detections,etc.• Temperature measurement at preset points and trails • Records abnormal data as well as maximum and minimum temperature at all preset points• Generates anomaly statistics for all measurement points • Monitors temperature changes at specific locations • Notices abnormal situations to avoid potential risks • Exports reports for critical reviewThermal Imaging PreviewTemperature Statistics12Entrance & Exit ManagementWatchhouse ModeFlexible entrance modes and authorization rules enhance efficiency and reduce resource usage.In the professional Watchhouse mode, all entrance & exit related information is compiled to help staff quickly let vehicles exit.Vehicle entrance & exit managementCustomizes release rules for familiar/unfamiliar vehicles discretelyLeasing agreement managementSupports configurations for parking space allowance where multiple companies lease parking spacesInformation displayDisplays welcome message and vehicle information on LED screenAlarm configurationCustomizes alarm rules such as exceeding time limits or no-parking periodsStrong capacitySupports up to 8 traffic lanes and relays events triggered by ANPR cameras, video intercoms and access control devicesInformation display of passing vehiclesDisplays images and real-time video of passing vehicles, supporting manual verificationGeneral matchingGeneral preliminary comparison match for vehicles not fully recognized when exitingManual releaseSupports manual release and records the justificationDisplays remaining parking spacesShows number of remaining parking spaces in real-timeHistorical record searchEasy and efficient history trackingUnder Vehicle Surveillance System (UVSS)• Captures vehicle undercarriage images• Synchronizes ANPR camera data with vehicle images • Suits various vehicle models• Displays entire vehicle chassis in one image• Features high-durability and high-quality imaging with low distortionAdvanced UVSS14Extensible StorageScalable StorageVideo and images can be extended by reusing existing devices for redundant backup. Image storage is flexible and based on video channels.Multiple Storage MediaVideo and images can be stored onvarious media storage platforms,such as pStor, Hybrid SAN, andCluster Storage Servers.Rich FunctionalitiesHikCentral Professional offersfunctionalities such as video backupduring idle periods and event-triggered video recording.RSMACCESS CONTROLFace Recognition TurnstileNew functionsHikCentral Professional integrates Hikvision‘s turnstile with Face Recognition Terminals and other third-party gates as well.AttendanceKey FeaturesLinkage between CCTV system and access controlOne-key click will instantly lock or unlock all doorsRegional people countingFace recognition turnstileAutomated Attendance by Face RecognitionSupports automated attendance by face recognition, which is more convenient and efficient.Easy Third-Party IntegrationEasy integration with third-party attendance system and automatically generates attendance reports with multiple formats to choose from.Customized System ConfigurationSupports complex attendance setting to satisfy various needs, including working time, weekend, late arrival and early departure, absence, overtime working, leave types, and etc.16Visitor ManagementHow does our visitor management module works?Easy ConfigurationSets suitable rules for different floors according to the trafficVideo VerificationSupports alarms of more than 40 types of events with real-time video verification Manual ControlSupports manual control of elevators in emergent situationsVisitor CredentialSupports differentiated setting of elevator credentials for visitors, making visitor management more efficientVisitors Coming Visitors arrive at the reception desk Permission GrantVisitors are granted with access credentials via cards, fingerprints, face recognition and QR codesRegistrationVisitors make registration with their ID cards or passports Check OutThe permission is invalid upon visitors’ checking outRecord TraceableHistorical visitors’ recordsare saved and easy to traceALARM MANAGEMENTAlarm SourcesHikCentral Professional can centrally manage various alarm sources, such as video, access control alarms, alarm panels,and third-party alarm inputs.Alarm CenterAlarm Linkage• Real-time display of all kinds of alarms • Linked videos and locations will be displayed automatically when an alarm is selected• Multiple actions can be linked to alarms• Specified actions will be taken automatically uponalarm triggeringComposite AlarmAlarm EscalationA composite alarm enables arming or disarming in order to promote flexibility and accuracy of alarm management. For example, you may use composite I/O signals and motion detection events by installing infrared beams, effectively reducing the false alarm rate.Alarm escalation takes place when the primary operator does not respond. An unprocessed alarm will be forwarded and escalated to upper level management when the originaloperator ignores.Health MonitoringFirmware Batch UpgradeHistory Overview - Maintenance• Monitoring panel is adaptable and can be viewed on Windows OS• Displays system information, such as CPU, RAM, network speed and video streaming usage• Users can define a threshold according to network statusSupports upgrading of multiple devices’ firmware simultaneously• Overview of resource online rate, device online rate and recording integrity rate within certain period• Helping better understand the operation status of the systemMAINTENANCE20Open APIOPEN PLATFORMCollaborative, goal-oriented development creates the most useful and customizable applications. Hikvision has created an open Software Development Kit for innovated systems to meet any particularized demand.Interface protocol integrationAPIdocumentationDemonstrative applicationswith sample codeanddocumentationTrial license available on HikCentral ProfessionalGet Encoder, Access ControlDevice information etc..Get ANPR Picture, ANPR Log SearchLive view, playback ,Two wayAudio, PTZ etc..Door Control, Search CardSwiping RecordsAlarm Log Search, Get AlarmPicture etc..ANPR event, Motion Detection, Line Crossing, Door Open/Closed etc..ResourceANPRVideoAccess ControlAlarmEvent22Follow us on social media to get the latest product and solution informationHikvisionHQ HikvisionHQ hikvisionhqHikvision Hikvision_GlobalHikvision Corporate ChannelCENTRAL.COLLABORATIVE.INTELLIGENT .。
