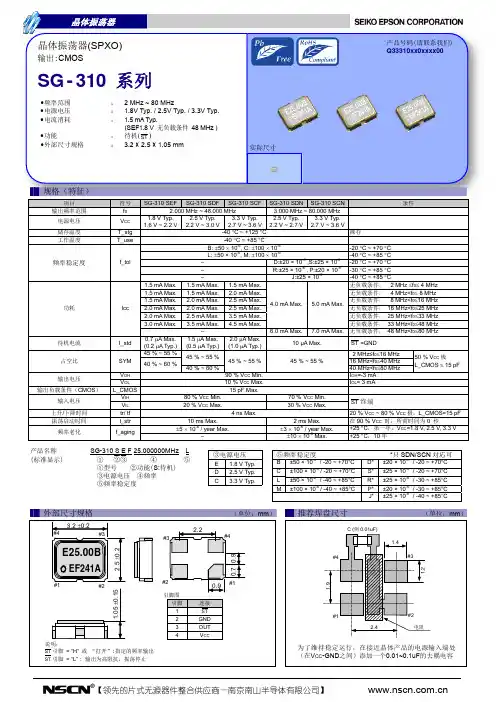

epson 爱普生晶振SG-310系列贴片有源晶振规格书

Epson晶振选型手册引言概述：Epson晶振选型手册是一本提供关于Epson晶振选型的专业指导手册。

晶振作为一种重要的电子钟振装置，广泛应用于各类电子设备中，对于设备的稳定性和精准性起到关键作用。

本手册将从多个方面介绍Epson晶振的选型原则和方法，以帮助读者准确选型和应用。

正文内容：1. 晶振的基本原理1.1 晶振的作用与功能1.1.1 提供时钟信号1.1.2 稳定电子设备的工作频率1.1.3 控制和同步各设备之间的通信1.1.4 精确计时和定时功能1.2 晶振的工作原理1.2.1 晶体振荡原理1.2.2 纯谐振条件与频率稳定性1.2.3 晶振的构造与材料选择2. Epson晶振的特点与优势2.1 高稳定性和低功耗2.1.1 稳定性与频率偏移2.1.2 低功耗对电池寿命的影响2.2 宽温度范围和长寿命2.2.1 温度对晶振频率的影响2.2.2 长期使用的可靠性和稳定性2.3 大容量和小封装尺寸2.3.1 容量对数据传输速率的影响2.3.2 封装尺寸对电路板设计的要求3. Epson晶振选型原则3.1 需求分析和参数确定3.1.1 设备类型和用途3.1.2 工作频率和精度要求3.1.3 温度范围和环境影响3.2 选择适合的晶振类型3.2.1 晶振频率范围和精度等级3.2.2 温度补偿和温度响应特性3.2.3 封装尺寸和安装要求3.3 参考设计和测试验证3.3.1 参考电路设计3.3.2 振荡电路测试和频率测量3.3.3 选型结果评估和优化4. Epson晶振选型案例分析4.1 移动方式晶振选型4.1.1 高稳定性和小封装尺寸的需求4.1.2 多频段应用的选择考虑4.2 电子表计晶振选型4.2.1 长期使用和温度范围要求4.2.2 低功耗和电池寿命的平衡4.3 工业自动化控制晶振选型4.3.1 高频率和精度要求4.3.2 多通道同步和控制4.3.3 长寿命和可靠性的考虑5. Epson晶振应用注意事项5.1 环境温度和封装要求5.2 抗振动和抗干扰性能5.3 防静电措施和电源干扰5.4 长期使用和老化问题结语：本手册全面介绍了Epson晶振的选型原则和方法，包括晶振的基本原理、Epson晶振的特点与优势、选型原则、案例分析以及应用注意事项。

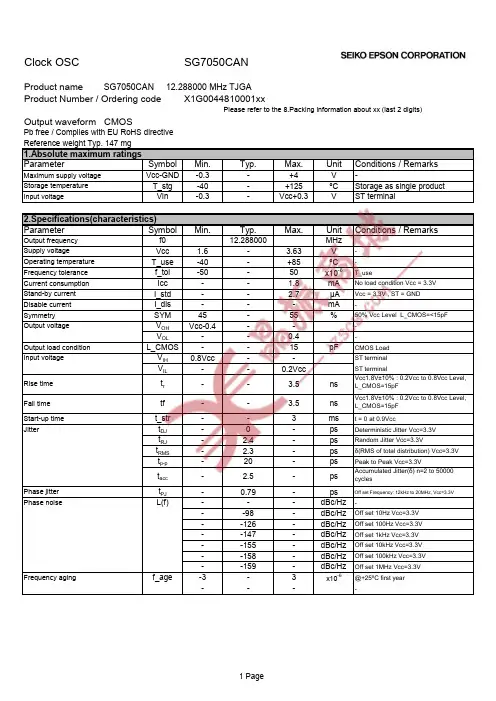

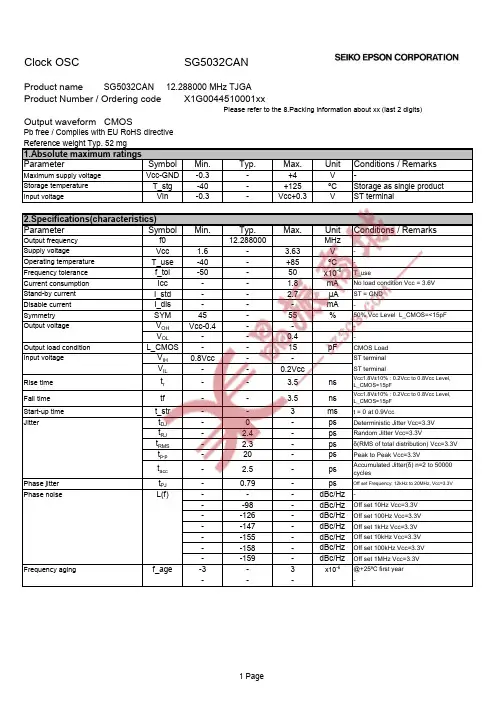

Clock OSC SG7050CANProduct nameSG7050CAN 12.288000 MHz TJGA Product Number / Ordering code X1G0044810001xxPlease refer to the 8.Packing information about xx (last 2 digits)Output waveform CMOSPb free / Complies with EU RoHS directiveReference weight Typ. 147 mg1.Absolute maximum ratings Parameter SymbolMin.Typ.Max.UnitConditions / RemarksMaximum supply voltage Vcc-GND -0.3-+4V -Storage temperature T_stg -40-+125ºC Storage as single product Input voltageVin-0.3-Vcc+0.3VST terminal2.Specifications(characteristics)Parameter SymbolMin.Typ.Max.UnitConditions / RemarksOutput frequency f012.288000MHz Supply voltage Vcc 1.6- 3.63V -Operating temperature T_use -40-+85ºC -Frequency tolerance f_tol -50-50x10-6T_useCurrent consumption Icc -- 1.8mA No load condition Vcc = 3.3V Stand-by current I_std -- 2.7 µA Vcc = 3.3V , ST = GND Disable current I_dis ---mA -Symmetry SYM 45-55%50% Vcc Level L_CMOS=<15pF Output voltage V OH Vcc-0.4---V OL --0.4-Output load condition L_CMOS --15pFCMOS Load Input voltageV IH 0.8Vcc --ST terminalV IL--0.2Vcc ST terminalRise time t r -- 3.5ns Fall time tf -- 3.5ns Start-up time t_str --3ms t = 0 at 0.9VccJittert DJ -0-ps Deterministic Jitter Vcc=3.3V t RJ - 2.4-ps Random Jitter Vcc=3.3Vt RMS - 2.3-ps δ(RMS of total distribution) Vcc=3.3V t p-p -20-ps Peak to Peak Vcc=3.3Vt acc- 2.5-ps Phase jitter t PJ -0.79-ps Off set Frequency: 12kHz to 20MHz, Vcc=3.3VPhase noise L(f)---dBc/Hz ---98-dBc/Hz Off set 10Hz Vcc=3.3V --126-dBc/Hz Off set 100Hz Vcc=3.3V --147-dBc/Hz Off set 1kHz Vcc=3.3V --155-dBc/Hz Off set 10kHz Vcc=3.3V --158-dBc/Hz Off set 100kHz Vcc=3.3V --159-dBc/HzOff set 1MHz Vcc=3.3V Frequency aging f_age-3-3x10-6@+25ºC first year ----Vcc1.8V±10% : 0.2Vcc to 0.8Vcc Level,L_CMOS=15pFVcc1.8V±10% : 0.2Vcc to 0.8Vcc Level,L_CMOS=15pF Accumulated Jitter(δ) n=2 to 50000cycles3.Timing chart4.Test circuit1) Waveform observation2) Current consumption*Current consumption under the disable function should be = GND.3) Condition (1) Oscilloscope· Band width should be minimum 5 times higher (wider) than measurement frequency.· Probe earth should be placed closely from test point and lead length should be as short as possible * Recommendable to use miniature socket. (Don’t use earth lead.)(2) L_CMOS also includes probe capacitance.(3) By-pass capacitor (0.01 µF to 0.1 µF) is placed closely between VCC and GND.(4) Use the current meter whose internal impedance value is small.(5) Power supply· Start up time (0 %VCC to 90 %VCC) of power source should be more than 150 µs.· Impedance of power supply should be as lowest as possible.GNDV CC tr 50 %V CCttw80 %V CC20 %V CC tfV CCSTOUTGNDswichsupplyby-pass capacitorTest PointAor OEor OEV CCSTOUTGNDsupplyby-pass capacitorL_CMOSTest Point5.External dimensions (Unit: mm)6.Footprint(Recommended) (Unit: mm)7.Reflow profileReflow condition (Follow of JEDEC STD-020D.1)8.Packing information[ 1 ]Product number last 2 digits code(xx) descriptionThe recommended code is "00"X1G0044810001xxCode Code 01Any Q'ty vinyl bag(Tape cut)13500pcs / Reel 11Any Q'ty / Reel 001000pcs / Reel12250pcs / ReelConditionCondition Note.OE pin = "H" or "open" : Specified frequency output. OE pin = "L" : Output is high impedance.ST pin = "H" or "open" : Specified frequency output.ST pin = "L" : Output is high impedance 、oscillation stops.#2CC (ex. 0.01 µF)1.8 5.084.22.0#1#3#4Resist1.3±0.25.0±0.27.0±0.2#4 #1#3#2E 25.000CAN395K1.41.1C0.55.08Temperature [ ºC]6030025020015010050Time [ s ]120180240300360420480540600660720780Ts min: +150 ºCTs max: +200ºCTL: +217ºC+255ºCtp: at least 30 sTP: +260ºC OVERTime: +25 ºC to PeakRamp-up rate +3 ºC/s Max.tL60 s to 150 s( +217 ºC over )ts60 s to 120 s( +150ºC to +200ºC)Ramp-down rate -6 ºC/s Max.[ 2 ] Taping specificationSubject to EIA-481 & IEC-60286(1) Tape dimensions Material of the Carrier Tape : PS Material of the Top Tape : PET+PEUnit: mmSymbol A B C D E F Valueφ1.5489.25162.3(2) Reel dimensionsCenter material : PS Material of the Reel : PSＡ ＢＤＥＣＦTop tapeCarrier tapeEPSONEPSONUser direction of feed9.Notice10.Contact us· This material is subject to change without notice.· Any part of this material may not be reproduced or duplicated in any form or any means without the written permission of Seiko Epson.· The information about applied data,circuitry, software, usage, etc. written in this material is intended for reference only.Seiko Epson does not assume any liability for the occurrence of customer damage or infringing on any patent or copyright of a third party.This material does not authorize the licensing for any patent or intellectual copyrights.· When exporting the products or technology described in this material, you should comply with the applicable export control laws and regulations and follow the procedures required by such laws and regulations.· You are requested not to use the products (and any technical information furnished, if any) for the development and/or manufacture of weapon of mass destruction or for other military purposes. You are also requested that youwould not make the products available to any third party who may use the products for such prohibited purposes.· These products are intended for general use in electronic equipment. When using them in specific applications that requireextremely high reliability, such as the applications stated below, you must obtain permission from Seiko Epson in advance./ Space equipment (artificial satellites, rockets, etc.)/ Transportation vehicles and related (automobiles, aircraft, trains, vessels, etc.) / Medical instruments to sustain life / Submarine transmitters / Power stations and related/ Fire work equipment and security equipment / Traffic control equipment/ And others requiring equivalent reliability.。

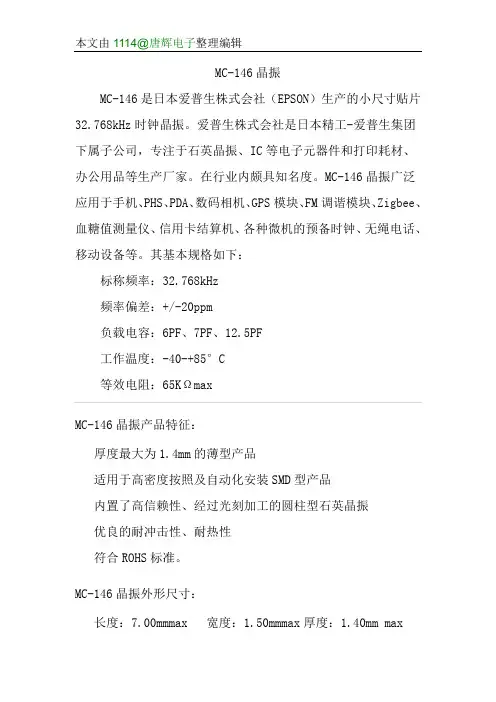

MC-146晶振
MC-146是日本爱普生株式会社（EPSON）生产的小尺寸贴片32.768kHz时钟晶振。

爱普生株式会社是日本精工-爱普生集团下属子公司，专注于石英晶振、IC等电子元器件和打印耗材、办公用品等生产厂家。

在行业内颇具知名度。

MC-146晶振广泛应用于手机、PHS、PDA、数码相机、GPS模块、FM调谐模块、Zigbee、血糖值测量仪、信用卡结算机、各种微机的预备时钟、无绳电话、移动设备等。

其基本规格如下：
标称频率：32.768kHz
频率偏差：+/-20ppm
负载电容：6PF、7PF、12.5PF
工作温度：-40-+85°C
等效电阻：65KΩmax
MC-146晶振产品特征：
厚度最大为1.4mm的薄型产品
适用于高密度按照及自动化安装SMD型产品
内置了高信赖性、经过光刻加工的圆柱型石英晶振
优良的耐冲击性、耐热性
符合ROHS标准。

MC-146晶振外形尺寸：
长度：7.00mmmax 宽度：1.50mmmax厚度：1.40mm max
上海唐辉电子是日本爱普生株式会社（EPSON）在中国的指定代理商，唐辉电子在PPTC自恢复保险丝、PTC热敏电阻、晶体谐振器、振荡器系列、高品质电容、电感和液晶屏产品、IC 类等领域有很强的竞争力。

产品广泛应用在通信、电脑、消费类电子及网络产品、仪器仪表、工控系统、安防产品、电源供应器等产品上积极面对市场及客户的多方位要求，坚持以最好的品牌和最具竞争力的价格销售电子零件，为客户提供多元化的服务，务求充分满足客户的要求,致力于成为中国乃至世界最佳元器件供应商之一。

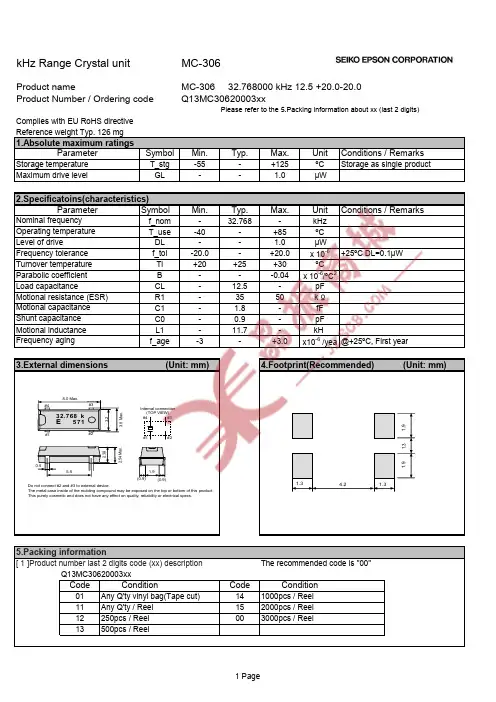

kHz Range Crystal unitMC-306Product nameMC-306 32.768000 kHz 12.5 +20.0-20.0Product Number / Ordering codeQ13MC30620003xxPlease refer to the 5.Packing information about xx (last 2 digits)Complies with EU RoHS directiveReference weight Typ. 126 mg1.Absolute maximum ratingsSymbolMin.Typ.Max.UnitConditions / RemarksStorage temperature T_stg -55-+125ºC Storage as single productGL--1.0µW2.Specificatoins(characteristics)SymbolMin.Typ.Max.Unit Conditions / Remarksf_nom -32.768-kHz T_use -40-+85ºC DL -- 1.0 µWf_tol -20.0-+20.0x 10-6+25ºC DL=0.1µW Ti +20+25+30ºC B ---0.04x 10-6/ºC 2CL -12.5-pF R1-3550k ΩC1- 1.8-fF C0-0.9-pF Motional inductance L1-11.7-kHf_age-3-+3.0x10-6 /yea @+25ºC, First year3.External dimensions (Unit: mm)4.Footprint(Recommended) (Unit: mm)5.Packing information[ 1 ]Product number last 2 digits code (xx) descriptionThe recommended code is "00"Q13MC30620003xxCodeCode01Any Q'ty vinyl bag(Tape cut)141000pcs / Reel 11Any Q'ty / Reel 152000pcs / Reel 12250pcs / Reel 003000pcs / Reel13500pcs / ReelShunt capacitance Frequency agingConditionConditionFrequency tolerance Turnover temperature Parabolic coefficient Load capacitanceMotional resistance (ESR)Motional capacitance Level of driveParameterMaximum drive levelParameter Nominal frequencyOperating temperatureThe metal case inside of the molding compound may be exposed on the top or bottom of this product. This purely cosmetic and does not have any effect on quality, reliability or electrical specs.Do not connect #2 and #3 to external device.Internal connection(TOP VIEW)#4#1#2#3 1.9(0.9)(0.9)5.50.52.54 M a x .2.388.0 Max.#4#1 #2#33.8 M a x .3.232.768 k E 5711.9 1.91.3 4.2 1.3 1.3[ 2 ] Taping specificationSubject to EIA-481 & IEC-60286(1) Tape dimensions TE1608L Material of the Carrier Tape : PS Material of the Top Tape : PET+PEUnit: mm(2) Reel dimensionsMaterial of the Reel : PSUnit: mm4.0±0.12.0±0.18.0±0.110P: 40±0.17.5±0.116.0±0.31.75±0.18.5±0.10.3±0.05 2.7±0.14.1±0.1 ＋0.1 φ1.5－0＋0.1φ1.5－05︒ Max.5︒ Max.Top TapeReflow profilePre Heating TemperatureTp1 ~ Tp2 = + 170 °CHeating TemperatureTMlt = + 220 °CPeek TemperatureTMax. = + 260 °CPoint of measuringIn case of Solder abilityTerminal.In case of Resistance to soldering heatSurface.Noticet(time)TmltTp2Tp1100s+220ºC+260ºCTMax.Temperature35s· This material is subject to change without notice.· Any part of this material may not be reproduced or duplicated in any form or any means without the writtenpermission of Seiko Epson.· The information about applied data,circuitry, software, usage, etc. written in this material is intended forreference only.Seiko Epson does not assume any liability for the occurrence of customer damage or infringing on any patent or copyright of a third party.This material does not authorize the licensing for any patent or intellectual copyrights.· When exporting the products or technology described in this material, you should comply with the applicableexport control laws and regulations and follow the procedures required by such laws and regulations.· You are requested not to use the products (and any technical information furnished, if any) for the development and/or manufacture of weapon of mass destruction or for other military purposes. You are also requested that youwould not make the products available to any third party who may use the products for such prohibitedpurposes.· These products are intended for general use in electronic equipment. When using them in specific applications that requireextremely high reliability, such as the applications stated below, you must obtain permission from Seiko Epson in advance./ Space equipment (artificial satellites, rockets, etc.)/ Transportation vehicles and related (automobiles, aircraft, trains, vessels, etc.)/ Medical instruments to sustain life/ Submarine transmitters/ Power stations and related/ Fire work equipment and security equipment/ Traffic control equipment/ And others requiring equivalent reliability.· All brands or product names mentioned herein are trademarks and/or registered trademarks of their respective.。

KHZSPXOTCO-710x SeriesSG-770/771TCO-708x Series SG-615/531/51 Series SG-645/636 Series SG-310Series SG-550 Series SG-211SxE SG-3030/3040SG-210SxD SG-210SxH SG-150SxE SG-210 SxB MC-306/405/406 MC-30A爱普生压控温补振荡器HG-2150CASeries FC-13A FC-13F/135/255MC-146/156爱普生晶振晶体单元FC-12D/12MC-TYPE/C-2-TYPE/C-4-TYPE串行RX-8581SA/JE/NB RX-8731LC RX-8803SA/LCRX-5412SF RX-8025SA/NB RX-8571SA/NB/LC RX-4575LC RX-4581NB RX-4803SA/LC RX-4571LC/NB/SA RX-4574LC RTC-8564JE/NB/RX-8564LC RX-4045SA/NBRTC-4543SA/SB RTC-4574SA/JE/NB RTC-4701JE/NBRA-4574SA RA-8565SA RA-8581SA 爱普生实时钟模块32.768KHZRA-4565SA音叉型水晶振动子KHKDS表面封装型振水晶振动子MHZUM-5HC-49/UAT-49UM-4AT-38UM-1SMD-49DMX-38DSX840GA DSX840GT DSX151GAL DSX531SDSX630G DSX321SH DSX530GA DSX321G DSX321SL DSX211AL DSX221SHDSX211A DSX221S DSX211G DSX221G KDS晶振DSX1612ADSR221STHKDS振荡器DSA211SCL (VC-TCXO)DSB211SCL (TCXO)DSB211SCB (TCXO)DSA211SDA (VC-TCXO)DSB211SDA (TCXO)DSB211SDB (TCXO)DSA211SDT (VC-TCXO)DSB211SDT (TCXO)DSA222MAA (VC-TCXO)DSA222MAB (VC-TCXO)DSB222MAA (TCXO)DSB222MAB (TCXO)DSA221SCL (VC-TCXO)DSB221SCL (TCXO)DSB221SCB (TCXO)DSA221SDA (VC-TCXO)DSB221SDB (TCXO)DSB221SDA (TCXO)DSA221SDT (VC-TCXO)DSB221SDT (TCXO)DSA221SJ (VC-TCXO)DSB221SJ (TCXO)DSA321SCL (VC-TCXO)DSB321SCL (TCXO)DSV221SR (1.8V動作タイプ)(VCXO)DSV221SV (2.8V/3.3V 動作タイプ) (VCXO)DSV321SR (1.8V動作タイプ) (VCXO)DSV321SV (2.8V/3.3V 動作タイプ) (VCXO)DSV323SD (HCSL出力) (VCXO)DSV323SJ (LVDS出力) (VCXO)DSV323SK (LV-PECL出力) (VCXO)DSV753HJ (LVDS出力) (VCXO)DSV753HK (LV-PECL出力) (VCXO)DSV753SJ (LVDS出力)(VCXO)DSS753SVC(SSXO)CITIZEN晶振西铁城KHZ晶振CFS-206CMR200TCFS-145CMJ206TCFV-206CM250C西铁城MHZ晶振CSA-310CSA-309HCM49CM309SCS325SCSX-750F CSX-750P CSX-750VNX2012SANX3215SAKHZ谐振器音叉晶振RV-2123-C2精工晶振日本NDK晶振振荡器RV-3029-C2-A RV-3029-C2-BRV-3049-C2-A RV-3049-C2-A RV-3049-C2-B 西铁城晶振振荡器瑞士微晶RV-4162-C7RV-8564-C2NX3215SA NX1612AA NX1612AANX2016SA NX2520SA NX3225GANX5032GA NX5032SA NX1255GB NR-2BNR-2C AT-41CD2京瓷晶振KHZ音叉型号频率尺寸ST2012SB 32.768K 2.0 x 1.2 x 0.6ST3215SB 32.768K3.2 x 1.5 x 0.8石英晶体振荡器KC2520B 32.768K 2.5 x 2.0 x 0.7KC2520M 32.768K 2.5 x 2.0 x 0.7温度-40-125°KC3215A32.768K3.2 x 1.5 x 1.0温度补偿水晶振荡器KT3225T 32.768K3.2 x 2.5 x 1.0TCXOCMOS输出类KC2520B-C11.5～1252.5 x 2.0 x 0.7KHZ谐振器M晶体谐振器SPXO钟用晶体振荡器VCXO晶振KC2520B-C2125～160 2.5 x 2.0 x 0.7KC3225A-C21.5～125 3.2 x2.5 x 0.89(K25-2C)KC5032A-CM 1.789～50 5.0 x 3.2 x 1.2KC5032C-C31.8 ～ 170 5.0 x 3.2 x 1.0(K30-3C)KC5032E-C314.31818～166 5.0 x 3.2 x 1.1KC7050A-C21.8～1257.0 x 5.0 x 1.6(K53-2C)石英晶体振荡器(VCXO)KV5032C-C3 1.5～80 5.0 x 3.2 x 1.0KV7050B-C3 1.5～1707.0 x 5.0 x 1.6石英晶体振荡器(TCXO)KT252013～52 2.5 x 2.0 x 0.8max GPS用KT322513～52 3.2 x 2.5 x 1.0max GPS用 台湾晶技（TXC）32.768KHz贴片频率尺寸9HT732.768K 6.9 x 1.4 x 1.30mm9HT932.768K 4.1 x 1.5 x 0.80mm9HT1032.768K 3.2 x 1.5 x 0.75mm9HT1132.768K 2.0 x 1.2 x 0.60mmMHZ9B 3.2 ~ 90MHz11.5 x 5.0 x 3.68mm49/S9C 3.2 ~ 90MHz12.7 x 4.8 x 3.80mm49/SMD 7A8 ~ 80MHz 5.0 x 3.2 x 1.20mm黑色面7B8 ~ 100MHz 5.0 x 3.2 x 0.90mm7M10 ~ 54MHz 3.2 x 2.5 x 0.70mmAV9.9 ~ 54MHz 3.2 x 2.5 x 0.80mm黑色面8Z12 ~ 54MHz 2.5 x 2.0 x 0.55mm石英振荡器7W 1 ~ 170MHz7 x 5 x 1.3mm7C 1 ~ 150MHz 5 x 3.2 x 1.2mm7X 1 ~ 125MHz 3.2 x 2.5 x 1mm8W 4 ~ 54MHz 2.5 x 2 x 0.8mmVCXO 压控振荡器BK60 ~ 700MHz7 x 5 x 1.3mmCJ60 ~ 200MHz 5 x 3.2 x 1.2mmTCXO 温补振荡器7Q13 ~ 52MHz 3.2 x 2.5 x 1mm7L13 ~ 52MHz 2.5 x 2 x 0.8mmNDK（日本电波工业株式会社）晶体谐振器频率尺寸NX2520SG19.2-54MHZ 2.5*2.0*0.9NX3215SA32.768KHZ 3.2*1.5*0.8NX2520SA16-80MHZ 2.5*2.0*0.5NX3225SA12-150MHZ 3.2*2.5*0.55NX3225GA9.840-50MHZ 3.2*2.5*0.75NX5032GB12-55MHZ 5.0*3.2*1.0NX5032GA8-55MHZ 5.0*3.2*1.3NX5032SD9.75-40MHZ 4.9*3.1*0.9AT-41 3.1375-74.1MHZ11.05*4.7*3.6849/S AT-41CD2 3.1375-74.1MHZ11.4*4.8*4.049/SMD晶体振荡器（SPXO）NZ2520SB 1.5 to 80 2.5×2.0×0.9 NZ2520SB 32.768KHZ 2.5×2.0×0.9 2725N 2.5 to 70 5.0×3.2×1.0 2725T 2.5 to 125 5.0×3.2×1.0 7311S-GF-505P62.5-313MHZ7.0*5.0*1.7温补振荡器（TCXO）NT2520SB13.-52MHZ 2.5*2.0*0.9NT3225SA10-40MHZ 3.2*2.5*1.0NT7050BC19.2-26MHZ7.0*5.0*2.0压控振荡器（VCXO）NV2520SA 1.25-80MHZ 2.5*2.0*0.9 NV3225SA 1.25-80MHZ 3.2*2.5*0.9 NV5032SA38.4-52MHZ 5.0*3.2*1.2 NV7050SA 2.048-700MHZ7.0*5.0*1.6晶体滤波器21E15AB21.4MHZ7.0*5.0*1.35 台湾鸿星（HOSONIC)晶体谐振器频率尺寸2SB12~54MHz 2.5*2.0*0.55mm 3SB12~54MHz 3.2*2.5*0.65mm 5SB10~80MHz 5.0*3.2*0.80mm 6SB8~80MHz 6.0*3.5*1.0mm 7SB6~100MHz7.0*5.0*1.1mm 3FB12~54MHz 3.2*2.5*0.80mm5FA10~80MHz 5.0*3.2*1.20mm黑色面两个脚8FA6~80MHz8.0*4.5*1.60mmHC-49SA 3.2~66MHz11.05*4.65*3.50mmHC-49SB8~66MHz11.05*4.65*2.5mmHC-49SMB8~66MHz12.9*4.7*3.2mmHC-49SMA 3.2~66MHz12.9*4.7*4.2mmDT-2630~100KHzDT-3830~100KHz石英振荡器HXO-31~133MHz7.0*5.0*1.5mmHXO-51~133MHz 5.0*3.2*1.3mmHXO-S1~54MHz 3.2*2.5*1.2mmHXO-N1~54MHz 2.5*2.0*0.9mm台湾希华晶振（SIWARD）晶体谐振器频率尺寸LP-2.5 3.5 ~ 80 MHz11.05 x 4.65 x H49/SLP-3.5 3.5 ~ 80 MHz11.05 x 4.65 x HLP-3.5S 3.5 ~ 80 MHz12.3 x 4.7 x H49/SMDLP-4.2S 3.5 ~ 80 MHz12.3 x 4.7 x HSX-252012 ~ 66 MHz 2.5 x 2.0 x 0.55SX-322510 ~ 125 MHz 3.2 x 2.5 x 0.8SX-50328 ~ 100 MHz 5.0 x 3.2 x 0.7SX-60358 ~ 50 MHz 6.0 x 3.5 x 1.0SX-7050 6 ~ 100 MHz7.0 x 5.0 x 1.1GX-3225410 ~ 54 MHz 3.2 x 2.5 x 0.8黑色面四脚GX-503228 ~ 60 MHz 5.0 x 3.2 x 1.1黑色面两脚和四脚GX-50324GX-603528 ~ 60 MHz 6.0 x 3.5 x 1.1黑色面两脚和四脚GX-60354GX-705026 ~ 70 MHz7.0 x 5.0 x 1.4黑色面两脚和四脚GX-70504石英振荡器SHO-3225 2.5 ~ 60 MHz 3.2 x 2.5 x 0.9OSC73 2.5 ~ 60 MHz 5.0 x 3.2 x 1.05OSC57A40 ~ 160 MHz7.0 x 5.0 x 1.5SPO-2520B 1 ~ 200 MHz 2.5x2.0x0.8SPO-3225B 1 ~ 200 MHz 3.2x2.5x0.9SPO-5032B 1 ~ 200 MHz 5.0x3.2x0.9SPO-7050B 1 ~ 200 MHz7.0x5.0x1.4温补振荡器（TCXO）TXO928 ~ 45 MHz 3.2 x 2.5 x 0.9TXO83 6 ~ 45 MHz 5.0 x 3.2 x 1.05STO-2520B0.675 ~ 55 MHz 2.5 x 2.0 x 0.9STO-3225B0.675 ~ 55 MHz 3.2 x 2.5 x 1.0STO-5032B0.675 ~ 55 MHz 5.0 x 3.2 x 1.05STO-7050B0.675 ~ 55 MHz7.0 x 5.0 x 1.4STO-2520A16.368 ~ 38.4 MHz 2.5x2.0x0.8STO-3225A16.368 ~ 27.456 MHz 3.2x2.5x1.0压控温补振荡器（VC-TCXO）VTX7110 ~ 26 MHz7.0 x5.0 x 1.6VTX928 ~ 45 MHz 3.2 x 2.5 x 0.9VTX83 6 ~ 45 MHz 5.0 x 3.2 x 1.05压控振荡器（VCXO）SCV-3225 1.5 ~ 54 MHz 3.2 x 2.5 x 0.9VCX95 1.5 ~ 61.440 MHz 5.0 x 3.2 x 1.1VCX91 1.5 ~ 54 MHz7.0 x 5.0 x 1.6台湾嘉碩（TST）型号频率尺寸TZ0507A32.768K 4.1x1.5x0.25TZ0601A32.768K7.0x1.5x1.4TZ0756A32.768K 6.5x2.0TZ0824A32.768K 4.1x1.5x0.7TZ0853A32.768K8.0x3.8x2.5TZ1006A32.768K 3.2x1.5TZ1021A32.768K 5.2x1.5TZ1692A32.768K 4.9x1.8x1.0TZ2426A32.768K 6.0x2.0TZ2430A 3.997 HC49UTZ0694A4HC49-SMD 以下嘉碩型号 每一个频率都有不同的型号.太多了,只写了几个TZ0195A6M7.0x5.0x1.1TZ0777A8M 5.0x3.2x1.0TZ0994A8M 6.0x3.5x1.1TZ0419A11.0592 MHZ 4.0x2.5x0.8TZ0481A12MHZ 3.2x2.5x0.7石英振荡器TW0357A32.768KHZ 3.2x2.5x1.2TW0190A6MHZ 3.2x2.5x1.2TW0280A10MHZ 5.0x3.2x1.3TW0229A12.288MHZ7.0x5.0x1.9TW0160A13MHZ 5.0x3.2x1.3TW0135A13.5 5.0x3.2x1.2TW0149A14.318184 5.0x3.2x1.3TW0277A16MHZ 3.2x2.5x1.2TW0286A16MHZ7.0x5.0x1.9压控温补振荡器（VC-TCXO）TX0329A10MHZ 3.2x2.5x1.2TX0173A12MHZ 5.0x3.2x1.2台湾加高晶振（HELE）型号频率尺寸HSX221SR 2.55x2.05x0.95HSX221SA 2.50x2.00x0.50HSX321S 3.20x2.50x0.65HSX421S 4.00x2.50x0.65HSX531S 5.00x3.20x0.75HSX321G 3.20x2.50x0.75HSX530G 5.00x3.20x1.402个脚HSX630G 6.00x3.50x1.202个脚HSX840G8.00x4.50x1.402个脚SMD-4912.10x4.75x4.5049/SMDAT-4911.50x5.00x3.5049/S台湾泰艺（TAITIEN）晶体谐振器 型号频率尺寸XY16~54MHz 2.5 x 2.0XX12~54MHz 3.2 x 2.5XV11~80MHz 5.0 x 3.2X212~48MHz 3.2 x 2.5黑色面XS10~50MHz 5.0 x 3.22脚黑色面XR8~49MHz 6.0 x 3.5XQ7.3728~70MHz8.0 x 4.5XI 3.5~80MHz10.8 x 4.549/SXJ 3.5~80MHz12.5 x 4.5XD32.768KHz 3.2 x 1.5石英振荡器OT HCSL90~125MHz7.0 x 5.0OW80~320MHz 5.0 x 3.2OY1~50MHz 2.5 x 2.0OX32.768KHz ~ 125MHz 3.2 x 2.5PX1~200MHz 3.2 x 2.5OV13.7KHz ~ 125MHz 5.0 x 3.2OC13.7KHz ~ 166MHz7.0 x 5.0OC-M1~200MHz7.0 x 5.0压控振荡器（VCXO）VW CMOS 1.5~80MHz 5.0 x 3.2VT CMOS 1.5~200MHz7.0 x 5.0VT-M CMOS60~200MHz7.0 x 5.0温补振荡器（TCXO）TY13~52MHz 2.5 x 2.0TX13~52MHz 3.2 x 2.5TV10~40MHz 5.0 x 3.2TW 5.0 x 3.210~40MHzTS / TC7.0 x 5.05~40MHzSMI振荡器型号频率尺寸压电晶体谐振器22SMX16.000 MHz to 80.000 MHz2.5*2.032SMX(A)12.000 MHz to 67.500 MHz3.2*2.532SMX(B)16.000 MHz to 50.000 MHz3.2*2.5黑色面42SMX12.000 MHz to 50.000 MHz4.0*2.553SMX(B)10.000 MHz to 270.000 MHz5.0*3.253SMX(C)8.000 MHz to 55.000 MHz5.0*3.2黑色两脚53SMX(D)10.000 MHz to 50.000 MHz5.0*3.2黑色四脚53SMX(E)10.000 MHz to 50.000 MHz5.0*3.2金属面两脚97SMX(A)9.000 MHz to 150.000 MHz6.0*3.5金属面2脚97SMX(B)8.000 MHz to 50.000 MHz6.0*3.5黑色面4脚97SMX(C)8.000 MHz to 50.000 MHz6.0*3.5黑色面2脚94SMX(C) 6.000 MHz to 160.000 MHz5.0*7.0黑色面4脚压电晶体振荡器32SMOP 1.000 MHz to 125.000 MHz3.2*2.599SMOP 1.000 MHz to 181.000 MHz5.0*3.291SMOP 1.000 MHz to 200.000 MHz5.0*7.0黑色面4脚97SMO(K) 1.000 MHz to 166.000 MHz5.0*7.032SMOHG500.000 kHz to 45.000 MHz3.2*2.557SMO40.000 MHz to 300.000 MHz5.0*7.0327SMO(B)32.768 kHz 4.0*2.5压控振荡器（VCXO）32SMOV(M) 2.000 MHz to 54.000 MHz3.2*2.532SMOV(S) 2.000 MHz to 54.000 MHz3.2*2.599SMOV 2.000 MHz to 54.000 MHz5.0*3.297SMOVH 2.000 MHz to 80.000 MHz5.0*7.097SMOV 2.000 MHz to 54.000 MHz5.0*7.0温补振荡器（TCXO）SXO-3200V10.000 MHz to 40.000 MHz3.2*2.5SXO-5200V 5.000 MHz to 45.000 MHz5.0*3.2SXO-7100AV(B)10.000 MHz to 26.000 MHz5.0*7.0大河晶振石英晶体谐振器 型号频率尺寸FCX-06 2.0x1.6x0.5mmFCX-05 2.5x2.0x0.6mmFCX-04C 3.2x2.5x0.7mmFCX-04 3.2x2.5x0.9mmFCX-03 5.0x3.2x1.5mmHC-49/U03C11.4x4.8x4.5mm49/SMD HC-49/U0310.3x5.0x3.6mm石英振荡器FCXO-05 2.5x2.0x0.9mmFCXO-03L 5.0x3.2x1.2mm FCXO-75HC7.0x5.0x2.0mmCTS（西迪斯电子）Model 44312 - 48 3.2 x 2.5 x 0.90 mmModel 44510 - 50 5.0 x 3.2 x 1.35mm TF32 Series32.7680 kHz 3.2 x 1.5 x 0.80 mm 16 - 542.5 x 2.0 x 0.65 mm12 - 50 3.2 x 2.5 x 0.80 mmModel 40512 - 50 5.0 x 3.2 x 0.9 mm Model 40610 - 50 6 x 3.5 x 1.20 mm Model 4078 - 507.0 x 5.0 x 1.20 mm ATS-SM Series 3.2 - 6412.30 x 4.83 x 4.30 mm49/SMDATSSM4P Series 3.2 - 6413.00 x 4.85 x 5.20mmATS Series 3.2 - 6410.85 x 4.50 x 3.68 mm时钟振荡器Model 632 1.0 - 75 3.2 x 2.5 x 1.2 mm Model 636 1.0 - 1255.0 x 3.2 x 1.3 mmCB3CB3LV1.5 - 1607.0 x 5.0 x 1.8 mmCB1V81.0 - 707.0 x 5.0 x 1.8 mmModel 425Model 403MHZ可编程低抖动声表面波VCXO/VCSOTCXOTG-5035CJTG-5035CE XG-1000CA/CB TG-5035CG XG-2121/2102CATG-5021CGEG-2121/2102CB TG-5031CJ EG-41xxCA Series TG-3530SA EG-2101CA TG-5021CEEG-2121/2102CA VG-4512CAEG-2002CA EG-2021/2001CAVG-4231/4232CA VG-4501/4502CA EA-2102CB VG-4231CBSG-8003 Series VG-4231CESG-WriterMA-306 MA-406/505/506器EV-9100JG SG-8002 Series FA-118TFA-20HFA-238V/238/TSX-3225 体单元/谐振器CA-301 FA-128RTC-72421/72423RTC-7301SF/DG应用手册RX-8564LCRX-8581SA/JE/NBRTC-62421/62423RX-4575LCRX-4581NBRX-8025SA/NBRX-4571SA TSU SeriesRX-4574LC XP-7000 Series RX-4574SG晶体压力传感器XV-8000CB/LK RX-4571LC XV-8100CB RX-4571NB 爱普生传感器XV-3500CB RTC-9701JE XV-3700CB RX-4045SA/NB FF-555RTC-4574SA/JE/N RTC-4701JE/NB AH-6120LR/AP-6110LR RTC-8564JE/NB 爱普生滤波器sheet RTC-7301SF/DG RA-8565SA RA-8581SA FF-32N RTC-4543SA/SB 并行RTC-72421/72423 RA-4574SA水晶MHZ 水晶振动子KHZ DSO531SRDSX221G DSO751SR DSR221STHDSO321SWDSX211G DSO321SRDSR221STH DSO221SWUM-5J DSA321SF (VC-TCXO)UM-5DSO213AWDSF753SAF DSO221SRDSF753SCF DT-381HC-49/T DSF444SAF DSO211ARDSF444SAO DT-261DSF753SDF DT-38UM-4DMX-38DSF444SCO DT-26DSF753SBF DMX-26SDSF334SAO DMX-26DSF334SCF SM-14JUM-1SM-26FHC-49/TS DST520DSF753SAO DST621DSF753SCO DST310SDSF334SAF DST410SDSF444SCF 晶振DST210ADSF223SAFDSB321SF (TCXO)DSX321GDSB321SCB (TCXO)DSO321SN (SPXO)DSA321SDA (VC-TCXO)DSO321SR (SPXO)DSB321SDA (TCXO)DSO321SW (SPXO)DSB321SDB (TCXO)DSO323SD (HCSL出力)(SPXO)DSA535SC (VC-TCXO)DSO323SJ (LVDS出力)(SPXO)DSB535SC (TCXO)DSO323SK (LV-PECL出力)(SPXO)DSA535SD (VC-TCXO)DSO531SBM (SPXO)DSB535SD (TCXO)DSO531SBN (SPXO)DSA535SG (VC-TCXO)DSO531SVN (SPXO)DSB535SG (TCXO)DSO531SR (SPXO)DSG211STA (TSXO)DSO533SJ (LVDS出力) (SPXO)DSG221STA (TSXO)DSO533SK (LV-PECL出力) (SPXODSO211AR (SPXO)DSO751SBM (SPXO)DSO211AH (SPXO)DSO751SVN (SPXO)DSO213AW (SPXO)DSO751SBN (SPXO)DSO221SBM (SPXO)DSO751SR (SPXO)DSO221SH (SPXO)DSO753HJ (LVDS出力) (SPXO)DSO221SN (SPXO)DSO753HK (LV-PECL出力) (SPXODSO221SR (SPXO)DSO753HV (SPXO)DSO221SW (SPXO)DSO753SD (HCSL出力) (SPXO)DSO321SBM (SPXO)DSO753SJ (LVDS出力) (SPXO)DSO321SBN (SPXO)DSO753SK (LV-PECL出力) (SPXOCM200C CM315 CM519CM212 CM415HC-49 / U-SCS325DSV753SK (LV-PECL出力)(VCXO) DSV753SV (VCXO)DSS753SVD (SSXO)DSV753HV (VCXO)DSV753SB (VCXO)DSV753SD (HCSL出力)(VCXO) DSV531SV (VCXO)DSV532SB (VCXO)DSV532SV (VCXO)DSO321SH (SPXO)DSV211AV (2.8V/3.3V 動作タイDSV323SV (VCXO)DSV531SB (VCXO)DSO321SVN (SPXO)DSV211AR (1.8V動作タイプ)(VC微晶10KHZ-2100KHZCC7V-T1ACC4V-T1ASSP-T7-FL VT-150-FVT-200-FL VT-120-FSSP-T7-F VTC-120-FVT-200-F SSP-T2A-FNZ2016SA7311S-GF-505P NH21M13LANZ2016SF 7311S-DF-505P9325DSPXO振荡器NZ2520SB7311S-DF-104P NH25M22WC NZ2520SD7311S-GF-255R NH20M20LA NZ2520SFNH25M22WB NZ2520SGNT2016SA 2725NNT2520SA 10T7.5BH 2735NNT3225SA 21E15AA 2725T5925A-AQP50 90E9A 2765E5936L-GJD70 YF10.0BP NV11M09YANW36M25LA AF10-24DS NV7050SANW34M25WA 70NE15B 7311QNW19M12WA 45SC15BENV13M09WJ NW19M12WB 度-40-125°OCXO晶振晶体滤波器SPXO振荡器TCXO振荡器FCXO晶振和四脚色面两脚和四脚色面两脚和四脚FS-585NS-21RNS-32R/FS-335/555晶振滤波器/SB/JE/NB /NB/NB NBNBJE/NB 62423 72423 /DGO)O) SPXO)XO) (SPXO)XO) (SPXO)XO) XO) (SPXO)プ)(VCXO)作タイプ)(VCXO)O)VCXO)WXB55Z1486FE WF871Q0429CD声表滤波WF995D0355CDWFB40D1732CE。

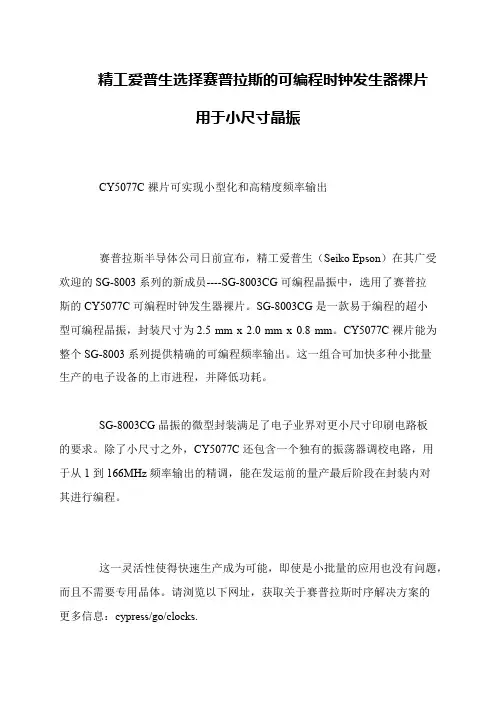

精工爱普生选择赛普拉斯的可编程时钟发生器裸片
用于小尺寸晶振
CY5077C裸片可实现小型化和高精度频率输出
赛普拉斯半导体公司日前宣布，精工爱普生（Seiko Epson）在其广受欢迎的SG-8003系列的新成员----SG-8003CG可编程晶振中，选用了赛普拉
斯的CY5077C可编程时钟发生器裸片。

SG-8003CG是一款易于编程的超小
型可编程晶振，封装尺寸为2.5 mm x 2.0 mm x 0.8 mm。

CY5077C裸片能为整个SG-8003系列提供精确的可编程频率输出。

这一组合可加快多种小批量
生产的电子设备的上市进程，并降低功耗。

SG-8003CG晶振的微型封装满足了电子业界对更小尺寸印刷电路板
的要求。

除了小尺寸之外，CY5077C还包含一个独有的振荡器调校电路，用
于从1到166MHz频率输出的精调，能在发运前的量产最后阶段在封装内对
其进行编程。

这一灵活性使得快速生产成为可能，即使是小批量的应用也没有问题，而且不需要专用晶体。

请浏览以下网址，获取关于赛普拉斯时序解决方案的
更多信息：cypress/go/clocks.。

贴片晶振规格书范文模板及概述1. 引言1.1 概述贴片晶振是一种常见的电子元件，被广泛应用于各种电子设备中。

它具有稳定的频率输出和精确的时间基准，能够提供准确可靠的时钟信号给其他组件或系统使用。

贴片晶振规格书作为对该元件性能和参数的详细说明和要求，对于设计、生产和应用方面都具有重要意义。

1.2 文章结构本文将首先简要介绍贴片晶振规格书的概述，包括其定义、作用以及发展历程和应用领域等内容。

接着，我们将提供一个贴片晶振规格书模板，包含基本信息部分、电气特性部分和动态参数部分等内容，并解释每个部分所需信息的含义和作用。

此外，我们还将讨论贴片晶振规格书编写的重点，包括规范格式和语言表达要求、关键参数与测试方法说明以及典型应用场景案例分析等方面。

最后，我们将总结本文内容并探讨贴片晶振规格书发展趋势。

1.3 目的本文旨在提供一篇关于贴片晶振规格书的范文模板以及详细概述，帮助读者了解贴片晶振规格书的基本结构和编写要点。

通过阅读本文，读者将能够更好地理解贴片晶振规格书的重要性和应用，掌握撰写贴片晶振规格书的方法和技巧，并对贴片晶振规格书未来发展趋势有所展望。

2. 贴片晶振规格书概述2.1 贴片晶振的定义和作用:贴片晶振是一种小型化的电子元件，广泛应用于各种电路中以提供稳定的时钟信号。

它由一个晶体谐振器、固定电容和金属外壳组成。

晶体谐振器通过外部激励产生震荡信号，并将其转换为频率固定的时钟信号。

贴片晶振是整个电子系统中重要的时基来源，对于保证精确的计时和数据传输至关重要。

2.2 发展历程和应用领域:贴片晶振自问世以来，在电子行业中取得了长足的发展。

随着电子产品需求越来越小型化、高性能化和高可靠性等要求，贴片晶振逐渐取代了传统封装形式的振荡器，成为主流选择。

贴片晶振广泛应用于许多领域，包括通信设备、计算机硬件、消费类电子产品和工业控制等。

在通信设备中，贴片晶振被用于网络路由器、交换机以及无线通信设备等；在计算机硬件中，贴片晶振广泛应用于主板、显卡和存储设备等；在消费类电子产品中，如智能手机、平板电脑和手持设备等，也都需要贴片晶振作为时钟源。

SPXO SG-3030CMProduct nameSG-3030CM 32.768000 kHz B Product Number / Ordering code X1B0002110001xxPlease refer to the 8.Packing information about xx (last 2 digits)Output waveform CMOSPb free / Complies with EU RoHS directiveReference weight Typ. 13 mg1.Absolute maximum ratings ParameterSymbolMin.Typ.Max.UnitConditions / RemarksMaximum supply voltage Vcc-GND -0.3-7V Vcc PinStorage temperatureT_stg-55-125ºCStorage as single product2.Specifications(characteristics)ParameterSymbolMin.Typ.Max.UnitConditions / RemarksOutput frequencyf0-32.7680-kHz Supply voltageVcc 1.5- 5.5V Vcc Pin Interface power supply voltage V IO 1.5- 5.5VIO PinOperating temperatureT_use -40-85ºC No condensationFrequency tolerancef_tol -18-28x10-6@+25℃, Vcc=3.3V , 5+/-23x10^-6Frequency temperature coefficient f0-Tc -120-10x10-6-20℃ to 70℃ (+25℃ is reference)Frequency voltage coefficient f0-Vcc -2-2x10-6 /V `@+25℃ Vcc=1.5V to 5.5V Current consumption Icc --2μA Vcc=3.3V No load condition Symmetry SYM 455055%1/2Vcc(VIO ）Level Output voltage V OH VIO-0.4--IOH=-400μA V OL --GND+0.4IOL=400μAOutput load condition L_CMOS --15pFCMOS Load Input voltage V IH 80%Vcc---V IL--20%Vcc -Rise time t r --200ns Fall time tf --200ns Start-up time t_str --1sVcc=2.0V to 5.0VFrequency agingf_age-5-5x10-6@+25℃ Vcc=3.3V First year3.Timing chart20%VIO ⇔ 80%VIO 15pF VIO=1.5V to 5.5V 20%VIO ⇔ 80%VIO 15pF VIO=1.8V to 5.5VGNDV CC tr 50 %V CCttw80 %V CC20 %V CC tf4.Test circuit1) Waveform observation 2) Current consumption*Current consumption under the disable function should be = GND.3) Condition (1) Oscilloscope· Band width should be minimum 5 times higher (wider) than measurement frequency.· Probe earth should be placed closely from test point and lead length should be as short as possible.* Recommendable to use miniature socket. (Don’t use earth lead.)(2) L_CMOS also includes probe capacitance.(3) By-pass capacitor (0.01 mF to 0.1 mF) is placed closely between VCC and GND.(4) Use the current meter whose internal impedance value is small.(5) Power supply· Start up time (0 %VCC ® 90 %VCC) of power source should be more than 150 ms.· Impedance of power supply should be as lowest as possible.V CCSTOUTGNDswichsupplyby-pass capacitorTest PointAor OEor OEV CCSTOUTGNDsupplyby-passcapacitorL_CMOSTest Point5.External dimensions (Unit: mm)6.Footprint(Recommended) (Unit: mm)7.Reflow profileReflow condition (Follow of JEDEC STD-020D.01)8.Packing information[ 1 ]Product number last 2 digits code(xx) descriptionThe recommended code is "00"X1B0002110001xxCode Code 01Any Q'ty vinyl bag(Tape cut)141000pcs / Reel 11Any Q'ty / Reel 152000pcs / Reel 12250pcs / Reel003000pcs / ReelConditionConditionTemperature [ ︒C ] 60 300 250200 150 100 50ts60 s to 180 s( +150 ︒C to +200 ︒C )Avg. Ramp-up 3 ︒C / s Max.Ramp-down 6 ︒C / s Max.Time [ s ]120 180 240 300 360 420 480 540 600 660 720 780Ts min ; +150 ︒CTs max ; +200 ︒C TL; +217 ︒C+255 ︒CtL60 s to 150 s( +217 ︒C over )tp ; 20 s to 40 sTP ; +260 ︒C Time +25 ︒C to Peak3.2±0.22.351.5±0.2#2 #1 #2#4#30.9 M a x .#30.65 0.5#1#40.4Pin mapPin Connection 1 V IO 2 GND 3 OUT 4 V CC3030 ○B123B1.052.651.20.8[ 2 ] Taping specificationSubject to EIA-481 & IEC-60286(1) Tape dimensions Material of the Carrier Tape : PS Material of the Top Tape : PET+PEUnit: mm(2) Reel dimensionsCenter material : PS Material of the Reel : PSφ1.0 ±0.1+0.14.0±0.12.0±0.054.0±0.110P: 40±0.15.5±0.05＋0.312.0－0.11.75±0.13.6±0.10.3±0.051.0±0.11.9±0.1TopG 穴Φ76 mmΦ160 mmH Φ3Φ180 mm +015.40±1 mm13.00±0.3 mmΦ60 mmΦ21±0.8 mmΦ13±0.2 mm2.00 mm +0.39.Notice·This material is subject to change without notice.·Any part of this material may not be reproduced or duplicated in any form or any means without the written permission of Seiko Epson.·The information about applied data,circuitry, software, usage, etc. written in this material is intended for reference only.Seiko Epson does not assume any liability for the occurrence of customer damage or infringing on any patent or copyright of a third party.This material does not authorize the licensing for any patent or intellectual copyrights.·When exporting the products or technology described in this material, you should comply with the applicable export control laws and regulations and follow the procedures required by such laws and regulations.·You are requested not to use the products (and any technical information furnished, if any) for the development and/or manufacture of weapon of mass destruction or for other military purposes. You are also requested that youwould not make the products available to any third party who may use the products for such prohibitedpurposes.·These products are intended for general use in electronic equipment. When using them in specific applications that requireextremely high reliability, such as the applications stated below, you must obtain permission from Seiko Epson in advance./ Space equipment (artificial satellites, rockets, etc.)/ Transportation vehicles and related (automobiles, aircraft, trains, vessels, etc.)/ Medical instruments to sustain life/ Submarine transmitters/ Power stations and related/ Fire work equipment and security equipment/ Traffic control equipment/ And others requiring equivalent reliability.。

EPSON 晶振一，EPSON简介；Epson Toyocom即爱普生拓优科梦，运用长年积累的培育人工石英以及以加工为代表的、实现精微化、高精度、高品质的3D战略”。

究极应用石英特性而制造的三大元器件而成的模块，成为不可缺少的企业而迈进至今。

伴随信息化社会的进程，现在石英元器件已被广泛应用于各种电子设备以及家电产品之中日趋重要。

爱普生拓优科梦Epson Toyocom，将进一步究极用精微加工发挥“石英”材料的优越性能的“QMEMS”技术小、更高性能或全新功能的元器件，同时融合爱普生集团的半导体与软件技术增添便于使用、能让顾客更体验到利用价值的“解决方案”。

通过上述工作，我们将为社会的的发展以及实现更舒畅的未来而竭诚奉献。

二，EPSON 制造工厂及销售渠道；EPSON在日本本土有三个制造工场关联制造工场。

在海外拥有中国苏州、无锡、马来西亚和泰国四个制造工场。

EPSON拥有遍布全球的销售网络，全球共分为四极少数的代理商。

日本KDS上海唐辉电子人员均来自日本KDS大真空。

如原深圳KDS营业主任罗成刚现为上海唐辉电子高级经理，原上海KDS原营业部主任周宇现为上海唐辉电子销售总监，原天津KDS郭建中为上海唐辉电子深圳公司经理，原苏州KDS胡鸣现为上海唐辉电子苏州办经理.三，EPSON 产品分类；EPSON产品种类齐全，主要产品如下；1、SMD Crystal Resonators/MHz Band Crystal Resonators2、SMD Tuning Fork Crystal Resonators/KHz Band Crystal Resonators3，Miniature Crystal Resonators/MHz Band Crystal Resonators4、Crystal Resonators/MHz Band Crystal Resonators5、Tuning Fork Crystal Resonators/KHz Band Crystal Resonators6、SPXO7、VCXO8、TCXO9、VC-TCXO 10、SSXO 11、Filters四，EPSON晶振的工作原理；石英晶体振荡器是利用石英晶体（二氧化硅的结晶体）的压电效应制成的一种谐振器件，它的基本结构大致是从一块石英晶体上按一定方位角切下薄片（简称为晶片，它可以是正方形、矩形或圆形等），在它的两个对应面上涂敷银层作为电极，在每个电极上各焊一根引线接到管脚上，再加上封装外壳就构成了石英晶体谐振器，简称为石英晶体或晶体、晶振。

实际尺寸规格（特征）kHz 频率范围晶体单元车载用 MC - 30A∙频率范围： 32.768 kHz (20 kHz ~ 120 kHz)∙外部尺寸规格 ： 8.0 × 3.8 × 2.54 mm ∙谐波次数： 基频∙应用： 汽车音响,ECU 子时钟,汽车导航系统,时钟∙依据AEC-Q200产品号码(请联系我们) Q1xMC30A2xxxx00推进环境管理体系 符合国际标准在环境管理体系的运行方面，使用ISO14001国际环境标准，通过“计划-实施-检查-验证（PDCA）的循环来实现持续改进。

公司位于日本和海外的主要制造基地已取得了ISO14001资格认证。

追求高品质Seiko Epson 为了向顾客提供高品质、卓越信赖性的产品、服务，迅速着手通过ISO 9000系列资格认证的工作，其日本和海外工厂也在通过ISO 9001认证。

同时，也在通过大型汽车制造厂商要求规格的ISO/TS 16949认证。

关于在目录内使用的记号●无铅。

●符合欧盟RoHS 指令。

欧盟RoHS 指令免检的含铅产品。

（密封玻璃、高温熔化性焊料或其他材料中包含铅。

）●为汽车方面的应用，如汽车多媒体、车身电子、遥控无钥门锁等。

●为汽车行驶安全方面的应用（引擎控制单元、气囊、电子稳定程序控制系统）。

注意事项·本材料如有变更，恕不另行通知。

量产设计时请确认最新信息。

·未经Seiko Epson 公司书面授权，禁止以任何形式或任何方式复制或者发布本材料中任何部分的信息内容。

·本材料中的书面信息、应用电路、编程、使用等内容仅供参考。

Seiko Epson 公司对第三方专利或版权的侵权行为不负有任何责任。

本材料未对任何专利或知识版权的许可权进行授权。

·本材料中规格表中的数值大小通过数值线上的大小关系表示。

·当出口此材料中描述的产品或技术时，你应该遵守相应的出口管制法律和法规，并按照这些法律和法规的要求执行。

epson晶体晶振Epson晶体晶振是一种用于电子设备中稳定提供时钟信号的元件。

晶体振荡器是一种能够产生稳定频率的振荡器，它利用晶体的谐振特性来实现。

Epson晶体晶振在电子设备中扮演着非常重要的角色。

它的主要作用是提供稳定的时钟信号，以确保设备的正常运行。

在许多电子设备中，如计算机、手机、电视等，都需要一个准确的时钟信号来同步各个部件的操作，以便实现正确的功能。

Epson晶体晶振的工作原理是利用晶体的谐振特性。

晶体是一种具有晶格结构的固体材料，当施加电场或机械力时，晶体会发生微小的形变，从而产生电荷的位移。

这种位移会导致晶体的谐振频率发生变化，进而产生稳定的振荡信号。

Epson晶体晶振的制造过程非常精细复杂。

首先，需要选取高纯度的晶体材料，如石英晶体，然后通过特定的工艺将晶体加工成具有特定结构和尺寸的晶片。

接下来，将晶片与电极进行连接，形成晶体振荡器。

最后，通过测试和筛选，选择出频率稳定性好、工作可靠的晶体振荡器。

Epson晶体晶振具有许多优点。

首先，它具有非常高的频率稳定性和精确度，能够提供准确的时钟信号。

其次，它具有低功耗和小尺寸的特点，非常适合集成在各种电子设备中。

此外，Epson晶体晶振还具有抗干扰能力强、工作温度范围广等优势。

在实际应用中，Epson晶体晶振通常以表面贴装的形式存在。

这种封装方式可以使晶振元件更加紧凑，方便安装和布局。

同时，Epson晶体晶振还可以根据不同的应用需求提供不同的频率和精度选择，以满足各种设计要求。

Epson晶体晶振是一种非常重要的电子元件，它在各种电子设备中扮演着提供稳定时钟信号的关键角色。

通过利用晶体的谐振特性，Epson晶体晶振能够产生高精度、高稳定性的振荡信号，为设备的正常运行提供保障。

随着科技的不断发展，Epson晶体晶振的性能和应用领域也在不断拓展，将为电子设备的发展带来更多可能性。
