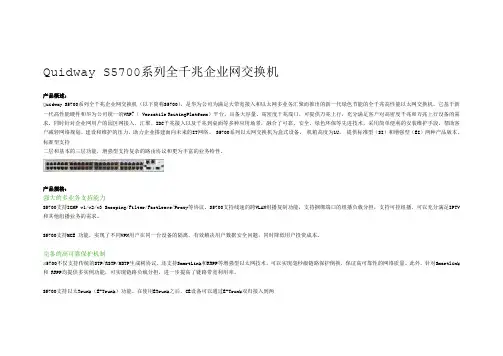

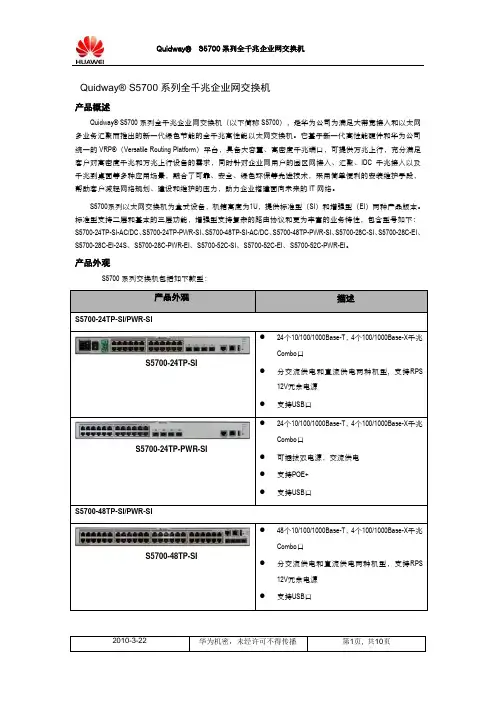

Quidway® S5700系列全千兆企业网交换机产品概述Quidway® S5700系列全千兆企业网交换机（以下简称S5700），是华为公司为满足大带宽接入和以太网多业务汇聚而推出的新一代绿色节能的全千兆高性能以太网交换机。
它基于新一代高性能硬件和华为公司统一的VRP®（Versatile Routing Platform）平台，具备大容量、高密度千兆端口，可提供万兆上行，充分满足客户对高密度千兆和万兆上行设备的需求，同时针对企业网用户的园区网接入、汇聚、IDC千兆接入以及千兆到桌面等多种应用场景，融合了可靠、安全、绿色环保等先进技术，采用简单便利的安装维护手段，帮助客户减轻网络规划、建设和维护的压力，助力企业搭建面向未来的IT网络。
S5700系列以太网交换机为盒式设备，机箱高度为1U，提供标准型（SI）和增强型（EI）两种产品版本。
标准型支持二层和基本的三层功能，增强型支持复杂的路由协议和更为丰富的业务特性，包含型号如下：S5700-24TP-SI-AC/DC、S5700-24TP-PWR-SI、S5700-48TP-SI-AC/DC、S5700-48TP-PWR-SI、S5700-28C-SI、S5700-28C-EI、S5700-28C-EI-24S、S5700-28C-PWR-EI、S5700-52C-SI、S5700-52C-EI、S5700-52C-PWR-EI。
产品外观S5700系列交换机包括如下款型：S5700-52C-EI产品特点●强大的多业务支持能力S5700支持IGMP v1/v2/v3 Snooping/Filter/Fast Leave/Proxy等协议。
S5700支持线速的跨VLAN组播复制功能，支持捆绑端口的组播负载分担，支持可控组播，可以充分满足IPTV和其他组播业务的需求。
S5700支持MCE 功能，实现了不同VPN用户在同一台设备的隔离，有效解决用户数据安全问题，同时降低用户投资成本。

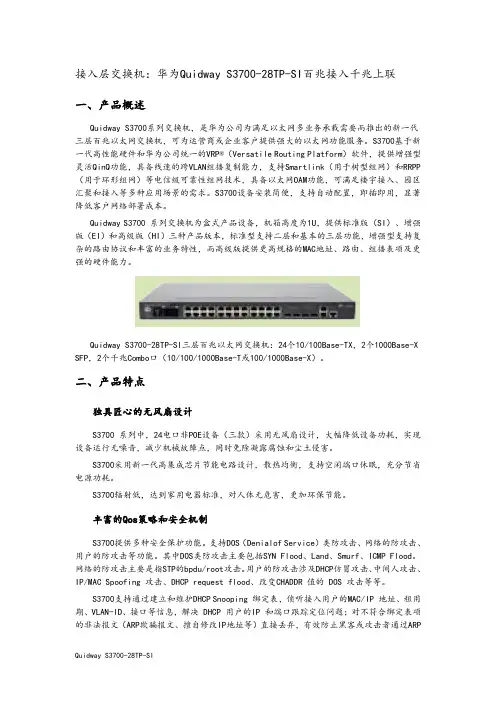

接入层交换机：华为Quidway S3700-28TP-SI百兆接入千兆上联一、产品概述Quidway S3700系列交换机，是华为公司为满足以太网多业务承载需要而推出的新一代三层百兆以太网交换机，可为运营商或企业客户提供强大的以太网功能服务。
S3700基于新一代高性能硬件和华为公司统一的VRP®（Versatile Routing Platform）软件，提供增强型灵活QinQ功能，具备线速的跨VLAN组播复制能力，支持Smartlink（用于树型组网）和RRPP （用于环形组网）等电信级可靠性组网技术，具备以太网OAM功能，可满足楼宇接入、园区汇聚和接入等多种应用场景的需求。
S3700设备安装简便，支持自动配置，即插即用，显著降低客户网络部署成本。
Quidway S3700 系列交换机为盒式产品设备，机箱高度为1U，提供标准版（SI）、增强版（EI）和高级版（HI）三种产品版本，标准型支持二层和基本的三层功能，增强型支持复杂的路由协议和丰富的业务特性，而高级版提供更高规格的MAC地址、路由、组播表项及更强的硬件能力。
Quidway S3700-28TP-SI三层百兆以太网交换机：24个10/100Base-TX，2个1000Base-X SFP，2个千兆Combo口（10/100/1000Base-T或100/1000Base-X）。
二、产品特点独具匠心的无风扇设计S3700 系列中，24电口非POE设备（三款）采用无风扇设计，大幅降低设备功耗，实现设备运行无噪音，减少机械故障点，同时免除凝露腐蚀和尘土侵害。
S3700采用新一代高集成芯片节能电路设计，散热均衡，支持空闲端口休眠，充分节省电源功耗。
S3700辐射低，达到家用电器标准，对人体无危害，更加环保节能。
丰富的Qos策略和安全机制S3700提供多种安全保护功能。
支持DOS（Denialof Service）类防攻击、网络的防攻击、用户的防攻击等功能。

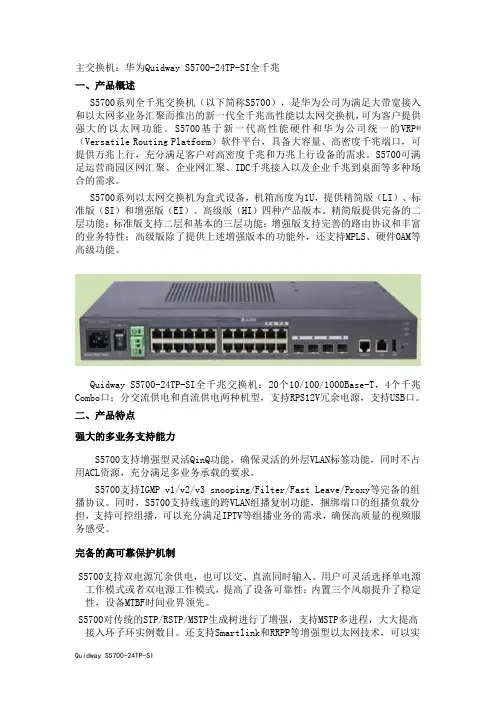

主交换机：华为Quidway S5700-24TP-SI全千兆一、产品概述S5700系列全千兆交换机（以下简称S5700），是华为公司为满足大带宽接入和以太网多业务汇聚而推出的新一代全千兆高性能以太网交换机，可为客户提供强大的以太网功能。
S5700基于新一代高性能硬件和华为公司统一的VRP®（Versatile Routing Platform）软件平台，具备大容量、高密度千兆端口，可提供万兆上行，充分满足客户对高密度千兆和万兆上行设备的需求。
S5700可满足运营商园区网汇聚、企业网汇聚、IDC千兆接入以及企业千兆到桌面等多种场合的需求。
S5700系列以太网交换机为盒式设备，机箱高度为1U，提供精简版（LI）、标准版（SI）和增强版（EI）、高级版（HI）四种产品版本。
精简版提供完备的二层功能；标准版支持二层和基本的三层功能；增强版支持完善的路由协议和丰富的业务特性；高级版除了提供上述增强版本的功能外，还支持MPLS、硬件OAM等高级功能。
Quidway S5700-24TP-SI全千兆交换机：20个10/100/1000Base-T，4个千兆Combo口；分交流供电和直流供电两种机型，支持RPS12V冗余电源，支持USB口。
二、产品特点强大的多业务支持能力S5700支持增强型灵活QinQ功能，确保灵活的外层VLAN标签功能，同时不占用ACL资源，充分满足多业务承载的要求。
S5700支持IGMP v1/v2/v3 snooping/Filter/Fast Leave/Proxy等完备的组播协议。
同时，S5700支持线速的跨VLAN组播复制功能，捆绑端口的组播负载分担，支持可控组播，可以充分满足IPTV等组播业务的需求，确保高质量的视频服务感受。
完备的高可靠保护机制S5700支持双电源冗余供电，也可以交、直流同时输入。
用户可灵活选择单电源工作模式或者双电源工作模式，提高了设备可靠性；内置三个风扇提升了稳定性，设备MTBF时间业界领先。

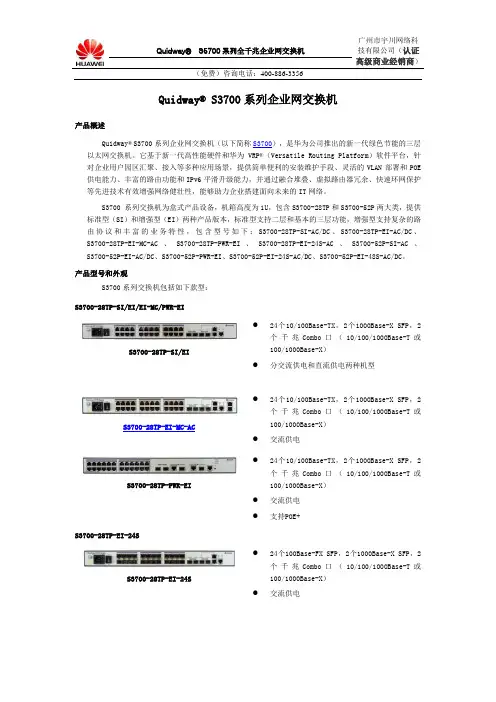

Quidway® S3700系列企业网交换机产品概述Quidway® S3700系列企业网交换机（以下简称S3700），是华为公司推出的新一代绿色节能的三层以太网交换机。
它基于新一代高性能硬件和华为VRP®（Versatile Routing Platform ）软件平台，针对企业用户园区汇聚、接入等多种应用场景，提供简单便利的安装维护手段、灵活的VLAN部署和POE 供电能力、丰富的路由功能和IPv6平滑升级能力，并通过融合堆叠、虚拟路由器冗余、快速环网保护等先进技术有效增强网络健壮性，能够助力企业搭建面向未来的IT网络。
S3700 系列交换机为盒式产品设备，机箱高度为1U，包含S3700-28TP和S3700-52P两大类，提供标准型（SI）和增强型（EI）两种产品版本，标准型支持二层和基本的三层功能，增强型支持复杂的路由协议和丰富的业务特性，包含型号如下：S3700-28TP-SI-AC/DC、S3700-28TP-EI-AC/DC、S3700-28TP-EI-MC-AC、S3700-28TP-PWR-EI、S3700-28TP-EI-24S-AC、S3700-52P-SI-AC、S3700-52P-EI-AC/DC、S3700-52P-PWR-EI、S3700-52P-EI-24S-AC/DC、S3700-52P-EI-48S-AC/DC。
产品型号和外观S3700系列交换机包括如下款型：S3700-28TP-SI/EI/EI-MC/PWR-EIS3700-28TP-SI/EI ●24个10/100Base-TX，2个1000Base-X SFP，2个千兆Combo口（10/100/1000Base-T或100/1000Base-X）●分交流供电和直流供电两种机型S3700-28TP-EI-MC-AC ●24个10/100Base-TX，2个1000Base-X SFP，2个千兆Combo口（10/100/1000Base-T或100/1000Base-X）●交流供电S3700-28TP-PWR-EI ●24个10/100Base-TX，2个1000Base-X SFP，2个千兆Combo口（10/100/1000Base-T或100/1000Base-X）●交流供电●支持POE+S3700-28TP-EI-24SS3700-28TP-EI-24S ●24个100Base-FX SFP，2个1000Base-X SFP，2个千兆Combo口（10/100/1000Base-T或100/1000Base-X）●交流供电S3700-52P-SI/EI/PWR-EI/EI-48SS3700-52P-SI-AC S3700-52P-EI-AC ●48个10/100Base-TX，2个100/1000Base-XSFP，2个1000Base-X SFP●分交流供电和直流供电两种机型，其中SI无直流机型S3700-52P-PWR-EI ●48个10/100Base-TX，2个100/1000Base-XSFP，2个1000Base-X SFP●交流供电●支持POE+S3700-52P-EI-48S-AC ●48个100Base-FX SFP，2个100/1000Base-XSFP，2个1000Base-X SFP●分交流供电和直流供电两种机型S3700-52P-EI-24SS3700-52P-EI-24S-AC ●24个10/100Base-TX，24个100Base-FX SFP，2个100/1000Base-X SFP，2个1000Base-XSFP，●分交流供电和直流供电两种机型产品特点●强大的多业务支持能力S3700支持Multi-VPN-Instance CE（MCE）功能，实现了不同VPN用户在同一台设备上的隔离，有效解决用户数据安全问题，同时降低用户投资成本。

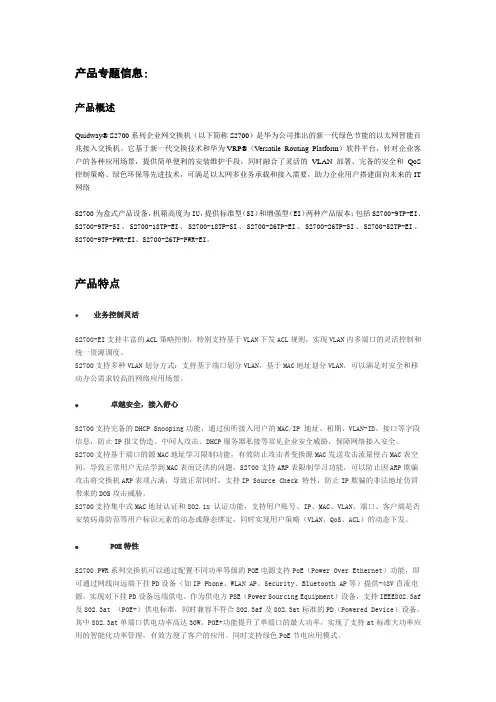

产品专题信息：产品概述Quidway® S2700系列企业网交换机（以下简称S2700）是华为公司推出的新一代绿色节能的以太网智能百兆接入交换机。
它基于新一代交换技术和华为VRP®（Versatile Routing Platform）软件平台，针对企业客户的各种应用场景，提供简单便利的安装维护手段，同时融合了灵活的VLAN部署、完备的安全和QoS 控制策略、绿色环保等先进技术，可满足以太网多业务承载和接入需要，助力企业用户搭建面向未来的IT 网络S2700为盒式产品设备，机箱高度为IU，提供标准型（SI）和增强型（EI）两种产品版本；包括S2700-9TP-EI、S2700-9TP-SI、S2700-18TP-EI、S2700-18TP-SI、S2700-26TP-EI、S2700-26TP-SI、S2700-52TP-EI、S2700-9TP-PWR-EI、S2700-26TP-PWR-EI。
产品特点●业务控制灵活S2700-EI支持丰富的ACL策略控制，特别支持基于VLAN下发ACL规则，实现VLAN内多端口的灵活控制和统一资源调度。
S2700支持多种VLAN划分方式：支持基于端口划分VLAN，基于MAC地址划分VLAN，可以满足对安全和移动办公需求较高的网络应用场景。
●卓越安全，接入舒心S2700支持完备的DHCP Snooping功能，通过侦听接入用户的MAC/IP 地址、租期、VLAN-ID、接口等字段信息，防止IP报文伪造、中间人攻击、DHCP服务器私接等常见企业安全威胁，保障网络接入安全。
S2700支持基于端口的源MAC地址学习限制功能，有效防止攻击者变换源MAC发送攻击流量侵占MAC表空间，导致正常用户无法学到MAC表而泛洪的问题。
S2700支持ARP表限制学习功能，可以防止因ARP欺骗攻击将交换机ARP表项占满，导致正常同时，支持IP Source Check 特性，防止IP欺骗的非法地址仿冒带来的DOS攻击威胁。
Quidway S5700系列全千兆企业网交换机产品概述：Q uidway S5700系列全千兆企业网交换机（以下简称S5700），是华为公司为满足大带宽接入和以太网多业务汇聚而推出的新一代绿色节能的全千兆高性能以太网交换机。
它基于新一代高性能硬件和华为公司统一的VRP?（ Versatile RoutingPlatform）平台，具备大容量、高密度千兆端口，可提供万兆上行，充分满足客户对高密度千兆和万兆上行设备的需求，同时针对企业网用户的园区网接入、汇聚、IDC千兆接入以及千兆到桌面等多种应用场景，融合了可靠、安全、绿色环保等先进技术，采用简单便利的安装维护手段，帮助客户减轻网络规划、建设和维护的压力，助力企业搭建面向未来的IT网络。
S5700系列以太网交换机为盒式设备，机箱高度为1U，提供标准型（SI）和增强型（EI）两种产品版本。
标准型支持二层和基本的三层功能，增强型支持复杂的路由协议和更为丰富的业务特性。
产品规格：强大的多业务支持能力S5700支持IGMP v1/v2/v3 Snooping/Filter/FastLeave/Proxy等协议。
S5700支持线速的跨VLAN组播复制功能，支持捆绑端口的组播负载分担，支持可控组播，可以充分满足IPTV 和其他组播业务的需求。
S5700支持MCE 功能，实现了不同VPN用户在同一台设备的隔离，有效解决用户数据安全问题，同时降低用户投资成本。
完备的高可靠保护机制S5700不仅支持传统的STP/RSTP/MSTP生成树协议，还支持SmartLink和RRPP等增强型以太网技术，可以实现毫秒级链路保护倒换，保证高可靠性的网络质量。
此外，针对Smartlink 和 RRPP均提供多实例功能，可实现链路负载分担，进一步提高了链路带宽利用率。
S5700支持以太Trunk（E-Trunk）功能。
在使用ETrunk之后，CE设备可以通过E-Trunk双归接入到两台PE设备上。

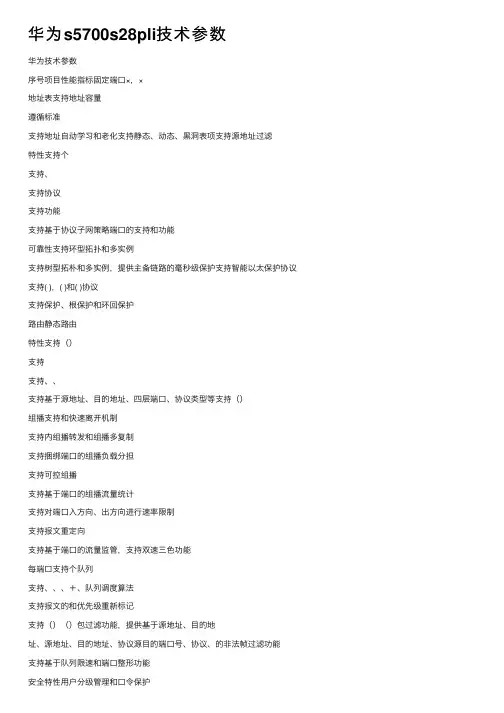

华为s5700s28pli技术参数华为技术参数序号项⽬性能指标固定端⼝×，×地址表⽀持地址容量遵循标准⽀持地址⾃动学习和⽼化⽀持静态、动态、⿊洞表项⽀持源地址过滤特性⽀持个⽀持、⽀持协议⽀持功能⽀持基于协议⼦⽹策略端⼝的⽀持和功能可靠性⽀持环型拓扑和多实例⽀持树型拓朴和多实例，提供主备链路的毫秒级保护⽀持智能以太保护协议⽀持( )，( )和( )协议⽀持保护、根保护和环回保护路由静态路由特性⽀持（）⽀持⽀持、、⽀持基于源地址、⽬的地址、四层端⼝、协议类型等⽀持（）组播⽀持和快速离开机制⽀持内组播转发和组播多复制⽀持捆绑端⼝的组播负载分担⽀持可控组播⽀持基于端⼝的组播流量统计⽀持对端⼝⼊⽅向、出⽅向进⾏速率限制⽀持报⽂重定向⽀持基于端⼝的流量监管，⽀持双速三⾊功能每端⼝⽀持个队列⽀持、、、＋、队列调度算法⽀持报⽂的和优先级重新标记⽀持（）（）包过滤功能，提供基于源地址、⽬的地址、源地址、⽬的地址、协议源⽬的端⼝号、协议、的⾮法帧过滤功能⽀持基于队列限速和端⼝整形功能安全特性⽤户分级管理和⼝令保护⽀持防⽌、攻击功能、防攻击⽀持、、端⼝、的组合绑定⽀持端⼝隔离、端⼝安全、⽀持⿊洞地址⽀持地址学习数⽬限制⽀持认证，⽀持单端⼝最⼤⽤户数限制⽀持认证，⽀持、、等多种⽅式⽀持⽀持⽀持保护功能⽀持⿊名单和⽩名单接⼊安全⽀持、、、防雷业务端⼝防雷能⼒：管理和维护⽀持⽀持虚拟电缆检测( )⽀持⽀持⽀持⽹管系统、⽀持⽹管特性⽀持⾃动配置⽀持⽀持系统⽇志、分级告警⽀持能效以太⽹（）⽀持功能环境要求⼯作温度：℃～℃相对湿度：～（⽆凝露）输⼊电压：额定电压范围：；最⼤电压范围：；外形尺⼨(宽×深×⾼)功耗<。
系列万兆交换机12产品画册R Quidway S6700系列万兆交换机产品画册RQuidway S6700系列万兆交换机34产品画册R Quidway S6700系列万兆交换机产品画册R Quidway S6700系列万兆交换机有效防止黑客或攻击者通过ARP 报文实施园区网常见的“中间人”攻击。
利用DHCP Snooping 的信任端口特性还可以保证DHCP Server 的合法性。
S6700支持ARP 表项严格学习功能，可以防止因ARP 欺骗攻击将交换机ARP 表项占满，导致正常用户无法上网。
同时，支持IP Source Check 特性，防止包括MAC 欺骗、IP 欺骗、MAC/IP 欺骗在内的非法地址仿冒带来的DOS 攻击；S6700支持 URPF 功能，保证端口接收到数据包时，会反向查找路径验证数据包的真实性，从而有效地杜绝了网络中日益泛滥的源地址欺骗。
S6700支持集中式MAC 地址认证和802.1x 认证，支持用户账号、IP 、MAC 、VLAN 、端口、客户端是否安装病毒防范等用户标识元素的，同时实现用户策略（VLAN 、QoS 、ACL ）的动态下发。
S6700支持基于端口的源MAC 地址学习限制功能，有效防止用户源MAC 欺骗冲击设备MAC 表项，导致正常用户无法学到MAC 表而泛洪的问题等。
S6700支持双电源冗余供电.。
用户可灵活选择单电源工作模式或者双电源工作模式，提高了设备可靠性；内置两个风扇提升了稳定性，设备MTBF 时间业界领先。
S6700对传统的STP/RSTP/MSTP 生成树进行了增强，支持MSTP 多进程，大大提高接入环子环实例数目。
还支持Smartlink 和RRPP 等增强型以太网技术，可以实现毫秒级链路保护倒换，保证高可靠性的网络质量。
此外，针对Smartlink 和 RRPP 均提供多实例功能，可实现链路负载分担，进一步提高了链路带宽利用率。
S6700支持增强Trunk （E-Trunk ）功能。
华为三层交换机5700系列配置⽰例配置说明配置华为交换机的注意事项（针对5700系列）默认情况下，华为设备管理地址为192.168.1.253/24，账号 admin, 密码 admin@如果有web界⾯管理功能，可以尝试使⽤ETH⼝登陆，如果登陆不上，可以按住MODE键6s,重置，打开web登陆功能。
在配三层交换机配置vlan时，默认情况下不同的vlan⽹段是可以通过路由互通的，不⽤额外配置（如思科等设备需要开启ip routing）如果要对端⼝批量操作，如配置vlan，可以先创建⼀个组,使⽤ port-group GROUP-NAME命令创建组，并通过group-member GigabitEthernet 0/0/1 to GigabitEthernet 0/0/20 来批量添加组员，以后需要对这些端⼝操作进⼊此group就可以了。
如果要对不同的vlan⽹络隔离，需要配置ACL策略。
在使⽤PC机进⾏测试时，要关闭⽆线和其他的虚拟⽹卡，并确认关闭防⽕墙，排除测试⼲扰因素。
实现⽅式三层核⼼交换机在配置多个不同⽹段互联时，有以下两种⽅式：1. 单臂路由⽅式: 三层核⼼交换机配置多⽹络vlan，与上联汇聚层设备接⼝使⽤trunk透传，上联防⽕墙或路由器创建⼦接⼝并对应VLAN作为⽹关，vlan间的数据路由在上联设备完成。
单臂路由⽅式：2. 静态路由⽅式: 三层核⼼交换机作为接⼊设备，配置多⽹络vlan，并创建⽹关，上联接⼝配置静态IP，交换机和上联设备添加静态路由，vlan之间的数据路由在接⼊交换机上完成。
静态路由⽅式：设备配置单臂路由⽅式（Trunk）路由器：LAN1: 192.168.1.1下⼀跳地址： 192.168.1.2SW1GE1/0/1: 192.168.1.2 VLAN 1GE1/0/2: TRUNK 允许 VLAN 2 3GE1/0/3: 192.168.4.1 VLAN 4SW2GE1/0/1: TRUNK VLAN 2 3GE1/0/23: 192.168.2.1/24 VLAN 2GE1/0/24: 192.168.3.1/24 VLAN 3SW3默认不⽤配置，充当⼆层交换机配置思路采⽤如下的思路配置汇聚层设备作为⽹关实现不同⽹段⽤户间的通信：配置接⼊交换机，基于接⼝划分VLAN，实现⼆层互通。
BrochureProduct OverviewBuilding on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), the S5700-LI supports Advanced Hibernation Management (AHM), intelligent stack (iStack), flexible Ethernet networking, and diversified security control. It provides customers with a green, easy-to-manage, easy-to-expand, and cost-effective gigabit to the desktop solution. In addition, Huawei customizes specialized models to meet customer requirements to suit special scenarios.● Huawei S5700-LI-BAT series battery LAN switches (S5700-LI-BAT for short) are the industry's first switch series to support batteries and provide visualized battery status management. The S5700-LI-BAT can ensure uninterrupted services inenvironments facing frequent mains power failures at the access layer. Access switches are usually distributed; therefore, it is costly and space-consuming to deploy high-performance Uninterruptible Power Supplies (UPSs) for the access switches.Huawei battery LAN switches solve this problem. The use of batteries ensures stable operation of the access layer in the event of mains power failures.● CSFP switches support downlink CSFP ports, and each downlink CSFP port provides 2 Gbit/s bandwidth bidirectionally. CSFP switches apply to scenarios where users increase continuously and demand higher bandwidth, and scenarios where deploying fibers is costly and difficult and construction timeframes are long. The switches with front power sockets can be installed in the 300 mm deep cabinet.Models and AppearancesModels and AppearancesDescriptionS5700-28P-LI-BAT●24x10/100/1000Base-T Ethernet ports, 4xGE SFP ports ● AC power supply●One battery slot for an external lead-acid battery used in the event of a mains power failure or a 150 W AC or DC power module used as the redundant power source ● Forwarding performance: 42 Mpps ● Switching Capacity: 256 GbpsS5700-28P-LI-24S-BAT●28 xGE SFP ports, 4 xCombo 10/100/1000Base-T Ethernet ports ● AC power supply●One battery slot for an external lead-acid battery used in the event of a mains power failure or a 150 W AC or DC power module used as the redundant power source ● Forwarding performance: 42 Mpps ●Switching Capacity: 256 GbpsS5700-52X-LI-48CS-AC ●48 xGE CSFP ports or 24 x GE SFP ports, 4 xCombo 10/100/1000Base-T Ethernetports, 4 x 10GE SFP+ ports●AC power supply, front power sockets, front access●Forwarding performance: 132 Mpps●Switching Capacity: 256 GbpsFeatures and HighlightsInnovative Energy Saving Design●The S5700-LI series smart energy-saving switches reduce power consumption without degrading system performance or user experience. The S5700-LI series uses innovative energy-saving technologies including energy efficient Ethernet (EEE), port power detection, dynamic CPU frequency adjustment, and device sleep mode. These technologies help reduce power consumption by adjusting power depending on the Up/Down states of links, presence/absence of optical modules, shutdown and undo shutdown operations on ports, and peak and off-peak hours. The S5700-LI series is the industry's first switch series that supports device sleep mode, and provides three energy saving modes to adapt to different usage scenarios: standard, basic, and deep modes.Flexible Ethernet Networking●In addition to traditional Spanning Tree Protocol (STP), Rapid Spanning Tree Protocol (RSTP), and Multiple Spanning Tree Protocol (MSTP), the S5700-LI supports Huawei-developed Smart Ethernet Protection (SEP) technology and the latest Ethernet Ring Protection Switching (ERPS) standard. SEP is a ring protection protocol specific to the Ethernet link layer, and applies to various ring network topologies, such as open ring topology, closed ring topology, and cascading ring topology. This protocol is reliable, easy to maintain, and implements fast protection switching within 50 ms. ERPS is defined in ITU-T G.8032. It implements millisecond-level protection switching based on traditional Ethernet MAC and bridging functions.●The S5700-LI supports SmartLink, which implements backup of uplinks. One S5700-LI switch can connect to multiple aggregation switches through multiple links, significantly improving reliability of access devices.●The S5700-LI supports Ethernet OAM (IEEE 802.3ah/802.1ag) to fast-detect link faults.Diversified Security Control●The S5700-LI supports 802.1x authentication, MAC address authentication, and combined authentication on a per port basis, as well as Portal authentication on a per VLANIF interface basis, and implements dynamic policy delivery (VLAN, QoS, and ACL) to users.●The S5700-LI provides a series of mechanisms to defend against DoS attacks and user-targeted attacks. DoS attacks are targeted at switches and include SYN flood, Land, Smurf, and ICMP flood attacks. User-targeted attacks include bogus DHCP server attacks, IP/MAC address spoofing, DHCP request flood, and changing of the DHCP CHADDR value.●The S5700-LI collects and maintains information about access users, such as IP addresses, MAC addresses, IP address leases, VLAN IDs, and interface numbers in a DHCP snooping binding table. In this way, IP addresses and access interfaces of DHCP users can be tracked. You can specify DHCP snooping trusted and untrusted ports to ensure that users connect only to the authorized DHCP server.●The S5700-LI supports strict ARP learning. This feature prevents ARP spoofing attackers from exhausting ARP entries so that users can connect to the Internet normally.Easy Operation and Maintenance●The S5700-LI supports Huawei Easy Operation, a solution that provides zero-touch deployment, replacement of faulty devices without additional configuration, USB-based deployment, batch configuration, and batch remote upgrade. The Easy Operation solution facilitates device deployment, upgrade, service provisioning, and other management and maintenance operations, and also greatly reduces costs of operation and maintenance. The S5700-LI can be managed and maintained using Simple Network Management Protocol (SNMP) V1, V2, and V3, Command Line Interface (CLI), web-based network management system, or Secure Shell (SSH) V2.0. Additionally, it supports remote network monitoring (RMON), multiple log hosts, port traffic statistics collection, and network quality analysis that helps with network consolidation and reconstruction.●EasyDeploy: The Commander collects information about the topology of the client connecting to the Commander and saves client startup information based on the topology. The client can be replaced without configuration. Configuration and scripts can be delivered to the client in batches. In addition, the configuration delivery result can be queried.●The Commander can collect and display power consumption on the entire network.●The S5700-LI can use the GARP VLAN Registration Protocol (GVRP) to implement dynamic distribution, registration, and propagation of VLAN attributes. GVRP reduces manual configuration workload and ensures correct configuration. Additionally, the S5700-LI supports MUX VLAN, which involves a principal VLAN and multiple subordinate VLANs. Subordinate VLANs are classified into group VLANs and separate VLANs. Ports in the principal VLAN can communicate with ports in subordinate VLANs. Ports in a subordinate group VLAN can communicate with each other, whereas ports in a subordinate separate VLAN can communicate only with ports in the principal VLAN. The S5700-LI also supports VLAN Central Management Protocol (VCMP) and VLAN-Based Spanning Tree (VBST) protocol.iStack●The S5700-LI supports intelligent stack (iStack). This technology combines multiple switches into a logical switch. Member switches in a stack implement redundancy backup to improve device reliability and use inter-device link aggregation to improve link reliability. iStack provides high network scalability. You can increase ports, bandwidth, and processing capacity of a stack by simply adding member switches to the stack. iStack also simplifies device configuration and management. After a stack is set up, multiple physical switches are virtualized into one logical device. You can log in to any member switch in the stack to manage all the member switches in the stack.Excellent Network Traffic Analysis●The S5700-LI supports the sFlow function. It uses a method defined in the sFlow standard to sample traffic passing through it and sends sampled traffic to the collector in real time. The collected traffic statistics are used to generate statistical reports, helping enterprises maintain their networks.CSFP Providing High-density Access and Increased Bandwidth●CSFP switches support downlink CSFP ports. Each downlink CSFP port equipped with a CSFP GE optical module and one pair of fibers can provide 2 Gbit/s bandwidth bidirectionally, which is two times the bandwidth of standard SFP optical modules. The 24 downlink CSFP ports can provide 48 Gbit/s bandwidth bidirectionally, implementing high-density access (equal to access of 48 standard SFP ports) and saving the cost of deploying fibers and adding optical modules.Easy O&M with Front Panel●The models with front power sockets can be installed in a 300 mm deep cabinet, and can be maintained through the front panel. This simplifies operation and maintenance. The cabinets can be placed against the wall or back to back, and is well-suited for shallow cabinets and limited equipment room space.Product SpecificationsFixed ports ●S5700-28P-LI-BAT: 24 10/100/1000Base-TEthernet ports, 4 GE SFP ports●S5700-28P-LI-24S-BAT: 28 GE SFP ports,4 Combo 10/100/1000Base-T Ethernetports 48 GE CSFP ports or 24 GE SFP ports, 4 Combo 10/100/1000Base-T Ethernet ports, 4 10GE SFP+ portsMAC address table 16K MAC address entriesMAC address learning and agingStatic, dynamic, and blackhole MAC address entriesPacket filtering based on source MAC addressesInterface-based MAC learning limitingVLAN features 4K VLANsGuest VLAN and voice VLANGVRPMUX VLANVLAN assignment based on MAC addresses, protocols, IP subnets, policies, and interfaces1:1 and N:1 VLAN mappingJumbo frame 10KReliability RRPP ring topology and RRPP multi-instanceSmart Link tree topology and Smart Link multi-instance, providing millisecond-level protectionswitchoverSEPERPS (G.8032)STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)BPDU protection, root protection, and loop protectionBPDU tunnelIP routing Static route, RIP, RIPngIPv6 features Neighbor Discovery (ND)Path MTU (PMTU)IPv6 ping, IPv6 tracert, and IPv6 TelnetACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, and protocol typeMLDv1/v2 snoopingMulticast IGMPv1/v2/v3 snooping and IGMP fast leaveMulticast forwarding in a VLAN and multicast replication between VLANsMulticast load balancing among member ports of a trunkControllable multicastInterface-based multicast traffic statisticsQoS/ACL Rate limiting on packets sent and received by an interfacePacket redirectionInterface-based traffic policing and two-rate and three-color CAREight queues on each interfaceWRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithmsRe-marking of the 802.1p priority and DSCP priorityPacket filtering at Layer 2 to Layer 4, filtering out invalid frames based on the source MAC address,destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocoltype, and VLAN IDRate limiting in each queue and traffic shaping on interfacesSecurity Hierarchical user management and password protectionDoS attack defense, ARP attack defense, and ICMP attack defenseBinding of the IP address, MAC address, interface number, and VLAN IDPort isolation, port security, and sticky MACMFFBlackhole MAC address entriesLimit on the number of learned MAC addressesIEEE 802.1x authentication and limit on the number of users on an interfaceAAA authentication, RADIUS authentication, HWTACACS authentication, and NACSSH V2.0Hypertext Transfer Protocol Secure (HTTPS)CPU defenseBlacklist and whitelistAccess Security DHCP relay, DHCP server, DHCP snooping, and DHCP securityLightning protection Service interface: 6 kV Service interface: 2 kVSuper Virtual Fabric (SVF) Working as an SVF client that is plug-and-play with zero configuration Automatically loading the system software package and patches of clients One-click and automatic delivery of service configurationsSupports independent running clientManagement and maintenance iStack (excluding battery LAN switches)Virtual Cable Test (VCT)Remote configuration and maintenance using Telnet SNMPv1/v2c/v3RMONeSight and web-based NMSHTTPSLLDP/LLDP-MEDSystem logs and multi-level alarms802.3az EEEDying Gasp (excluding battery LAN switches)Interoperability Supports VBST (Compatible with PVST/PVST+/RPVST)Supports LNP (Similar to DTP)Supports VCMP (Similar to VTP)Operating environment ●Long-term operating temperature: 0°C to45°C●Relative humidity: 5% to 95% (non-condensing)●Long-term operating temperature: 0°C to 45°C●Relative humidity: 5% to 95% (non-condensing)Input voltage AC:●Rated voltage range: 100 V to 240 V AC,50/60 Hz●Maximum voltage range: 90 V to 264 V AC,47/63 HzDC:●Rated voltage range: –48 V to –60 V, DC●Maximum voltage range: –36 V to –72 V,DC AC:●Rated voltage range: 100 V to 240 V AC, 50/60Hz●Maximum voltage range: 90 V to 264 V AC,47/63 HzDC:●Rated voltage range: –48 V to –60 V, DC●Maximum voltage range: –36 V to –72 V, DCPower socketpositionRear power sockets Front power sockets Battery One slot for lead-acid battery charger module NADimensions (W x D442 mm x 310 mm x 43.6 mm 442 mm x 220 mm x 43.6 mmx H)<79.9 WPower consumption ●S5700-28P-LI-BAT: <23 W●S5700-28P-LI-24S-BAT: <34.1 WNetworking and ApplicationsThe S5700-LI provides 1000M desktop access functions for a high performance network, such as voice VLAN, NAC and so on.The S5700-LI-BAT uses a battery as the backup power supply. When a mains power failure occurs, the battery begins powering the switch. When the mains power supply recovers, the switch automatically charges the battery. The use of batteries ensures high reliability at the access layer in the case of frequent mains power failures.Ordering Information98010509 S5700-28P-LI-BAT (24x10/100/1000Base-T Ethernet ports, 4xGE SFP ports, 1 battery slot, AC power supply)98010511 S5700-28P-LI-24S-BAT (28xGE SFP ports, 4xCombo 10/100/1000Base-T Ethernet ports, 1 battery slot,AC power supply)02357823 S5700-52X-LI-48CS-AC (48xGE CSFP ports or 24xGE SFP ports, 4xCombo 10/100/1000Base-T Ethernet ports, 4x10GE SFP+ ports, AC power supply, front power sockets, front access)02310TEE 100/1000BASE-BIDI CSFP single-fiber bidirectional optical module-CSFP-GE/FE-single-mode optical module (Tx1490/Rx1310 nm, 10 km, LC)02353857 RPS1800 Redundant Power System98010517 PBB-12AHA (12AH lead-acid battery charger module)02310JFA 150 W AC power module (optional for battery LAN switches, used as the redundancy for the internal power module)02310JFD 150 W DC power module (optional for battery LAN switches, used as the redundancy for the internal power module)More InformationFor more information about Huawei Campus Switches, visit or contact us in the following ways:●Global service hotline: /en/service-hotline●Logging in to the Huawei Enterprise technical support website: /enterprise/●Sending an email to the customer service mailbox: ********************Copyright © Huawei Technologies Co., Ltd. 2018. All rights reserved.No part of this document may be reproduced or transmitted in any form or by any means without prior writtenconsent of Huawei Technologies Co., Ltd.Trademarks and Permissionsand other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.All other trademarks and trade names mentioned in this document are the property of their respective holders.NoticeThe purchased products, services and features are stipulated by the contract made between Huawei and thecustomer. All or part of the products, services and features described in this document may not be within thepurchase scope or the usage scope. Unless otherwise specified in the contract, all statements, information, andrecommendations in this document are provided "AS IS" without warranties, guarantees or representations ofany kind, either express or implied.The information in this document is subject to change without notice. Every effort has been made in thepreparation of this document to ensure accuracy of the contents, but all statements, information, andrecommendations in this document do not constitute a warranty of any kind, express or implied.Huawei Technologies Co., Ltd.Address:Huawei Industrial Base Bantian,Longgang Shenzhen 518129 People'sRepublic of ChinaWebsite:。
QuidwayS2700系列交换机V100R005C01产品彩页VlO产品概述Quidway® S2700系列企业网交换机(下列简称S2700)是华为公司推出的新一代绿色节能的以太网智 能百兆接入交换机。
它基于新一代交换技术与华为VRP® (Versatile Routing Platform)软件平台，针 对企业客户的各类应用场景，提供简单便利的安装保护手段，同时融合了灵活的VLAN 部署、完备的安全 与Q 。
S 操纵策略、绿色环保等先进技术，可满足以太网多业务承载与接入需要，助力企业用户搭建面向未 来的IT 网络。
S2700为盒式产品设备，机箱高度为1U,提供标准型(SI)与增强型(EI)两种产品版本。
包含 S2700-9TP-EI 、 S2700-9TP-SI 、 S2700-18TP-EK S2700T8TP-SI 、 S2700-26TP-EI> S2700-26TP-SI 、 S2700-52P-Ek S2700-9TP-PWR-Ek S2700-26TP-PWR-EIo产品型号与外观Quidway® S2700系列包含下列交换机:S2700-9TPS2700-18TP-SI-ACV<M>W ・里・S2700-9TP-EI-AC S2700-9TP-SI-ACS2700-18TP・8 个 10/100BaSeTX , 1 个千兆 Combo 口 (10∕100∕1000Base -T 或者 100∕1000Base -X)•EI 分交流供电与直流供电两种机型，SI 只有交流机型 •8 个 10∕100Base -TX , 1 个千兆 Combo 口 (10∕100∕1000Base -T 或者 100/IOOOBase-X)• 交流供电 •支持POE÷•16 个 10/IOOBase-TX , 2 个千兆 Combo 口 (10∕100∕1000Base -T 或者 100/1000BaSe-X ),• 交流供电S2700-9TP-PWR-EI.S2700-18TP-EI-AC・ 48 个 10∕100Base -TX, 2 个 100/IOOOBase-X SFP, 2个 K)OOBa$e-X SFP,• 交流供电产品特性与优势•免保护，易部署，易管理S2700支持自动配置，智能式即插即用，大大降低初始安装成本；使用全新交换ASlC 技术，整机无 风扇设计，减少机械故障点的同时免除凝露腐蚀与尘土侵害，能有效降低主机53%保护率。
