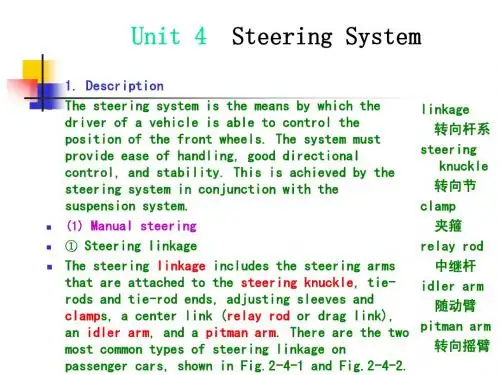

Unit 4

Steering System
linkage 转向杆系 steering knuckle 转向节 clamp 夹箍 relay rod 中继杆 idler arm 随动臂 pitman arm 转向摇臂


1. Description The steering system is the means by which the driver of a vehicle is able to control the position of the front wheels. The system must provide ease of handling, good directional control, and stability. This is achieved by the steering system in conjunction with the suspension system. (1) Manual steering ① Steering linkage The steering linkage includes the steering arms that are attached to the steering knuckle, tierods and tie-rod ends, adjusting sleeves and clamps, a center link (relay rod or drag link), an idler arm, and a pitman arm. There are the two most common types of steering linkage on passenger cars, shown in Fig.2-4-1 ball joints 球形接头 from side to side 从一端到 另一端 split 开口 clamp 夹紧 tie rod ends 横拉杆接 头

汽车专业英语Unit4

汽车专业英语Unit4

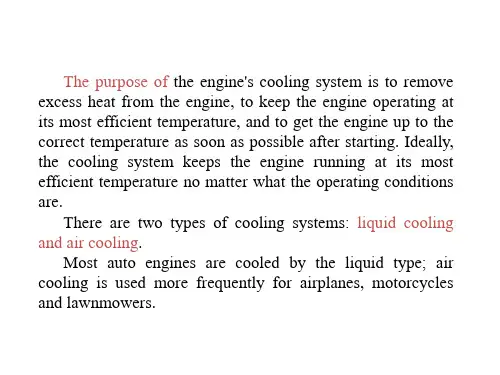

2 . Water Jacket
The water jacket is a collection of passages within the block and head. These passages let the coolant circulate around the “ hot spots ” ( valve seats and guides, cylinder walls, combustion chamber, etc. ) in order to cool them off. One interesting way to reduce the demands on the cooling system is to reduce the amount of heat that is transferred from the combustion chamber to the metal parts of the engine
Figure 4- 1 the cooling system of a water-cooled engine
1 . Water Pump
The water pump is a simple centrifugal pump driven by a belt connected to the crankshaft of the engine. The pump circulates fluid whenever the engine is running. The water pump uses centrifugal force to send fluid to the outside while it spins, causing fluid to be drawn from the center continuously.

汽车英语基础知识ppt课件

汽车英语基础知识ppt课件
z?l30unitengineinternalcombustionengine内燃机watercoolingengine水冷发动机aircoolingengine风冷发动机fourstrokeengine四冲程发动机twostrokeengine两冲程发动机gasolineengine汽油机dieselengine柴油机singlecylinderengine单缸发动机multicylinderengine多缸发动机cylinderinlinearrangement单列式发动机varrangementinternalcombustionengine内燃机internalcombustionengine内燃机internalcombustionengine内燃机internalcombustionengine内燃机31unitentirestructureengine发动机的总体构造twomechanisms两大机构connectingrod曲柄连杆valvegear阀门配气机构fivesystems五大系统fuelsupplysystem供给系ignitionsystem点火系coolingsystem冷却系统lubricatingsystem润滑系startsystem起动系32connectingrod连杆flywheel飞轮crankshaft凸轮轴piston活塞intakevalveexhaustvalvepushrod推杆tappettiminggears正时皮带链条valvegearconnectingrod33camshaft凸轮轴rocker摇臂杆34engineconstruction35enginecoolingsystem36enginelubricatingsystemsantanalubricatev
8.Wheelbase轴距(/'wi:lbeis/) 9.track(tread)轮距 10.Front overhang 前悬 11.Rear overhang 后悬 12.Minimum ground clearance 最小离地间隙 13.Aproach angle 接近角(/'æŋgl /角度 ) 14.Departure angle离去角 15.Turning diameter转弯直径(/dai‘æmitə /直径)

专业外语(车辆工程)

专业外语(车辆工程)

bore 孔、镗孔、缸径 bored /boring 镗孔的 boring cutter 镗刀 align bored 同心镗
bolt 螺栓； nut 螺母 ；thread 螺纹 screw 螺钉；cap screw 有帽螺钉 press fit 过盈配合、紧配合 loose fit 间隙配合、松配合
3.2 Manual Transmission
drive line 动力传动系统 transmission=gearing box 变速器 gearing 档位 gear shift mechanism 换挡机构 input shaft 输入轴 output shaft 输出轴 countershaft 中间轴 main gearing 主变速器 auxiliary gearing 副变速器 reverse 反转，倒档 overdrive gearing 超速档 idler shaft 惰轮轴 neutral 空档
3.4.2 Drive Shaft
2.1.5 Valve
valve 气门 valve guide 气门导管 valve seat 气门座 valve stem 气门杆 valve lifter 气门挺柱 valve clearance 气门间隙 spring retainer 弹簧支座 heat capacity 热容量、比热 heat resistance metal 耐热钢 bearing journal 轴颈 timing gear 正时齿轮
3.4.1 Axles
heavy-duty truck 重型载货汽车 driving axle 驱动桥 steering axle 转向桥 trailer axle 拖车桥 axle shafts=axles 驱动桥半轴 differential carrier assembly 差速器总成 differential case 差速器壳体 rear axle assembly 后桥总成 double reduction axle双级减速驱动桥 semi-floating type axle 半浮式车桥 fully floating type axle 全浮式车桥 differential spider 差速器十字轴 differential pinion gear 差速器行星齿轮

汽车专业英语(原书作者宋红英)第一～二章PPT课件

汽车专业英语(原书作者宋红英)第一～二章PPT课件
们国家生产出了第一批解放牌轿车。
18
精选可编辑ppt
II. Text Explanation
❖turn out
❖A vast crowd turned out to watch the match. ❖ 大群的观众到场观看比赛。
❖If the day turns out wet we may have to change our plans.
❖be composed of
❖ Navy must be composed of surface ship unit and submarine unit.
❖ 海军一定是由水面舰艇部队和潜艇部队组成。
13
精选可编辑ppt
II. Text Explanation
❖The internal combustion engine burns fuel
❖by means of 用…..方式（方法），依靠
❖They succeeded by means of perseverance. ❖ 他们依靠坚忍不拔而获得成功。
❖He always goes to school by means of bike ❖ 他总是骑自行车上学
17
精选可编辑ppt
II. Text Explanation
❖Karl Benz ❖In 1886
6
精选可编辑ppt
I. Pre-questions
❖ How many main parts does the automobile consist of?
1-engine 2-chassis 3-body 4--electrical
system
7
精选可编辑ppt
❖Convert …..into…..使转变, 转换...

汽车工程专业英语考试专用资料部分

汽车工程专业英语考试专用资料部分

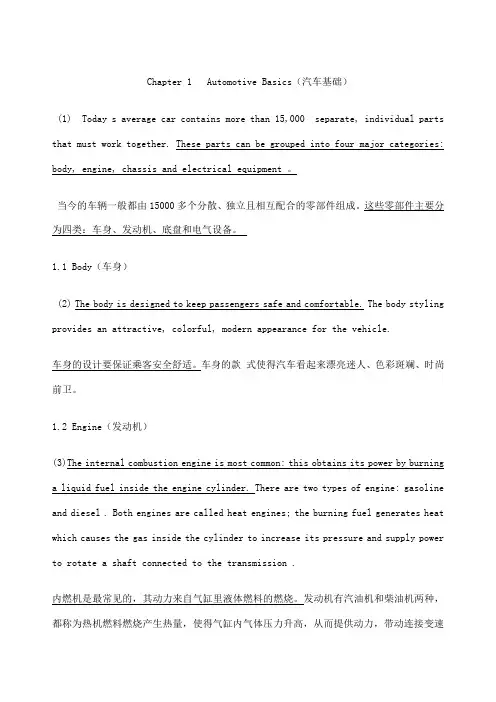

Chapter 1 Automotive Basics（汽车基础）(1) Today s average car contains more than 15,000 separate, individual parts that must work together. These parts can be grouped into four major categories: body, engine, chassis and electrical equipment 。

当今的车辆一般都由15000多个分散、独立且相互配合的零部件组成。

这些零部件主要分为四类：车身、发动机、底盘和电气设备。

1.1 Body（车身）(2) The body is designed to keep passengers safe and comfortable. The body styling provides an attractive, colorful, modern appearance for the vehicle.车身的设计要保证乘客安全舒适。

车身的款式使得汽车看起来漂亮迷人、色彩斑斓、时尚前卫。

1.2 Engine（发动机）(3)The internal combustion engine is most common: this obtains its power by burninga liquid fuel inside the engine cylinder. There are two types of engine: gasoline and diesel . Both engines are called heat engines; the burning fuel generates heat which causes the gas inside the cylinder to increase its pressure and supply power to rotate a shaft connected to the transmission .内燃机是最常见的，其动力来自气缸里液体燃料的燃烧。

  1. 1、下载文档前请自行甄别文档内容的完整性，平台不提供额外的编辑、内容补充、找答案等附加服务。
  2. 2、"仅部分预览"的文档,不可在线预览部分如存在完整性等问题,可反馈申请退款(可完整预览的文档不适用该条件!)。
  3. 3、如文档侵犯您的权益，请联系客服反馈,我们会尽快为您处理(人工客服工作时间：9:00-18:30)。

Chapter 4 Steering and Suspension Systems
4.1 Steering System
Figure 4-4 Servolectric - a electric power steering system
Chapter 4 Steering and Suspension Systems
2.提高翻译技巧，能较熟练翻译课文
1. 重点：转向、悬架系统的基本组成、类型、 各系统主要零件的英文名称
2.难点：电动转向系统
Chapter 4 Steering and Suspension Systems
4.1 Steering System 1. Basic Parts of Steering System 2. Types of Steering System 3. Power Steering Systems 4.2 Suspension Systems 1. Basic Parts of Suspension System 2. Front suspension 3. Rear Suspension
1.Basic Parts of Steering System
The basic steering system (Figure 4-1) can be divided into three main assemblies:
·The spindle and steering arm assemblies. ·The linkage assembly connecting the steering arms and steering gear. ·The steering wheel, steering shaft, and steering gear assembly.
2. Types of Steering System There are two types of steering systems: manual steering and power steering systems. In the manual steering systems, driver does all the work of turning the steering wheel, steering gear, and tires. In the power steering systems, hydraulic or electric power-assisted steering is used to reduce the effort required by turning the steering wheel. There are three types of the steering gears in use: recirculating ball steering gear, worm-and-roller steering gear and rack-and-pinion steering gear. 3. Power Steering Systems Hydraulic lack-and-pinion power steering system. This system consists of mechanical rack-and-pinion steering gear, hydraulic working cylinders with working plungers, rotary slide valve, oil pump, pressure-limiting valve and oil reservoir (Figure 4-2).
attenuate [ə'tenjueit] v.变薄，变细，变小，减弱
oscillation [¸ɔsi'leiʃən] n.振动，摆动，波动，振荡
strut
[strʌt]
n.支柱，支杆，支撑
transverse [træns'və:s] a.横向的
Chapter 4 Steering and Suspension Systems
蜗杆滚轮式转向器 齿轮齿条式转向器 工作缸 工作活塞 滑阀 速敏动力转向 电-液转换器 蜗杆副
Chapter 4 Steering and Suspension Systems
4.1 Steering System
2.4.2 Text The steering system is designed to allow the driver to
plunger
['plʌndʒə] n.活塞，柱塞，活动铁芯
rotary
['rəutəri] a.旋转的，转动的
speedometer [spi'dɔmitə] n.(指汽车的)车速表，里程计
relevant
['relivənt] a.有关的，切题的，恰当的
Chapter 4 Steering and Suspension Systems
Chapter 4 Steering and Suspension Systems
4.1 Steering System
Figure 4-2 A hydraulic rack-and-pinion power steering system with rotary slide valve
Chapter 4 Steering and Suspension Systems
4.2 Suspension Systems
4.2.1 New Words and Phrases
bump
[bʌmp]
n.碰撞，(因碰撞而起的)肿块，(路面 的)凸块
twist
[twist]
v扭转，扭弯，旋转，捻，搓
rebound, [ri'baund] v.弹回，回弹，跳回
diminish [di'miniʃ] v.减少，减小，缩减
Chapter 4 Steering and Suspension Systems
4.1 Steering System
Figure 4-3 Servotronic-a electro-hydraulic power steering system
Chapter 4 Steering and Suspension Systems
4.1 Steering System
Electro-hydraulic power steering system-Servotronic.
Servotronic is an electronically controlled rack-and-pinion steering system in which the hydraulic assisting forces are influenced by the driving speed. At low driving speeds, the full assisting force of the hydraulic rack-and pinion steering takes effect. The hydraulic assisting force is reduced as driving speed increases. So, Servotronic is a speed-sensitive power steering. Servotronic consists of electronic speedometer, ECU, hydraulic rack-and-pinion steering gear, oil reservoir, electro-hydraulic converter and oil pump (Figure 4-3).
Chapter 4 Steering and Suspension Systems
4.1 Steering System
2.4.1 New Words and Phrases
spindle
['spindl] n.主轴，心轴，转向节
linkage
['liŋkidʒ]
n.连接，连接装置，联动装置，传 动装置
4.1 Steering System
Electric power steering-Servolectric. With Servolectric
(Figure 4-4), the assisting force is generated by an electronically controlled electric motor. The electric motor is only switched on when required.
The steering torque applied by the driver is measured via a torsion rod with a torque sensor and in addition the speed is measured via a speed sensor. The two signals are fed to the ECU. The ECU calculates the torque required and its force-transfer direction using stored program maps and sends the relevant output signals to the electric motor. The latter generates an assisting torque which is transformed by a worm-gear pair and transmitted to the rack and-pinion steering gear.
4.1 Steering Steering arm steering gear steering shaft manual steering power steering recirculating ball steering gear
