CD54HC373, CD74HC373

OCTAL TRANSPARENT D-TYPE LATCHES

WITH 3-STATE OUTPUTS

SCLS452A – FEBRUARY 2001 – REVISED APRIL 2003

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265D2-V to 6-V VCC Operation

DWide Operating Temperature Range of

–55°C to 125°C

DBalanced Propagation Delays and

Transition Times

DStandard Outputs Drive up to 15 LS-TTL

Loads

DSignificant Power Reduction Compared to

LS-TTL Logic ICs

description/ordering information

The ’HC373 devices are octal transparent D-type

latches designed for 2-V to 6-V VCC operation.

When the latch-enable (LE) input is high, the Q outputs follow the data (D) inputs. When LE is low, the Q outputs

are latched at the logic levels of the D inputs.

A buffered output-enable (OE) input can be used to place the eight outputs in either a normal logic state (high

or low) or the high-impedance state. In the high-impedance state, the outputs neither load nor drive the bus lines

POWER MANAGEMENTDual Channel 4A Synchronous

Step-Down RegulatorSC286

Features

Input Voltage Range — 2.9 to 5.5V

Output Voltage Range — 0.8V to 3.3V

Output Current — up to 4A for each channel

Ultra-Small Footprint — <1mm Height Solution

Switching Frequency — 1.6MHz

Automatic Power Save Mode

Efficiency Up to 95%

Low Output Noise Across Load Range

Excellent Transient Response

Start Up into Pre-Bias Output

Duty-Cycle Low Dropout Operation — 100%

Shutdown Current — <1µA

Externally Programmable Soft Start Time

Power Good indicator

Input Under-Voltage Lockout

Output Over-Voltage, Current Limit Protection

Over-Temperature Protection

Thermally Enhanced 4 x 4 x 0.6 (mm)

MLPQ-UT28 package

Lead-free, Halogen free, and RoHS/WEEE compliant

Applications

Routers and Network Cards

LCD TV

Office Automation

Printers











































Description

This is information on a product in full production. June 2012Doc ID 14256 Rev 41/11

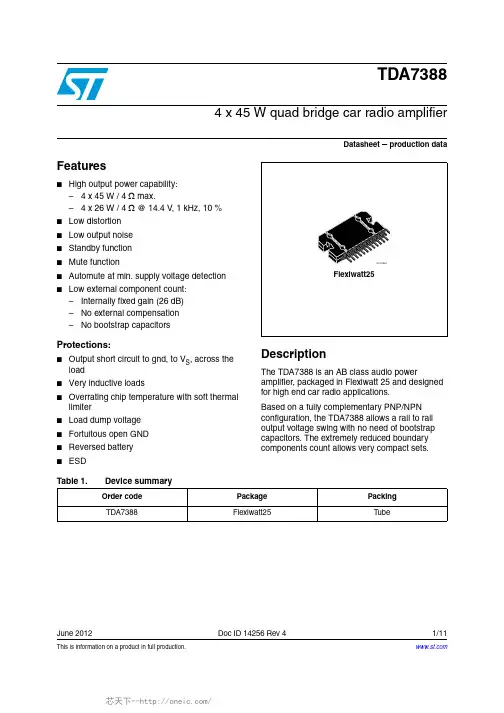

1TDA7388

4 x 45 W quad bridge car radio amplifier

Datasheet − production data

Features

■High output power capability:

–4 x 45 W / 4 Ω max.–4 x 26 W / 4 Ω @ 14.4 V, 1 kHz, 10 %

■Low distortion

■Low output noise

■Standby function

■Mute function

■Automute at min. supply voltage detection

■Low external component count:

–Internally fixed gain (26 dB)–No external compensation–No bootstrap capacitors

Protections:

■Output short circuit to gnd, to VS, across the load

■Very inductive loads

■Overrating chip temperature with soft thermal limiter

■Load dump voltage

■Fortuitous open GND

■Reversed battery

■ESDDescription

The TDA7388 is an AB class audio power amplifier, packaged in Flexiwatt 25 and designed for high end car radio applications.

Based on a fully complementary PNP/NPN configuration, the TDA7388 allows a rail to rail output voltage swing with no need of bootstrap capacitors. The extremely reduced boundary components count allows very compact sets.

BU406SILICON NPN SWITCHING TRANSISTORsSTMicroelectronics PREFERREDSALESTYPE sNPN TRANSISTOR sVERY HIGH SWITCHING SPEED APPLICATIONS: sHORIZONTAL DEFLECTION FORMONOCHROME TV DESCRIPTION The BU406 is a silicon Epitaxial Planar NPNtransistor in Jedec TO-220 plastic package.It is a fast switching device for use in horizontaldeflection output stages of large screens MTVreceivers with 110o

CRT.®INTERNAL SCHEMATIC DIAGRAMFebruary 2003 123TO-220

ABSOLUTE MAXIMUM RATINGSSymbolParameterValueUnitVCBOCollector-Base Voltage (IE = 0)400VVCEVCollector-Emitter Voltage (VBE = -1.5 V)400VVCEOCollector-Emitter Voltage (IB = 0)200VVEBOEmitter-Base Voltage (IC = 0)6VICCollector Current7AICMCollector Peak Current (repetitive)10AICMCollector Peak Current (tp < 10 ms)15AIBBase Current4APtotTotal Dissipation at Tc ≤ 25 oC60WTstgStorage Temperature-65 to 150oCTjMax. Operating Junction Temperature150oC1/4Obsolete Product(s) - Obsolete Product(s)
