C

B

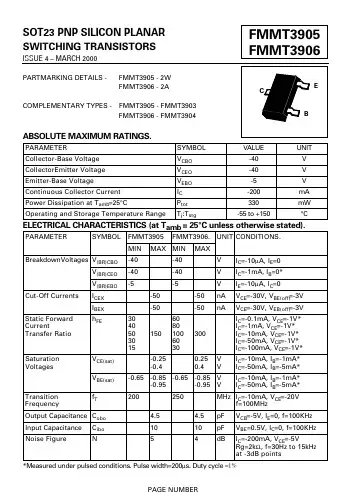

ESOT23 PNP SILICON PLANAR

SWITCHING TRANSISTORS

ISSUE 4 – MARCH 2000

PARTMARKING DETAILS -FMMT3905 - 2WFMMT3906 - 2A

COMPLEMENTARY TYPES -FMMT3905 - FMMT3903FMMT3906 - FMMT3904

ABSOLUTE MAXIMUM RATINGS.

PARAMETERSYMBOLVALUEUNITCollector-Base VoltageVCBO-40VCollectorEmitter VoltageVCEO-40VEmitter-Base VoltageVEBO-5VContinuous Collector CurrentIC-200mAPower Dissipation at Tamb=25°CPtot330mWOperating and Storage Temperature RangeTj:Tstg-55 to +150°CELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated).

PARAMETERSYMBOLFMMT3905FMMT3906.UNITCONDITIONS.

MINMAXMINMAX

BreakdownVoltagesV(BR)CBO-40-40VIC=-10µA, IE=0

V(BR)CEO-40-40VIC=-1mA, IB=0*

V(BR)EBO-5-5VIE=-10µA, IC=0

Cut-Off CurrentsICEX-50-50nAVCE=-30V, VBE(off)=-3V

IBEX-50-50nAVCE=-30V, VEB(off)=-3V

Static ForwardCurrentTransfer RatiohFE304050301515060801006030300IC=-0.1mA, VCE=-1V*IC=-1mA, VCE=-1V*IC=-10mA, VCE=-1V*IC=-50mA, VCE=-1V*IC=-100mA, VCE=-1V*

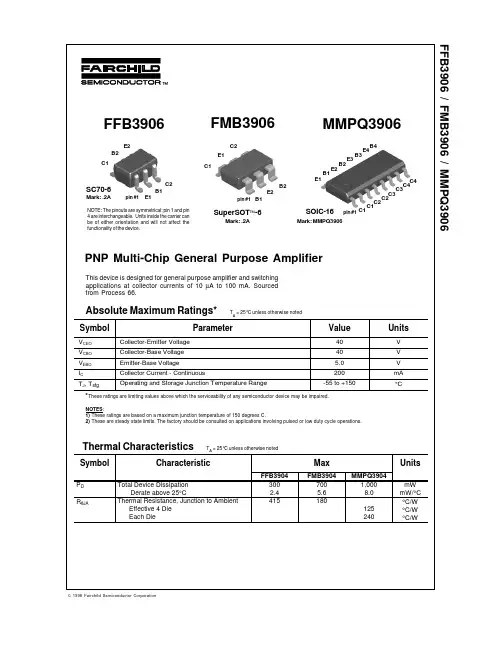

FFB3906 / FMB3906 / MMPQ3906

C1B2E2

E1B1

C2

pin #1C1E1C2

B1E2B2

pin #1

PNP Multi-Chip General Purpose Amplifier

This device is designed for general purpose amplifier and switching

applications at collector currents of 10 µA to 100 mA. Sourced

from Process 66.

Absolute Maximum Ratings* TA = 25°C unless otherwise noted

*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

NOTES:1) These ratings are based on a maximum junction temperature of 150 degrees C.2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.SymbolParameterValueUnits

VCEOCollector-Emitter Voltage40V

VCBOCollector-Base Voltage40V

VEBOEmitter-Base Voltage5.0V

ICCollector Current - Continuous200mA

TJ, TstgOperating and Storage Junction Temperature Range-55 to +150°C

ACaxialcompactfan3906

ebm-papstSt.GeorgenGmbH&Co.KG

Hermann-Papst-Straße1

D-78112St.Georgen

Phone+49772481-0

Fax+49772481-1309

info2@

NominaldataType3906Phase1~

NominalvoltageVAC115

FrequencyHz60Speedmin-13150

PowerinputW9.0

Min.ambienttemperature°C-40

Max.ambienttemperature°C80

Airflowm3/h70

SoundpowerlevelB5.1

SoundpressureleveldB(A)40

ml=max.load·me=max.efficiency·fa=runningatfreeair·cs=customerspecs·cu=customerunitSubjecttoalterations

WebdatasheetXI·Page1of4

ebm-papstSt.GeorgenGmbH&Co.KG·Hermann-Papst-Straße1·D-78112St.Georgen·Phone+49772481-0·Fax+49772481-1309·info2@·/

ACaxialcompactfan3906

TechnicalfeaturesGeneraldescriptionACvoltagefanwithinternalrotorshaded-polemotor.Protectedfromoverloadby

impedanceprotection.

Fanhousingmadeofmetal,impellermadeofmineral-reinforcedPAplastic.

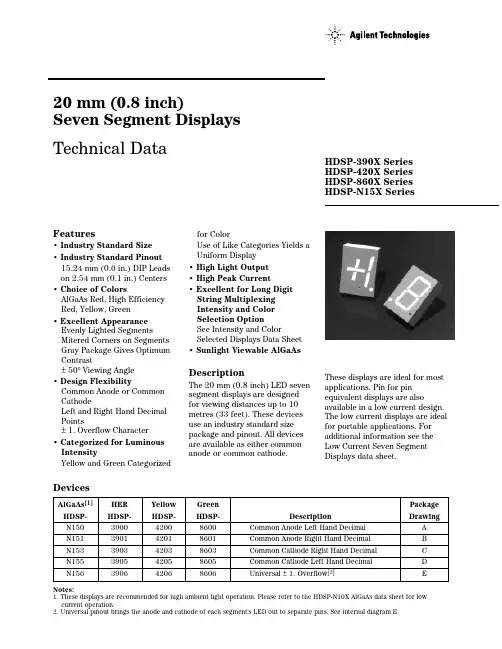

20 mm (0.8 inch)

Seven Segment Displays

Technical DataAlGaAs[1]HERYellowGreen

PackageHDSP-HDSP-HDSP-HDSP- DescriptionDrawingN150390042008600Common Anode Left Hand DecimalAN151390142018601Common Anode Right Hand DecimalB

N153390342038603Common Cathode Right Hand DecimalCN155390542058605Common Cathode Left Hand DecimalDN156390642068606Universal ±1. Overflow[2]E

Notes:1. These displays are recommended for high ambient light operation. Please refer to the HDSP-N10X AlGaAs data sheet for lowcurrent operation.2. Universal pinout brings the anode and cathode of each segment's LED out to separate pins. See internal diagram E.DevicesFeatures• Industry Standard Size• Industry Standard Pinout15.24 mm (0.6 in.) DIP Leads

on 2.54 mm (0.1 in.) Centers• Choice of ColorsAlGaAs Red, High EfficiencyRed, Yellow, Green• Excellent AppearanceEvenly Lighted SegmentsMitered Corners on SegmentsGray Package Gives OptimumContrast±50° Viewing Angle• Design FlexibilityCommon Anode or CommonCathodeLeft and Right Hand DecimalPoints±1. Overflow Character• Categorized for LuminousIntensityYellow and Green Categorizedfor ColorUse of Like Categories Yields aUniform Display• High Light Output• High Peak Current• Excellent for Long DigitString MultiplexingIntensity and ColorSelection OptionSee Intensity and ColorSelected Displays Data Sheet• Sunlight Viewable AlGaAs
