電動起子控制器操作手冊OPERATION AND MAINTENANCE MANUALSKP-40BHL-800N(In: AC 115V/230V Out: DC 40V)奇力速工業股份有限公司KILEWS INDUSTRIAL CO., LTD.Important safety information enclosed.Read all these instructions before placing tool in service or operation this tool and save these instructions. It is the responsibility of theemployer to place the information in this manual into the hands of the operator. Failure to observe the following warnings could resultin injury. When using electric tools, Basic safety precautions should always be followed to reduce the risk of fire, electric shock andpersonal injury, including the following :1. Important Safety Instructions2. Operations Cautions3. Grounding Instructions4. Installation Instructions5. Specifications6. Servicing7. Steps to switch voltage was shown as below pictures :1Find the voltage switch on the backside of power controller (besure turn off poewr first)2 Release both screws and tack out the protect cover3 Move the red thick side to switch to the correct voltage4 Replace the protect cover and retighten both screwsWARNING!Read all instructions Failure to follow all instructions listed below may result in electric shock fire and/or serious injure. The term “power tool” in all of the warning listed below refer to your mains operated (corded) power tool or battery operated (cordless) power tool.SA VE THESE INSTRUCTIONS1) Electrical Safetya) Keep work area clean and well lit. Cluttered and dark areas invite accidents.b) Do not operate power tools in explosive atmosphere, such as in the presence of flammable liquids, gases or dust. Power toolscreat sparks which may ignite the dust of fumes..c) Keep children, and bystanders away while operating a power tool. Distractions can cause you to lose control.2) Electrical Safetya) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed(grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.c) Don’t expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.d) Do not abuse the cord. Never use the cord to carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of cord suitable for outdoor use reduces the risk of electric shock .3) Personal Safetya) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use power tool while you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.b) Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.c) Avoid accidental starting. Ensure the switch is in the off position before plugging in. Carrying power tools with your finger on the switch or plugging in power tools that have the switch on invites accidents.d) Remove any adjusting keys or wrench before turning the power tool on. A wrench or a key that is left attached to a rotating part of the power tool may result in personal injury.e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair,clothing, and gloves away from moving parts. Looseclothes, jewellery, or long hair can be caught in moving partsg) If devices are provided for the connection of dust extraction and collection facilitys, ensure these are connected and properly used. Use of these devices can reduce dust related hazards.4) Power tool Use and Carea) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.b) Do not use power tool if switch does not turn it on or off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.c) Disconnect the plug from the power source before making any adjustments, changing accessories, or storing the power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.d) Store idle power tools out of reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tools operation. If damaged, have the power tool repaired before use. Many accidents are cause by poorly maintained power tools.g) Use the power tools, accessories and tool bits ect., in accordance with these instructions and in the manner intended for the particular type of power tool, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from intended could result in a hazardous situation.5) SERVICEa) Have your power tool serviced by qualified repair person using only indentical replacement parts, This will ensure that thesafety of the power tool is maintained.Additional information shall be providea)Instruction for putting into use1.Setting-up or fixing power tool in a stable position as appropriate for power tools which can be mounted on a support.2.Assembly3.Connection to power supply, cabling, fusing, socket type and earthing requirements.4.Illustrated description of functions.5.Limitations on ambient conditions.6.List of contents.b)Operating Instructions.1.Setting and testing.2.Tool changing.3.Clamping of work.4.Limits on size of work piece.5.General instructions for use.c)Maintenance and servicing.1.Regular cleaning, maintenance, and lubrication.2.Servicing by manufacture or agent, list of addresses.3.List of user-replaceable parts.4.Special tools which may be required.1. Please read the operating manual thoroughly and comply with safety regulation to operate this Multi-Function Controller.2. Please grasp the plug of power cord while plugging in or out the plugs of connecting cord of Electric Screwdriver and powercord.3. Please fix the power controller to avoid any danger of pulling and dragging the power cord.4. Do not near oil, chemical materials or heated objects, also please be alert not to scratch the power cord by sharp object.5. This type of Controller can only be applied to Kilews Electric Screwdriver with Counter. Do not use Electric ScrewdriverController on other types of machinery.6. In case of the Controller is overheated or overloaded with maximum current rating of fuse, the high-speed fuse will be melt downand cut off the power. If the Controller continues to jump off or has an abnormal switching reaction, please stop the operation immediately and send back the Controller for repair.7. When Electric Screwdriver is running, if slides Forward/Reverse Switch instantly, device will generate the protection program toforce Electric Screwdriver stop.8. Please do not disassemble Electric Screwdriver casually and try to repair it by self.9. When Controller is not in use, please turn the main power switch OFF and unplug the power.10. The electric frequency will be lower when the voltage is adjusted as Lo or below 32V,so the torque of the electric screwdriverscan't be worked out except below scale of 4.WARNING！DO NOT OPERATE THIS TOOL WITHOUTPROTECTIVE EARTH CONNECTEDT he tool should be grounded while in use to protect the operator from electric shock. The tool is equipped with a three-conductor cordand three-prong grounding-type plug to fit the proper grounding-type receptacle. The green (or green and yellow) conductor in the cord is the grounding wire. Never connect the green (or green and yellow) wire to a live terminal.Green and yellow----- Earth Blue ------ Neutral Brown ------ Live1. Use the controller voltage recommended in the specification of this manul.2. When using a commercial power supply be sure to set up circuit and safety breakers. You must also properly ground the mechanisms.3. The temperature and humidity should be kept at appropriate levels.4. Do not set up the power supply in a room that has poor ventilation and where it may be exposed to dust and metallic flakes.5. Do not put heavy object on top of power supply or pile thing on it.6. Attach the power supply securely to a flat, stable surface. If the power supply is put ahigh place, take special care to ascertain that there is no danger of it falling.7. Keep bystanders away. Do not permit unauthorized personnel to operate this controller. 8. Do not set up the power supply near high voltage machinery or in an excessively noisyenvironment.9. Avoid setting up or storing the power supply in wet or oily environments or where it might be exposed to corrosive or flammable gases.10. We emphasize that the power supply should be placed in stable, fixed location.SA VE THESE INSTRUCTIONThe use of other than genuine KILEWS replacement parts may result in decreased controller performance and increased maintenance, and may invalidate all warranties.NOTICEMaintenance and Inspection :1. The controller must be operated in top condition, one day working hour must be not more than eight hours.2. Please note don’t let the controller get over heated, every minute use 10~15 screws to operate.3. The frequency use of this electric screw driver is over eight hours a day, still it needs periodically testing and treatment. Every 5-6 months.ModelSKP-40BHL-800NInput AC 115V / 230V / 6.3A 50/60HzOutput DC 40V/30V , 9A/360WDuty Cycle 1s ON / 3s OFFPower Consumption 360W Outside Dimensions (mm)213*133*68(mm) Weight(kg)1.8 (main body)Suitable ModelSKD-TBK30LF ；SKD-TBK35LF ；SKD-TBK50LF ；SKD-TBK70L SKD-TBN60L ；SKD-TBN90L ；SKD-TBN120L ；SKD-TBN180LSKD-RBK60；SKD-RBK90；SKD-RBK120；SKD-RBK180；SKD-RBK120F ；SKD-RBK180F ；SKD-RBK250；SKD-RBK250F ；SKD-RBK350；SKD-RBK500SKD-BK960；SKD-BK960F ；SKD-BK990；SKD-BK9120SKD-TBNK30LF ；SKD-TBNK35LF ；SKD-TBNK50LF ；SKD-TBNK70L SKD-TBNK60L ；SKD-TBNK90L ；SKD-TBNK120L ；SKD-TBNK180L SKD-RBNK60；SKD-RBNK90；SKD-RBNK120；SKD-RBNK180 SKD-RBNK120F ；SKD-RBNK180F ；SKD-RBNK250；SKD-RBNK350；SKD-RBNK500 SKD-BNK960；SKD-BNK960F ；SKD-BNK990；SKD-BNK91201.The use of other than genuine KILEWS replacement parts may Result in decreased tool performance and increasedmaintenance, and may invalidate all warranties.2.All repairs and maintenance of this tool and its word must be performed by an authorized service center.3.KILEWS is not responsible for customer modification of tools for applications on which KILEWS was not consulted.4.Repairs should by made only by authorized, trained personnel. Consult your nearest KILEWS authorized service center.5.It is the responsibility of the employer to place the information in this manual into the hands of the operator.DO NOT ATTEMPT TO REPAIR THIS EQUIPMENTAll repairs and maintenance of the Controller and its cordmust be performed by authorized service centerCAUTIONSA VE THESE INSTRUCTIONSDO NOT DESTROY操作前請閱讀全部說明(內附零件分解圖)警 告為了安全起見，在使用電動螺絲起子控制器前請詳閱電動螺絲起子控制器操作說明書，且務必依照說明書指示操作，並注意所有的警示重要安全說明事項1. 使用電動螺絲起子控制器說明書規定的電壓。

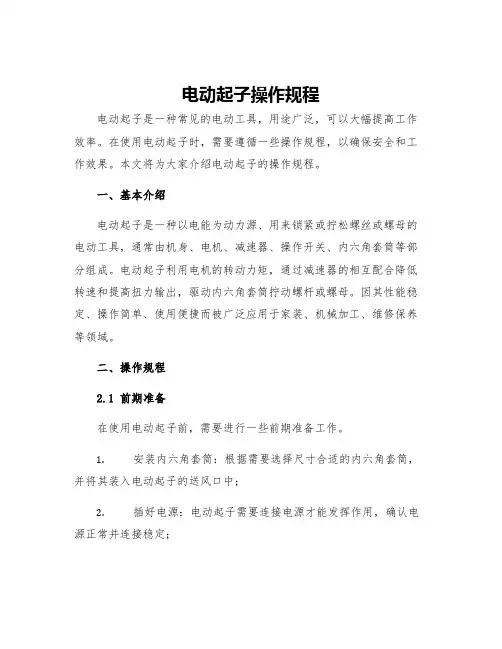

电动起子操作规程电动起子是一种常见的电动工具，用途广泛，可以大幅提高工作效率。

在使用电动起子时，需要遵循一些操作规程，以确保安全和工作效果。

本文将为大家介绍电动起子的操作规程。

一、基本介绍电动起子是一种以电能为动力源、用来锁紧或拧松螺丝或螺母的电动工具，通常由机身、电机、减速器、操作开关、内六角套筒等部分组成。

电动起子利用电机的转动力矩，通过减速器的相互配合降低转速和提高扭力输出，驱动内六角套筒拧动螺杆或螺母。

因其性能稳定、操作简单、使用便捷而被广泛应用于家装、机械加工、维修保养等领域。

二、操作规程2.1 前期准备在使用电动起子前，需要进行一些前期准备工作。

1.安装内六角套筒：根据需要选择尺寸合适的内六角套筒，并将其装入电动起子的送风口中；2.插好电源：电动起子需要连接电源才能发挥作用，确认电源正常并连接稳定；3.选择适当扭矩值：针对不同的操作对象和螺杆、螺母规格，选择适当的扭矩值。

2.2 操作步骤1.手持电动起子，将其放置在工作区域内，保持电动起子和螺杆、螺母垂直；2.按下电动起子的开关，使其旋转，将内六角套筒与螺杆、螺母对准；3.慢慢施力，将内六角套筒压缩到螺杆、螺母上，使其稳固地卡住；4.依据需要旋转电动起子，将螺杆、螺母拧松或锁紧。

注：使用过程中需要注意，螺杆或螺母拧松后，需要适当调整电动起子的位置和旋转方向，以免造成卡壳或对设备造成损坏。

2.3 操作注意事项1.在使用电动起子前，需要将长头发、宽松衣服、饰品等杂物或危险品从身上或工作区中清除，以免危及人员安全；2.电动起子需要用干净的布或棉纱进行清洁和保养，切勿用手或潮湿的布擦拭工具表面；3.在操作过程中，不得将手指、衣物等伸入电动起子中；4.操作时要保持安全警觉性和内心平静，避免因情绪波动或紧张慌乱而出现意外；5.加工中，建议检查拧紧件的紧固情况，防止散件带来安全隐患。

三、使用注意事项1.不要将电动起子用于其它用途，以免造成人员伤害；2.在使用电动起子时，严格按照规定使用扭矩参数，特别是在拧紧涉及机器和设备安装时，切勿大力使用电动起子，避免出现螺杆断裂或弯曲的情况；3.重要部位或高强度连接处的螺栓，使用电动起子拧紧后需要进行复查，以确保被拧紧到位，并观察其是否偏歪、螺纹是否有损伤、是否有卡塞现象等问题。

电动起子使用说明书一、产品概述电动起子是一种方便快捷的工具，用于拧紧螺丝和螺母，以及进行简单的组装工作。

本说明书将详细介绍产品的使用方法、注意事项和维护保养，确保用户正确且安全地操作电动起子。

二、产品参数1. 电源：220V交流电2. 功率：500W3. 转速：2000转/分钟4. 重量：1.5kg三、使用方法1. 准备工作1.1 确保电动起子处于断电状态。

1.2 理清工作现场，确保无杂物或障碍物。

2. 插入螺丝刀头2.1 根据需要选择合适的螺丝刀头，确保刀头与螺丝或螺母相匹配。

2.2 将螺丝刀头插入电动起子刀头接口，并确保切口正对。

3. 打开电动起子3.1 将电动起子的开关切换至“ON”状态。

3.2 操作时需要保持稳定的手臂姿势，避免振动和滑动。

4. 开始使用4.1 将电动起子刀头对准螺丝或螺母，保持垂直方向，并用适当的力度向下施加压力。

4.2 当螺丝或螺母达到预期的紧固程度时，及时停止使用电动起子。

五、注意事项1. 请将本产品放置在儿童无法触及的地方，以免发生意外危险。

2. 确保在使用电动起子时，工作区域没有水或其他液体，以避免触电和损坏器件。

3. 使用时请注意周围的安全，确保工作区域宽敞明亮，并避免与其他人员或物体接触。

4. 在插入或更换刀头时，请务必确保电动起子已经断电，以免发生意外伤害。

5. 使用完毕后，请及时关闭电动起子电源，并将其存放在干燥通风的地方。

六、维护保养1. 定期清洁电动起子表面，可使用干净的布擦拭，避免水或其他液体进入电动起子内部。

2. 当电动起子刀头磨损严重或出现其他质量问题时，请及时更换或维修，以免影响使用效果。

3. 长时间不使用电动起子时，请拔掉电源插头并存放在干燥的地方。

七、故障排除在使用电动起子过程中，如果遇到以下情况，请立即停止使用，并联系售后服务中心进行维修：1. 电动起子无法启动或启动后立即停止。

2. 异常的噪音、振动或烟雾产生。

3. 电源线或开关出现异常情况。

生产厂：上海高手机电有限公司地 址：上海市闵行区中春路7166号变频半自动系列使用说明书电动起子2.5～4.03.0～5.03.0～5.03.5～5.5100010001000低压半自动无载转速适用螺丝牙径(mm)机械螺丝自攻螺丝rpm 好幫手电气动起子全系列扭力对照表区分机型kgf.cm 扭力范围使用前请仔细阅读本说明书-1-4.0～6.02.6～4.5AS-4636AS-6636AS-3636 1.0～102.0～165.0～25警告:在进行维修前必须将电源线自插座拔离,非专业人员请勿尝试维修本电动起子。

·请确定插座电源电压及电动起子所需电压相符。

·杂乱工作场所易造成伤害,勿将电动起子及配件放于水边,工作场所照明良好。

·确认插座的电压源及接地状况：起子本身附有接地导线,使用时请插在附有接地装置的插座上,不但可保障漏电安全,并可 排泄起子因操作磨擦所产生的静电及噪声干扰。

·切勿在电动起子非设定功能上操作,如钻孔等。

·不可使用电源线拉提电动起子或从插座猛拉开,避免电源线因长时间弯折导致断线，避免 电源线接触到热源、油污、化学剂等物品或磨擦到尖锐的物体边缘。

·插头插入起子或电源供应器插座时,它有方向性,必须对准插座内之导丘点后,方可用力插 入,然后以旋钮固定在起子或电源供应器上。

如此会减少因拉扯而断线的发生。

·为确保自身权益,保固期间内请勿拆修电动起子,请参考《保用范围条款》。

操作须知·被锁物固定:操作前先确认被锁物已被强制固定,避免锁螺丝时带动被锁物旋转而导致人员伤害。

·锁、退螺丝操作:注意:起子运转中切勿任意变换起子之转向,必须放松押扣板或放松下压力量﹙下压 式机型﹚,待马达完全停止后方可切换。

·扭力设定:旋转扭力调整环来设定起子的扭力;顺时针旋转为扭力增大,逆时针旋转为扭力减小。

注意:刻度环上的刻度值仅供设定记录用,并不代表输出扭力值,正确的输出扭力值 必须藉由扭力测试机反复测试而得；起子应避免在定格扭力下长期操作。

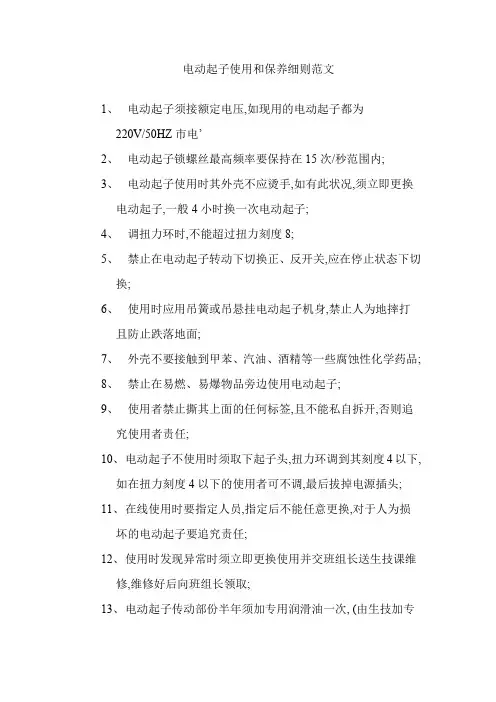

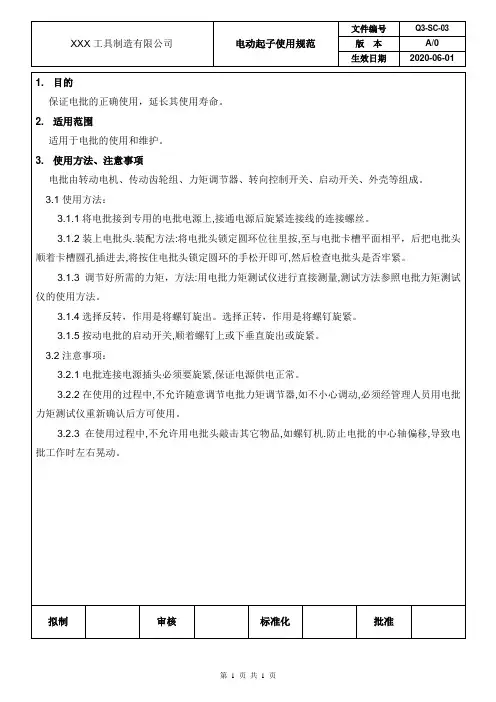

电动起子使用和保养细则范文
1、电动起子须接额定电压,如现用的电动起子都为
220V/50HZ市电’
2、电动起子锁螺丝最高频率要保持在15次/秒范围内;
3、电动起子使用时其外壳不应烫手,如有此状况,须立即更换
电动起子,一般4小时换一次电动起子;
4、调扭力环时,不能超过扭力刻度8;
5、禁止在电动起子转动下切换正、反开关,应在停止状态下切
换;
6、使用时应用吊簧或吊悬挂电动起子机身,禁止人为地摔打
且防止跌落地面;
7、外壳不要接触到甲苯、汽油、酒精等一些腐蚀性化学药品;
8、禁止在易燃、易爆物品旁边使用电动起子;
9、使用者禁止撕其上面的任何标签,且不能私自拆开,否则追
究使用者责任;
10、电动起子不使用时须取下起子头,扭力环调到其刻度4以下,
如在扭力刻度4以下的使用者可不调,最后拔掉电源插头; 11、在线使用时要指定人员,指定后不能任意更换,对于人为损
坏的电动起子要追究责任;
12、使用时发现异常时须立即更换使用并交班组长送生技课维
修,维修好后向班组长领取;
13、电动起子传动部份半年须加专用润滑油一次, (由生技加专
用润滑油).。
