汽车专业英语读译教程翻译UNIT 7 TEXT A

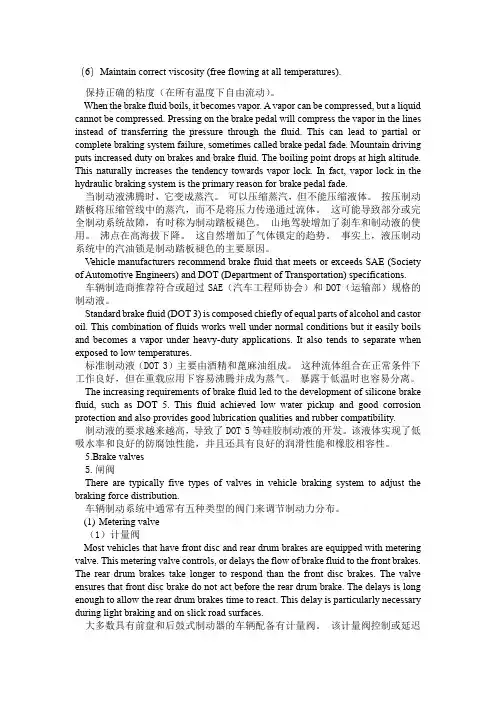

（6）Maintain correct viscosity (free flowing at all temperatures).保持正确的粘度（在所有温度下自由流动）。

When the brake fluid boils, it becomes vapor. A vapor can be compressed, but a liquid cannot be compressed. Pressing on the brake pedal will compress the vapor in the lines instead of transferring the pressure through the fluid. This can lead to partial or complete braking system failure, sometimes called brake pedal fade. Mountain driving puts increased duty on brakes and brake fluid. The boiling point drops at high altitude. This naturally increases the tendency towards vapor lock. In fact, vapor lock in the hydraulic braking system is the primary reason for brake pedal fade.当制动液沸腾时，它变成蒸汽。

可以压缩蒸汽，但不能压缩液体。

按压制动踏板将压缩管线中的蒸汽，而不是将压力传递通过流体。

这可能导致部分或完全制动系统故障，有时称为制动踏板褪色。

山地驾驶增加了刹车和制动液的使用。

沸点在高海拔下降。

这自然增加了气体锁定的趋势。

事实上，液压制动系统中的汽油锁是制动踏板褪色的主要原因。

1.These parts can be grouped into four major categories; body, engine, chassis and electrical system.2.The internal combustion engine is most common; this obtains its power by burning a liquid fuel inside the engine cylinder.3.The chassis includes the power train, steering, suspension, and braking systems.4. A power train can include a clutch for manual transmission or a torque converter for automatic transmission, a transmission, a drive shaft, final driveand differential gears and driving axles.5.Basic types are: leaf springs, coil springs and torsion bars.6. A basic ignition system consists of the battery, low-lension cables, the ignition coil, distributor, coil high-tension cable, spark plug cables and sparkplugs.7.The operating strokes are: induction stroke, compression stroke, power stroke, exhaust stroke.8.The major parts of engine are engine block, engine heads, pistons, connecting rods, crankshaft and valves.9.These systems are the fuel system, intake system, ignition system, cooling system, lubrication system and exhaust system.10.The dry clutch mechanism includes three basic parts: driving member, driven member and operating members.11.The spur gears are mounted on four shafts: primary shaft (input shaft), layshaft (countershaft), mainshaft, and reverse idler shaft.12.The three types of braking systems are in use today: service braking system, parking braking system and additional retarding-braking system.13.It has five basic parts: the receiver, expansion valve, evaporator, compressor, and condenser.14.The three normally adjustable angles are caster, camber, and toe.段落一．Elements of the Power TrainThe elements of the power train must meet the following requirements;1)enable driving away,2)convert torque and speed,3)enable different directions of rotation for driving forward and backward,4)transmit tractive and pushing forces,5)permit different rotational speeds of the drive wheels when cornering,6)guarantee optimum operation of the engine (or electric motor ) in terms of fuel consumption and exhaust emissions.Standstill, driving-away and power interruption are made possible by operation the clutch .During driving away, the clutch slips and bridges the difference in rotational speed between engine and power train. When different operating conditions call for a shift of gear, the clutch separates the power train during shifting.Engine torque and engine speed are converted in the transmission in accordance with the tractive-power demand of the vehicle. The transmission design is influenced by the position of the engine and driven axle. Overall conversion takes place usually in a manually shifted transmission with variable transmission ratios and in a final drive with a constant transmission ratio. Nowadays, positive-locking transmissions with toothed gears as the most important elements are of even greater significance than non-positive friction-type transmissions.Two types of toothed-gear transmission are predominant: spur-gear transmissions of the countershaft type as manually shifted transmissions, and planetary-gear transmissions as power-shift transmissions. In addition, transmissions permit the different directions of rotation required for driving forward and backward.Final drive turns the drive through 90°and reduces the speed of the drive by a set amount to the vehicle.The differential provides for the equalization of the different axle and wheel speeds when cornering and for uniform distribution of the drive torque.二.The Hydrodynamic Coupling1. Hydrodynamic CouplingConventionally, the hydrodynamic coupling, also known as the Fötttinger coupling, has an impeller and a turbine wheel with vanes that usually extend in the radial direction. The impeller is often expanded to form a housing which surrounds the turbine. Since, due to the absence of an inner ring, there is no possibility of diverting the oil flow, the turbine torque is equal to the pump torque;公式Therefore 公式The index number depends on the design, the vane angle and the degree of filling of the coupling. The main working area of an hydrodynamic coupling is at v=0.9.2. Hydrodynamic ConverterThe hydrodynamic converter, also known as the Trilok or Fötttinger converter, is capable of operating in two phases: with torque increase in the first phase, and as a hydrodynamic coupling in the second phase. The usual design has three impellers:1) The pump, which is connected to the engine, acts like a centrifugal pump to produce the flow energy of a fluid.2) The turbine, which is connected to the transmission input, converts the flow energy back into mechanical energy.3) The reactor between turbine and pump diverts the flow of the fluid.Thus, the torque output is higher than the pump torque input from the engine. The torque increaseμμ=Mt/Mp is all the higher, the greater the speed difference (slip）between the pump and turbine. Withυ=0, i.e. with the turbine braked to a standstill (stall point, drive-away point), torque conversion reaches its maximum value and falls virtually linearly with rising turbine speed to a torque ratio of 1:1 at the coupling point. Above the coupling point, the reactor, which is supported on the housing by a one-way clutch, runs, torque-free, in the flow. Thus, the converter is now a clutch without torque conversion.For automobiles, the vane geometries are such that, at the drive-away point, the maximum torque increase μA is between 2 and 2.5. The hydraulic efficiencyηhydr=υμis similar in the conversion range to the speed ratioμand reaches values around 97% at high speed.Fluid couplings form the input element of automatic transmissions (in conjunction with planetary-gear trains, clutches, brakes and one-way clutches) and also of manually shifted transmissions in the form converter and clutch unit.三．Constant-mesh TransmissionFig.3-6 illustrates the flow of torque through a typical constant-mesh transmission. This type uses helical or double helical gears which are always in mesh. The mainshaft gear wheels are mounted on bearings and when a gear is required the mainshaft gear is locked to the shaft by a dog clutch.Although the mechanical efficiency is lower the helical gears are quieter and any damage resulting from a bad gear change occurs to the dog teeth instead of the actual gear teeth.元素的力量训练动力传动的要素必须符合下列要求;1)使开车逃走,2)把转矩和速度,3)使不同方向的旋转带动向前和向后,四)推进传送叶轮力量,5)允许不同转速时的驱动轮转弯时,六)保证了优化运行的引擎(或电机)从油耗和尾气排放。

汽车专业英语读译教程(第3版)TEXT B课后练习题(EXERCISES)参考答案UNIT 1 AUTOMOTIVE BASICSTEXT B Automobile's History/ ・ Translate the following English names of car makers into Chinese:1.General Motors Corporation 通用汽车公司2.Ford Motor Co.福特汽车公司3.Chrysler Motors Corporation 克莱斯勒汽车公司4.Toyota Motor Corporation 丰田汽车公司5.Nissan Motor Co. Ltd.日产汽车公司6.Honda Motor Co. Ltd.本田汽车公司7.Mitsubishi Motors Corporation 三菱汽车公司8.Mercedes-Benz AG梅赛德斯-奔驰汽车公司9.BMW AG宝马汽车公司10.Volkswagen AG群众汽车公司11.Audi AG奥迪汽车公司12.Suzuki Motor Corporation 铃木汽车公司13.Isuzu Motors Ltd.五十铃汽车公司14.Mazda Motor Corporation 马自达汽车公司15.Volvo Car Corporation 沃尔沃轿车公司16.Volvo Bus Corporation 沃尔沃巴士公司17.Porsche AG保时捷汽车公司//. Translate the following English names of cars into Chinese:1.Chevrolet Corvette; Buick Century; Cadillac Deville 雪佛兰克尔维特；别克世纪；凯迪拉克德维尔2.Ford Mustang; Ford Mendeo; Lincoln Town Car 福特野马；福特蒙迪欧；林肯城市3.Dodge Caravan; Jeep Grand Cherokee; New Yorker 道奇捷龙；吉普大切诺基；纽约人ndcruiser; Camry; Crown; Lexus陆地巡洋舰；凯美瑞；皇冠；雷克萨斯1.What are the advantages of continuously variable transmission?Because there are no gears to tie a given road speed directly to a given engine speed, the CVT can vary the engine speed as needed to access maximum power as well as maximum fuel efficiency. This allows the CVT to provide quicker acceleration than a conventional automatic or manual transmission while delivering superior fuel economy.2.What are the main components of automated manual transmission?Transmission control ECU, clutch activator, transmission actuator, operators, and sensorsII. Translate the following paragraph into Chinese ：The basic technical criteria for continuously variable transmissions are size, weight, transmission-ratio range, transfer efficiency, noise emissions and installation possibilities. With regard to these aspects, mechanical continuously variable transmissions, in the form of chain-driven transmission, have provided the best results so far.评判无级变速器的基本技术标准是尺寸、重量、传动比范围、传动效率、噪声排放和安装可能性。

汽车工程专业英语全文翻译一当今的汽车一般都由15000 多个分散、独立且相互配合的零部件组成。

这些零部件主要分为四类：车身、发动机、底盘和电气设备。

Body：车身Engine：发动机Brakes：制动器Power train ：传动系Steering：转向系Electrical：电器及电子设备Suspension：悬架Layout of a passenger car：乘用车总布置Layout of a commercial vehicle ：商用车总布置1.1 车身汽车车身是由车窗、车门、发动机罩和行李箱盖焊接在金属板外壳发动机发动机作为动力装置。

最常见的发动机气缸的排列方式称为发动机配置。

直列式发动机的汽缸呈一列布置。

这个设计创造了一个简单的发动机缸体铸造。

在车辆应用中，汽缸数一般是2-6 缸，汽缸中心线与水平面垂直。

当汽缸数增多时，发动机尺寸和曲轴就成为一个问题。

解决这个问题的办法就是采用V 形（汽缸呈两列布置，且两列气缸之间夹角为V 形）发动机。

这个设计使发动机尺寸和曲轴都变得更短且更坚硬。

前置发动机纵向安装，既可前轮驱动也可后轮驱动。

后置发动机是将发动机安装在后轮后面。

发动机可横置或纵置，一般情况下为后轮驱动。

1.4 电气系统电气系统为起动机、点火系统、照明灯具、取暖器提供电能。

该电平由一个充电电路维护。

1.4.1 充电充电系统为所有汽车电子元件提供电能。

充电系统主要包括：蓄电池，交流发电机，电压调节器，即通常是交流发电机上不可或缺的，充电警告或指示灯和金属丝连成一个完整电路。

蓄电池为起动提供电能 ,然后发动机工作，交流发电机就为所有的电子元件提供电能。

同时也给蓄电池充电即用来使发动机起动。

电压调节器有过充保护作用。

1.4.2 起动起动系统包括：蓄电池、电缆、起动机、飞轮和换向器。

起动时，有两个动作同时运行，该起动机齿轮与飞轮齿圈啮合，并起动电机，然后运行传输到发动机曲轴。

起动机电机将起动机安装在发动机缸体上并由电池供电。

When the throttle valve is opened, air flow through the air cleaner, through the air flow meter (on L type systems), past the throttle valve, and through a well tuned intake manifold runner to the intake valve .Air delivered to the engine is function of drive demand .As the throttle valve is opened further, more air is allowed to enter the engine cylinder.当节气门打开,空气通过空气滤清器,通过空气流量计(L型系统),经过节气门,并在进气歧管中经过良好的调整进入进气门。

空气被送到发动机是驾驶员要求的一种。

当节气门进一步打开时,允许更多的空气进入发动机汽缸。

Toyota engines use two different methods to measure intake air volume. The L type EFI system measures air flow directly by using an air flow meter. The D type EFI system measures air flow indirectly by monitoring the pressure in the intake manifold. 丰田发动机使用两种不同的方法来测量进气量。

L型EFI系统是通过空气流量计直接测量进气量的。

D型EFI系统通过监测进气歧管的压力间接测量进气量的。

The electronic control system consists of various engine sensors, electronic control unit (ECU), and various actuators.发动机的电子控制系统由传感器、电子控制单元(ECU)和各种执行机构。

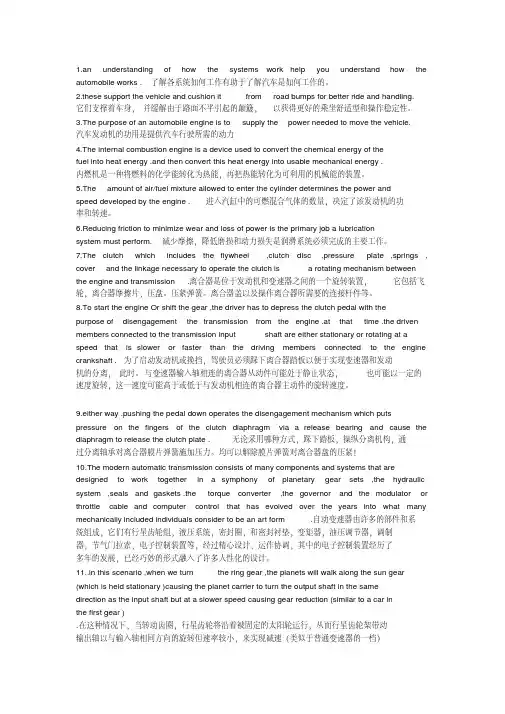

1.an understanding of how the systems work help you understand how the automobile works .了解各系统如何工作有助于了解汽车是如何工作的。

2.these support the vehicle and cushion it from road bumps for better ride and handling.它们支撑着车身，并缓解由于路面不平引起的颠簸，以获得更好的乘坐舒适型和操作稳定性。

3.The purpose of an automobile engine is to supply the power needed to move the vehicle.汽车发动机的功用是提供汽车行驶所需的动力4.The internal combustion engine is a device used to convert the chemical energy of thefuel into heat energy .and then convert this heat energy into usable mechanical energy .内燃机是一种将燃料的化学能转化为热能，再把热能转化为可利用的机械能的装置。

5.The amount of air/fuel mixture allowed to enter the cylinder determines the power andspeed developed by the engine .进入汽缸中的可燃混合气体的数量，决定了该发动机的功率和转速。

6.Reducing friction to minimize wear and loss of power is the primary job a lubricationsystem must perform.减少摩擦，降低磨损和动力损失是润滑系统必须完成的主要工作。

汽车专业英语翻译Today's average car contains more than 15,000 separate, individual parts that must work together. These parts can grouped into four major categories: engine, body, chassis and electrical equipment.现代汽车有超过15000个零件组成，分成几个必须在一起工作的功能部分。

主要包括4个功能部分：引擎，车身，底盘和电控。

The engine acts as the power unit. The internal combustion engine is most common: this obtains its power by burning a liquid fuel inside the engine cylinder. There are two types of engine :gasoline(also called a spark-ignition engine) and diesel(also called a compression-ignition engine).Both engines are called heat engines; the burning fuel generates heat which causes the gas inside the cylinder to increase its pressure and supply power to rotate a shaft connected to the transmission.引擎为汽车提供能源。

一般是内燃机：通过在引擎缸内燃烧液体燃料获得能量。

引擎有两种：汽油机和柴油机。

两种引擎都叫热机。

About car engineOf all automobile components,an automobile engie is the most complicated assembly with dominant effects on the function of an autombile.So, the engine is generally called the"heat"of an automobile.在汽车的所有部件中，汽车发动机是最复杂的组件，其对整车性能有着决定性的作用。

因而发动机往往被称作发动机的“心脏”。

There are actually various types of engines such as electric motors,stream engines,andinternal combustion engines.The internal combustion engines seem to have almost complete dominance of the automotive field.The internal combustion engine,as its name indicates,burns fuel within the cylinders and converts the expanding force of the combustion into rotary force used to propel the vehicle.事实上，按动力来源分发动机有很多种，如电动机、蒸汽机、外燃机等。

然而内燃机似乎在发动机领域有着绝对的统治地位。

就像其字面意思一样，内燃机的染料在气缸内燃烧，通过将燃烧产生气体的膨胀力转换成转动力来驱动发动机前进。

Engine is the power source of the automobile.Power is produced by the linear motion of a piston in a cylinder.However,this linear motion must be changed into rotary motion to turn the wheels of cars or trucks.The puston attached to the top of a connecting rod by a pin,called a piston pin or wrist pin.The bottom of the connecting rod is attached to the crankshaft.The connecting rod transmits the up-and-down motion of the piston to the crankshaft,which changes it into rotary motion.The connecting rod is mounted on the crankshaft with large bearings called rod bearing.Similar bearings, called main bearings,are used to mount the crankshaft in the block.发动机是整部车的动力来源。

第一单元发动机分类及工作原理课文A发动机的分类所有的汽车发动机都是内燃机（ICE),就是将燃油在气缸内进行燃烧，并将燃烧产生的膨胀压力转变成转动力，用来驱动汽车。

所以说，发动机是动力源, 并被认为是汽车的心脏。

汽车发动机根据工作方式分为往复式发动机和转子发动机：报据发动机燃烧的燃料分为汽油机和柴油机：根据发动机的气缸数量和气缸排列方式分为直列发动机、V型发动机、对置式发动机和W型发动机。

往复式发动机和转子发动机往复式发动机也称为活塞式发动机。

该发动机采用一个或多个活塞在气缸内上下运动或前后运动，将压力转变为转动动能传递给汽车驱动轮（见图1-1)。

往复式发动机广泛应用现代汽车上。

转子发动机是于1954年研发出来的。

如图1-2所示，在该发动机中，有个三角形的转子在燃烧室内旋转。

膨胀气体使转子旋转，产生动力并排出废气。

转子发动机没有活塞和气门等往复部件。

转子发动机产生马力大、无振动，但其燃油消耗比往复式发动机要高。

汽油机和柴油机汽油机以汽油作为燃料。

采用火花塞点燃缸内的可燃混合气，产生动力使汽车行驶，如图1-3a所示。

汽油机也称为火花点燃式发动机。

该发动机的特点是转速高，运行平顺，结构简单，重量轻，成本低。

几乎所有轿车都采用汽油机。

柴油机以柴油作为燃料。

该发动机的工作原理足通过压缩缸内的空气使其升温，冉使喷油嘴喷入的柴油燃烧，产生动力驱动汽车(见图1-3b)，所以也称为压燃式发动机。

柴油机要比汽油机的动力更强劲，燃油经济性更好。

常见于所有的大型货车、客车和部分轿车上。

直列发动机，V型发动机，水平对置式发动机，W型发动机通过气缸数最和气缸排列方式可以识别发动机结构。

当今所有的紧凑型轿车都配有4缸发动机，一些中型级轿车配有6缸发动机，大型轿车配有8缸或12缸发动机。

在多气缸发动机上，气缸通常以四种排列方式中的一种排列，有：直列式、V型、水平对置式和W型。

直列式发动机中的气缸按直线排列，采用一个气缸蓝。

几乎所有4缸发动机都采用该种排列（兄阁1-4)。

第7单元课文B 三元催化转化器现代催化转化器采用了一个三元催化剂块状陶瓷载体，此催化剂载体上涂有铂、钯和铑催化剂金属。

这种载体成蜂窝状，内有数百个废气通道。

这些通道形成了极大的接触表面。

当催化剂处于高温状态时，一般为475～575℉（246～301℃），这些金属元素就会加速催化转化器内的化学反应。

催化剂开始起作用的温度叫做催化转化器的起燃点。

起燃点就是催化转化器转化效率超过50%的温度。

在催化剂达到起燃点后，催化转化器的最大化学转化效率就能达到最大值。

催化转化器安装位置离排气歧管出口越近，达到起燃点需要的时间就越短。

三元催化转化器所引起的化学反应，将碳氢化合物（HC）和氧（O2）转变成二氧化碳（CO2）和水蒸汽（H2O），将将一氧化碳（CO）和氧（O2）转变成二氧化碳（CO2），将氮氧化合物（NO X）和氢（H2）转变成氮（N2）和水蒸汽（H2O）。

这三种有害气体被转变成对环境无害气体的百分数叫做催化转化器的转化效率。

当空燃比保持在14.7:1的理想空燃比时，三元催化剂转换器的效率最高。

三元催化转化器内含有两个单独的陶瓷载体块（图7-5）。

第一个载体内含有还原剂，即使NO X还原的铂和钯。

当NO X（NO和NO2）经过第一块载体时，氮原子与氧原子分离，这个氮原子与另一个吸附在载体上的氮原子结合，而形成氮分子（N2）。

氧化催化剂是含有铂和钯的第二个载体。

氧化催化剂能燃烧（氧化）碳氢化合物（HC）和一氧化碳（CO），并将它们变为二氧化碳（CO2）和水蒸汽（H2O）。

催化转化器中还含有二氧化铈。

在稀薄混合气运行期间以及在还原过程中产生氧的时候，二氧化铈能够存储氧。

然后在浓混合气运行期间再释放出氧，因而维持了催化转化器内的化学平衡。

这个过程能使还原和氧化同时发生。

三元催化转化器在空燃比保持在14.7:1的理想配比状态时效率最高。

如果空燃比比理想配比稀，NO X的转化效率就会下降。

在混合气为稀空燃比即氧含量高的时候，而碳氢化合物含量低的时候，催化转化器仍将转换碳氢化合物，剩余的氧将被存储在催化转化器内。

汽车专业英语翻译；Unit1AutomotiveBasics；Automobiles,trucks,andbu；轿车、卡车和客车是交通运输的重要组成部分；Anautomobilecanbedivided；汽车可以分为两个基本部分：车身和底盘；Anautomobilebodyisasheet；轿车车身是一个钣金件壳体，它上面有车窗、车门、发；Theautomo汽车专业英语翻译Unit 1 Automotive BasicsAutomobiles, trucks, and buses are essential forms of transportation. They are complex machines made up of many parts. These parts can be grouped int o a number of systems. An understanding of how the system work will help y ou understand how the automobile works.轿车、卡车和客车是交通运输的重要组成部分。

它们都是由许多部件组成的复杂机器。

这些部件可以归类为汽车的几个组成系统。

了解这些各个小系统是如何工作的将有助于我们理解整个汽车系统是如何工作。

An automobile can be divided into two basic parts: a body and a chassis. The body is the enclosure that houses the engine, passengers, and cargo. It is the part of the automobile that you see. The chassis is that part of the automo bile beneath the body.汽车可以分为两个基本部分：车身和底盘。

Unit 1EXERCISE 21.内燃机2. a reciprocating engine3. 废气排放4. fuel consumption5. 燃油经济性6. combustion chamber7. 混合动力汽车8. mass production9. 双燃料汽车 10. air-cooled engineEXERCISE 31. A diesel engine2. internal combustion engine3. diesel engines4. converts … into5. in a reciprocating engine6. engine7. four strokes cycle8. electric motorEXERCISE 51. diesel engines, in many aspects/respects/ways, work in the same way as gasoline engines2. makes the car and the truck move3. every time it was required to stop the car4. Some of parts make the car more comfortable or better looking5. if allowed to remain in the engineEXERCISE 61. years2. solve3. basically4. exhaust pipe5. without6. benefited7. based on8. in the 80’s9. runs out 10. the right side EXERCISE 81. 代用燃料汽车2. 高科技汽车3. 混合动力电动汽车4. 在节气门上方5. 发动机控制系统6. 发动机控制模块EXERCISE 91. 1）that is stopping oil from circulating 2）The engine’s valve lifters are collapsed2. 1）The engine may have mechanical problems2）The engine’s piston rings may be wornUnit 2EXERCISE 21.汽油(发动)机2. in low-speed driving conditions3. 达到各种不同的目的4. higher energy density5. 电动机6. air conditioning7. 反馈制动8. power source9.资源消耗 10. dashboard displayEXERCISE 31.co nverts…into2. shut off3. hybrid electric vehicles4. transmission5. slow down6. generator7. the most efficient operation8. current standard vehiclesEXERCISE 51. reflect the spirit of the time2. electric motors, steam engines and internal combustion engines3. a speed and power changing device4. reducing fuel consumption, lowering exhausted emissions, and reducing engine noise5. are increasingly becoming more prevalentEXERCISE 6rear wheel drive 4. at an average speed 5. currently 6. based on 7. camshafts 8. Due to1. W12 engines2. three cylinders3. 3. rear wheel driveEXERCISE 81.可变气门相位和升程电子控制装置2.上止点3.每分钟转数4.单顶置凸轮5. 双顶置凸轮6. 下止点7.前置发动机前轮驱动8. 混合动力汽车 EXERCISE 91.1） the same air pressure 2）linkage2.1）out of alignment 2）out of adjustmentUnit 3EXERCISE 21. 气门机构2. pushrod engine3. 气门弹簧4. timing chain5. 气门锥面6. steel alloy7. 气门座8. timing belt9. 挺柱 10. at high engine speed EXERCISE 31. valve2. valve train3.intake and exhaust ports4. valve face5. push rods6. rocker arm7. camshaft8. valve springEXERCISE 51. transmit the force from the camshaft to the pushrods2. the intake valves heat less during engine operation3. the valve spring provides the force necessary to close the valve4. the valve train should undergo regular maintenance5. the more power strokes produced for each revolutionEXERCISE 61. engine operation2. valve rotator3. grooves4. freely5. which6. is compressed7. causes8. against9. roll down 10. the valveEXERCISE 81. 顶置双凸轮轴2. 顶置单凸轮轴3. 顶置气门4. 电子控制装置5. 三菱新气门相位和升程电子控制装置6. 智能可变气门相位7. 智能可变气门相位和升程电子控制装置8. 可变气门升程EXERCISE 91. 1）out of alignment 2）tires2. 1）low 2） the transmissionUnit 4EXERCISE 21. 一次电路2. ignition system3. 磁力场4. spark plug wire5. 曲轴正时传感器6. distributor cap7. 点火线圈一次绕组8. control module9. 分电器触点 10. breaker pointEXERCISE 31. spark plug2. ignition system3. ignition coil4. ignition switch5. An electronic ignition system6. the secondary windings7. battery8. primary windingsEXERCISE 51. changes electron flow into light and the horn into sound2. every vehicle has its own ignition system and is started by it3. consists of these parts like spark plugs, wiring, distributor, ignition coil, andsource of electrical current4. it would soon become discharged5. The mixture comes to exploding burningEXERCISE 61. an automotive starter2. connects3. ignition switch4. simultaneously5. magnetic fields6. Immediately7. connecting plate8. So9. meanwhile 10. keep onEXERCISE 81. 传统点火系统2. 电子点火系统3. 点火4. 点火上止点5. 直接点火6. 无分电器点火EXERCISE 91. 1）wheel lug nuts 2）worn or damaged2.1）the correct pressure 2）needs to be replacedUnit 5EXERCISE 21.手动变速器2. automatic transmission3. 行星齿轮组4. transaxle assembly5. 差速器6. clutch pedal7. 变速杆8. release bearing9. 发动机制动 10. torque converterEXERCISE 3manual transmissions 2. a torque converter 3. the power train 4. the drive shaft 5. The clutch 6. the flywheel 7.the clutch pedal 8. clutch release bearing1.1.manual transmissionsEXERCISE 51. from the engine through the power train to the car2. If your car transmission needs repairs or replacement3. the gear ratio would be similar to third gear4. does not require any regular maintenance or adjustments5. depending on the type of drive usedEXERCISE 61. automatically2. depressing3. An automatic transmission4. other operating conditions5. down-shifts6. manually7. Depending on8. during9. consists of 10. reaction membersEXERCISE 81. 前轮驱动2. 后轮驱动3. 四轮驱动4. 动力输5. 传动系控制模块6. 动力分配装置EXERCISE 91. 1）an internal problem in transmission 2）out of adjustment or damaged2.1）internal transmission problems 2）the vacuum line is disconnected Unit 6EXERCISE 21. 制动系统2. the parking brake3.行车制动系统4. the disk brake5. 手制动6.the brake shoe7. 鼓式制动器8. brake pads9. 制动性能 10. brake fluid EXERCISE 31. breaking system2. Brake fluid3. the brake pedal4. slowing down5. friction6. the service brake7. The brake lining8. The brake drumEXERCISE 51. is actually a friction device to change power into heat2. the mechanical brakes and the hydraulic brakes3. the automobile brake system4. The tops of shoes are held apart by a wheel cylinder5. to prevent rust and corrosionEXERCISE 61. a valve2. chambers3. the brake pedal4. the power assist5. reliable6. however7. In order to8. shuts off9. after that 10. much pressureEXERCISE 81.制动力2. 制动调节阀3. 制动块4. 制动功率5. 平均有效制动压力6. 制动主缸EXERCISE 91. 1）in the hydraulic circuit 2）dangerously worn 3）the wrong type of fluid2. 1）lubrication badly 2）inside your rear brakesEXERCISE 21. 悬架系统2. front suspension system3. 空气压缩机4. torque tube5. 桥壳定位6. coil spring7. 下控制臂8. rebound clip9. 牵引杆 10. control armEXERCISE 31. leaf springs2. suspension3. Shock absorber4. springs5. coil springs6. pivot from side to side7. torsion bars8. rebound clips EXERCISE 51. springs are the major component2. one of the major automobile system3. the use of suspension system has increased strength and durability of components4. transmits the weight of the body and other components to the axles and wheels5. having a piston force fluid through a small openingEXERCISE 61. the rear axle2. front3. independently4. the latter5. Dependent front suspensions6. Basically7. a solid bar8. mainstream cars 9. move 10. especiallyEXERCISE 81. 悬架2. 车架高度3. 前桥4. 后桥5. 钢板弹簧6. 扭杆弹簧EXERCISE 91. 1）should be replaced with the correct type 2）the wrong type of fluid was put in your car2. 1）pump is bad 2）be lubricated or repairedUnit 8EXERCISE 21. 齿轮齿条转向2. steering shaft3. 循环球转向4. steering wheel5. 横拉杆内接头6. steering arm7. 横拉杆外接头8. steering gear9. 机械效益 10. steering systemEXERCISE 31.influence upon2. steering gear3.steering wheel4.consists of5. ball nut6. move up and down7. rack-and-pinion steering8. steering arms EXERCISE 51. steering wheel, steering gears, linkages, and other components2. causes the pitman shaft and arm to rotate3. prevent side-slip of all automobile wheels in cornering4. steering gear plays a important role5. manual steering system and power steering systemEXERCISE 61. fluid2. manual steering gear3. larger4. a high pressure5. special oil6. same7. steering arms8. includes9. the other end 10. the intermediate rodEXERCISE 81. 汽车稳定性控制2. 全球公认的杰作3. 防抱死制动系统4. 防抱死制动系统控制模块5.(防抱死制动系统)转速脉冲传感器6. 动力转向控制装置7. 动力转向8. 多用途赛车，运动型多用途车EXERCISE 91. 1）be lubricated 2）be adjusted 3）the power steering unit2. 1）bad 2）leak 3）incorrectUnit 9EXERCISE 21. 润滑系统2. moving component3. 循环机油4. compression pressure5. 集滤器6. pressure-regulator valve7. 旁通阀8. oil filter9. 循环流体10. operating temperatureEXERCISE 31. moving parts2. oil pump3. oil pan4. lubricate5. oil filter6. friction7. drain8. passagesEXERCISE 51. The engine can work effectively2. an automobile could not run itself3. contains mechanical parts such as the oil pump, the oil filter, the oil pressurerelief valve, etc.4. it absorbs and carries the heat away from the engine parts5. forms a good seal between piston rings and cylinder wallsEXERCISE 61. build up2. pumps3. camshaft4. suffer from5. replacement6. oil pressure7. filters8. However9. possibility 10. greatly EXERCISE 81. 冷却液温度控制2. 润滑油3. 润滑油泵4. 长效冷却液5. 机油润滑轴承6. 换油期限EXERCISE 91）the radiator coolant reservoir is a plastic tank near radiator2）if the level is low, remove the top of the reservoir and add coolant3）don't try to remove the radiator cap when the engine is hotUnit 10EXERCISE 21. 安全气囊模块2. gas generator3. 散热器支架4. peak load5. 固态化学气体6. trim cover7. 保护板8. airbag sensor9. 中央气囊传感器总成 10. deployment of airbagsEXERCISE 31. the air bag system2. the sensor3. The inflator4. Seatbelts5. pretensioner6. collision7. a high strength fiber8. injury EXERCISE 5automotive designs that reflect the feature of the timea center airbag sensor, safe sensors, ignition control and drive circuit, diagnosis circuit, etc.All connectors in the airbag system are colored yellowto ensure high reliabilityto be met the new SRS airbag system of the vehicleEXERCISE 61. one place2. specific model3. figuring out4. familiar with5. in the system6. the heat7. expansion valve8. adds heatEXERCISE 81. (乘员保护装置) 辅助约束系统2. 空气流量传感器3. (乘员) 安全气囊式约束装置4. 防抱死制动系统5. 电动空气调节阀6. 辅助空气调节 EXERCISE 91） bad 2）leak 3）incorrect三、段落翻译复习范围：Unit 1 Passage A: 第一段，第三段； Unit 2 Passage A: 第一段，第二段；Unit 3 Passage A: 第二段，第五段； Unit 4 Passage A: 第一段（包括后面的1,2,3），最后一段；Unit 5 Passage A: 第一段，第六段；Unit 6 Passage A: 第一、二段，最后一段； Unit 7 Passage A: 第一段，第四段；Unit 8 Passage A: 第一段，第七段（包括后面的1, 2，On most cars,……）；Unit 9 Passage A: 第一段，第五段； Unit 10 Passage A: 第一段，第二段。
