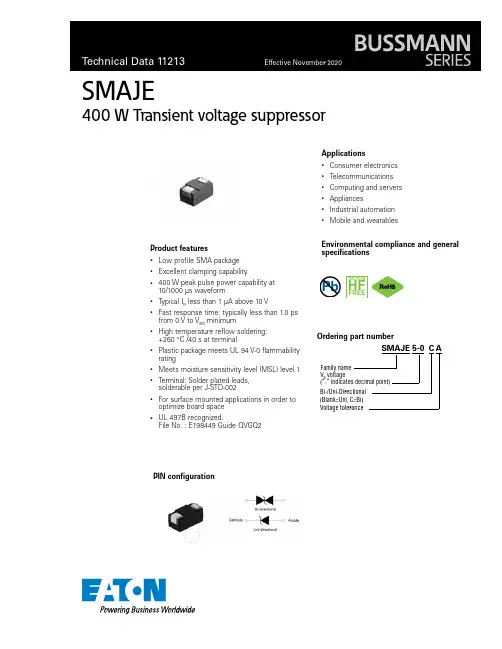

SMAJE400 W Transient voltage suppressorProduct features• Low profile SMA package • Excellent clamping capability•400 W peak pulse power capability at 10/1000 μs waveform• Typical I R less than 1 μA above 10 V•Fast response time: typically less than 1.0 ps from 0 V to V BR minimum•High temperature reflow soldering: +260 °C /40 s at terminal•Plastic package meets UL 94 V-0 flammability rating• Meets moisture sensitivity level (MSL) level 1•Terminal: Solder plated leads, solderable per J-STD-002•For surface mounted applications in order to optimize board space•UL 497B recognized.File No. : E198449 Guide QVGQ2Applications• Consumer electronics • Telecommunications • Computing and servers • Appliances• Industrial automation •Mobile and wearablesEnvironmental compliance and general specificationsSMAJE 5-0 C AFamily name V R voltage(“-” indicates decimal point) Bi-/Uni-Directional(Blank=Uni, C=Bi)Voltage toleranceOrdering part numberPIN configurationPb HALOGENHF FREE2Technical Data 11213Effective November 2020SMAJE400 W Transient voltage suppressor/electronicsParameterSymbolValueUnitStorage operating junction temperature range T STG / T J -55 to +150°C Steady state power dissipation at T L = +75 °C P M(AV) 3.3W Peak pulse power dissipation on 10/1000 μs waveformP PP 400W Maximum instantaneous forward voltage at 100 A for unidirectionalV F 5.0V Peak forward surge current, 8.3 ms single half sine wave 1I FSM 60A Typical thermal resistance junction to lead R JL 30°C/W Typical thermal resistance junction to ambientR JA120°C/WAbsolute maximum ratings(+25 °C, RH=45%-75%, unless otherwise noted)1. Measured on 8.3 ms single half sine wave or equivalent square wave for unidirectional device only, duty cycle = 4 per minute maximumPackaging information (mm)Drawing not to scale.Supplied in tape and reel packaging, 5,000 parts per 13” diameter reel (EIA-481 compliant)Mechanical parameters, pad layout- mmMillimetersInches Dimension MinimumMaximumMinimumMaximumA 2.60 3.000.1020.118B 4.15 4.650.1630.183C 1.25 1.650.0490.065D 0.95 1.520.0370.060E 4.90 5.300.1930.209F 0.0510.2030.0020.008G 0.150.310.0060.012H 2.00 2.440.0790.096J 2.000.079K 2.300.091L1.800.071Part markingDimension Millimeters InchesA0 2.79 ± 0.30.110 ± 0.012B0 5.33 ± 0.30.210 ± 0.012C 330.013.0 D0 1.55 ± 0.10.061 ± 0.004E 1.75 ± 0.20.069 ± 0.008E113.3 ± 0.30.524 ± 0.012F 5.50 ± 0.20.217 ± 0.008P0 4.00 ± 0.20.157 ± 0.008P1 4.00 ± 0.20.157 ± 0.008P2 2.00 ± 0.2 0.079 ± 0.008W 12.0 ± 0.20.472 ± 0.008W115.7 ± 2.00.618 ± 0.079Cathode band (Uni-polar only)Part marking: xxxx = Date codeyy- Refer to marking designator listed in Electrical Characteristics table3Technical Data 11213Effective November 2020SMAJE400 W Transient voltage suppressor /electronics Part number Marking V RI R @ V R V BR @ I T I TV C @ I PP I PP Uni-polarBi-polarUni Bi(V)(μA)min (V)max (V)(mA)max (V)(A)SMAJE5-0A SMAJE5-0CA HE TE 5120 6.47109.243.5SMAJE6-0A SMAJE6-0CA HG TG 6120 6.677.371010.338.8SMAJE6-5A SMAJE6-5CA HK TK 6.5807.227.981011.235.7SMAJE7-0A SMAJE7-0CA HM TM 7507.788.6101233.3SMAJE7-5A SMAJE7-5CA HP TP 7.5508.339.21112.931SMAJE8-0A SMAJE8-0CA HR TR 8208.899.83113.629.4SMAJE8-5A SMAJE8-5CA HT TT 8.5109.4410.4114.427.8SMAJE9-0A SMAJE9-0CA HV TV 951011.1115.426SMAJE10A SMAJE10CA HX TX 10211.112.311723.5SMAJE11A SMAJE11CA HZ TZ 11112.213.5118.222SMAJE12A SMAJE12CA IE UE 12113.314.7119.920.1SMAJE13A SMAJE13CA IG UG 13114.415.9121.518.6SMAJE14A SMAJE14CA IK UK 14115.617.2123.217.3SMAJE15A SMAJE15CA IM UM 15116.718.5124.416.4SMAJE16A SMAJE16CA IP UP 16117.819.712615.4SMAJE17A SMAJE17CA IR UR 17118.920.9127.614.5SMAJE18A SMAJE18CA IT UT 1812022.1129.213.7SMAJE20A SMAJE20CA IV UV 20122.224.5132.412.4SMAJE22A SMAJE22CA IX UX 22124.426.9135.511.3SMAJE24A SMAJE24CA IZ UZ 24126.729.5138.910.3SMAJE26A SMAJE26CA JE VE 26128.931.9142.19.5SMAJE28A SMAJE28CA JG VG 28131.134.4145.48.8SMAJE30A SMAJE30CA JK VK 30133.336.8148.48.3SMAJE33A SMAJE33CA JM VM 33136.740.6153.37.5SMAJE36A SMAJE36CA JP VP 3614044.2158.1 6.9SMAJE40A SMAJE40CA JR VR 40144.449.1164.5 6.2SMAJE43A SMAJE43CA JT VT 43147.852.8169.4 5.8SMAJE45A SMAJE45CA JV VV 4515055.3172.7 5.5SMAJE48A SMAJE48CA JX VX 48153.358.9177.4 5.2SMAJE51A SMAJE51CA JZ VZ 51156.762.7182.4 4.9SMAJE54A SMAJE54CA RE WE 5416066.3187.1 4.6SMAJE58A SMAJE58CA RG WG 58164.471.2193.6 4.3SMAJE60A SMAJE60CA RK WK 60166.773.7196.8 4.1SMAJE64A SMAJE64CA RM WM 64171.178.61103 3.9SMAJE70A SMAJE70CA RP WP 70177.8861113 3.6SMAJE75A SMAJE75CA RR WR 75183.392.11121 3.3SMAJE78A SMAJE78CA RT WT 78186.795.81126 3.2SMAJE85A SMAJE85CA RV WV 85194.41041137 2.9SMAJE90A SMAJE90CA RX WX 9011001111146 2.8SMAJE100A SMAJE100CA RZ WZ 10011111231162 2.5SMAJE110A SMAJE110CA SE XE 11011221351177 2.3SMAJE120A SMAJE120CA SG XG 12011331471193 2.1SMAJE130A SMAJE130CA SK XK 13011441591209 1.9SMAJE150A SMAJE150CA SM XM 15011671851243 1.7SMAJE160A SMAJE160CA SP XP 16011781971259 1.6SMAJE170A SMAJE170CA SR XR 17011892091275 1.5SMAJE180A SMAJE180CA ST XT 18012012221292 1.4SMAJE200A SMAJE200CA SX XX 20012242471324 1.3SMAJE220A SMAJE220CA ZE YE 22012462721356 1.1SMAJE250A SMAJE250CA ZG YG 250127930914051SMAJE300A SMAJE300CA ZK YK 300133537114860.8SMAJE350A SMAJE350CA ZM YM 350139143215670.7SMAJE400A SMAJE400CA ZP YP 400144749416480.6SMAJE440ASMAJE440CAZRYR440149254317130.6Electrical characteristics (+25 °C)4Technical Data 11213Effective November 2020SMAJE400 W Transient voltage suppressor/electronicsI P P M (% I R S M )t (ms)200 25 50 75 100125 150 175P P P d e r a t i n g i n p e r c e n t a g e (%)100406080T J -Initial junction temperature (°C)V- I curve characteristics (Uni-directional)V- I curve characteristics (Bi-directional)Pulse waveformPulse derating curveSurge waveform: 10/1000 μsV R : Stand-off voltage -- Maximum voltage that can be applied V BR : Breakdown voltageV C : Clamping voltage -- Peak voltage measured across the suppressor at a specified I PP I R : Reverse leakage current I T : Test currentV F : Forward voltage drop for Uni-directional TVS diode0.0010.01 0.11.0 100.11001.010400 W at 10/1000 μs +25 °CP p p (k W )t d -Pulse width (ms)Peak pulse power dissipation vs. pulse widthRatings and V-I characteristic curves (+25 °C unless otherwise noted)EatonElectronics Division 1000 Eaton Boulevard Cleveland, OH 44122United States/electronics© 2020 EatonAll Rights Reserved Printed in USAPublication No. 11213 BU-MC20191November 2020Technical Data 11213Effective November 2020SMAJE400 W Transient voltage suppressor Life Support Policy: Eaton does not authorize the use of any of its products for use in life support devices or systems without the express writtenapproval of an officer of the Company. Life support systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user.Eaton reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Eaton also reserves the right to change or update, without notice, any technical information contained in this bulletin.Solder reflow profileT e m p e r a t u r eT LT PEaton is a registered trademark.All other trademarks are property of their respective owners.Follow us on social media to get the latest product and support information.Reference J-STD-020Profile featureStandard SnPb solderLead (Pb) free solderPreheat and soak • Temperature min. (T smin )100 °C 150 °C • Temperature max. (T smax )150 °C 200 °C • Time (T smin to T smax ) (t s )60-120 seconds 60-180 seconds Ramp up rate T L to T p 3 °C/ second max. 3 °C/ second max.Liquidous temperature (T l ) Time (t L ) maintained above T L183 °C60-150 seconds 217 °C60-150 seconds Peak package body temperature (T P )*Table 1Table 2Time (t p )* within 5 °C of the specified classification temperature (T c )20 seconds*40 seconds*Ramp-down rate (T p to T L ) 6 °C/ second max. 6 °C/ second max.Time 25 °C to peak temperature6 minutes max.8 minutes max.* Tolerance for peak profile temperature (T p ) is defined as a supplier minimum and a user maximum.Table 1 - Standard SnPb solder (T c )Package thicknessVolume mm3 <350Volume mm3 ≥350<2.5 mm 235 °C 220 °C ≥2.5 mm220 °C220 °CTable 2 - Lead (Pb) free solder (T c )Package thicknessVolume mm 3 <350Volume mm 3350 - 2000Volume mm 3 >2000<1.6 mm 260 °C 260 °C 260 °C 1.6 – 2.5 mm 260 °C 250 °C 245 °C >2.5 mm250 °C245 °C245 °C。
