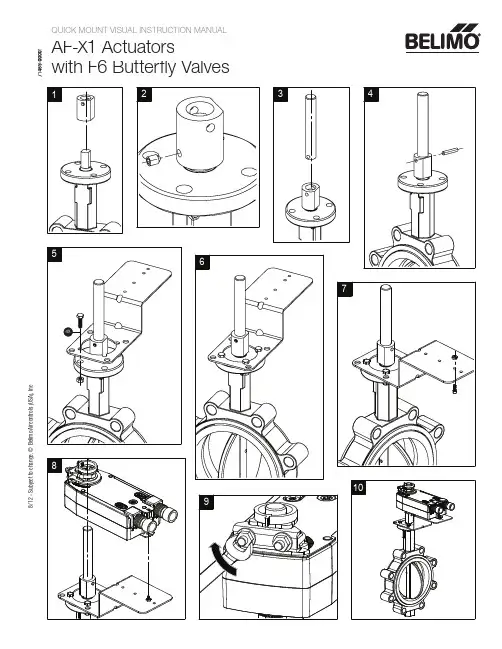

QUICK MOUNT VISUAL INSTRUCTION MANUALAF-X1 Actuatorswith F6 Butterfly Valves8/12 - S u b j e c t t o c h a n g e . © B e l i m o A i r c o n t r o l s (U S A ), I n c .WIRING DIAGRAMSB KB l a c k N e g r o N o i r P r e t o R D R e d R o j o R o u g e V e r m e l h oW H W h i t e B l a n c o B l a n c B r a n c o P K P i n k R o s a d o R o s a C o r -d e r o sO G O r a n g e A n a r a n j a d o O r a n g e A l a r a n j a d oSpring Return Actuator with On/Off and -SRBlk (1) Common Red (2) + Hot24 VAC Transformer LineVoltsOn/OffOn/Off24 VAC up to 240 VAC VDC / 4 to 20 mASpring Return Actuator with MFTBlk (1) Common Red (2) + Hot Wht (3) Y 1 InputPnk (4) Y 2 InputOrg (5) U Output 2 to 10 VComHotControllerLine Volt s1024 VAC Transformer51818Blk (1) Common Red (2) + Hot Wht (3) Y 1 InputPnk (4) Y 2 InputOrg (5) U Output 2 to 10 VComHotControllerLine Volt s24 VAC T ransformer1810Blk (1) Common Red (2) + Hot Wht (3) Y 1 InputPnk (4) Y 2 InputOrg (5) U Output 2 to 10 VComHotControllerLineVolt s24 VAC T ransformerLine Volt s24 VAC T ransformerTriac SinkTriac SourceTriac Sink with Separate Transformer18Blk (1) Common Red (2) Hot Pnk (4) Y 2 Input Wht (3) Y Input Org (5) U OutputLine Volt s24 VAC Transformer aPo s itionFeedback VDC(+)(–)3CCW CWA B 18CCW CWA B Direction of rotation switch18Line Volt s(–)(+)24 VAC TransformerBlk (1) Common –Red (2) Hot +Wht (3) Y 1 InputOrg (5) U Output 2 to 10VPnk (4) Y 2 Input 8AB9102 to 10 VDC Feedback Signal 18Notes:On/OffFloating Point7Blk (1) Common Red (2) + HotPnk (4) Y 2 InputWht (3) Y 1 Input, 2 to 10VOrg (5) U Output, 2 to 10V(–)(+)Line Volt s24 VAC Transformer Ω500 Ω1/4 watt318Control Signal4 to 20 mA or 2 to 10 VDC18Function s0%50%100%Control mode acc. to YMin*Mid*Max*Normal*** Default s electable 0-100%. See Configuration Data Sheet.** Cu s tomizable. See Configuration Data Sheet.abc500 ΩΩBlk (1) Common Red (2) + HotPnk (4) Y 2 Input Org (5)Wht (3) Y 1 Input, 2 to 10V(–)(+)Line Volt s24 VAC Transformer (AC Only)7B CA1/4 watt2-10 VDC or 4 to 20 mAControl SignalVDC / 4 to 20 mA Override Control Min, Mid, Max PostionsAuxiliary Switches PWMMeets cULus requirements without the need of an electrical ground connectionAActuators with appliance cables are numbered.2Actuators may be connected in parallel. Powerconsumption and input impedance must be observed.3Actuators may also be powered by 24 VDC.5Only connect common to neg. (-) leg of control circuits.7A 500 Ω resistor converts the 4 to 20 mA control signal to 2 to 10 VDC.8Control signal may be pulsed from either the Hot (Source) or Common (Sink) 24 VAC line.9Contact closures A & B also can be triacs. A & B should both be closed for the triac source and open for triac sink.10For triac sink the Common connection from the actuator must be connected to the Hot connection of thecontroller. Position feedback cannot be used with a triac sink controller. The actuator internal common reference is not compatible.11Actuators may be connected in parallel if not mechanically mounted to the same shaft. Powerconsumption and input impedance must be observed.18Actuators with plenum rated cable do not have numbers on wires; use color codes instead.Wht (1) Neutral Blk (2) HotWht N Blk HLine Volts7Blk (1) Common Red (2) + HotPnk (4) Y 2 InputWht (3) Y 1 Input, 2 to 10VOrg (5) U Output, 2 to 10V(–)(+)LineVolt s24 VAC TransformerΩ500 Ω1/4 watt318Control Signal4 to 20 mA or 2 to 10 VDCBlk (1) Common Red (2) + Hot Wht (3) Y Input(5) U OutputLine Volts24 VAC Transformer (AC only)CCW CW(–)(+)Position Feedback VDC†。
蝶阀使用说明书
一、用途
该阀适用于冶金、化工、煤炭、水泥、石油、电力、市政等行业的管道系统。
本阀动作灵活、轻巧,密封性好。
二、性能参数
三、结构、使用与材料
本阀门由阀体、阀板、轴等部件组成,本阀驱动部分由电动装置和二级减速装置组成,由电机的正反转使其达到“开”、“关”的目的。
各部件材料见下表
2、必须要确定电机的转向和阀门的开关方向是否一致。
3.安装与调整:
3.1 安装前应核对阀门性能与使用工况是否相符。
3.2 安装前应清洗阀门内腔,不允许有杂物、污物存于内腔。
3.3 本阀不允许承受拉伸、扭曲等外力。
3.4 安装前应检查阀门各部位连接螺栓有无松动,各转动部件转动是否灵活。
4. 电动装置调整请祥见随机电装说明书。
5.维修保养及使用:
5.1 本阀应保存在干燥处,不得露天堆放,阀门的进出口应密封,不准在蝶板上堆放重物
不能受冲击。
5.3 本阀户外安装时,用户应现场采取防雨、防尘及隔热措施。
5.4 定期检查各运动部件转动是否灵活,各部位螺钉有无松动,发现问题及时解决后方可继续使用。
5.5 阀门采用填料密封,使管道中介质不致渗漏。
如发现介质从轴缝中渗漏,可拧紧填料压盖上的调整螺栓以压紧
填料。
5定货须知:
用户定货时,请按本说明书所列规格提出产品型号和公称通径,若有其它特殊要求,请写出详细说明。
电动蝶阀操作维护规程(正式)Standardize The Management Mechanism To Make The Personnel In The Organization Operate According To The Established Standards And Reach The Expected Level.使用备注:本文档可用在日常工作场景,通过对管理机制、管理原则、管理方法以及管理机构进行设置固定的规范,从而使得组织内人员按照既定标准、规范的要求进行操作,使日常工作或活动达到预期的水平。
下载后就可自由编辑。
一、操作规程1、电动蝶阀有手动、电动两种工作方式,手动操作请参阅手动蝶阀操作规程。
2、将阀门开启或关闭时,应将蝶板开至5~85度之间再通电运行。
3、蝶阀手动启闭时,应先拨动电动装置上的转换手柄。
旋转手顺时针方向为关闭,反之为开启。
4、拨“现场”档位可用现场控制柜控制蝶阀的开停。
按动“开阀”按钮为打开蝶阀,按动“闭阀”按钮为关闭蝶阀,按动“停止”按钮为打开或关闭蝶阀的过程中随时停止蝶阀阀板的转动,操作过程中观察各指示灯的显示;拨“远程”档位,由中控室控制开停。
5、电动操纵时,按动电钮开心即可,手动自动变为电动操作状态,6、长期闭合的蝶阀附近会有泥沙沉积区,这些泥沙会对蝶阀的开合形成阻力。
开启时,应反复做开合动作,促使沉积泥沙的松动。
若发现蝶阀附近经常有泥沙沉积现象,应经常开闭蝶阀,以利于积沙的排除,同样对于长期不启闭的蝶阀,也应定期运转一两次,以防止锈死或淤死。
二、维护规程1、每六个月检查一次轴端,如有泄漏应及时更换填料。
2、电动装置拆卸维修后,应重新将其转矩限制机构调整到说明书给定的扭矩范围内。
请在这里输入公司或组织的名字Please enter the name of the company or organization here。
Butterfly Valves VZAFButterfly Valves VZAFInhaltDesign of the Butterfly Valve____________________________________________________________________________________________________ 5 General information VZAF _______________________________________________________________________________________________________ 6 Possible Flange Connections____________________________________________________________________________________________________ 7 Order information for VZAF______________________________________________________________________________________________________ 8 Orderinformation for Wafer und Lug______________________________________________________________________________________________ 9 Order Code VZAF _____________________________________________________________________________________________________________ 10 Technical Data_______________________________________________________________________________________________________________ 11 Flange diameter – assembly notes _______________________________________________________________________________________________ 12 Liner_______________________________________________________________________________________________________________________ 13 Breakaway torques ___________________________________________________________________________________________________________ 14 KV-Values__________________________________________________________________________________________________________________ 15 Dimension Wafer Type________________________________________________________________________________________________________ 16 Dimension Lug Type __________________________________________________________________________________________________________ 17 Dimension U Shape___________________________________________________________________________________________________________ 18 Dimension ISO 5211 Flange ____________________________________________________________________________________________________ 19 Usage in potentially explosive areas _____________________________________________________________________________________________ 20 Order Code - Wafer Type – VZAF-C-xxx-S8PN16-xxx_________________________________________________________________________________ 21 Order Code - Lug Typ ISO – VZAF-L-xxx-S8PN16-xxx _________________________________________________________________________________ 22 Order Code - Lug Typ ANSI – VZAF-L-xxx-S9-xxx____________________________________________________________________________________ 23 Order information for part number with 3.1 Material test report (MTR) __________________________________________________________________ 24 Dual Use Regulation __________________________________________________________________________________________________________ 25 Accessories _________________________________________________________________________________________________________________ 26 Referencelist ________________________________________________________________________________________________________________ 272 → Internet: /catalogue/... Subject to change – 2022/12Butterfly Valves VZAFSubject to change – 2022/12 → Internet: /catalogue/ (3)Reliable shut-off!Butterfly valves the way you want them to be:highly functional, sturdy, wear resistant, reliable and non-corroding.Making our solutions for you even more impressive. Together with the top-quality drives from Festo, the result is excellent shut-off solutions for all industrial applications with an extremely wide range of media.Ready for selectionThe correct shut-off cap for each application, e.g. when safety relevant applications are involved. For neutral or slightly aggressive liquids and gases in industrial applications, in building systems or for water treatment: VZAV.When more aggressive media is used, VZAF is the shut-off cap of choice.Technically superb, numerous variantsIn den KT he manufacturer's expertise and many years of experience can be seen. Their primary features are high quality and a wide range variants for all possible applications.Sales and service worldwideWherever in the world you use solutions with butterfly valves, we are close at hand. Our vast sales and service network can support you in over 190 countries and is fast, knowledgeable and reliable.Note:Festo is only a retailer of this product, not the manufacturerButterfly Valves VZAF4→ Internet: /catalogue/...Subject to change – 2022/12When safety is of the essence: butterfly valve VZAFIdeal for liquid and gas applications which are very corrosive or aggressive. Also for clean rooms, such as in the semiconductor industry or for life sciences applications. The superior design and the Ultraflon® liner ensure maximum operational reliability.1Body2 One-piece shaft with visual position indication3 Disc4 Liner5 Square disc drive6 External shaft sealing with O-ring7Retaining washer (blowout protection)1 Body2 Two-piece shaft with Visual position indication3 Disc4 Liner5 Shaft bearing6 Square disc drive7 External shaft sealing with O-ring8 Retaining washer 9(blow-out protection)Typical applications include: Advantages at a glance:• Corrosive chemical applications • Gas-tight, high diffusion resistance• Food and beverage industry • Pipeline insulation maintained by long shaft collar • Petrochemical industry• Long service life due to low wear of PFA on PTFE • Biotech/pharmaceutical industry • Lasting sealing due to self-adjusting shaft seal • Semiconductor industry/ultrapure water • Good flow rates due to profiled disc • Mining• Chambered liner to prevent cold flow • Bonded PFA on the disButterfly Valves VZAFSubject to change – 2022/12 → Internet: /catalogue/ (5)Design of the Butterfly ValveButterfly Valves VZAFGeneral information VZAFLugU Shape6 → Internet: /catalogue/... Subject to change – 2022/12Butterfly Valves VZAF Possible Flange ConnectionsButterfly Valves VZAFOrder information for VZAFIndividual selection by modular system, tailored for specific customer needs scale of over 250.000 varieties.The configuration will occur by part number.8 → Internet: /catalogue/... Subject to change – 2022/12Butterfly Valves VZAF Orderinformation for Wafer und LugFrom a variety of possible product configurations, we have listed around 75 items for VZAF as Top seller for you.Subject to change – 2022/12→ Internet: /catalogue/ (9)Butterfly Valves VZAFOrder Code VZAF10 → Internet: /catalogue/... Subject to change – 2022/12Technical DataFlange diameter – assembly notes401) Minimum diameter of the flange enabling to move the disc (in case of a perfectly centred valve)2) Diameter of the flange for optimal mountingLinerBreakaway torques Standard ConditionsKV-ValuesDN32 … DN 65 DN80 … DN150 DN200 … DN 300 DN400 … DN 600DN32 – DN65 DN80 – DN150DN200 – DN400DN25 – DN400DN450 – DN9002) DN450-900, 2x threads on neck and bottom ,DN 600- 900, 2 x threads on both sides of the 2piece bodyDimension ISO 5211 FlangeWafer, Lug und U-ShapeDN25 (400)DN450 (900)DN 600- 900, 2 x threads on both sides of the 2piece bodyUsage in potentially explosive areasThe classification of butterfly valve´s temperature class is between T3 and T6 and the maximum surface temperature between T85 ° C and T200 ° C. Both are dependent on the temperature of the medium flowing through the pipe.This type fits into all standard connection standards like mentioned in the flange connection table on page 7 with WAFER …S8PN16“. Housing material: Ductile cast iron epoxy coatedShaft and disc: Stainless SteelLiner/Backliner: PTFE/SiliconeThis type fits into all standard connection standards like mentioned in the flange connection table on page 7 with Lug …S8PN16“.. Housing material: Ductile cast iron epoxy coatedShaft and disc: Stainless SteelLiner/Backliner: PTFE/SiliconeOrder Code - Lug Typ ANSI – VZAF-L-xxx-S9-xxxThis type fits into all standard connection standards like mentioned in the flange connection table on page 7 with Lug …S9“. Housing material: Ductile cast iron epoxy coatedShaft and disc: Stainless SteelLiner/Backliner: PTFE/SiliconeOrder information for part number with 3.1 Material test report (MTR) The following part number include a material test report according to 3.1 (Cert 1400)The scope of delivery includes the following reports:•Material certificate to EN10204 3.1•Leakage test to EN12266-1 P12•Operability test to EN12266-2 F20LugDual Use RegulationCouncil Regulation (EC) No. 428/2009 (Dual-Use) of 5 May 2009 on a community regime for the control of exports of dual-use goods and technology is a European Community regulation on the export of goods and technology, that have a dual use. It is known colloquially as a dual-use regulation.The following part numbers correspond to the requirements of the dual use regulation and are therefore subject to export authorization.AccessoriesFür dieses Produkt ist Festo Händler, nicht HerstellerReferencelist→ Internet: https:///en-at/butterfly-valves/metal-butterfly-valves/bianca。
All leaflets are available on: www.asconumatics.euPIC-11-50-GB80342G B -2015/R 02FEATURES●Lever type Manual Reset function which means that the valve has to be energized as well as manually operated before it stays in the "latched" position● The No Voltage Release (NVR) function will make sure that the valve trips when de-energized● The solenoid valves are recommended for 3/2 or 4/2 way pilot applications with high flow and wide pressure ranges● Stainless steel or brass bodied valves with stainless steel internal parts● The use of first class materials and thorough valve testing ensure a high reliability and a long service life● The solenoid valve satisfy all relevant EC DirectivesGENERALDifferential pressure 0 - 17 bar [1 bar = 100kPa]Maximum viscosity 65cST (mm 2/s)Response times75 - 100 msfluids (✶)temperature range seal material (✶)air, inert gas- 40°C to + 60°CNBR (nitrile)MATERIALS IN CONTACT WITH FLUID(✶) Ensure that the compatibility of the fluids in contact with the materials is verified Brass body Body Brass Core tube Stainless steel Core and plugnut Stainless steel Springs Stainless steel Seals NBR Disc and poppets NBR Seat BrassSPECIFICATIONSpipe size orificesize flowcoefficientKvoperating pressure differential (bar)power level prefix optional solenoidsbasic catalogue number min.max. (PS)NEMA 7&9A TEX / IECEx IP65air (✶)Ex d Ex e mb Ex mb Npt (mm)(m 3/h)(l/min)~/=~/=EFNF EM PVSC brass 3/2 - NC/NO - Single solenoid, manual reset (NVR)3/83/81/21/23/43/41116,016,016,016,017,517,525,025,02,52,53,43,44,74,711,011,041,641,656,656,678,378,3184,9184,90,70,70,70,70,70,70,70,717,017,017,017,017,017,08,58,5LP BP LP BP LP BP LP BP---------●-●-●-●●-●-●-●---------●●●●●●●●B308A441F/G (1)B308C041F/G (1)B308A442F/G (1)B308C042F/G (1)B308A443F/G (1)B308C043F/G (1)B308A450F/G (1)B308A050F/G (1)● Available feature ❍ Available feature in DC only - Not available (2)Choose F for normally closed and G for normally openBPMPRPLP0,4W-1,7W Not Available Not Available 20W-23W LowpowerReduced powerMedium powerBasic powerPOWER LEVELS - cold electrical holding values (watt)SOLENOID VALVESno voltage release (lever type)manual reset construction3/8 to 13/2NC NOSeries308All leaflets are available on: www.asconumatics.eu 11-50-280342G B -2015/R 02PRODUCT SELECTION GUIDESTEP 1Select basic catalogue number, including pipe thread indentification letter. Refer to the specifications table on page 1 or 2.Example: B308C042FSTEP 2Select prefix (combination). Refer to the specifications table on page 1 and the prefix table on page 2, respect the indicated power level.Example: EMETSTEP 3Select suffix (combination) if required. Refer to the suffix table on page 2, respect the indicated power level.Example: VSTEP 4Select voltage. Refer to standard voltages on page 3.Example: 230V / 50HzSTEP 5Final catalogue / ordering number. Example:EMET B308C042F V 230V / 50 HzOPTIONS & ACCESSORIEScatalogue number spare parts kit no. (1)mouting bracket no.~=SC B 308C041SC B 308C042SC B 308C043SC B 308C050SC B 308A441SC B 308A442SC B 308A443SC B 308A450C318534C318534C314591C306759C314590-C314591C306759-C314548C314591C306759C314590-C314591C306759038713-000038713-000038713-000038713-000038713-000038713-000038713-000038713-000(1)Standard prefixes/suffixes are also applicable to kits PREFIX TABLEprefix description power level 1234567LP RP MP BP E M Waterproof IP66/67 - Metal enclosure (EN/IEC 60079-7,-18 and -31)*●---E T Threaded conduit/hole (M20 x 1,5)●--●N F Flameproof - Aluminium (EN/IEC 60079-1, 60079-31)*---●S C Solenoid with spade plug connector (EN/IEC 60730)●--●W P Waterproof IP67 - Metal enclosure ●--●W S Waterproof IP67 - 316 SS enclosure ●--●W S E M Waterproof IP66/67 - 316 SS enclosure (EN/IEC 60079-7,-18 and -31)*●---WS N F Flameproof - 316L SS (EN/IEC 60079-1, 60079-31)*---●T Threaded conduit (1/2" NPT)●--●H C Class H - Battery charging circuit ---●H T Class H - High temperature---●X Other special constructions●--●SUFFIX TABLEsuffix descriptionpower level 12345LP RP MP BP N V FPM (fluoroelastomer) and parts cleaned for oxygen service ●--●VFPM (fluoroelastomer)●--●C O Epoxy coating on all external surfaces ●--●M BMounting bracket●--●● Available feature❍ Available feature in DC only - Not available* A TEX/IECEx valves using these solenoids are approved according to EN 13463-1 (non electrical)ORDERING EXAMPLES VALVES:SC B 308A 006NV 24V / DC WS B 308A 406CO 24V / DC WPB 308A 006NV 24V / DCprefix voltage pipe thread suffixbasic numberORDERING EXAMPLES KITS:C318534 (2)WS C314591WS C306759prefixbasic number(2)Basic kit number applies to SC coil constructionAll leaflets are available on: www.asconumatics.eu11-50-38 0 3 4 2 G B -2 0 1 5 / R 0 2EXPLANATION OF TEMPERATURE RANGES OF SOLENOID VALVESValve temperature range The valve temperature range (TS) is determined by the selected seal material, the temperaturerange for proper operation of the valve and sometimes by the fluid (e.g. steam)Operator ambient temperature range The operator ambient temperature range is determined by the selected power level and thesafety codeTotal temperature range The temperature range of the complete solenoid valve is determined by the limitations of bothtemperature ranges aboveELECTRICAL CHARACTERISTICSCoil insulation class FConnector Spade plugConnector specification ISO 4400 (cable Ø 6-10 mm)Electrical safety IEC 335Standard voltages: DC (=) 24V - 48V; Allowable voltage variation +10%, -15%AC (~) 24V - 48V - 115V - 230V/50 Hz; Other voltages are available on requestprefix optionpower ratings operatorambienttemperaturerange (TS)safety codeelectricalenclosureprotection(EN 60529)replacement coil / kittype(2) inrush holding hot/cold~~=~=(VA)(VA)(W)(W)(C°)(1)230V/50 Hz24V/DCBasic power (BP)SC 240432016/23-40 to +75EN 60730IP65, moulded400-525-217400-625-24201/02 WP/WS240432016/23-40 to +75EN 60730IP67, steel/SS400-505-217400-605-24203/04 NF/WSNF240432016/23-60 to +60II2G Ex d IIC Gb T4, II2D Ex tb IIIC Db IP66/67, alu./SS400-505-217400-605-242-Low Power (LP)SC1,21,21,21,3/1,3-40 to +75EN 60730IP65, moulded400-929-097400-929-04205/06 WP/WS1,21,21,21,3/1,3-40 to +75EN 60730IP67, steel/SS400-930-097400-930-04207/08 EM/WSEM1,21,21,21,3/1,3-40 to +60II2G Ex e mb IIC Gb T6, II2D Ex tb IIIC Db IP66/67, steel/SS400-930-097400-930-04207/08(1) Temperature range can be limited by sealings(3 )Multiple coil kits are available under ATEX/IECEx, contact us(2) Refer to the dimensional drawings on page 4- Not availableADDITIONAL OPTIONS●Other pipe threads are available on request●Compliance with “UL”, “CSA” and other local approvals available on request●1/2” NPT (prefix “T”) and M20 x 1,5 (prefix “ET”) conduits (aluminium or 316 SS) available for steel solenoid housing●Special moulded-in solid state components for peak voltage suppression and/or rectification (four diode bridge) INSTALLATION●The solenoid valves have to be mounted vertically and in an upright position for best performance●Multi language installation/maintenance instructions are included with each valve●Threaded pipe connection identifier is B = NPT (ANSI 1.20.3)●Other pipe threads are available on request●Normally closed (F) and normally open contruction (G) have internal pilot connections and need 0,7 bar min. operatingpr e ssur e●Ex e mb (prefix “EM”) execution: solenoid enclosure has a cable gland with integral strain relief for cables with an o.d.from 7 to 12 mm and is provided with an internal and external connection facility for an earthing or bonding conductorAll leaflets are available on:www.asconumatics.eu 11-50-480342G B -2015/R 02DIMENSIONS (mm), WEIGHT (kg)TYPE 01:TYPE 02:Epoxy mouldedSC: IEC 335 / ISO 4400Epoxy mouldedSC: IEC 335 / ISO 4400308C041F / C041G / C042F / C042G308C043F / C043G / A050F / A050GAB DCG FJ HEAEJ GHFDC B KL TYPE 03:TYPE 04:Metal, epoxy coated / AISI 316 SS WP / WS: IEC 335Metal, epoxy coated / AISI 316 SS WP / WS: IEC 335308C041F / C041G / C042F / C042G308C043F / C043G / A050F / A050GAEJ G H FDCB AEJ GHFDCBK LTYPE 05:TYPE 06:Epoxy mouldedSC: IEC 335 / ISO 4400Epoxy mouldedSC: IEC 335 / ISO 4400308A441F / A441G / A442F / A442G308A443F / A443G / A450F / A450GAB CDFG HJ EABCDFGHJ KLEAll leaflets are available on: www.asconumatics.eu11-50-580342G B -2015/R 02MOUNTING BRACKETSBracket number : 038713-000Material : Zinc plated steelØ7,142type prefix option power level A B C D E F G H J K L weight 01SC BP 1281310915712770140169194--3,20 kg 02SCBP 12849 84 14312731861331491922183,20 kg 03WP , WS BP 1341310915713070153182194--3,20 kg 04WP , WS BP 13449 8414313031861371632062183,40 kg 05SC LP 1281310915715370140169194--3,40 kg 06SCLP 12849 8414315331861591491922183,40 kg 07WP , WS, EM, WSEM LP 1341310915716670153182194--3,40 kg 08WP , WS, EM, WSEMLP134498414316631861731632062183,40 kgDIMENSIONS (mm), WEIGHT (kg)TYPE 07:TYPE 08:Metal, epoxy coated / AISI 316 SS WP / WS: IEC 335EM / WSEM: EN/IEC 60079-7+18+31Metal, epoxy coated / AISI 316 SS WP / WS: IEC 335EM / WSEM: EN/IEC 60079-7+18+31308A441F / A441G / A442F / A442G308A443F / A443G / A450F / A450GAB CDFG H JEABCDFGHJ K LEAll leaflets are available on: www.asconumatics.eu 11-50-6PIC-11-5-GB--Availability,designandspecificationsaresubjecttochangewithoutnotice.Allrightsreserved.8342GB-215/R2。
电动蝶阀使用说明
书中英文
电动蝶阀Electric Butterfly Valve
使用说明书Operation Manual
一、用途
Ⅰ.Application
本系列蝶阀适用于冶金、矿山、建材、石化、造纸、纺织等行业的工业管道中。
它对气体半流体等管道中的介质按不同的信号,改变其流量的大小,从而达到自动调整风量,实现自动控制。
体阀采用优质钢板焊接结构,具有传动轻巧灵活,密封性能好,开闭时间短,切断速度快,能可靠的杜绝事故的发生。
This series butterfly valve is suitable to use in the industry pipe of metallurgical, ore building material. Paper textile and so on, Accord to the different signal in the pipes of the gas half fluid medium. Change the flow volume, and adjust the fan volume automatically. It can realize automatic control. The valve is used good welding structure. It is characterized by light, nimble good sealing, short open time, fast speed broken and dependable.
二、结构及工作原理
Ⅱ.The structure and Working principle
1、电动蝶阀由电动执行机构和蝶阀组成,有关电动执行机构作用原理,使用维护等参阅电动执行机构说明书。
1、The electric butterfly valve is composed of electric execute structure and butter fly valve. The relative electric execute. Working principle and main is refer to the operation manual of electric executor.
2、电动蝶阀按作业方式可分为电开式和电关式两种。
电开式:无信号
电流时,阀处于关闭位置,随着信号电流从0~10A或从4~20mA的增加,阀从关闭位置逐渐转向全开位置。
电关式:无信号电流时,阀处于开位置,随着信号电流从0~10A或从4~20mA的增加,阀从全开位置逐渐转向关闭位置。
在一般情况下,用户不提出要求,按电关式调整出厂。
2、The electric butterfly valve have open and close type according to the way. Electric and open type: When there is signal current, the valve is in close position. With the addition of signal current from 0~10A or 4~20A, the valve is from close position to open position. Electric and close type: When there is no signal current, the valve is in open position. With the addition of signal current from 0~10A or 4~20A, the valve is from open position to close position. Generally the valve leave the factory in electric and close type.
作用原理:从操作器来的信号电流,进入电动执行机构,使其输出一个相应的角位移,带动连杆,使阀板有一个相应的角位移。
由于阀板在阀体内转动,改变流通截面,达到对介质流量的调节。
电动蝶阀在设计上采用阀板在关闭状态时有一始角10°,因此,在关闭时,其泄漏面积较小,故其具有较低的泄漏量。
当信号电流因故中断时,可将电动执行机构的电动机“旋钮”拨在手动位置,然后将手轮连轴向外拉出,用手转动手轮。
由手动转入自动运行时,必须将“旋钮”拨到“自动”位置,并将手轮推入。
Working principle: The signal current from the operator enter in to electric execute structure. Make it output a suitable rotated angle movement. With the pole, the valve plate have a suitable rotated angle movement. Because the valve
plate is rotated in valve body, change the flow section. Adjust the medium flow volume. When the electric butterfly valve is used valve plate, there is a start angle (10 degree)in design. So the leakage area is smaller, the leakage volume is lower.
When signal current is broken, put the button of electric execute structure in hand position. Then the hand wheel is drawn out. Drive the hand wheel in hand. When the hand position change into automatic position, put the button on automatic position.
三、安装使用与维护
Ⅲ、Installation and maintenance
1、电动蝶阀最好安装在水平管道上,如需安装要垂直管道上,用户在订货时应注明。
The electric butterfly valve had better install the horizontal pipe. If the client request to install the vertical pipe.
2、大口径式蝶阀使用在振动的情况下,安将时应加支承和加固。
When the big mouth butterfly valve is used in vibrated condition, it should be support and strength.
3、电动执行机构的调整、使用与维护见电动执行器说明书。
The adjustment of electric executor structure, operation and maintenance see the operation manual of elector.
四、主要外型及连接尺寸
Ⅳ.The main outline and connection size。
