TSS MAHRS简要操作指南

经道通仪器操作方法-概述说明以及解释1.引言1.1 概述概述部分的内容应该对文章的主题和内容进行简要介绍。

在这种情况下，文章的主题是"经道通仪器操作方法"，该文章旨在介绍仪器操作方法的重要性、基本步骤以及常见操作技巧。

在现代科学和技术领域中，仪器操作是一项至关重要的基本技能。

随着科学和技术的不断发展，各种新型的仪器和设备被广泛应用于实验室、工业生产和临床实践中。

然而，仪器操作的准确性和规范性对于确保实验结果的可靠性和提高工作效率至关重要。

本文旨在通过介绍仪器操作方法的重要性、基本步骤和常见技巧，帮助读者更好地理解和掌握仪器操作的要点。

了解仪器操作方法对于科研工作者、工程师和实验员来说都是至关重要的，它们是从事实验室研究、质量控制和产品开发等工作的基础。

在接下来的章节中，我们将逐步介绍仪器操作方法的重要性、基本步骤和常见技巧。

首先，我们将讨论仪器操作方法的重要性，包括准确性、重复性和实验结果的可靠性等方面。

然后，我们将详细介绍基本的仪器操作步骤，包括仪器的开启、校准和关闭等过程。

最后，我们将分享一些常见的仪器操作技巧，例如样品处理、数据记录和故障排除等。

通过阅读本文，读者将能够了解到仪器操作方法的必要性，并学习到正确、高效地操作各种仪器的方法和技巧。

同时，我们也希望通过本文对仪器操作的规范性和安全性进行强调，以确保在操作过程中的个人和环境的安全。

最后，我们将展望未来仪器操作方法的发展方向，包括自动化技术和智能化设备在仪器操作中的应用。

我们相信，随着科学技术的不断进步，仪器操作方法将继续发展和完善，为科研和实践工作提供更好的支持。

通过本文的学习，读者将能够更好地理解和掌握仪器操作方法，提高工作效率，确保实验结果的可靠性，并为未来的科学研究和技术创新做出贡献。

1.2文章结构1.2 文章结构本文将以“经道通仪器操作方法”为主题，分为引言、正文和结论三个部分。

引言首先对本文的主题进行概述，介绍“经道通仪器操作方法”的背景和意义。

三坐标测量机操作规程三坐标测量机操作规程一、启动前的准备1.确保实验室温度在20±2℃，湿度在25%--75%RH；2.确保电路、气路连接正常，机器导轨无障碍物；3.用酒精擦拭导轨，由内向外依次擦拭（严禁用酒精擦洗光栅）；4.检查电压、地线等是否正常，对前置过滤器、冷干机等进行放水检查，查看三坐标测量机上的三联过滤器是否干净；5.打开UPS，再依次打开气源开关（总气阀开关—冷干机开关—三坐标气源开关），保证气压在0.4MPa—0.6MPa（一般为0.48MPa），调节气压时，将压力表下的黑色旋钮拉下，左右旋转即可调节气压，调好气压后，将黑色旋钮按回原位。

二、测量机系统启动1.启动计算机，打开测头控制器开关（黑色）；2.打开控制柜电源开关，系统进入自检状态（操纵盒指示全亮），若系统稳定，则控制柜里的数字为“7”不变，若系统不稳定，则控制柜里的数字在乱变，那就需要重新启动一次系统（重新关开控制柜电源开关即可，时间间隔需20秒以上）；3.自检完后，点击PC-DMIS软件图标，启动软件系统；4.冷启动时，软件窗口会提示进行及其回零操作。

此时将操纵盒的“加电”键(SERYO PWR ON)按下，再按下“自动”键（AUTO），再在软件窗口中点击确定，机器将自动回到零位；5.待机器回到零位后（零位是系统默认的坐标原点），PC-DMIS进入正常工作界面。

三、测量机系统关闭1.关闭系统时，先将测头移到安全高度；2.退出PC-DMIS系统，关闭控制柜电源和测座控制器电源；3.反顺序关闭气源开关（三坐标气源开关—冷干机开关—总气阀开关），并对过滤器进行放水处理；4.关闭计算机、UPS等电源。

四、软件界面在软件窗口中点击“文件—打开/新建”（快捷键：打开CTRL+O,新建：CTRL+N），“新建”文件时需要在“新建零件程序”窗口中的“零件名”处输入名称（名称不能用中文）其余项不管；“打开”文件则只要找到所需文件的路径并双击，PC-DMIS进入正常工作界面。

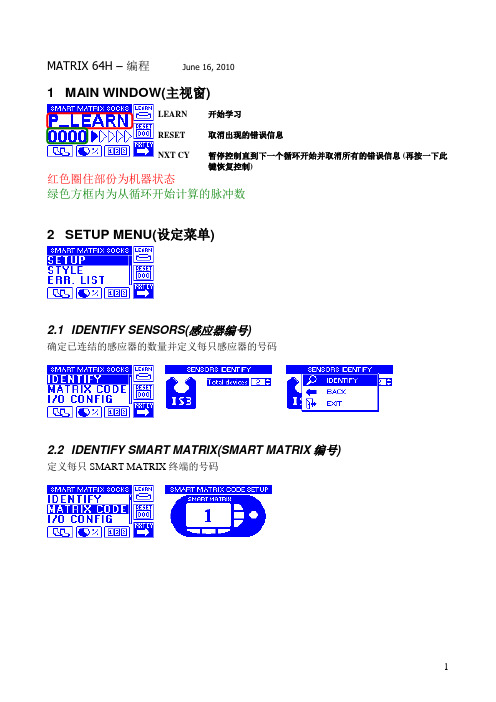

MATRIX 64H – 编程 June 16, 20101 MAIN WINDOW(主视窗)红色圈住部份为机器状态绿色方框内为从循环开始计算的脉冲数2 SETUP MENU(设定菜单)2.1 IDENTIFY SENSORS(感应器编号)确定已连结的感应器的数量并定义每只感应器的号码2.2 IDENTIFY SMART MATRIX(SMART MATRIX 编号)定义每只SMART MATRIX 终端的号码LEARN开始学习 RE S ET 取消出现的错误信息NXT CY 暂停控制直到下一个循环开始并取消所有的错误信息 (再按一下此键恢复控制)2.3 IN OUT CONFIGURATION(输入/输出的配置)2.3.1 POLARITY(极性), PRESCALERS(换算方式), PHASE TOLERANCE(同步性公差)定义输入/输出的极性,圈脉冲和零位脉冲的换算方式和同步性公差2.3.2 INPUTS FUNCTIONALITY CHECK(输入信号的功能检查)安装时输入信号的检查2.4 EFFICIENCY SETUP(效率的设定)Define if the power down time must be included or not inside the machine efficiency calculation2.5 AUTO CORRECTION SETUP(自动纠正的设定)此功能可以自动纠正在学习过程中读到的错误.可以被设置为OFF(关), ALWAYS ON(总是开)和只是开启于学习后的N个循环(建议用此选项)2.6 KEY CODE SETUP(密码的设定) Define permissions based on User Name and Password2.7 COMMUNICATION TEST(通讯测试) 用于测试感应器与MATRIX终端之间的通讯2.8 SENSOR TEST(感应器的测试)2.9 SERVICE MENU(服务菜单)2.9.1 UPGRADE FIRMWARE OF IS3F/HTS sensors(升级感应器的软件)2.9.2 READ INFO FROM SENSORS(读取感应器的信息)2.10 LCD DISPLAY CONFIGURATION(显示屏的调节)2.11 SMART MATRIX INFORMATION(SMART MATRIX 终端的信息)3 LOAD SENSORS PARAMETER(装载感应器的参数)4 ERRORS LIST(出现过的错误信息的列表)List of the sensors that are showing error拷贝所选定感应器的参数到所有的感应器上拷贝所选定感应器的参数粘贴之前所选定感应器的参数到当前的感应器上5 PRODUCTION COUNTERS & TARGET SETTINGS(产品计数与目标数的设定)定义需要生产的产品的目标数.一旦达到目标数,机器将停止生产.此功能可以被关闭(OFF). 系统将计算一只正品假如生产产品的脉冲数在公差允许的范围内等于学习时的脉冲数.“相位公差” (查看 2.3.1) .如果需要,操作员可以把不认为是正品的计数转移成次品数.6 PRODUCTION EFFICIENCY(生产的效率)显示从装载类型或学习后的生产效率.7 DEFECTS LIST(疵点的计数)显示从最后的学习后的每只感应器的疵点的计数.。

1）出现火警信息时：按“消音”键，然后确认现场是否有火情，如有火情按预定方案灭火，如无火情确认误报原因（手钮报警可用吸盘吸起，光电感烟探测器误报的处理参见附录二）并记录。

如不能独立处理，可暂时隔离设备，并及时与安装公司或海湾公司联系。

设备屏蔽：按下“屏蔽”键，然后输入需要隔离设备的用户编码，按“TAB”键，输入其设备类型，按“确认”键存储。

设备处理正常后，必须及时释放该设备，以使系统对该设备恢复正常监控。

取消屏蔽：按“取消屏蔽”键，操作同设备屏蔽。

当系统显示信息过多时，不易查看，可进行如下操作：查看信息显示：当系统中有报警、故障、动作、和屏蔽中的任意一种信息存在时，系统将全屏显示此信息；若系统中存在的信息多于一种时，系统将自动分屏，同时显示系统中存在的各类信息，红色指示条指向的窗口为当前窗口。

用“分屏/全屏”键可以实现当前信息窗口的分屏和全屏显示转换。

2）联动设备的启动当确认火情后，可启动联动设备。

首先查看控制器是否处于手动允许状态，否则把控制器转为手动允许状态。

手动方式是指通过手动盘对联动设备进行启动和停动的操作。

手动允许的设置：按下“用户设置”键，调出启动方式菜单，可按“手动设置”键选择相应方式，按“确认”键存储，系统即工作在所选的状态下。

当控制器处于手动允许状态，可通过手动盘启动相应设备。

当系统较大时，确认火情后，可把控制器转为自动状态，控制器将根据预设的逻辑程序执行，相应联动设备自动启动。

自动允许的设置：按下“用户设置”键，调出启动方式菜单，可按“自动设置”键选择相应方式，按“确认”键存储，系统即工作在所选的状态下。

3）日常操作当时间、日期与实际不符时，可进行修改。

修改时间、日期：在监控状态下，按下“用户设置”键，可按“时间.日期设置”键，可进行编辑修改，确认后存入修改内容便得到了新的系统时间。

当想了解整个系统注册、配置信息，每个回路设备的具体信息，可进行详细查询。

系统信息检查：按下“设备信息检查”键，屏幕显示当前系统所有配置。

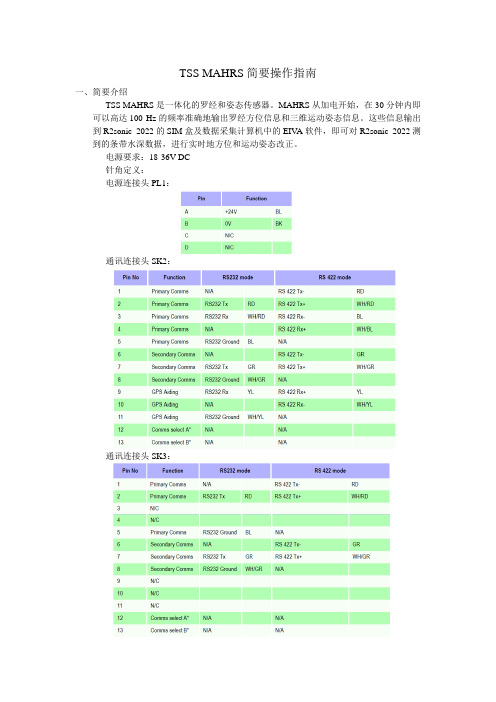

TSS MAHRS简要操作指南一、简要介绍TSS MAHRS是一体化的罗经和姿态传感器。

MAHRS从加电开始，在30分钟内即可以高达100 Hz的频率准确地输出罗经方位信息和三维运动姿态信息。

这些信息输出到R2sonic 2022的SIM盒及数据采集计算机中的EIV A软件，即可对R2sonic 2022测到的条带水深数据，进行实时地方位和运动姿态改正。

电源要求：18-36V DC针角定义：电源连接头PL1：通讯连接头SK2：通讯连接头SK3：二、操作指南1、通电系统默认的波特率为9600。

通电后的前30分钟，系统都处于“正在稳定”的状态，罗经的状态指示灯显示为绿灯闪烁。

当指示灯显示为常绿，则系统准备就绪。

2、参数设置(1)将Primary的串口连接PC，运行超级终端或SDCS v1.8软件，建立连接。

超级终端显示字流输出时，按下ESC键，进入MAHRS的终端设置主界面，如下图所示：按键[1]至[6]分别进入相应的设置，ESC退出主菜单，返回到超级终端。

(2)配置计算选项Configure Calculation Options按[1]键，进入配置计算选项菜单，如下所示：按键[1]至[5]进入相应的功能设置，ESC返回主菜单。

a.传感器安装Sensor Mounting船靠码头或抛锚时，MAHRS测量自身的安装角度偏差，计算基准点。

测量纵横摇的安装角度，键入Y，回车；测量时间，如键入5，回车，测量5分钟；达到设定的时间后，系统自动计算设定时间内的纵横摇平均值。

是否保存新测量角度，键入Y，回车。

ESC返回上一级菜单。

b.升沉带宽Heave Bandwith(空格键切换)船长8-15米，近岸或港湾测量，建议选用Short；船长15-20米，浅海或近岸测量，建议选用Medium;船长20-25米，沿海测量，建议选用Medium或Long;船长25米以上，远海测量，建议选用Long或Extended.c.遥测升沉设置Remote Heave Settings (不作设置)d.主串口输出频率设置Primary output rate(空格键切换)e.辅串口输出频率设置Secondary output rat(3)配置输入/输出 Configure I/O主菜单中，键入[2]，进入输入/输出设置界面，如下：a.主串口数字输出Primary Digital OutputDigital Output Format设置输出NMEA HDT+TSS1 (空格键切换) Baud Rate 设置9600Data Bits 设置8Stop Bits 设置1Parity 设置Noneb.辅串口数字输出Secondary Digital OutputDigital Output Format设置输出NMEA HDT (空格键切换) Baud Rate 设置9600Data Bits 设置8Stop Bits 设置1Parity 设置Nonec.数据辅助输入 Velocity Aiding InputInput Format设置输出NMEA (空格键切换)Baud Rate 设置9600Data Bits 设置8Stop Bits 设置1Parity 设置Noned.测试数字输出Test Digital Outpute.ESC返回主菜单3、输出测试ESC返回到超级终端界面，测试数据输出是否正常。
