CENTRIFUGAL PUMP IN
CHEMICALPRODUCTIONAPPLICATION
Centrifugal pump in chemical production, this is most widely used because of its performance wide range (including flow, pressure head of media properties and ShiYing sexual), small volume, simple structure, easy operation, flow uniformity, low malfunction, long service life, CaoZuoFei are lower cost and prominent advantages.
(1)centrifugal pump principle of work
Centrifugal pump working principle is: centrifugal pump so can turn the water away is because only centrificating. Water pump before work, pump body and feed water full line must be cans in vacuum condition, when the impeller fast turns, leaf prompted water quickly spin, spin in the water under the action of the centrifugal force, pump impeller flew in from the water was thrown in the central part of the impeller, after forming vacuum area. Water in the water atmospheric pressure (or water pressure) under the action of water pipe pressure came through a tube. This cycle unceasingly, can achieve continuous pumped. In the centrifugal pump is worth mentioning: before initiating must to the pump housing filled with water, can start after, otherwise will cause, the vibration of the pump body, thus reduce heat pump, damage to (hereinafter referred to as "cavitation erosion") cause equipment accident!
Centrifugal pump is a lot of more phyletic, classification methods common has the following kinds of kind: 1, press the impeller inhaled way points: single suction style centrifugal pump double suction type centrifugal pump. 2, press the impeller number points: single grade centrifugal pump mulfistage centrifugal pump. 3, according to the structure of impeller points: open impeller centrifugal pump impeller half open centrifugal pump closed impeller centrifugal pump. 4, according to work pressure points: low voltage centrifugal pump medium centrifugal pump
high-pressure centrifugal pump. 5, according to pump shaft position points: horizontal centrifugal pump edge vertical centrifugal pump.
(2) basic structure, centrifugal pumps
Centrifugal pump is the basic structure by six parts, it is respectively, pump body, impeller pump shaft, bearing, sealing ring, the stuffing box.
1, centrifugal pump impeller is higher than the core part, its great strength, speed and a impeller blades of the main function, impeller before assembly through the static balance experiments. Internal and external surface requirements on the impeller of smooth, to reduce water friction losses.
2, the pump body also called pump shell, it is the pump body. Play support fixed effect, and is connected to install bearing bracket.
3 and the role of pump shaft couplings and motor was borrowed, will connect to the torque motor impeller, so it is the main component of mechanical transmission.
4, bearing is set in the pump shaft support of pump shaft components, a rolling bearing and sliding bearing two kinds. Rolling bearings use butter as lubricant refueling appropriate to general for 2/3 ~ 3/4 volume too much, too little and can calorific a sound and fever! Sliding bearings use transparent oil for lubricant, refuels to oil level line. Too much oil to leak and drift along the pump shaft, too little bearing and melech overheating burnt out cause an accident! The water pump operation process of the highest temperature bearing in general 85 degrees running in about 60 degrees, if gao will find the reasons (whether have impurities, whether black, oily water) and deal with whether!
5, sealing ring and say minus leak rings. The import and pump impeller shell of the gap between will cause the water pump high-pressure zone within the clearance flow by low pressure area, the influence of the pump, low efficiency, &safe-durable! Gap with the pump impeller had caused moment shell friction wear. In order to reduce leakage increased reflow resistance, delaying the impeller and pump shell used in the pump housing life, with inner and impeller sealing, department of foreign aid in the gaps remain sealed between 0.25 ~ 1.10 mm advisable.
6, stuffing box, mainly by packing rings, packing cone, water storage tube packing gland, composed. The role of the stuffing box is mainly to closed pump shell with the space between the pump shaft, don't let pump of water inside don't flow to the outside to also don't let the outside air into the pump inside. Always keep the vacuum pump inside! When the pump shaft and packing friction heat water control
water to be about to rely on water circle make packing cooling! Maintain normal operation of pump. So the water pump operation circuit checking process to the stuffing box examination is special attention should be paid to! About 600 hours in operation for packing replacement to.
(3) centrifugal pump impeller and other components
1. Centrifugal pump impeller
Centrifugal pump impeller is the key components.
according to the mechanical structure can be divided into closed, semi-enclosed and open 3 kinds. Closed impeller suitable for conveying clean liquid. Semi-enclosed and open impeller suitable for conveying containing solid particles of suspending liquid in the efficiency of, this kind of pump low.
Closed and semi-enclosed impeller in operation, leave the impeller's part of high pressure fluid can leak into the impeller and pump shell cavity, between the side because of impeller suction pressure low, liquid at the entrance is liquid in the role of the pressure before and behind impeller to differ, they generate pointing the suction side impeller axial thrust. This force to promote the suction side impeller pump impeller and mobile, cause the contact point of moab shell caused serious damage, the vibration of the pump unit, destroying the normal operation of pump. HouGaiBan in impeller drilled several holes, can reduce the pressure on both sides of the impeller is poor, and decrease the harmful effects of axial thrust, but also reduced the pump efficiency. These holes called balance holes.
according to absorb fluid can be divided into different ways of impeller with single suction style double suction type two kinds, single suction style simple structure, liquid only impeller from one side of the inhalation. Double suction style impeller can simultaneously from impeller symmetry to inhaled liquid, it not only has
a greater ability to absor
b fluid, and basically eliminate the axial thrust.
(3) on the impeller blade according to the geometrical shape, can be bent, radial after blade is divided into three, before and after bending due to bend the kinetic energy transfer liquid leaves, so for static pressure can be used extensively.
2. The centrifugal pump impeller
In order to reduce leave the liquid directly into the pump impeller shell caused by impact energy loss in the impeller and pump shell, between sometimes device a fixed blade and contain keep-off device. The blade into the pump impeller shell has gradually turned into the liquid flow, make continuous expansion and partial kinetic energy effectively converted to static pressure can. Multistage centrifugal pump impeller usually are installed.
The snail shaped pump, impeller blade and the bent on after all can improve kinetic energy to guide the conversion, and therefore can plenum are regarded as turn can device.
3. Shaft sealing device
Because of pump shaft rotation and pump shell stationary, and in the axis and the contact point of the pump housing must have certain gap. To avoid pump internal high-pressure liquid leakage along the gap, or prevent outside air from the opposite direction into the pump must set within the shaft seal device. Centrifugal pump shaft sealing device has a filler letter and mechanical (end) seal. Stuffing box is will pump shaft through pump shell ring gap to finish seal, in which loaded soft packing (such as oil or coating graphite baptized of asbestos rope, etc.). Mechanical seal is by an outfit in the acting-ring axis and another fixed in the pump housing formed by static ring. Two rings of end borrow spring force tiejin each other relative rotation, and played the sealing effect. Mechanical seal applies to seal higher occasions, such as the conveying acid, alkali, inflammable, explosive and poisonous liquid.
(4)the centrifugal pump introduces below several important performance curve.
1, flow - head characteristic curve
It is the basic of centrifugal pump performance curve. Less than 80 than speed centrifugal pump has the characteristics of rise and fall, both sides among (both under convex curved), says hump performance curve. In 80 ~ 150 than speed centrifugal pump has between plain performance curve. More than 150 RPM centrifugal pump performance curves with steep drop. In general, when flow hours, head is high, with the increase of flow is decreasing. Head
2, flow - power curve
The shaft power increases with the flow, when flow Q = 0, the corresponding shaft power is not equal to zero, and for certain value (about the normal operation of the 60 percent). The power consumed mainly by the mechanical loss. This is full of water pump, if long time running, will lead to the temperature rising pump, pump shell, bearing can calorific, serious when may make pump body thermal deformation, we called "stuffy head", then head for maximum, when water valve gradually opened, the flow rate will increase, shaft power also slow increase.
3, flow - efficiency curve
Its curve shape, when flow xiangshan head is equal, efficiency and equal to zero, with the increase of flow, efficiency, but also gradually increase the efficiency increased to a certain value has decreased, after a high efficiency in highest efficiency point near, efficiency is higher, this area is called efficient area.

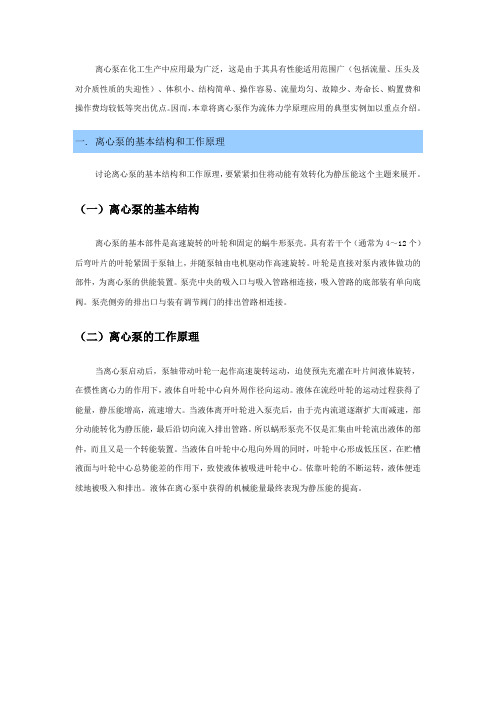

离心泵在化工生产的应用
离心泵在化工生产中应用最为广泛，这是由于其具有性能适用范围广（包括流量、压头及对介质性质的失迎性）、体积小、结构简单、操作容易、流量均匀、故障少、寿命长、购置费和操作费均较低等突出优点。
（一）、离心泵的工作原理
离心泵的工作原理是：离心泵所以能把水送出去是由于离心力的作用。水泵在工作前，泵体和进水管必须罐满水行成真空状态，当叶轮快速转动时，叶片促使水很快旋转，旋转着的水在离心力的作用下从叶轮中飞去，泵内的水被抛出后，叶轮的中心部分形成真空区域。水原的水在大气压力（或水压）的作用下通过管网压到了进水管内。这样循环不已，就可以实现连续抽水。在此值得一提的是：离心泵启动前一定要向泵壳内充满水以后，方可启动，否则将造成泵体发热，震动，出水量减少，对水泵造成损坏（简称“气蚀”）造成设备事故！
离心泵的种类很多，分类方法常见的有以下几种方式：1、按叶轮吸入方式分：单吸式离心泵双吸式离心泵。2、按叶轮数目分：单级离心泵多级离心泵
3、按叶轮结构分：敞开式叶轮离心泵半开式叶轮离心泵封闭式叶轮离心泵
4、按工作压力分：低压离心泵中压离心泵高压离心泵。
5、按泵轴位置分：卧式离心泵边立式离心泵。
（二）、离心泵的基本构造
离心泵的基本构造是由六部分组成的，分别是叶轮，泵体，泵轴，轴承，密封环，填料函。
1、叶轮是离心泵的核心部分，它转速高出力大，叶轮上的叶片又起到主要作用，叶轮在装配前要通过静平衡实验。叶轮上的内外表面要求光滑，以减少水流的摩擦损失。
2、泵体也称泵壳，它是水泵的主体。起到支撑固定作用，并与安装轴承的托架相连接。
3、泵轴的作用是借联轴器和电动机相连接，将电动机的转距传给叶轮，所以它是传递机械能的主要部件。
4、轴承是套在泵轴上支撑泵轴的构件，有滚动轴承和滑动轴承两种。滚动轴承使用牛油作为润滑剂加油要适当一般为2/3～3/4的体积太多会发热，太少又有响声并发热！滑动轴承使用的是透明油作润滑剂的,加油到油位线。太多油要沿泵轴渗出并且漂贱，太少轴承又要过热烧坏造成事故！在水泵运行过程中轴承的温度最高在85度一般运行在60度左右，如果高了就要查找原因（是否有杂质，油质是否发黑，是否进水）并及时处理！
5、密封环又称减漏环。叶轮进口与泵壳间的间隙过大会造成泵内高压区的水经此间隙流向低压区，影响泵的出水量，效率降低！间隙过小会造成叶轮与泵壳摩擦产生磨损。为了增加回流阻力减少内漏，延缓叶轮和泵壳的所使用寿命，在泵壳内缘和叶轮外援结合处装有密封环，密封的间隙保持在0.25～1.10mm之间为宜。
6、填料函主要由填料，水封环，填料筒，填料压盖，水封管组成。填料函的作用主要是为了封闭泵壳与泵轴之间的空隙，不让泵内的水流不流到外面来也不让外面的空气进入到泵内。始终保持水泵内的真空！当泵轴与填料摩擦产生热量就要靠水封管住水到水封圈内使填料冷却！保持水泵的正常运行。所以在水泵的运行巡回检查过程中对填料函的检查是特别要注意！在运行600个小时左右就要对填料进行更换。
（三）离心泵的叶轮和其它部件
1．离心泵的叶轮
叶轮是离心泵的关键部件。
(1)按其机械结构可分为闭式、半闭式和开式三种。闭式叶轮适用于输送清洁液体；半闭式和开式叶轮适用于输送含有固体颗粒的悬浮液，这类泵的效率低。
闭式和半闭式叶轮在运转时，离开叶轮的一部分高压液体可漏入叶轮与泵壳之间的空腔中，因叶轮前侧液体吸入口处压强低，故液体作用于叶轮前、后侧的压力不等，便产生了指向叶轮吸入口侧的轴向推力。该力推动叶轮向吸入口侧移动，引起叶轮和泵壳接触处的摩损，严重时造成泵的振动，破坏泵的正常操作。在叶轮后盖板上钻若干个小孔，可减少叶轮两侧的压力差，从而减轻了轴向推力的不利影响，但同时也降低了泵的效率。这些小孔称为平衡孔。
(2)按吸液方式不同可将叶轮分为单吸式与双吸式两种，单吸式叶轮结构简单，液体只能从一侧吸入。双吸式叶轮可同时从叶轮两侧对称地吸入液体，它不
仅具有较大的吸液能力，而且基本上消除了轴向推力。
(3)根据叶轮上叶片上的几何形状，可将叶片分为后弯、径向和前弯三种，由于后弯叶片有利于液体的动能转换为静压能，故而被广泛采用。
2．离心泵的导轮
为了减少离开叶轮的液体直接进入泵壳时因冲击而引起的能量损失，在叶轮与泵壳之间有时装置一个固定不动而带有叶片的导轮。导轮中的叶片使进入泵壳的液体逐渐转向而且流道连续扩大，使部分动能有效地转换为静压能。多级离心泵通常均安装导轮。
蜗牛形的泵壳、叶轮上的后弯叶片及导轮均能提高动能向静压能的转化率，故均可视作转能装置。
3．轴封装置
由于泵轴转动而泵壳固定不动，在轴和泵壳的接触处必然有一定间隙。为避免泵内高压液体沿间隙漏出，或防止外界空气从相反方向进入泵内，必须设置轴封装置。离心泵的轴封装置有填料函和机械（端面）密封。填料函是将泵轴穿过泵壳的环隙作成密封圈，于其中装入软填料（如浸油或涂石墨的石棉绳等）。机械密封是由一个装在转轴上的动环和另一固定在泵壳上的静环所构成。两环的端面借弹簧力互相贴紧而作相对转动，起到了密封的作用。机械密封适用于密封较高的场合，如输送酸、碱、易燃、易爆及有毒的液体。
（四）、离心泵的几条重要的性能曲线。
1、流量—扬程特性曲线
它是离心泵的基本的性能曲线。比转速小于80的离心泵具有上升和下降的特点（既中间凸起，两边下弯），称驼峰性能曲线。比转速在80～150之间的离心泵具有平坦的性能曲线。比转数在150以上的离心泵具有陡降性能曲线。一般的说，当流量小时，扬程就高，随着流量的增加扬程就逐渐下降。
2、流量—功率曲线
轴功率是随着流量而增加的，当流量Q=0时，相应的轴功率并不等于零，而为一定值（约正常运行的60％左右）。这个功率主要消耗于机械损失上。此时水泵里是充满水的，如果长时间的运行，会导致泵内温度不断升高，泵壳，轴承会发热，严重时可能使泵体热力变形，我们称为“闷水头”，此时扬程为最大值，当出水阀逐渐打开时，流量就会逐
渐增加，轴功率亦缓慢的增加。
3、流量—效率曲线
它的曲线象山头形状，当流量为零时，效率也等于零，随着流量的增大，效率也逐渐的增加，但增加到一定数值之后效率就下降了，效率有一个最高值，在最高效率点附近，效率都比较高，这个区域称为高效率区。
离心泵的型号说明 100KY100-200A 100--------吸入口直径（mm） KY--------水平中开式 100--------设计点流量（M3/h） 200--------设计点扬程（m） A-----------叶轮外径经第一次切割 本系列泵是单吸、多级、水平中开的卧式离心泵，供输送温度小于60℃的含水原油之用。主要用于油田内部集输工程，也可用于输送其他石油产品和清水。 制造泵的主要材质是铸铁、球墨铸铁和碳钢，根据用户要求，可选用硅黄铜、铝青铜、不锈钢等材料制造过流部位的零件。 IH50-32-160S1-303 IH-符合国际标准的化工泵
50-泵吸入口径（mm） 32-泵排出口径（mm） 160-叶轮名义直径（mm） S1-轴封形式（S1为单端内装型机械密封） 303-过流零件的材料代号（ZG1Cr18Ni9） IH系列泵是单级、单吸、悬臂式离心泵，是机械部确定取代F型离心泵的节能产品。适合于输送化工流程中有腐蚀性、粘度类似于水的液体。可广泛用于化工、石油、冶金、电力、造纸、食品、制药、合成纤维等行业。介质温度一般为-20℃～15℃，若采用适当的冷却措施，可输送更高温度的介质。 本系列泵共33个基本型，每种型号都可以通过切割叶轮获得较低的流量和扬程。 DYK DGK YD YDS型多级离心输液泵 DYK100-30*5
DYK--------- 100----------设计流量（M3/h） 30------------单级设计扬程（m） 5--------------级数 DYK、DGK、YD、YDS型泵适用于油田集输、厂矿企业排水和锅炉给水，输送介质为不带固体颗粒的原油、清水及物理、化学性质类似的液体，输送介质的温度低于105℃ 25CDLF2-260 25--------吸入口直径 CDL------轻型立式多级离心泵 F----------普通型略，过流部件为不锈钢304或316
