DCI F2中文操作手册

F Two Operating Manual操作手册F Two Active SubwooferGeneral descriptionThe G enelec F Two is a very compact active subwoofer designed to comple-ment up to five Genelec G One or G Two active loudspeakers as a .1 / LFE channel subwoofer in a 5.1 system or a pair of the slightly bigger G Threes. Linked together two F Two’s can also be used with G Fours. The F Two extends the system’s bass response down to 27 Hz and integrates perfectly with the main loudspeakers in any environment. The playback level for the whole system is conveniently controlled by the wireless volume control provided with the subwoofer. A wired volume control is available as an option.The F Two has integrated bass manage-ment for the two output channels which directs frequencies below 85 Hz to the subwoofer and higher frequencies through the output connectors to the main loud-speakers. When using the subwoofer for the .1/LFE channel of a multichannel system, we recommend that bass manage-ment is done in the processor or receiver and only the LFE channel is connected to the subwoofer.InstallationBefore connecting the audio signals, ensure that all equipment is switched off.As the F Two contains its own amplifier, no separate power amplifier is needed. Never connect the F Two to the loudspeaker out-puts of a power amplifier, integrated ampli-fier or receiver.Please follow the steps listed below for a succesful setting up of the subwoofer:1. Check the contents of the shipment.in addition to the subwoofer, there is awireless remote control, a mains cable,an IR extension cable and a Quick SetupGuide.2. Pull out the battery insulating strip fromthe underside of the remote control asshown in figure 1. This strip insulates thebattery from the contacts on the remotecontrol during shipping and the remotecontrol does not function before it isremoved.3. Place the subwoofer in its position.4. Connect audio cables from your signalsource(s). You can connect up to twodigital audio sources and two analogaudio sources.5. Connect the main loudspeakers tothe output connectors of the subwoofer.You can use either balanced XLR orunbalanced RCA connectors.6. Set the “LEVEL +10” and “-10 dB”switches on the subwoofer and mainloudspeakers according to Table 2 on thismanual.7. Adjust the phase of the subwoofer asinstructed in this manual and the QuickSetup Guide.8. Use test recordings and familiar musicpieces to judge the sound balance. Usethe “SUBWOOFER LEVEL” rotary controland the “BASS ROLL-OFF” dip switchesto fine-tune the balance. If this fails,consider relocating the subwoofer.Operating EnvironmentThe F Two subwoofer is designed forindoor use only. The ambient temperatureshould be 15-35 °C (50-95 °F) and the rela-tive humidity 20-80 %. Condensation is notallowed. If it has been stored or transportedin a cool environment, the product must beallowed to warm up in its packing to theambient temperature before connectingmains power.ConnectorsThe F Two is equipped with both analogand digital signal input connectors, thatcan be used simultaneously to connectup to four audio sources (two analog, twodigital). Switching between sources is donewith the Select button on the connectorpanel or with the “<” and “>” buttons onthe remote control. The colour of the LEDlight on the subwoofer enclosure indicateswhich source is selected.Analog Input ConnectorsThe F Two has two stereo inputs (3.5 mmjack and L/R RCA connectors) and an LFE/LINK RCA connector. The stereo inputsare parallel, so you can connect two audiosources at the same time, just play onlyone of them at a time. The Select functiondoes not work between these two inputs.The LFE/LINK input is used for the LFEFigure 1. Removing the battery insulating stripfrom the remote controlFigure 2. Connectors and controls of the F Two.(.1) signal in a 2.1 or 5.1 channel sound system or as the signal input in a multiple subwoofer system (see chapter Using Mul-tiple Subwoofers). The LFE/LINK input has a 120 Hz low pass filter, so it is not suitable for full frequency range signals.Digital Input ConnectorsThe F Two has two digital signal input con-nectors, one coaxial and one optical, thataccept stereo PCM format digital signal.You can connect two digital sources andswitch between them using the Selectfunction.Analog Output ConnectorsThe F Two has two pairs of analog stereoL/R output connectors, one with RCA con-nectors and the other with balanced XLRmale connectors. Connect signal cablesfrom these connectors to the main speak-ers. Both connector pairs carry the sameFigure 3. Audio cablingsignal so you can use main speakers with either RCA or XLR input connectors. These outputs are high pass filtered at 85 Hz (See chapter Bass Management). Additionally, the LINK RCA output provides a summed signal of both channels. Use this connector as a signal output to the next subwoofer when you want to connect several sub-woofers together. See chapter “Using Mul-tiple Subwoofers” for more information.System Volume Control ConnectorThis connector allows connecting the G enelec 9310A Wired Volume Control which is available as an accessory. When connected, the 9310A controls the volume of the whole system, including the main speakers.IR IN ConnectorIf the F Two is used with an infrared type remote control (see chapter Use with IR Remote Controls) and the desired location of the subwoofer does not allow an unob-structed line of sight to the receiver located next to the LED in one of subwoofer’s feet, the IR extension cable provided with the subwoofer can be connected here. The receiver end of the cable is then brought to a location where the IR remote control reception works conveniently, for instance close to the IR receiver of a television set when using the subwoofer and speakers with a TV .Subwoofer placement Bass Roll-OffNear a wall -2 dB In a corner-4 dBTable 1. Suggested Bass Roll-Off settings in typical situationsFigure 4. F Two remote controlMain loudspeaker model F Two Level Dip switch setting -10 dB switch+10 dB switchG One A OFF OFF G One BOFF OFF G One B -10 dB Dip ON ON OFF G Two A OFF OFF G Two BOFF OFF G Two B -10 dB Dip ONON OFF G Three AOFF OFF G Three A +10 Dip ON OFF ON G Three BOFF OFF G Three B -10 Dip ONON OFF G Four AOFF OFF G Four A +10 dB Dip ONOFF ON 8010AOFF ON 8010A -10 dB Dip ONOFF OFF 8020A OFF ON 8020B OFF ON 8020C OFF ON 8020D OFF ON 8030A OFF ON 8030B OFF ON 8030C OFF ON 8040AOFF ON 8040B OFF ON M030OFFONTable 2. Suggested Level switch settings with different main loudspeakersFunctions And ControlsHT ModeTurn this switch to “ON” when you connect a sound source with its own volume control to the analog inputs of the F Two. In this mode the volume control of the F Two does not have effect on the analog signals. However, it works with the digital inputs, so you can use them to connect other signal sources.ISS Sensitivity LowIf the Intelligent Signal Sensing (ISS) func-tion switches the subwoofer on when there is no audio signal present, turning thisswitch to “ON” reduces the triggering sen-sitivity of the function.ISSThe Intelligent Signal Sensing (ISS) func-tion monitors the audio signal fed to the subwoofer. If there is no signal for approxi-mately 45 minutes, the function switches the subwoofer to Standby mode, reduc-ing the power consumption to less than 0.5 Watts. When the signal resumes, the subwoofer powers up again. There is a slight delay in the automatic powering up. In those environments where the subwoofer is required to be on all of the time, the ISSVOLUME UP VOLUME DOWN SELECT BUTTONSMUTEPOWERfunction can be disabled by setting the “ISS” switch to the “OFF” position. Then the subwoofer is continuously powered and can be turned off using the power button on the remote control or connector panel.LED OffThis switch deactivates the status indicator LED on the “foot” of the subwoofer.Roll-OffThese two switches attenuate the sub-woofer’s bass response. At 27 Hz the attenuation levels are -2, -4 and -6 dB (both switches “ON”).PhaseThese two switches provide phase adjust-ment for the subwoofer in -90 degree incre-ments. See chapter “Phase Alignment”.LinkThis switch selects the analog inputs and disables input channel selection. In addi-tion, it disables the remote control and sets the subwoofer’s level to maximum. Set this switch to “ON”, when using the subwoofer as a “slave” in a multiple subwoofer system. See chapter “Using Multiple Subwoofers”.LevelThese two switches allow adjusting the subwoofer’s level by -10 dB or +10 dB, providing level matching with different main speaker models. See Table 2 for some examples.Subwoofer LevelThis rotary adjustment adjusts the play-back level of the subwoofer. The level is increased by turning the adjustment clock-wise and reduced by turning it counter-clockwise.SelectThis button allows signal input selection between the two digital inputs and the analog input and initiation of the match-ing procedure for IR remote controls (see Matching IR Remote Controls).PowerThis button switches the subwoofer between Standby and Power mode. Note that this button does not completely dis-connect the subwoofer from the mains power. If this is necessary, the subwoofer’s mains cable must be disconnected. This button can also be used for restoring the factory settings by keeping it depressed for10 - 15 seconds. This returns the volumesetting on the remote control to factorylevel and deletes possible remote controlpairing and IR remote control matching.Also the source selection returns to auto-matic, which is the factory setting.Positioning In The RoomThe placement of the subwoofer in theroom affects the overall frequency responseand sound level of the system dramatically,as at low frequencies the effects of theroom are strong. Even a slight change inthe location of the subwoofer can cause amarked difference in the frequency balanceand often patient and methodical experi-mentation and testing is needed to find theoptimum placement.The placement will also affect the bassroll-off rate and the phase differencebetween the main loudspeakers and thesubwoofer. These effects can be compen-sated using the controls in the subwooferbut we recommend that at first you leavethe switches untouched and concentrateon finding the position where the subwoofergives the smoothest response, and only thenuse the controls to fine-tune the balance andphase alignment between the subwooferand the main loudspeakers.Start by placing the subwoofer close to thecenter of the front wall. We recommenda distance of less than 60 cm / 24” to thewall. This position gives increased acous-tic loading and sound pressure level due tothe proximity of the front wall and floor. Ide-ally the subwoofer and main loudspeakersshould be positioned symmetrically and atan equal distance from the listening position.If the frequency balance is not quite right,try moving the subwoofer to the left or rightalong the wall so that different room modesare excited at different levels. Positioningthe subwoofer close to a corner will boostthe bass level at lower frequencies and maycause asymmetrical spatial imaging.ISS TM AutostartThe automatic power saving function ISS(Intelligent Signal Sensing) can be activatedby setting the “ISS” switch on the connec-tor panel to “ON.” Automatic poweringdown to standby mode happens after acertain time when playback has ended. Thepower consumption in standby mode istypically less than 0.5 watts. Playback willautomatically resume once an input signalis detected from any source.Alternatively, the subwoofer can be acti-vated by pushing any button on the remotecontrol.There is a slight delay in the automaticpowering up. If this is undesirable, the ISS TMfunction can be disabled by setting the “ISS”switch on the connector panel to “OFF.” Inthis mode, the subwoofer is powered on andoff using the remote control or the powerbutton on the connector panel.The “ISS SENSITIVITY LOW” switchlowers the triggering sensitivity of theISS function. This can be necessary if thesubwoofer “wakes up” even if there is noaudio signal.Setting The Playback LevelThe “LEVEL +10 dB and LEVEL -10 dB”switches and the rotary “SUBWOOFERLEVEL” level adjustment can be used formatching the subwoofer’s playback levelwith the main loudspeakers (See Table 2).Fine tuning can be done with the rotaryadjustment knob.Setting The Bass Roll-OffSwitchesThe acoustic response of the subwoofermay have to be matched to the charac-teristics of the room and the positioning inwhich it will be used (see Table 1). To adjustthe subwoofer to match these character-istics use the ‘’BASS ROLL-OFF’ controlswitches located on the connector panel.When all Roll-Off switches are ‘OFF’, a flatanechoic response is obtained.Setting The Phase ControlThe effect of incorrect phase alignmentbetween the main loudspeakers andthe subwoofer is a drop in the frequencyresponse of the whole system at the mainloudspeaker / subwoofer crossover fre-quency. The phase difference between themain loudspeakers and subwoofer at thelistening position is dependent upon thedistance from the listener to the subwooferin relation to the main loudspeakers. Toavoid phase differences between theleft and right main loudspeakers andthe subwoofer, the subwoofer should beplaced close to the center of the front loud-speaker array.Two phase matching switches allow com-pensation for incorrect phase alignment.Four settings are provided between 0° and-270°.Coarse Phase CorrectionMethodConnect an audio frequency signal gen-erator to a signal input on the subwoofer which has a main loudspeaker connected to the corresponding “OUT” connector. If the loudspeakers are placed at differ-ent distances from the listening position, choose the loudspeaker that is nearer.Set the generator to 85 Hz. If a signal gen-erator is not available, it is possible to use an audio test recording which has a test frequency in the range 70 Hz to 100 Hz. Suitable test signals can be downloaded at and found in some smart phones.Toggle the -180° phaseswitch ‘ON’ and ‘OFF’ andset it to the position whichgives the lowest soundlevel at the listening posi-tion.Next toggle the -90°phaseswitch ‘ON’ and ‘OFF’,and again set it to theposition which gives thelowest sound level.Finally, set the -180°phaseswitch to the opposite set-ting.Matching IR RemoteControlsThe F Two subwoofer can be used with most IR remote controls, providing con-venient use with, for instance, the remote control of a TV set when connected to it via a fixed level digital signal input. Turn the subwoofer upside down so you can easily reach the “Select” button on the subwoof-er’s connector and the status indicator LED on the subwoofer’s foot is visible. The IR receiver is located in the LED. Note that the “Select” buttons on the RF remote control provided with the subwoofer do not actu-ate the matching.The matching procedure is as follows:• Keep the “Select” button on the subwoofer depressed until the status indicator LED starts blinking red.• Choose the button on the remotecontrol that you want to actuate “volumeup” function. Keep it depressed until theLED stops blinking. With some remotecontrols pressing the button multipletimes works better.• Now the LED blinks green, indicatingthat the button for “volume down” can beselected. Follow the procedure describedabove.• Next the LED blinks blue for selection ofthe button for “Select” button.• Yellow LED indicates the selection of“Mute” button.• Magenta LED indicates the selection of“Power” button.A short press on the “Select” button allowsyou to skip a step in the procedure, if youdo not want to “teach” all the commandslisted above. If you want to interrupt theprocedure, press “Select” for approxi-mately two seconds. This saves the set-tings made so far. If you don’t want tosave the settings, press the Power buttonfor two seconds. This will also delete thematching settings done by that point. If youwant to change the matched buttons, justredo the matching process.Matching The RF RemoteControl To The SubwooferThe remote controls delivered with F Twosubwoofers will function with any other F Twosubwoofer as well. If this is not desirable, forinstance when there are several F Two sub-woofers in the same premises, and the userwishes to avoid the situation that more thanone subwoofer reacts to the commandsgiven by each remote control, the remotecontrols can be matched to operate only onesubwoofer.1. Press and hold down the “Power” and“Select “ buttons on the subwoofer until theLED starts blinking white.2. While the LED is blinking, first pressand hold down the volume “+“ button onthe remote control and then the volume “-“button. Keep both buttons pressed for a fewseconds until the status indicator LED on thesubwoofer stops blinking. This indicates thatmatching is completed and the matchingoperation ends automatically.Now the subwoofer should only respondto commands given by the matched remotecontrol, and respectively, the matchedremote control should not work with otherF Two units. For cancelling the matchingoperation while the LED is blinking, pressand hold down the ”Power” button on thesubwoofer for two seconds. If you wish toundo a matching completely, press and holddown the ”Power” button on the subwooferfor ten seconds.NOTE: In some cases the local WiFinetwork can cause problems with the RFremote control, if they operate on the samewavelength. We recommend the use of an IRremote control in these cases.Using Multiple SubwoofersThe Genelec F Two subwoofer is equippedwith an LFE/LINK output connector to pro-vide an easy way of coupling two or moresubwoofers together in high SPL applica-tions, for instance when using the subwoof-ers with Genelec G Four active loudspeak-ers. Connected as described below, the“master” subwoofer controls the volumeof all subwoofers linked to it through thisconnector.Connect an RCA cable from the LINK con-nector of the “master” subwoofer to whichthe main loudspeakers are connected, to theLFE / LINK connector of the other, “slave”subwoofer and turn the LINK dip switch onthe “slave” subwoofer to “ON”.In the LINK mode, the subwoofer volumeis automatically set to maximum and the“slave” subwoofer only reacts to the poweron/off commands given with a remotecontrol. It follows the volume adjustmentand source channel selection done in the“master” subwoofer.When two subwoofers connected in thisway are positioned close to one another,bass level increases by 6 dB. Three sub-woofers give an SPL increase of 9.5 dB andfour subwoofers 12 dB compared to a singlesubwoofer.The rotary “SUBWOOFER LEVEL” adjust-ment knob should be set in the same posi-tion as that of the “master” subwoofer unlessthe subwoofers are placed in very differentpositions acoustically, for example one ina corner and one far from corners. In suchcase, it is advisable to measure the loudnessof each subwoofer separately and adjustthem individually for correct balance.Phase and Bass Roll-Off adjustments shouldbe done individually for each subwoofer in thechain, especially if they are not placed closetogether. To check the phase alignment forthe “master” subwoofer switch off the “slave”subwoofer and follow the instructions given inthe previous sections.To adjust the phase alignment of thePHASEPHASEPHASE“slave” subwoofer, you need to switch off the “master” subwoofer, connect a signal cable from one of the “slave” subwoofer’s output connectors to the corresponding loudspeaker and switch the LINK switch to “OFF”. This effectively changes the “slave” to “master” mode and the phase adjustment can be carried out. Return the connections and LINK setting on the “slave” subwoofer back to the “ON” setting after completing the adjustment.Safety ConsiderationsThe Genelec F Two complies with interna-tional safety standards. However, to ensure safe operation and maintain the equipment in safe operating condition the following warnings and cautions must be observed.• Do not use this product with an unearthed mains cable or a mains connection without the protective earth contact as this may lead to personal injury.• Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.• The battery shall not be exposed to excessive heat such as sunshine, fire or the like.• Servicing and adjustment must only be performed by qualified service personnel. • Opening the subwoofer is strictly prohibited except by qualified service personnel.• Do not expose the subwoofer to water or moisture. Do not place any objects filled with liquid, such as vases on the subwoofer or near it.Note that the amplifier is not completely disconnected from the AC mains service unless the mains cable is removed from the amplifier or the mains outlet.Warning!This equipment is capable of deliver-ing sound pressure levels in excess of 85 dB, which may cause permanent hearing damage.Compliance To FCC RulesRemote controlThis device complies with Part 15 of the FCC Rules. Operation is subject to the fol-lowing two conditions: (1) this device may not cause harmful inter-ference, and (2) this device must acceptany interference received, including inter-ference that may cause undesired opera-tion. This product emits radio frequencyenergy, but the radiated output power ofthis device is below FCC radio frequencyexposure limits. This equipment complieswith FCC RF radiation exposure limits forthfor an uncontrolled environment. Neverthe-less, the device should be used in such amanner that the potential for human con-tact with the antenna during normal opera-tion is minimized.Changes or modifications not expresslyapproved by the party responsible for com-pliance could void the user’s authority tooperate the equipment.SubwooferThis device complies with part 15 of theFCC Rules. Operation is subject to the fol-lowing two conditions:This device may not cause harmful inter-ference, and this device must accept anyinterference received, including interfer-ence that may cause undesired operation.Note: This equipment has been tested andfound to comply with the limits for a ClassB digital device, pursuant to part 15 ofthe FCC Rules. These limits are designedto provide reasonable protection againstharmful interference in a residential instal-lation. This equipment generates, uses andcan radiate radio frequency energy and, ifnot installed and used in accordance withthe instructions, may cause harmful inter-ference to radio communications. However,there is no guarantee that interference willnot occur in a particular installation. If thisequipment does cause harmful interferenceto radio or television reception, which canbe determined by turning the equipmentoff and on, the user is encouraged to try tocorrect the interference by one or more ofthe following measures:• Reorient or relocate the receivingantenna.• Increase the separation between theequipment and receiver.• Connect the equipment into an outleton a circuit different from that to which thereceiver is connected.• Consult the dealer or an experiencedradio/TV technician for help.Figure 5. Changing the remote control batteryModifications not expressly approved bythe manufacturer could void the user’sauthority to operate the equipment underFCC rules.Changing The RemoteControl BatteryThe remote control battery can be changedby turning the battery cover on the backof the remote control anticlockwise. Usea small screwdriver under the right side ofthe battery (see figure 5) to wedge the bat-tery out. Replace the battery with a similarCR2032 type battery. Insert the battery withthe left side first as shown in figure 4 andclose the battery cover.Take the used battery to your local bat-tery recycling point. Under no circumstancesshould the battery be disposed with generaldry waste.MaintenanceThere are no user serviceable parts insidethe subwoofer. Any maintenance of the unitmust only be performed by qualified servicepersonnel.GuaranteeThis product is supplied with two yearguarantee against manufacturing faults ordefects that might alter the performance ofthe unit. By registering your product at:You can get an additional three year guaran-tee that covers the spare parts.Operating Manual F TwoF Two 有源超低音音箱概述真力 F Two 是一款紧凑型有源超低音音箱，可以作为多声道音响系统中的LFE 声道搭配5只真力G One 或者G Two 主动式有源音箱使用，或者搭配一对更大的G Three 使用。

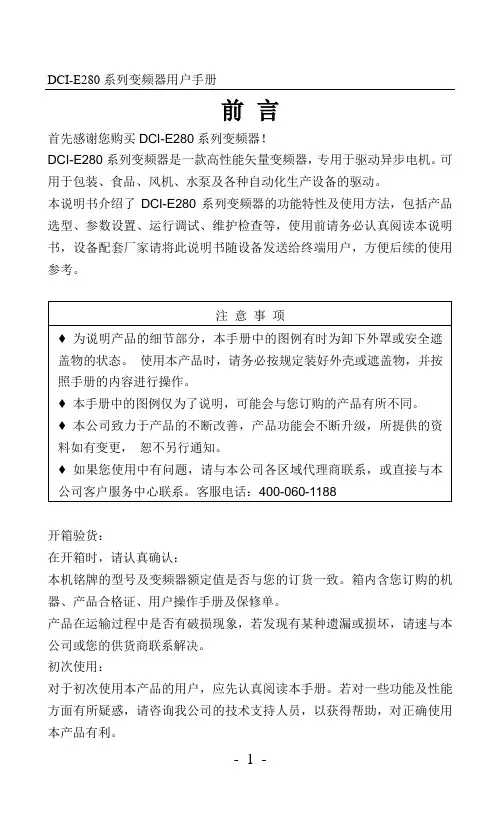

前言首先感谢您购买DCI-E280系列变频器！DCI-E280系列变频器是一款高性能矢量变频器，专用于驱动异步电机。

可用于包装、食品、风机、水泵及各种自动化生产设备的驱动。

本说明书介绍了DCI-E280系列变频器的功能特性及使用方法，包括产品选型、参数设置、运行调试、维护检查等，使用前请务必认真阅读本说明书，设备配套厂家请将此说明书随设备发送给终端用户，方便后续的使用参考。

开箱验货：在开箱时，请认真确认：本机铭牌的型号及变频器额定值是否与您的订货一致。

箱内含您订购的机器、产品合格证、用户操作手册及保修单。

产品在运输过程中是否有破损现象，若发现有某种遗漏或损坏，请速与本公司或您的供货商联系解决。

初次使用：对于初次使用本产品的用户，应先认真阅读本手册。

若对一些功能及性能方面有所疑惑，请咨询我公司的技术支持人员，以获得帮助，对正确使用本产品有利。

目录第1章安全信息及注意事项 (4)第2章产品信息 (10)2.1产品命名和铭牌标识 (10)2.2变频器各部分名称 (10)2.3基本技术规格 (11)第3章安装指导 (13)3.1机械安装 (13)3.2电气安装 (16)第4章操作显示 (24)4.1操作与显示界面介绍 (24)第5章功能参数一览表 (26)第6章选型与尺寸 (96)6.1变频器电气规格 (96)6.2变频器外型与尺寸 (97)6.3键盘的外型尺寸 (98)6.4键盘支架开口尺寸 (98)6.5制动单元与制动电阻的选型 (99)第7章维护保养与故障诊断 (101)7.1变频器的日常保养与维护 (101)7.2故障报警及对策 (102)7.3故障报警及对策 (106)附录C：MODBUS通讯协议 (108)保修协议 (116)第1章安全信息及注意事项安全定义：在本手册中，安全注意事项分以下两类：危险：由于没有按要求操作造成的危险，可能导致重伤，甚至死亡的情况；注意：由于没有按要求操作造成的危险，可能导致中度伤害或轻伤，及设备损坏的情况；请用户在安装、调试和维修本系统时，仔细阅读本章，务必按照本章内容所要求的安全注意事项进行操作。

LCD 模块使用手册1.使用范围----------------------------------------------------22.质量保证----------------------------------------------------23.性能特点----------------------------------------------------24.外形图-------------------------------------------------------55.I/O接口特性-----------------------------------------------66.质量等级---------------------------------------------------217.可靠性---------------------------------------------------248.生产注意事项---------------------------------------------259.使用注意事项---------------------------------------------261.使用范围该检验标准适用于大连东福彩色液晶显示器有限公司设计提供的标准液晶显示模块。

如果在使用中出现了异常问题或没有列明的项目，建议同最近的供应商或本公司联系。

2.质量保证如在此手册列明的正常条件下使用、储存该产品，公司将提供12个月的质量保证。

3．性能特点3-1．性能：显示方式 : 半透、正显黄绿色 STN LCD显示颜色 : 显示点: 黑色背景: 黄绿色显示形式: 240(w)×128(h) 全点阵输入数据 : 来自MPU的8位并行数据接口驱动路数: 1/128Duty视角: 6 点背光 : E/LRAM 显示容量: 8k byte S-RAM(built-in)控制器: 东芝 T6963C(Built-in)CGROM/RAM容量: Built-in 128 words character generator (CG) ROM.3-2．机械性能：项目规格单位外形尺寸 144.0(W)×104.0(H) ×11.0 Max.(T) mm显示点阵数 240(W) ×128(H) Dots —字符结构40C×16L(640) in case of 6×8 Fonts30C×16L(480) in case of 8×8 Fonts—视域 114.0(W)×64.0(H) mm显示图形域 107.95(W)×57.55(H) mm 点间距 0.45(W)×0.45(H) mm 点尺寸 0.40(W)×0.40(H) mm 重量 Approx.180 g3-3． 极限参数： 项 目 符 号 最小值最大值 单位 注 释逻辑 Vdd -0.3 7.0 V Vss=0V 时 电源电压 LCD 驱动 Vdd – Vee 0 28 V输入电压 Vi -0.3 Vdd+0.3V Vss=0V 时操作温度 Top -10 60 ℃储存温度 Tstg -20 70 ℃湿度 — — 90 %RH3-4． 电气特性： 3-4-1. 电气参数 注释: <1> 驱动路数=1/128 <2> 所有点在静态条件下项 目 符 号 条 件 最小值典型值 最大值 单 位逻辑 Vdd 4. 5 5.0 5. 5 电源电压 LCD 驱动 Vdd–Vee — 23 25.0高电平 Vih Vdd=5V ±5% Vdd-2.2— Vdd 输入电压 低电平 Vil 0 — 0.8高电平 V oh Vdd=5V ±5% Vdd-0.3— Vdd 输出电压 低电平 V ol 0 — 0.3V 频 率 Fflm Vdd=5V 70 75 80 Hz逻辑 Idd — 5.7 10.0 功 耗 LCD 驱动 Iee Vdd=5V Vdd–Vee=15.0V Fflm=75Hz— 5.4 9.8 mA Ta= -10℃ φ=0°,θ=0°— 23.8 24.0 Ta= 25℃ φ=0°,θ=0°— 23.0 — LCD 驱动电压 (推荐电压) Vdd–Vee Ta= 60℃ φ=0°,θ=0°22.0 22.2 — V3-4-2. E/L 背光规格 注释<1>: 在20℃、60%RH 时初始亮度值的一半标 准 值 项目 单位最小值典型值 最大值条 件 电源电压 V — 100 125 —频 率 Hz — 400 400 —亮 度 cd/m 2(nit)45 55 — AC100 Vrms, 400Hz, 暗室电 流 mA/cm 2— 0.12 0.17 AC100 Vrms, 400Hz, 暗室寿 命 Hrs 5000 注释 <1>发光颜色 — 白色 AC100 Vrms, 400Hz, 暗室操作温度 ℃ -35 ~ 60 —储存温度 ℃ -40 ~ 70 —3-5． 电光特性 项 目 符号温度 条件 最小值典型值最大值 单位 注释-10℃ — 23.8 24.0 25℃ — 23.0 — LCD 驱动电压 (推荐电压) V op 60℃ φ=0°,θ=0°22.0 22.2 —V 1,2,5 0℃ — 1500 2000 上升时间 tr 25℃ — 150 200 0℃ — 3000 3500 响应 时间 衰退时间 td 25℃ φ=0°,θ=0°— 200 250mS 1,3,5 垂直 -35 — 35 视 角 Δφ 25℃ 水平 -30 — 30deg. 1,4,5 对比度 K 25℃ φ=0°,θ=0° 2.0 5.0 — — 1,5,6 注意：<1> φ和θ的定义<2> 在此电压范围内能获得对比度大于2(k ≥2)LCD 模块使用手册5．I/O接口特性注释：本模块有内建负压发生器和无内建负压发生器两种，以下所有说明均是针对无内建负压发生器的模块，用户如选用的是有内建负压发生器的模块，只需将接口Vee脚悬空，单电源+5V（VDD）供电即可，忽略以下有关负压的说明。
