渔具线轮组件说明书

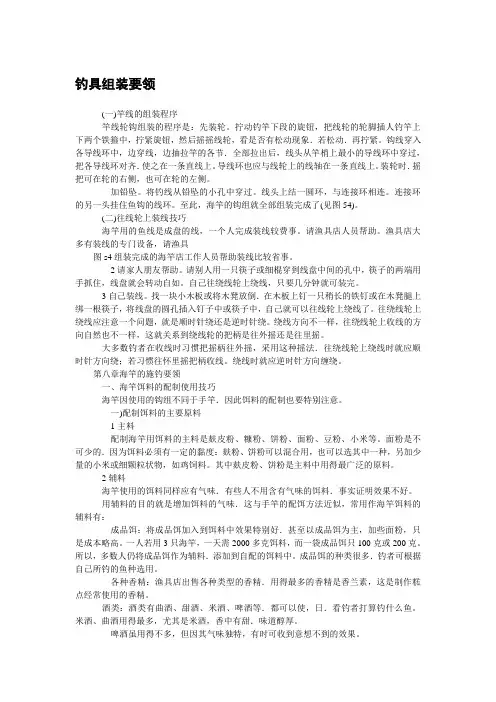

钓具组装要领(一)竿线的组装程序竿线轮钩组装的程序是：先装轮。

拧动钓竿下段的旋钮，把线轮的轮脚插人钓竿上下两个铁箍中，拧紧旋钮，然后摇摇线轮，看是否有松动现象．若松动．再拧紧。

钩线穿入各导线环中，边穿线，边抽拉竿的各节．全部拉出后，线头从竿梢上最小的导线环中穿过，把各导线环对齐．使之在一条直线上。

导线环也应与线轮上的线轴在一条直线上。

装轮时．摇把可在轮的右侧，也可在轮的左侧。

加铅坠。

将钓线从铅坠的小孔中穿过。

线头上结一圆环，与连接环相连。

连接环的另一头挂住鱼钩的线环。

至此，海竿的钩组就全部组装完成了(见图54)。

(二)往线轮上装线技巧海竿用的鱼线是成盘的线，一个人完成装线较费事。

请渔具店人员帮助。

渔具店大多有装线的专门设备，请渔具图s4组装完成的海竿店工作人员帮助装线比较省事。

2请家人朋友帮助。

请别人用一只筷子或细棍穿到线盘中间的孔中，筷子的两端用手抓住，线盘就会转动自如。

自己往绕线轮上绕线，只要几分钟就可装完。

3自己装线。

找一块小木板或将木凳放倒．在木板上钉一只稍长的铁钉或在木凳腿上绑一根筷子，将线盘的圆孔插入钉子中或筷子中，自己就可以往线轮上绕线了。

往绕线轮上绕线应注意一个问题，就是顺时针绕还是逆时针绕。

绕线方向不一样，往绕线轮上收线的方向自然也不一样，这就关系到绕线轮的把柄是往外摇还是往里摇。

大多数钓者在收线时习惯把摇柄往外摇，采用这种摇法．往绕线轮上绕线时就应顺时针方向绕；若习惯往怀里摇把柄收线。

绕线时就应逆时针方向缠绕。

第八章海竿的施钓要领一、海竿饵料的配制使用技巧海竿因使用的钩组不同于手竿．因此饵料的配制也要特别注意。

一)配制饵料的主要原料1主料配制海竿用饵料的主料是麸皮粉、糠粉、饼粉、面粉、豆粉、小米等。

面粉是不可少的．因为饵料必须有一定的黏度：麸粉、饼粉可以混合用，也可以选其中一种，另加少量的小米或细颗粒状物，如鸡饲料。

其中麸皮粉、饼粉是主料中用得最广泛的原料。

2辅料海竿使用的饵料同样应有气味．有些人不用含有气味的饵料．事实证明效果不好。

安全注意事项接节部难以拔出的时候使用带导环并继/印笼继竿时使用印笼继/逆印笼继竿时禧玛诺（上海）贸易有限公司中国上海市仙霞路137号盛高国际大厦17楼邮编：200051官方网站： 官方微信号：禧玛诺渔具官方微信二维码：鱼竿使用注意事项使用时需注意鱼竿竿身上有触电注意标贴，标贴为了不轻易被剥离施加了涂层，请不要用手去剥，另外，有部分商品的触电注意标贴是印刷上去的。

当产品故障时请联系您购买的店铺或就近的SHIMANO专柜店，如果您不清楚专柜店信息，请致电SHIMANO或通过浏览官方网站了解。

同时，请提供购买时间以及确切的商品名称和商品代码。

使用无导环竿时使用带导环振出竿时使用无导环竿时使用并继/印笼继竿时接节部有沙子进去时使用带导环振出竿时请注意竿梢节、第二节、第三节接节口的折断●如不合理地去拧或撬，都可能造成竿梢折断。

●请确保活动导环固定到位，另外会造成竿梢折断。

使用鱼竿支架/鱼竿固定架时使用实心竿梢鱼竿时使用含渔轮座竿时其他注意事项●鱼竿弯曲时，由于绕线部涂厚漆的部分无法适应鱼竿的弯曲，有时会产生裂纹，但导环和鱼轮座的固定力是完全没有问题的。

目前的生产技术还无法防止这种裂纹，敬请理解。

●●请勿在渔线缠绕的状态下收主线，在鱼竿部分如果施加不合理的力量可能会造成鱼竿折断。

●在取下前堵的时候，请朝着正上方拉拔前堵，如不合理地去拧或撬，都可能造成接节扣部分损坏。

●请勿在渔线缠绕的状态下继续使用。

另外，在使用过程中请不要强行朝垂直方向拉拔，鱼竿可能会因不合理的施加力而造成损坏。

●需要收起鱼竿时请从手把节开始，在收回竿梢节、第二节、第三节等细节时，请把手把节夹在腋下并拿着接节部的上下两端，边拧边塞进去。

●当竿尾贴靠在物体进行收竿时，请贴靠在质地柔软的东西上，从手握竿的地方依次一根一根收纳。

这时请注意不要让竿尾碰到水。

●用腋下夹住鱼竿收竿或出竿时，长竿会相对更易以施加力量，请注意不要太用力避免损伤第二节、第三节的玉口。

恭喜您!您选择了世界上最棒的鱼饵抛投线轴之一。

在近五十多年里Ambassadeur渔具以高质量，高性能，耐耗磨而成为钓鱼者的宠儿。

如今很多不想因为落后的设备而没有捕到鱼的竞赛选手在锦标赛巡回比赛中广泛的使用Ambassadeur渔具，湖边，咸水湖导游，寻求破纪录的钓鱼专家和其他的钓鱼爱好者也使用该渔具。

Abu Garcia的意思是高质量的钓鱼技巧，它有着其他抛投线轴所无与伦比的高强力，耐磨力，设计和操作效果极棒。

Abu Garcia的质量和性能能为您带来全新的钓鱼体验。

在接下来的几页里是使Ambassadeur渔具鱼饵抛投线轴发挥到最高极致性能的步骤说明。

每一组件都有其名字和性能。

有些组件没有在每个线轮模型上标志。

请在使用线轮之前仔细阅读步骤说明熟悉每个组件。

有用的结：A 线轮结：把线牢牢的绑在线轴上。

B Blood结：把两根线联在一起C 鱼饵结：把鱼饵连在线上。

线设置的填充物线轴：在轮毂里插入铅笔来旋转填充物线轴。

用你的手指使线保持一定的弹性。

从线轮的顶部装入大约1.5mm的鱼线已达到最佳效果。

快速抛投Thumbar自动线轮系统：快速抛投Thumbar自动线轮可以仅用一只手来操作，把大拇指的指端摁在线上，握住线轮用您的大拇指压住Thumbar来松开传动装置，抛投一完成，缓缓的摇动线轮手柄来放线。

机械刹车齿轮华司：要根据鱼饵的重量在最大和最小抛投距离进行调试。

适当的调试鱼竿线轴鱼饵之后，压住快速抛投Thumbar，设置机械刹车齿轮华司，在鱼竿尖端放置好时，鱼饵就能缓缓的下降到25cm。

如果鱼饵未移动，说明机械刹车齿轮华司太紧。

如果鱼饵掉落在地面上说明刹车太松。

注意：做鱼饵调试时机械刹车齿轮华司须设为0。

磁力线轮刹车系统：为了防止过多的使用ABU Garcia的磁力线轮刹车系统，使用左侧的刻度盘来设置从最大到最小中的理想磁力。

最小的设置是顺时针（向右）拨到刻度盘停止键，最大是逆时针(向左)拨到刻度盘停止键。

TRIPLEX, a MacGregor company, is a major supplier of equipment to the fishing fleet. The company is a trendsetter, and famous for its T riplex net hauling equipment.Quality and an excellent reputation have resulted in that Triplex products ar e sold worldwide. Indoor net handlingNet cranesNet winchesDeck cranesCork line stackersSink line stackers Intermediate rollersRing needles3Pat. no: 320038 - NorwayIndoor net handlingA crew-efficient, safe and profitable investmentReferences:FV “Libas”FV “Eros”FV “Kings Bay”FV “Smaragd”Cork line stackerThe TRIPLEX Net Hauling System was launched in the mid-sixties and revolutionized purse seine fi shing in many areas of the world. The system has since been developed with several new models and sizes, but the unique principle, with three rollers hauling the net simultaneously, remain the same today as when it was designed back in 1964.Several related and auxiliary products have been developed to complement the TRIPLEX net handling system. All TRIPLEX equipment can be supplied for either starboard or port side installation and is adaptable to fi xed or variable pumping systems.New generation of indoor net handling system Remotely controlled by two people outside the net bin.Nobody is required inside the net bin.Much easyer installation.Sink line stacker Sinkline Stacker mounted on a telescopic arm with a wide operation area.Net crane Net Crane and Corkline Stacker sliding along the sidebulkhead on a vertical mounted trolley.Intermediate rollerPress roller Intermediate Roller, with hydraulic operated Press Roller, to increase traction without slippage.5Net cranesTRIPLEX NK-SERIESTriplex Net Cranes simplify the work in the net bin with less crew.Triplex Net Cranes are primarily designed and intended for stacking purse nets, but can also be fi tted with a winch and used as conventional cranes, for example when handling trawling gears.Triplex Net Cranes are manufactured in a variety of sizes and are supplied fully adapted to suit individual vessels.Net Cranes have a long reach and can cover a wide area. Is supplied with various controls and can be synchronous with associated equipment.Optional Cork line stacker Pat. Pending: PCT/NO2012/050197Models NK-1500NK-3000NK-6000NK-7500Lifting capacity/Length ratio can be customized according to customer needs.Net winchesTriplex Net Winches are supplied in a variety of sizes with hauling power from 6 – 50 tons. Maximum grip on the net, cork and lead lines achieved as the net is hauled by three rollers simultaneously. Low-level installation also provides excellent stability compared to other systems.• Hauls the net with full power and full speed simultaneously• Center roller offset, improves net traction area• Provides an effective and steady pull on the net and cork line• Equal distribution of hauling power over the greater length and full width of the net• Causes a minimal wear on the net.• Special tilt feature make drying operation simple and safe• All gear wheels, pinions and bearings are running in oil-bath• Cylinder rods, pipes and all pins in stainless steel.• Independent hydraulically or mechanical declutching of aft roller (optional)• Separate outer shields make roller replacement easier.• Minimal deck area required• Available for either starboard or port side installationModelsNW-525/300NW-603/360NW-740/425NW-840/500NW-850/500NW-920/500NW-1020/6007Net winchesTRIPLEX NW-1020/600New appropriate design ensures gentle handling of purse seines in combination with optimal performance. The world’s largest and most powerful Net Winch50 tonshauling forceTRIPLEX NW-920/500Over 20% increased space between the rollers. Hauling power from 25 - 40 tons.98,0 t 7,5 t 18,75 t 18,75 m16,0 m 8,0 m Telescopic deck cranes Deck cranesTRIPLEX KN-SERIES TRIPLEX TK & TKN-SERIESDECK CRANESLifting capacity /tons Reaching lenght /meters KN-101,010KN-161,610KN-252,510KN-303,010KN-504,012KN-604,015KN-755,015KN-1006,515,5KN-1207,516KN-1508,018,75Lifting capacity/Length ratio can be customized according to customer needs.ModelsTKN-30TKN-50TKN-60TKN-75TKN-100TKN-120TKN-150Lifting capacity/Length ratio can be customized according to customer needs.Standard configurationT riplex deck cranes can have both reach and lifting capacity custom made to suit each individual vessel.Winch with wire, wire tensioner, wire blocks, safety hook and lead.Radio Control type HBC for portable wireless control of all crane andtrolley functions.Cylinder piston rods, bolts and high pressure pipes in seawaterresistance stainless steel.Crane, pedestal and trolley delivered sandblasted, primed andepoxy painted. (metallizing is optional)11Cork line stackersTRIPLEX FL | FLU & FLH-SERIES• Roller head with all components in stainless steel• Stacks the cork line effectively without manual labor• Easily handle big & heavy cork lines• Operated by one single person• Portable radio control panel• Less people needed onboard• Different arm systems available•Adapted to each vesselrotation 360 deg.rotation 360 deg.rotation 360 deg.Pat. no: 311865 - Norway6648 - Iceland1292188 - Spain1292188 - FranceTRIPLEX GL-SERIESSink line stackers• Simple, robust and “clean design”• Separates and laying the sink line without manual labor •Easy to controlrotation 360 deg.rotation 360 deg.T elescopic13TRIPLEX TR-SERIES Intermediate rollersModelsTR-73TR-123TR-160Ring needlesTRIPLEX RN-SERIESModelsRN-60RN-75RN-8515TRIPLEX ASHenda, N-6530 Averøy | NorwayPhone: +47 71 51 39 00Fax: +47 71 51 39 01e-mail: ***************Hotline:+47 71 51 39 00Org. number: 976 091 698Director | Fishery Business Line Johnny Valle**************************+47 92 82 65 93 | mobile Sales & Service Asgeir Ellingvåg******************************+47 99 38 89 70 | offi ce directMacGregor is the world’s leading brand of engineering solutions and services for handling marine cargoes and offshore loads. MacGregor products serve the maritime transportation, offshore and naval logistics markets, in ports and terminals as well as on boar d ships. Our cargo fl ow solutions integrate cargo access, stowage, care and handling functions to suit a particular ship’s cargo pr ofile.This benefits its productivity, environmental impact and profitab le service MacGregor is part of Cargotec. Cargotec’s class B shares are quoted on NASDAQ OMX Helsinki.Wher ever needed, you can r ely on our support.For the roughest conditionsPublished by TRIPLEX. Copyright © TRIPLEX January 2015. Copyright © Macg r egor January 2015. All rights reserved. No part of this publicationmay be reproduced, stored, photocopied, recor ded or transmitted without permission of the copyright owner.TRIPLEX Patent nr.:325335 | GB2398062 | 33167320100245 | US D644,403 SBR-DI7005299-9 | PCT/NO2011/000316Sales Engineer | Fishery Ole-Johan Nekstad*******************************+47 92 24 04 31 | mobile。
