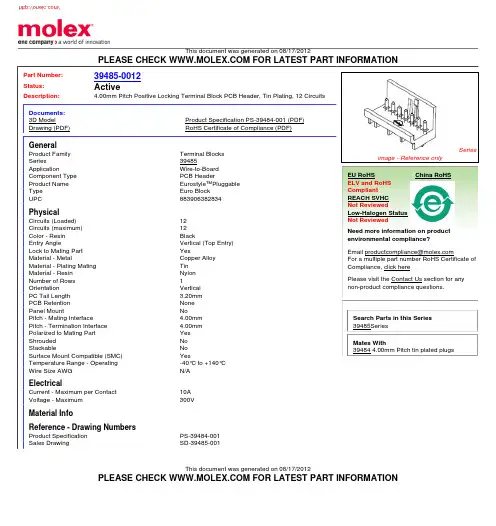

This document was generated on 08/17/2012PLEASE CHECK FOR LATEST PART INFORMATIONPart Number:39485-0012Status:ActiveDescription:4.00mm Pitch Positive Locking Terminal Block PCB Header, Tin Plating, 12 CircuitsDocuments:3D ModelProduct Specification PS-39484-001 (PDF)Drawing (PDF)RoHS Certificate of Compliance (PDF)GeneralProduct FamilyTerminal BlocksSeries39485ApplicationWire-to-BoardComponent TypePCB HeaderProduct NameEurostyle™PluggableTypeEuro BlockUPC883906382834PhysicalCircuits (Loaded)12Circuits (maximum)12Color - ResinBlackEntry AngleVertical (Top Entry)Lock to Mating PartYesMaterial - MetalCopper AlloyMaterial - Plating MatingTinMaterial - ResinNylonNumber of Rows1OrientationVerticalPC Tail Length3.20mmPCB RetentionNonePanel MountNoPitch - Mating Interface4.00mmPitch - Termination Interface4.00mmPolarized to Mating PartYesShroudedNoStackableNoSurface Mount Compatible (SMC)YesTemperature Range - Operating-40°C to +140°CWire Size AWGN/AElectricalCurrent - Maximum per Contact10AVoltage - Maximum300VMaterial InfoReference - Drawing NumbersProduct SpecificationPS-39484-001Sales DrawingSD-39485-001Seriesimage - Reference onlyEU RoHSChina RoHSELV and RoHSCompliantREACH SVHCNot ReviewedLow-Halogen StatusNot ReviewedNeed more information on productenvironmental compliance?Email productcompliance@For a multiple part number RoHS Certificate ofCompliance, click herePlease visit the Contact Us section for anynon-product compliance questions.Search Parts in this Series39485SeriesMates With39484 4.00mm Pitch tin plated plugs
