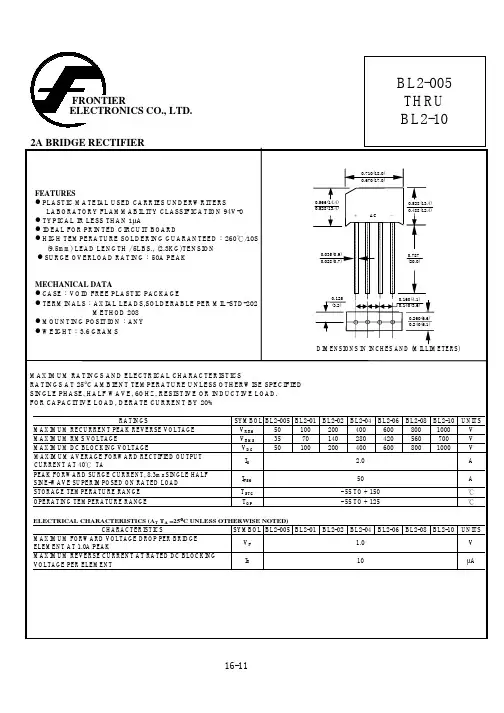

FRONTIER
ELECTRONICS CO., LTD.
2A BRIDGE RECTIFIER
FEATURES
! PLASTIC MATEIAL USED CARRIES UNDERWRITERS
LABORATORY FLAMMABILITY CLASSIFICATION 94V-0
! TYPICAL IR LESS THAN 1µA
! IDEAL FOR PRINTED CIRCUIT BOARD ! HIGH TEMPERATURE SOLDERING GUARANTEED︰260℃/10S
(9.5mm) LEAD LENGTH / 5LBS., (2.3KG)TENSION
! SURGE OVERLOAD RATING：50A PEAK
MECHANICAL DATA
! CASE：VOID FREE PLASTIC PACKAGE
! TERMINALS：AXIAL LEADS,SOLDERABLE PER MIL-STD-202
METHOD 208
! MOUNTING POSITION：ANY
! WEIGHT：3.6 GRAMS
DIMENSIONS IN INCHES AND (MILLIMETERS)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
RATINGS AT 25°C AMBIENT TEMPERATURE UNLESS OTHERWISE SPECIFIED
SINGLE PHASE, HALF WAVE, 60 HZ, RESISTIVE OR INDUCTIVE LOAD.
FOR CAPACITIVE LOAD, DERATE CURRENT BY 20%
RATINGSSYMBOLBL2-005BL2-01BL2-02BL2-04BL2-06BL2-08BL2-10UNITS
MAXIMUM RECURRENT PEAK REVERSE VOLTAGEVRRM501002004006008001000V
CM431
LOW VOLTAGE ADJUSTABLE SHUNT REGULATOR
2006/10/11 Rev.1.4 Champion Microelectronic Corporation Page 1 GENERAL DESCRIPTION FEATURES
Initial voltage reference accuracy of 1.0%. Sink current capability from 1mA to 100mA Typical output dynamic impedance less than 200mΩ; Adjustable output voltage from VREF to 36V Available in SOT-23, SOT-89, TO-92, & SOP-8 Low output noise Typical equivalent full range temperature coefficient of 30ppm/ OC APPLICATIONS The CM431 is a three-terminal adjustable shunt voltage regulator with specified thermal stability and pin-to-pin compatible with the earlier 431 series. The output voltage can be adjusted to any value between VREF and 36V by using two external resistors. The CM431 offers low output impedance for improved load regulation with a typical output impedance of 200mΩ. Because of the active output circuitry, the CM431 can replace the zener diodes in applications such as switching power supplies, OVP crowbar circuits, references for A/D, D/A converters with improved turn-on characteristics.
CATALOG NUMBERLPLC431CERTIFICATIONS
FEATURES与水平导体敷设路径配套使用的铸造避雷针底座工业堆栈安装需要工业堆栈端子支架提供额外支撑
产品属性Material: 铜
Finish: 镀铅Thread Size: 5/8" UNC
Depth: 25.4 mmHeight: 100 mm
Width: 76.2 mmUnit Weight: 1.21 kg
ADDITIONAL PRODUCT DETAILS
Where applicable, lead covering thickness is a minimum of 1/16" (1.59 mm) and is not included in the stated
dimensions.DIAGRAMS
警告
应仅根据 nVent 的产品说明书与培训材料安装并使用 nVent 的产品。可访问 获取说明书，或者向您的 nVent
客服代表索取。错误安装、使用不当、滥用或未能完全遵守 nVent的说明与警告，可能会造成产品故障、财产损失、严重的人身伤害及死亡和/或使得保修服务无效。
警告：本产品可能会使您接触到包括铅在内的化学物质，加利福尼亚州已知铅会导致癌症、出生缺陷或其他生殖危害。更多信息请访问
。
北美
+1.800.753.9221
Option 1 – Customer Care
Option 2 – Technical
Support 欧洲
Netherlands:
+31 800-0200135
France:
+33 800 901 793 欧洲
Germany:
800 1890272
Other Countries:
+31 13 5835404 APAC
Shanghai:
+ 86 21 2412 1618/19
Sydney:
+61 2 9751 8500
CADDY ERICO HOFFMAN RAYCHEM SCHROFF

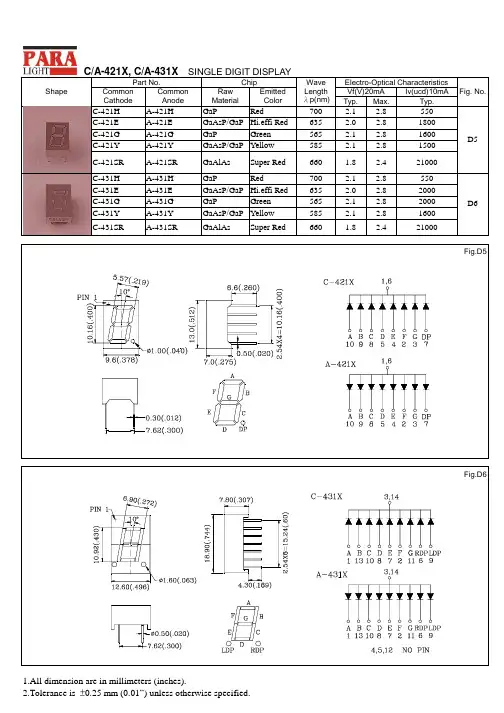

C/A-421X, C/A-431X SINGLE DIGIT DISPLAY
Part No. Chip Electro-Optical Characteristics Vf(V)20mA Iv(ucd)10mA Shape Common Cathode Common Anode Raw Material Emitted Color Wave Lengthλp(nm)Typ. Max. Typ. Fig. No.
C-421H A-421H GaP Red 700 2.1 2.8 550
C-421E A-421E GaAsP/GaPHi.effi Red 635 2.0 2.8 1800
C-421G A-421G GaP Green 565 2.1 2.8 1600
C-421Y A-421Y GaAsP/GaPYellow 585 2.1 2.8 1500
C-421SR A-421SR GaAlAs Super Red 660 1.8 2.4 21000 D5
C-431H A-431H GaP Red 700 2.1 2.8 550
C-431E A-431E GaAsP/GaPHi.effi Red 635 2.0 2.8 2000
C-431G A-431G GaP Green 565 2.1 2.8 2000
C-431Y A-431Y GaAsP/GaPYellow 585 2.1 2.8 1600
C-431SR A-431SR GaAlAs Super Red 660 1.8 2.4 21000 D6
Fig.D5
Fig.D6
1.All dimension are in millimeters (inches).
2.Tolerance is ±0.25 mm (0.01”) unless otherwise specified. 元器件交易网
