SFH 203 P

SFH 203 PFA

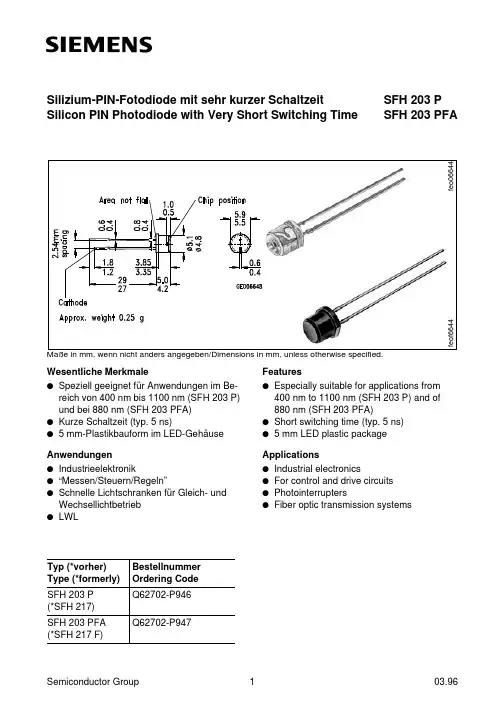

Semiconductor Group1Silizium-PIN-Fotodiode mit sehr kurzer Schaltzeit

Silicon PIN Photodiode with Very Short Switching Time

Wesentliche Merkmale

qSpeziell geeignet für Anwendungen im Be-

reich von 400 nm bis 1100 nm (SFH203P)

und bei 880 nm (SFH 203PFA)

qKurze Schaltzeit (typ. 5 ns)

q5 mm-Plastikbauform im LED-Gehäuse

Anwendungen

qIndustrieelektronikq“Messen/Steuern/Regeln”

qSchnelle Lichtschranken für Gleich- und

Wechsellichtbetrieb

qLWLFeatures

qEspecially suitable for applications from

400 nm to 1100 nm (SFH 203P) and of

880 nm (SFH 203PFA)

qShort switching time (typ. 5 ns)

q5 mm LED plastic package

Applications

qIndustrial electronics

qFor control and drive circuits

qPhotointerrupters

qFiber optic transmission systems

Typ (*vorher)

Type (*formerly)Bestellnummer

Ordering Code

SFH 203 P

(*SFH 217)Q62702-P946

Ver: 1.0 Oct 02, 2002 TEL: 886-3-5788833 1

Global Mixed-mode Technology Inc. G781

±1°C Remote and Local Temperature Sensor with SMBus Serial Interface

Features 󰂄󰀃Two Channels: Measures Both Remote and Local Temperatures 󰂄󰀃No Calibration Required 󰂄󰀃SMBus 2-Wire Serial Interface 󰂄󰀃Programmable Under/Overtemperature Alarms 󰂄󰀃Supports SMBus Alert Response 󰂄󰀃Accuracy: ±1°C (+60°C to +100°C, remote) ±3°C (+60°C to + 100°C, local) 󰂄󰀃320µA (typ) Average Supply Current During Conversion 󰂄󰀃+3V to +5.5V Supply Range 󰂄󰀃Small 8-Lead SO Package Applications Desktop and Notebook Central Office Computers Telecom Equipment Smart Battery Packs Test and Measurement LAN Servers Multi-Chip Modules Industrial Controllers General Description The G781 is a precise digital thermometer that reports the temperature of both a remote sensor and its own package. The remote sensor is a diode-connected transistor typically a low-cost, easily mounted 2N3904 NPN type that replace conventional thermistors or thermocouples. Remote accuracy is ±1°C with no cali-bration needed. The remote channel can also meas-ure the die temperature of other ICs, such as micro-processors, that contain an on-chip, diode-connected transistor. The 2-wire serial interface accepts standard System Management Bus (SMBus) Write Byte, Read Byte, Send Byte, and Receive Byte commands to program the alarm thresholds and to read temperature data. The data format is 11bits plus sign, with each bit cor-responding to 0.125°C, in two’s-complement format. Measurements can be done automatically and autonomously, with the conversion rate programmed by the user or programmed to operate in a single-shot mode. The adjustable rate allows the user to control the supply current drain. The G781 is available in a small, 8-pin SOP sur-face-mount package. Ordering Information PART* TEMP. RANGE PIN-PACKAGE G781 -20°C to +120°C 8-SOP Pin Configuration Typical Operating Circuit 10k

SFT1 - SFT9SUPER FAST RECTIFIER DIODES

PRV : 50 - 1000 Volts

Io : 2.5 Amperes

FEATURES :

* High current capability

* High surge current capability

* High reliability

* Low reverse current

* Low forward voltage drop

* Super fast recovery time

MECHANICAL DATA :

* Case : D2A Molded plastic

* Epoxy : UL94V-O rate flame retardant

* Lead : Axial lead solderable per MIL-STD-202,

Method 208 guaranteed

* Polarity : Color band denotes cathode end

* Mounting position : Any

* Weight : 0.645 gram

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Rating at 25 °C ambient temperature unless otherwise specified.Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.SYMBOLSFT1SFT2SFT3SFT4SFT5SFT6SFT7SFT8SFT9UNITS

Maximum Recurrent Peak Reverse VoltageVRRM501001502003004006008001000Volts

2SD2030, 2SD2031Silicon NPN Epitaxial

ApplicationLow frequency high voltage amplifierOutline

1. Emitter2. Collector3. BaseTO-92 (1)

3212SD2030, 2SD2031

2Absolute Maximum Ratings (Ta = 25°C)ItemSymbol2SD20302SD2031UnitCollector to base voltageVCBO160200VCollector to emitter voltageVCEO160200VEmitter to base voltageVEBO55VCollector currentIC100100mACollector power dissipationPC400400mWJunction temperatureTj150150°CStorage temperatureTstg–55 to +150–55 to +150°CElectrical Characteristics (Ta = 25°C)ItemSymbolMinTypMaxUnitTest conditionsCollector to basebreakdown voltage2SD2030V(BR)CBO160——VIC = 10 µA, IE = 02SD2031200Collector to emitterbreakdown voltage2SD2030V(BR)CEO160——VIC = 1 mA, RBE = ∞2SD2031200Emitter to base breakdownvoltageV(BR)EBO5——VIE = 10 µA, IC = 0Collector cutoffcurrent2SD2030ICBO——10µAVCB = 140 V, IE = 02SD2031VCB = 160 V, IE = 0DC current transfer ratiohFE1*160—200VCE = 5 V, IC = 10 mAhFE230——VCE = 5 V, IC = 1 mABase to emitter voltageVBE——1.5VVCE = 5 V, IC = 10 mACollector to emitter saturationvoltageVCE(sat)——0.5VIC = 30 mA, IB = 3 mAGain bandwidth productfT—140—MHzVCE = 5 V, IC = 10 mACollector output capacitanceCob—3.8—pFVCB = 10 V, IE = 0, f = 1 MHzNote:1.The 2SD2030 and 2SD2031 are grouped by hFE1 as follows.GradeBChFE160 to 120100 to 2002SD2030, 2SD2031
