PS1K2U-P009中文资料

  • 格式：pdf
  • 大小：167.55 KB
  • 文档页数：4

Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833 603-778-2300 www.wallindustries.com Fax 603-778-9797 PS1K2U Series1200 Watt Single OutputPFC and Current SharingAC/DC Switching Power SupplyFEATURES ● Remote Sense ● Universal AC Input ● Power Failure Signal ● Remote ON/OFF Control ● 0.98 Typical Power Factor ● Programmable Output Voltage ● Forced Current Sharing at Parallel Operation ● 5 LED Indicators display AC, DC, OTP Status ● Short Circuit/ Over Load/ Over Voltage/ Over Temperature Protection

SPECIFICATIONS: PS1K2U Series All specifications are based on 25oC, Nominal Input Voltage, and Maximum Output Current unless otherwise noted. We reserve the right to change specifications based on technological advances. INPUT SPECIFICATIONS Input Voltage Range 90 ~ 260VAC Input Frequency 47 to 63Hz Input Current 14A @ 215VAC (7A @ 230VAC) Typical Inrush Current RESULT A: 84.0A (Typical) Leakage Current < 7.0mA at 240VAC Remote ON/OFF Control Compatible with a TTL signal to turn ON/OFF OUTPUT SPECIFICATIONS Output Voltage See Table Output Power Range 1200 Watts max. Output Voltage Adjustability 3% Typical adjustment by potentiometer 20% ~ 100% Adjustment by 1 ~ 5VDC external control. Line Regulation Less than 1% Load Regulation Less than 1% Output Current See Table Ripple & Noise (peak to peak) 1% max Setup, Rise, Hold-Up Time RESULT A: 12.4ms Temperature Coefficient ±0.04% / °C (0 ~ 50°C) Remote Sense Yes PROTECTION Over Voltage Protection 110% ~ 135% (variable “OVP” follows the adjustable DC output voltage) Over Load Protection Current limiting 3 times (1.5”, 3.0”, 5.0”) then intelligent auto recovery before shutdown. GENERAL SPECIFICATIONS Efficiency See Table Power Factor 0.98 (Typical) Power Failure Signal Open Drain of NPN Transistor Parallel Operation Yes ENVIRONMENTAL SPECIFICATIONS Working Temperature 0°C to +50°C @ 100% Load, +65°C @ 50% Load. Storage Temperature -20°C to +85°C Working Humidity 20% to 90% RH Storage Humidity 10% to 95% RH Vibration 10 ~ 200Hz, 2g 10 min./1cycle, Period of 60 min. for each axis. Cooling Power rating and temperature controlled fan. PHYSICAL SPECIFICATIONS Weight 3.75kg Dimensions 279(L) x 203(W) x 63.5(H) mm SAFETY & EMC Safety Standards UL1950, TUV EN60950 EMC Standards EN55022, EN610000-4-2,3,4,5,6,8,11, EN61000-3-2,3, ENV50204 元器件交易网www.cecb2b.com

Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833 603-778-2300 www.wallindustries.com Fax 603-778-9797 PS1K2U Series1200 Watt Single OutputPFC and Current SharingAC/DC Switching Power SupplyOUTPUT VOLTAGE / CURRENT RATING CHART Model Number Output Voltage Output Current Maximum Output Power Ripple & Noise EfficiencyPS1K2U-P009 9 VDC 133.3A 1200W 1% 83% PS1K2U-P012 12 VDC 100.0A 1200W 1% 84% PS1K2U-P015 15 VDC 80.0A 1200W 1% 85% PS1K2U-P018 18 VDC 66.6A 1200W 1% 85% PS1K2U-P024 24 VDC 50.0A 1200W 1% 88% PS1K2U-P030 30 VDC 40.0A 1200W 1% 88% PS1K2U-P036 36 VDC 33.3A 1200W 1% 88% PS1K2U-P048 48 VDC 25.0A 1200W 1% 89% PS1K2U-P060 60 VDC 20.0A 1200W 1% 90% NOTES 1. Dimensions of the mechanical drawing are shown in millimeters and inches. 2. Weight of the unit is 3750 grams. DERATING CURVE

元器件交易网www.cecb2b.com

Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833 603-778-2300 www.wallindustries.com Fax 603-778-9797 PS1K2U Series1200 Watt Single OutputPFC and Current SharingAC/DC Switching Power SupplyCONNECTOR PIN-OUT DRAWINGS

元器件交易网www.cecb2b.com

Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833 603-778-2300 www.wallindustries.com Fax 603-778-9797 PS1K2U Series1200 Watt Single OutputPFC and Current SharingAC/DC Switching Power SupplyMECHANICAL DRAWING

元器件交易网www.cecb2b.com

合集下载

PS21963-A中文资料

PS21963-A中文资料

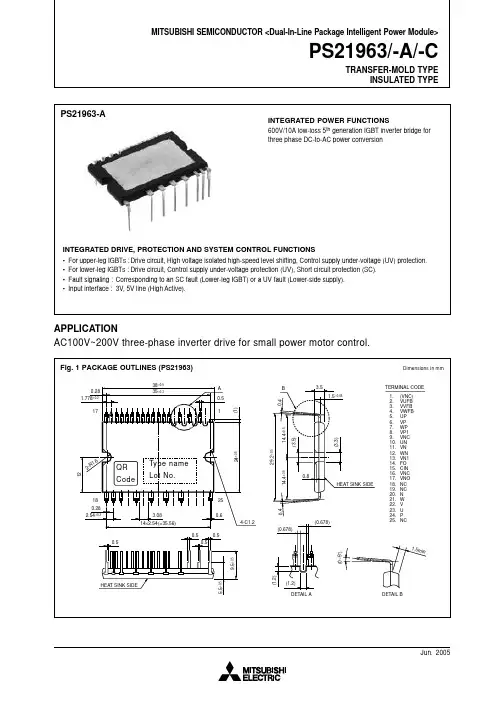

MITSUBISHI SEMICONDUCTOR PS21963/-A/-CTRANSFER-MOLD TYPEINSULATED TYPEJun. 20050.281.778±0.224±0.52.54±0.29.5±0.55.5±0.53.0835±0.338±0.514×2.54(=35.56)0.5HEAT SINK SIDEHEAT SINK SIDE0.50.50.517118122-R1.60.28250.60.40.44-C1.2Type nameLot No.QRCode29.2±0.514.4±0.51.5±0.0514.4±0.5(3.5)(3.3)0.5(1)ATERMINAL CODE1.(VNC)2.VUFB3.VVFB4.VWFB5.UP6.VP7.WP8.VP19.VNC10.UN11.VN12.WN13.VN114.FO15.CIN16.VNC17.VNO18.NC19.NC20.N21.W22.V23.U24.P25.NC3.5B0.8(0.678)1.5min(0~5°)(0.678)(1.2)(1.2)DETAIL ADETAIL BPS21963-AINTEGRATED POWER FUNCTIONS600V/10A low-loss 5th generation IGBT inverter bridge forthree phase DC-to-AC power conversionAPPLICATIONAC100V~200V three-phase inverter drive for small power motor control.Fig. 1 PACKAGE OUTLINES (PS21963)MITSUBISHI SEMICONDUCTOR PS21963/-A/-CTRANSFER-MOLD TYPEINSULATED TYPEINTEGRATED DRIVE, PROTECTION AND SYSTEM CONTROL FUNCTIONS•For upper-leg IGBTS :Drive circuit, High voltage isolated high-speed level shifting, Control supply under-voltage (UV) protection.•For lower-leg IGBTS :Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC).•Fault signaling :Corresponding to an SC fault (Lower-leg IGBT) or a UV fault (Lower-side supply).•Input interface :3V, 5V line (High Active).Dimensions in mm元器件交易网MITSUBISHI SEMICONDUCTOR PS21963/-A/-CTRANSFER-MOLD TYPEINSULATED TYPEJun. 2005Fig. 2 LONG TERMINAL TYPE PACKAGE OUTLINES (PS21963-A)Fig. 3 ZIGZAG TERMINAL TYPE PACKAGE OUTLINES (PS21963-C)0.281.778±0.224±0.52.54±0.214±0.55.5±0.53.0835±0.338±0.514×2.54(=35.56)0.5HEAT SINK SIDEHEAT SINK SIDE0.50.50.517118122-R1.60.28250.60.40.44-C1.2Type nameLot No.QRCode29.4±0.514.4±0.51.5±0.0514.4±0.5(3.5)(3.3)0.5(1)ATERMINAL CODE1.(VNC)2.VUFB3.VVFB4.VWFB5.UP6.VP7.WP8.VP19.VNC10.UN11.VN12.WN13.VN114.FO15.CIN16.VNC17.VNO18.NC19.NC20.N21.W22.V23.U24.P25.NC3.5B0.8(0.678)1.5min(0~5°)(0.678)(1.2)(1.2)DETAIL ADETAIL B9.5±0.55.5±0.50.5HEAT SINK SIDE0.50.50.40.429.2±0.533.7±0.514.4±0.51.5±0.0514.4±0.518.9±0.5(3.5)TERMINAL CODE1.(VNC)2.VUFB3.VVFB4.VWFB5.UP6.VP7.WP8.VP19.VNC10.UN11.VN12.WN13.VN114.FO15.CIN16.VNC17.VNO18.NC19.NC20.N21.W22.V23.U24.P25.NC3.5B0.8(0.678)1.5min(0~5°)(0~5°)(0.678)(1.2)(1.2)DETAIL ADETAIL B0.281.778±0.224±0.52.54±0.23.0835±0.338±0.514×2.54(=35.56)17118122-R1.60.28250.64-C1.2Type nameLot No.QRCode(1)ADimensions in mmDimensions in mm元器件交易网MITSUBISHI SEMICONDUCTOR PS21963/-A/-CTRANSFER-MOLD TYPEINSULATED TYPEJun. 2005Note1: In the recommended external protection circuit, please select the RC time constant in the range 1.5~2.0µs.2: To prevent erroneous protection operation, the wiring of A, B, C should be as short as possible.Drive circuitDrive circuitProtection circuitWVUBCVNCCINAPN1NCRShunt ResistorExternal protection circuitDIP-IPML-side IGBTSH-side IGBTSSC ProtectionTrip LevelIC (A)tw (µs)20Short Circuit Protective Function (SC) :SC protection is achieved by sensing the L-side DC-Bus current (through the externalshunt resistor) after allowing a suitable filtering time (defined by the RC circuit).When the sensed shunt voltage exceeds the SC trip-level, all the L-side IGBTs are turnedOFF and a fault signal (Fo) is output. Since the SC fault may be repetitive, it isrecommended to stop the system when the Fo signal is received and check the fault. Collector currentwaveform(Note 1)(Note 2)MZ : ZNR (Surge absorber)C : AC filter (Ceramic capacitor 2.2~6.5nF)(Note : Additionally, an appropriate line-to linesurge absorber circuit may become necessarydepending on the application environment).C1 : Tight tolerance, temp-compensated electrolytic typeC2 : 0.22~2µF R-category ceramic capacitor for noise filtering.(Note : The capacitance value depends on the PWM controlscheme used in the applied system).Note1: Input logic is high-active. There is a 3.3kΩ (min) pull-down resistor built-in each input circuit. When using an external CR filter, please make it satisfy the input threshold voltage.2: By virtue of integrating an application specific type HVIC inside the module, direct coupling to MCU terminals without any opto-coupler or transformer isolation is possible. (see also Fig. 10)3: This output is open drain type. The signal line should be pulled up to the positive side of the 5V power supply with approximately 10kΩ resistor. (see also Fig. 10)4: The wiring between the power DC link capacitor and the P & N1 terminals should be as short as possible to protect the DIP-IPM against catastrophic high surge voltages. For extra precaution, a small film type snubber capacitor (0.1~0.22µF, high voltage type) is recommended to be mounted close to these P & N1 DC power input pins.5: High voltage (600V or more) and fast recovery type (less than 100ns) diodes should be used in the bootstrap circuit.6: The terminal VNO should be connected with the terminal VNC outside.7: It is recommended to insert a Zener diode (24V/1W) between each pair of control supply terminals to prevent surge destruction.8: Bootstrap negative electrodes should be connected to U, V, W terminals directly and separated from the main output wires.Protectioncircuit (UV)Drive circuitCBU–CBU+CBV–CBV+CBW–CBW+AC line inputInput signalconditioningInput signalconditioningInput signalconditioningLevel shifterDrive circuitLevel shifterDrive circuitLevel shifterDrive circuitInput signal conditioningProtectioncircuitControl supplyUnder-VoltageprotectionFODIP-IPM(Note 4)(Note 6)Inrush currentlimiter circuitVDVNCH-side IGBTSL-side IGBTSWVUC2C1PVNCVNON1NCINZCHigh-side input (PWM)(3V, 5V line)(Note 1, 2)(Note 5)(15V line)AC line output(3V, 5V line)(Note 1, 2)Fault output (5V line)(Note 3)Low-side input (PWM)(Note 8)Fo logic(Note 7)(Note 7)Fig. 4 INTERNAL FUNCTIONS BLOCK DIAGRAM (TYPICAL APPLICATION EXAMPLE)Fig. 5 EXTERNAL PART OF THE DIP-IPM PROTECTION CIRCUIT元器件交易网

PSD4235G2-70U;PSD4235G2-90U;PSD4235G2-90UI;中文规格书,Datasheet资料

PSD4235G2-70U;PSD4235G2-90U;PSD4235G2-90UI;中文规格书,Datasheet资料

February 2009 Rev 41/1291PSD4235G2

Flash in-system programmable (ISP)for 16-bit MCUs (5 V supply)

Features

■Dual bank Flash memories–4 Mbit of Primary Flash memory (8 uniform sectors, 32K x 16)–256 Kbit Secondary Flash memory with 4 sectors–Concurrent operation: read from one memory while erasing and writing the other■64 Kbit SRAM■PLD with macrocells–Over 3000 gates of PLD: CPLD and DPLD–CPLD with 16 output macrocells (OMCs) and 24 input macrocells (IMCs)–DPLD - user defined internal chip select decoding■7 L/O ports with 52 I/O pins–52 individually configurable I/O port pins that can be used for the following functions:–MCU I/Os–PLD I/Os–Latched MCU address output–Special function l/Os–l/O ports may be configured as open-drain outputs■In-system programming (ISP) with JTAG–Built-in JTAG compliant serial port allows full-chip In-System Programmability–Efficient manufacturing allow easy product testing and programmingUse low cost FlashLINK cable with PC■Page register–Internal page register that can be used to expand the microcontroller address space by a factor of 256–Programmable power management●High endurance–100,000 Erase/write c ycles of Flash memory–1,000 Erase/WRITE Cycles of PLD–15 Year Data Retention■Single supply voltage–5V ±10%■Memory speed–70ns Flash memory and SRAM access time■Packages are ECOPACK®

2SK2109资料

2SK2109资料

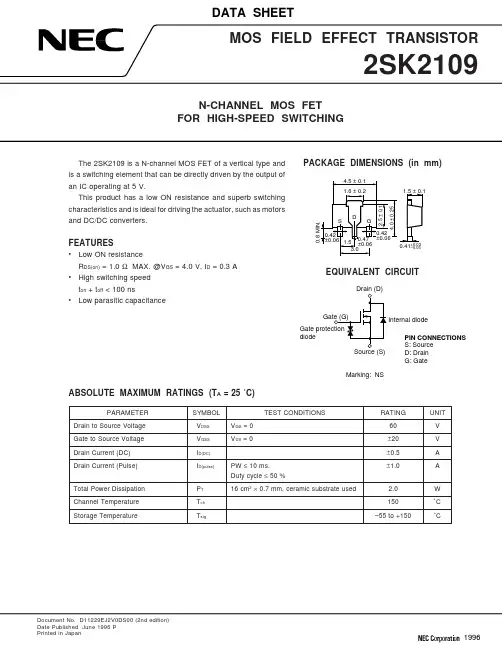

1996DATA SHEET

MOS FIELD EFFECT TRANSISTOR

2SK2109

N-CHANNEL MOS FETFOR HIGH-SPEED SWITCHING

PACKAGE DIMENSIONS (in mm)

1.5 ± 0.1

0.41+0.03–0.050.8 MIN.0.42±0.061.53.00.47±0.060.42 ±0.062.5 ± 0.1

4.0 ± 0.254.5 ± 0.11.6 ± 0.2

SDG

EQUIVALENT CIRCUIT

Source (S)Internal diodeGate protectiondiodeGate (G)Drain (D)

PIN CONNECTIONSS: Source D: DrainG: GateMarking: NSThe 2SK2109 is a N-channel MOS FET of a vertical type andis a switching element that can be directly driven by the output ofan IC operating at 5 V.This product has a low ON resistance and superb switchingcharacteristics and is ideal for driving the actuator, such as motorsand DC/DC converters.

FEATURES•Low ON resistanceRDS(on) = 1.0 Ω MAX. @VGS = 4.0 V, ID = 0.3 A•High switching speedton + toff < 100 ns•Low parasitic capacitance

Document No. D11229EJ2V0DS00 (2nd edition)Date Published June 1996 PPrinted in JapanABSOLUTE MAXIMUM RATINGS (TA = 25 ˚C)
