Large Can Aluminum Electrolytic CapacitorsFEATURES• LONG LIFE (105°C, 2000 HOURS)• LOW PROFILE AND HIGH DENSITY DESIGN OPTIONS • EXPANDED CV VALUE RANGE• HIGH RIPPLE CURRENT• CAN-TOP SAFETY VENT • DESIGNED AS INPUT FILTER OF SMPS• STANDARD 10mm (.400") SNAP-IN SPACING NRLMW SeriesSPECIFICATIONSNotice for MountingThe space from the top of the can shall be more than (3mm) from chassis or other construction materials so that safety vent has room to expand in case of emer g en c y.Sleeve Color: Dark BlueCan Top Safety VentInsulation Sleeve and Minus Polarity Marking(4.0mm Leads Available As Option)D+1Max.L ± 26.3 ± 10.810(-)(+)MAXIMUM EX P AN S IONFOR SAFETY VENT Approx. 3.0mmRecommended PC Board Mounting Holes:10 ± .1∅= 2 ± 0.1D ∅ ± 0.5ChassisPC BoardPRECAUTIONSPlease review the notes on correct use, safety and precautions found on pages T10 & T11of NIC’s Electrolytic Capacitor catalog . Operating Temperature Range-40 ~ +105°C -25 ~ +105°C Rated Voltage Range 10 ~ 250Vdc 450Vdc Rated Capacitance Range 180 ~ 68,000µF 56 ~ 470µF Capacitance Tolerance ±20% (M) at 120Hz, +20°CMax. Leakage Current (µA)After 5 minutes (20°C)3 x C(µF)VMax. Tan δat 120Hz/20°CW.V. (Vdc)10162535506380100 ~ 400450Tan δ max.0.550.450.350.300.250.200.170.150.20Surge VoltageW.V. (Vdc)10162535506380100160S.V. (Vdc)132032446379100125200W.V. (Vdc)180200250400450----S.V. (Vdc)220250300450500----Ripple Current Correction Factors Frequency (Hz)50601001205001K 10K ~ 50K --Multiplier at 85°C16 ~ 100Vdc0.930.950.99 1.0 1.05 1.08 1.15--160 ~ 450Vdc0.750.800.95 1.0 1.20 1.25 1.40-Low Temperature Stability (10 to 250Vdc)Temperature (°C)0-25-40------Capacitance Change -5%-10-30%------Impedance Ratio 1.539------Load Life Test 2,000 hours at +105°C Capacitance ChangeWithin ±20% of initial measured valueTan δLess than 200% of specifi ed maximum valueLeakage Current Less than specifi ed maximum value Shelf Life Test 1,000 hours at +105°C(no load)Capacitance ChangeWithin ±20% of initial measured value Tan δLess than 200% of specifi ed maximum valueLeakage Current Less than specifi ed maximum value Surge Voltage TestPer JIS-C-5141 (table #6, #4)Surge voltage applied: 30 seconds "On" and 5.5 minutes no voltage "Off"Capacitance ChangeWithin ±20% of initial measured value Tan δLess than 200% of specifi ed maximum valueLeakage Current Less than specifi ed maximum value Soldering EffectRefer toMIL-STD-202F Method 210ACapacitance ChangeWithin ±10% of initial measured valueTan δLess than specifi ed maximum value Leakage CurrentLess than specifi ed maximum valueRoHSCompliantincludes all homogeneous materials *See Part Number System for DetailsLarge Can Aluminum Electrolytic Capacitors NRLMW SeriesLarge Can Aluminum Electrolytic CapacitorsNRLMW SeriesNRLMW 471 M 250V 30X35 FRoHS compliant Case Size (mm) Voltage Rating Tolerance Code Capacitance Code SeriesPART NUMBER SYSTEM。

Large Can Aluminum Electrolytic CapacitorsFEATURES• NEW SIZES FOR LOW PROFILE AND HIGH DENSITY DESIGN OPTIONS • EXPANDED CV VALUE RANGE• HIGH RIPPLE CURRENT• LONG LIFE • CAN-TOP SAFETY VENT• DESIGNED AS INPUT FILTER OF SMPS • STANDARD 10mm (.400") SNAP-IN SPACING NRLM SeriesSPECIFICATIONS(* 47,000µF add 0.14, 68,000µF add 0.35.)Notice for MountingThe space from the top of the can shall be more than (3mm) from chassis or other construction materials so that safety vent has room to expand in case of emer g en c y.Sleeve Color: DarkBlueCan Top Safety VentInsulation Sleeve and Minus Polarity Marking(4.0mm Leads Available As Option)D+1Max.L ± 26.3 ± 10.810(-)(+)MAXIMUM EX P AN S IONFOR SAFETY VENT Approx. 3.0mmRecommended PC Board Mounting Holes:10 ± .1∅= 2 ± 0.1D ∅ ± 0.5ChassisPC BoardPRECAUTIONSPlease review the notes on correct use, safety and precautions found on pages T10 & T11of NIC’s Electrolytic Capacitor catalog . Operating Temperature Range-40 ~ +85°C-25 ~ +85°C Rated Voltage Range 16 ~ 250Vdc 350 ~ 450Vdc Rated Capacitance Range 180 ~ 68,000µF56 ~ 680µFCapacitance Tolerance ±20% (M)Max. Leakage Current (µA)After 5 minutes (20°C)3 x C(µF)VMax. Tan δat 120Hz/20°C W.V. (Vdc)162535506380100160~450Tan δ max.0.50*0.40*0.350.300.250.200.200.15Surge VoltageW.V. (Vdc)162535506380100160S.V. (Vdc)2032446379100125200W.V. (Vdc)180200250350400450--S.V. (Vdc)220250300400450500--Ripple CurrentCorrection Factors Frequency (Hz)50601001205001K 10K ~ 50K -Multiplier at 85°C0.750.800.95 1.00 1.05 1.08 1.15-Low TemperatureStability (10 to 250Vdc)Temperature (°C)0-25-40-----Capacitance Change-5%-15%-30%-----Impedance Ratio 1.539-----Load Life Test2,000 hours at +85°CCapacitance ChangeWithin ±20% of initial measured value Tan δLess than 200% of specifi ed maximum valueLeakage Current Less than specifi ed maximum value Shelf Life Test1,000 hours at +85°C (no load)Capacitance Change Within ±20% of initial measured value Tan δLess than 200% of specifi ed maximum valueLeakage Current Less than specifi ed maximum value Surge Voltage Test Per JIS-C-5141 (table #6, #4)Surge voltage applied: 30 seconds"On" and 5.5 minutes no voltage "Off"Capacitance Change Within ±20% of initial measured value Tan δLess than 200% of specifi ed maximum valueLeakage Current Less than specifi ed maximum value Soldering EffectRefer to MIL-STD-202F Method 210A Capacitance Change Within ±10% of initial measured valueTan δLess than specifi ed maximum value Leakage CurrentLess than specifi ed maximum valueRoHS Compliantincludes all homogeneous materials*See Part Number System for DetailsLarge Can Aluminum Electrolytic CapacitorsNRLM SeriesNRLM 222 M 50V 20X25 FRoHS compliant Case Size (mm) Voltage Rating Tolerance Code PART NUMBER SYSTEMLarge Can Aluminum Electrolytic Capacitors NRLM Series STANDARD PRODUCT LIST, CASE SIZE AND SPECIFICATIONS。

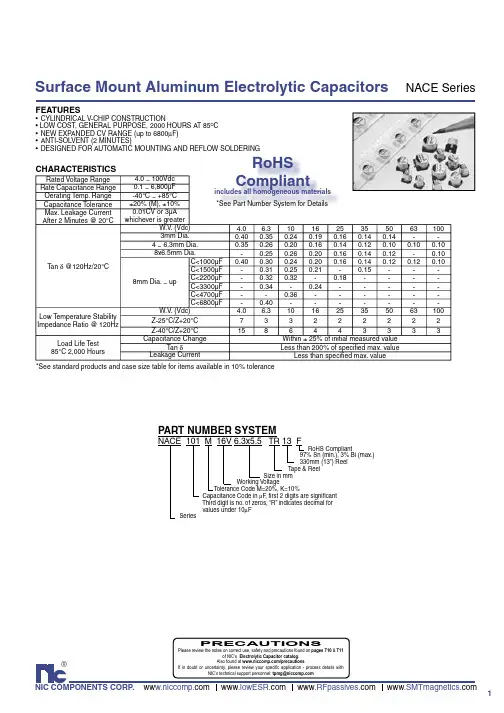

1®NIC COMPONENTS CORP. ww www www www Surface Mount Aluminum Electrolytic CapacitorsNACE SeriesFEATURES•CYLINDRICAL V-CHIP CONSTRUCTION• LOW COST, GENERAL PURPOSE, 2000 HOURS AT 85O C •NEW EXP ANDED CV RANGE (up to 6800µF)•ANTI-SOLVENT (2 MINUTES)•DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERINGCHARACTERISTICS*See standard products and case size table for items available in 10% toleranceRated Voltage Range 4.0 ~ 100Vdc Rate Capacitance Range 0.1 ~ 6,800µFOerating Temp. Range -40°C ~ +85°CCapacitance Tolerance ±20% (M), ±10%Max. Leakage Current After 2 Minutes @ 20°C0.01CV or 3µA whichever is greaterTan δ @120Hz/20°C W.V . (Vdc) 4.0 6.31016253550631003mm Dia.0.400.350.240.190.160.140.14--4 ~ 6.3mm Dia.0.350.260.200.160.140.120.100.100.108x6.5mm Dia.-0.250.260.200.160.140.12-0.108mm Dia. ~ upC<1000µF 0.400.300.240.200.160.140.120.120.10C<1500µF -0.310.250.21-0.15---C<2200µF -0.320.32-0.18----C<3300µF -0.34-0.24-----C<4700µF --0.36------C<6800µF -0.40-------Low Temperature StabilityImpedance Ratio @ 120HzW.V . (Vdc) 4.0 6.3101625355063100Z-25°C/Z+20°C 733222222Z-40°C/Z+20°C 1586443333Load Life Test85°C 2,000 HoursCapacitance Change Within ± 25% of initial measured valueTan δLess than 200% of specifi ed max. valueLeakage Current Less than specifi ed max. value NACE 101 M 16V 6.3x5.5 TR 13 FRoHS Compliant97% Sn (min.), 3% Bi (max.) 330mm (13”) Reel Tape & Reel Size in mm Working VoltageTolerance Code M=20%, K=10% Capacitance Code in µF , fi rst 2 digits are signifi cant Third digit is no. of zeros, “R” indicates decimal for values under 10µF SeriesPART NUMBER SYSTEMRoHSCompliantincludes all homogeneous materials *See Part Number System for Details PRECAUTIONSPlease review the notes on correct use, safety and precautions found on pages T10 & T11of NIC’s Electrolytic Capacitor catalog . Also found at /precautionsIf in doubt or uncertainty, please review your specifi c application - process details withNIC’s technical support personnel: tpmg@2MAXIMUM RIPPLE CURRENT O MAXIMUM ESRO Surface Mount Aluminum Electrolytic CapacitorsNACE SeriesSTANDARD PRODUCT AND CASE SIZE TABLE DφxL (mm)*Items available in optional 10% toleranceSurface Mount Aluminum Electrolytic Capacitors NACE Series+ -3。

1®NIC COMPONENTS CORP. ww www www www Surface Mount Aluminum Electrolytic CapacitorsNACE SeriesFEATURES•CYLINDRICAL V-CHIP CONSTRUCTION• LOW COST, GENERAL PURPOSE, 2000 HOURS AT 85O C •NEW EXP ANDED CV RANGE (up to 6800µF)•ANTI-SOLVENT (2 MINUTES)•DESIGNED FOR AUTOMATIC MOUNTING AND REFLOW SOLDERINGCHARACTERISTICS*See standard products and case size table for items available in 10% toleranceRated Voltage Range 4.0 ~ 100Vdc Rate Capacitance Range 0.1 ~ 6,800µFOerating Temp. Range -40°C ~ +85°CCapacitance Tolerance ±20% (M), ±10%Max. Leakage Current After 2 Minutes @ 20°C0.01CV or 3µA whichever is greaterTan δ @120Hz/20°C W.V . (Vdc) 4.0 6.31016253550631003mm Dia.0.400.350.240.190.160.140.14--4 ~ 6.3mm Dia.0.350.260.200.160.140.120.100.100.108x6.5mm Dia.-0.250.260.200.160.140.12-0.108mm Dia. ~ upC<1000µF 0.400.300.240.200.160.140.120.120.10C<1500µF -0.310.250.21-0.15---C<2200µF -0.320.32-0.18----C<3300µF -0.34-0.24-----C<4700µF --0.36------C<6800µF -0.40-------Low Temperature StabilityImpedance Ratio @ 120HzW.V . (Vdc) 4.0 6.3101625355063100Z-25°C/Z+20°C 733222222Z-40°C/Z+20°C 1586443333Load Life Test85°C 2,000 HoursCapacitance Change Within ± 25% of initial measured valueTan δLess than 200% of specifi ed max. valueLeakage Current Less than specifi ed max. value NACE 101 M 16V 6.3x5.5 TR 13 FRoHS Compliant97% Sn (min.), 3% Bi (max.) 330mm (13”) Reel Tape & Reel Size in mm Working VoltageTolerance Code M=20%, K=10% Capacitance Code in µF , fi rst 2 digits are signifi cant Third digit is no. of zeros, “R” indicates decimal for values under 10µF SeriesPART NUMBER SYSTEMRoHSCompliantincludes all homogeneous materials *See Part Number System for Details PRECAUTIONSPlease review the notes on correct use, safety and precautions found on pages T10 & T11of NIC’s Electrolytic Capacitor catalog . Also found at /precautionsIf in doubt or uncertainty, please review your specifi c application - process details withNIC’s technical support personnel: tpmg@2MAXIMUM RIPPLE CURRENT O MAXIMUM ESRO Surface Mount Aluminum Electrolytic CapacitorsNACE SeriesSTANDARD PRODUCT AND CASE SIZE TABLE DφxL (mm)*Items available in optional 10% toleranceSurface Mount Aluminum Electrolytic Capacitors NACE Series+ -3。
