H3CAP1208E配置流程及说明为配合无线宽带网络施工建设，特制定此数据制作流程（或模板）。

本次我省选用的设备为H3C的AP，型号为WA1208E。

该AP是Fat AP，相对于Fit AP，Fat AP将WLAN的物理层、用户数据加密、用户认证、QoS、网络管理、漫游技术以及其他应用层的功能集于一身，因此为了集中管理所有AP，需要对AP进行数据配置，而不能直接安装。

流程中涉及的AP命名规则、VLAN划分、SSID标识、IAPP密钥、SNMP团体、SNMP告警以及SNMP日志IP地址名必须按省公司统一规定执行。

具体说明如下：一、组网图如图所示，AP通过二层交换机连接到BAS，再通过城域网连接到网管平台及Portal平台。

网管平台二、具体步骤根据AP的组网情况，保证AP设备本身的可管理性及安全性，需要对AP的名称、VLAN、SSID、接口等进行配置，具体内容如下：1．登陆AP【说明】配置AP分为字符界面和图形界面两种，字符界面可以有Telnet和Console 口两种方式登陆AP，图形界面通过Web页面登陆AP。

【字符界面登陆步骤】（1） Console口登陆方式用随AP提供的Console电缆将电脑的串口与AP的Console口连接，并在电脑中打开超级终端，并连接到串口，连接的参数如下图：（2） Telnet登陆方式将电脑IP设置成与AP默认IP（192.168.0.50）再同一网段，比如192.168.0.11。

在运行窗口输入telnet 192.168.0.50，出现登陆界面如下：输入用户名admin，密码wa1208后进入（密码注意大小写），出现下面的界面：此时输入system-view进入系统视图，即可开始配置。

【图形界面登陆步骤】（1）将电脑IP设置成与AP默认IP（192.168.0.50）再同一网段，比如192.168.0.11：（2）在浏览器中打开http://192.168.0.50，出现登陆界面如下：（3）输入用户名admin，密码wa1208后进入（密码注意大小写），出现下面的界面：2．还原初始状态如果AP已经创建过其它SSID或管理VLAN可在TELNET或超级终端中执行以下命令AP重启后将还原到出厂状态3．导入配置文件（1）交换机数据配置数据维护人员在交换机上为AP配置VLAN15（管理）、VLAN1001～1050（业务）。

Quick Start GuideHUAWEI TECHNOLOGIES CO., LTD.Huawei Technologies Co., Ltd.Address: Administration Building,Huawei Technologies Co.,Ltd.,Bantian,Longgang District,Shenzhen,People’s Republic of China Postcode: 518129Website: Email:******************Copyright © Huawei Technologies Co., Ltd. 2012. All rights reserved.No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd.Trademarks and Permissionsand other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.All other trademarks and trade names mentioned in this document are the property of their respective holders.NoticeThe purchased products, services and features are stipulated by the contract made between Huawei and the customer. All orpart of the products, services and features described in this document may not be within the purchase scope or the usagescope. Unless otherwise specified in the contract, all statements, information, and recommendations in this document are provided "AS IS" without warranties, guarantees or representations of any kind, either express or implied.The information in this document is subject to change without notice. Every effort has been made in the preparationof this document to ensure accuracy of the contents, but all statements, information, and recommendations in this document do not constitute the warranty of any kind, express or implied.Symbol ConventionsThe symbols that may be found in this document are defined as follows.Change HistoryChanges between document issues are cumulative. Therefore，the latest document issue contains all theChanges in previous issues.Change in Issue 01 (2012-05-30)Initial commercial release.Installation tools:Phillips screwdriver Hammer Combination pliers MakerFlat-head screwdriver Diagonal pliersAdjustablewrench Utility knifeESDgloves COAX crimping tool Measuring tapeWire stripper Cable cutter RJ45 Crimping tool Multimeter Level Vacuum cleaner Networkcable testerInstallationsuiteExpansion boltM4X12 hexagonsocket head cap HoopHammer drill Hex keyDevice OverviewPacking ListUnpack the equipment. Ensure that all items listed in the package list are included in the shipment. If any item is missing,Ports and indicators 5G antenna port 672.4G antenna portConnected to the feeder Connected to the feederItemDescriptionSN12345ItemDescriptionSN66776mm drill bitInstalling an AP● Select an appropriate installation position and leave space above and around the device for cooling air circulation.● Outdoors APs are used for hotspot coverage and often installed against walls or poles. The pole diameter is 30 to 114 mm.AP6510DN dimensions (unit: mm) without a backplane supportRecommended AP6510DN installation space (unit: mm)●Installing the AP6510DN against a Wall:Hexagon socket head cap screw1. Fix the wall-mounting bracket to the wall, adjust theinstallation position, and use the marker, level, and measuring tape to mark the drilling positions where expansion bolts are installed.2. Use #8 drill bit to drill 35–40 mm deep holes in the drilling positions and install expansion bolts. Screw the nut into the expansion tube, hammer the expansion bolt into a hole until the flat washer is flattened against the wall, and remove the nuts, spring washer, and flat washer in order.Flat washerSpring washerNuts3. Use four M4*14 hexagon socket head cap screws to fasten the wall-mounting bracket to the AP.4. Pinch the wall-mounting bracket on the expansion bolts, and fasten the Flat washer, spring washer, and nuts in order.5. Slide the AP into the wall-mounting bracket to complete installation.64mm37m m● Installing the AP6510DN against a vertical pole:NOTELock holeSecurity lock1. Determine the AP installation position, slide the hoopthrough the hole of the wall-mounting bracket and attach it to the pole, And use the screwdriver to secure screws on the hoop.2. Slide the AP that has the connector fastened into the wall- mounting bracket.● The procedure for installing the AP6510DN against a horizontal pole is similar to the procedure for installing the AP6510DN against a vertical pole.● Installing the Security LockTo prevent unauthorized personnel from moving the AP, lock the AP. The preceding figure shows the security lock. The carrier should purchase the security lock and determine the position for installing the security lock.● AP6510DN external cable arrangement drawing3. Put the network cable through the hole on the waterproof PG connector.4. Connect the RJ45 connector to the AP and secure the waterproof PG connector, as shown in figures b, c, and d.abcdEnsure that the RJ45 connector is correctly connected to the AP. Otherwise, the network cable may be damaged. Before removing the network cable, remove the waterproof PG connector, and then remove the RJ45 connector from the AP.● Connecting network cables1. Use a shield straight-through cable. Cut the cable of proper length based on the distance between the AP and the PSE device, peel the insulation on both ends of the network cable, and crimp the wires to RJ45 connectors.2. Make a network cable onsite according to the following pin assignment. Otherwise, the communication quality is affected even if devices can be connected.X1 Pin 12345678X2 Pin 12345678Wire Color White and orange OrangeWhite and greenBlue White and blueGreen White and brown BrownFeed lineGround cableNetwork cableFeed lineFeed lineFeed line● Connecting the feed line1. The outdoor AP's antenna ports already have 5 KA surge protection capability. Generally, no surge protection devices need to be installed; therefore, the antenna cables are directly connected to the AP's antenna ports.2. If higher surge protection capability is required, the customer can purchase a surge protection device. When installing thesurge protection device, ensure that it is connected to a ground cable.Waterproof adhesive tapeGround cableNOTESurgeprotection devicebWaterproof adhesive tapeFeed lineFeed linePVC black insulation tape.● Stretch the waterproof adhesive tape evenly and ensure that the upper layer of the tap overlaps 1/2 of the lower layer. Each layer should be attached tightly.● Wrap the three-layer waterproof adhesive tape from bottom to up, from up to bottom, and from bottom to up in order.Connecting the groundbar● Connecting the ground cable● Cut the cable of proper length, and select 6-M4 OT terminal for the AP and 6-M6 OT terminal for the ground bar.Keep the screw properly and install it again after pressing the Reset button.● Pressing the Reset ButtonThe Reset button on an outdoor AP is protected by a waterproof screw. Before pressing the Reset button, remove the waterproof screw.● Requirements for Laying Out Cables● Requirements for laying out power cables1. The power cable must be separated from ground cables and signal cables.2. If multiple power cables are installed, you must bind the power cables.3. The routing of power cables must meet engineering design drawing requirements.4. If the power cable length is insufficient, replace the power cable. The power cable must be complete and cannothave splices or welding points.● Requirements for laying out ground cables1. All ground cables must be connected to a ground bar.2. The ground cable cannot be led in aerially, but buried in the earth or arranged indoor.3. Both ends of the external conductor of the coaxial cable and those of the insulation of the shielded cable shouldhave good electric contact with the metal shell of the equipment they connect to.4. Ground cables must be separated from signal cables to reduce interference between them.5. Do not add any switch or fuse on the ground cable.6. Do not use another device for an electrical connection with the ground cable.7. All metal components in the shell must be securely connected to the ground cable.● Requirements for laying out optical fibers1. Do not press optical fibers forcibly or crush optical fibers with force. Leave sharp objects away from optical fibersto prevent damage to optical fibers.2. Coil up redundant optical fibers round specialize devices such as the splice tray.3. Coil optical fibers gently and do not break them.4. Cover optical fiber connectors with protective caps.Power-onTechnical SpecificationsPower on the AP6510DN and check the indicator status to determine the systemrunning status.NOTELogging In to the RouterAfter an AP is powered on, you can log in to the AP using the following methods.1. Logging In to the AP Using TelnetThis section describes how to log in to the AP using Telnet. After logging in to the AP, you can configure the AP using commands.1. Logging In to the AP Using TelnetThis section describes how to log in to the AP using Telnet. After logging in to the AP, you can configure the AP usingCommands.ProcedureStep 1Connect a PC to the uplink port of the AP with a network cable. Figure 1-1 shows the location of the AP's uplink port.Figure 1-1Location of the AP's uplink port1 Array Step2 Configure a static IP address for the PC. The IP address must be on the network segment 192.168.0.1/24 (The IP address should not be same as the AP's default IP address 192.168.0.1.) and the subnet mask is 255.255.255.0.After the configuration is complete, run the ping 192.168.0.1 command on the PC to check whether the PC can be pinged. If the ping operation succeeds, the connection is set up successfully. If the ping operation fails, The connection fails to be set up. Check whether the network cable works properly.Step 3 Access the command line window on the PC. For example, if the PC runs Windows XP, choose Start > Run And enter cmd in the displayed dialog box.Step 4 Run the telnet 192.168.0.1 command to log in to the AP.Step 5 Enter the default user name and password admin. If the user view is displayed, you have logged inSuccessfully.When you log in for the first time, the following page is displayed:Username: superPassword:Enterprise AP:----EndWLAN services parameters of an AP are configured on the AC that is connected To the AP, and then delivered to the AP. The following parameters are configured on the AP through Telnet.1. Configuring the AP Access ModeThis section describes how to configure the mode in which an AP goes online.2. Configuring VLANs on Wired Interfaces of an APThis section describes how to configure VLANs on wired interfaces of an AP.3. Configuring WDSThis section describes how to configure WDS parameters on an AP.1 Configuring the AP Access ModeThis section describes how to configure the mode in which an AP goes online.●AP Access ModesAfter an AP starts, going online management module determines the mode in which the AP goes online. Users areunaware of the AP access mode. In the AP startup phase, the AP obtains the its IP address, the gateway IP address, and the AC IP address based on the access mode. After obtaining all the information, the AP sets up a Control And Provisioning of Wireless Access Point (CAPWAP) link with the AC. The process is as follows:1. The AP reads the configuration file and determines the mode to go online.2. If the DHCP mode is used, the AP starts the DHCP process.3. If the static mode is used, the AP starts the AC discovery process based on the static configuration, andestablishes a control tunnel with the discovered AC.4. If the PPPoE mode is used, the AP initiates the PPPoE dial-up process. After obtaining the management IPaddress and gateway address, the AP uses the statically configured AC IP address to discover the AC, andestablishes a control tunnel with the AC.By default, AP's go online in DHCP mode.●Configuring the Mode for an AP to Go Online● Configuring the AP to go online in DHCP mode1. Use Telnet to log in to the AP from a PC.login: adminPassword: //The default password is admin.~ #2. Configure the AP to go online in DHCP mode.~ # cliEnterprise AP# configure interface ethernet // Enter the AP interface view.Enter Ethernet configuration commands, one per line.Enterprise AP (if-ethernet) # ip mode dhcp // Set the mode in which the AP goes online.Please reboot the AP, configuration will take effectEnterprise AP (if-ethernet) #3. Restart the AP to make the configuration take effect.~ # reboot●Configuring the AP to go online using a static IP address1. Use Telnet to log in to the AP from a PC.login: adminPassword: //The default password is admin.~ #2. Configure the AP to go online using a static IP address. The configuration items are the IP address of an AC that is connected to the AP, the AP's IP address (mandatory), the mask address (mandatory), and the gatewayaddress (not required when in Layer 2 networking).~ # cliEnterprise AP# configure interface ethernet // Enter the AP interface view.Enter Ethernet configuration commands, one per line.Enterprise AP (if-ethernet) # ip mode static // Set the mode in which the AP goes online.Enterprise AP (if-ethernet) # ac iplist 1.1.1.1 // Configure the IP address of an AC that is connected to the AP.Enterprise AP (if-ethernet) # ip address 192.168.60.2 255.255.255.0 192.168.60.1 // Configure the IPaddress of the AP.Please reboot the AP, configuration will take effectEnterprise AP (if-ethernet) #3. Restart the AP to make the configuration take effect.~ # reboot● Configuring the AP to go online in PPPoE mode 1. Use Telnet to log in to the AP from a PC. login: adminPassword: // The default password is admin. ~ #2. Configure the AP to go online in PPPoE mode. ~ # cliEnterprise AP# configure interface ethernet // Enter the AP interface view. Enter Ethernet configuration commands, one per line.Enterprise AP (if-ethernet) # ip mode pppoe // Set the mode in which the AP goes online. Please reboot the AP, configuration will take effect Enterprise AP (if-ethernet) #3. Configure a user name and password for going online in PPPoE mode. By default, the user name and password are both wlan@huawei and the password type is simple.Enterprise AP(if-ethernet) # user admin password simple admin //Set the user name and password to admin. 4. Restart the AP to make the configuration take effect. ~ # reboot● After the configuration is complete, run the reboot command to restart the AP.● After the configuration is complete, run the show sysinfo command to check the configuration. Enterprise AP(if-ethernet) # show sysinfo ap_ipmode=pppoe ap_ipaddr= ap_ipversion=4 ap_netmask= ap_gateway= ac_ip1= ac_ip2= ac_ip3= ac_ip4=pppoe_username=wlan@huawei pppoe_pwd_type=simple pppoe_password=wlan@huawei1. Use Telnet to log in to the AP from a PC. login: adminPassword: //The default password is admin. ~ #2. Configure VLANs and PVID on the wired interface. ~ # cliEnterprise AP# configure interface ethernet // Enter the AP interface view. Enter Ethernet configuration commands, one per line.Enterprise AP (if-ethernet) # ether-port 0 [1-4095] [tag/untag] // Configure the VLANs allowed by the wired interface.Enterprise AP (if-ethernet) # ether-port 0 pvid [1-4095] //Configure the PVID of the wired interface.NOTE2. Configuring VLANs on Wired Interfaces of an APThis section describes how to configure VLANs on wired interfaces of an AP.● Introduction to the Wired InterfacesA wired interface on an AP is connected to an AC or a switch. When the AP assigns service VLANs to packets, you can configure VLANs on wired interfaces of the AP. ●Configuring VLANs on a Wired Interface● Enabling/Disabling the radio indicator that indicates the signal strength of the last hop bridge.By default, the radio indicator is enabled on an AP6510DN.1. Use Telnet to log in to the AP from a PC. login: adminPassword: // The default password is admin. ~ #2. Enabling/Disabling the AP's radio indicatorEnterprise AP (config) # configure interface wireless 0 (1) // Enter the 2.4G 5G interface view. Enter Wireless configuration commands, one per line.Enterprise AP (if-wireless 0(1)) # wds led flag 0 (1) // Enable/Disable the AP's radio indicator. Please reboot the AP, configuration will take effect 3. Restart the AP to make the configuration take effect. ~ # reboot3. Configuring WDSThis section describes how to configure WDS parameters on an AP.● Introduction to WDSWDS enables multiple AP6510DNs to establish wireless links to connect two or more wired or wireless LANs. WDS-enabled AP6510DNs can switch data packets between the LANs. WDS facilitates network deployment, and device installation, and allows flexible networking.● Configuring WDSMost WDS parameters are configured on the AC. For details, see the AC configuration guides. On an AP, you can enable or disable the radio indicator that indicates the signal strength of the last hop bridge, and configure the WDS keys.After the configuration is complete, run the reboot command to restart the AP.● Configure the WDS key.1. Use Telnet to log in to the AP from a PC.login: adminPassword: // The default password is admin. ~ #2. Configure the WDS key.Enterprise AP (config) # configure interface wireless 0 // Enter the 2.4G 5G interface view. Enter Wireless configuration commands, one per line.Enterprise AP (if-wireless 0(1)) # wds psk 0 (1) 111111 // Set the key type to hex (parse) and the key to 111111.3. Restart the AP to make the configuration take effect. ~ # rebootBy default, the radio indicator is enabled on an AP6510DN.O: Indicates that the concentration of the hazardous substance contained in all the homogeneous materials of this part is below the limit requirement of the SJ/T 11363-2006 standard.X: Indicates that the Concentration of the hazardous substance contained in all the homogeneous materials of this part is above the limit requirement.Declaration on Hazardous Substances in Electronic Information ProductsQUALIFICATION CARDWarranty CardPreserve well. No reissues Seal: Limited Warranty“Products”) to be free from defects in materials and workmanship under normal consumer usage for one ，a Huawei authorized ，Huawei shall charge for the Your NameAddress/Postal Code Telephone Product TypeProduct Serial Number Purchase Date Invoice Number Dealer NameDealer´s Address/TelephoneHuawei Industrial Base, Bantian, Longgang,Shenzhen 518129, People's Republic of ChinaHuawei Technologies Co., Ltd.HUAWEI TECHNOLOGIES CO., LTD.Huawei Industrial BaseBantian, LonggangShenzhen 518129People's Republic of ChinaPart Number: 31505366 Issue: 01。

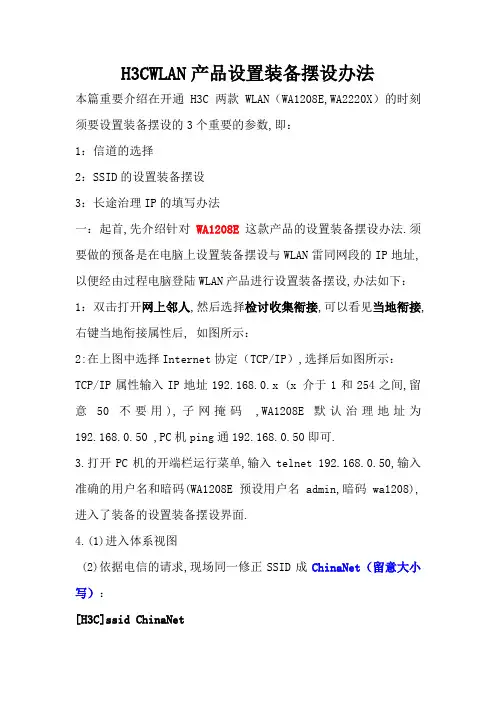

H3CWLAN产品设置装备摆设办法本篇重要介绍在开通H3C两款WLAN（WA1208E,WA2220X）的时刻须要设置装备摆设的3个重要的参数,即：1：信道的选择2：SSID的设置装备摆设3：长途治理IP的填写办法一：起首,先介绍针对WA1208E这款产品的设置装备摆设办法.须要做的预备是在电脑上设置装备摆设与WLAN雷同网段的IP地址,以便经由过程电脑登陆WLAN产品进行设置装备摆设,办法如下：1：双击打开网上邻人,然后选择检讨收集衔接,可以看见当地衔接,右键当地衔接属性后, 如图所示：2:在上图中选择Internet协定（TCP/IP）,选择后如图所示：TCP/IP属性输入IP地址192.168.0.x (x 介于1和254之间,留意50不要用),子网掩码,WA1208E默认治理地址为192.168.0.50 ,PC机ping通192.168.0.50即可.3.打开PC机的开端栏运行菜单,输入telnet 192.168.0.50,输入准确的用户名和暗码(WA1208E预设用户名admin,暗码wa1208),进入了装备的设置装备摆设界面.4.(1)进入体系视图(2)依据电信的请求,现场同一修正SSID成ChinaNet（留意大小写）：[H3C]ssid ChinaNet[H3C-ssid-ChinaNet]bind domain system[H3C-ssid-ChinaNet]quit[H3C]interface Wireless-access 2/1[H3C-Wireless-access2/1]undo bind ssid wa1208e //去除体系默认的SSID[H3C-Wireless-access2/1]bind ssid ChinaNet[H3C-Wireless-access2/1]quit(3)设置装备摆设信道,留意：相邻的AP之间须要用不合的信道离隔.例如：以11g为例,将工作信道转变到2号信道上[H3C]radio module 2[H3C-radio-module2]channel 2[H3C-radio-module2]quit[H3C](4)长途治理：[H3C]snmp-agent[H3C]snmp-agent community read public[H3C]snmp-agent community write private[H3C]snmp-agent sys-info version all //以上为设置装备摆设SNMP参数,若无网管可不设置[H3C]ip route-static 0.0.0.0 0 //给AP添加用于长途治理的默认路由.[H3C]interface VLAN 1[H3C-int-VLAN1]ip address X.X.X.X Y.Y.Y.Y //X.X.X.X为欲修正的治理IP地址,Y.Y.Y.Y为对应子网掩码.履行完该敕令后,消失提醒时,键入“y”即可留意：以上设置装备摆设不要更改次序.5.完成上述设置装备摆设后,因为可能修正了AP的治理地址,会消失PC与AP衔接中止.修正PC的IP地址与AP新治理地址同一网段后,再次telnet登陆AP：保管设置装备摆设：<H3C>save //用户视图,若为[H3C],则键入quit即可退回该模式.消失提醒时,键入“y”即可.以上为敕令行方法(CLI)治理WA1208E,我们建议用这种方法治理.若愿望用WEB方法完成相干设置装备摆设,请参考《WA1208E操纵手册》,可以在H3C主页上搜刮可得二：下面介绍H3C WA2220X这款产品现场开通时刻的设置办法,须要经由过程Console口方法登录装备：1.(1)进入体系视图(2)设置装备摆设治理IP地址[H3C] interface vlan 1[H3C-Vlan-interface1] ip address X..X Y.Y.Y.Y为欲修正的治理IP地址为对应子网掩码.[H3C-Vlan-interface1] quit[H3C]ip route-static 0.0.0.0 0 C.C.C.C //给AP添加用于长途治理的默认路由.(3)创建无线接口[H3C] interface WLAN-BSS 1[H3C-WLAN-BSS1]quit(4)创建无线办事模板（SSID名称为ChinaNet）[H3C] wlan service-template 1 clear[H3C-wlan-st-1] authentication-method open-system [H3C-wlan-st-1] ssid ChinaNet[H3C-wlan-st-1] service-template enable(5)在11g射频卡上绑定无线办事模板和无线接口,设置装备摆设信道为11.功率为15dBm[H3C] interface WLAN-Radio 1/0/1[H3C-WLAN-Radio1/0/1]service-template 1 interfaceWLAN-BSS 1[H3C-WLAN-Radio1/0/1] radio-type 11g[H3C-WLAN-Radio1/0/1] channel 11[H3C-WLAN-Radio1/0/1] max-power 15 //可选设置装备摆设注：默认情形下,功率为20dBm（即100mW）;信道为主动调剂.(6)长途治理：[H3C]snmp-agent[H3C]snmp-agent community read public[H3C]snmp-agent community write private[H3C]snmp-agent sys-info version all //以上为设置装备摆设SNMP参数,若无网管可不设置(7)保管设置装备摆设：<H3C>save //用户视图,若为[H3C],则键入quit即可退回该模式.消失提醒时,键入“y”即可.以上为敕令行方法(CLI)治理WA2220X,我们建议用这种方法治理.若愿望用WEB方法完成相干设置装备摆设,请参考《WA2220X操纵手册》,可以在H3C主页上搜刮可得。
