BroadLink智能家居产品使用说明

基于 STM32 的智能插座设计【摘要】智能插座主要应用于智能家居的大平台中，不知道大家有没有羡慕一些发达国家拍摄的科幻电影的那种超智能，超人性化的大别墅以前或许只是想象，但智能插座的设计让梦想照进了现实，智能插座的成功研发和投入使用，完美的解决了千家万户用电隐患的问题，把火灾几率降到了最低。

本文介绍了关于智能插座的软硬件设计开发，红外控制插座的闭合，红外控制插座定时功能，温度警报功能的实现原理。

【关键词】stm32 红外线控制定时开关1 引言华夏五千年，从前的我们很难想象现如今的社会会被一张“无形的大网”网住。

这张网，网住了我们的吃的、喝的、用的、娱乐的等所有方面。

有一种很有趣的现象，无论你是学生党，上班族，还是家里蹲，好像都会接触到两样东西。

第一个就是用电插座；第二个就是容易让人上头的现代的一种用于高速计算的电子设备。

两者相结合，在人类发达的智慧改造下，智能插座孕育而生。

从起源来讲，它就是用那种电子设备做出来的插座。

智能插座主要应用于智能家居的大平台中，不知道大家有没有羡慕一些发达国家拍摄的科幻电影的那种超智能，超人性化的大别墅以前或许只是想象，但智能插座的设计让梦想照进了现实，智能插座的成功研发和投入使用，完美的解决了千家万户用电隐患的问题，把火灾几率降到了最低。

本文介绍了关于智能插座的软硬件设计开发，红外控制插座的闭合，红外控制插座定时功能，温度警报功能的实现原理。

文章所运用的是STM32F103C8T6的单片机系统，负载一个红外控制接收器和遥控器，用于遥控器远程控制整个智能插座系统。

一个1路5V版本兼容3.3V带光耦隔离的继电器模块，用于控制插座的开关。

一个DS18B20的测温模块，一个高电平触发的有源蜂鸣器模块，两个模块可以实现负载电器运行出现高温时，实现高温报警的功能。

2智能插座的目前处境以及发展现状在互联网没有发展的时代，按照国际标准，传统的插座可以分为多种类型，其中既包括民用、工业用的插座，也包括防水、电源插座，还包括移动式、固定式等类型的插座。

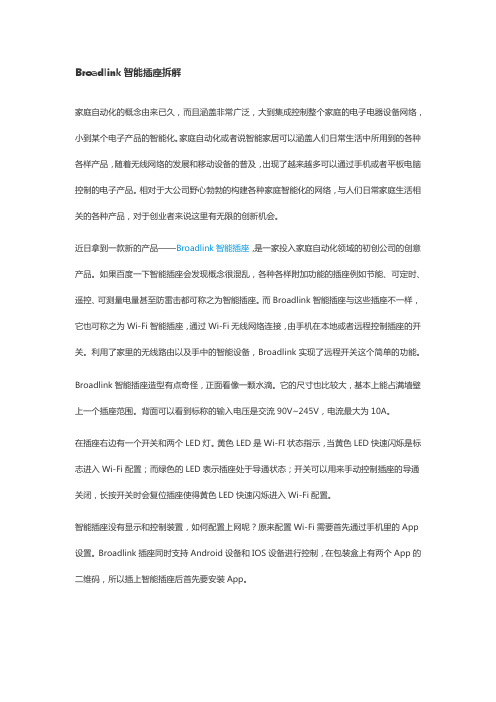

Broadlink智能插座拆解家庭自动化的概念由来已久，而且涵盖非常广泛，大到集成控制整个家庭的电子电器设备网络，小到某个电子产品的智能化。

家庭自动化或者说智能家居可以涵盖人们日常生活中所用到的各种各样产品，随着无线网络的发展和移动设备的普及，出现了越来越多可以通过手机或者平板电脑控制的电子产品。

相对于大公司野心勃勃的构建各种家庭智能化的网络，与人们日常家庭生活相关的各种产品，对于创业者来说这里有无限的创新机会。

近日拿到一款新的产品——Broadlink智能插座，是一家投入家庭自动化领域的初创公司的创意产品。

如果百度一下智能插座会发现概念很混乱，各种各样附加功能的插座例如节能、可定时、遥控、可测量电量甚至防雷击都可称之为智能插座。

而Broadlink智能插座与这些插座不一样，它也可称之为Wi-Fi智能插座，通过Wi-Fi无线网络连接，由手机在本地或者远程控制插座的开关。

利用了家里的无线路由以及手中的智能设备，Broadlink实现了远程开关这个简单的功能。

Broadlink智能插座造型有点奇怪，正面看像一颗水滴。

它的尺寸也比较大，基本上能占满墙壁上一个插座范围。

背面可以看到标称的输入电压是交流90V~245V，电流最大为10A。

在插座右边有一个开关和两个LED灯。

黄色LED是Wi-FI状态指示，当黄色LED快速闪烁是标志进入Wi-Fi配置；而绿色的LED表示插座处于导通状态；开关可以用来手动控制插座的导通关闭，长按开关时会复位插座使得黄色LED快速闪烁进入Wi-Fi配置。

智能插座没有显示和控制装置，如何配置上网呢？原来配置Wi-Fi需要首先通过手机里的App 设置。

Broadlink插座同时支持Android设备和IOS设备进行控制，在包装盒上有两个App的二维码，所以插上智能插座后首先要安装App。

Broadlink智能插座App很简洁，设置也很简单。

第一次连接时设置好网络和密码就可以自动配置，注意的是设置的Wi-Fi网络必须和手机所连接的网络相同。

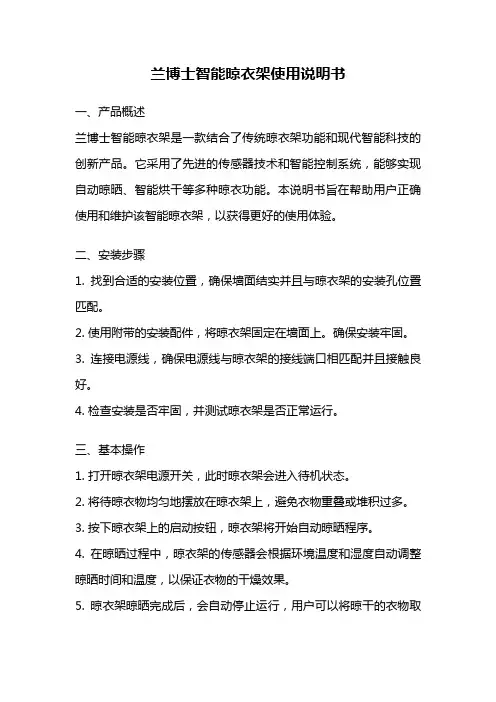

兰博士智能晾衣架使用说明书一、产品概述兰博士智能晾衣架是一款结合了传统晾衣架功能和现代智能科技的创新产品。

它采用了先进的传感器技术和智能控制系统，能够实现自动晾晒、智能烘干等多种晾衣功能。

本说明书旨在帮助用户正确使用和维护该智能晾衣架，以获得更好的使用体验。

二、安装步骤1. 找到合适的安装位置，确保墙面结实并且与晾衣架的安装孔位置匹配。

2. 使用附带的安装配件，将晾衣架固定在墙面上。

确保安装牢固。

3. 连接电源线，确保电源线与晾衣架的接线端口相匹配并且接触良好。

4. 检查安装是否牢固，并测试晾衣架是否正常运行。

三、基本操作1. 打开晾衣架电源开关，此时晾衣架会进入待机状态。

2. 将待晾衣物均匀地摆放在晾衣架上，避免衣物重叠或堆积过多。

3. 按下晾衣架上的启动按钮，晾衣架将开始自动晾晒程序。

4. 在晾晒过程中，晾衣架的传感器会根据环境温度和湿度自动调整晾晒时间和温度，以保证衣物的干燥效果。

5. 晾衣架晾晒完成后，会自动停止运行，用户可以将晾干的衣物取下并收纳。

四、智能烘干功能兰博士智能晾衣架还具备智能烘干功能，用户可以根据需要选择烘干模式。

1. 打开晾衣架电源开关，确保晾衣架处于待机状态。

2. 将需要烘干的衣物放置在晾衣架上。

3. 按下晾衣架上的烘干按钮，晾衣架将启动烘干程序。

4. 用户可以根据需要选择烘干时间和温度，晾衣架会根据设定的参数进行烘干操作。

5. 烘干完成后，晾衣架会自动停止运行，用户可以将烘干的衣物取下。

五、安全使用1. 在使用过程中，请确保晾衣架的电源线不受损坏，并远离水源和火源。

2. 请勿将过重或过大的衣物放置在晾衣架上，以免造成晾衣架过载损坏。

3. 请勿将湿漉漉的衣物直接放置在晾衣架上，以免影响晾衣效果和损坏晾衣架。

4. 在清洁晾衣架时，请先断开电源并使用柔软的布进行擦拭，切勿使用湿抹布或有腐蚀性的清洁剂。

六、常见问题解决1. 问题：晾衣架无法启动。

解决方法：检查电源线是否连接良好，确保电源供应正常。

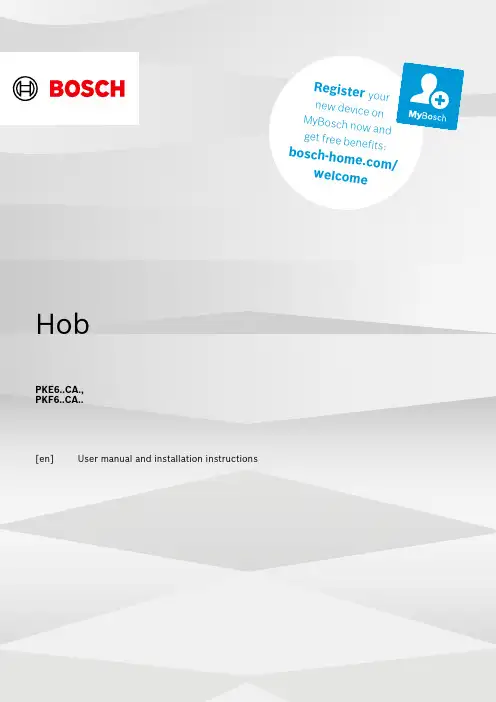

t e r y o u rn e w d e v i c eo nM y B o s c h no w a n dg e t f r e e b en e f i t s:b o sc h-h o me.c o m/w e l c o m e HobPKE6..CA.,PKF6..CA..[en]User manual and installation instructions2Ø = cmPKE6..CA.PKF6..CA..Safety en3Further information and explanations are available online:Table of contentsINFORMATION FOR USE 1Safety................................................................... 32Preventing material damage .............................. 43Environmental protection and saving en-ergy...................................................................... 54Familiarising yourself with your appliance....... 65Basic operation................................................... 76Cleaning and servicing....................................... 77Disposal............................................................... 88Customer Service (89)INSTALLATION INSTRUCTIONS (8)9.1Safe installation (8)1 SafetyObserve the following safety instructions.1.1 General information¡Read this instruction manual carefully.¡Keep the instructions, the appliance and the product information safe for future refer-ence or for the next owner.¡Do not connect the appliance if it has been damaged in transit.1.2 Intended useOnly a licensed professional may connect ap-pliances without plugs. Damage caused by in-correct connection is not covered under the warranty.Only use this appliance:¡To prepare meals and drinks.¡Under supervision. Never leave the appli-ance unattended when cooking for short periods.¡in private households and in enclosed spaces in a domestic environment.¡up to an altitude of max. 2000 m above sea level.Do not use the appliance:¡With an external timer or a separate remote control. This does not apply if operation with appliances included in EN 50615 is switched off.1.3 Restriction on user groupThis appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inad-equate experience and/or knowledge,provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.Do not let children play with the appliance.Children must not perform cleaning or user maintenance unless they are at least 15 years old and are being supervised.Keep children under the age of 8 years away from the appliance and power cable.1.4 Safe useWARNING ‒ Risk of fire!Leaving fat or oil cooking on an unattended hob can be dangerous and may lead to fires.▶Never leave hot oil or fat unattended.▶Never attempt to extinguish a fire using wa-ter; instead, switch off the appliance and then cover with a lid or a fire blanket.The cooking surface becomes very hot.▶Never place flammable objects on thecooking surface or in its immediate vicinity.▶Never place objects on the cooking sur-face.The appliance will become hot.▶Do not keep combustible objects or aero-sol cans in drawers directly underneath the hob.Hob covers can cause accidents, for example due to overheating, catching fire or materials shattering.▶Do not use hob covers.en Preventing material damage4Food may catch fire.▶The cooking process must be monitored. A short process must be monitored continu-ously.WARNING ‒ Risk of burns!The appliance and its parts that can betouched become hot during use, particularly the hob surround, if fitted.▶Caution should be exercised here in order to avoid touching heating elements.▶Young children under 8 years of age must be kept away from the appliance.Hob protective grilles may cause accidents.▶Never use hob protective grilles.The appliance becomes hot during operation.▶Allow the appliance to cool down beforecleaning.WARNING ‒ Risk of electric shock!Improper repairs are dangerous.▶Repairs to the appliance should only be carried out by trained specialist staff.▶Only use genuine spare parts when repair-ing the appliance.▶If the power cord or the appliance power cable of this appliance is damaged, it must be replaced with a special power cord or special appliance power cable, which is available from the manufacturer or its Cus-tomer Service.A damaged appliance is dangerous.▶Never operate a damaged appliance.▶If the surface is cracked, you must switch off the appliance in order to prevent a pos-sible electrical shock. To do this, switch off the appliance via the fuse in the fuse box.▶Set the hotplate control to zero.▶Call customer service.▶Repairs to the appliance must only be car-ried out by trained and qualified personnel.An ingress of moisture can cause an electric shock.▶Do not use steam- or high-pressure clean-ers to clean the appliance.The insulation on cables of electrical appli-ances may melt if it touches hot parts of the appliance.▶Never bring electrical appliance cables intocontact with hot parts of the appliance.WARNING ‒ Risk of injury!Saucepans may suddenly jump due to liquid between the saucepan base and the hotplate.▶Always keep hotplates and saucepanbases dry.WARNING ‒ Risk of suffocation!Children may put packaging material over their heads or wrap themselves up in it and suffocate.▶Keep packaging material away from chil-dren.▶Do not let children play with packaging ma-terial.Children may breathe in or swallow small parts, causing them to suffocate.▶Keep small parts away from children.▶Do not let children play with small parts.2 Preventing material damageATTENTION!Rough pot and pan bases will scratch the ceramic.▶Check your cookware.Boiling pans dry may damage cookware or the appli-ance.▶Never place empty pans on a heated hotplate or al-low to boil dry.Incorrectly positioned cookware can cause the appli-ance to overheat.▶Never place hot pots or pans on the controls or the hob surround.Damage can occur if hard or pointed objects fall onto the hob.▶Do not let hard or pointed objects fall onto the hob.Non heat-resistant materials will melt on heated hot-plates.▶Do not use oven protective foil.▶Do not use aluminium foil or plastic containers.2.1 Overview of the most common damageHere you can find the most common types of damage and tips on how to avoid them.Damage Cause MeasureStains Food boilingoverRemove boiled-over food immediately with a glass scraper.Damage Cause MeasureStains Unsuitablecleaning productsOnly use cleaningproducts that are suitable for glass ceramic.Environmental protection and saving energy en5Damage CauseMeasureScratch es Salt, sugar or sand Do not use the hob as a work surface or storage space.Scratch esRough pot or pan bases Check your cookware.Discol-ourationUnsuitable cleaning productsOnly use cleaningproducts that are suitable for glass ceramic.Damage CauseMeasureDiscol-ouration Pan abrasion,e.g. aluminium Lift pots and pans to move on the hob.BlistersSugar or food with a high sugar content Remove boiled-over food immediately with a glass scraper.3 Environmental protection and saving energy3.1 Disposing of packagingThe packaging materials are environmentally compat-ible and can be recycled.▶Sort the individual components by type and dispose of them separately.3.2 Saving energyIf you follow these instructions, your appliance will use less energy.Select the cooking zone to match the size of your pan. Centre the cookware on the hob.Use cookware whose base diameter is the same dia-meter as the hotplate.Tip: Cookware manufacturers often give the upper diameter of the saucepan. It is often larger than the base diameter.¡Unsuitable cookware or incompletely covered cook-ing zones consume a lot of energy.Cover saucepans with suitable lids.¡Cooking without a lid consumes considerably more energy.Lift lids as infrequently as possible.¡When you lift the lid, a lot of energy e a glass lid.¡You can see into the pan through a glass lid without having to lift it.Use pots and pans with flat bases.¡Uneven bases increase energy e cookware that is suitable for the quantity of food.¡Large items of cookware containing little food need more energy to heat up.Cook with only a little water.¡The more water that is contained in the cookware,the more energy is required to heat it up.Turn down to a lower power level early on.¡If you use an ongoing power level that is too high,you will waste energy.Take advantage of the hob's residual heat. With longer cooking times switch off the hotplate 5-10 minutes before the end of cooking.¡Unused residual heat increases energy consump-tion.Product Information according (EU) 66/2014 can be found on the attached appliance pass and online on the product page for your appliance.en Familiarising yourself with your appliance64 Familiarising yourself with your applianceThe instruction manual is the same for various different hobs. You can find the hob dimensions in the overview of models. → Page 24.1 Control panelYou can use the control panel to configure all functions of your appliance and to obtain information about theoperating status.Hotplate controlsThe hotplate controls are permanently fixed in place.They must not be removed. Forcibly removing the hot-plate controls leads to them being destroyed.4.2 HotplatesYou can find an overview of the different activations of the hotplates here.Switching off: Turn the hot-plate switch to 0 and reset.Never turn the hotplateswitch past the symbol to 0.Notes¡Dark areas in the glow pattern of the hotplate are part of the technical design. They do not affect the functionality of the hotplate.¡The hotplate regulates the temperature by switching the heat on and off. The heat may also switch on and off when at the highest setting.–This protects easily damaged components from overheating.–The appliance is protected against electrical overload.4.3 Hotplate display and residual heat indicatorThe hob has a hotplate display and a residual heat in-dicator. The display lights up when a hotplate is warm.Display MeaningHotplate display Lights up during operation, shortly after switching on.Residual heat indic-atorLit up after cooking when the hotplate is still warm.Note: You can keep small dishes warm or melt cooking chocolate.Basic operation en75 Basic operation5.1 Switching the hob on or offYou can switch the hob on and off with the hotplate switch.5.2 Setting the hotplatesYou can use the hotplate control to adjust the heat out-put of the hotplate.Heat setting 1Lowest setting 9Highest settingThe symbol in the display panel indicates the hotplate which the display refers to, e.g. for the right rear hot-plate.5.3 Recommended cooking settingsYou can find an overview of different foods with appro-priate power levels here.The cooking time varies depending on the type, weight,thickness and quality of the food. The ongoing power level depends on the cookware used.Cooking tips¡To bring food to the boil, use heat setting 9.¡Stir thick liquids occasionally.¡Food that needs to be seared quickly or that initially loses a lot of liquid during frying should be fried in small portions.¡Tips for saving energy when cooking. → Page 5Melting FoodOngoing cooking setting Ongoing cooking time inminutesButter, gelatine1-Heating or keeping warmStew, e.g. lentil stew 1-Milk 11–2-1Prepare the dish without the lid.Poaching or simmeringDumplings 1, 23–420–30Fish 1, 2310–15White sauce, e.g. béchamel 13–61Bring the water to the boil with the lid on.2Continue to cook the dish without a lid.Boiling, steaming or stewingRice with double the volume of water315–30Unpeeled boiled potatoes 3–425–30Boiled potatoes 3–415–25Pasta, noodles 1, 256–10Stew, soup 3–415–60Vegetables, fresh or frozen 3–410–20Food in a pressure cooker 3–4-1Bring the water to the boil with the lid on.2Continue to cook the dish without a lid.Braising Roulades 3–450–60Pot roast 3–460–100Goulash3–450–60Frying with little oilFry food without a lid.Escalope, plain or breaded 6–76–10Chops, plain or breaded 16–78–12Steak, 3 cm thick7–88–12Fish or fish fillet, plain or breaded 4–58–201Turn the dish several times.Fish or fish fillet, breaded and frozen, e.g. fish fingers 6–78–12Stir fry, frozen 6–76–10Pancakes5–6one by one1Turn the dish several times.6 Cleaning and servicingTo keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.6.1 Cleaning productsYou can obtain suitable cleaning products and glass scrapers from customer service, the online shop or a retailer.ATTENTION!Unsuitable cleaning products may damage the sur-faces of the appliance.▶Never use unsuitable cleaning products.Unsuitable cleaning products ¡Undiluted detergent¡Detergent intended for dishwashersen Disposal8¡Abrasive cleaners¡Aggressive cleaning products such as oven spray or stain remover ¡Abrasive sponges¡High-pressure or steam jet cleaners6.2 Cleaning the glass ceramicClean the hob after every use to stop cooking residues from getting burnt on.Note: Note the information on unsuitable cleaning products. → Page 7Requirement: The hob has cooled down.1.Remove heavy soiling using a glass scraper.2.Clean the hob with a cleaning product for glass ceramic.Follow the cleaning instructions on the product packaging.Tip: You can achieve good cleaning results using a special sponge for glass ceramic.7 Disposal7.1 Disposing of old applianceValuable raw materials can be reused by recycling.▶Dispose of the appliance in an environmentally friendly manner.Information about current disposal methods are available from your specialist dealer or local author-ity.ment - WEEE).The guideline determines the frame-work for the return and recycling of used appliances as applicable throughout the EU.8 Customer ServiceFunction-relevant genuine spare parts according to the corresponding Ecodesign Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance.The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.8.1 Product number (E-Nr.) and production number (FD)You can find the product number (E-Nr.) and the pro-duction number (FD) on the appliance's rating plate.The rating plate can be found:¡on the appliance certificate.¡on the lower section of the hob.Make a note of your appliance's details and the Cus-tomer Service telephone number to find them again quickly.9 Installation instructionsObserve this information when installing the appliance.Follow these safety instructions when in-stalling the appliance.¡Electrical connection must only be carried out by licensed specialist staff. Incorrect connection will invalidate the warranty.¡The safe operation of this appliance can only be guaranteed if it has been installed to a professional standard in accordance with these installation instructions. The in-staller shall be liable for any damage result-ing from incorrect installation.Installation instructions en99.2 Built-underDo not install refrigerators, dishwashers, non-ventilated ovens or washing machines underneath the appliance.¡If you fit an oven below the appliance, the worktop must be at least 20 mm thick, in certain cases even thicker. Observe the information in the oven installa-tion instructions.¡Make sure that projecting parts such as the mains housing or the mains cable do not collide, e.g. with a drawer.9.3 Intermediate floorIf the underside of the hob can be touched, an interme-diate floor must be fitted.¡Ask your specialist retailer for an intermediate floor as an accessory.¡If you use your own intermediate floor, the minimum distance to the mains connection of the appliance must be 10 mm.9.4 Preparing the unitsThe worktop must be level, horizontal and stable.¡The fitted units, including wall finishing strips, must be heat-resistant to at least 90 °C.¡Niche cladding within 50 mm of the back wall must not be combustible (e.g. tiles, stone).¡Seal the cut surfaces to make them heat-resistant.This prevents the worktop from swelling as a resultof moisture.9.5 Electrical connectionTo protect the appliance, do not remove it from the polystyrene trays until you press the appliance into the cut-out. Never lay the appliance down flat on its side.¡Check the household wiring before connecting the appliance.¡The appliance fulfils the requirements of protection class I and must only be operated in conjunction with an earth conductor.¡In the permanent electrical installation, a partition must be provided in the phases in accordance with the installation regulations.¡If appears on the appliance's display, it has not been connected correctly. Disconnect the appli-ance from the mains and check the connection.Connecting with a 3-wire cableEnsure that there is sufficient fuse protection for the household wiring.Observe the colour coding of the power cable.¡The protective conductor is green/yellow .¡The neutral conductor is blue.¡The phase (external conductor) is brown.¡If required, the cable must be replaced with a multi-phase power cable. When replacing the cable, ob-serve the following paragraph.Connecting without a pre-installed cableOnly connect the hob in accordance with the connec-tion diagram.¡If required, install the enclosed copper bridges.¡The power cable must correspond to type H05 VV-F or a higher rating.¡Use the current load to determine which wire cross-section you require. A cross-section of < 1.5 mm² is not permitted.Connecting with a pre-installed 5-wire power cableThe power cable must only be replaced by trained cus-tomer service personnel.9.6 Installing the hobDo not trap the power cable and do not route it over sharp edges.¡If the oven is a built-under type, route the cable along the rear corners of the oven to the mains socket.en Installation instructions¡The hob can also be installed in an existing cut-out that has a depth of 500 mm.¡It must protrude by the same distance at the front and the rear.9.7 Removing the hob1.Disconnect the appliance from the power supply.2.Push out the hob from below.10Thank you for buying aBosch Home Appliance!Register your new device on MyBosch now and profit directly from:•Expert tips & tricks for your appliance•Warranty extension options•Discounts for accessories & spare-parts•Digital manual and all appliance data at hand•Easy access to Bosch Home Appliances ServiceFree and easy registration – also on mobile phones:/welcomeLooking for help?You'll find it here.Expert advice for your Bosch home appliances, help with problemsor a repair from Bosch experts.Find out everything about the many ways Bosch can support you: /serviceContact data of all countries are listed in the attached service directory.。

功能操作与设置说明书一、产品简介本产品是一款具有多种功能的智能设备，通过简单的操作，用户可以轻松实现各种功能需求。

本说明书将详细介绍本产品的功能操作和设置方法，帮助用户快速上手并正确使用。

二、功能操作说明1. 开关机功能：长按电源按钮，即可开启或关闭设备。

2. 蓝牙连接功能：打开设备蓝牙功能，并在手机蓝牙列表中选择“本产品名称”进行连接。

3. Wi-Fi连接功能：通过设备设置界面，选择Wi-Fi网络并输入密码，完成与家庭网络的连接。

4. 语音控制功能：唤醒设备后，可以使用语音指令进行各种操作。

例如，说出“打开电视”，设备会自动切换至电视模式。

5. 手势控制功能：通过手势识别，用户可以在不触摸设备的情况下进行操作。

例如，向左划动手势可以切换至上一个应用。

6. 多屏互动功能：通过设备内置的投屏功能，用户可以将手机或电脑上的内容投射至设备屏幕上进行观看。

7. 多媒体播放功能：设备支持常见的音视频格式播放，用户只需将USB设备或者SD卡插入设备，即可进行播放。

8. 定时功能：可通过设置界面或手机APP，设置设备在特定时间自动开启或关闭。

9. 安全设置功能：用户可设置设备的密码保护功能，保护个人隐私和数据安全。

10. 存储空间管理功能：设备内置存储空间可通过设置界面进行管理，用户可随时查看、删除或备份文件。

三、产品设置说明1. 网络设置：进入设备设置界面，选择网络设置，按照提示连接Wi-Fi网络并输入密码。

2. 声音设置：用户可根据自身需求，调节设备的音量大小和声音模式（如静音、震动等）。

3. 语言设置：在设备设置界面中选择语言设置，根据自己的需要切换设备的语言环境。

4. 屏幕亮度设置：设备设置界面中有屏幕亮度设置选项，用户可根据光线情况选择合适的屏幕亮度。

5. 安全设置：用户可以设置设备的屏幕锁定密码、虹膜识别、指纹识别等安全设置功能，以保护个人隐私和设备安全。

6. 应用管理：用户可以打开设备的应用管理界面，根据需要安装、卸载或更新应用程序。

华百安全功能智能家居软件使用说明书（使用本产品前请仔细阅读本说明书V1.1）深圳市华百安智能技术有限公司保留所有权利，All Rights Reserved目录声明 (3)第一章.功能特色 (4)1.1 家居控制 (4)1.2 场景控制 (4)1.3 定时控制 (4)1.4 传感联动 (4)1.5 安防控制 (4)1.6 家居视频 (4)第二章.安装说明 (5)2.1 主机安装包安装 (5)2.2 智能网关安装 (7)2.3 被控设备安装 (8)第三章.使用说明 (9)3.1 安装客户端 (9)3.2 登陆 (10)3.3 设置 (11)3.3.1 主机 (11)3.3.2 房间 (12)3.3.3 网关 (12)3.3.4 无线智能设备 (12)3.3.5 其他设备 (13)3.3.6 场景 (16)3.3.7 触发 (18)3.3.8 定时 (19)3.3.9 关于 (19)3.4 主界面 (20)3.5 远程控制设置 (21)3.5.1 端口转发设置 (21)3.5.2 动态DNS配置 (22)声明版权声明深圳市华百安智能技术有限公司版权所有，并保留对本手册及本声明的最终解释权和修改权。

未得到公司的书面许可，任何人不得以任何方式或形式对本手册内的任何部分进行复制、摘录、备份、修改、传播、翻译成其它语言、将其全部或部分用于商业用途。

免责声明本手册依据现有信息制作，说明书中的图片仅供参考，如有个别图片与产品的实际显示不符，请以产品实际为准。

为了更好地提供服务，本公司保留对本使用说明书中描述的产品和软件程序以及本使用说明书的内容进行改进和/或修改的权力，恕不另行通知。

本公司在编写该手册的时候已尽最大努力保证其内容准确可靠，但本公司不对本手册中的遗漏、不准确或印刷错误导致的损失和损害承担责任。

在第一次安装和使用本产品之前，请您务必仔细阅读随产品配送的所有资料，这会有助于您更好地使用本产品。

如果您未按本使用说明书的说明及要求操作本产品，或因错误理解等原因操作本产品，本公司将不对由此而导致的任何损失承担责任。

LED（RGB）蓝牙遥控智能灯说明书一、前言在大多数人眼里，开灯与关灯需要用手去触控墙壁上的开关，对于无线灯光控制理念不是很了解，一时间也无法改变自身早已习惯的控制方法，不过生活中需要多去尝试新的创意和事物，只要你用有一台智能手持设备，便能直接控制LED灯的开关，为生活中很多事情的进行提供方便，比如你无需在半夜抹黑去找寻找开关，无需离开温暖的被窝去关闭灯光，而且有定时开关的功能，设定一个灯光开启和关闭的时间，你就可舒心地伴着舒适的灯光入睡，随着清晨的一丝微亮为苏醒，非常贴心的享受。

二、功能概述灯光控制：定时功能：不仅可以控制灯具的开关，还可强大的定时功能，定时开关以对颜色、亮度、进行调节，还定义选择颜色，定义选择模配有设定好灯光模式式语音功能：智能手机控制设备：可以语音控制开灯、关灯一部智能手机就是一个遥颜色，还可以设置识别的控器，界面更人性，功能语言（中文、英语、粤语）强大，操作更智能无需另外配置遥控器，而且传统遥控器容易丢失，控制达不到要求蓝牙连线控制：支持蓝牙4.0连接通信注意:不支持蓝牙4.0以下三、软件下载地址及功能使用介绍(一)APP软件下载地址：iOS平台(iPhone4以下不能用)：/apple安卓平台（4.3以上的版本才能使用）：/android注意：手机蓝牙4.0以上才能使用(二)软件功能界面介绍1.安卓版主界面功能介绍1.单色模块：该模式可以触摸圆环圈随意调节颜色。

2.亮度调节：滑动滑条设置LED灯亮度，从左往右亮度由亮变暗。

3.语音控制：可以通过语音来控制开关灯和灯颜色。

4.蓝牙连接：可以通过智能灯与手机蓝牙配对。

5.LED灯开关：可以控制开启和关闭灯功能。

6.设置功能：可以编辑定时设置、语音设置。

1)蓝牙连接配对（图1）图1-点击连接蓝牙。

（图2）图2-进入蓝牙搜索界面点击配对SmartComm名称蓝牙。

（图3）图3-蓝牙配对已连接。

2)语音控制（图4）图4-语音控制：可以通过语音来控制开关灯和灯颜色等。

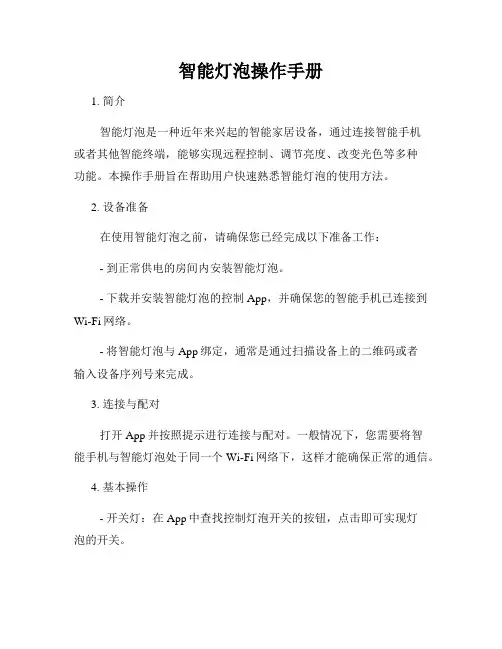

智能灯泡操作手册1. 简介智能灯泡是一种近年来兴起的智能家居设备，通过连接智能手机或者其他智能终端，能够实现远程控制、调节亮度、改变光色等多种功能。

本操作手册旨在帮助用户快速熟悉智能灯泡的使用方法。

2. 设备准备在使用智能灯泡之前，请确保您已经完成以下准备工作：- 到正常供电的房间内安装智能灯泡。

- 下载并安装智能灯泡的控制App，并确保您的智能手机已连接到Wi-Fi网络。

- 将智能灯泡与App绑定，通常是通过扫描设备上的二维码或者输入设备序列号来完成。

3. 连接与配对打开App并按照提示进行连接与配对。

一般情况下，您需要将智能手机与智能灯泡处于同一个Wi-Fi网络下，这样才能确保正常的通信。

4. 基本操作- 开关灯：在App中查找控制灯泡开关的按钮，点击即可实现灯泡的开关。

- 调节亮度：通过滑动条或者按钮来控制灯泡的亮度，您可以根据需要随时调节到合适的亮度。

- 更改光色：如果您的智能灯泡支持多种光色选项，可以通过App 来切换不同的光色，例如白光、暖光等。

- 定时功能：通过设置定时功能，您可以预先设定灯泡的开关时间，这样可以方便您的起床、睡眠等生活习惯。

- 情景模式：一些智能灯泡支持情景模式，例如阅读模式、聚会模式等，可以根据不同场景需求来自定义灯光效果。

5. 高级功能- 语音控制：多数智能灯泡支持语音控制功能，您可以通过智能音箱或者其他设备来控制灯光，提高使用便捷性。

- 远程控制：只要您的智能手机连接到互联网，就可以通过App进行远程控制，无论您身处何地，都能够实现对灯泡的控制。

- 安全设置：为了保障您的使用安全，一些智能灯泡提供了安全设置功能，如设置密码、设定访客模式等。

6. 注意事项- 在使用智能灯泡的过程中，请务必注意使用电器的安全，及时切断电源，避免触电等危险情况。

- 智能灯泡一般需要连接到Wi-Fi网络，如果您的Wi-Fi信号较弱或者不稳定，可能会影响到使用效果。

- 请定期关注智能灯泡厂商的App更新，以保证设备和App之间的兼容性和稳定性。

ilinkbox智慧网关说明书一、ilinkbox智慧网关的功能特点：1. 多种连接方式：ilinkbox智慧网关支持多种连接方式，包括Wi-Fi、蓝牙、红外等，能够与各类智能家居设备进行连接和通信。

2. 宽广的兼容性：ilinkbox智慧网关兼容市面上大多数的智能家居设备，如智能灯泡、智能插座、智能门锁等。

3. 灵活的场景配置：ilinkbox智慧网关提供灵活的场景配置功能，用户可以根据需要自由设置各种智能设备之间的关联和联动条件，实现自动化控制。

4. 智能语音控制：ilinkbox智慧网关支持智能语音控制，用户可以通过与智能音箱等设备连接实现语音命令控制智能家居设备。

5. 安全防护功能：ilinkbox智慧网关具备强大的安全防护功能，采用了高强度的加密和认证技术，保障用户的隐私和数据安全。

二、ilinkbox智慧网关的操作方法：1. 连接设置：将ilinkbox智慧网关插入电源，打开手机的Wi-Fi功能，并连接“ilinkbox”热点，打开ilinkbox智慧网关的APP，按照提示完成设备的初步配置。

2. 设备添加：在ilinkbox智慧网关的APP中，点击“添加设备”按钮，在到的设备列表中选择要添加的设备，按照提示完成设备的绑定和连接。

3. 场景配置：在ilinkbox智慧网关的APP中，点击“场景”选项，进入场景配置页面。

在此页面，可以设置各个设备之间的关联和联动条件，如设置灯光与音乐的联动、设置门锁与摄像头的联动等。

4. 定时任务：在ilinkbox智慧网关的APP中，点击“定时任务”选项，进入定时任务设置页面。

在此页面，可以设置各个设备的定时开关机、定时执行等功能。

5. 智能语音控制：在安装了智能音箱等设备的情况下，可以通过与ilinkbox智慧网关的连接，实现智能语音控制。

用户可以直接通过语音命令控制智能家居设备的开关、调光、调色等。

三、注意事项：1. ilinkbox智慧网关需要接入家庭的Wi-Fi网络，确保网络稳定。

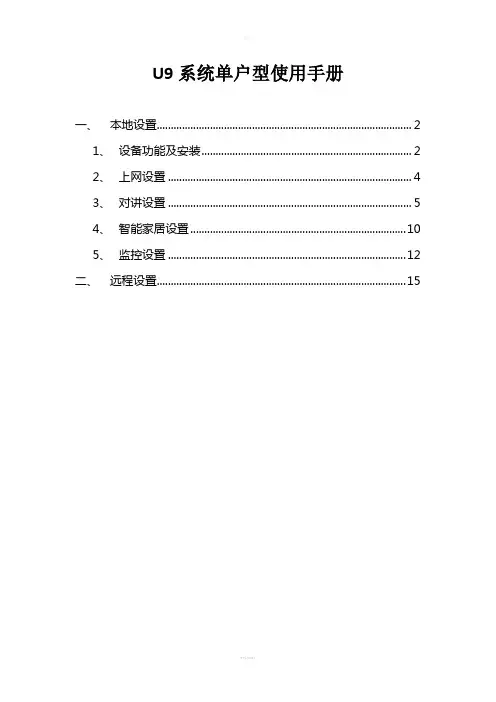

U9系统单户型使用手册一、本地设置 (2)1、设备功能及安装 (2)2、上网设置 (4)3、对讲设置 (5)4、智能家居设置 (10)5、监控设置 (12)二、远程设置 (15)本使用手册适用于TC-U9ZK-C智慧终端和TC-U9WG-A智慧网关。

一、本地设置1、设备功能及安装太川U9系统主要包括以下设备：无线通讯方式2、上网设置（1）连接路由从桌面选择“本机设置”，选择“路由设置”，路由设置内，左边为搜索到的路由，右边为用户选择的路由。

如下图：注：当连接加密的路由，需要输密码，如下图：（2）上网IP设置：在本机设置中选择上网IP设置，对IP，子网掩码，网关，DNS进行设置，如图：1、选择路由2、确认选择3、链接智慧终端TC-U9ZK-C只能选择无线，通过参考局域网内其他上网设备对网络参数进行填写，除了设置IP地址不冲突外，其他参数均可照抄填写。

选择确定，则使用当前静态IP。

智慧网关TC-U9WG-A选择无线的模式下，可选择自动获取IP，无需手动设置，如选择有线的模式，则需要手动设置IP。

家庭上网IP设置参数一般情况下可设置成以下参数：IP地址：192.168.1.XXX子网掩码：255.255.255.0网关：192.168.1.1DNS：192.168.1.1（注：IP地址设置的原则为：不与局域网内其他上网设备冲突即可。

）3、对讲设置（1）对讲IP设置：进入“工程设置”，默认密码为123456，在“手动设置”>>>“对讲IP设置”1、进入手动设置2、配置正确对讲IP地址输入对讲IP地址、对讲子网掩码、对讲网关地址等信息，请确定。
