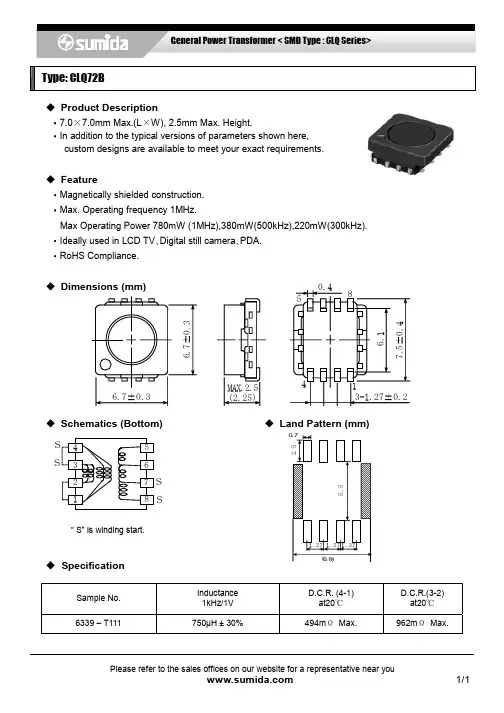

General Power Transformer < SMD Type : CLQ Series> Type: CLQ72B
Please refer to the sales offices on our website for a representative near you
1/1 ◆ Product Description ・7.0×7.0mm Max.(L×W), 2.5mm Max. Height. ・In addition to the typical versions of parameters shown here, custom designs are available to meet your exact requirements. ◆ Feature ・Magnetically shielded construction. ・Max. Operating frequency 1MHz. Max Operating Power 780mW (1MHz),380mW(500kHz),220mW(300kHz). ・Ideally used in LCD TV､Digital still camera､PDA. ・RoHS Compliance. ◆ Dimensions (mm) ◆ Schematics (Bottom) ◆ Land Pattern (mm) “ S” is winding start. ◆ Specification Sample No. Inductance 1kHz/1V D.C.R. (4-1) at20℃ D.C.R.(3-2) at20℃ 6339 – T111 750µH ± 30% 494mΩ Max. 962mΩ Max. 43215678ＳＳＳＳ6.7±0.33-1.27±0.20.46.7±0.36.17.5±0.41458MAX.2.5(2.25)0.72.55.51.27(6.9)1.271.27元器件交易网
