2950交换机简明配置维护手册目录说明 (3)产品特性 (3)配置端口 (4)配置一组端口 (4)配置二层端口 (6)配置端口速率及双工模式 (6)端口描述 (7)监控及维护端口 (8)监控端口和控制器的状态 (8)刷新、重置端口及计数器 (10)关闭和打开端口 (10)配置VLAN (11)理解VLAN (11)可支持的VLAN (12)配置正常范围的VLAN (12)生成、修改以太网VLAN (13)删除VLAN (14)将端口分配给一个VLAN (15)配置VLAN Trunks (16)使用STP实现负载均衡 (19)配置Cluster (23)说明本手册只包括日常使用的有关命令及特性，其它未涉及的命令及特性请参考英文的详细配置手册。
产品特性2950是只支持二层的交换机支持VLAN∙到250 个VLAN∙支持VLAN ID从1到4094（IEEE 802.1Q 标准）∙支持ISL及IEEE 802.1Q封装安全∙支持IOS标准的密码保护∙支持标准及扩展的访问列表来定义安全策略∙支持基于VLAN的访问列表监视∙交换机LED指示端口状态∙SPAN及远端SPAN (RSPAN) 可以监视任何端口或VLAN的流量∙内置支持四组的RMON监控功能（历史、统计、告警及事件）配置端口配置一组端口当使用interface range命令时有如下的规则:∙有效的组范围:o vlan从1 到4094o fastethernet槽位/{first port} - {last port}, 槽位为0o gigabitethernet槽位/{first port} - {last port},槽位为0o port-channel port-channel-number - port-channel-number, port-channel号从1到64∙端口号之间需要加入空格，如：interface range fastethernet 0/1 – 5是有效的，而interface range fastethernet 0/1-5是无效的.∙interface range命令只能配置已经存在的interface vlan∙所有在同一组的端口必须是相同类别的。
Cisco Catalyst 8500 SeriesEdge PlatformsData sheet Cisco publicContentsPlatform details 3 Foundation for Software-Defined WAN 4 Product overview 4 Overall platform benefits 8 Memory, storage, and accessory options 9 Optics and transceivers modules 10 Resiliency and high availability 10 Power supplies 11 Software requirements 12 Specifications 14 Safety and compliance 15 Licensing 16 Product Sustainability 17 Ordering information 18 Services 20 Warranty 21 Cisco Capital 21 Document history 22The Cisco Catalyst 8500 Series Edge Platforms are high-performance cloud edge platforms designed for accelerated services, multi-layer security, cloud-native agility,and edge intelligence to accelerate your journey to cloud.Platform detailsPlatforms and configurationsThe C8500-20X6C platform (Figure 1) allows all ports to be enabled simultaneously. It offers:●20x 1/10GE ports●6x 40/100GE portsThe C8500-12X4QC platform (Figure 2) allows for a maximum of 240GE ports to be enabled simultaneously. It offers:●12x 1/10GE ports●2x 40GE ports●2x 40/100GE portsThe C8500-12X platform (Figure 3) offers 12x 1/10GE ports.The C8500L-8S4X platform (Figure 4) offers 4x 1/10GE and 8x 1GE ports.Figure 1.C8500-20X6CFigure 2.C8500-12X4QCFigure 3.C8500-12X with 12x 1/10GE portsFigure 4.C8500L-8S4X with 4x 1/10GE and 8x 1GE portsNomenclature NoteCatalyst 8500 Edge Platforms refer to C8500-12X, C8500-12X4QC and C8500-20X6CCatalyst 8500L Edge Platform refers to C8500L-8S4XCatalyst 8500 Series Edge Platforms refer to Catalyst 8500 and Catalyst 8500L Edge Platforms together Foundation for Software-Defined WANCisco Catalyst 8500 Series Edge Platforms (Catalyst 8500 and Catalyst 8500L) with Cisco IOS XE SD-WAN Software delive r Cisco’s secure, cloud-scale SD-WAN solution for aggregation sites. The Catalyst 8500 Edge Platforms feature the all-new third-generation Cisco Quantum Flow Processor (QFP), the Catalyst 8500 Series Edge Platforms are built for services from the ground up. The Catalyst 8500L Edge Platform features an x86 based platform architecture that is purpose built to continue delivering the same experience as an ASR1000 platform. The Catalyst 8500 Series Edge Platforms are compact 1RU or 3U (Catalyst C8500-20X6C) devices with flexible interface options, including 1GE, 10GE, 40GE, and 100GE ports. Powered by Cisco IOS XE, fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud.Product overviewCatalyst 8500 Edge Platform Product highlightsTable 1.Catalyst 8500 Edge Platform Product highlightsTable 2.Catalyst 8500L Edge Platform Product highlightsTable 3 provides details on each platform’s configurations and port density. Table 4 shows the maximum port configurations for the Cisco Catalyst C8500-12X4QC platform.Table 3.Cisco Catalyst 8500 Series configurations and port density*All interfaces (total of 800 Gbps bandwidth) can be enabled simultaneously**Up to 240GE of ports can be enabled simultaneouslyTable 4.Maximum ports configurations for Cisco Catalyst C8500-20X6CTable 5.Maximum ports configurations for Cisco Catalyst C8500-12X4QC*When Bay 1 is set up in 100GE mode, no other ports available in Bay 0 or Bay 1.Figures 3 and 4 are a series of images that highlight the Cisco Catalyst C8500-12X4QC platfor m’s port options in each of its bays.Figure 5.Bay 0 + bay 1 port optionsFigure 6.Bay 2 port optionsTable 5a.Cisco controller mode (SD-WAN) performance specificationsTable 5b.Cisco autonomous mode (non SD-WAN) performance specificationsTable 5c.Cisco autonomous mode (non SD-WAN) system scalability*IMIX is average packet size of 352 Bytes packet size**Based on clear text traffic measurement from traffic generatorOverall platform benefitsAccelerated services with Cisco Software-Defined WANCisco SD-WAN is a set of intelligent software services that allow you to connect users, devices, and branch office locations reliably and securely across a diverse set of WAN transport links. Cisco Catalyst 8000 Series Edge Plat forms can dynamically route traffic across the “best” link based on up-to-the-minute application and network conditions for great application experiences. You get tight control over application performance, bandwidth usage, data privacy, and availability of your WAN links—control you need as your branches conduct greater volumes of mission-critical business with both on-premises and cloud controllers.Application optimizationEnsure that SD-WAN networks meet Service-Level Agreements (SLAs) and maintain strong performance, even if network problems occur. With multi-cloud access, you can accelerate your SaaS applications with a simple template push from the SD-WAN controller.Multi-layer securityYou can now move your traditional and complex WAN networks to a more agile software-defined WAN with integrated security. The Cisco Catalyst 8500 Series Edge Platforms feature on-premises and cloud-based security options.Application visibilityApplications and users are more distributed than ever, and the internet has effectively become the new enterprise WAN. As organizations continue to embrace internet, cloud, and SaaS, network and IT teams are challenged to deliver consistent and reliable connectivity and application performance over networks and services they don’t own or directly control.The Catalyst 8500 Series Edge Platforms are integrated with Cisco ThousandEyes internet and cloud intelligence. IT managers now have expanded visibility, including hop-by-hop analytics, into network underlay, proactive monitoring of SD-WAN overlay, and performance measurement of SaaS applications. This granular visibility ultimately lowers the Mean Time to Identification of Issues (MTTI) and accelerates resolution time. Cloud-native agility with programmable software architectureCisco continues to offer a feature-rich traditional IOS XE routing stack on the Cisco Catalyst 8000 Series Edge Platforms. IP Routing, IPSec, Quality of Service (QoS), firewall, Network Address Translation (NAT), Network-Based Application Recognition (NBAR), Flexible NetFlow (FNF), and many other features are part of Cisco IOS XE, a fully programmable software architecture with API support and a wide variety of protocols and configurations. With an integrated software image and a single binary file, you can now choose between Cisco IOS XE SD-WAN and Cisco IOS XE. And easily move from one to the other when you choose to do so.5G-readyThe Cisco Catalyst 8500 Series Edge Platforms are built for future 5G networks. These platforms support external cellular gateway modules with LTE/5G capability for improved throughputs and latency.Compact form factorThe Cisco Catalyst 8500 Series Edge platforms feature compact 1RU and 3RU platforms with rich interface options, including 1G, 10G, 40G, and 100G ports. Featuring the highly efficient third-generation QFP, the Cisco Catalyst 8500 Series Edge Platforms are built without compromising on performance and ports. Memory, storage, and accessory optionsTable 6.Cisco Catalyst 8500 Series C8500-20X6C memory, storage, and accessory optionsNote: MEM-C8500-64GB memory, SSD-M2SATA-480G SSD M.2 SATA 480 GB and C8500-ACCKIT3R-19 Cisco Mounting Brackets/accessory kit – 19 inches come standard as a default SKUTable 7.Cisco Catalyst 8500 Series C8500-12X and C8500-12X4QC memory, storage, and accessory optionsTable 8.Cisco Catalyst 8500L Edge Platform memory, storage, and accessory optionsOptics and transceivers modulesA full list of optics and transceivers is available at: https:///?si=C8500Resiliency and high availabilityPlatform redundancy is critical, as any downtime has direct impact to a customer’s business. The Catalyst 8500 Series Edge Platforms ship with high-efficiency dual power supplies by default for power supply redundancy. All Catalyst 8500 Edge Platforms support software redundancy with two IOS XE processes running on a single device (IOS XE routing mode) for additional control-plane resiliency.Power suppliesTable 9.Cisco Catalyst 8500-20X6C Series power supply specificationsTable 10.Cisco Catalyst 8500 Series power supply specifications for C8500-12X and C850012X4QCTable 11.Cisco Catalyst 8500L Edge Platform power supply specificationsRFID tags: Catalyst 8500 Series Edge Platforms have an embedded RFID tag that holds Serial Number and Product ID for easy asset and inventory management using commercial RFID readers.The RFID tag is external and can be easily removed if needed or can be unselected at the time of ordering. Software requirementsTable 12.Minimum software requirements for Cisco Catalyst 8500 Series Edge PlatformsTable 13.ThousandEyes requirementsTable 14.Software features and protocols for autonomous modeTable 15.Software features and protocols for controller mode* Support for C8500-12X and C8500-12X4QC only starting in 17.9.3., future release support will only be based on long-lived releases with the next supported release continuing in 17.12.x. Software releases 17.7, 17.8. 17.10 and 17.11 will not support broadband features. SpecificationsMechanical specificationsTable 16.Mechanical specifications for the Cisco Catalyst Series 8500 Edge PlatformsSafety and complianceTable 17.Safety and compliance specifications for the Cisco Catalyst Series 8500 Edge PlatformsLicensingAll Cisco Catalyst 8500 Series Edge Platforms are offered only with a Cisco DNA Software subscription. Only Cisco DNA Advantage and Cisco DNA Premier are available for the Cisco Catalyst C8500L, C8500-12X and C8500-12X4QC Series Edge Platforms. Cisco DNA Advantage is only offered on the C8500-20X6C Series Edge Platform.For more details, refer to this C8500 ordering guide.Cisco Smart LicensingCisco Smart Licensing is a flexible licensing model that provides you with an easier, faster, and more consistent way to purchase and manage software across the Cisco portfolio and across your organization. And it’s secure – you control what users can access. With Smart Licensing you get:●Easy Activation: Smart Licensing establishes a pool of software licenses that can be used across theentire organization—no more PAKs (Product Activation Keys).●Unified Management: My Cisco Entitlements (MCE) provides a complete view into all of your Ciscoproducts and services in an easy-to-use portal, so you always know what you have and what you are using.●License Flexibility: Your software is not node-locked to your hardware, so you can easily use andtransfer licenses as needed.To use Smart Licensing, you must first set up a Smart Account on Cisco Software Central (). For a more detailed overview on Cisco Licensing, go to /go/licensingguideCisco ThousandEyesA valid ThousandEyes agent license is required to activate the ThousandEyes agent. Existing ThousandEyes subscriptions can be leveraged on eligible Catalyst 8500 Series platforms. Additional ThousandEyes subscription information can be found here.Product SustainabilityTable 18.Cisco Environmental Sustainability InformationOrdering informationTable 19.Orderable SKUs for the Cisco Catalyst 8500 Series Edge PlatformsTable 20.Orderable SKUs for the Cisco Catalyst 8500L Edge PlatformServicesCisco Customer Experience Support Services for Catalyst 8000 platforms and Cisco DNA Software for SD-WAN and RoutingThis section discusses the Cisco Support Services available for Catalyst 8000 platforms and associated Cisco DNA Software for SD-WAN and Routing, as well as optional Support Service offers.●Catalyst 8000 platforms: Cisco Solution Support is the default and recommended Cisco SupportService. However, Cisco Solution Support is not mandatory; it can be removed or replaced with another Cisco support service or partner service per the customer’s preference.●Cisco DNA Software for SD-WAN and Routing: Cisco Solution Support is the default Cisco supportservice. However, Cisco Solution Support is not mandatory; the customer may choose to use the Cisco Subscription Embedded Software Support included with the purchase of this software.Note:●When Solution Support is selected, it must be ordered on both the Catalyst 8000 platform and CiscoDNA Software for SD-WAN and Routing for complete customer entitlement to this premium support service.●SD-WAN and Routing, with both Solution Support or Cisco Subscription Embedded Software Support,customers are entitled to maintenance releases and software updates for Cisco DNA SD-WAN andRouting software only.The support for the Catalyst 8000 platform’s OS and network stack, along with OS updates, is covered by the support contract on the Catalyst 8000 platform.Cisco Solution Support is a premium support purpose-built for today’s multiproduct, multivendor network environments and provides:● A primary point of contact centralizing support across a solution deployment●Solution, product, and interoperability expertise●No requirement for customers to isolate their issue to a product to open a case●30-minute service response objective for Severity 1 and 2 cases●Prioritized case handling over product support cases●Product support team coordination (Cisco and Solution Support Alliance Partners)●Accountability for multiproduct, multivendor issue management from first call to resolution, no matterwhere the issue residesLearn more about Cisco Solution Support at https:///go/solutionsupport.Cisco Subscription Embedded Software Support includes:●Access to support and troubleshooting via online tools and web case submission. Case severity orescalation guidelines are not applicable.●Cisco Technical Assistance Center (TAC) access 24 hours per day, 7 days per week to assist bytelephone, or web case submission and online tools with application software use and troubleshooting issues.●Access to https://, providing helpful technical and general information on Ciscoproducts, as well as access to Cisco’s online Software Center library.Note: No additional products or fees are required to receive embedded support for Cisco DNA Software for SD-WAN and Routing. However, if using embedded support for this software, hardware support for the Catalyst 8000 platforms must be purchased separately, as Cisco Subscription Embedded Software Support does not cover hardware. In this case, Cisco Smart Net Total Care Service is recommended for Catalyst 8000 platforms.WarrantyCisco Catalyst 8500 Series Edge Platform come standard with a Cisco Limited 1-Year Return To Factory Hardware Warranty. For more information, refer to:https:///c/en/us/products/warranties/warranty-c99-744450.html.Cisco CapitalFlexible payment solutions to help you achieve your objectivesCisco Capital® financing makes it easier to get the right technology to achieve your objectives, enable business transformation, and help you stay competitive. We can help you reduce the total cost of ownership, conserve capital, and accelerate growth. In more than 100 countries, our flexible payment solutions can help you acquire hardware, software, services, and complementary third-party equipment in easy, predictable payments. Learn more.Document historyTable 21.Document historyPrinted in USA C78-744089-07 03/23。
产品手册思科 Nexus 9500云级线卡和交换矩阵模块目录产品概述3思科 Nexus 9500 平台云级线卡3思科 Nexus 9500 云级平台交换矩阵模块和性能5支持的光纤模块6机械规格7监管标准合规性8订购信息8保修9服务与支持9 Cisco Capital 10更多信息10产品概述思科 Nexus® 9500 交换平台（图 1）提供三种模块化机箱：●思科 Nexus 9500 4 插槽交换机●思科 Nexus 9500 8 插槽交换机●思科 Nexus 9500 16 插槽交换机图 1.思科 Nexus 9500 系列云级交换机机箱思科 Nexus 9500 系列模块化交换机能够支持最高 172.8 Tbps 的带宽，并可通过全面的云级线卡和交换矩阵模块选择提供 1、10、25、40、50 和 100 千兆以太网接口。
使用这些云级线卡，最多可为思科 Nexus 9500 系列交换机配置1. 576 个 100 千兆以太网端口（或）2. 576 个 40 千兆以太网端口（或）3. 2304 个 25 千兆以太网端口（或）4. 2304 个 1/10 千兆以太网端口思科 Nexus 9500 平台云级线卡思科 Nexus 9500 平台广泛支持针对数据中心部署优化的各种热插拔多速云级线卡和交换矩阵模块。
这些云级线卡和交换矩阵模块使用思科®云级 ASIC 构建，为大型可扩展数据中心提供了理想的基础。
思科云级 ASIC 可提供满足全球最大云级数据中心不断发展的需求所需的增强性能和功能。
这些 ASIC 不仅可支持基础性的第 2/3 层网络功能，还能支持一些增强功能，例如基于策略的交换矩阵架构（ACI 或 VXLAN）、智能缓冲、集成线速安全和通过多速以太网端口进行的实时数据流遥测。
表 1.思科 Nexus 9500 云级线卡N9K-X9732C-EX：100 千兆以太网线卡N9K-X9736C-FX：100 千兆以太网线卡N9K-X9732C-FX：100 千兆以太网线卡N9K-X9736C-EX：100 千兆以太网线卡N9K-X97160YC-EX：1/10/25 千兆以太网接入层以及10/40/100 千兆以太网汇聚层线卡N9K-X9788TC-FX：1/10 千兆以太网 BaseT 接入层以及 40/100 千兆以太网汇聚层线卡表 2.思科 Nexus 9500 云级线卡规格*要使用 5 个交换矩阵模块和 X9736C-FX 线卡实现最大带宽，机箱中的线卡只能为 X9736C-FX 线卡。
快速入门指南思科 250 系列智能交换机以太网交换机欢迎感谢您选择思科 250 系列智能交换机。
此产品系列作为一种标准交换机，具有开箱即用的特性。
在默认配置下，本产品只需接通电源，即可在连接设备之间转发数据包。
装箱清单•思科 250 系列智能交换机•机架套件•适用于 SG250-08、SG250-08HP 和 SG250-10P 的壁挂式安装套件•电源线或适配器•本快速入门指南•中国 RoHS 合规信息卡•技术支持联系信息•欧盟指令 1999/5/EC 合规信息（仅适用于欧盟 SKU）本指南将为您介绍此交换机的布局，以及在您的网络中部署此交换机的方式。
有关其他信息，请访问/go/250switches。
使用准备1在开始安装之前，请确保您已准备好以下用品：•用于连接网络设备的 RJ-45 以太网电缆（5E 类或更高级别）。
•用于安装硬件的工具。
交换机附带的机架固定套件包含 4 个用于桌面安放的橡胶支脚、2 个支架和 12 个用于机架式安装的螺钉。
如果附带的螺钉遗失，请使用以下尺寸的螺钉作为替代：–螺钉头直径：6.9 毫米–螺钉全长（钉头至钉尖）：5.9 毫米–钉身直径：3.94 毫米•壁挂式安装套件包含螺钉和墙锚。
如果附带的螺钉遗失，请使用以下尺寸的螺钉作为替代：–螺钉头直径：6.8 毫米–螺钉全长（钉头至钉尖）：16 毫米–钉身直径：3.5 x 1.3 毫米•装有 Microsoft Internet Explorer（版本 9.0、10.0 或 11.0）、Mozilla Firefox（版本 51.0、52.0、53.0 或更高版本）或 Google Chrome（版本56、57、58 或更高版本）的计算机，用于运行基于 Web 的界面。
2思科 250 系列智能交换机安装思科 250 系列智能交换机2本交换机有三种安装方式：•将交换机放置于水平表面。
在交换机底部安装四个橡胶支脚，可将交换机安放于桌面。
CISCO交换机路由器配置手册王国栋编著……………… 目录………………交换机1、cisco 2950 交换机2、cisco 1950 交换机3、VLAN 间的通信路由器一、路由器配置1、路由器基本配置2、路由器的密码恢复3、恢复出厂设置4、备份IOS5、恢复IOS6、备份路由器配置7、静态路由的配置8、RIP路由协义配置9、IGRP路由协议配置10、EIGRP路由协议配置11、ospf路由协议基本配置12、点到点链路上的ospf13、广播链路上的ospf14、基于区域的ospf简单口今及MD5认证15、多区域的OSPF16、OSPF末节区域和完全末节区域17、OSPF命令汇总二、ACL NAT DHCP1、标准访问控制列表(Access Control Iists ) (list 列表)2、扩展访问控制列表(Access Control Iists ) (list 列表)3、命名ACL4、NAT（network address translation）网络地址翻译(1)、静态NAT配置(2)、动态NAT(3)、PAT(端口地址转换)配置5、DHCP (dynamic host configuration protocol) 动态主机配置协议三、远程接入、VPN1、HDLC （高级数据链路控制high-level data link control）2、路由器serial端口的基本配置3、PPP（1）、PPP的PAP认证（2）、PPP的CHAP认证4、帖中继（1）、帧中继基本配置（2）、点对多点帧中继（3）、|点对点帧中继上的RIP协议5、DDN（Digital Data Network 数字数据网）和数字链路6、ISDN7、ADSL Asymmetrical digital subscriber loop 非对称数字用户环路8、VPN 虚专用网络(Virtual Private Networks)交换机部分一、交换机配置图:二、环境说明：S2950-1 S2950-2 为12端口快速以太网交换机三、配置实例：1、cisco 2950 交换机//switch>enable//进入特权模式//switch #configure terminal//进入全局配置模式//switch (config)#hostname s2950-1//给交换机命名为S2950-1enable password 123456//设置密码ip address 192.168.0.1 255.255.255.0ip default-gateway 192.168.0.254ip domain-name //设置IP 、网关和域名ip name-server 200.0.0.1//设置域名服务器interface fastethernet 0/1//进入端口配置模式//s2950-1 (config-if)#speed auto//将接口速率设置成自适应（默认）//speed 100 10 auto//将接口速率设置成10/100自适应duplex full//将接口设置成全双功（默认）//duplex full falf autoend//s2950-1#copy running-config startup-config//保存配置文件valn database//从特权模式进入VLAN配置子模式//s2950-1 (vlan)#vtp server//VTP就是VLAN中继协议//设置交换机为VTP服务模式//vtp server client transparentvtp domain name-vtp-server//设置管理域的域名为name-vtp-server//创建管理域并命名end//s2950-1#configure terminal//s2950-1 (config)#interface fastethernet 0/1//s2950-1 (config-if)#switchport mode trunk//将端口fastethernet0/1设置为主干端口end//s2950-1#vlan database//s2950-1 (vlan)#//进入VLAN 配置模式valn 2 name namevlan-2//创建VLAN 2 并命名为namevlan-2//交换机默认所有未配置VLNA的交换机均为VLAN 1 //所以这里从VLAN 2 开始设置valn 3 name namevlan-3//创建VLAN 3并命名为namevlan-3valn 4 name namevlan-4valn 5 name namevlan-5exit//s2950-1#configure terminal//s2950-1 (config)#interface fastethernet 0/2//s2950-1 (config-if)#switchport mode access//设置当前端口为静态VLAN模式switchport access vlan 2//把当前端口分配给V ALN 2exit//s2950-1 (config)#interface fastethernet 0/3//s2950-1 (config-if)#switchport mode accessswitchport access vlan 3exit//s2950-1 (config)#interface fastethernet 0/4//s2950-1 (config-if)#switchport mode accessswitchport access vlan 4exit//s2950-1 (config)#interface fastethernet 0/5//s2950-1 (config-if)#switchport mode accessswitchport access vlan 5end//s2950-1#copy running-config startup-config//writeshow running-config//show vtp status//show vlan//show interface//show interface brief//show version2、cisco 1950 交换机//switch>enable//switch #configure terminal//switch (config)#hostname s2950-1enable password 123456username text1 password text2ip address 192.168.0.1 255.255.255.0ip default-gateway 192.168.0.254ip domain-name ip name-server 200.0.0.1interface fastethernet 0/1//s1950-1 (config-if)#speed auto//speed 100 10 autoduplex full//duplex full falf autoend//s1950-1#copy running-config startup-config//s1950-1#configure terminal//s1950-1 (config)#vtp server//在配置模式下设置交换机为VTP服务器//vtp server client transparent//也可以根据需要将交换机设置为VTP客户模式，或透明模式vtp domain name-vtpserver//创建VTP管理域并设置域名为name-vtpserverend//S1950VTP这块配置内容和s2950不一样//s1950-1#configure terminal//s1950-1 (config)#interface fastethernet 0/1//s1950-1 (config-if)#trunk on//设置VLAN主干端口//trunk on|off|desirable|autoEnd//trunk 的内容和S2950不一样//s1950-1#vlan database//s1950-1 (vlan)#valn 2 name namevlan-2//创建VLAN 2 并命名为namevlan-2//交换机默认所有未配置VLNA的交换机均为VLAN 1 ，//所以这里从VLAN 2 开始设置valn 3 name namevlan-3valn 4 name namevlan-4valn 5 name namevlan-5exit//s1950-1#configure terminal//s1950-1 (config)#interface fastethernet 0/2//s1950-1 (config-if)#vlan-membership static namevlan-2//划分VLAN端口//将本端口设置为namevlan-4的成员//S1950这块配置内容和s2950不一样exit//s1950-1 (config)#interface fastethernet 0/3//s1950-1 (config-if)#vlan-membership static namevlan-3exit//s1950-1 (config)#interface fastethernet 0/4//s1950-1 (config-if)#vlan-membership static namevlan-4exit//s1950-1 (config)#interface fastethernet 0/5//s1950-1 (config-if)#vlan-membership static namevlan-5end//s1950-1#copy running-config startup-configshow running-config//show vtp status//show vlan//show interface//show ip interface brief//显示所有接口的简短信息//show version3、VLAN间的通信(1)、利用三层交换机实现VLAN间的通信拓朴图：配置实例：S2950#vlan databaseS2950(vlan)#vlan 2 name namevlan-2S2950(vlan)#vlan 3 name namevlan-3S2950(vlan)#exitS2950#configure terminalS2950(config)#interface fastethernet 0/5S2950(config-if)#switchport mode accessS2950(config-if)#switchport access vlan 2S2950(config-if)#exitS2950(config)#interface fastethernet 0/6S2950(config-if)#switchport mode accessS2950(config-if)#switchport access vlan3S2950(config-if)#exitS2950(config)#ip routing//打开三层交换机的路由功能S2950(config)#interface vlan 2//将VLAN当成一个接口进行配置S2950(config-if)#no shutdownS2950(config-if)#ip address 192.168.0.1 255.255.255.0 S2950(config-if)#exitS2950(config)#interface vlan 3S2950(config-if)#no shutdownS2950(config-if)#ip address 192.168.1.1 255.255.255.0S2950(config-if)#endS2950#show ip router//由于是在同一三层交换机上，用show ip router 可以看到自动生存的路由表(2)、利用路由器实现VLAN间的通信配置拓朴图：配置实例：S2950#vlan databaseS2950(vlan)#vlan 2S2950(vlan)#vlan 3S2950(vlan)#exitS2950#configure terminalS2950(config)#interface fastehernet 0/1S2950(config-if)#switchport mode accessS2950(config-if)#switchport access vlan 2S2950(config-if)#exitS2950(config)#interface fastethernet 0/6S2950(config-if)#switchport mode accessS2950(config-if)#switchport access vlan 3S2950(config-if)#exitS2950(config)#(end)RouterA(config)#interface ethernet 0RouterA(config-if)#no shutdownRouterA(config-if)#ip address 192.168.0.1 255.255.255.0 RouterA(config-if)#exitRouterA(config)#interface ethernet 1RouterA(config-if)#no shutdownRouterA(config-if)#ip address 192.168.1.1 255.255.255.0 RouterA(config-if)#endRouterA#show ip route//可以看到由路器自动生成的两条路由表路由器部分一、路由器配置1、路由器基本配置（1）路由器基本的配置拓扑图：（2）、环境说明：Cisco 1605路由器（3）、配置实例：//Router>enable//Router#configure terminal//Router(config)#enable password text1//enable secret texe2hostname R1no ip domain lookup//不用DNS 解析主机IPinterface fastethernet 0/1//R1605-1(config-if)#ip address 192.168.0.2 255.255.255.0no shutdownexit//R1605-1 (config)#interface fastethernet 0/2//R1605-1 (config-if)#ip address 192.168.0.2 255.255.255.0no shutdownexit//R1605-1 (config)#ip route 0.0.0.0 0.0.0.0 192.168.1.2//配置默认路由//no ip route 0.0.0.0 0.0.0.0 192.168.1.2ip routing//起动路由功能//R1605-1(config)#line vty 0 4//VTY是路由器给远程登陆准备的虚拟端口//0 4表示可以同时打开5个会话//line vty 0 4是进入VTY端口（也就是同时充许5个会话登陆），对VTY端口//进行配置//R1605-1(config-line)#password 123456//设置telnet登陆时使用的密码//no password 这样就不能从telnet登陆了.(当你no password 取消掉了密码,//telnet会拒绝连接,这样就关闭了telnet)//要想明确禁止从telnet登陆最好使用ACL关闭23端口login//要求输入密码方能从telnet远程登陆，//no login 不使用密码就可以从telnet登陆end//R1605-1#write//copy running-config startup-config ，保存配置end//R1605-1#Show running-config//show version//show interface//show ip interface brief//显示所有接口的简短信息//show ip route//traceroute ip 192.168.3.1//show ip arp//show ip rip database//show runing-configexit2、路由器的密码恢复（1）、密码恢复的基本原理对CISCO的网络设备进行密码恢复的主要武器是配置注册码。

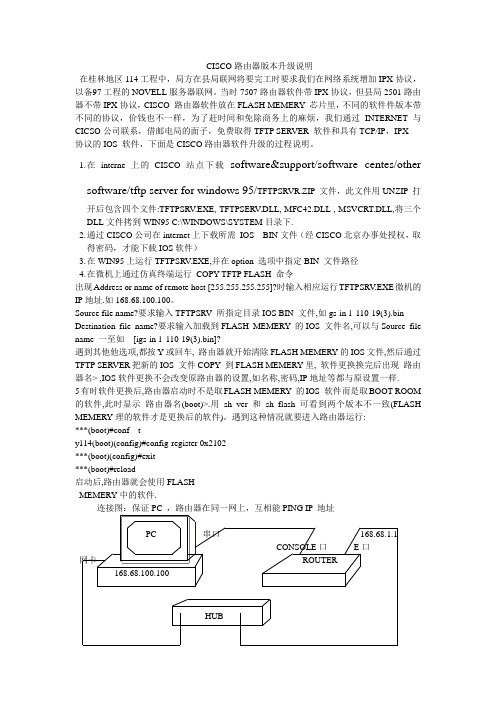

CISCO路由器版本升级说明在桂林地区114工程中，局方在县局联网将要完工时要求我们在网络系统增加IPX协议，以备97工程的NOVELL服务器联网。
当时7507路由器软件带IPX协议，但县局2501路由器不带IPX协议，CISCO 路由器软件放在FLASH MEMERY 芯片里，不同的软件件版本带不同的协议，价钱也不一样，为了赶时间和免除商务上的麻烦，我们通过INTERNET与CICSO公司联系，借邮电局的面子，免费取得TFTP SERVER 软件和具有TCP/IP，IPX协议的IOS 软件，下面是CISCO路由器软件升级的过程说明。
1.在interne上的CISCO 站点下载software&support/software centes/other software/tftp server for windows 95/TFTPSRVR.ZIP 文件，此文件用UNZIP 打开后包含四个文件:TFTPSRV.EXE, TFTPSERV.DLL, MFC42.DLL , MSVCRT.DLL,将三个DLL文件拷到WIN95 C:\WINDOWS\SYSTEM目录下.2.通过CISCO公司在internet上下载所需IOS BIN文件（经CISCO北京办事处授权，取得密码，才能下载IOS软件）3.在WIN95上运行TFTPSRV.EXE,并在option 选项中指定BIN 文件路径4.在微机上通过仿真终端运行COPY TFTP FLASH 命令出现Address or name of remote host [255.255.255.255]?时输入相应运行TFTPSRV.EXE微机的IP地址.如168.68.100.100。
Source file name?要求输入TFTPSRV 所指定目录IOS BIN 文件,如gs-in-l_110-19(3).bin Destination file name?要求输入加载到FLASH MEMERY 的IOS 文件名,可以与Source file name 一至如[igs-in-l_110-19(3).bin]?遇到其他他选项,都按Y或回车, 路由器就开始清除FLASH MEMERY的IOS文件,然后通过TFTP SERVER把新的IOS 文件COPY 到FLASH MEMERY里, 软件更换换完后出现路由器名> ,IOS软件更换不会改变原路由器的设置,如名称,密码,IP地址等都与原设置一样.5有时软件更换后,路由器启动时不是取FLASH MEMERY 的IOS 软件而是取BOOT ROOM 的软件,此时显示路由器名(boot)>.用sh ver 和sh flash 可看到两个版本不一致(FLASH MEMERY理的软件才是更换后的软件)。
目录PacketTracer5.0建构CCNA实验攻略(1)——配置Cisco交换机PacketTracer5.0是一款非常不错的Cisco(思科)网络设备模拟器，对于想考思科初级认证（如CCNA）的朋友们来说，PacketTracer5.0是非常不错的选择。
利用PacketTracer5.0练习思科IOS操作命令很不错的。
要配置好Cisco交换必需要熟悉IOS命令及相关的知识。
一、几种配置命令模式switch>这种提示符表示是在用户命令模式，只能使用一些查看命令。
switch#这种提示符表示是在特权命令模式。
switch(config)# 这种提示符表示是全局配置模式switch(config-if)# 端口配置命令模式图一几种命令模式二、检查、查看命令这些命令是查看当前配置状况，通常是以show(sh)为开始的命令。
showversion查看IOS的版本、showflash查看flash内存使用状况、showmac-address-table查看MAC地址列表图二图三图四图五Show? 帮助命令显示当前所有的查看命令图六查看端口状态信息三、密码设置命令Cisco交换机、路由器中有很多密码，设置好这些密码可以有效地提高设备的安全性。
switch(config)#enablepassword 设置进入特权模式进的密码switch(config-line) 可以设置通过console端口连接设备及telnet远程登录时所需要的密码图七设置交换机的各种密码默认情况下，这些密码都是以明文的形式存储，所以很容易查看到。
为了避免这种情况，我们可以以密文的形式存储各种密码:servicepassword-encryption图九图十密码以密文的形式存储四、配置IP地址及默认网关图十一五、管理MAC地址表switch#showmac-address-table 显示MAC地址列表switch#clearmac-address-tabledynamic 清除动态MAC地址列表图十二图十三设置静态MAC地址六、配置端口安全switch(config-if)switchportport-securityswitch(config-if)switchportport-securitymaximum4图十四图十五七、一个配置实例图十六实例拓扑图图十七图十八图十九图二十保存对交换机的配置PacketTracer5.0建构CCNA实验攻略(2)——配置VLANVlan(VirtualLocalAreaNetwork)即虚拟局域网。
C I S C O系列路由器使用手册Revised final draft November 26, 2020《CISCO 2500、1600系列路由器使用手册》目录1. CISCO 2500，1600系列路由器基本知识. 物理端口介绍. 内存体系结构介绍. 配置途径. 命令行配置模式. 多重引导IOS. 从服务器中自动下载路由器配置文件. 配置Autoinstall功能. 常用的命令行快捷编辑器. 路由器口令的安全管理. 检查灵巧配置及工作状态的常用命令2. IP协议配置的基本原则3. IP协议配置. 包过滤功能配置4. 常见广域网协议配置. CISCO HDLC协议配置. 配置. 帧中继配置. PPP配置5. IP路由协议配置. 静态路由配置. 缺省路由配置. IGRP配置. OSPF配置. RIP配置6. 远程访问服务配置7. DDR over PSTN配置8. NAT(Network Address Translation)功能配置9. 备份配置正文1．CISCO 2500,1600系列路由基本知识CISCO 2500，1600系列路由器是多协路由器，但从另一角度来说，它是一台计算机，就象大家熟悉的运行WINDOWS95的PC机一样。
CISCO路由器也包含硬件和软件两部分。
. 物理端口介绍CISCO 2500系列包含以下几种端口：高速同步串口，最大支持的E1速率。
通过软件配置，该种端口可以连接DDN，帧中继（Frame Relay），，PSTN（模拟电话线路）。
注意：如果用该同步端口连接电话线路，要求Moden必须支持同步/异步串口，该种端口可以用软件设置为同步工作方式。
在同步工作方式下，最大支持128K，异步方式下，最大支持。
AUI端口，即粗缆口。
一般需要外接转换器（AUI-RJ45），连接10Base-T以太网络。
ISDN端口，可以连接ISDN网络(2B+D)。
AUX端口，该端口为异步端口，最大支持３８４００的速率，主要用于远程配置或拔号备份。
ciscoap配置手册详解你还在为不知道ciscoap配置手册详解而烦恼么?接下来是小编为大家收集的ciscoap配置手册详解教程，希望能帮到大家。
ciscoap配置手册详解的方法cisco ap配置手册Cisco AP的配置方法主要有控制台端口登录、远程登录(如Telnet/SSH等)、Web浏览器等，后两种方式均需要获取或设置一个IP方可登录。
一般情况下，AP设置IP地址的方法有按默认方式获取，配置DHCP方式获取，使用IPSU(IP Setup Utility)，使用控制台端口等。
实际上对Cisco AP来讲，配置的最简单的方法就是使用Web浏览器方式即GUI方式。
Cisco AP有两种基本GUI界面，一种是支持IOS GUI，如Arionet 1100系列;一种是VxWorks GUI，如Arionet 350的AP和网桥;而Arionet 1200系列可以支持这两种GUI界面。
如下图Cisco Aironet 1100系列AP GUI配置界面：除了GUI和远程登录方式外，CLI(命令行)也是Cisco AP经常使用的配置方式。
GUI的配置方法比较简单，因篇幅所限，不再作介绍。
下面我们在CLI(命令行)模式下对Cisco AP进行配置。
Cisco AP的IOS的CLI(命令行)的配置模式有：用户模式、特权模式、全局模式、接口模式、线路模式等等，它的命令提示符、基本配置命令与基于Cisco IOS系统的路由器和交换机CLI的模式也基本相同，如果您对各种模式还不熟悉，请您参照路由器和交换机的基本模式配置章节。
1、配置主机名注意：hostname name命令中的name名称必须符合ARPANET 主机名的规则，最多为63个字符，并且必须以一个字母开头，结尾必须是一个字母或数字，中间只能是字母、数字或连接符。
2、配置IP地址为了实现对设备的远程管理，我们通常需要对设备配置管理地址，对于AP来说，我们可以通过配置AP的BVI地址来实现。
产品手册Cisco 5500 系列无线控制器Cisco ®5500 系列无线控制器是一款高度可扩展的灵活平台，能够在大中型企业和园区环境中，为关键任务无线网络提供系统级服务。
5500 系列专门采用了独特设计，支持 802.11n 的性能下的最大可扩展性，通过射频的监控和保护能力提供延长的正常工作时间，并且可以同时管理 500 个接入点；它具有卓越的性能，可以提供可靠的视频流和长话级音质；它还具有增强的故障恢复功能，能在要求最严格的环境中提供一致的移动体验。
最大限度提高性能和可扩展性● 支持多达 500 个接入点和 7000 个客户端。
● 经过优化的 802.11n 性能，能够提供相当于 802.11a/g 网络九倍的性能。
● 延长的正常运行时间，每个控制器能同时配置和管理 500 个接入点 增强的移动性和服务● 范围更大的移动域，可以同时关联更多客户端。
● 速度更快的射频资源管理 (RRM) 更新，可在用户漫游时提供不间断的网络接入。
● 智能射频控制平面，可以自行配置、修复和优化。
● 高效漫游功能可提升应用性能，例如长话级音质、一致的视频流及数据备份。
许可灵活性与投资保护● 可以根据需要，逐步添加附加接入点容量许可。
OfficeExtend 解决方案● 安全、简便、经济高效的移动远程办公人员解决方案。
● 每个控制器支持多达 500 个远程接入点。
● 通过支持统一通信无线电话，节约手机费用。
全面的有线/无线安全性● 在接入点和控制器之间提供全面的 CAPWAP 加密。
● 支持检测恶意接入点和拒绝服务攻击。
● 管理帧保护功能可以检测恶意用户，并向网络管理员发出警报。
企业无线网状网● 动态无线网状网支持在室内和室外为难以布线的区域提供网络连接。
支持环保● 支持自适应功率管理，可以在非高峰时段关闭接入点无线电设备，以减少功耗。
● OfficeExtend 解决方案通过减少通勤时间和节省汽油、驾驶里程和保险成本，可降低成本和支持环保最佳实践。
