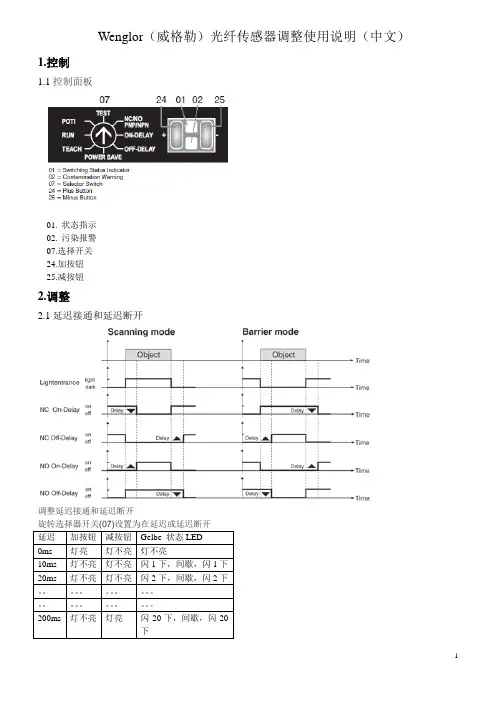

Wenglor（威格勒）光纤传感器调整使用说明（中文）1.控制1.1控制面板01.状态指示02.污染报警07.选择开关24.加按钮25.减按钮2.调整2.1延迟接通和延迟断开调整延迟接通和延迟断开延迟加按钮减按钮Gelbe 状态LED0ms 灯亮灯不亮灯不亮10ms 灯不亮灯不亮闪1下，间歇，闪1下20ms 灯不亮灯不亮闪2下，间歇，闪2下。
200ms 灯不亮灯亮闪20下，间歇，闪20下调整延迟接通调整延迟断开设置旋转选择器开关(07)在延迟接通设置旋转选择器开关(07)延迟断开激活加号按钮(24)。
延迟增加10 ms激活负按钮(25)。
延迟减少10 ms设置旋转选择器开关(07)来运行2.2选择常闭或常开功能设置旋转选择器开关(07)在常闭/常开（PNP / NPN型）激活加号按钮(24)NC是选定的(常闭/暗开关)---加号按钮(24)点亮---激活负按钮(24)NO是被选中(常开/光开关)---减去按钮(24)点亮设置旋转选择器开关(07)来运行2.3选择PNP / NPN 模式设置旋转选择器开关(07)NC/NO PNP / NPN模式激活加号按钮(24)为5秒---加号按钮(24)和负按钮(25)闪烁释放加号按钮(24)激活加号按钮(24)---加号按钮(24)点亮---PNP型设置激活负按钮(25)---减去按钮(25)点亮----NPN型设置同时激活加号按钮(24)和负按钮(25)加号按钮(24)和负按钮(25)点亮Push-pull setting 设置旋转选择器开关(07)来运行2.4设置开关距离与电位计设置旋转选择器开关(07)电位计激活加号按钮(24)---开关距离增加激活负按钮(25)---开关距离减少加减按钮上的LED的亮度指示加减的程度、相对应的的按钮越亮，感应距离越大,反之亦然。
如果最大值或最小值传感距离被选中相应的按钮会闪烁。
设置旋转选择器开关(07)来运行2.5用自学习功能设置开关距离用自学习功能设置理想的开关感应距离2.5.1标准模式设置旋转选择器开关(70)----红色LED(02)点亮适当放置目标对象激活加号按钮(24)---加号按钮(24)点亮激活加号按钮(24)再次*---加号按钮(24)不再是明亮的设置旋转选择器开关(07)来运行*如果在40秒内第二个按钮没有被操作,自学习过程被取消并不保存任何设置2.5.2Minimal Teach-In设置旋转选择器开关(07)适当放置目标对象激活减号按钮(25)---减号按钮(25)点亮激活减按钮(25)再次*---减号按钮(25)不再是明亮的设置旋转选择器开关(07)来运行The contamination warning is out of order during minimal Teach-In2.5.3Dynamic Teach-In (Teach-In with moving objects)设置旋转选择器开关(07)按下并保持住(约5秒)加号按钮(24)直到(24)闪烁---传感器是现在在记录模式,获得最小和最大入射光信号激活加号按钮(24)再次---记录模式是结束---加号按钮(24)不再是明亮的设置旋转选择器开关(07)来运行在自学习模式时传感器不会输出扫描和屏障模式在记录模式时，传感器根据入射光信号的最小和最大值之间自动确定理想的开关点。
