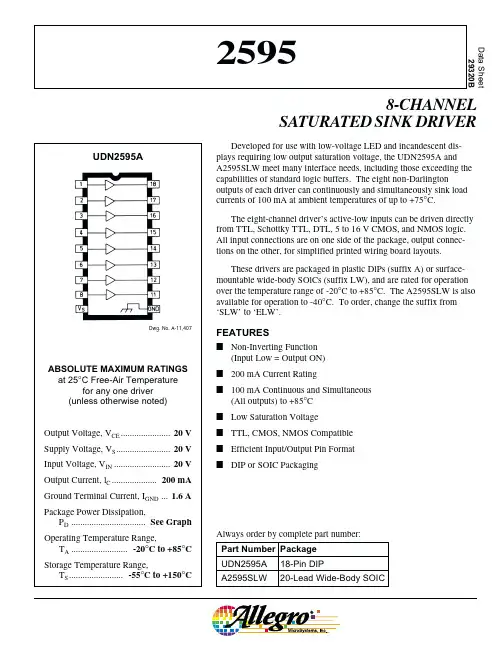

8-CHANNELSATURATED SINK DRIVERAlways order by complete part number:Part Number Package UDN2595A 18-Pin DIPA2595SLW20-Lead Wide-Body SOICABSOLUTE MAXIMUM RATINGS at 25°C Free-Air Temperaturefor any one driver (unless otherwise noted)Output Voltage, V CE ...................... 20 V Supply Voltage, V S ........................ 20 V Input Voltage, V IN ......................... 20 V Output Current, l C .................... 200 mA Ground Terminal Current, I GND ... 1.6 A Package Power Dissipation,P D ................................. See Graph Operating Temperature Range,T A ......................... -20°C to +85°C Storage Temperature Range,T S ........................ -55°C to +150°CData Sheet 29320B2595Dwg. No. A-11,407Developed for use with low-voltage LED and incandescent dis-plays requiring low output saturation voltage, the UDN2595A and A2595SLW meet many interface needs, including those exceeding the capabilities of standard logic buffers. The eight non-Darlingtonoutputs of each driver can continuously and simultaneously sink load currents of 100 mA at ambient temperatures of up to +75°C.The eight-channel driver’s active-low inputs can be driven directly from TTL, Schottky TTL, DTL, 5 to 16 V CMOS, and NMOS logic.All input connections are on one side of the package, output connec-tions on the other, for simplified printed wiring board layouts.These drivers are packaged in plastic DlPs (suffix A) or surface-mountable wide-body SOlCs (suffix LW), and are rated for operation over the temperature range of -20°C to +85°C. The A2595SLW is also available for operation to -40°C. To order, change the suffix from ‘SLW’ to ‘ELW’.FEATURESI Non-Inverting Function(Input Low = Output ON)I 200 mA Current RatingI 100 mA Continuous and Simultaneous(All outputs) to +85°C I Low Saturation Voltage I TTL, CMOS, NMOS Compatible I Efficient Input/Output Pin Format I DIP or SOIC PackagingUDN2595A25958-CHANNELSATURATED SINK DRIVER115 Northeast Cutoff, Box 15036Worcester, Massachusetts 01615-0036 (508) 853-500050751001251502.50.5A L L O W AB L E P AC K A G E P O W E RD I S S I P A T I O N I N W A T T SAMBIENT TEMPERATURE IN °C2.01.51.025Dwg. GS-009-1SUFFIX 'A', R = 60°C/W θJASUFFIX 'LW', R = 70°C/WθJANOCONNECT.NOCONNECT.Dwg. PP-064-1GROUND +V SA2595SLWFUNCTIONAL BLOCK DIAGRAMONE OF EIGHT DRIVERSDwg. No. A-11,408Copyright © 1981, 2000 Allegro MicroSystems, Inc.25958-CHANNELSATURATED SINK DRIVERCurrentVoltage LimitsCharacteristic Symbol Test ConditionsMin.Max.Units Output Leakage I CEX V IN ≥ 4.5 V, V OUT = 20 V, T A = 25°C —50µA V IN ≥ 4.6 V, V OUT = 20 V, T A = 70°C —100µA Output Saturation V CE(SAT)V IN = 0.4 V, I OUT = 50 mA —0.5V V IN = 0.4 V, I OUT = 100 mA —0.6V Input CurrentI lN(ON)V IN = 0.4 V, I OUT = 100 mA—-1.6mA V IN = 0.4 V, I OUT = 100 mA, V S = 15 V—-5.0mA Input VoltageV IN(ON)I OUT = 100 mA, V OUT ≤ 0.6 V —0.4V V IN(OFF)I OUT = 100 µA, T A = 70°C4.6—V Input Capacitance C IN —25pF Supply Currentl SV IN = 0.4 V, I OUT = 100 mA— 6.0mA V IN = 0.4 V, I OUT = 100 mA, V S = 15 V —20mANOTES: 1.Negative current is defined as coming out of the specified device pin.2.The V IN(ON) voltage limit guarantees a minimum output sink current per the specified conditions.3.l S is measured with any one of eight drivers turned ON.ELECTRICAL CHARACTERISTICS at T A = +25°C, V S = 5.0 V (unless otherwise noted).25958-CHANNELSATURATED SINK DRIVER115 Northeast Cutoff, Box 15036Worcester, Massachusetts 01615-0036 (508) 853-5000Dwg. MA-001-18A mmUDN2595ADimensions in Inches (controlling dimensions)Dimensions in Millimeters (for reference only)NOTES: 1.Exact body and lead configuration at vendor’s option within limits shown.2.Lead spacing tolerance is non-cumulative.3.Lead thickness is measured at seating plane or below.Dwg. MA-001-18A in25958-CHANNEL SATURATED SINK DRIVERDwg. MA-008-20 mm1.27BSCA2595SLWDimensions in Inches(for reference only)Dimensions in Millimeters(controlling dimensions)NOTES: 1.Exact body and lead configuration at vendor’s option within limits shown.2.Lead spacing tolerance is non-cumulative.25958-CHANNELSATURATED SINK DRIVER115 Northeast Cutoff, Box 15036Worcester, Massachusetts 01615-0036 (508) 853-5000The products described here are manufactured under one or more U.S. patents or U.S. patents pending.Allegro MicroSystems, Inc. reserves the right to make, from time to time, such departures from the detail specifications as may berequired to permit improvements in the performance, reliability, or manufacturability of its products. Before placing an order, the user is cautioned to verify that the information being relied upon is current.Allegro products are not authorized for use as critical components in life-support devices or systems without express written approval.The information included herein is believed to be accurate and reliable. However, Allegro MicroSystems, Inc. assumes no responsi-bility for its use; nor for any infringement of patents or other rights of third parties which may result from its use.25958-CHANNELSATURATED SINK DRIVERThis page is intentionally left blank25958-CHANNELSATURATED SINK DRIVER115 Northeast Cutoff, Box 15036Worcester, Massachusetts 01615-0036 (508) 853-5000POWER SINK DRIVERSIN ORDER OF 1) OUTPUT CURRENT, 2) OUTPUT VOLTAGE, 3) NUMBER OF DRIVERSOutput Ratings *Features Serial Latched Diode Internal mAV #Input DriversClampOutputsProtectionPart Number†75178X X –constant current –62751716X X –constant current –627610020 8–––saturated –25953032X X –––58334032X X –saturated –583250 8addressable decoder/driver DMOS –6B25950 8–X –DMOS –6B27350 8X X –DMOS –6B59525050 8addressable decoder/driver DMOS –625950 8–X –DMOS –627350 8X X –DMOS –6595135 7––X ––700330045 1–Hall sensor/driver X –X 514050 7––X ––200350 8––X ––280350 8––X saturated –259660 4––X saturated X 255795 7––X ––202395 8––X ––282335050 4–X X ––580050 7––X ––200450 8––X ––280450 8–X X ––580150 8X X –––582150 8X X X ––584150 8addressable decoder/driver DMOS –6A25950 8X X –DMOS –6A59580 8X X –––582280 8X X X ––584295 7––X ––202495 8––X ––28244503028dual 4- to 14-line decoder/driver ––681760060 4–––saturated X 254760 4––X saturated X 254970060 4––X saturated X 2543 and 255975050 8––X saturated –259790014 2–Hall sensor/driver X saturated X 362526 2–Hall sensor/driver X saturated X 3626100046 4stepper motor controller/driver MOS –7024 and 7029120046 4microstepping controller/driver MOS –7042125050 4stepper motor translator/driver –X 580450 4––X ––2064 and 2068150080 4––X ––2065 and 2069180050 4––X ––254450 4––X ––2540300046 4stepper motor controller/driver MOS –702646 4microstepping controller/driver MOS –7044400050 4––X ––287880 4––X ––2879over-current protection voltage limits.†Complete part number includes additional characters to indicate operating temperature range and package style.。
