Features

- Adjunct device to the Lucent ATM Port Controller (APC version 3b) in ORCA 3T FPGA- PM function can be carried out anywhere in the connection- Extends the functionnality already available within the APC- Directly connected to the Transmit ESI Interface of a single APC- Maintain a different set of per VC statistics for up to 32 connections simultaneously

• Ingress Received Cell Blocks (for convenience called - Stat 0)

• Ingress Severely Errored Cell Blocks (Bellcore GR1248 PM - Stat A)

• Ingress CLP0+1 Errored Cells (Bellcore GR1248 PM - Stat B)

• Ingress Lost CLP0+1 User Information Cells (Bellcore GR1248 PM - Stat C)

• Ingress Misinserted CLP0+1 User Information Cells (Bellcore GR1248 PM - Stat E)

• Ingress Total Transmitted CLP0+1 User Information Cells (Bellcore GR1248 PM - Stat F)

- Handle four Block size type per channel : 128, 256, 512 and 1024 cells- Handle independant threshold for Lost, Misinserted and Errored statistics- Simple CPU interface with Ready signal- Available in VHDL source code format for ease of customization- Can be customised by Logic Design Solutions

General Description

The MESC_PM4 function, implemented on a ORCA FPGA, is to extend the functionnality already available within the APC.L.D.S. can integrate your decoding logic in the FPGA in addition to any other predesigned functions.

Design PackageDevice FamilyORCA 3T30-6-S208

PFUs 176 – 90% used *

I/O64 **

1Bitstream + Data Sheet

Package file options2VHDL Source codeVHDL Test Bench for behavioural and gate level simulation.Data SheetUser’s guide : Simulation, Synthesis and Place and Route procedures.Constraint Files : « .prf » file

Design Tool UsedVHDL synthesis Leonardo Spectrum from Exemplar.VHDL ModelSim simulation tool from ModelTech.ORCA Foundry from Lucent Technologies.

SupportSupport provided by Logic Design Solutions 90 days e-mail and telephone supportfrom Logic Design Solutions included in the Macro price. Support does not cover userMacro modifications. Maintenance Contracts available.

* Synthesis option dependant (area/speed)** Assuming all Macro signals are routed off chip.Data Sheet

August. 2000 – Ver. 3MESC-PM4

Enhanced Services Controller MACRO

Performance Monitor - 32 Connections元器件交易网www.cecb2b.com August 2000MESC_PM4 MACRO

Data Sheet Logic Design Solutions

2/151.Description................................................................................................................................................................................................3

1.1Implementation example....................................................................................................................................................................3

1.2Symbol...................................................................................................................................................................................................3

1.3Pin Description...................................................................................................................................................................................4

1.4Functionnal Description....................................................................................................................................................................4

1.5E.S.I. interface.....................................................................................................................................................................................5

1.6Performance Monitor Register........................................................................................................................................................61.6.1Register Address Map.............................................................................................................................................................61.6.2Registers.....................................................................................................................................................................................61.6.2.1Connection memory............................................................................................................................................................61.6.2.2Error Threshold Divider Register......................................................................................................................................71.6.2.3Lost Threshold Divider Register.......................................................................................................................................71.6.2.4Misinserted Threshold Divider Register..........................................................................................................................81.6.2.5Connection Counter Read Request Register...................................................................................................................91.6.2.6Stat. 0 read register..............................................................................................................................................................91.6.2.7Stat. A read register.............................................................................................................................................................91.6.2.8Stat. B read register...........................................................................................................................................................101.6.2.9Stat. C read register...........................................................................................................................................................101.6.2.10Stat. E read register......................................................................................................................................................101.6.2.11Stat. F read register......................................................................................................................................................111.6.2.12Status Interupt register................................................................................................................................................11

合集下载

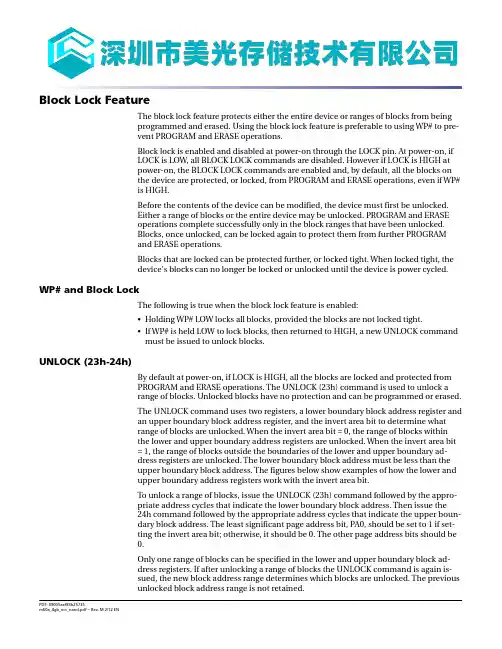

MEMORY存储芯片MTFC8GAKAJCN-4M IT中文规格书

MEMORY存储芯片MTFC8GAKAJCN-4M IT中文规格书

Block Lock Feature

The block lock feature protects either the entire device or ranges of blocks from being

programmed and erased. Using the block lock feature is preferable to using WP# to pre-

vent PROGRAM and ERASE operations.

Block lock is enabled and disabled at power-on through the LOCK pin. At power-on, if

LOCK is LOW, all BLOCK LOCK commands are disabled. However if LOCK is HIGH at

power-on, the BLOCK LOCK commands are enabled and, by default, all the blocks on

the device are protected, or locked, from PROGRAM and ERASE operations, even if WP#

is HIGH.

Before the contents of the device can be modified, the device must first be unlocked.

Either a range of blocks or the entire device may be unlocked. PROGRAM and ERASE

operations complete successfully only in the block ranges that have been unlocked.

Blocks, once unlocked, can be locked again to protect them from further PROGRAM

MT4LC4M16R6资料

MT4LC4M16R6资料

14 Meg x 16 EDO DRAMMicron Technology, Inc., reserves the right to change products or specifications without notice.D29_C.p65 – Rev. 2/01©2001, Micron Technology, Inc.4 MEG x 16EDO DRAM

FEATURES

•Single +3.3V ±0.3V power supply

•Industry-standard x16 pinout, timing, functions,

and package

•12 row, 10 column addresses (R6)

13 row, 9 column addresses (N3)

•High-performance CMOS silicon-gate process

•All inputs, outputs and clocks are LVTTL-compatible

•Extended Data-Out (EDO) PAGE MODE access

•4,096-cycle CAS#-BEFORE-RAS# (CBR) REFRESH

distributed across 64ms

•Optional self refresh (S) for low-power data

retention

OPTIONSMARKING

•Plastic Package

50-pin TSOP (400 mil)TG

•Timing

50ns access-5

60ns access-6

•Refresh Rates

4KR6

8KN3

Standard RefreshNone

Self RefreshS*

•Operating Temperature Range

Commercial (0°C to +70°C)None

NOTE:1.The “#” symbol indicates signal is active LOW.

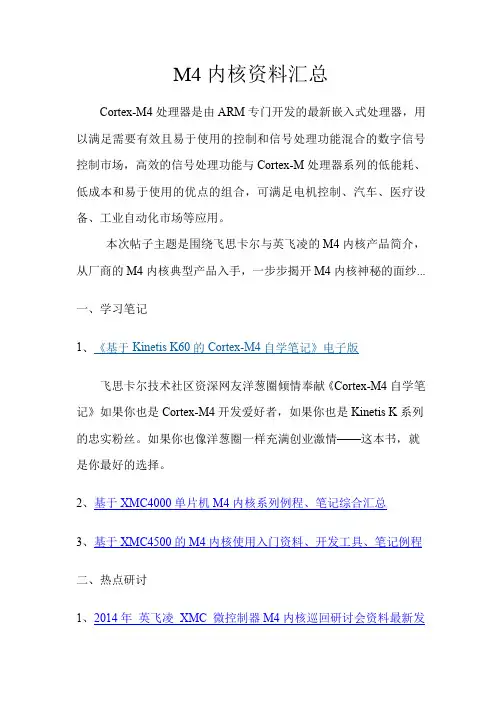

Cortex-M4内核资料

Cortex-M4内核资料

M4内核资料汇总

Cortex-M4处理器是由ARM专门开发的最新嵌入式处理器，用

以满足需要有效且易于使用的控制和信号处理功能混合的数字信号

控制市场，高效的信号处理功能与Cortex-M处理器系列的低能耗、

低成本和易于使用的优点的组合，可满足电机控制、汽车、医疗设

备、工业自动化市场等应用。

本次帖子主题是围绕飞思卡尔与英飞凌的M4内核产品简介，

从厂商的M4内核典型产品入手，一步步揭开M4内核神秘的面纱...

一、学习笔记

1、《基于KinetisK60的Cortex-M4自学笔记》电子版

飞思卡尔技术社区资深网友洋葱圈倾情奉献《Cortex-M4自学笔

记》如果你也是Cortex-M4开发爱好者，如果你也是KinetisK系列

的忠实粉丝。如果你也像洋葱圈一样充满创业激情——这本书，就

是你最好的选择。

2、基于XMC4000单片机M4内核系列例程、笔记综合汇总

3、基于XMC4500的M4内核使用入门资料、开发工具、笔记例程

二、热点研讨

1、2014年英飞凌XMC微控制器M4内核巡回研讨会资料最新发布！

日前英飞凌研讨会在五大城市召开，现在奉上最新研讨会资料，

赶紧下载吧！

2、2014年飞思卡尔基于Kinetis和i.MX解决方案的研讨会！

DesigningwithFreescale研讨会–基于ARM®技术的Kinetis和

i.MX解决方案研讨会是由讲师指导的培训课程，支持嵌入式工程师

加快创新以飞思卡尔技术开发的终端产品。

三、视频教学

1、飞思卡尔ARMCortexM4Kinetis视频讲义

2、【培训视频】英飞凌XMCMCU开发基础系列（DAVE3&XMC

2GoKit）

四、经典应用

1、基于XMC4500的PMSM伺服控制器设计

2、基于K60USB摄像头的设计

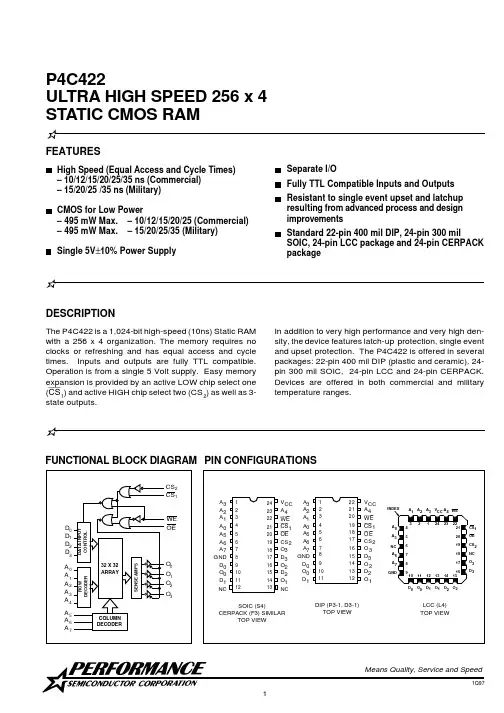

P4C22-15PMB中文资料
