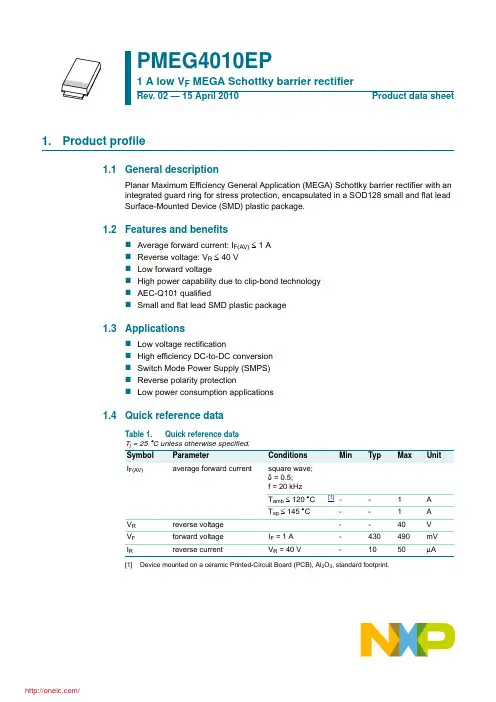

1. Product profile1.1General descriptionPlanar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with anintegrated guard ring for stress protection, encapsulated in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package.1.2Features and benefitsAverage forward current: I F(AV)≤1A Reverse voltage: V R ≤40V Low forward voltageHigh power capability due to clip-bond technology AEC-Q101 qualifiedSmall and flat lead SMD plastic package1.3ApplicationsLow voltage rectificationHigh efficiency DC-to-DC conversion Switch Mode Power Supply (SMPS) Reverse polarity protectionLow power consumption applications1.4Quick reference data[1]Device mounted on a ceramic Printed-Circuit Board (PCB), Al 2O 3, standard footprint.PMEG4010EP1 A low V F MEGA Schottky barrier rectifierRev. 02 — 15 April 2010Product data sheetTable 1.Quick reference data T j =25°C unless otherwise specified.Symbol ParameterConditions Min Typ Max UnitI F(AV)average forward currentsquare wave; δ=0.5; f =20kHz T amb ≤120°C [1]--1A T sp ≤145°C--1A V R reverse voltage --40V V F forward voltage I F =1A -430490mV I Rreverse currentV R =40V-1050μA2. Pinning information[1]The marking bar indicates the cathode.3. Ordering information4. Marking5. Limiting valuesTable 2.PinningPin DescriptionSimplified outline Graphic symbol1cathode [1]2anodesym00112Table 3.Ordering informationType number Package NameDescriptionVersion PMEG4010EP-plastic surface-mounted package; 2leadsSOD128Table 4.Marking codesType number Marking code PMEG4010EPACTable 5.Limiting valuesIn accordance with the Absolute Maximum Rating System (IEC 60134).Symbol Parameter Conditions Min Max Unit V R reverse voltage T j =25°C -40VI F(AV)average forward currentsquare wave; δ=0.5; f =20kHz T amb ≤120°C [1]-1A T sp ≤145°C-1A I FSM non-repetitive peak forward current square wave; t p =8ms [2]-50A P tottotal power dissipationT amb ≤25°C[3][4]-625mW [3][5]-1050mW [3][1]-2100mW[1]Device mounted on a ceramic PCB, Al 2O 3, standard footprint.[2]T j =25°C prior to surge.[3]Reflow soldering is the only recommended soldering method.[4]Device mounted on an FR4PCB, single-sided copper, tin-plated and standard footprint.[5]Device mounted on an FR4PCB, single-sided copper, tin-plated, mounting pad for cathode 1cm 2.6. Thermal characteristics[1]For Schottky barrier diodes thermal runaway has to be considered, as in some applications the reverse power losses P R are a significant part of the total power losses.[2]Reflow soldering is the only recommended soldering method.[3]Device mounted on an FR4PCB, single-sided copper, tin-plated and standard footprint.[4]Device mounted on an FR4PCB, single-sided copper, tin-plated, mounting pad for cathode 1cm 2.[5]Device mounted on a ceramic PCB, Al 2O 3, standard footprint.[6]Soldering point of cathode tab.T j junction temperature -150°C T amb ambient temperature −55+150°C T stgstorage temperature−65+150°CTable 5.Limiting values …continuedIn accordance with the Absolute Maximum Rating System (IEC 60134).Symbol ParameterConditions Min Max Unit Table 6.Thermal characteristics Symbol ParameterConditions Min Typ Max Unit R th(j-a)thermal resistance fromjunction to ambientin free air[1][2][3]--200K/W [4]--120K/W [5]--60K/W R th(j-sp)thermal resistance from junction to solder point[6]--12K/W7. CharacteristicsTable 7.CharacteristicsT j=25°C unless otherwise specified.Symbol Parameter Conditions Min Typ Max UnitV F forward voltage I F=0.1A-310360mVI F=1A-430490mVI R reverse current V R=10V-313μAV R=40V-1050μAC d diode capacitance f=1MHzV R=1V-130-pFV R=10V-50-pF8. Test informationThe current ratings for the typical waveforms as shown in Figure 9, 10, 11 and 12 are calculated according to the equations:with I M defined as peak current, at DC, and with I RMS defined as RMS current.8.1Quality informationThis product has been qualified in accordance with the Automotive Electronics Council (AEC) standard Q101 - Stress test qualification for discrete semiconductors , and is suitable for use in automotive applications.9. Package outlineI F AV ()I M δ×=I RMS I F AV ()=I RMS I M δ×=10. Packing informationTable 8.Packing methodsThe indicated -xxx are the last three digits of the 12NC ordering code.[1]Type number Package Description Packing quantity3000PMEG4010EP SOD1284mm pitch, 12mm tape and reel-115[1]For further information and the availability of packing methods, see Section14.11. Soldering分销商库存信息: NXPPMEG4010EP,115。
