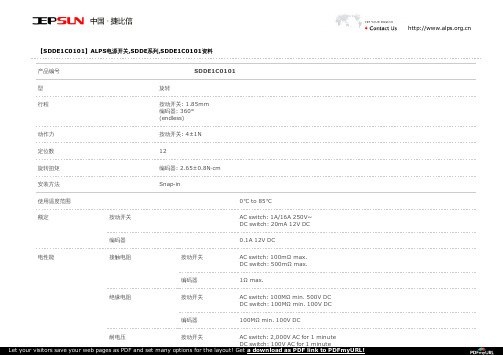

ALPS旋转型带编码器电源开关SDDE1C0101 规格书

旋变解码板使用说明书Rotary transformer resolution manual深圳市欧诺克科技有限公司1旋变解析卡型号说明RS 10- 10 07 I 09RS:resolver(解析器)额定电压I:increament （增量式）10:1024线励磁电压10:10KHz解析器型号编码器线额定电压激励频率励磁电压RS10-1003I09102418~90VDC 10KHz 2.4VACrms RS10-1003I18102418~180VDC 10KHz 2.4VACrms RS10-1007I09 102418~90VDC 10KHz 7VACrms RS10-1007I18102418~180VDC10KHz7VACrms旋变解析卡型号汇总编码器线激励频率03:2.4VACrms 07:7VACrms编码器09:18~90VDC 18:18~180VDC旋变解码板1、产品概述本产品由深圳市欧诺克科技有限公司生产的旋变解码板主要用于旋变解码，可以将旋变信号转换为光电编码器的信号格式（A+、A-、B+、B-、Z+、Z-），输出位数12位，对应仿真增量式编码器为1024 线。

2、技术指标（1）外形尺寸：≤80mm×70.8mm×24.5mm （长×宽×高）；（2）电源输入：20-90VDC或者20-180VDC；（3）工作温度：-20℃～+85℃；（4）激励频率：10KHz；（5）励磁电压：7VACrms或者2.4VACrms；（6）支持旋变类型：变压比为 0.5 的绕线式旋变和变压比为 0.286 的磁阻式旋变；3、性能特点（1）采用电源隔离技术：内部电源与外部输入电源隔离，满足客户可靠性和抗干扰性能的要求；（2）ESD 安全设计：对解码板旋变激励信号、旋变正余弦信号进行 ESD 保护设计，提供高达2KV 的 ESD 保护功能；（3）增强型激励信号驱动技术：本产品设计的激励信号驱动电流最高可达1.8A，满足绝大部分旋变激励的需要；（4）旋变激励信号输出保护电路设计；解码板输出的旋变激励信号发生异常短路时，不会损坏产品，提高了产品可靠性；4 、接口定义（1）J1 接口定义（编码器接口）解码板端采用 ZH1.5-11AW或XH2.5-7P连接器，本公司会配上这个端子的连接线。

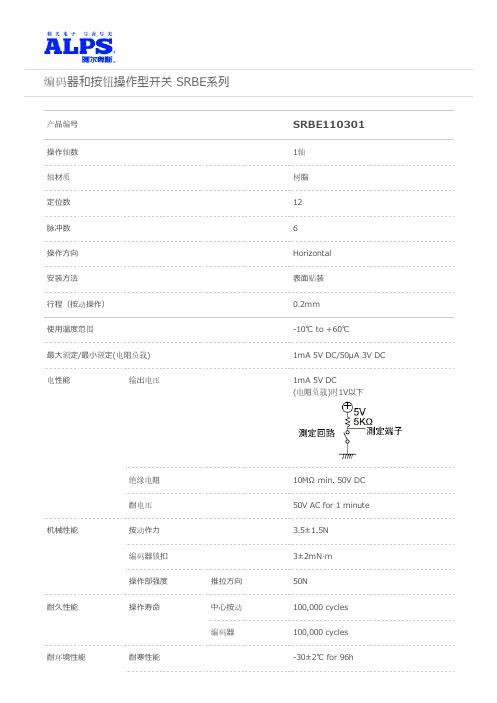

编码器和按钮操作型开关 SRBE系列产品编号SRBE110301操作轴数1轴轴材质树脂定位数12脉冲数6操作⽅向Horizontal安装⽅法表⾯贴装⾏程（按动操作）0.2mm使⽤温度范围-10℃ to +60℃最⼤额定/最⼩额定(电阻负载)1mA 5V DC/50µA 3V DC电性能输出电压1mA 5V DC(电阻负载)时1V以下绝缘电阻10MΩ min. 50V DC耐电压50V AC for 1 minute机械性能按动作⼒ 3.5±1.5N编码器锁扣3±2mN·m操作部强度推拉⽅向50N耐久性能操作寿命中⼼按动100,000 cycles编码器100,000 cycles耐环境性能耐寒性能-30±2℃ for 96h耐热性能85±2℃ for 96h耐湿性能40±2℃, 90 to 95%RH for 96h 最⼩订货单位(pcs.)⽇本1,500出⼝6,000照⽚外形图焊接处尺⼨图⾃A⽅向看电路图包装规格载带梱包数(pcs.)1卷1,5001箱/⽇本3,0001箱/出⼝包装6,000载带宽度(mm)24出⼝包装箱尺⼨(mm)428×413×172回流⽅式的参考举例1. 加热⽅式远红外线加热的上下加热⽅式。

2. 温度测量⽅式⽤φ0.1〜φ0.2的CA(K)或CC(T)测量｡位置在焊连接部(铜箔⾯)测量｡固定⽅式采⽤耐热胶带｡3. 温度分布A B C D E F G H I回流焊次数260℃230℃180℃150℃ 2 min.--40s- 1 time(1) 上述条件，为印刷电路板的零部件贴装⾯上的温度，根据电路板的材质，⼤⼩，厚度等，电路板温度和开关表⾯温度会有很⼤的不同，关于开关表⾯温度，也请在上述条件内使⽤。

(2) 根据回流槽的种类，条件稍有不同，请事先充分进⾏确认之后使⽤。

⼿⼯焊接⽅式的参考举例烙铁头温度350±5℃焊接时间3s max.焊接次数 1 time表⽰本系列共通的注释。

数据手册低功耗霍尔开关SDC1215概述SDC1215是一款高精度低功耗霍尔开关,应用于磁场检测，给出相应的数字输出。

在1.85V时的典型功耗小于4uW，因此非常适用于低耗电产品，可用于优先考虑功耗的电池供电系统，如触屏式手机，平板电脑，笔记本电脑等。

此产品具有精准的磁性开关切换点，而且其对于工艺差异和温度变化的灵敏度低。

采用小型的SOT-23-3、TO-92和DFN-4L。

特点⏹极低的功耗设计⏹工作电压范围：1.65V~5.5V⏹输出方式：CMOS输出⏹斩波放大器设计，对因工艺、工作温度和机械应力产生的噪声和失调敏感度低⏹不区分磁场极性，N极和S极均可使用⏹封装形式：SOT-23-3、TO-92S、DFN-4L应用⏹触屏式手机、平板电脑⏹笔记本电脑、数码相机⏹玩具、游戏机⏹家用电器SOT-23-3 TO-92SDFN-4L图1.封装形式数据手册低功耗霍尔开关SDC1215管脚描述图2.管脚排布编号名称描述SOT-23-3TO-92S DFN-4L114VDD电源322GND地231OUT输出----------3NC悬空表1.管脚描述数据手册低功耗霍尔开关SDC1215功能框图图3.功能框图数据手册低功耗霍尔开关SDC1215订购信息封装温度范围产品编号标识编号包装形式无铅无卤无铅无卤TO-92S -40°C ~125°C SDC1215AZS-E1SDC1215AZS-G112151215G 袋装SOT-23-3SDC1215AJTR-E1SDC1215AJTR-G112151215G 编带DFN-4L SDC1215ADNTR-E1SDC1215ADNTR-G112151215G 编带TO-92S -40°C ~125°C SDC1215BZS-E1SDC1215BZS-G112151215G 袋装SOT-23-3SDC1215BJTR-E1SDC1215BJTR-G112151215G 编带DFN-4L SDC1215BDNTR-E1SDC1215BDNTR-G112151215G 编带TO-92S -40°C ~125°C SDC1215CZS-E1SDC1215CZS-G112151215G 袋装SOT-23-3SDC1215CJTR-E1SDC1215CJTR-G112151215G 编带DFN-4L SDC1215CDNTR-E1SDC1215CDNTR-G112151215G 编带TO-92S -40°C ~125°C SDC1215DZS-E1SDC1215DZS-G112151215G 袋装SOT-23-3SDC1215DJTR-E1SDC1215DJTR-G112151215G 编带DFN-4LSDC1215DDNTR-E1SDC1215DDNTR-G112151215G编带数据手册低功耗霍尔开关SDC1215极限参数(注意：应用不要超过最大值，以防止损坏。

Automatic transfer switchEGSX seriesEaton’s EGSX series residential automatic transfer switch productline provides a safe and efficient means of transferring powerfrom utility to generator source. Its simplified relay-interfacesystem replaces complicated electronics, while increasing systemreliability and creating an intuitive design for faster installationand troubleshooting.General specifi cations and features• Simple design for quick installation and troubleshooting• Two contact sets for load shedding• Short-circuit ratings:• 50 A: 5 kA (service entrance)• 100 A and 200 A: 25 kA (service entrance)• 400 A: 35 kA (service entrance)• All non-service entrance models: 10 kA• Rated for 100% load for both inductive and resistive loads,and 80% for all service entrance rated switches• Molded-case breaker provided with 25 kAIC (100 A to 200 A),35 kAIC (400 A only)• Available service entrance designs and ratings up to 400 A• Silver alloy main contacts; resistant to welding and sticking• Terminal block termination; connections labeled to matchgenerator connections• Compatible with Eaton standby generators brand only• NEC T / UL T 1008 compliant; meets industry standardEnvironmental specifi cations• Operating ambient temperature range:between –20 °C and +70 °C (–4 °F and +158 °F)• Storage temperature: –20 °C to +70 °C (–4 °F to +158 °F)• Humidity levels:• Normal outdoor operation: ≤95% (noncondensing)• Storage: ≤80% of relative humidity2Technical Data TD016001ENEffective July 2014Automatic transfer switchEGSX seriesEATON T able 1. Catalog Number SelectionT able 2. T echnical DataCatalogNumberAmpere RatingVoltageNumber of Poles Service EntranceNumber of Circuits IncludedFrequency (Hz)Enclosure TypeContactor Wire Size Range(s)Number of Cables per PhaseWithstandCurrent (rms) at 200 VacEGSX50L1250120/2402Yes 1250/60NEMA 1#14–615,000EGSX50L12R 50120/2402—1250/60NEMA 3R #14–615,000EGSX100A 100120/2402——50/60NEMA 3R #14–2/0110,000EGSX100NSEA 100120/2402Yes —50/60NEMA 3R #14–2/0125,000EGSX100L24RA 100120/2402—2450/60NEMA 3R #14–2/0110,000EGSX150NSEA 150120/2402Yes —50/60NEMA 3R #14–300 kcmil 125,000EGSX200A 200120/2402——50/60NEMA 3R #14–300 kcmil 110,000EGSX200NSEA 200120/2402Yes —50/60NEMA 3R #14–300 kcmil 125,000EGSX400NSEA 400120/2402Yes —50/60NEMA 3R750 kcmil–2 and 300 kcmil–1/01/235,000Uses CH type circuit breakers.T able 3. DimensionsCatalog NumberAmpere RatingDescriptionWidth in Inches (mm)Height in Inches (mm)Depth in Inches (mm)Weight in Lbs (kg)EGSX50L1250NEMA 1 with 12-circuit CH loadcenter 14.25 (362.0)21.00 (533.4) 4.00 (101.6)23 (10.40)EGSX50L12R 50NEMA 3R with 12-circuit CH loadcenter 14.25 (362.0)21.00 (533.4) 6.00 (152.4)29 (13.15)EGSX100A 100NEMA 3R14.46 (367.3)16.87 (428.5) 5.32 (135.1)25 (11.33)EGSX100NSEA 100NEMA 3R service entrance14.46 (367.3)16.87 (428.5) 5.32 (135.1)28 (12.70)EGSX100L24RA 100NEMA 3R with 24-circuit CH loadcenter 14.46 (367.3)29.33 (745.0) 5.32 (135.1)38 (17.23)EGSX150NSEA 150NEMA 3R service entrance 14.46 (367.3)29.33 (745.0) 5.32 (135.1)45 (20.41)EGSX200A 200NEMA 3R14.46 (367.3)25.08 (637.0) 5.32 (135.1)35 (15.88)EGSX200NSEA 200NEMA 3R service entrance 14.46 (367.3)29.33 (745.0) 5.32 (135.1)45 (20.41)EGSX400NSEA 400NEMA 3R service entrance 23.14 (587.8)37.56 (954.0) 10.00 (254.0)130 (58.97)E GSX 200 NSEAManufacturerEatonTypeGenerator transfer switch EGSX seriesService Entrance RatedA = Non-service entrance NSEA = Service entrance (normal source only)Ampere Rating50 = 50 A 100 = 100 A 150 = 150 A 200 = 200 A 400 = 400 ALoadcenter (CH Type, Integral)L12 = 12 circuits NEMA T 1L12R = 12 circuits NEMA 3R L24R = 24 circuits NEMA 3R Blank = None3Technical Data TD016001ENEffective July 2014Automatic transfer switch EGSX series EATON Figure 1. Dimensions in Inches (mm) and Plan View of an EGSX150NSEA/EGSX200NSEA T able 4. Replacement Parts for EGSX ATSComponent50 A100 A150 A200 A400 AContactor 99-5643-899-563899-5702-1599-5702-1599-5702-16Wire harness 99-5643-799-5638-1399-5702-1799-5702-1799-5702-18Neutral bar 99-5643-699-5638-799-5702-699-5702-699-5702-13Ground lugs99-5643-499-5638-599-5702-499-5702-499-5702-4Service entrance breaker —99-5638-4BWH2150BWH2200KD2400Lugs 99-5643-599-5638-699-5702-599-5702-599-5702-12Eaton1000 Eaton Boulevard Cleveland, OH 44122 United States © 2014 EatonAll Rights ReservedPrinted in USAPublication No. TD016001EN / Z15452 July 2014Eaton is a registered trademark.All other trademarks are propertyof their respective owners. Automatic transfer switchEGSX seriesTechnical Data TD016001EN Effective July 2014。

DIPH–41Dimensions are shown: Inch (mm)Specifications and dimensions subject to changewww.ckswitch Features/Benefits • P rocess sealed – withstandssoldering and cleaning• T hru-hole and surface mount models • C risp, positive detent ensures actuation • C omputer and peripherals • R oHS compliant • I P65Typical Applications• A ddress switching applications • D ata storage devices • C omputer and peripherals • I nstrumentationSpecificationsCONTACT RATING: 0.4 V AC, DC 20 V max.ELECTRICAL LIFE: 20,000 steps min. @ 5 V DC 10 mA.MECHANICAL LIFE: 30,000 steps min.CONTACT RESISTANCE: 100 milliohms max. initial @ 2 V DC 10 mA.INSULATION RESISTANCE: 1000 megohms min. @ 100 V DC DIELECTRIC STRENGTH: 300 V AC for 1 minute.OPERATING TEMPERATURE: -20°C to 85°C.STORAGE TEMPERATURE: -40°C to 85°C.OPERATING FORCE: 1000 grams max.PACKAGING: Switches supplied in anti-static tubes in full quatities only. This may affect order quantity. Surface mount models with MO actuators available in tape and reel, 500 pieces per reel.MaterialsCOVER: PPS (black)HOUSING: PPS (black)ACTUATOR: PA 6T M0 actuator option; PBT L1 and W1 actuator option.CONTACTS: Beryllium Copper with Gold over Nickel plate TERMINALS: Brass with Gold Nickel plate.Note : Specifications and materials listed above are for switches with standard options. For information on specific and custom switches, consult Customer Service Center.* Note - L1 & W1 actuators are available for terminations A & C and switch functions CRD16R & CRD16C - L1 & W1 actuators are not available for termination S and switch functions CRD10R & CRD10C8 Feb 23D I PPC MountCRD16R CRD16CDIP* Note: See Technical Data section of this catalog for RoHS compliant and compatible definitions and specifications.TAPE & REEL。
