置换通风建筑节能论⽂题⽬：置换通风技术简介学院:专业:学号:学⽣姓名:指导教师:⽇期:置换通风技术简介0 摘要简述了置换通风的原理与特性,介绍了置换通风系统的设计要点及其末端送风装置,举出了⼀些⼯程应⽤实例,指出置换通风是⼀种值得推荐的通风⽅式。

关键词置换通风热⼒分层温度梯度换⽓效率送风末端装置节能。

Outlines the principles and characteristics of displacement ventilation, introduced the displacement ventilation system design point and the end of the air blower, cited some examples of engineering applications, noted displacement ventilation is a recommended ventilation.1 研究背景置换通风系统以其舒适、节能等独具的特点越来越引起⼈们的关注, 当前这种送风⽅式正在成为⼈们研究的热点。

作为⼀种新的空调通风形式, 置换通风采⽤低速、低温差、房间底部送风和房间顶部排风的⽓流组织⽅式, ⽐传统的混合通风⽅式具有很多优点, 多数场所都能较好满⾜⼈体舒适性要求; 送风系统直接把新风送⼊⼯作区, ⼈呼吸范围内的通风效率( Ventilation efficiency) 得以提⾼, 部分停滞在室内的污浊空⽓迅速排出室外; 由于送风温度⾼、温差⼩, 冷⽔机组和处理新风所需的能耗降低; 由于只考虑⼯作区负荷, 系统所需的能耗明显降低。

根据其特性, 该系统特别适⽤于四季凉爽⼲燥, 可直接使⽤室外新风消除余热、余湿的地区。

2 置换通风的发展历程2.1 国外研究情况置换式通风于⼆⼗世纪七⼗年代末⾸先在北欧发展起来1978年德国柏林⼀个焊接车间⾸次使⽤了置换式通风⽅式.20 世纪80年代中，该⽅式⼜被⽤于办公室等商业建筑中。

XX建筑科技大学空气调节作业置换通风技术及其进展班级：暖通03研XX学号：谷长城30348指导教师：李安桂教授学院：环工学院二零零四年十二月十七日前言置换通风技术起源于北欧斯堪的纳维亚半岛国家，经过近20～30年的开展已相当成熟,在欧洲工业与民用建筑的通风和空调系统中获得了广泛的应用。

作为一种气流组织形式，它能够创造出良好的室内热舒适环境和改善室内空气品质；工业上在用来作为空调方式时，既可以给工人提供良好的室内空气环境，也可以有效的去除生产过程中产生的余热、余湿、和空气污染物，适于工艺过程的需要。

在北美，置换通风技术在近5年来应用也日趋广泛；在中国大陆，应用的地域普及XX、XX、XX、XX等冬冷夏热地区，XX、XX等热湿地区，、XX等寒冷地区，乌鲁木齐等枯燥地区。

但是，与传统的混合通风空调方式相比，其普及度及技术的成熟程度均还有很大差距。

中国国内的研究还不够充分〔尤其是在造价和工程设计指导方面〕，使得它的应用也受到了限制。

置换通风技术在传统的混合通风中，气流组织方式是：送风口安装在吊顶上〔也有安装在侧墙上或窗台上的〕，送风是以较高的风速把气流送入室内。

由于强烈的诱导作用，室内空气会被诱导进入送风气流中，随着送风气流的卷吸扩散，风速和温差会很快衰减。

在理想状态下，送风气流与室内空气混合得很均匀，不考虑风口临近区域，可认为室内温度和污染物浓度根本一样〔混合通风空气品质〕。

混合通风的缺点是室内风速不能任意的小，它随风量和冷负荷的增加而增加。

为了满足人们对使用空间内最正确热舒适性和优秀空气品质的要求，必须作好室内气流组织。

一般来说，相对于空调房间的混合通风方式而言，置换通风可以保证良好的室内空气品质而且节能。

置换通风以较低的温度从地板附近把空气送入室内，风速的平均值及紊流度均是比拟小，由于送风层的温度较低，密度较大，故会沿着整个地板面蔓延(spread)开来。

从地板或墙壁底部送风口所送冷风在地板外表上扩散开来，可形成"空气湖(airlake)"；并且在热源周围形成浮力尾流(buoyantplume),慢慢带走热量。

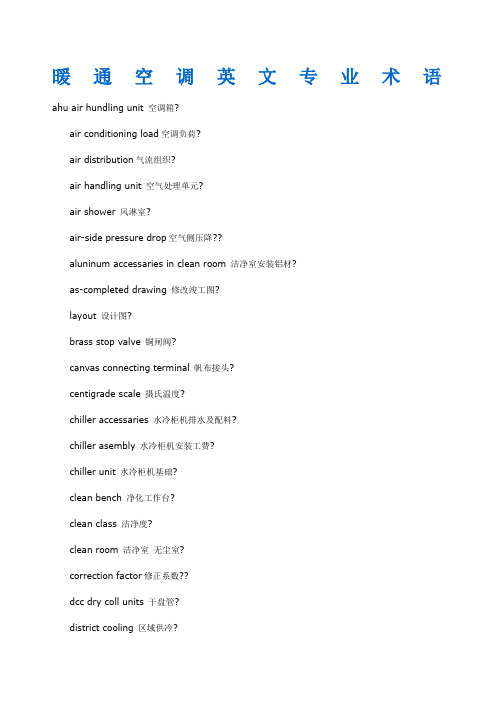

暖通空调英文专业术语ahu air hundling unit 空调箱?air conditioning load空调负荷?air distribution气流组织?air handling unit 空气处理单元?air shower 风淋室?air-side pressure drop空气侧压降??aluninum accessaries in clean room 洁净室安装铝材?as-completed drawing 修改竣工图?layout 设计图?brass stop valve 铜闸阀?canvas connecting terminal 帆布接头?centigrade scale 摄氏温度?chiller accessaries 水冷柜机排水及配料?chiller asembly 水冷柜机安装工费?chiller unit 水冷柜机基础?clean bench 净化工作台?clean class 洁净度?clean room 洁净室无尘室?correction factor修正系数??dcc dry coll units 干盘管?district cooling 区域供冷?direct return system异程式系统?displacement ventilation置换通风?drawing No.图号?elevation立面图?entering air temp进风温度entering water temp进水温度? fahrenheit scale 华氏温度?fan coil unit 风机盘管?ffu fan filter units 风扇过滤网组?final drawing 施工图?flow velocity 流速?fresh air supply 新风供给?fresh air unit 新风处理机组?ground source heat pump地源热泵?gross weight 毛重?heating ventilating and air conditioning 供热通风与空气调节? hepa filter 高效过滤网?high efficiency particulate air filters高效空气过滤器? horizontal series type水平串联式?hot water supply system生活热水系统?humidity 湿度?hydraulic calculation水力计算?Seat air supply座椅送风?Shaft seal 轴封?Shaft storage 搁架式贮藏?Shake 摇动，抖动?Shakedown run 试车，调动启动，试运转?Shake-out 摇动，抖动?Shakeproof 防振的，抗振的?Shaker 振动器?Shaking 摇[摆，振]动?Shaking grate 振动炉排?Shaking screen 振动筛?Shallow 浅层，浅的，表面的?Shank 柄，杆，柱体，轴?Shape 造[成]型，形状[态]模型。
