普通低压小电机样本

中小型三相异步电动机能源效率标识管理国家有关部门依据《能源效率标识管理办法》（国家发展改革委和国家质检总局第17号令）制定了《中小型三相异步电动机能源效率标识CEL007》实施细则。

规定了从2008年6月1日起．在国内生产、销售的“690V及以下的电压，50Hz三相交流电源供电，能效2级和3级的额定功率在0.55kW一315kW范围内，能效1级的额定功率在3kW一315kW范围内，极数为2极、4极和6极，单速封闭自扇冷式，N设计的一般用途电动机或一般用途防爆电动机”必须使用“能源效率标识”。

向国家有关部门备案和向社会公告。

满足相应规定的电动机产品的设计制造必须符合国家强制法规GBl 8613—2006《中小型三相异步电动机能效限值和能效等级》。

重庆赛力盟电机有限责任公司从2008年6月1日起生产．销售的Y系列、Y2系列、Y3系列电动机经过设计调整和工艺调整，产品试验验证，产品能效等级符合国家强制法规GBl 8613—2006《中小型三相异步电动机能效限值和能效等级》规定，已按《中小型三相异步电动机能源效率标识CEL007》实施细则规定申报备案。

申报备案的产品为Y系列．Y2系列、Y3系列三相异步电动机，中心高为H132～355，电动机极数2P、4P、6P，共3个系列约198个规格。

重庆赛力盟电机有限责任公司为了提高三相异步电动机产品的品质。

Y系列、Y2系列、Y3系列三相异步电动机除满足国家“能效标识管理要求”的要求外；还同时满足国家“以冷带热”产品升级的产业政策的要求：满足出口欧盟环保电机电器的“ROHS”指令的要求。

承担相应的节能减排和环境保护的社会责任。

Y、Y2、Y3系列电动机产品的主要特点产品导磁材料电磁线结构件绝缘结构防护等级产品标准Y系列冷轧硅钢板 QZ-2/130 Y2坯件B级 IP44JB／T 10391JB／T 8680 Y2系列冷轧硅钢板 QZ(G)-2/155Y2坯件F级 IP54JB／T 10447 Y3系列冷轧硅钢板 QZ(G)-2/155Y2坯件F级 IP55Y系列电动机电磁设计方案采用冷轧硅钢板50WW800和50WW600作为导磁材料，绝缘结构和电磁线采用B级绝缘材料，电动机防护等级为IP44。

Y2系列电动机电磁设计方案采用冷轧硅钢板50WW800和50WW600作为导磁材料，绝缘结构和电磁线采用F级绝缘材料，电动机温升按B级考核，Y2系列电动机结构坯件新颖，散热面积较Y 系列坯件大约增加1 5％以上，电动机防护等级为lP54。

Y3系列电动机电磁设计方案采用冷轧硅钢板50WW800和50WW600作为导磁材料，绝缘结构和电磁线采用F级绝缘材料，电动机温升按B级考核，Y3系列电动机结构坯件采用新颖Y2系列结构坯件，散热面积较大，电动机防护等级为lP55。

Y系列电动机和Y2系列电动机生产采用冷轧硅钢板制造定转子铁心，热轧与冷轧硅钢板的性能和铁心的叠压系数有较大的差异，使得电动机铁心制造成本有较大的增加，性能匹配也有一定的困难。

Y3系列电动机本身就是采用冷轧硅钢板作为导磁材料设计的电动机产品，其电动机的性能价格比无疑是较高的。

因此，公司优先安排Y 3系列电动机生产。

Y、Y 2、Y3系列电动机是一般用途的全封闭自扇冷鼠笼型三相异步电动机。

Y系列电动机的基本防护等级为IP44，绝缘等级为B级。

Y2系列电动机的基本防护等级为IP54，绝缘结构为F级，电机温升按B级考核。

Y3系列电动机的基本防护等级为IP55，绝缘结构为F级，电机温升按B级考核。

它们具有设计新颖、造型美观、效率高、噪声低、转矩高、起动性能好、结构紧凑、使用维护方便等优点。

功率等级和安装尺寸符合IEC标准。

Y、Y2、Y3系列电动机主要适用于不含易燃、易爆或腐蚀性气体的一般场所和无特殊要求的机械上。

如：金属切削机床、泵、风机、运输机械、搅拌机、农业机械、食品机械等。

由于电动机有较好的起动性能，因此也适用于某些对起动转矩有较高要求的机械，如压缩机等。

Y、Y2、Y3系列电机的型号由五部分组成：第一部分汉语拼音字母Y表示异步电动机；第二部分2（或3）表示第二（或三）次改型设计；第三部分数字表示机座中心高(机座不带底脚时，与机座带底脚时相同)；第四部分英文字母为机座长度代号(S一短机座、M一中机座、L一长机座)，字母后的数字为铁心长度代号。

第五部分横线后的数字为电动机的极数。

例：极数铁心长度代号中机座（S—短机座、L—长机座）中心高第三次改型设计（2—第二次改型设计）异步电动机代号二、安装型式本系列电机有以下三种基本安装结构型式：(1)IMB3：机座带底脚，端盖无凸缘。

(2)IMB5：机座不带底脚，端盖有凸缘。

(3)IMB35：机座带底脚，端盖有凸缘。

基本结构式 IMB3安装结构 IMB3 IMB6 IMB7 IMB8 IMV5 IMV6示意图制造范围 132～355 132～160基本结构式 IMB35 IMB5安装结构 IMB35 IMV15 IMV35 IMB5 IMV1 IMV3示意图制造范围 132～355 132～160 132～225 132～355 132～160环境温度：-15℃～40℃海拔：一般不超过1000米频率：50赫兹电压：380伏接法：3千瓦及以下为Y接，4千瓦及以上为△接。

工作方式：连续工作制（S1）注：如有特殊要求，请在订货时提出。

如：1）双轴伸或特殊轴伸2）特殊出线方式（顶出线或左出线）3）异电压（如346、420、440、460伏等）。

异频率（60、33赫兹）四、结构说明定子：定子铁芯嵌完绕组后，经真空压力浸漆，烘焙处理成为一个整体，绕组及绝缘具有良好的电气、机械、防潮性能及热稳定性。

电动机的绝缘等级：Y系列为B级绝缘，Y2、Y3系列为F级绝缘，温升按B级考核。

转子：转予采用热套或冷压工艺将铸铝转子固定在轴上，并精校动平衡。

电机运转平衡，振动小。

接线盒：具有良好的密封性能，盒内有较大空腔，出线口有锁紧装置，并可从与电动机轴线垂直或平行的四个方向任意出线。

Y、Y2、Y3系列电机（机座号132～315）的出线盒均在机座右侧（从轴伸端视之）。

Y、Y2、Y3系列电机（机座号355）的出线盒在机座顶部（从轴伸端视之）。

如需其它出线方式，请在订货时说明。

风扇、风罩：全系列风扇与轴采用键配合，运转可靠。

风罩由薄钢板拉伸后冲孔制成，风路顺畅，外形美观，刚性好，并满足相应的固体防护要求。

轴承及轴承室：全系列采用电机专用轴承，机座132～280在轴伸端轴承室内装有波形弹簧片，可调节轴向间隙，有效地抑制电动机运行时的振动和噪声。

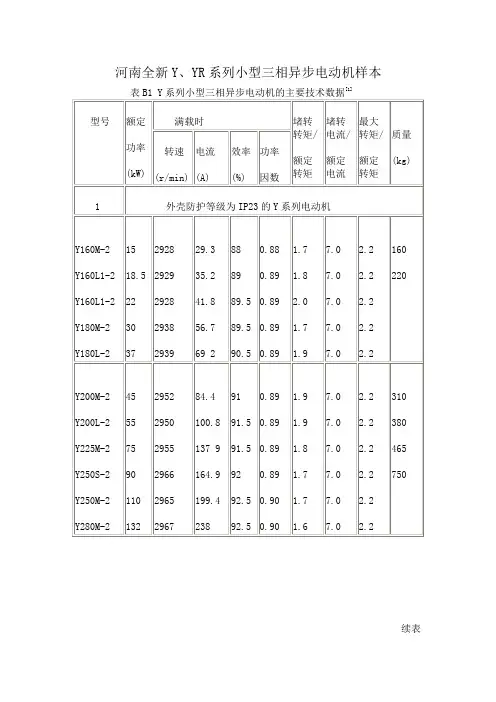

Y 、Y2、Y3系列电动机的机座号与转速及功率对应关系Relation of motor frame, power and speed同步转速 Synchronous Speed [r/min]3000 1500 1000 750 600机座号 Frame No.功率 Power [kW]63M1 0.18 0.12 63M2 0.25 0.18—71M1 0.37 0.25 0.18 71M2 0.55 0.37 0.25—80M1 0.75 0.55 0.37 0.18 80M2 1.1 0.75 0.55 0.25 90S 1.5 1.1 0.75 0.37 90L 2.2 1.5 1.1 0.55100L1 2.2 0.75100L2 3 3 1.51.1 112M 4 42.2 1.5 132S1 5.5 132S2 7.55.5 3 2.2132M1 4132M2 — 7.5 5.5 3160M1 114160M2 15 11 7.55.5 160L 18.5 15 11 7.5 180M 22 18.5 — — 180L — 22 15 11 200L1 30 18.5 200L2 37302215225S — 37 — 18.5 225M 45 45 30 22 250M 55 55 37 30 280S 75 75 45 37 280M 90 90 55 45— 315S 110 110 75 55 45 315M 132 132 90 75 55 315L1 160 160 110 9075315L2 200 200 132 110 90355M1 160 132 110355M2 250 250200 160 132 355L 315 315 250 200 160 注：S 、M 、L 后面的数字1、2分别代表同一机座号和转速下不同的功率。

Y 、Y2、Y3系列电动机空载时A 计权声功率级dB(A)噪声数值标准The value of noise level under no load operation同步转速 Synchronous Speed [r/min]3000 1500 1000 750 600 功率 Power [kW] Y Y2、Y3 Y Y2、Y3Y Y2、Y3Y Y2、Y3 Y Y2、Y30.12— 52 ——0.18 61 52 52 52 0.25 61 55 52 52 0.37 64 —55 54 560.55 — 64 67 58 — 54 56 0.75 71 67 67 58 65 57 59 1.1 71 67 67 61 65 57 59 1.5 75 72 67 61 67 61—612.2 75 72 68 64 67 65 66 64 3 79 76 70 64 71 69 66 64 4 79 77 73 65 71 69 69 68 5.5 83 80 73 71 71 69 69 68 7.5 83 80 78 71 75 73 72 68 11 87 86 78 75 75 73 72 70 15 87 86 82 75 78 73 75 73 18.5 87 86 82 76 78 76 75 73 22 91 89 82 76 78 76 75 73 30 93 92 84 79 81 76 78 75 37 93 92 84 81 81 78 78 76 —45 95 92 84 81 84 8078 76 87 8255 95 93 86 83 84 80 86 82 87 82 75 97 94 90 86 91 85 87 82 87 82 90 97 94 90 86 91 85 87 82 93 82 110 97 96 94 93 91 85 87 82 93 90 132 100 96 98 93 92 85 93 90 96 90 160 100 99 98 97 95 92 93 90 90 200 100 99 98 97 95 92 93 90 250 104 103 102 101 98 92 315 104 103 102 101 — —————Y 、Y2、Y3系列电动机空载时振动速度有效值标准 The value of vibration velocity under no-load operation机座号 Frame No.（mm ）H ≤132 132<H ≤225 225<H ≤355 振动等级 Vibration Class同步转速 Synchronous Speed r/min振动速度有效值 Vibration velocity （mm/s ）N 600~3600 1.80 2.80 3.50 600~1800 0.71 1.12 1.80 R >1800~3600 1.12 1.80 2.80 600~1800 0.45 0.71 1.12 S>1800~3600 0.711.121.80轴承型号 Bearing Type轴承规格 Bearing Type轴承尺寸Bearing Dimensions 机座号 Frame No.极数 No. of poles主轴伸端Shaft Extention End风扇端 Fan End内径×外径×宽度 （I.D.O.W ）80 2、4 6204-2RSZ1 6204-2RSZ1 20×47×14 90 2、4、6 6205-2RSZ1 6205-2RSZ1 25×52×15 100 2、4、6 6206-2RSZ1 6206-2RSZ1 30×62×16 112 2、4、6 6306-2RSZ1 6306-2RSZ1 30×72×19 132 2、4、6、8 6208-2RSZ1 6208-2RSZ1 40×80×18 160 2、4、6、8 6309-2RSZ1 6309-2RSZ1 45×100×25 180 2、4、6、8 6311Z1 6311Z1 55×120×29 200 2、4、6、8 6312Z1 6312Z1 60×130×31 225 2、4、6、8 6313Z1 6313Z1 65×140×33 250 2、4、6、8 6314Z1 6314Z170×150×352 6314Z1 6314Z1 70×150×35 280 4、6、8 6317Z16317Z1 85×180×412 6317Z1 6317Z1 85×180×41 315 B3、B35 4、6、8、10 6319Z1（Nu319Z1）6319Z1 95×200×452 6317Z1 7317AC 85×180×41 315 V1 4、6、8、10 6319Z1（Nu319Z1）7319AC 95×200×452 6319Z1 6319Z1 85×180×41 355 B3、B354、6、8、10 6322Z1（Nu322Z1）6322Z1 110×240×50 355V1 4、6、8、10 6322Z1（Nu322Z1）7322AC 110×240×50效率功率因数 堵转电流 堵转转矩 最大转矩型号额定 功率额定电流额定 转速70％ 85％100％70％85％100％额定电流额定转矩额定转矩重量Y3-132S1-2 5.5 11.185.3785.5785.70.8530.8670.8857 Y3-132S2-2 7.5 14.92900 86.6786.8787.00.8530.8670.8861 Y3-160M1-2 11 21.288.0688.2788.40.8630.8760.89108Y3-160M2-2 15 28.689.0689.2789.40.8630.8760.89113Y3-160L-2 18.5 34.72930 89.6689.8790.00.8720.8860.90 2.2 129Y3-180M-2 22 41.02940 90.1590.3790.50.8720.8860.90162Y3-200L1-2 30 55.491.0591.2791.40.8720.8860.90216Y3-200L2-2 37 67.9295091.6591.8792.00.8720.8860.90237Y3-225M-2 45 82.192.1592.3692.50.8720.8860.90280Y3-250M-2 55 99.892.6492.8693.00.8720.8860.907.5368Y3-280S-2 75 135.393.2493.4693.60.8720.8860.907.0465Y3-280M-2 90 160.0297093.5493.7693.90.8820.8960.912 2.3470Y3-315S-2 110 195.493.6493.8694.00.8820.8960.91857Y3-315M-2 132 233.294.1494.3694.50.8820.8960.91907Y3-315L1-2 160 282.494.2494.4694.60.8820.8960.91977Y3-315L2-2 200 348.4298094.4494.6694.80.8920.9060.921117Y3-355M-2 220 381.694.8495.0695.20.8920.9060.92 1.8 1500Y3-355M-2 250 433.794.8495.0695.20.8920.9060.921510Y3-355L-2 280 484.795.0495.2695.40.8920.9060.921750Y3-355L-2 315 545.3298595.0495.2695.40.8920.9060.927.11.62.21775Y3-132S-4 5.5 11.785.3785.5785.70.8040.8170.8359 Y3-132M-4 7.5 15.61440 86.6786.8787.00.8140.8270.84 2.371 Y3-160M-4 11 22.588.0688.2788.40.8140.8270.847.0113Y3-160L-4 15 30.01460 89.0689.2789.40.8240.8370.85130Y3-180M-4 18.5 36.389.6689.8790.00.8340.8470.86157Y3-180L-4 22 42.9147090.1590.3790.50.8340.8470.867.5173Y3-200L-4 30 58.091.0591.2791.40.8340.8470.86228Y3-225S-4 37 70.291.6591.8792.00.8430.8570.87277Y3-225M-4 45 85.092.1592.3692.50.8430.8570.87305Y3-250M-4 55 103.392.6492.8693.00.8430.8570.877.2381Y3-280S-4 75 138.3148093.2493.4693.60.8530.8670.88520Y3-280M-4 90 165.593.5493.7693.90.8530.8670.88 6.82.2 2.3570Y3-315S-4 110 201.094.1494.3694.50.8530.8670.88857Y3-315M-4 132 240.494.4494.6694.80.8530.8670.88937Y3-315L1-4 160 287.894.5494.7694.90.8630.8760.891047Y3-315L2-4 200 359.8148594.5494.7694.90.8630.8760.891167Y3-355M-4 220 390.194.8495.0695.20.8720.8860.901650Y3-355M-4 250 443.394.8495.0695.20.8720.8860.901650Y3-355L-4 280 496.594.8495.0695.20.8720.8860.901700Y3-355L-4 315558.6149094.8495.0695.20.8720.8860.906.9 2.12.21859效率功率因数 堵转电流 堵转转矩 最大转矩型号 额定 功率额定电流额定 转速70％85％100％70％85％100％额定电流额定转矩额定转矩重量Y3-132S-6 3 7.4 80.6980.8881.00.7370.7480.7654 Y3-132M1-6 4 9.8 81.6981.8882.00.7370.7480.7664 Y3-132M2-6 5.5 12.996083.6883.8884.00.7460.7580.77 2.1 73 Y3-160M-6 7.5 17.285.6785.8786.00.7460.7580.77110Y3-160L-6 11 24.587.1787.3787.50.7560.7680.78 6.5126Y3-180L-6 15 31.688.6688.8789.00.7850.7980.81 2.0 161Y3-200L1-6 18.5 38.689.6689.8790.00.7850.7980.81 2.1 214Y3-200L2-6 22 44.797089.6689.8790.00.8040.8170.83226Y3-225M-6 30 59.391.1591.3791.50.8140.8270.84 2.0 290Y3-250M-6 37 71.191.6591.8792.00.8340.8470.86 2.1359Y3-280S-6 45 85.992.1592.3692.50.8340.8470.86452Y3-280M-6 55 104.7 92.4592.6692.80.8340.8470.867.02.1500Y3-315S-6 75 141.7 98093.1493.3693.50.8340.8470.86817Y3-315M-6 90 169.5 93.4493.6693.80.8340.8470.86917Y3-315L1-6 110 206.7 93.6493.8694.00.8340.8470.861012Y3-315L2-6 132 244.7 98593.8494.0694.20.8430.8570.87 2.01087Y3-355M1-6 160 292.3 94.1494.3694.50.8530.8670.881600Y3-355M-6 185 338.0 94.1494.3694.50.8530.8670.881700Y3-355M2-6 200 365.4 94.1494.3694.50.8530.8670.881720Y3-355L-6 220 401.9 94.1494.3694.50.8530.8670.881750Y3-355L-6 250 456.8 99094.1494.3694.50.8530.8670.88 6.71.92.01990Y3-132S-8 2.2 6.0 78.7078.8879.00.6880.6990.7152 Y3-132M-8 3 7.8 710 79.6979.8880.00.7080.7190.73 1.8 62 Y3-160M1-8 4 10.380.6980.8881.00.7080.7190.7391 Y3-160M2-8 5.5 13.682.6882.8883.00.7170.7290.74104Y3-160L-8 7.5 17.872085.1785.3885.50.7270.7390.75 6.01.9 126Y3-180L-8 11 25.587.1787.3787.50.7270.7390.75 6.5 161Y3-200L1-8 15 34.187.6687.8788.00.7370.7480.762.0202Y3-225S-8 18.5 41.189.6689.8790.00.7370.7480.76265Y3-225M-8 22 47.490.1590.3790.50.7560.7680.78 6.6 270Y3-250M-8 30 63.490.6590.8791.00.7660.7780.79 6.5 377Y3-280S-8 37 77.873091.1591.3791.50.7660.7780.79476Y3-280M-8 45 94.191.6591.8792.00.7660.7780.79 1.9520Y3-315S-8 55 111.2 92.4592.6692.80.7850.7980.81 6.6 777Y3-315M-8 75 150.5 93.1493.3693.50.7850.7980.81 6.2867Y3-315L1-8 90 177.8 93.4493.6693.80.7950.8080.82987Y3-315L2-8 110 216.8 74093.6493.8694.00.7950.8080.821057Y3-355M1-8 132 261.0 93.3493.5693.70.7950.8080.821535Y3-355M2-8 160 314.7 93.8494.0694.20.7950.8080.821750Y3-355L-8 185 358.4 94.1494.3694.50.8040.8170.831800Y3-355L-8 200 387.4 74594.1494.3694.50.8040.8170.83 6.41.82.01960Y3-315S-10 45 99.691.1591.3791.50.7270.7390.75810Y3-315M-10 55 121.1 91.6591.8792.00.7270.7390.75 6.2 890Y3-315L1-10 75 162.1 92.1592.3692.50.7370.7480.76 5.8 1015Y3-315L2-10 90 191.0 59092.6492.8693.00.7460.7580.77 5.9 1.51200Y3-355M1-10 110 229.9 92.8493.0693.20.7560.7680.781530Y3-355M2-10 132 275.0 93.1493.3693.50.7560.7680.781700Y3-355L-10 160 333.359593.1493.3693.50.7560.7680.786.01.32.01889效率功率因数 堵转电流 堵转转矩 最大转矩型号额定 功率额定电流额定 转速70％ 85％100％70％85％100％额定电流额定转矩额定转矩重量Y2-132S1-2 5.5 11.185.3785.5785.70.8530.8670.8857 Y2-132S2-2 7.5 14.92900 86.6786.8787.00.8530.8670.8861 Y2-160M1-2 11 21.288.0688.2788.40.8630.8760.89108Y2-160M2-2 15 28.689.0689.2789.40.8630.8760.89113Y2-160L-2 18.5 34.72930 89.6689.8790.00.8720.8860.90 2.2129Y2-180M-2 22 41.02940 90.1590.3790.50.8720.8860.90162Y2-200L1-2 30 55.491.0591.2791.40.8720.8860.90216Y2-200L2-2 37 67.9295091.6591.8792.00.8720.8860.90237Y2-225M-2 45 82.192.1592.3692.50.8720.8860.90280Y2-250M-2 55 99.892.6492.8693.00.8720.8860.90368Y2-280S-2 75 135.393.2493.4693.60.8720.8860.90465Y2-280M-2 90 160.0297093.5493.7693.90.8820.8960.917.52.02.3470Y2-315S-2 110 195.493.6493.8694.00.8820.8960.91857Y2-315M-2 132 233.294.1494.3694.50.8820.8960.91907Y2-315L1-2 160 279.394.2494.4694.60.8920.9060.92977Y2-315L2-2 200 348.4298094.4494.6694.80.8920.9060.921117Y2-355M-2 220 381.694.8495.0695.20.8920.9060.92 1.8 1500Y2-355M-2 250 433.794.8495.0695.20.8920.9060.921510Y2-355L-2 280 484.795.0495.2695.40.8920.9060.921750Y2-355L-2 315 545.3298595.0495.2695.40.8920.9060.927.11.62.21775Y2-132S-4 5.5 11.785.3785.5785.70.8040.8170.8359 Y2-132M-4 7.5 15.61440 86.6786.8787.00.8140.8270.84 2.371 Y2-160M-4 11 22.588.0688.2788.40.8140.8270.847.0113Y2-160L-4 15 30.01460 89.0689.2789.40.8240.8370.85130Y2-180M-4 18.5 36.389.6689.8790.00.8340.8470.86157Y2-180L-4 22 42.9147090.1590.3790.50.8340.8470.867.5173Y2-200L-4 30 58.091.0591.2791.40.8340.8470.86228Y2-225S-4 37 70.291.6591.8792.00.8430.8570.87277Y2-225M-4 45 85.092.1592.3692.50.8430.8570.87305Y2-250M-4 55 103.392.6492.8693.00.8430.8570.87381Y2-280S-4 75 139.9148093.2493.4693.60.8430.8570.87520Y2-280M-4 90 167.493.5493.7693.90.8430.8570.877.22.2 2.3570Y2-315S-4 110 201.094.1494.3694.50.8530.8670.88857Y2-315M-4 132 240.494.4494.6694.80.8530.8670.88937Y2-315L1-4 160 287.894.5494.7694.90.8630.8760.891047Y2-315L2-4 200 359.8148594.5494.7694.90.8630.8760.891167Y2-355M-4 220 390.11490 94.8495.0695.20.8720.8860.901650Y2-355M-4 250 443.394.8495.0695.20.8720.8860.901650Y2-355L-4 280 496.594.8495.0695.20.8720.8860.901700Y2-355L-4 315558.6149094.8495.0695.20.8720.8860.906.9 2.12.21859效率功率因数 堵转电流 堵转转矩 最大转矩型号 额定 功率额定电流额定 转速70％85％100％70％85％100％额定电流额定转矩额定转矩重量Y2-132S-6 3 7.4 80.6980.8881.00.7370.7480.7654 Y2-132M1-6 4 9.8 81.6981.8882.00.7370.7480.7664 Y2-132M2-6 5.5 12.996083.6883.8884.00.7460.7580.77 2.1 73 Y2-160M-6 7.5 17.285.6785.8786.00.7460.7580.77110Y2-160L-6 11 24.587.1787.3787.50.7560.7680.78 6.5126Y2-180L-6 15 31.688.6688.8789.00.7850.7980.81 2.0 161Y2-200L1-6 18.5 38.689.6689.8790.00.7850.7980.81214Y2-200L2-6 22 44.797089.6689.8790.00.8040.8170.83 2.1 226Y2-225M-6 30 59.391.1591.3791.50.8140.8270.84 2.0 290Y2-250M-6 37 71.191.6591.8792.00.8340.8470.86 2.1359Y2-280S-6 45 85.992.1592.3692.50.8340.8470.86452Y2-280M-6 55 104.7 92.4592.6692.80.8340.8470.86 2.1500Y2-315S-6 75 141.7 98093.1493.3693.50.8340.8470.86817Y2-315M-6 90 169.5 93.4493.6693.80.8340.8470.867.0917Y2-315L1-6 110 206.7 93.6493.8694.00.8340.8470.861012Y2-315L2-6 132 244.7 98593.8494.0694.20.8430.8570.87 2.01087Y2-355M1-6 160 292.3 94.1494.3694.50.8530.8670.881600Y2-355M-6 185 338.0 94.1494.3694.50.8530.8670.881700Y2-355M2-6 200 365.4 94.1494.3694.50.8530.8670.881720Y2-355L-6 220 401.9 94.1494.3694.50.8530.8670.881750Y2-355L-6 250 456.8 99094.1494.3694.50.8530.8670.88 6.71.92.01990Y2-132S-8 2.2 6.0 77.7077.8978.00.6880.6990.7152 Y2-132M-8 3 7.9 710 78.7078.8879.00.7080.7190.73 1.8 62 Y2-160M1-8 4 10.380.6980.8881.00.7080.7190.73 1.9 91 Y2-160M2-8 5.5 13.682.6882.8883.00.7170.7290.74104Y2-160L-8 7.5 17.872085.1785.3885.50.7270.7390.75 6.0126Y2-180L-8 11 25.187.1787.3787.50.7370.7480.76161Y2-200L1-8 15 34.187.6687.8788.00.7370.7480.76 2.0202Y2-225S-8 18.5 41.189.6689.8790.00.7370.7480.76265Y2-225M-8 22 47.490.1590.3790.50.7560.7680.78270Y2-250M-8 30 63.490.6590.8791.00.7660.7780.79377Y2-280S-8 37 77.873091.1591.3791.50.7660.7780.79476Y2-280M-8 45 94.191.6591.8792.00.7660.7780.79 1.9520Y2-315S-8 55 111.2 92.4592.6692.80.7850.7980.81777Y2-315M-8 75 151.3 92.6492.8693.00.7850.7980.81867Y2-315L1-8 90 177.8 93.4493.6693.80.7950.8080.82 6.6987Y2-315L2-8 110 216.8 74093.6493.8694.00.7950.8080.821057Y2-355M1-8 132 261.0 93.3493.5693.70.7950.8080.821535Y2-355M2-8 160 314.7 93.8494.0694.20.7950.8080.821750Y2-355L-8 185 358.4 94.1494.3694.50.8040.8170.831800Y2-355L-8 200 387.4 74594.1494.3694.50.8040.8170.83 6.41.82.01960Y2-315S-10 45 99.691.1591.3791.50.7270.7390.75810Y2-315M-10 55 121.1 91.6591.8792.00.7270.7390.75890Y2-315L1-10 75 162.1 92.1592.3692.50.7370.7480.761015Y2-315L2-10 90 191.0 59092.6492.8693.00.7460.7580.77 6.2 1.51200Y2-355M1-10 110 229.9 92.8493.0693.20.7560.7680.781530Y2-355M2-10 132 275.0 93.1493.3693.50.7560.7680.781700Y2-355L-10 160 333.359593.1493.3693.50.7560.7680.786.0 1.32.01889效率功率因数 堵转电流 堵转转矩 最大转矩型号额定 功率额定电流额定 转速70％ 85％100％70％85％100％额定电流额定转矩额定转矩重量Y-132S1-2 5.5 11.185.3785.5785.70.8530.8670.8857 Y-132S2-2 7.5 14.92900 86.6786.8787.00.8530.8670.8861 Y-160M1-2 11 21.588.0688.2788.40.8530.8670.88108Y-160M2-2 15 29.089.0689.2789.40.8530.8670.88 2.3113Y-160L-2 18.5 35.12930 89.6689.8790.00.8630.8760.89129Y-180M-2 22 41.52940 90.1590.3790.50.8630.8760.89162Y-200L1-2 30 56.091.0591.2791.40.8630.8760.89216Y-200L2-2 37 68.7295091.6591.8792.00.8630.8760.89237Y-225M-2 45 83.092.1592.3692.50.8630.8760.89280Y-250M-2 55 101.092.6492.8693.00.8630.8760.89368Y-280S-2 75 136.893.2493.4693.60.8630.8760.89465Y-280M-2 90 163.6297093.5493.7693.90.8630.8760.897.5 2.0470Y-315S-2 110 199.893.6493.8694.00.8630.8760.89857Y-315M-2 132 238.594.1494.3694.50.8630.8760.89907Y-315L1-2 160 288.794.2494.4694.60.8630.8760.89977Y-315L2-2 200 360.2298094.4494.6694.80.8630.8760.891117Y-355M-2 220 390.194.8495.0695.20.8720.8860.90 1.8 1500Y-355M-2 250 443.394.8495.0695.20.8720.8860.901510Y-355L-2 280 495.595.0495.2695.40.8720.8860.901750Y-355L-2 315 557.4298595.0495.2695.40.8720.8860.907.11.22.21775Y-132S-4 5.5 11.685.3785.5785.70.8140.8270.8459 Y-132M-4 7.5 15.41440 86.6786.8787.00.8240.8370.8571 Y-160M-4 11 22.588.0688.2788.40.8140.8270.847.0113Y-160L-4 15 30.01460 89.0689.2789.40.8240.8370.85 2.22.3130Y-180M-4 18.5 36.389.6689.8790.00.8340.8470.86157Y-180L-4 22 42.9147090.1590.3790.50.8340.8470.867.5173Y-200L-4 30 57.391.0591.2791.40.8430.8570.87 2.0 228Y-225S-4 37 70.291.6591.8792.00.8430.8570.87277Y-225M-4 45 84.092.1592.3692.50.8530.8670.88 1.9 305Y-250M-4 55 102.192.6492.8693.00.8530.8670.88 2.0 381Y-280S-4 75 138.3148093.2493.4693.60.8530.8670.88520Y-280M-4 90 163.693.5493.7693.90.8630.8760.897.21.9570Y-315S-4 110 198.794.1494.3694.50.8630.8760.89857Y-315M-4 132 237.794.4494.6694.80.8630.8760.89937Y-315L1-4 160 287.894.5494.7694.90.8630.8760.891047Y-315L2-4 200 359.8148594.5494.7694.90.8630.8760.891167Y-355M-4 220 403.694.8495.0695.20.8430.8570.87 1.8 1650Y-355M-4 250 458.694.8495.0695.20.8430.8570.871650Y-355L-4 280 513.694.8495.0695.20.8430.8570.871700Y-355L-4 315577.8149094.8495.0695.20.8430.8570.876.91.42.21859效率功率因数 堵转电流 堵转转矩 最大转矩型号 额定 功率额定电流额定 转速70％85％100％70％85％100％额定电流额定转矩额定转矩重量Y-132S-6 3 7.4 80.6980.8881.00.7370.7480.7654 Y-132M1-6 4 9.6 81.6981.8882.00.7460.7580.7764 Y-132M2-6 5.5 12.896083.6883.8884.00.7560.7680.78 2.273 Y-160M-6 7.5 17.085.6785.8786.00.7560.7680.78110Y-160L-6 11 24.587.1787.3787.50.7560.7680.78 6.5126Y-180L-6 15 31.688.6688.8789.00.7850.7980.81161Y-200L1-6 18.5 37.689.6689.8790.00.8040.8170.83214Y-200L2-6 22 44.797089.6689.8790.00.8040.8170.83 2.0226Y-225M-6 30 58.691.1591.3791.50.8240.8370.85290Y-250M-6 37 71.191.6591.8792.00.8340.8470.86 1.7 359Y-280S-6 45 85.092.1592.3692.50.8430.8570.87452Y-280M-6 55 103.5 92.4592.6692.80.8430.8570.87 1.8500Y-315S-6 75 140.1 98093.1493.3693.50.8430.8570.87817Y-315M-6 90 167.6 93.4493.6693.80.8430.8570.877.0917Y-315L1-6 110 204.4 93.6493.8694.00.8430.8570.871012Y-315L2-6 132 244.7 98593.8494.0694.20.8430.8570.87 1.61087Y-355M1-6 160 299.1 94.1494.3694.50.8340.8470.861600Y-355M-6 185 345.9 94.1494.3694.50.8340.8470.861700Y-355M2-6 200 373.9 94.1494.3694.50.8340.8470.861720Y-355L-6 220 411.3 94.1494.3694.50.8340.8470.861750Y-355L-6 250 467.4 99094.1494.3694.50.8340.8470.86 6.71.32.01990Y-132S-8 2.2 5.8 80.1980.3880.50.6880.6990.7152 Y-132M-8 3 7.7 710 81.6981.8882.00.6980.7090.7262 Y-160M1-8 4 9.9 83.6883.8884.00.7080.7190.7391 Y-160M2-8 5.5 13.384.6884.8885.00.7170.7290.74104Y-160L-8 7.5 17.772085.6785.8786.00.7270.7390.75 6.0 2.0126Y-180L-8 11 24.887.1787.3787.50.7460.7580.77 1.7 161Y-200L1-8 15 34.187.6687.8788.00.7370.7480.76 1.8 202Y-225S-8 18.5 41.389.1689.3789.50.7370.7480.76 1.7 265Y-225M-8 22 47.689.6689.8790.00.7560.7680.78270Y-250M-8 30 63.090.1590.3790.50.7750.7880.80377Y-280S-8 37 78.273090.6590.8791.00.7660.7780.79476Y-280M-8 45 93.291.3591.5791.70.7750.7880.80 1.8520Y-315S-8 55 113.5 91.6591.8792.00.7750.7880.80777Y-315M-8 75 152.1 92.1592.3692.50.7850.7980.81867Y-315L1-8 90 179.3 92.6492.8693.00.7950.8080.82 6.6987Y-315L2-8 110 218.5 74092.9493.1693.30.7950.8080.82 1.61057Y-355M1-8 132 264.0 93.4493.6693.80.7850.7980.811535Y-355M2-8 160 319.3 93.6493.8694.00.7850.7980.811750Y-355L-8 185 367.2 94.1494.3694.50.7850.7980.811800Y-355L-8 200 397.8 74593.9494.1694.30.7850.7980.81 6.41.32.01960Y-315S-10 45 101.0 91.1591.3791.50.7170.7290.74810Y-315M-10 55 122.7 91.6591.8792.00.7170.7290.74890Y-315L1-10 75 164.3 92.1592.3692.50.7270.7390.75 1.41015Y-315L2-10 90 191.0 59092.6492.8693.00.7460.7580.77 6.21200Y-355M1-10 110 229.9 92.8493.0693.20.7560.7680.781530Y-355M2-10 132 275.0 93.1493.3693.50.7560.7680.781700Y-355L-10 160 333.359593.1493.3693.50.7560.7680.786.01.22.01889B3、B6、B7、B8、V5、V6机座带底脚，端盖上无凸缘的电动机外形及安装尺寸B3、B6、B7、B8、V5、V6 Frame with feet, Endshield without flange, motor outline and mounting dimensions型 号132S 132M 160M 160L 180M 180L 200L 225S 225M 250M 280S 280M 315S 315M 315L 355M 355L H 132 132 160 160 180 180200225225250280280315 315 315 355355A 216 216 254 254 279 279318356356406457457508 508 508 610610A/2 108 108 127 127 139.5 139.5159178178203228.5228.5254 254 254 305305B 140 178 210 254 241 279305286311349368419406 457 508 560630C89 89 108 108 121 121133149149168190190216 216 216 2542542P —5560656565 65 65 7575D4/6/8P 38 38 4242 48 4855606065757580 80 80 95952P —110140140140140 140 140 140140E 4/6/8P80 80 110 110 110 110110140140140140140170 170 170 1701702P — 16×1018×1118×1118×1118×11 18×11 18×1120×1220×12F × GD 4/6/8P 10×8 10×8 12×8 12×8 14×9 14×916×1018×1118×1118×1120×1220×1222×14 22×14 22×1425×1425×142P —4953585858 58 58 67.567.5G4/6/8P 33 33 3737 42.5 42.54953535867.567.571 71 71 8686安装尺寸K 12 12 1515 15 1519191924242428 28 28 2828AB270 270 320 320 355 355395435435490550550630 630 630 730730BB 190 230 260 305 311 349370375400445485536570 680 680 750750AC 260 260 315 315 355 355395445445490550550620 620 620 700700AD 215 215 260 260 275 275345335335365400400530 530 530 ——HD345 345 420 420 455 455545555555615680680845 845 845 101010102P 470 510 615 670 700 740——81592096510151215 1325 1325 15001500外形尺寸L 4/6/8P 470 510 615 670 700 74077082084592098510351215 1325 1325 15301530型 号132S 132M 160M 160L 180M 180L 200L 225S 225M 250M 280S 280M 315S 315M 315L 355M 355LB3 制造范围B6/B7/B8 V5/V6B35、V15、V35机座带底脚，端盖上有凸缘（带通孔）的电动机外形及安装尺寸B35、V15、V35 Frame with feet, Endshield with flange, motor outline and mounting dimensions型 号 132S 132M 160M 160L 180M 180L 200L 225S 225M 250M 280S 280M 315S 315M 315L 355M 355LH 132 132 160 160 180 180200225225250280280315 315 315 355355A 216 216 254 254 279 279318356356406457457508 508 508 610610A/2 108 108 127 127 139.5 139.5159178178203228.5228.5254 254 254 305305B 140 178 210 254 241 279305286311349368419406 457 508 560630C 89 89 108 108 121 121133149149168190190216 216 216 2542542P —5560656565 65 65 7575D 4/6/8P 38 38 4242 48 4855606065757580 80 80 95952P —110140140140140 140 140 140140E4/6/8P80 80 110 110 110 110110140140140140140170 170 170 1701702P — 16×1018×1118×1118×1118×11 18×11 18×1120×1220×12F × GD 4/6/8P 10×8 10×8 12×8 12×8 14×9 14×916×1018×1118×1118×1120×1220×1222×14 22×14 22×1425×1425×142P —4953585858 58 58 67.567.5G4/6/8P 33 33 3737 42.5 42.54953535867.567.571 71 71 8686K 12 12 1515 15 1519191924242428 28 28 2828M 265 265 300 300 300 300350400400500500500600 600 600 740740N 230 230 250 250 250 250300350350450450450550 550 550 680680P 300 300 350 350 350 350400450450550550550660 660 660 800800R 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0S 4-Φ15 4-Φ15 4-Φ19 4-Φ19 4-Φ19 4-Φ194-Φ198-Φ198-Φ198-Φ198-Φ198-Φ198-Φ24 8-Φ24 8-Φ248-Φ248-Φ24安装尺寸T 4 4 5 5 5 5 5 5 5 5 5 5 6 6 6 6 6AB270 270 320 320 355 355395435435490550550630 630 630 730730BB 190 230 260 305 311 349370375400445485536570 680 680 750750AC 260 260 315 315 355 355395445445490550550620 620 620 700700AD 215 215 260 260 275 275345335335365400400530 530 530 ——HD345 345 420 420 455 455545555555615680680845 845 845 101010102P 470 510 615 670 700 740——81592096510151215 1325 1325 15001500外形尺寸L 4/6/8P 470 510 615 670 700 74077082084592098510351215 1325 1325 15301530型 号 132S 132M 160M 160L 180M 180L 200L 225S 225M 250M 280S 280M 315S 315M 315L 355M 355LB35 制造范围V15/V35备 注R 为凸缘安装平面至轴伸台阶平面的距离B5、V3机座不带底脚，端盖上有凸缘（带通孔）的电动机外形及安装尺寸B5、V3 Frame without feet, Endshield with flange, motor outline and mounting dimensions型 号132S 132M 160M 160L180M180L200L225S 225M 250M 280S280M2P —55 60 65 65D4/6/8P 38 38 42 42 48 48 5560 60 65 75 752P —110 140 140 140 E 4/6/8P 80 80 110 110 110 110 110140 140 140 140 140 2P — 16×10 18×11 18×1118×11F × GD4/6/8P 10×810×8 12×8 12×814×914×916×1018×1118×11 18×11 20×1220×122P —49 53 58 58G4/6/8P 33 33 37 37 42.542.54953 53 58 67.567.5M 265 265 300 300 300 300 350 400 400 500 500 500 N 230 230 250 250 250 250 300 350 350 450 450 450 P 300 300 350 350 350 350 400 450 450 550 550 550 R 0 0 0 0 0 0 0 0 0 0 0 0 S 4-Φ154-Φ15 4-Φ19 4-Φ194-Φ194-Φ194-Φ198-Φ198-Φ19 8-Φ19 8-Φ198-Φ19安装 尺寸T 4 4 5 5 5 5 5 5 5 5 5 5 AC260 260 315 315 355 355 395 445 445 490 550 550 AD 215 215 260 260 275 275 345 335 335 365 400 400 HF315 315 385 385 430 430 480 535 535 595 650 6502P 470 510 615 670 700 740 —— 815 920 965 1015外形 尺寸L 4/6/8P 470 510 615 670 700 740 770 820 845 920 985 1035型 号132S 132M 160M 160L180M180L200L225S225M 250M 280S280MB5 制造范围V3备 注R 为凸缘安装平面至轴伸台阶平面的距离V1 立式安装，机座不带底脚，端盖上有凸缘（带通孔），轴伸向下的电动机外形及安装尺寸 V1 Vertical shaft, Frame without feet, Endshield with flange, D-end down, motor outline and mounting dimensions型 号 132S 132M 160M 160L 180M 180L 200L 225S 225M 250M 280S 280M 315S 315M 315L 355M 355L 2P —5560656565 65 65 7575D4/6/8P 38 38 4242 48 4855606065757580 80 80 95952P —110140140140140 140 140 140140E 4/6/8P80 80 110 110 110 110110140140140140140170 170 170 1701702P — 16×1018×1118×1118×1118×11 18×11 18×1120×1220×12F × GD 4/6/8P 10×8 10×8 12×8 12×8 14×9 14×916×1018×1118×1118×1120×1220×1222×14 22×14 22×1425×1425×142P —4953585858 58 58 67.567.5G4/6/8P 33 33 3737 42.5 42.54953535867.567.571 71 71 8686M 265 265 300 300 300 300350400400500500500600 600 600 740740N 230 230 250 250 250 250300350350450450450550 550 550 680680P 300 300 350 350 350 350400450450550550550660 660 660 800800R 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0S4-Φ15 4-Φ15 4-Φ19 4-Φ19 4-Φ19 4-Φ194-Φ198-Φ198-Φ198-Φ198-Φ198-Φ198-Φ24 8-Φ24 8-Φ248-Φ248-Φ24安装尺寸T 4 4 5 5 5 5 5 5 5 5 5 5 6 6 6 6 6AC 260 260 315 315 355 355395445445490550550620 620 620 700700AD 215 215 260 260 275 275345335335365400400530 530 530 655655HF315 315 420 420 500 500550575575650725725860 860 860 9609602P 520 560 615 670 760 800——9101000106511151315 1425 1425 16001600外形尺寸L 4/6/8P 520 560 615 670 760 8008409359351000108511351315 1425 1425 16301630型 号132S 132M 160M 160L 180M 180L 200L 225S 225M 250M 280S 280M 315S 315M 315L 355M 355L制造范围V1备 注R 为凸缘安装平面至轴伸台阶平面的距离。
