CCNA2期末测试题

CCNA集训队综合试卷2 2010.12一、填空题（60*1=60分）1.WWW是____________________的缩写，默认情况下使用的端口号为_________。

2.要查看路由器的接口是DTE还是DCE的命令是:show ________________3.当用ICS双网卡共享上网的时候，共享外网卡时，会把内网卡默认设置成IP:4.路由环路解决方法：, ；毒性逆转/路由中毒; ；5.RIP中路由更新定时器：每隔默认秒，发送完整的路由表拷贝到邻居。

6.从网络拓扑发生变化到网络中所有路由器都知道这个变化的时间就叫7.OSPF中必须用到的主干区域用数字来表示。

8.路由器中不用激活就能使用的接口是______________9.SNMP翻译成中文：ARP翻译成中文：10.MAC地址有位；Ipv4地址位；IPV6地址位。

11.MAC地址翻译成IP地址用协议。

12.OSPF的五种数据包：hello包；；；；13.RIP的管理距离是：OSPF的管理距离：EIGRP的管理距离：14.查看vlan的信息可用命令show ；VLAN的信息保存在，可通过show 查看。

15.交换机工作在层；网桥工作在层；中继器工作在层。

路由器工作在层；Trunking技术是工作在层；16.PT中路由器和电脑相连用线。

（直连线还是交叉线）17.虚拟局域网（VLAN）可以给网络分段，提供灵活性，便于网络管理，最重要的是可以提高网络的性。

18.Trunk中封装VLAN的技术有：802.1Q和（思科特有）。

19.通过一个共有的管理域，维持VLAN配置信息的一致性用的是协议。

20.学校DNS的地址是：；本机回环测试地址是：无锡电信的DNS地址是：21.RG-WALL这是什么东西？22.C类地址的范围是：；B类地址的范围是23.在广播型拓扑结构中，OSPF发送HELLO包的目的地址是：24.OSPF将网络分为四种：PPP，点到多点，，25.OSPF路由器分类主干路由器；自治系统边界路由器(ASBR)；26.OSPF中路由器的ID（RID）是如何选举的？先比较，如果就比较27.DR/BDR选举中优先级为0的路由器放弃选举，成为28.一个公司的网络运行的是OSPF，后来收购另一个运行RIP协议的公司，为了使两个公司网络互通，可以采用技术。

1以下哪个事件发生于传输层三次握手期间？两个应用程序交换数据。

TCP 初始化会话的序列号。

UDP 确定要发送的最大字节数。

服务器确认从客户端接收的数据字节数。

2采用 TCP/IP 数据封装时，以下哪个端口号范围标识了所有常用应用程序？0 到255256 到 10220 到10231024 到204749153 到655353请参见图示。

主机 A 正在使用FTP 从服务器1 下载大型文件。

在下载期间，服务器1 没有收到主机 A 对若干字节传输数据的确认。

服执行什么操作？创建第1 层堵塞信号到达超时时间后重新发送需要确认的数据向主机发送 RESET 位更改第4 层报头中的窗口大小4下列哪项是UDP 的重要特征？确认数据送达数据传输的延迟最短数据传输的高可靠性同序数据传输5下列哪三项功能使 TCP 得以准确可靠地跟踪从源设备到目的设备的数据传输？封装流量控制无连接服务会话创建编号和定序尽力传输6下列哪两项是用户数据报协议(UDP) 的功能？（选择两项）流量控制系统开销低无连接面向连接序列和确认7OSI 模型哪一层负责规范信息从源设备到目的设备准确可靠地流动？应用层表示层会话层传输层网络层8以下哪两个选项代表第4 层编址？（选择两项）标识目的网络标识源主机和目的主机标识正在通信的应用程序标识主机之间的多个会话标识通过本地介质通信的设备9下列哪个传输层协议提供低开销传输因而可用于不需要可靠数据传输的应用场合？TCPIPUDPHTTPDNS10请参见图示。

图中显示的是两台主机之间的TCP 初始数据交换。

假设初始序列号为0，如果数据段6 丢失，确认2 中将包含哪个序列23618503431347511TCP 报头信息和UDP 报头信息中都包含下列哪项信息？定序流量控制确认源和目的12下列哪项由源主机在转发数据时动态选择？目的逻辑地址源物理地址默认网关地址13请参见图示。

从显示的输出中可以确定以下哪两项信息？（选择两项）本地主机使用公认端口号标识源端口。

ccna考试试题库CCNA（Cisco Certified Network Associate）考试是思科认证网络专家的初级认证，主要测试考生在网络基础、路由、交换、无线和安全等方面的知识。

以下是一些模拟CCNA考试的试题和答案：1. 什么是子网掩码，它有什么作用？答案：子网掩码是一种IP地址的附加信息，用于指定IP地址中网络部分和主机部分的界限。

它的作用是允许路由器区分IP地址中的网络地址和主机地址，从而实现不同网络之间的路由。

2. 描述静态路由和动态路由的区别。

答案：- 静态路由：由网络管理员手动配置的路由信息，不随网络结构的变化而自动调整。

- 动态路由：由路由器根据网络拓扑的变化自动生成和更新的路由信息。

3. 什么是VLAN，它有什么好处？答案： VLAN（虚拟局域网）是一种在交换机上划分不同网络的技术，即使物理上连接在同一交换机上，也可以属于不同的VLAN。

VLAN的好处包括提高安全性、减少广播域、提高网络管理的灵活性等。

4. 简述TCP和UDP的区别。

答案：- TCP（传输控制协议）：提供可靠的、面向连接的传输服务，有流量控制和拥塞控制机制。

- UDP（用户数据报协议）：提供不可靠的、无连接的传输服务，适用于对实时性要求高的应用。

5. 什么是DHCP，它的作用是什么？答案： DHCP（动态主机配置协议）是一种网络管理协议，用于自动分配IP地址和其他网络配置信息给网络中的设备。

它的作用是简化网络配置，避免IP地址冲突。

6. 什么是NAT，它在网络中扮演什么角色？答案： NAT（网络地址转换）是一种技术，允许多个设备共享一个公共IP地址与互联网通信。

它在网络中扮演的角色是节省IP地址资源，隐藏内部网络结构。

7. 什么是STP（生成树协议）？答案： STP（生成树协议）是一种网络协议，用于在局域网中防止网络环路的产生。

通过创建一个无环的逻辑拓扑，STP确保网络的稳定性和可靠性。

8. 描述OSPF（开放最短路径优先）协议的工作原理。

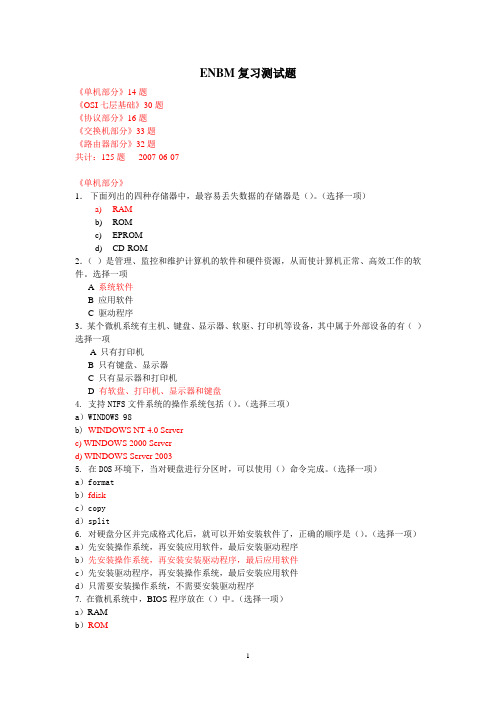

ENBM复习测试题《单机部分》14题《OSI七层基础》30题《协议部分》16题《交换机部分》33题《路由器部分》32题共计：125题2007-06-07《单机部分》1．下面列出的四种存储器中，最容易丢失数据的存储器是（）。

（选择一项）a)RAMb)ROMc)EPROMd)CD-ROM2．（）是管理、监控和维护计算机的软件和硬件资源，从而使计算机正常、高效工作的软件。

选择一项A 系统软件B 应用软件C 驱动程序3．某个微机系统有主机、键盘、显示器、软驱、打印机等设备，其中属于外部设备的有（）选择一项A 只有打印机B 只有键盘、显示器C 只有显示器和打印机D 有软盘、打印机、显示器和键盘4. 支持NTFS文件系统的操作系统包括（）。

（选择三项）a）WINDOWS 98b) WINDOWS NT 4.0 Serverc) WINDOWS 2000 Serverd) WINDOWS Server 20035. 在DOS环境下，当对硬盘进行分区时，可以使用（）命令完成。

（选择一项）a）formatb）fdiskc）copyd）split6. 对硬盘分区并完成格式化后，就可以开始安装软件了，正确的顺序是（）。

（选择一项）a）先安装操作系统，再安装应用软件，最后安装驱动程序b）先安装操作系统，再安装安装驱动程序，最后应用软件c）先安装驱动程序，再安装操作系统，最后安装应用软件d）只需要安装操作系统，不需要安装驱动程序7. 在微机系统中，BIOS程序放在（）中。

（选择一项）a）RAMb）ROMc）硬盘d）磁盘8. 下列设备中，能向主机输入数据又能接收主机输出数据的设备是（）。

（选择一项）a）显示器b）鼠标c）打印机d）软磁盘驱动器9. 我们通常会使用GB、KB、MB来表示存储器或硬盘的容量，它们之彰的关系是（）。

A）KB<GB<MBB) KB<MB<GBC) MB<KB<GBD) MB<GB<KB10. 你是公司的网络管理员，由于公司的业务增多，每天打印的文字量增加。

CISCO模拟试题CCNA考试自测题225) Which statement is true of WinSock (下面对Wi n S o c k的哪一句陈述是正确的)？A. It is a MAC applicationB. It represents a graphical user interfaceC. It represents a network layerD. It provides the means for sharing an Int ernet connection between multiple IP protocol s uite utilities26) Which statement is true of TLI (下面关于T L I的哪一句陈述是正确的)？A. It is a layer in the OSI modelB. It is a layer in the TCP/IP modelC. It is a System V APID. It is part of the UNIX Kernel27) Which statement is true of Windows Name Server (WINS) (下面对于Windows 命名服务器( W I N S )的陈述中，哪一句是正确的)？A. It is a protocolB. It provides capability for name resolutionC. It is a network layerD. It is a proprietary name serverE. A, B, and D onlyF. B and D only28) ICMP、I P、ARP and RARP of the IP protocol suite map to (IP协议套件的I C M P、I P、A R P和R A R P映射到)：A. OSI layers 1 and 2B. OSI layer 5C. OSI layer 3D. OSI layer 229) Which layer is most important in pro viding reliable data exchange between two syste ms (在两个系统之间提供可靠的数据交换中，哪一层是最重要的)？A. Physical layerB. Data link layerC. Session layerD. Transport layer30) Which of the following does TCP pr ovide (TCP提供了下面的哪一个功能)？A. Unreliable data streamB. Connectionless virtual circuitC. Flow controlD. Structured byte stream movement31) Of the following, which field is n ot a part of the TCP header (在下面各项中，哪一个字段不是T C P报头的一部分)？A. Subnet maskB. Sequence numb erC. Data offsetD. Destination port32) What is the sequence number in a TCP header used for (在T C P报头中的顺序号的作用是什么)？A. AcknowledgmentsB. Reordering of the octets receivedC. Rejecting duplicate octets33) Variable sliding windows provide an explicit mechanism for notifying TCP if an in termediate node (for example, a router) becomes congested (在中间节点，例如一个路由器拥塞的情况下，可变滑动窗口提供了通知T C P的显式机制)。

ERouting Chapter 1 - CCNA Exploration: 路由协议和概念(版本 4.0)1 口令可用于限制对Cisco IOS 所有或部分内容的访问。

请选择可以用口令保护的模式和接口。

（选择三项。

）VTY 接口控制台接口特权执行模式2 路由器从相连的以太网接口收到消息后，会更改哪项报头地址，再将消息从另一个接口发送出去？第 2 层源地址和目的地址3请参见图示。

网络管理员已经为路由器连接到直连网络的接口配置了如图所示的IP 地址。

从路由器ping 相连网络上的主机口之间相互ping 都会遭到失败。

此问题最可能的原因是什么？必须使用no shutdown命令启用接口。

4请参见图示。

主机 A ping 主机B。

当R4 收到对以太网接口的ping 时，哪两块报头信息包括在内？（选择两项。

）5 网络管理员刚把新配置输入Router1。

要将配置更改保存到NVRAM，应该执行哪一条命令？Router1# copy running-config startup-config6您需要配置图中所示的串行连接，必须在Sydney 路由器上发出以下哪条配置命令才能与Melbourne 站点建立连接？（选Sydney(config-if)#Sydney(config-if)# no shutdownSydney(config-if)# clock rate 560007请参见图示。

从路由器的运行配置输出可得出什么结论？显示的命令决定了路由器的当前运行情况。

8请参见图示。

在主机 2 连接到LAN 上的交换机后，主机2 无法与主机 1 通信。

导致此问题的原因是什么？主机 1 和主机2 位于不同的网络中。

9 输入以下命令的作用是什么？R1(config)# line vty 0 4R1(config-line)# password check123R1(config-line)# login设置通过Telnet 连接该路由器时使用的口令10 以下哪一项正确描述了路由器启动时的顺序？加载bootstrap、加载IOS、应用配置11 加载配置文件时的默认顺序是怎样的？NVRAM、TFTP、CONSOLE12请参见图示。

ERouting Chapter 1 - CCNA Exploration: 路由协议和概念(版本 4.0)1口令可用于限制对Cisco IOS 所有或部分内容的访问。

请选择可以用口令保护的模式和接口。

（选择三项。

）VTY 接口控制台接口特权执行模式2路由器从相连的以太网接口收到消息后，会更改哪项报头地址，再将消息从另一个接口发送出去？第 2 层源地址和目的地址3请参见图示。

网络管理员已经为路由器连接到直连网络的接口配置了如图所示的IP 地址。

从路由器ping 相连网络上的主机口之间相互ping 都会遭到失败。

此问题最可能的原因是什么？必须使用no shutdown命令启用接口。

4请参见图示。

主机 A ping 主机B。

当R4 收到对以太网接口的ping 时，哪两块报头信息包括在内？（选择两项。

）目的IP 地址：192.168.10.134目的MAC 地址：9999.DADC.12345网络管理员刚把新配置输入Router1。

要将配置更改保存到NVRAM，应该执行哪一条命令？Router1# copy running-config startup-config6您需要配置图中所示的串行连接，必须在Sydney 路由器上发出以下哪条配置命令才能与Melbourne 站点建立连接？（选Sydney(config-if)# ip address 201.100.53.2 255.255.255.0Sydney(config-if)# no shutdownSydney(config-if)# clock rate 560007请参见图示。

从路由器的运行配置输出可得出什么结论？显示的命令决定了路由器的当前运行情况。

8请参见图示。

在主机 2 连接到LAN 上的交换机后，主机2 无法与主机 1 通信。

导致此问题的原因是什么？主机 1 和主机2 位于不同的网络中。

9输入以下命令的作用是什么？R1(config)# line vty 0 4R1(config-line)# password check123R1(config-line)# login设置通过Telnet 连接该路由器时使用的口令10以下哪一项正确描述了路由器启动时的顺序？加载bootstrap、加载IOS、应用配置11加载配置文件时的默认顺序是怎样的？NVRAM、TFTP、CONSOLE12请参见图示。

1、最新CCNA第二学期Final(超强整合版)下What are two functions of a router? (Choose two.)It forwards data packets toward their destination.It forwards the packet to the destination if the TTL value is 0.It changes the destination IP address of data packets before forwarding them to an exit interface.It determines the best path based on the destination MAC address.It acts as an intersection between multiple IP networks.答案：AE2、Refer to the exhibit. A network engineer has run the show version command on R3. Upon rebooting, R3 does not load the start-up configuration settings.What could be the cause of this problem?There is insufficient NVRAM.There is insufficient flash memory.The configuration register is not configured with the default setting.The system image not located in NVRAM.答案：C3、Which router component contains a scaled-down version of the IOS that can be used to reload a complete version of the IOS in the event that the IOS becomes damaged or corrupted?ROMFlashSDRAMNVRAM答案：A4、Refer to the exhibit. A network administrator adds this command to router R1: ip route 192.168.2.0 255.255.255.0 S0/0/0. What is the result of adding this command?This route is automatically propagated throughout the network.The traffic for network 172.16.1.0 is forwarded to network 192.168.2.0.A static route is established.The traffic for all Class C networks is forwarded to 172.16.1.2.答案：C5、Refer to the exhibit. How many routes are ultimate routes?3457答案：C6、Refer to the exhibit. Which path will traffic from the 172.16.1.0/24 network take to get to the 10.0.0.0/24 network?ADCABCIt will load balance the traffic between ADC and ABCIt will send the traffic via ABC, and will use ADC as a backup path only when ABC fails.答案：C7、Refer to the exhibit. Packets destined to which two networks will require the router to perform a recursive lookup? (Choose two.)10.0.0.0/864.100.0.0/16128.107.0.0/16172.16.40.0/24192.168.1.0/24192.168.2.0/24答案：AF8、Refer to the exhibit. The router receives a packet that is destined for 192.168.5.79. How will the routerhandle this packet?It will forward the packet via the FastEthernet0/0 interface.It will forward the packet via the Serial0/0/0 interface.It will forward the packet via the Serial0/0/1 interface.It will drop the packet.答案：C9、Refer to the exhibit. What is the meaning of the highlighted value 120?It is the metric that is calculated by the routing protocol.It is the value that is used by the DUAL algorithm to determine the bandwidth for the link.It is the administrative distance of the routing protocol.It is the hold-down time, measured in seconds, before the next update.答案：C10、When presented with multiple valid routes to a destination, what criteria does a router use to determine which routes to add to the routing table?The router selects the routes with the best metric. All routes that have the same best metric areThe router first selects routes with the lowest administrative distance. The resulting routes are thenThe router selects the routes with the lowest administrative distance. All routes with the same lowestThe router installs all routes in the routing table but uses the route with the best metric most when答案：B11、A router has learned two equal cost paths to a remote network via the EIGRP and RIP protocols. Bothprotocols are using their default configurations. Which path to the remote network will be installed in therouting table?the path learned via EIGRPthe path learned via RIPthe path with the highest metric valueboth paths with load balancing答案：A12、Which two statements are true for link-state routing protocols? (Choose two.)Routers that run a link-state protocol can establish a complete topology of the network.Routers in a multipoint network that run a link-state protocol can exchange routing tables.Routers use only hop count for routing decisions.The shortest path first algorithm is used.Split horizon is used to avoid routing loops.答案：AD13、Refer to the exhibit. Which three statements are true of the routing table for Router1? (Choose three.)The route to network 172.16.0.0 has an AD of 156160.Network 192.168.0.16 can best be reached using FastEthernet0/0.The AD of EIGRP routes has been manually changed to a value other than the default value.Router1 is running both the EIGRP and OSPF routing process.Network 172.17.0.0 can only be reached using a default route.No default route has been configured.答案：CDFRefer to the exhibit. A device is required to complete the connection between router R1 and the WAN. Which two devices can be used for this? (Choose two.)a CSU/DSU devicea modeman Ethernet switcha huba bridge答案：AB15Refer to the exhibit. When a static IP address is being configured on the host, what address should be used for the default gateway?10.1.1.110.1.1.2172.16.1.1192.168.1.1答案：D16、Refer to the exhibit. A network administrator accesses router R1 from the console port to configure a newly connected interface. What passwords will the network administrator need to enter to make the connection and the necessary configuration changes?the Cisco123 password onlythe Cisco789 password onlythe Cisco001 password onlythe Cisco001 password and the Cisco789 passwordsthe Cisco001 password and the Cisco123 passwords答案：D17、When connecting two devices, which situation would normally require the use of a crossover cable?connecting a host to a switchconnecting a switch to a routerconnecting a switch to a switchconnecting a host to a router console port答案：C18、Refer to exhibit. A company network engineer enters the following commands in the routers:R1(config)# ip route 10.1.1.0 255.255.255.0 192.168.0.2R2(config)# ip route 10.1.2.0 255.255.255.0 192.168.0.1When the engineer enters the show ip route command on R1, the routing table does not display the static route to the 10.1.1.0 network. All R1 and R2 interfaces are correctly addressed per the graphic. What is a logical next step that the engineer could take in order to make the static route display in the routing table in R1?Enter default routes in R1 and R2.Enable the R1 and R2 serial interfaces.Configure the static route to use an exit interface instead of a next-hop address.Enter the copy run start command to force the router to recognize the configuration.答案：B19、Refer to the exhibit. The show cdp neighbors command was run on one of the devices as shown. Based on this information, which two facts can be determined? (Choose two.)The command was run on the router.ABCD is a non- CISCO device.Layer 3 connectivity between two devices exists.ABCD supports routing capability.ABCD is connected to the Fa0/0 interface of the neighboring device.答案：AE20、Refer to the exhibit. The network administrator has run the following command on R1.R1(config)# ip route 192.168.2.0 255.255.255.0 172.16.1.2What is the result of running this command?Traffic for network 192.168.2.0 is forwarded to 172.16.1.2.This route is automatically propagated throughout the entire network.Traffic for all networks is forwarded to 172.16.1.2.The command invokes a dynamic routing protocol for 192.168.2.0.答案：A21、The network administrator configures the router with the ip route 172.16.1.0 255.255.255.0 172.16.2.2 command. How will this route appear in the routing table?C 172.16.1.0 is directly connected, Serial0/0S 172.16.1.0 is directly connected, Serial0/0C 172.16.1.0 [1/0] via 172.16.2.2S 172.16.1.0 [1/0] via 172.16.2.2答案：D22、Refer to the exhibit. The command ip route 0.0.0.0 0.0.0.0 S0/0/0 is run on router R2. What are the two results of this command? (Choose two.)A static route will be updated in the routing table.The traffic from the Internet will be directed to R2.The traffic from the source network 172.16.0.0/22 will be blocked.The route will be specified as the default route for all networks not defined in the routing table.All the broadcasts will be forwarded via the S0/0/0 interface of R2.答案：AD23、Refer to the exhibit. Hosts on the 192.168.1.0 network cannot communicate with hosts on the 172.16.1.1 network. The network administrator has run the show ip route command on R1.What could be the cause of this problem?The FastEthernet interface on R1 is disabled.Autosummarization is enabled on R1.The serial interface S0/0/0 of R1 is administratively down.No static route or routing protocol is configured.答案：D24、A company i s using static routes that are configured with an administrative distance of “1” on all routers in the network. The network administrator decides to introduce a dynamic routing protocol to reduce the manual configurations for the static routes. Which option identifies the correct procedure for the dynamic routing to take place in the network?The static routes and the dynamic routes will have the traffic alternate between them.The static routes will be automatically removed once the dynamic routing is configured.The static routes will be automatically updated with the next hop IP address once the dynamicThe static routes must be manually removed from all routers in order for the dynamic routes to be答案：D25、Refer to the exhibit. An administrator is adding a new subnet of 50 hosts to R3. Which subnet address should be used for the new subnet that provides enough addresses while wasting a minimum of addresses?192.168.1.0/24192.168.1.48 /28192.168.1.32/27192.168.1.64/26答案：D26、Refer to the exhibit. What summarization should R2 use to advertise its LAN networks to R1?172.16.0.0/24172.16.4.0/22172.16.4.0/23172.16.4.0/24答案：B27、Refer to the exhibit. Host A is unable to access the Internet. What is the reason for this?The IP address of host A is incorrect.The default gateway of host A is incorrect.The Fa0/1 interfaces of the two routers are configured for different subnets.The subnet mask for the Fa0/0 interface of R1 is incorrect.答案：C28、Refer to the exhibit. Which host has a combination of IP address and subnet mask on the same network as Fa0/0 of Router1?host Ahost Bhost Chost D答案：B29、A network administrator must use the subnet 172.16.128.0/18 to create 6 additional subnets each containing up to 2000 hosts for local LANs. Which subnet mask should the administrator use to create the new subnets?255.255.224.0255.255.240.0255.255.248.0255.255.252.0答案：C30、How will a router that is configured with a classless routing protocol determine the subnet mask that should be assigned to routes that are learned from neighboring classless routers?The subnet mask that is included in the routing updates will be used.The subnet mask of the interface that receives the update will be used.The subnet mask that is specified in the network command will be used.The class of the network in the update will determine the subnet mask that is used.答案：A31、Refer to the exhibit. When troubleshooting a network, it is important to interpret the output of various router commands. On the basis of the exhibit, which three statements are true? (Choose three.)The missing information for Blank 1 is the command show ip route.The missing information for Blank 1 is the command debug ip route.The missing information for Blank 2 is the number 100.The missing information for Blank 2 is the number 120.The missing information for Blank 3 is the letter R.The missing information for Blank 3 is the letter C答案：ADF32、Which statement correctly describes a feature of RIP?RIP is a link-state routing protocol.RIP uses only one metric—hop count— for path selection.Advertised routes with hop counts greater than 10 are unreachable.Messages are broadcast every 10 seconds.答案：B33、Refer to the exhibit. The network is using the RIPv2 routing protocol. If network 10.0.0.0 goes down, what mechanism will prevent Router1 from advertising false routing information back to Router2?triggered updatespoison reverseholddown timerssplit horizon答案：D34、Refer to the exhibit. While trying to diagnose a routing problem in the network, the network administrator runs the debug ip rip command. What can be determined from the output of this command?The router is broadcasting RIP updates.The router will be unable to ping 192.168.1.2.The router is directly connected to network 172.16.1.0 /24.The router has two interfaces that participate in the RIP process.答案：D35、Refer to the exhibit. R1 and R2 are adjacent routers both running RIP. All interfaces on both routers are correctly configured and operational. Both routers are configured to include all connected interfaces in routing updates. R2 is not showing any routes from R1 in the routing table. What is the likely cause?The adjacent interfaces are passive.The distance of 120 exceeds 15 hops.R2 will not accept version 1 updates from R1.答案：C36、Refer to the exhibit. When the show cdp neighbors command is issued from router C, which devices will be displayed in the output?B, DA, B, DD, SWH-2SWH-1, A, BSWH-1, SWH-2A, B, D, SWH-1, SWH-2答案：A37、Refer to the exhibit. The routers in the exhibit are running the EIGRP routing protocol. What statement is true regarding how packets will travel from the 172.16.1.0/16 network to the 192.168.200.0/24 network?The router chooses the first path that it learned and installs only that route in the routing table.The router chooses the path with the lowest administrative distance and installs only that route in the routing table.The router chooses the highest routing ID based on the advertised network IP addresses and installs only that route in the routing table.The router installs all the equal cost paths in the routing table but sends packets out only one, holding the others in reserve in case the primary route goes down.The router installs all the equal cost paths in the routing table and performs equal cost loadbalancing to send packets out multiple exit interfaces.答案：E38、Which three statements describe the operation of routing with EIGRP? (Choose three.)As new neighbors are discovered, entries are placed in a neighbor table.If the feasible successor has a higher advertised cost than the current successor route, then it becomes the primary route.If hello packets are not received within the hold time, DUAL must recalculate the topology.The reported distance is the distance to a destination as advertised by a neighbor.EIGRP maintains full knowledge of the network topology in the topology table and exchanges full routing information with neighboring routers in every update.EIGRP builds one routing table that contains routes for all configured routed protocols.答案：ACD39、Which statement correctly describes a feasible successor in EIGRP?It is a primary route that is stored in the routing table.It is a backup route that is stored in the routing table.It is a primary route that is stored in the topology table.It is a backup route that is stored in the topology table.答案：D40、Refer to the exhibit. Routers R1 and R2 are directly connected via their serial interfaces and are both running the EIGRP routing protocol. R1 and R2 can ping the directly connected serial interface of their neighbor, but they cannot form an EIGRP neighbor adjacency.What action should be taken to solve this problem?Enable the serial interfaces of both routers.Configure EIGRP to send periodic updates.Configure the same hello interval between the routers.Configure both routers with the same EIGRP process ID.答案：D41、Refer to the exhibit. What information can be determined from the displayed output?EIGRP packets are waiting to be sent to the neighbors.The adjacencies between the routers are yet to be established.The IP address 192.168.10.10 is configured at serial interface S0/0/1 of router R2.Router R2 is receiving hello packets from a neighbor with the IP address 192.168.10.10 via the R2S0/0/1 interface.答案：D42、Refer to the exhibit. Which two statements are true based on the exhibited output? (Choose two.)All routes are stable.Each route has one feasible successor.The serial interface between the two routers is down.The administrative distance of EIGRP has been set to 50.The show ip eigrp topology command has been run on R1.答案：AE43、Refer to the exhibit. R2 is configured correctly. The network administrator has configured R1 as shown. Which two facts are true about the forwarding of route information by R1? (Choose two.)R1 will forward the route information for subnet 192.168.100.0/30.R1 will not forward route information for subnet 192.168.100.4/30.R1 will forward the route information with an administrative distance set to 50.R1 will forward the summarized route information for network 192.168.100.0/24.R1 will forward route information for subnet 10.10.10.0/30 out the serial interface.答案：AB44、Refer to the exhibit. A network administrator is trying to determine why router JAX has no OSPF routes in its routing table. All routers are configured for OSPF area 0. From the JAX router, the administrator is able to ping its connected interfaces and the Fa0/1 interface of the ORL router but no other router interfaces. What is a logical step that the network administrator should take to troubleshoot the problem?Reboot the routers.Change the OSPF process ID on all of the routers to 0.Check to see if the cable is loose between ORL and JAX.Check to see if CDP packets are passing between the routers.Use show and debug commands to determine if hellos are propagating.答案：E45、Refer to the exhibit. R1 is configured properly for a single area OSPF, and R2 has been recently installed in the network. Which set of commands is required to configure a single area OSPF for the networks that are connected to R2?R2(config)# router ospf 1R2(config-router)# network 192.168.2.0 0.0.0.255 area 0R2(config-router)# network 10.1.1.0 0.0.0.3 area 0R2(config)# router ospf 1R2(config-router)# network 192.168.2.0 0.0.0.255 area 0R2(config)# router ospf 2R2(config-router)# network 10.1.1.0 0.0.0.3 area 0R2(config)# router ospf 1R2(config-router)# network 192.168.2.0 0.0.0.255 area 0R2(config-router)# network 10.1.1.0 0.0.0.3 area 1R2(config)# router ospf 1R2(config-router)# network 192.168.2.0 0.0.0.255 area 0R2(config-router)# network 10.0.0.0 0.0.0.3 area 1答案：A46、Refer to the exhibit. A network administrator has configured OSPF using the following command:network 192.168.1.32 0.0.0.31 area 0Which router interface will participate in OSPF?FastEthernet0/0FastEthernet0/1Serial0/0/0Serial0/0/1答案：C47、What is the function of the OSPF LSU packet?used to confirm receipt of certain types of OSPF packetsused to establish and maintain adjacency with other OSPF routersused to request more information about any entry in the BDRused to announce new OSPF information and to reply to certain types of requests答案：D48、Two routers need to be configured within a single OSPF area. Which two components need to be configured on both routers to achieve this? (Choose two.)the same process IDthe same area IDnetwork addresses and wildcard masksthe same router IDthe same loop back address答案：BC49、Refer to the exhibit. OSPF is used for the routing protocol and all interfaces are configured with the correct IP addresses and subnet masks. During testing, it is found that router R1 is unable to form an adjacency with R2. What is the cause of this problem?Both routers have been configured with incorrect router IDs.Both routers have been configured in different OSPF areas.Both routers have been configured with an incorrect network type.Both routers have been configured with different hello and dead intervals.答案：D50、Refer to the exhibit. The IP addresses on all interfaces on router R1 were configured before the OSPF protocol had been enabled on the router. No OSPF router ID was manually configured. Which IP address will be selected by the router as an OSPF router ID?10.10.10.1172.16.1.1172.16.2.1192.168.1.1192.168.100.1答案：AExam Viewer - ERouting Final Exam - CCNA Exploration: Routing Protocols and Concepts (Version 4.0)Below you will find the assessment items as presented on the exam as well as the scoring rules associated with the item.Use of the exam information in the Exam Viewer is subject to the terms of the Academy Connection Website Usage Agreement between you and Cisco. The purpose of the Exam Viewer is to support instruction while not compromising exam security for other Cisco Networking Academies or students.This material should not be distributed outside a proctored and controlled setting. If misuse is found,action will be taken to limit access to assessment content. Please remember to logout and close your browser window after using the Exam Viewer.1Using default settings, what is the next step in the router boot sequence after the IOS loads from flash?Perform the POST routine.Search for a backup IOS in ROM.Load the bootstrap program from ROM.Load the running-config file from RAM.Locate and load the startup-config file from NVRAM.Scoring Rule For: correctness ofresponseThis item references content from the following areas:CCNA Exploration: Routing Protocols and Concepts• 1.1.4 Router Boot-up Process2 A router boots and enters setup mode. What is the reason for this?The IOS image is corrupt.Cisco IOS is missing from flash memory.The configuration file is missing from NVRAM.The POST process has detected hardware failure.Scoring Rule For: correctness ofresponseThis item references content from the following areas:CCNA Exploration: Routing Protocols and Concepts• 1.1.4 Router Boot-up Process3Which two router component and operation pair are correctly described? (Choose two.)DRAM - loads the bootstrapRAM - stores the operating systemFlash - executes diagnostics at bootupNVRAM - stores the configuration fileROM - stores the backup configuration filePOST - runs diagnostics on hardware modulesScoring RuleFor: correctness of responseOption 4 andOption 6 arecorrect.1 point for eachcorrect option.0 points if moreoptions areselected thanrequired.Max Value = 2This item references content from the following areas:CCNA Exploration: Routing Protocols and Concepts• 1.1.2 Router CPU and Memory4Refer to exhibit. Given the topology shown in the exhibit, what three commands are needed to configure EIGRP on the Paris router? (Choose three.)Paris(config)# router eigrp 100Paris(config)# router eigrpParis(config-router)# network 192.168.6.0Paris(config-router)# network 192.168.7.0Paris(config-router)# network 192.168.8.0Paris(config-router)# network 192.168.9.0Scoring Rule For: correctness ofresponseOption 1, Option 4, and Option 5are correct.1 point for each correct option.0 points if more options areselected than required.Max Value = 3This item references content from the following areas:CCNA Exploration: Routing Protocols and Concepts•9.2.4 The network Command5Refer to the exhibit. A technician has configured the interfaces on the Router, but upon inspection discovers that interface Fa is not functioning. Which action will most likely correct the problem with FastEthernet0/1?A clock rate should be added to the interface configuration.The subnet mask should be added to the interface configuration.An interface description needs to be added to the interface configuration.The no shutdown command needs to be added to the interface configuration.Scoring Rule For: correctness ofresponse2 points for Option 40 points for any other optionThis item references content from the following areas:CCNA Exploration: Routing Protocols and Concepts• 1.2.2 Basic Router Configuration6Which routing protocol maintains a topology table separate from the routing table?IGRPRIPv1RIPv2EIGRPScoring Rule For: correctness ofresponseThis item references content from the following areas:CCNA Exploration: Routing Protocols and Concepts•9.1.1 EIGRP: An Enhanced Distance Vector Routing Protocol7Which statement is true about the metrics used by routing protocols?A metric is a value used by a partiA common metric is used by all routing protocols.The metric with the highest value is installed in the routing table.The router may use only one parameter at a time to calculate the metric.Scoring Rule For: correctness ofresponse2 points for Option 10 points for any other optionMax Value = 2This item references content from the following areas:CCNA Exploration: Routing Protocols and Concepts• 3.3.1 Purpose of a Metric8Refer to the exhibit. All interfaces are addressed and functioning correctly. The network administrator runs the tracert comma Which two facts could be responsible for the output of this command? (Choose two.)The gateway for Host A is missing or improperly configured.The gateway for Host B is missing or improperly configured.The entry for 192.168.1.0/24 is missing from the routing table of R1.The entry for 192.168.1.0/24 is missing from the routing table of R2.The entry for 192.168.2.0/24 is missing from the routing table of R1.The entry for 192.168.2.0/24 is missing from the routing table of R2.Scoring Rule For: correctness ofresponseOption 4 and Option 5 are correct.1 point for each correct option.0 points if more options are selectedthan required.Max Value = 2This item references content from the following areas:CCNA Exploration: Routing Protocols and Concepts• 2.7.2 Troubleshooting a Missing Route9Refer to the exhibit. What information can be determined from the displayed output?EIGRP packets are waiting to be sThe adjacencies between the routers are yet to be established.The IP address 192.168.10.10 is configured at serial interface S0/0/1 of router R2.Router R2 is receiving hello packets from a neighbor with the IP address 192.168.10.10 via the R2 S0/0/1 interface.Scoring Rule For: correctness ofresponse2 points for Option 40 points for any other optionMax Value = 2This item references content from the following areas:CCNA Exploration: Routing Protocols and Concepts•9.5.1 The Null0 Summary Route10Which phase of the router boot process involves running diagnostics on the hardware components from ROM?performing the POSTloading the bootstrap programlocating and loading the Cisco IOS softwarelocating and loading the startup configuration fileScoring Rule For: correctness ofresponse2 points for Option 10 points for any other optioMax Value = 2This item references content from the following areas:CCNA Exploration: Routing Protocols and Concepts• 1.1.4 Router Boot-up Process11Refer to the exhibit. A network administrator adds this command to router R1: ip route 192.168.2.0 255.255.255.0 S0/0/0. W result of adding this command?This route is automatically propagated throughout the network.The traffic for network 172.16.1.0 is forwarded to network 192.168.2.0.A static route is established.The traffic for all Class C networks is forwarded to 172.16.1.2.Scoring Rule For: correctness of。

CCNA第二学期final - - 3（路由）1请参见图示。

Sales 网络中部署了一台新 PC。

它的主机地址为 192.168.10.31，默认网关为 192.168.10.17。

该 PC 无法与网络正常通信。

原因是什么？默认网关不正确。

该地址位于错误的子网中。

主机地址和默认网关设反了。

192.168.10.31 是该子网的广播地址。

下列关于链路状态路由协议的陈述，哪两项是正确的？（选择两项。

）链路状态路由协议了解整个网络的拓扑结构。

链路状态路由协议可以使大型网络快速达到收敛。

链路状态路由协议的路由更新中不包含子网掩码。

链路状态路由协议根据跳数从高到低的顺序来确定最佳路径。

链路状态路由协议不适合具有特定层次结构的网络。

链路状态路由协议仅向直连的邻居发送整个路由表。

2请参见图示。

排查网络故障时，理解各种路由器命令的输出非常重要。

根据图中显示的信息，下列哪三条叙述是正确的？（1 处缺少的信息为 show ip route 命令。

1 处缺少的信息为 debug ip route 命令。

2 处缺少的信息为数字 100。

2 处缺少的信息为数字 120。

3 处缺少的信息为字母 R。

3 处缺少的信息为字母 C。

3 OSPF 和 IS-IS 路由器在构建最短路径优先数据库时执行的第一个步骤是什么？获知直连网络发送 hello 以发现邻居并形成邻接关系选择后继路由器和可行后继路由器以传播拓扑表向所有邻居发送 LSP，通知它们所有已知的网络及其链路状态4网络管理员在所示网络图中的路由器 B 和 C 上启用了 RIP。

什么命令可防止向路由器 A 发送 RIP 更新？ A(config)# router ripA(config-router)# passive-interface S0/0B(config)# router ripB(config-router)# network 192.168.25.48 B(config-router)# network192.168.25.64 A(config)# router ripA(config-router)# no network 192.168.25.32B(config)# router ripB(config-router)# passive-interface S0/0A(config)# no router rip5IP 数据包报头中的 TTL 字段有什么作用？在无效计时器超时后从路由表中清除不可达路由防止定期更新消息错误地恢复可能已经出错的路由在清除计时器超时后从路由表中删除不可达路由限制数据包在被丢弃之前能够在网络中传输的时间长度或跳数用于在发往其它路由器的路由更新中将路由标记为不可达6如图所示的网络在路由流量时存在问题，怀疑这可能是编址方案所造成。

ccna考试题及答案1. 以下哪项是网络层的功能？A. 路由选择B. 错误检测C. 流量控制D. 封装数据包答案：A2. 在OSI模型中，哪一层负责在网络中传输数据？A. 应用层B. 传输层C. 会话层D. 网络层答案：D3. 以下哪个协议是用于在IP网络中发现网络设备的？A. ARPB. RARPC. ICMPD. OSPF答案：A4. 在TCP/IP模型中，哪一层与OSI模型的传输层相对应？A. 应用层B. 互联网层C. 网络接口层D. 传输层答案：D5. 以下哪个地址是一个有效的IPv4地址？A. 192.168.1.256B. 192.168.1.1C. 10.0.0.0D. 172.16.300.1答案：B6. 在配置路由器时，以下哪个命令用于进入全局配置模式？A. enableB. configure terminalC. privileged execD. user exec答案：B7. 以下哪个命令用于在Cisco设备上显示当前配置？A. show running-configB. show startup-configC. show configD. show current-config答案：A8. 在Cisco设备上，以下哪个命令用于保存当前的配置到启动配置文件？A. copy running-config startup-configB. copy startup-config running-configC. save running-configD. save startup-config答案：A9. 以下哪个命令用于在Cisco设备上查看所有接口的状态？A. show interfacesB. show ip interface briefC. show interface statusD. show running-config interface答案：B10. 在Cisco设备上，以下哪个命令用于关闭接口？A. shutdownB. no shutdownC. disableD. no enable答案：A11. 以下哪个命令用于在Cisco设备上启用接口？A. shutdownB. no shutdownC. disableD. no enable答案：B12. 在配置静态路由时，以下哪个命令用于指定下一跳地址？B. ip static-routeC. route ipD. static-route ip答案：A13. 以下哪个命令用于在Cisco设备上清除ARP表？A. clear arp-cacheB. clear arpC. clear arp tableD. clear ip arp答案：D14. 在配置动态路由协议时，以下哪个命令用于在接口上启用RIP？A. ip rip enableB. ip rip receiveD. network rip答案：C15. 以下哪个命令用于在Cisco设备上查看RIP路由表？A. show ip ripB. show ip route ripC. show ripD. show ip protocols答案：B16. 在配置EIGRP时，以下哪个命令用于指定自动汇总？A. metric weightsB. auto-summaryC. network auto-summaryD. no auto-summary答案：B17. 以下哪个命令用于在Cisco设备上查看EIGRP邻居？A. show ip eigrp neighborsB. show eigrp neighborsC. show ip eigrpD. show eigrp interfaces答案：A18. 在配置OSPF时，以下哪个命令用于指定路由器ID？A. router-idB. router ospfC. networkD. area答案：A19. 以下哪个命令用于在Cisco设备上查看OSPF路由表？A. show ip ospfB. show ip ospf databaseC. show ospfD. show ip route ospf答案：D20. 在配置VLAN时，以下哪个命令用于创建一个新的VLAN？A. vlan databaseB. configure terminalC. vlan [vlan-id]D. new-vlan答案：C21. 以下哪个命令用于将接口分配给VLAN？A. switchport mode accessB. switchport mode trunkC. switchport access vlan [vlan-id]D. switchport trunk vlan [vlan-id]答案：C22. 在配置交换机时，以下哪个命令用于将接口设置为Trunk 模式？A. switchport mode accessB. switchport mode trunkC. switchport access vlan [vlan-id]D. switchport trunk vlan [vlan-id]答案：B23. 以下哪个命令用于在Cisco设备上查看VLAN配置？A. show vlanB. show vlan briefC. show vlan detailD. show vlan all答案：B24. 在配置VTP时，以下哪个命令用于将交换机设置为VTP服务器模式？A. vtp mode serverB. vtp mode clientC. vtp mode transparentD. vtp mode off答案：A25. 以下哪个命令用于在Cisco设备上查看VTP状态？A. show vtp statusB. show vtp statisticsC. show vtp passwordD. show vtp configuration答案：A26. 在配置STP时，以下哪个命令用于设置根桥？A. spanning-tree root primaryB. spanning-tree root secondaryC. spanning-tree root primary [priority]D. spanning-tree root secondary [priority]答案：C27. 以下哪个命令用于在Cisco设备上查看STP状态？A. show spanning-treeB. show spanning-tree detailC. show spanning-tree summaryD. show spanning-tree interface答案：A28. 在配置VLAN Trunking Protocol (VTP) 时，以下哪个命令用于设置VTP域名？A. vtp domain [domain-name]B. vtp password [password]C. vtp mode [mode]D. vtp version [version]答案：A29. 以下哪个命令用于在Cisco设备上查看当前的VTP版本？A. show vtp statusB. show vtp statisticsC. show vtp passwordD. show vtp configuration答案：A30. 在配置端口安全时，以下哪个命令用于限制接口上可以学习到的最大MAC地址数量？A. switchport port-security maximum [mac-count]B. port-security maximum [mac-count]C. switchport port-security violation restrictD. port-security violation shutdown答案：A这些题目和答案仅供学习和参考之用，实际的CCNA考试内容和形式可能会有所不同。
