Copyright © Cirrus Logic, Inc. 2008(All Rights Reserved)

http://www.cirrus.comCS5532/34-BS

24-bit ∆Σ ADCs with Ultra-low-noise PGIAFeatures

󰂉Chopper-stabilized PGIA (Programmable Gain Instrumentation Amplifier, 1x to 64x)–6 nV/√Hz @ 0.1 Hz (No 1/f noise) at 64x–1200pA Input Current with Gains >1

󰂉Delta-sigma Analog-to-digital Converter–Linearity Error: 0.0007% FS–Noise-free Resolution: Up to 23 bits

󰂉Two- or Four-channel Differential MUX

󰂉Scalable Input Span via Calibration –±5 mV to differential ±2.5V

󰂉Scalable VREF Input: Up to Analog Supply

󰂉Simple Three-wire Serial Interface–SPI™ and Microwire™ Compatible–Schmitt Trigger on Serial Clock (SCLK)

󰂉R/W Calibration Registers Per Channel

󰂉Selectable Word Rates: 6.25 to 3,840 Sps

󰂉Selectable 50 or 60 Hz Rejection

󰂉Power Supply Configurations–VA+ = +5 V; VA- = 0 V; VD+ = +3 V to +5 V–VA+ = +2.5 V; VA- = -2.5 V; VD+ = +3 V to +5 V–VA+ = +3 V; VA- = -3 V; VD+ = +3 VGeneral Description

The CS5532/34 are highly integrated ∆Σ Analog-to-Digi-tal Converters (ADCs) which use charge-balancetechniques to achieve 24-bit performance. The ADCsare optimized for measuring low-level unipolar or bipolarsignals in weigh scale, process control, scientific, andmedical applications.

To accommodate these applications, the ADCs come aseither two-channel (CS5532) or four-channel (CS5534)devices and include a very low-noise, chopper-stabilizedinstrumentation amplifier (6 nV/√Hz @ 0.1 Hz) with se-lectable gains of 1×, 2×, 4×, 8×, 16×, 32×, and 64×.These ADCs also include a fourth-order ∆Σ modulatorfollowed by a digital filter which provides twenty selectableoutput word rates of 6.25, 7.5, 12.5, 15, 25, 30, 50, 60, 100,120, 200, 240, 400, 480, 800, 960, 1600, 1920, 3200, and3840 Sps (MCLK=4.9152MHz).

To ease communication between the ADCs and a micro-controller, the converters include a simple three-wire se-rial interface which is SPI™ and Microwire™ compatiblewith a Schmitt-trigger input on the serial clock (SCLK).

High dynamic range, programmable output rates, andflexible power supply options makes these ADCs idealsolutions for weigh scale and process controlapplications.

ORDERING INFORMATIONSee page47

VA+C1C2VREF+VREF-VD+

DIFFERENTIAL4TH ORDER ∆ΣMODULATORPGIA1,2,4,8,16PROGRAMMABLESINC FIR FILTER

MUX(CS5534SHOWN)AIN1+AIN1-AIN2+AIN2-AIN3+AIN3-AIN4+AIN4-SERIALINTERFACE

LATCHCLOCKGENERATORCALIBRATIONSRAM/CONTROLLOGIC

DGNDCSSDISDOSCLK

OSC2OSC1A1A0/GUARDVA-32,64

OCT ‘08DS755F3

http://oneic.com/CS5532/34-BS

2DS755F3TABLE OF CONTENTS

1.CHARACTERISTICS AND SPECIFICATIONS ..........................................................4ANALOG CHARACTERISTICS..........................................................................4TYPICAL RMS NOISE (NV)...............................................................................7TYPICAL NOISE-FREE RESOLUTION(BITS)...................................................75 V DIGITAL CHARACTERISTICS....................................................................83 V DIGITAL CHARACTERISTICS....................................................................8DYNAMIC CHARACTERISTICS........................................................................9ABSOLUTE MAXIMUM RATINGS.....................................................................9SWITCHING CHARACTERISTICS..................................................................102.GENERAL DESCRIPTION .......................................................................................122.1.Analog Input ....................................................................................................122.1.1. Analog Input Span ....................................................................................132.1.2. Multiplexed Settling Limitations ............................................................132.1.3. Voltage Noise Density Performance .....................................................132.1.4. No Offset DAC ......................................................................................142.2.Overview of ADC Register Structure and Operating Modes ............................142.2.1. System Initialization ..............................................................................152.2.2. Serial Port Interface ..............................................................................222.2.3. Reading/Writing On-Chip Registers ......................................................232.3.Configuration Register .....................................................................................232.3.1. Power Consumption .............................................................................232.3.2. System Reset Sequence ......................................................................232.3.3. Input Short ............................................................................................242.3.4. Guard Signal .........................................................................................242.3.5. Voltage Reference Select .....................................................................242.3.6. Output Latch Pins .................................................................................242.3.7. Offset and Gain Select ..........................................................................252.3.8. Filter Rate Select ..................................................................................252.4.Setting up the CSRs for a Measurement .........................................................272.5.Calibration ........................................................................................................302.5.1. Calibration Registers ............................................................................302.5.2. Performing Calibrations ........................................................................312.5.3. Self Calibration .....................................................................................312.5.4. System Calibration ................................................................................322.5.5. Calibration Tips .....................................................................................322.5.6. Limitations in Calibration Range ...........................................................332.6.Performing Conversions ..................................................................................332.6.1. Single Conversion Mode .......................................................................332.6.2. Continuous Conversion Mode ..............................................................342.6.3. Examples of Using CSRs to Perform Conversions and Calibrations ....352.7.Using Multiple ADCs Synchronously ...............................................................362.8.Conversion Output Coding ..............................................................................362.9.Digital Filter ......................................................................................................382.10.Clock Generator ...............................................................................................392.11.Power Supply Arrangements ...........................................................................392.12.Getting Started ................................................................................................432.13.PCB Layout .....................................................................................................433.PIN DESCRIPTIONS ...............................................................................................444.SPECIFICATION DEFINITIONS ...............................................................................465.ORDERING INFORMATION .....................................................................................476.ENVIRONMENTAL, MANUFACTURING, & HANDLING INFORMATION ..............477.PACKAGE DRAWINGS ...........................................................................................48

合集下载

KC52A9.501NPS;中文规格书,Datasheet资料

KC52A9.501NPS;中文规格书,Datasheet资料

ISOMETERIC

TITLE

SCALEDATEDRDWGREVTHE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARYTO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERREDSHEET OF

REVPCR NODESCRIPTIONDATEBYKC52A9.501NPS

1.5:16/26/2007G529690DTN1 1

A

1 2 3 4 5 6 7 8 9101112

CONTACT CONFIGURATIONTIMING (BBM) NON-SHORTING

112

11

10

9

8

765432

A

P.C.B MOUNTING LAYOUT8.00[.315 in]14.20[.559 in]

2.00[.079 in]

9.50[.374 in]

2.00[.079 in]

15.90[.626 in]3.70[.146 in]27.50[1.083 in]n26.00[1.024 in]

NOTE: 1. ALL DIMENSIONS IN MM[INCH]. 2. GENERAL TOLERANCE: X.X=`0.4 X.XX=`0.25 3. TERM. NOS. FOR REFERENCE ONLY. 4. CONTACT MATERIAL: SILVER 5. CONTACT RATING: 150MILLIAMP, 250VAC/DC 350MILLIAMP, 110VAC/DC 6. CONTACT RATING (NON-SWITCHING) 5A 7. OPERATING FORCE: 425`100CM/STANDARD 8. OPERATING TEMP: -30~C TO 85~C 9. CIRCUIT SP: 12 POSITION 30~ INDEX.10. DIELECTRIC STRENGTH: 500VAC FOR 1 MIN.11. HARDWARE SUPPLIED ON SWITCH: LOCKWASHER, HEXNUT12. DENOTES CRITICAL PARAMETER.13. 2002/95/EC (ROHS) COMPLIANTHARDWARE SUPPLIEDON SWITCH

5504;5524;5501;5502;5503;中文规格书,Datasheet资料

5504;5524;5501;5502;5503;中文规格书,Datasheet资料

22.5Tel. (877) 426-8767 • Fax (951) 781-5006

† RoHS COMPLIANTHigh Current Chokes

5500 Series

PartNumber L (µH)±20 %@ 1 KHz DCRΩMax. I, DC*(A)Dim.AMax.Dim.BMax.Dim.C±.06 Dim.D±. 005 5501-RC 5 0.013 10 0.88 0.63 0.50 0.042 5502-RC 10 0.017 9 1.12 0.63 0.69 0.042 5503-RC 27 0.030 7 0.88 0.81 0.44 0.042 5504-RC 50 0.045 5.6 0.88 0.81 0.75 0.042 5505-RC 100 0.061 4.9 1.12 0.81 0.94 0.042 5506-RC 150 0.069 4.6 1.38 0.81 1.06 0.042 5507-RC 250 0.089 4 1.62 0.81 1.31 0.042 5508-RC 5 0.009 14 0.88 0.64 0.75 0.053 5509-RC 10 0.012 12 1.12 0.64 1.00 0.053 5510-RC 27 0.022 9 0.88 0.88 0.56 0.053 5511-RC 50 0.028 8 1.12 0.88 0.75 0.053 5512-RC 68 0.034 7.3 1.12 0.88 0.88 0.053 5513-RC 100 0.038 6.8 1.38 0.88 1.00 0.053 5514-RC 150 0.046 6.3 1.62 0.88 1.25 0.053 5515-RC 5 0.006 19 1.12 0.69 0.81 0.065 5516-RC 10 0.008 16 1.38 0.69 1.22 0.065 5517-RC 27 0.014 12.5 1.12 0.94 0.69 0.065 5518-RC 50 0.020 10.5 1.38 0.94 0.94 0.065 5519-RC 68 0.023 10 1.38 0.94 1.12 0.065 5520-RC 100 0.027 10 1.62 0.94 1.31 0.065 5521-RC 5 0.004 23 1.38 0.72 0.94 0.082 5522-RC 10 0.006 20 1.69 0.72 1.50 0.082 5523-RC 27 0.010 15 1.38 1.00 0.94 0.082 5524-RC 50 0.013 15 1.62 1.00 1.12 0.082 Special Features• Very high current capacity• Low DCR• Ferrite core• VW-1 rated shrink tubing to cover winding• Fixed lead spacing• Operating temperature: -55 to +105 °C

CS5529-ASZ;CS5529-ASZR;中文规格书,Datasheet资料

CS5529-ASZ;CS5529-ASZR;中文规格书,Datasheet资料

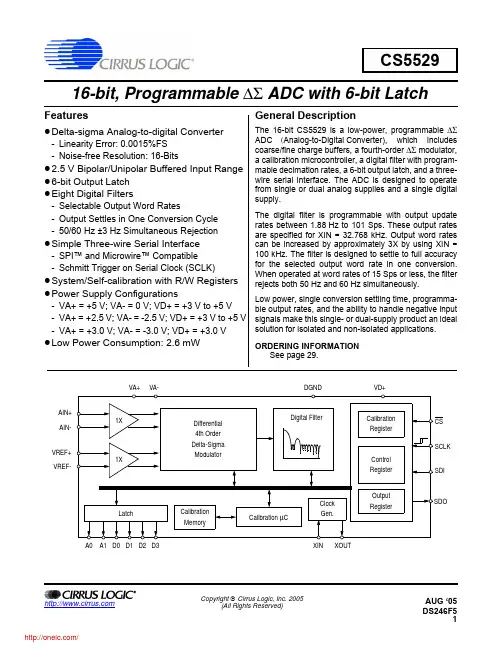

1Copyright © Cirrus Logic, Inc. 2005(All Rights Reserved)
